lights behind gauges

[Marks89GT]

So i replaced my dash and when i reinstalled everything the lights behind the gauges dont work. My headlights turn on my blinkers work and my battery and check engine lights work just fine. my gauges are correct as well. completely normal while day driving. Now i distinctly remember them working when i first plugged them in. I checked the fuse and its fine. is something maybe not grounded? where is the ground wire for this? is the dimmer maybe on a different fuse? please help!



[ID89GT]

Do the lights behind the a/c controls work?



[foxbodymike87]

So i replaced my dash and when i reinstalled everything the lights behind the gauges dont work. My headlights turn on my blinkers work and my battery and check engine lights work just fine. my gauges are correct as well. completely normal while day driving. Now i distinctly remember them working when i first plugged them in. I checked the fuse and its fine. is something maybe not grounded? where is the ground wire for this? is the dimmer maybe on a different fuse? please help!

Even though you said you remember it working, dimmer switches are extremely faulty so it could be that.



[Marks89GT]

Do the lights behind the a/c controls work?

i will have to take another look. i dont believe so but im not 100% sure they ever worked. lol

Even though you said you remember it working, dimmer switches are extremely faulty so it could be that.

i think it may have been working before i installed the dimmer switch. i reconnected the batt prior to make sure everything was in working order then installed the dimmer switch. forgot to dissconnect batt again though so maybe i shorted the fuse? thats why i asked if its on a diff fuse. it wasnt on the list of fuses...



[jrichker]

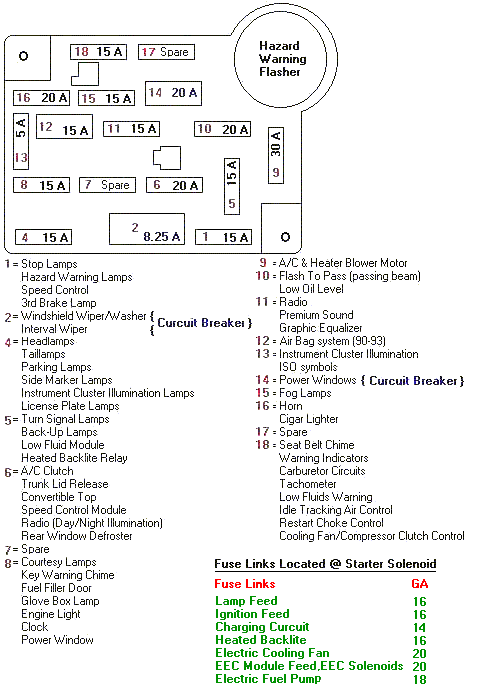

Check the fuse box layout below...

Diagram courtesy of Tmoss & Stang&2birds

See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring Mustang FAQ - Wiring & Engine Info Everyone should bookmark this site.

Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

Fuel, alternator, A/C and ignition wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

Complete computer, actuator & sensor wiring diagram for 88-91 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

Complete computer, actuator & sensor wiring diagram for 91-93 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/91-93_5.0_EEC_Wiring_Diagram.gif

Vacuum diagram 89-93 Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg

HVAC vacuum diagram
http://www.veryuseful.com/mustang/tech/engine/images/Mustang_AC_heat_vacuum_controls.gif

TFI module differences & pinout
http://www.veryuseful.com/mustang/tech/engine/images/TFI_5.0_comparison.gif

Fuse box layout
http://www.veryuseful.com/mustang/tech/engine/images/MustangFuseBox.gif



[ID89GT]

If none of the other lights work then I would put money on the dimmer switch, as long as all the fuses are good



[Stever89]

Another vote for that crappy dimmer.
