Line Lock Fittings...

Discussion in 'Fox 5.0 Mustang Tech' started by srtthis, Jan 27, 2014.


  1. srtthis

    srtthis the guy doing it does every local racers rear end

    Joined:
    Jul 4, 2009
    Messages:
    3,818
    Likes Received:
    425
    Trophy Points:
    114
    does anyone have a list of fittings needed to do a line lock install? bending the tubing and doing the flares isnt an issue. i just dont want to have to use a bunch of adaptors. so my plan is to get the fittings i need for each spot and doing everything for scratch. ive tried googling i havent found anything.

    the MC is a bubble flare off the top of my head
    and the prop valve is a double flair.

    i know i'll need to get 2 fittings for the line lock but thats to be expected
    #1
  2. RangerJoe

    RangerJoe Advanced Member

    Joined:
    Apr 27, 2010
    Messages:
    1,099
    Showcase:
    3
    Albums:
    1
    Likes Received:
    144
    Trophy Points:
    74
    Are you using an adjustable proportioning valve? If so, here is what I did. I deleted the stock PV all together. I cut off all the end fittings at the PV. I then went to Napa and bought all new fittings and connectors. I believe the stock lines are 3/16". I ran off the MC to the rear line, bypassing the PV. I then ran out the front MC connection to my LL. I then came out the two exits on the LL to each of the front wheels. It was a lot of flaring, but way clean in my opinion.

    Joe

    Oh yeah, I carried the LL to Napa in order to match up the sizes that I needed. The inlets and outlets on the LL are NPT if I remember correctly. Your LL should have come with the NPT to double flare adapter. I think I stuck with that same double flare size for everything (been a couple of years now).

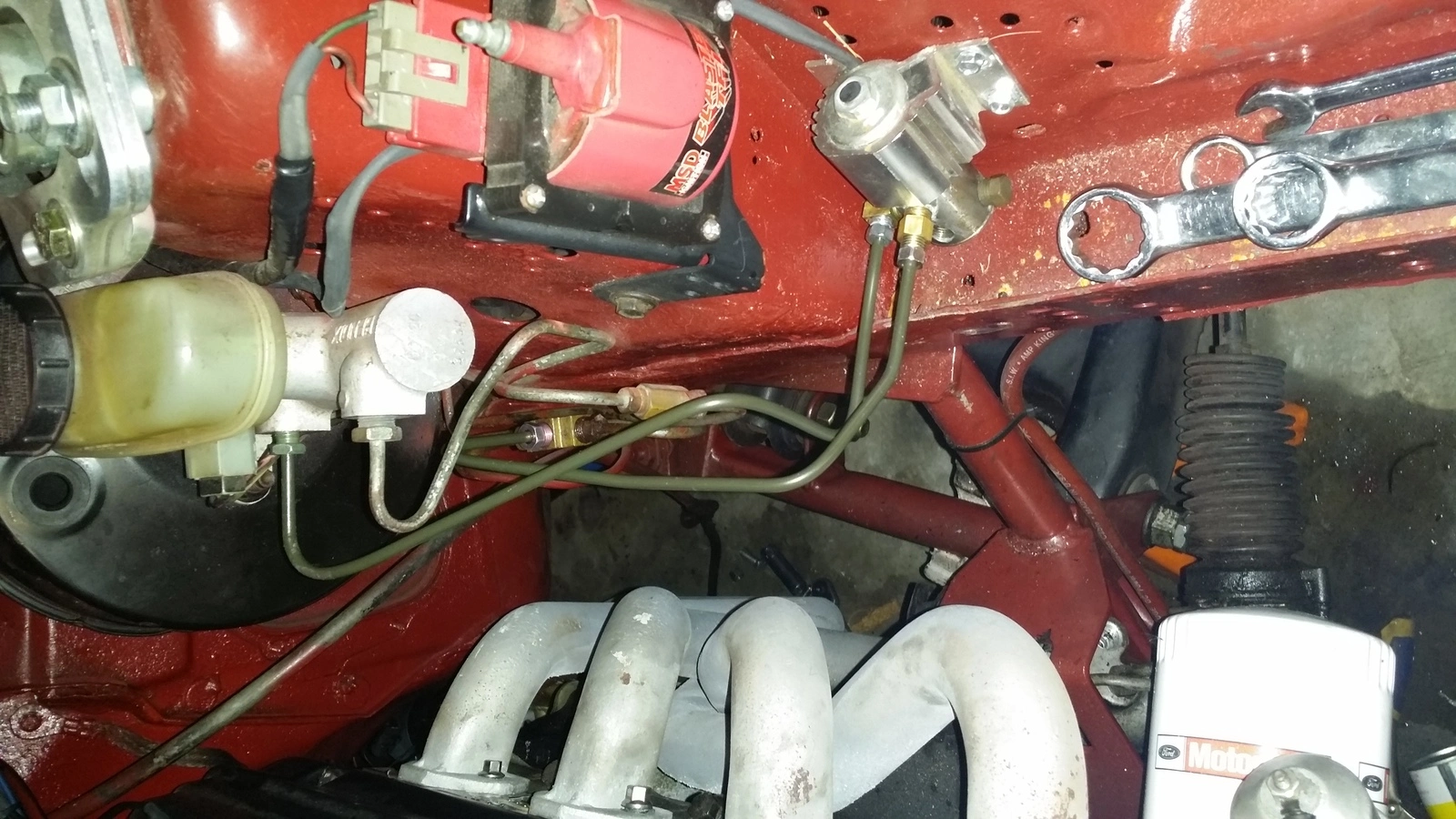

    Attached Files:

    #2
  3. srtthis

    srtthis the guy doing it does every local racers rear end

    Joined:
    Jul 4, 2009
    Messages:
    3,818
    Likes Received:
    425
    Trophy Points:
    114
    What size fitting did you use on the MC?
    #3
  4. RangerJoe

    RangerJoe Advanced Member

    Joined:
    Apr 27, 2010
    Messages:
    1,099
    Showcase:
    3
    Albums:
    1
    Likes Received:
    144
    Trophy Points:
    74
    M10X1 and M12X1. I reused the stock connectors. I just cut the flare off the old lines then transferred the fittings onto my new lines, then reflared and bent to fit. I used a 94-95 MC FYI.

    Joe
    #4
  5. srtthis

    srtthis the guy doing it does every local racers rear end

    Joined:
    Jul 4, 2009
    Messages:
    3,818
    Likes Received:
    425
    Trophy Points:
    114
    Guess I need to rent a bubble flare tool
    #5
  6. Bill Gordon

    Bill Gordon Active Member

    Joined:
    Sep 21, 2012
    Messages:
    119
    Likes Received:
    12
    Trophy Points:
    29
    I installed the Hurst line lock this past summer. I did use the Hurst tubing kit and Fox specific adapters. It wasn't bad and sure made the install go a lot faster.
    #6
  7. RangerJoe

    RangerJoe Advanced Member

    Joined:
    Apr 27, 2010
    Messages:
    1,099
    Showcase:
    3
    Albums:
    1
    Likes Received:
    144
    Trophy Points:
    74
    If I remember correctly, the double flare tool should make a bubble flare too. I seriously leanrned how to do it off of YouTube. I practiced on some scrap brake line first.

    Joe
    #7
  8. srtthis

    srtthis the guy doing it does every local racers rear end

    Joined:
    Jul 4, 2009
    Messages:
    3,818
    Likes Received:
    425
    Trophy Points:
    114
    ive heard that also... think you just do the first flare...

    so looks like i need to get a M10X1 tubing nut and a few NPT to flare nut fittings
    #8
  9. srtthis

    srtthis the guy doing it does every local racers rear end

    Joined:
    Jul 4, 2009
    Messages:
    3,818
    Likes Received:
    425
    Trophy Points:
    114
    MC fitting part number
    BLF-39C-5

    i'll add more as i pick them up
    #9
  10. RangerJoe

    RangerJoe Advanced Member

    Joined:
    Apr 27, 2010
    Messages:
    1,099
    Showcase:
    3
    Albums:
    1
    Likes Received:
    144
    Trophy Points:
    74
    Yep, that looks like one of them.

    Joe
    #10
  11. srtthis

    srtthis the guy doing it does every local racers rear end

    Joined:
    Jul 4, 2009
    Messages:
    3,818
    Likes Received:
    425
    Trophy Points:
    114
    I will list all the fittings soon

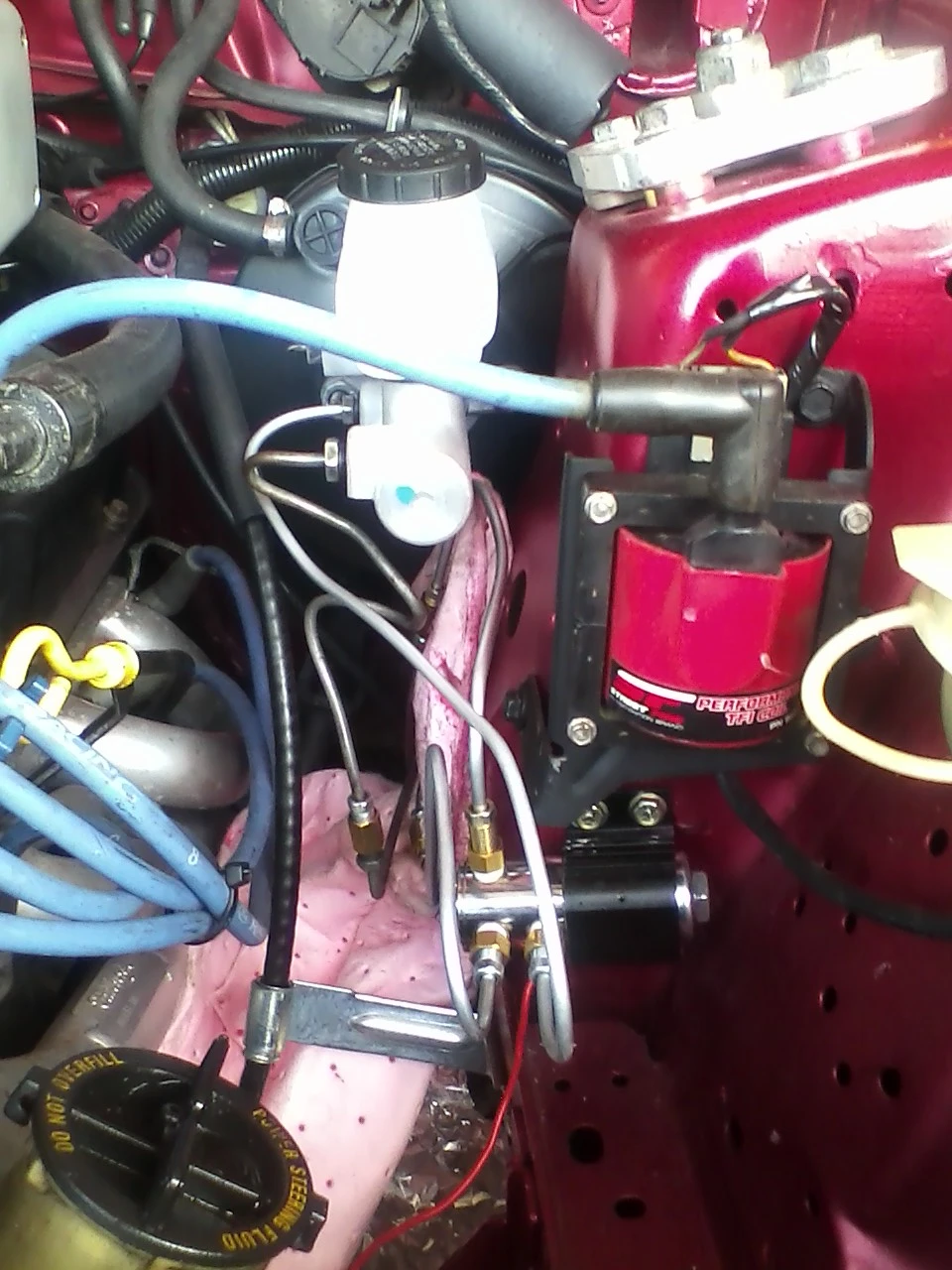

    Attached Files:

    #11
  12. RangerJoe

    RangerJoe Advanced Member

    Joined:
    Apr 27, 2010
    Messages:
    1,099
    Showcase:
    3
    Albums:
    1
    Likes Received:
    144
    Trophy Points:
    74
    Looks like you got it straightened out. Good job!

    Joe
