looking for PICS of Homemade Cold Air Inductions kit

Discussion in '1994 - 1995 Specific Tech' started by ZarnAutomotive, Oct 19, 2003.


  1. GTJake

    Founding Member

    Joined:
    Oct 29, 2002
    Messages:
    3,055
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Ann Arbor, MI
    Yeah, my selection of bits is pretty limited. So I used a file and drill bit combo to get a perfect fit.

    Jake

    #21
  2. HoofnIt

    Founding Member

    Joined:
    Jan 8, 2001
    Messages:
    1,178
    Likes Received:
    0
    Trophy Points:
    36
    Location:
    North Carolina
    Almost forgot, make sure you index the sensor when it's inserted in the tube. The idea is to let the orange sensor get clean air and not get obstruted air by the plastic 'U' which surrounds the sensor. Does that make sense?

    #22
  3. RIO5.0

    RIO5.0 Mustang Master

    Joined:
    Feb 17, 2001
    Messages:
    6,877
    Likes Received:
    3
    Trophy Points:
    88
    Location:
    N.H.

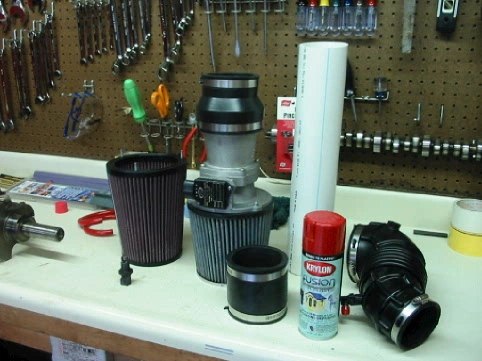

    Here's what youll need....

    PCV 2'...2 Ferncos..paint...5/8 Speed-bit for the IAT sensor...


    Attached Files:

    #23
  4. RIO5.0

    RIO5.0 Mustang Master

    Joined:
    Feb 17, 2001
    Messages:
    6,877
    Likes Received:
    3
    Trophy Points:
    88
    Location:
    N.H.

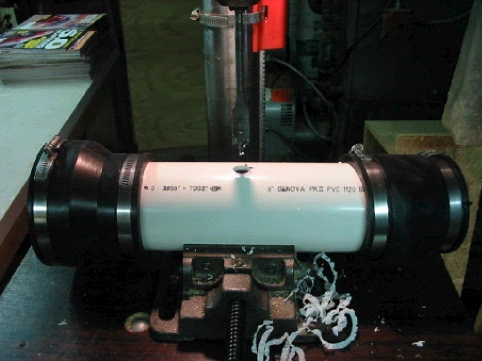

    I used a 5/8 Speed-Bit to drill the IAT hole...It will thread right in perfect....i didn't see a need to RTV it in place...just threaded in in til the sensor was as Hoffnit mentioned....


    Attached Files:

    #24
  5. GTJake

    Founding Member

    Joined:
    Oct 29, 2002
    Messages:
    3,055
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Ann Arbor, MI
    Hey Andy can you post some pics of that mud flap you used to block off the CAI? I think that really cleans things up. I'm thinking about doing that sometime.

    Thanks

    Jake

    #25
  6. 95snoozer

    95snoozer New Member

    Joined:
    Dec 14, 2002
    Messages:
    2,572
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    RCR
    werd... the U should be turned so the air flows through the ring :nice:

    #26
  7. RIO5.0

    RIO5.0 Mustang Master

    Joined:
    Feb 17, 2001
    Messages:
    6,877
    Likes Received:
    3
    Trophy Points:
    88
    Location:
    N.H.
  8. GTJake

    Founding Member

    Joined:
    Oct 29, 2002
    Messages:
    3,055
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Ann Arbor, MI
    I can't access that. It's under the Gold Member screen.

    Jale

    #28
  9. madams74

    Founding Member

    Joined:
    Jan 27, 2002
    Messages:
    667
    Likes Received:
    0
    Trophy Points:
    17
    Location:
    Maryville, TN
    OINK has a magical orb that cleans his engine bay at night. Cant you see it? Magic I tell ya!

    #29
  10. RIO5.0

    RIO5.0 Mustang Master

    Joined:
    Feb 17, 2001
    Messages:
    6,877
    Likes Received:
    3
    Trophy Points:
    88
    Location:
    N.H.
  11. GTJake

    Founding Member

    Joined:
    Oct 29, 2002
    Messages:
    3,055
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Ann Arbor, MI
    Awesome. How did you attach the mudflap to the fender?

    Thanks

    Jake

    #31
  12. 95snoozer

    95snoozer New Member

    Joined:
    Dec 14, 2002
    Messages:
    2,572
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    RCR
    they sell sheats of brushed aluminum at craft stores... they will work out nicely

    #32
  13. Rains

    Founding Member

    Joined:
    Oct 15, 2002
    Messages:
    314
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Chico, CALIFORNIA!!!
    i was building mine today and had a question- i'm almost done all i need is the right rubber boot ( fernco ) that fits over the 4" PVC and the stock Throttle Body

    anyone know what size to get for that???

    i tried using the 4" X 3" one and the 3" side was too big...

    I just got the 4" x 2" and it looks like it's going to be too small.... am i going to have to get the one that is 3" all the way across, the straight one?? or... am am i just
    :bang:


    oh- and where do i get the Filter to MAF adapter??

    #33
  14. GTJake

    Founding Member

    Joined:
    Oct 29, 2002
    Messages:
    3,055
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Ann Arbor, MI
    Just tighten the 3" end over the TB so that it fits tight. It seems like it's going to be too big but just keep tightening and it works perfect. I got my MAF adapter off ebay, but I don't see one on there now. www.uprproducts.com has one too.

    Jake

    #34
  15. GTJake

    Founding Member

    Joined:
    Oct 29, 2002
    Messages:
    3,055
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Ann Arbor, MI
    #35
  16. Rains

    Founding Member

    Joined:
    Oct 15, 2002
    Messages:
    314
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Chico, CALIFORNIA!!!
    LOL- i guess i'm going to have to back to Home Depot to get the 3"er back :D

    LOL I guess i could have tried tightening it a bit

    thanks for the Help GTJake

    I just got done painting mine, it's going to be silver like Oinks (above...somewhere...)

    i'll take a look at the adapter- thanks again

    #36
  17. RIO5.0

    RIO5.0 Mustang Master

    Joined:
    Feb 17, 2001
    Messages:
    6,877
    Likes Received:
    3
    Trophy Points:
    88
    Location:
    N.H.
    Its held in place with one screw, you can see it in the last pic on that link....there is a slot up next to the headlight that it slides behind, it holds that corner in place...

    make a cardboard template...then when you have the fit as you like, transfer it to whatever you use....its a funky one to cut and fit around all the stuff...but the end product looks much better....

    #37
  18. VIPERn94Five-0

    Founding Member

    Joined:
    Apr 29, 2002
    Messages:
    3,352
    Likes Received:
    0
    Trophy Points:
    56
    Location:
    Poughkeepsie, NY
    im a little late but here is mine....havnt had a chance to put a painted piece in there yet but you get the idea.....

    [​IMG]
    [​IMG]

    these pics were too big for stangnet
    http://www.mustangmods.com/data/1712/p1010016_1.jpg
    http://www.mustangmods.com/data/1712/p1010014_1.jpg

    and my patented homemade ram air system.....
    http://www.mustangmods.com/data/1712/p1010009_1.jpg
    here is my setup and my buddy brett giving it his "seal of approval"
    http://www.mustangmods.com/data/1712/p1010008_1.jpg
    brett looking on in disbelief
    http://www.mustangmods.com/data/1712/p1010007_1.jpg

    #38
  19. mighty_mike

    Founding Member

    Joined:
    Feb 27, 2001
    Messages:
    161
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Vancouver B.C.
    what did you guys use to cut the fender to make the filter fit in there? did you paint over the cut part so its not raw metal showing?

    #39
  20. VIPERn94Five-0

    Founding Member

    Joined:
    Apr 29, 2002
    Messages:
    3,352
    Likes Received:
    0
    Trophy Points:
    56
    Location:
    Poughkeepsie, NY
    i was gonna use a dremel but my dad was upstairs sleeping so i didnt want to make a ton of noise in the garage, so i used tin-snips....the cut was kinda jagged(sp?) but it worked fine...i actually cut more off then i needed...currently its just covered in electical tape to cover the bare metal but once i get some time(winter break from school) im gonna get in there sand it all nice and use some touch up paint....and then make a "cover" like RIO to make it look real OEM

    #40
