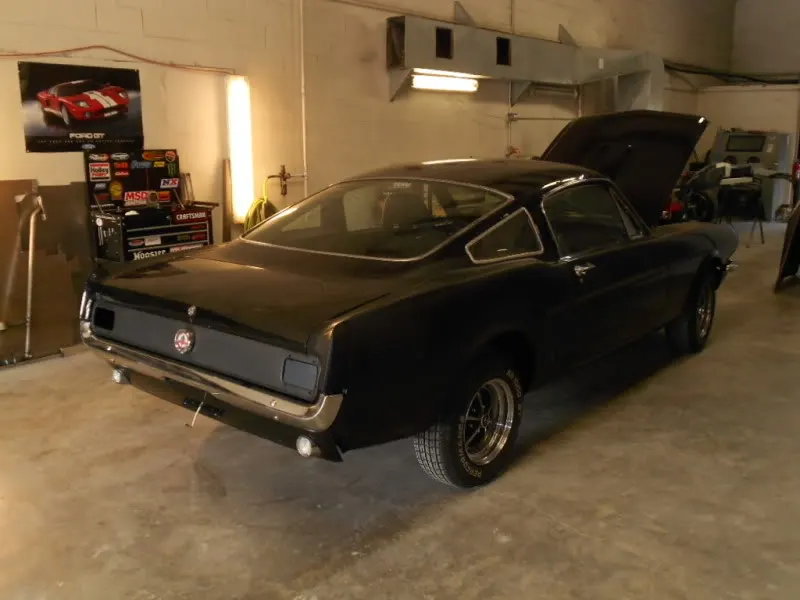

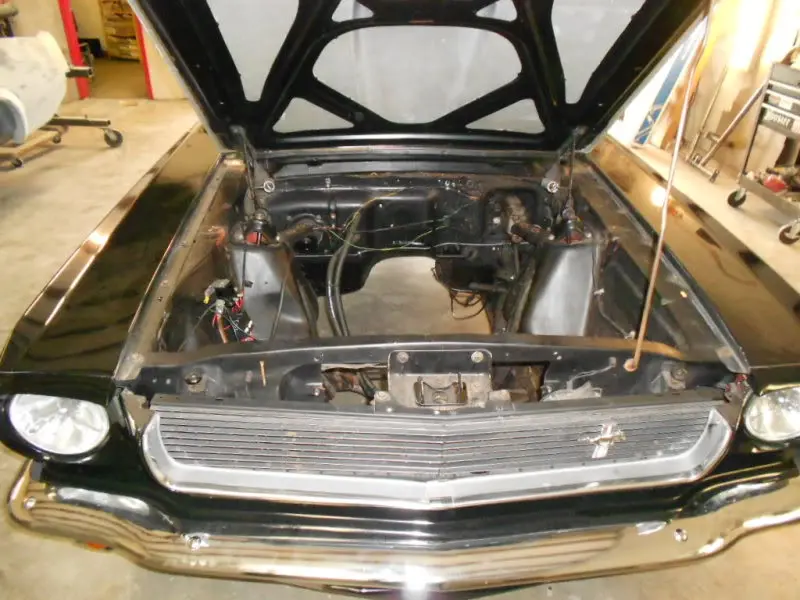

    Today we will be starting the install of the new TCI front suspension for a Coyote for the magazine project car. This is what we are starting with.



    I won't be able to give you a lot of details you will have to follow along in the magazine.

    #1
  2. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    726
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl

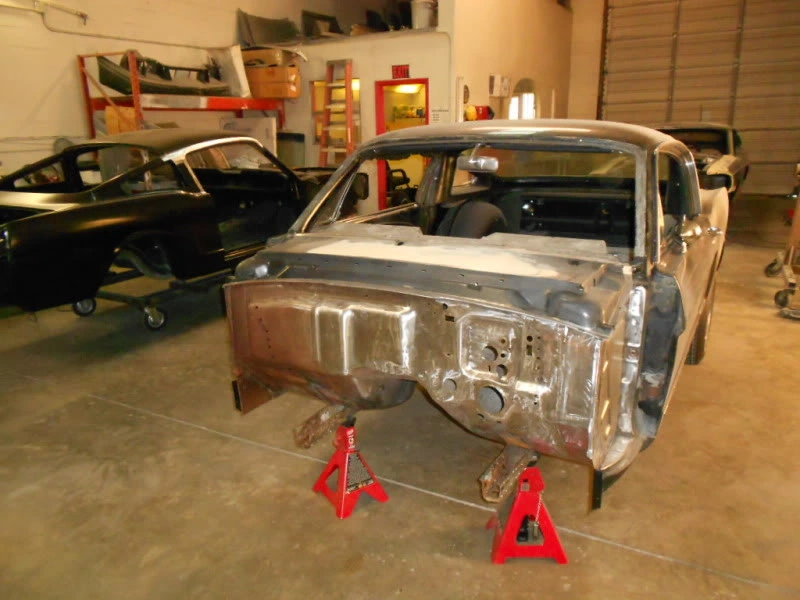

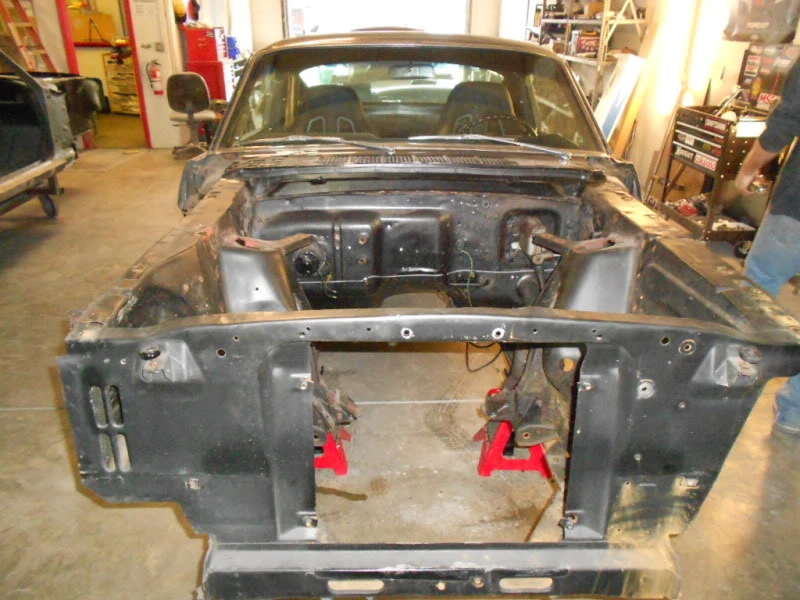

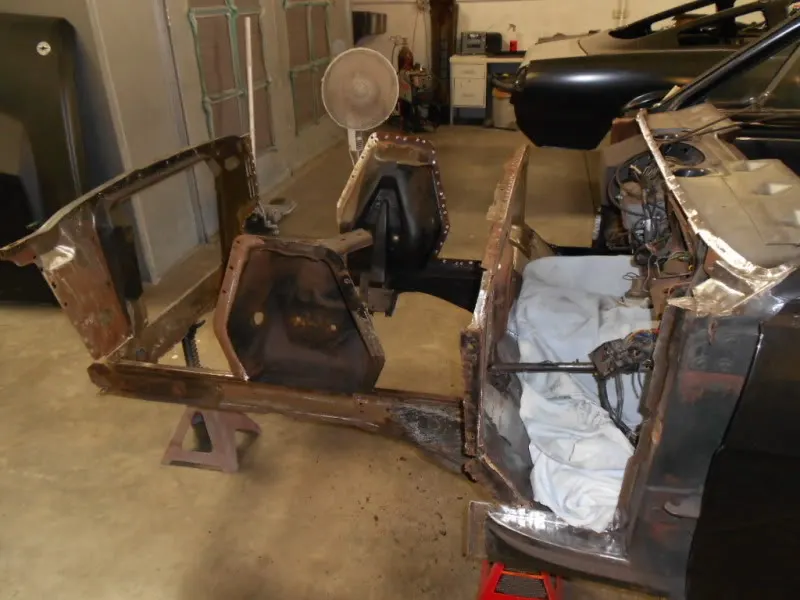

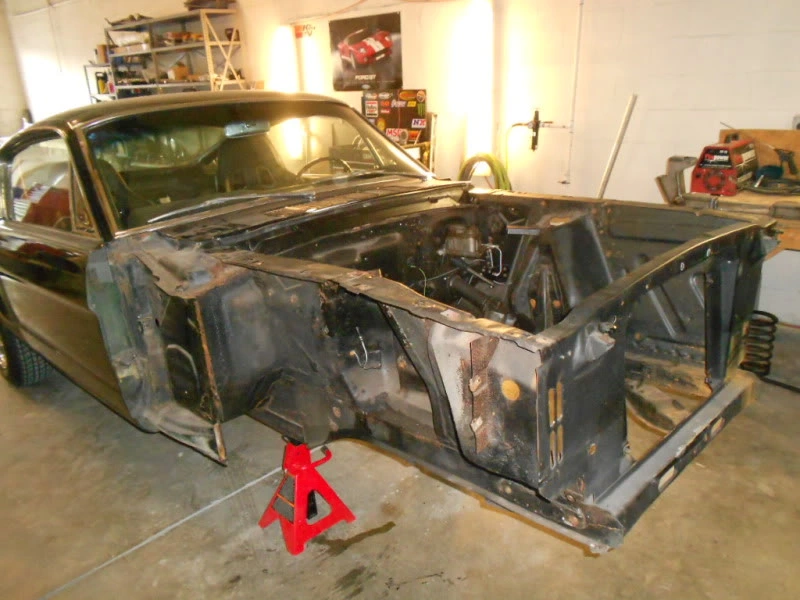

    This afternoon we removed the front end sheetmetal and front suspension.



    #2
  3. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    726
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl
    Before we can remove the shock towers and start the TCI install we have some rust to repair.



    #3
  4. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    726
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl
    We found more rust we need to fix before we can cut out the shock towers.


    #4
  5. mustangmike6996

    Joined:
    Nov 10, 2005
    Messages:
    461
    Likes Received:
    1
    Trophy Points:
    19
    Location:
    clinton twp, MI
    ohhhh this looks fun!

    #5
  6. 68keyblr

    68keyblr Member

    Joined:
    Mar 17, 2003
    Messages:
    897
    Likes Received:
    4
    Trophy Points:
    19
    Location:
    Arizona
    Signing up for this one! :pop:

    #6
  7. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    726
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl

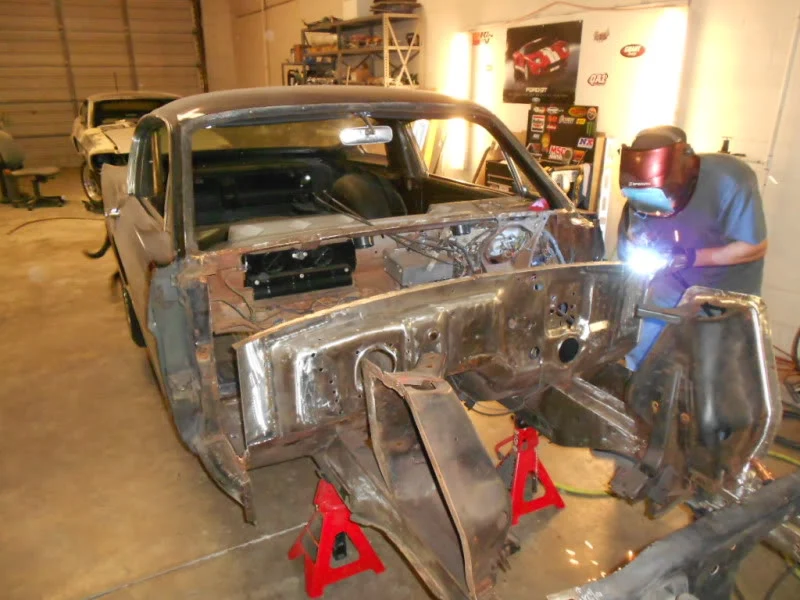

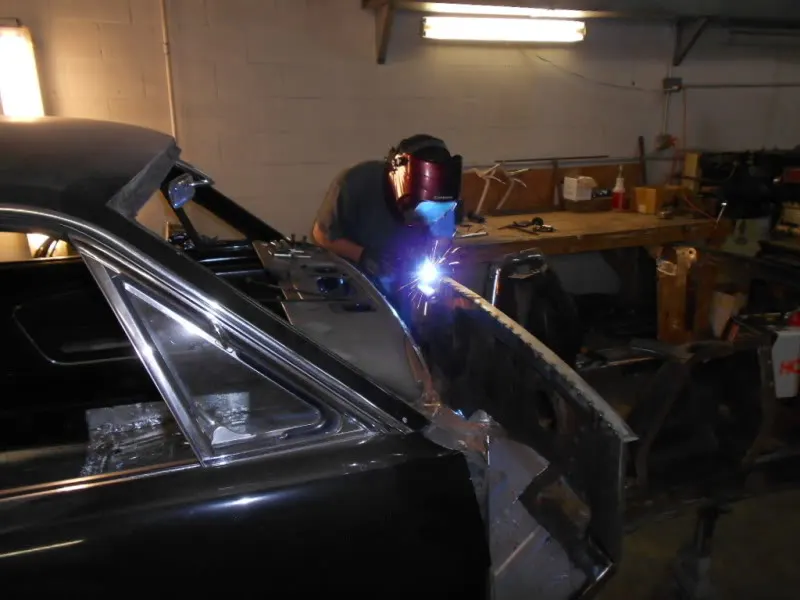

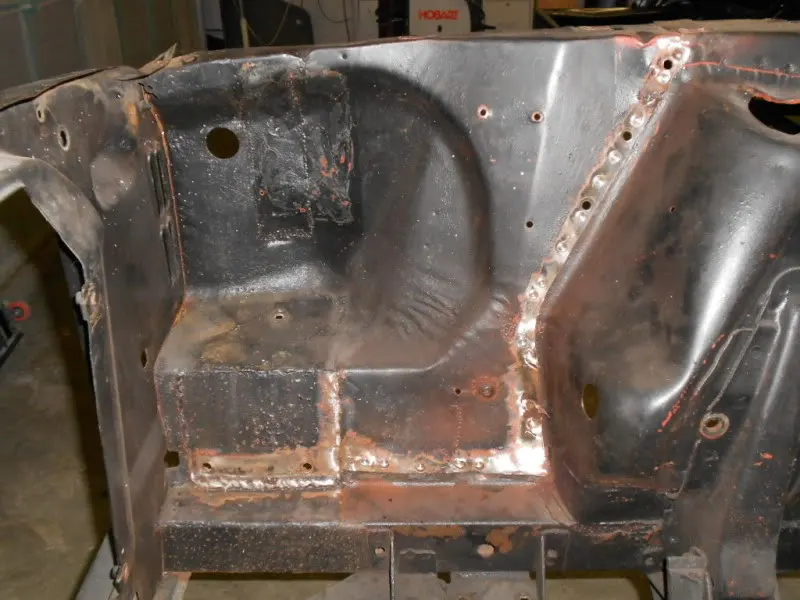

    Brian is welding patches on the firewall before replacing the cowl



    #7
  8. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    726
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl

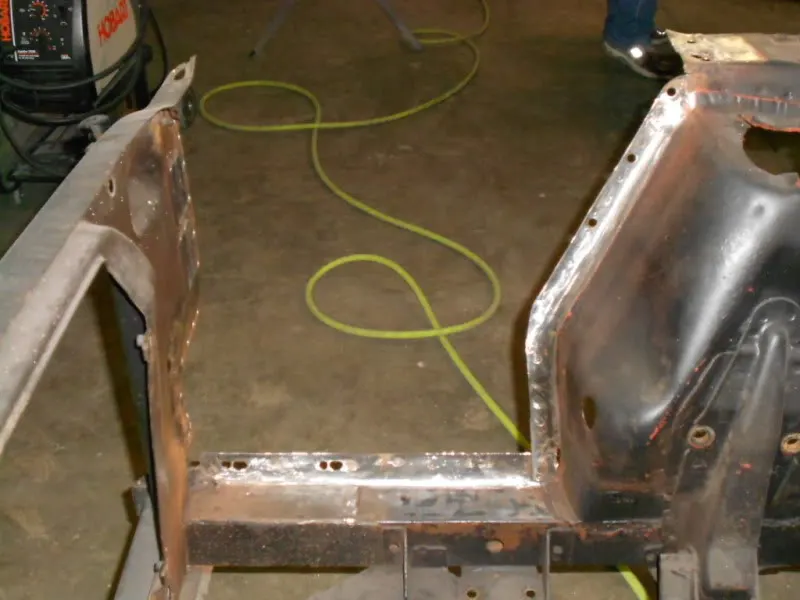

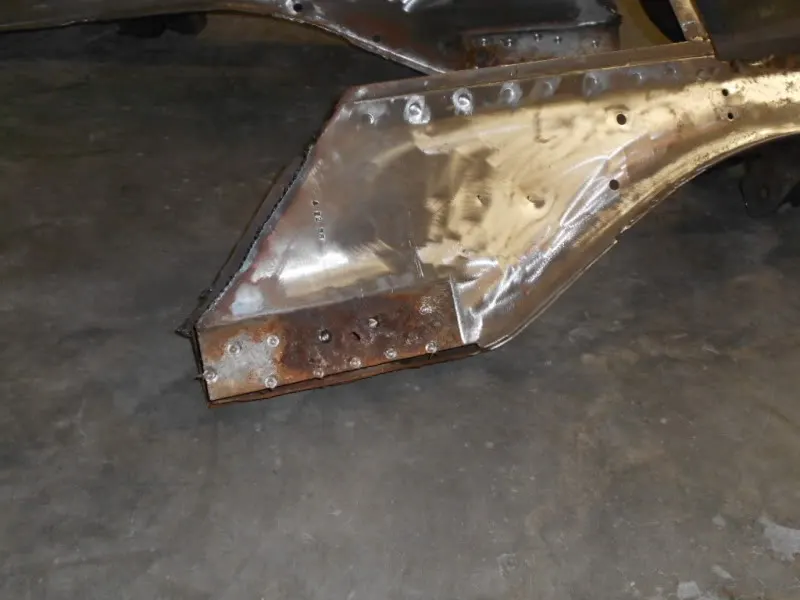

    After looking it over we found rust and patches in the shock towers and frame rails so we decided to replace the frame rails.

    It is a good thing we removed the frame rails the left side was never welded to the floor pan and also had rust holes in it.



    #8
  9. Fstbk

    Fstbk Member

    Joined:
    Sep 7, 2010
    Messages:
    215
    Likes Received:
    1
    Trophy Points:
    19
    Now you have my interest peaked for sure, I want to see how you build the front frame from that point on.

    #9
  10. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    726
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl

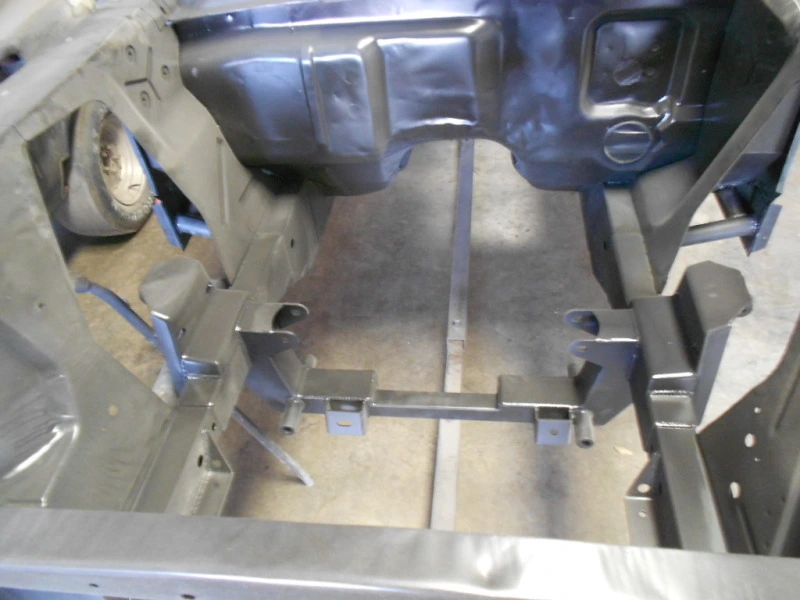

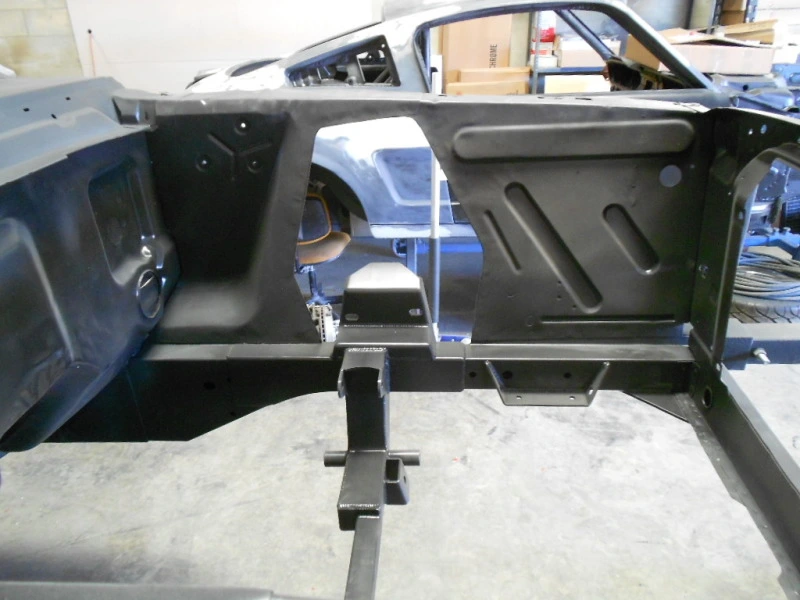

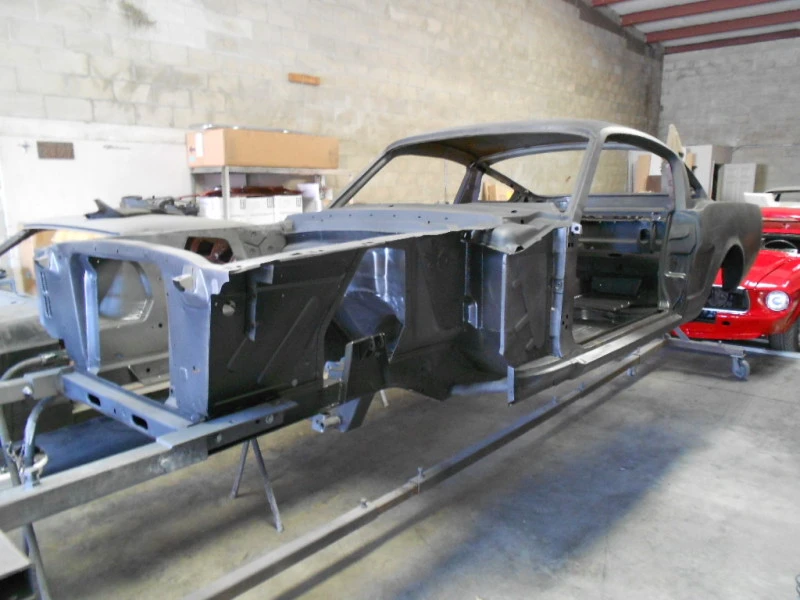

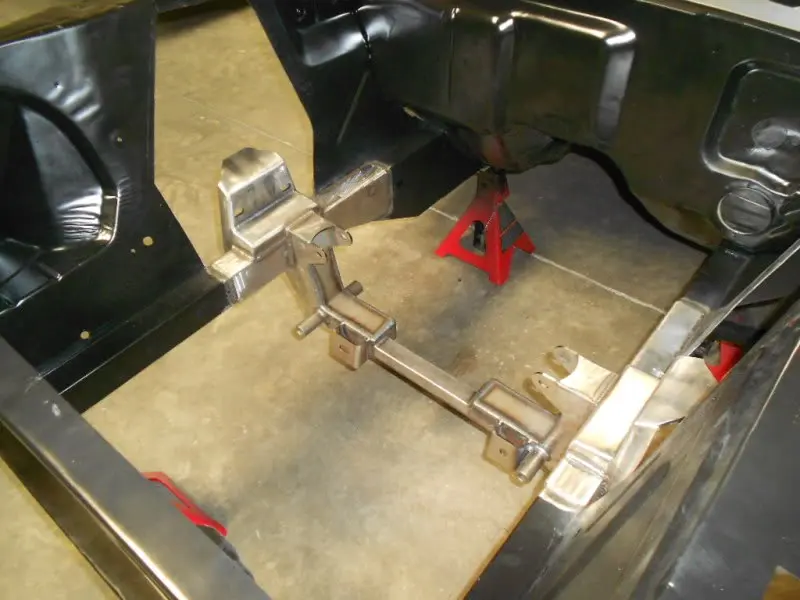

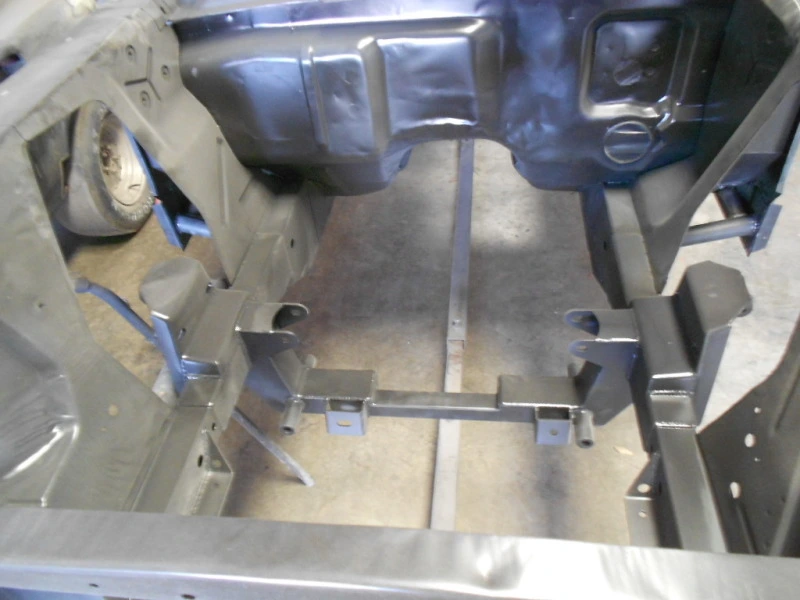

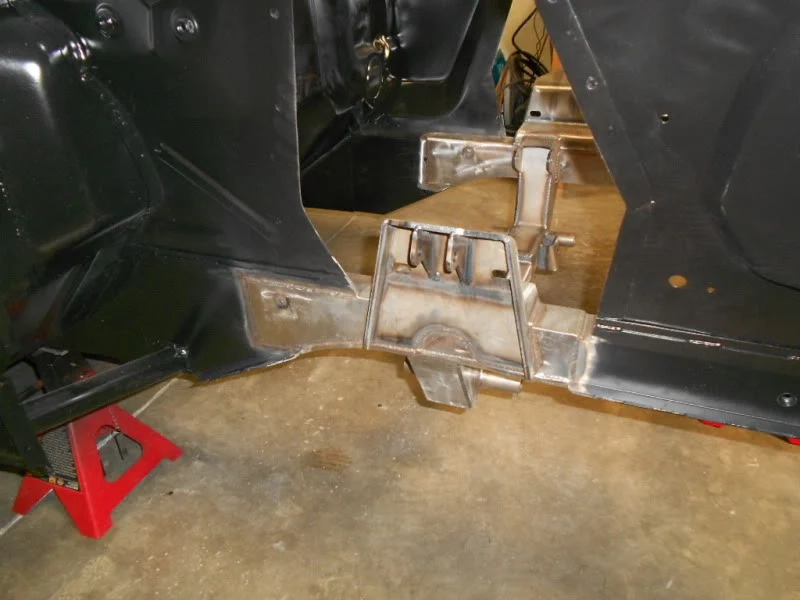

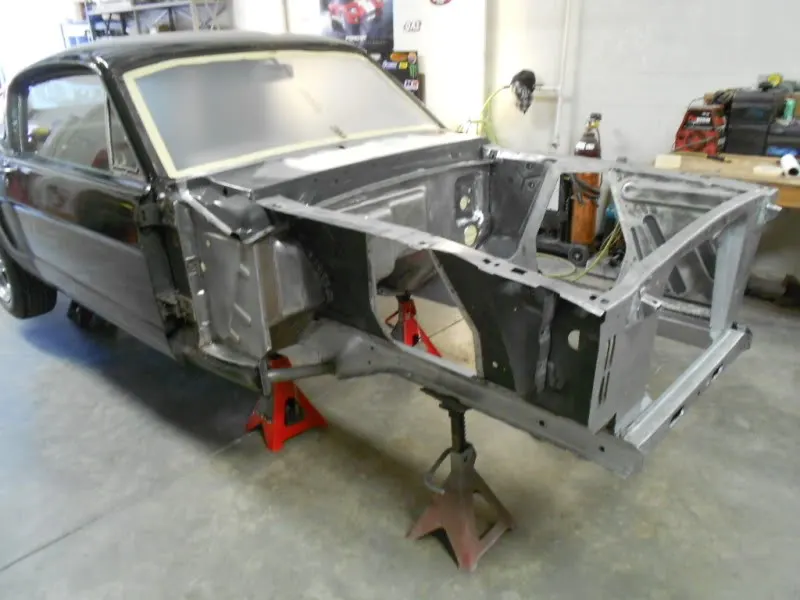

    The front frame rails have been replaced and the TCI crossmember installed. Follow along in Modified Mustangs & Fords magazine to see the install in detail




    #10
  11. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    726
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl

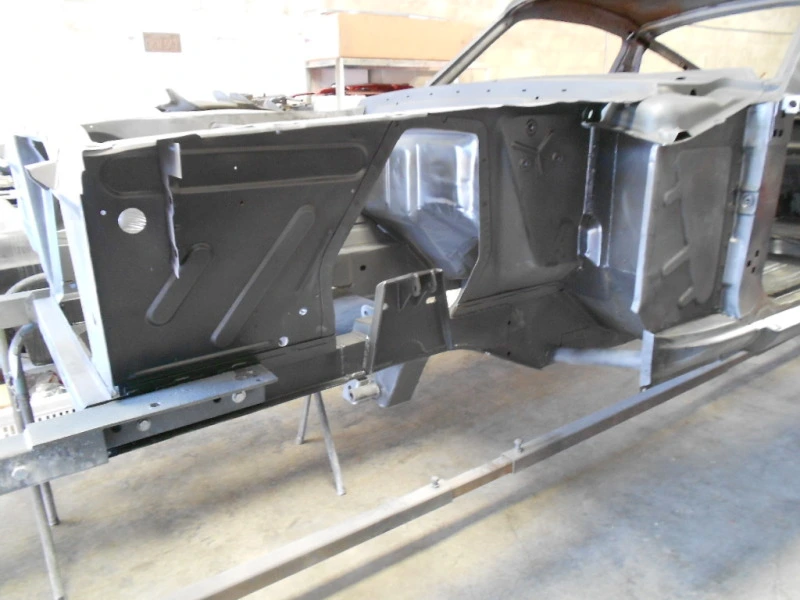

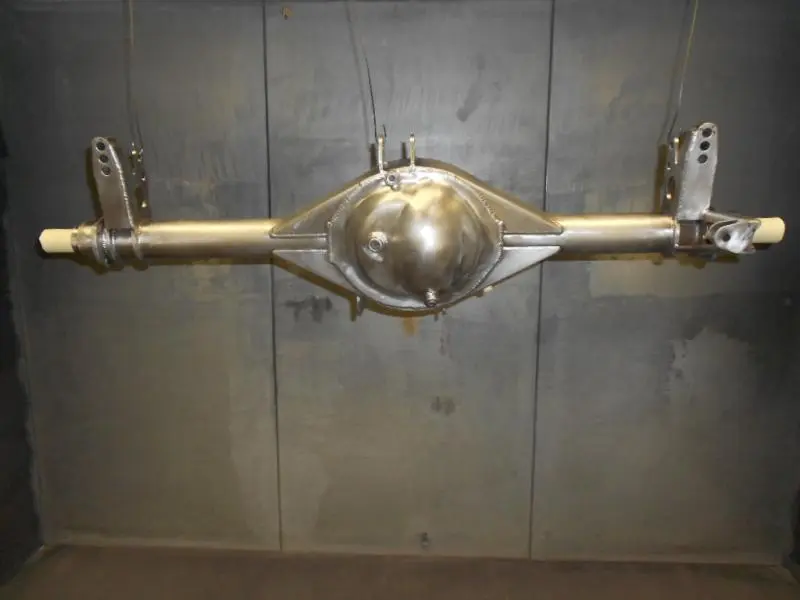

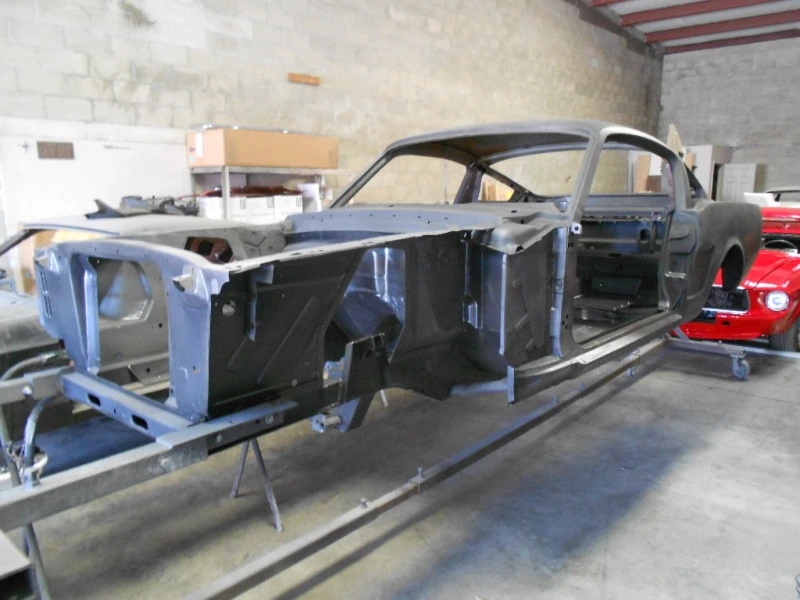

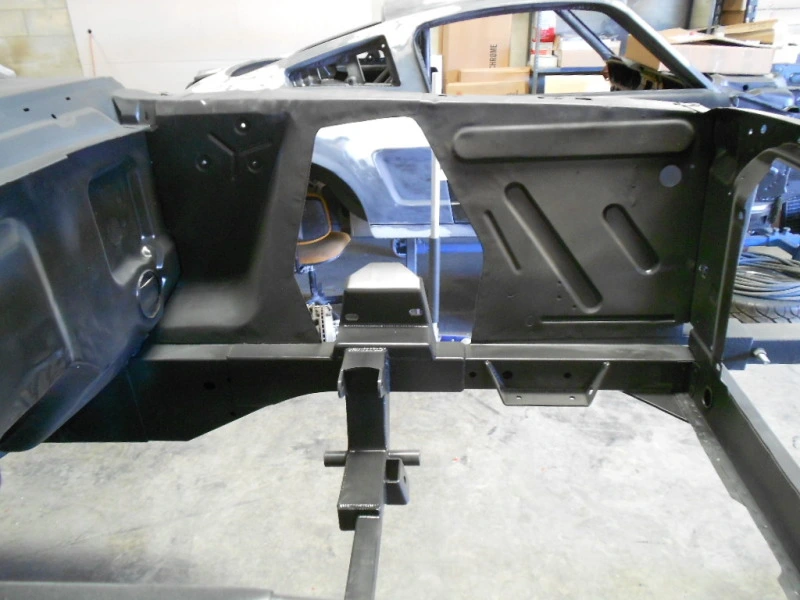

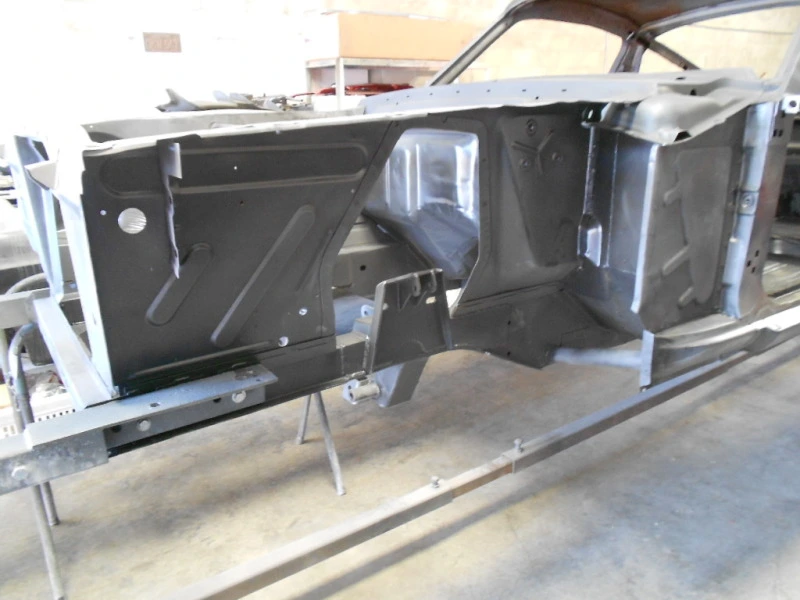

    A few more pictures. We have been working on other projects and waiting for the Speedway Engineering rear end to be finished.




    We haven't done anything to straighten out the firewall until we see how the engine fits



    Attached Files:

    • 72.jpg
      File size:
      107.7 KB
      Views:
      2
    • 73.jpg
      File size:
      108.3 KB
      Views:
      2
    • 74.jpg
      File size:
      115.6 KB
      Views:
      2
    • 75.jpg
      File size:
      105.7 KB
      Views:
      2
    #11
  12. 66Coupe289POWER

    Joined:
    Jun 4, 2007
    Messages:
    79
    Likes Received:
    2
    Trophy Points:
    9
    Location:
    Raleigh, NC
    I'm sure you have heard this before, but I want to say you guys do amazing work and the pictures really speak for themselves.

    #12
  13. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    726
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl

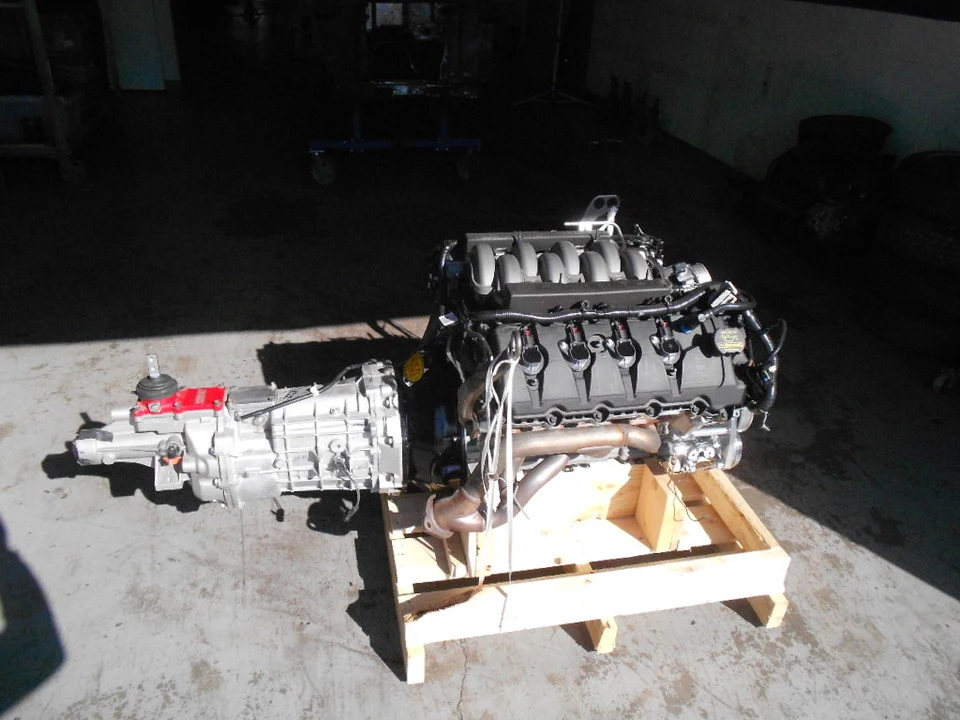

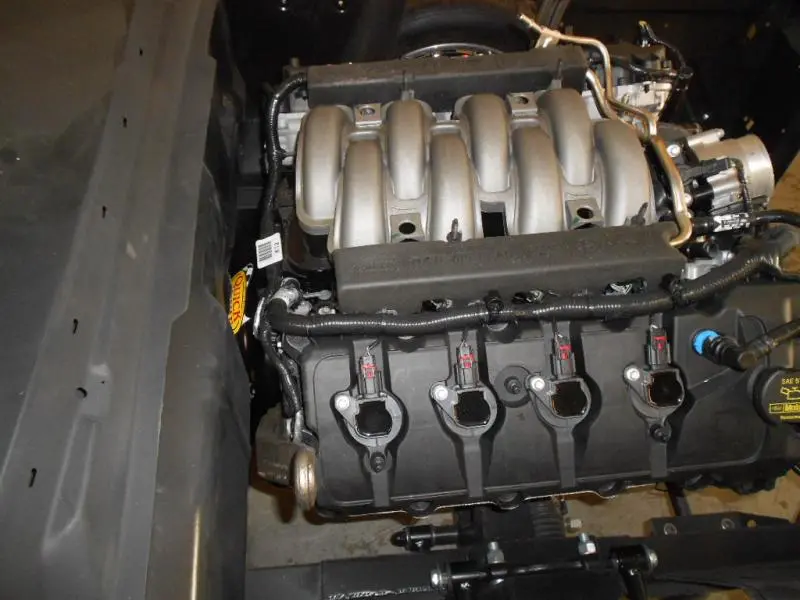

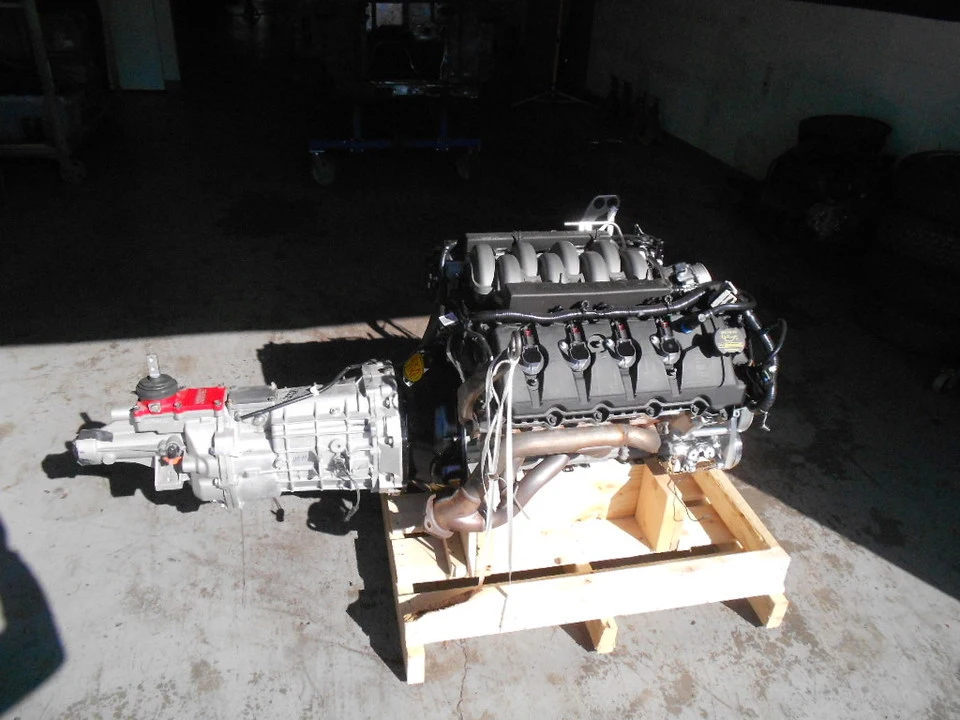

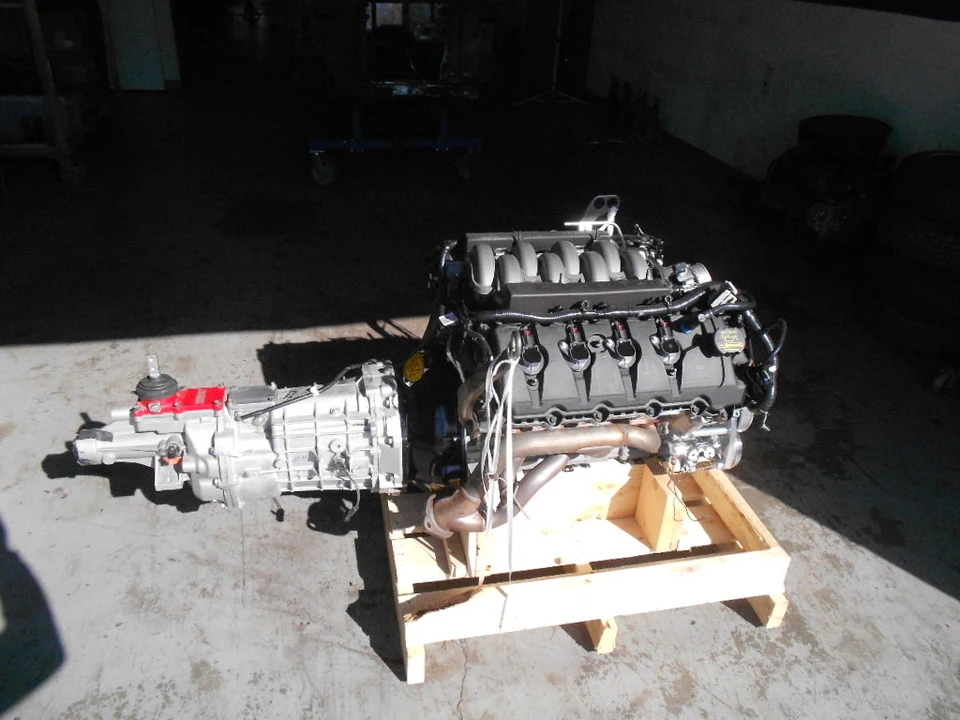

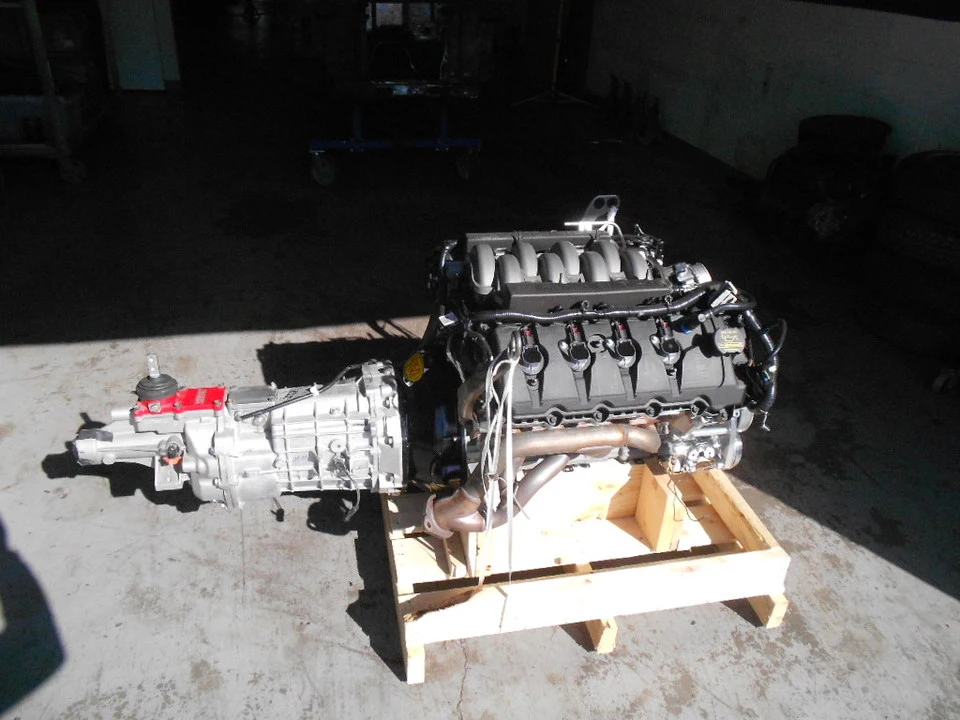

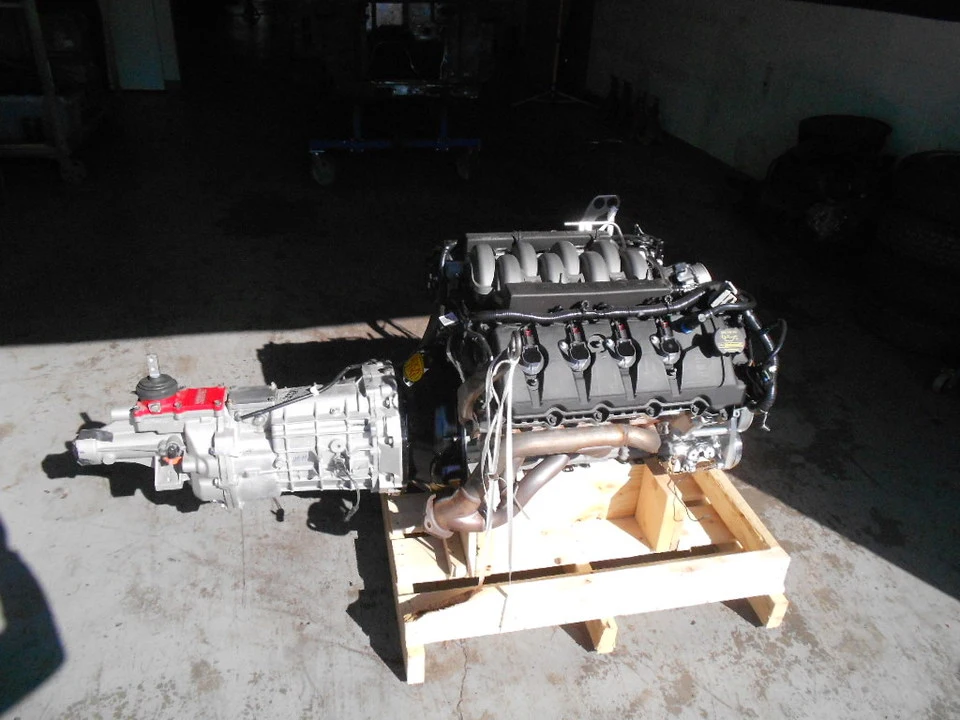

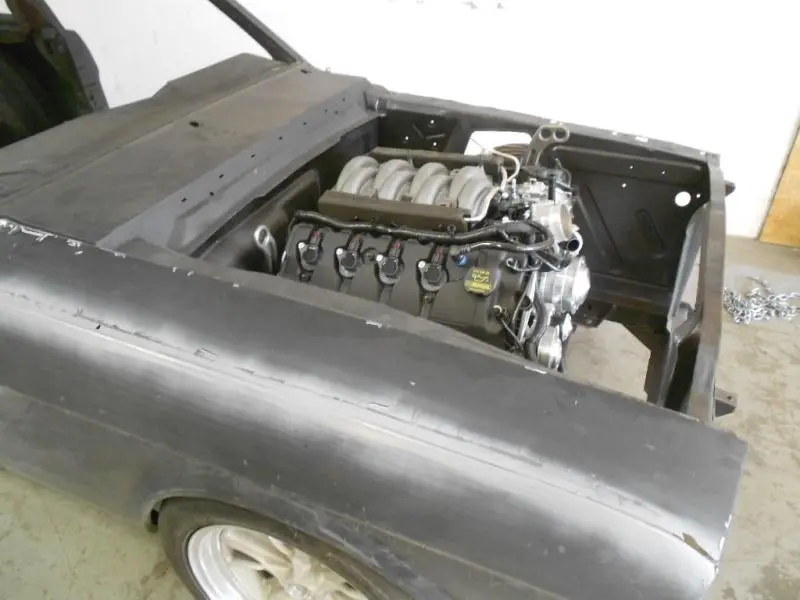

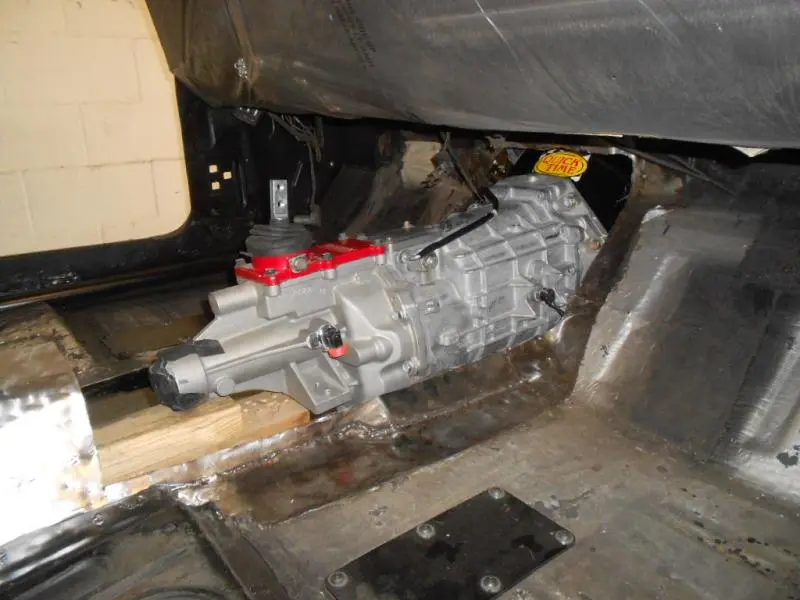

    We had already cut out the transmission tunnel and yesterday Steve brought the engine and trans.

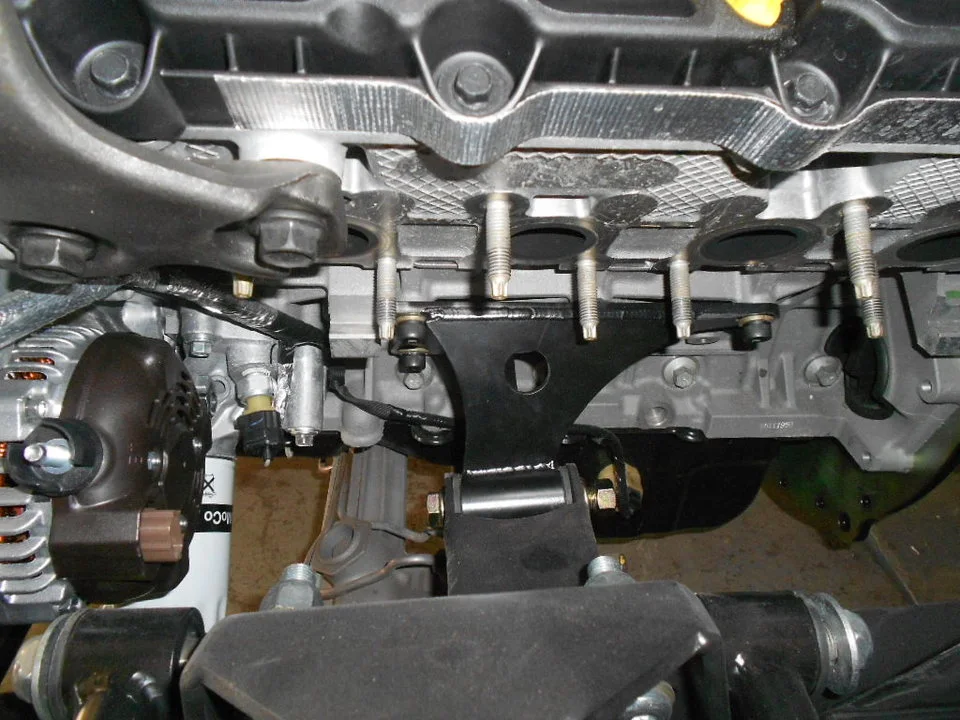

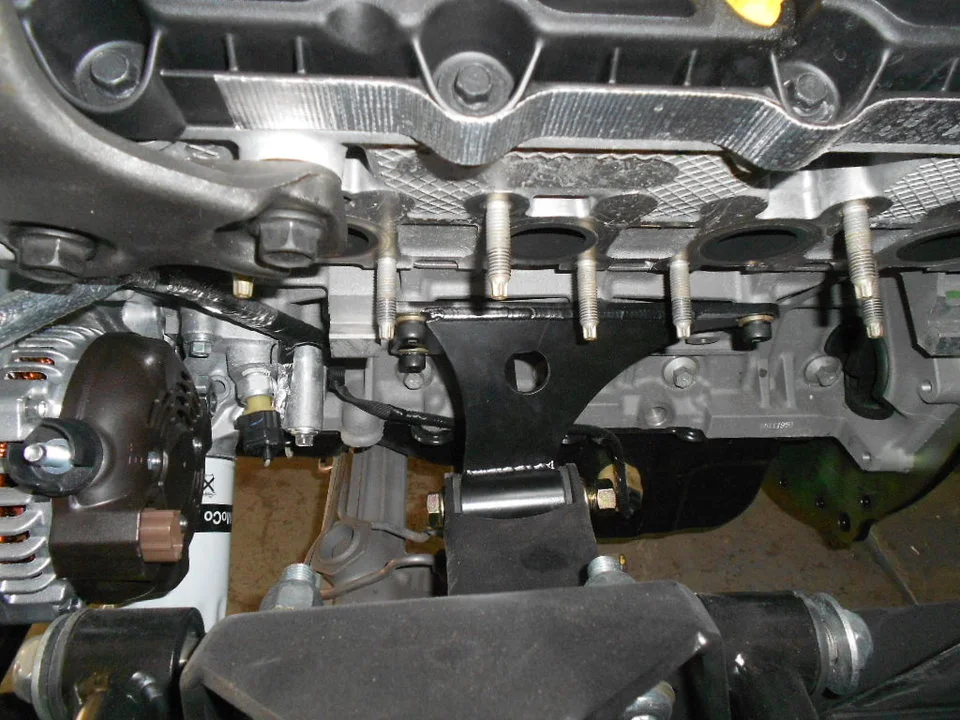

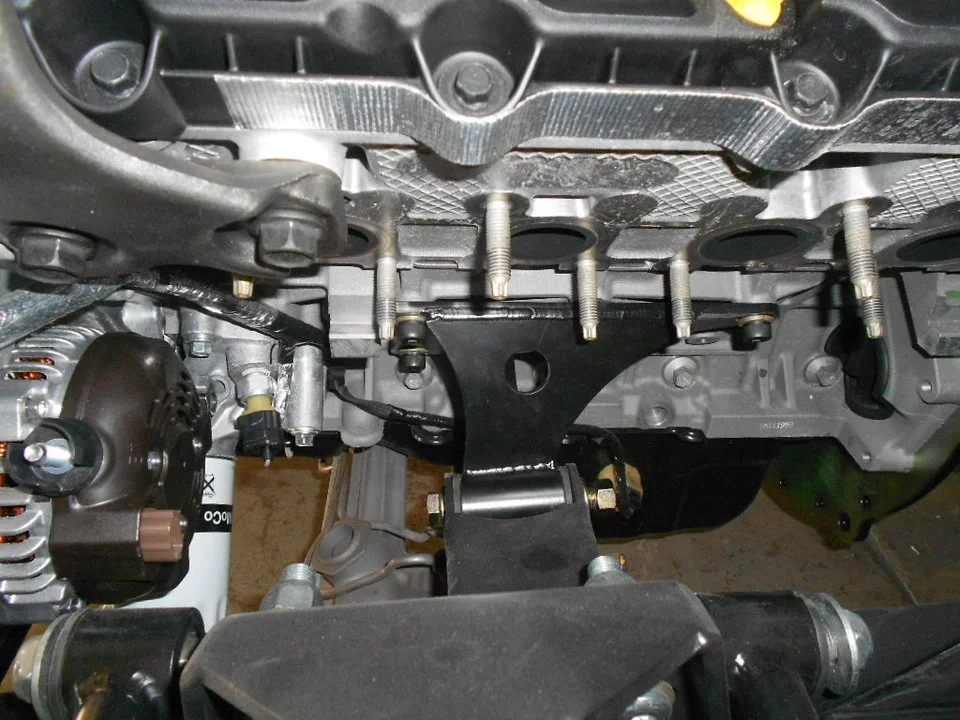

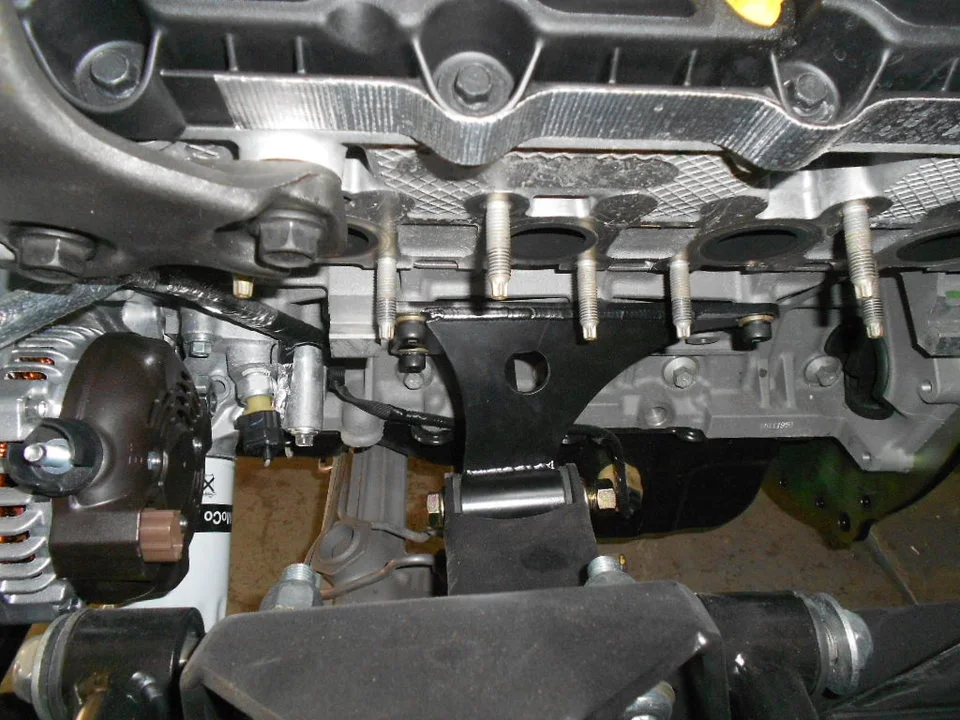

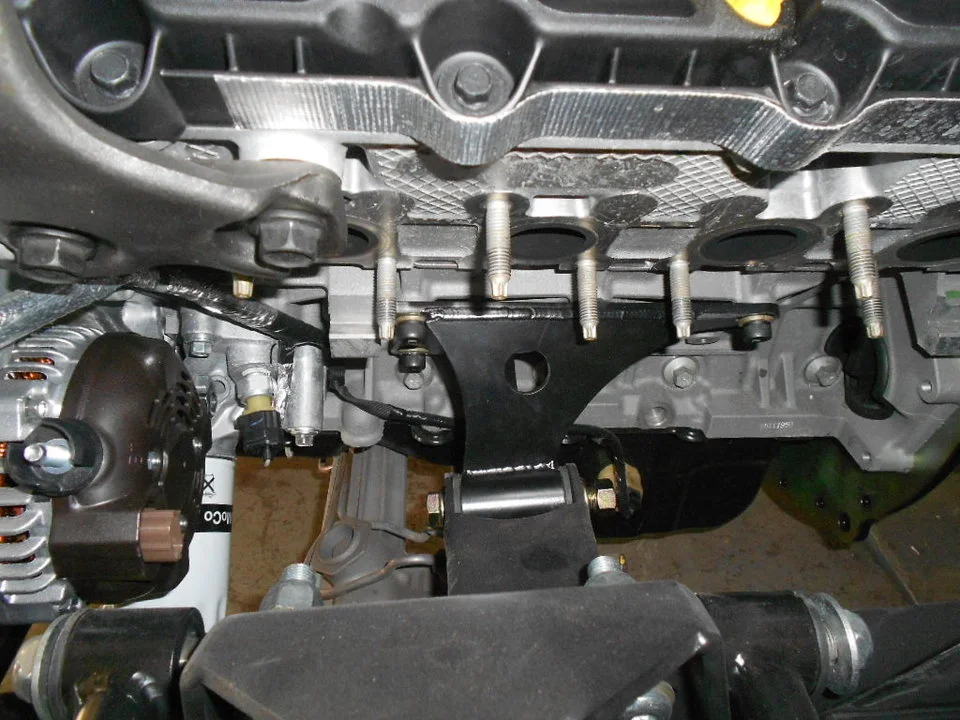

    There has been a lot of talk how the TCI products don't fit but we had no problem. The motor mounts that bolt to the block are slotted and we installed them the as far forward as we could to set the engine back. The mounts were tighten on the block and it was a tight fit with the shifter clearing the cutout in the firewall and the pan clearing the radiator support but we got it in. It went in on the first try. The tranny tunnel needs to be trimmed a little more but it does not hit. The bolts went into the motor mounts with no problems and we have pan clearance at the crossmember and rack.



    Attached Files:

    #13
  14. horse sence

    horse sence Please don't call me Mom
    SN Certified Technician

    Joined:
    Nov 29, 1999
    Messages:
    5,014
    Likes Received:
    334
    Trophy Points:
    173
    Location:
    Wile Coyote's stunt double
    the problem these guys are having with the fitting isn't with the TCI product it is the car it's self .no one wants to believe that the car they have is slightly out of shape .50 some odd years and rough roads have taken there toll on them ,twisting ,sagging and even cocking the frame structures.i have seen a lot of twisted cars and most cars have some. i know TCI products are jig welded so the product is very consistant .most mustangs are going to need some amount of tweeking and thats just a fact every one has to deal with :shrug: looking very nice by the way


    Attached Files:

    #14
  15. doogie67

    doogie67 Member

    Joined:
    Jan 24, 2006
    Messages:
    70
    Likes Received:
    0
    Trophy Points:
    6
    Location:
    Pennsylvania
    I have a question. I am working on a similar project to this but I am installing a supercharged 4.6 DOHC. I also have the TCI IFS kit. I must also replace frame rails ,aprons ect. How do you get everything lined back up and in the right location?

    #15
  16. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    726
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl
    I need to get you caught up on the Colt of Personality.

    We even had my granddaughter helping remove the lead from the factory seam.

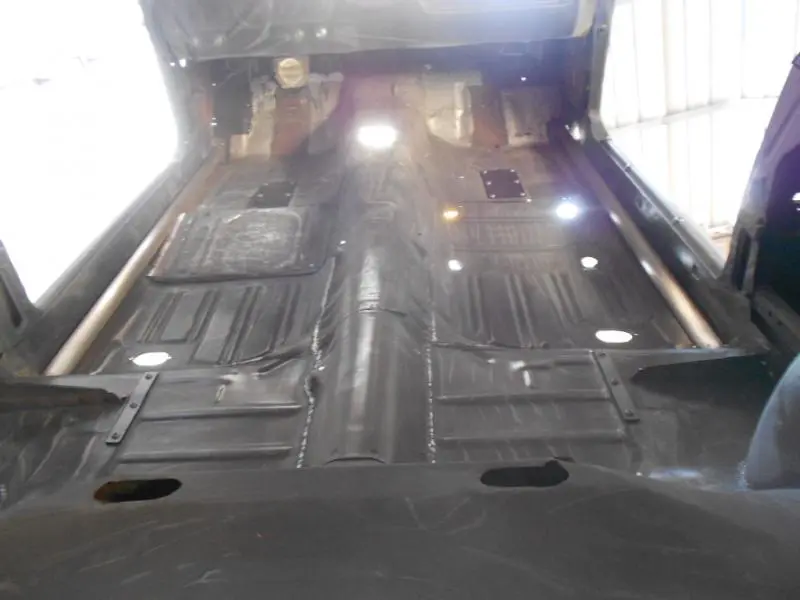

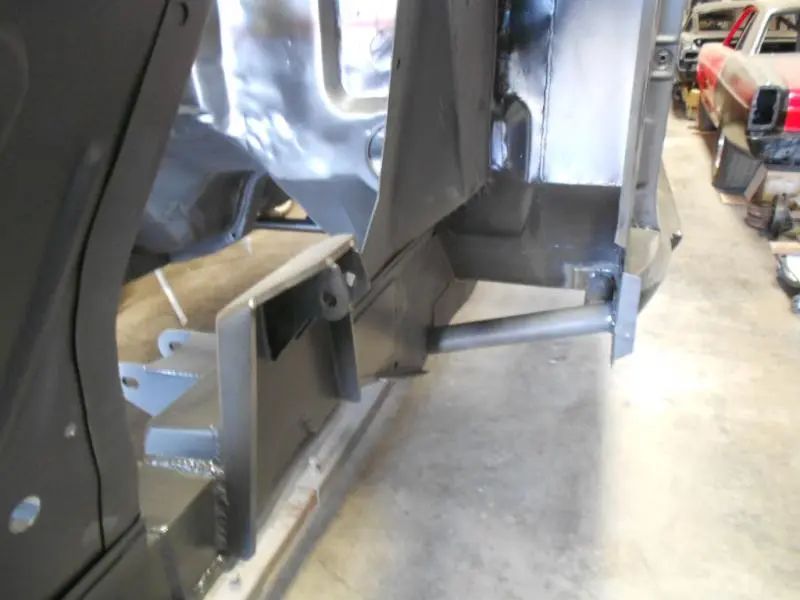

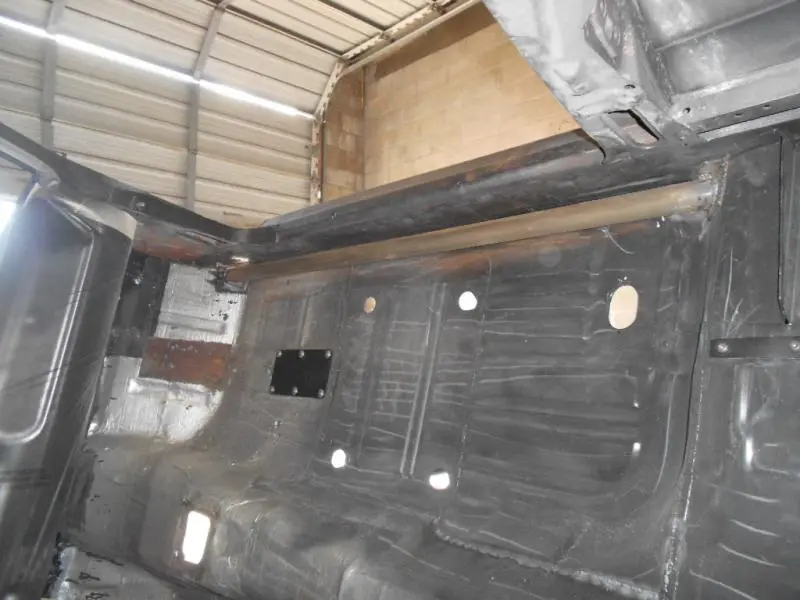

    We added sill bars to stiffen the body




    Ready for SPI epoxy primer

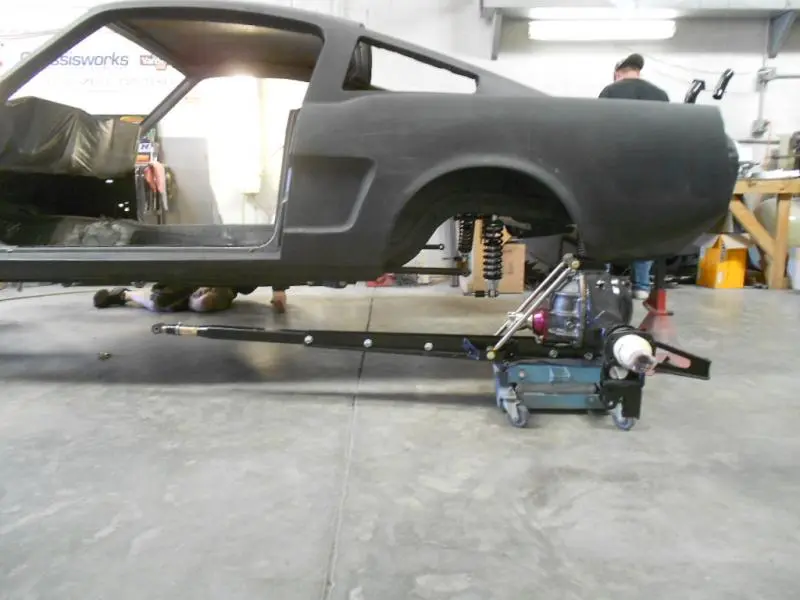

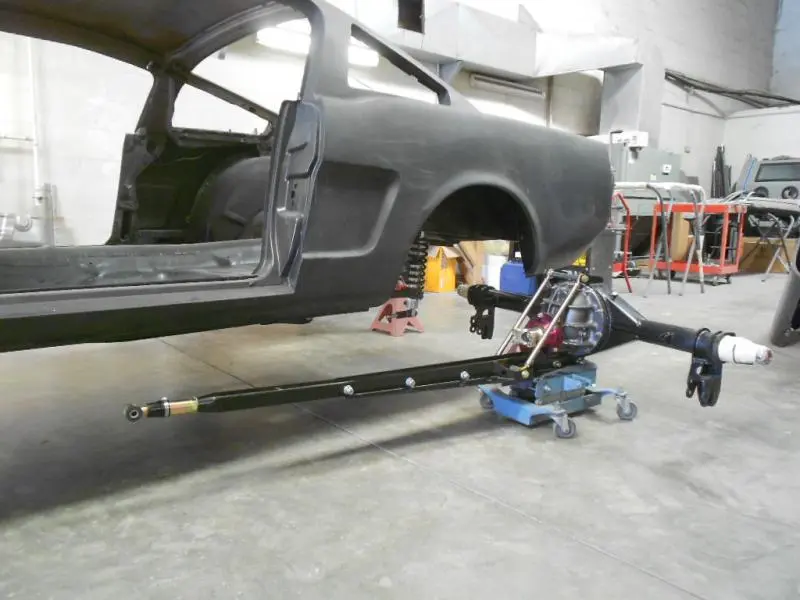

    We assembled the TCI torque arm rear suspension

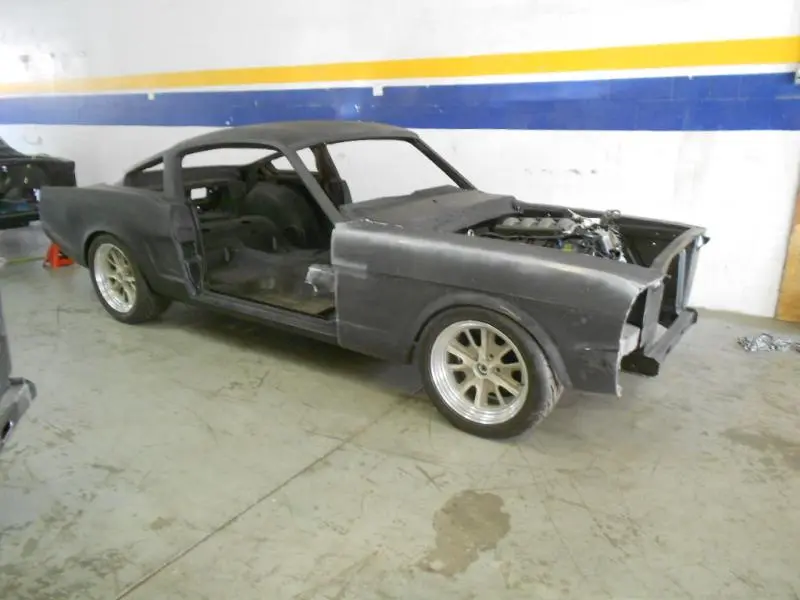

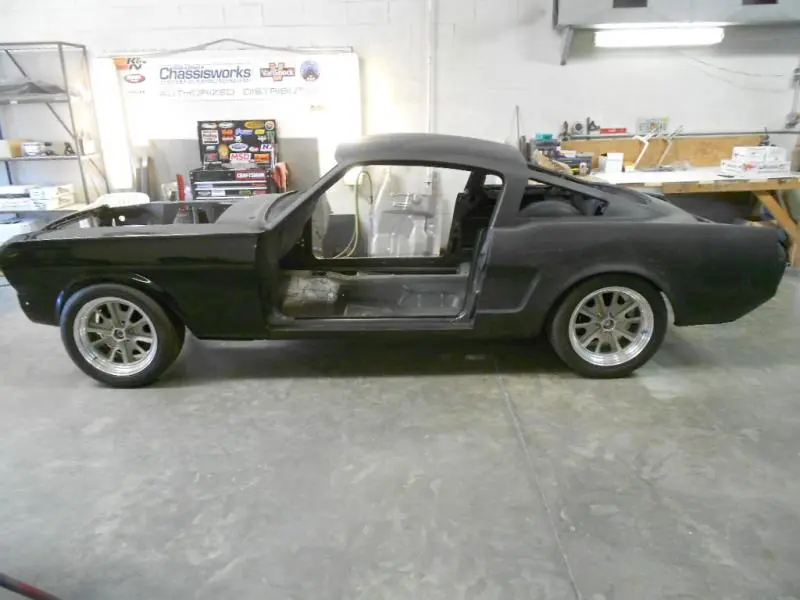

    Back on the ground with wheels borrowed from an Eleanor project


    #16
  17. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    726
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl



    We do not have a transmission crossmember yet.

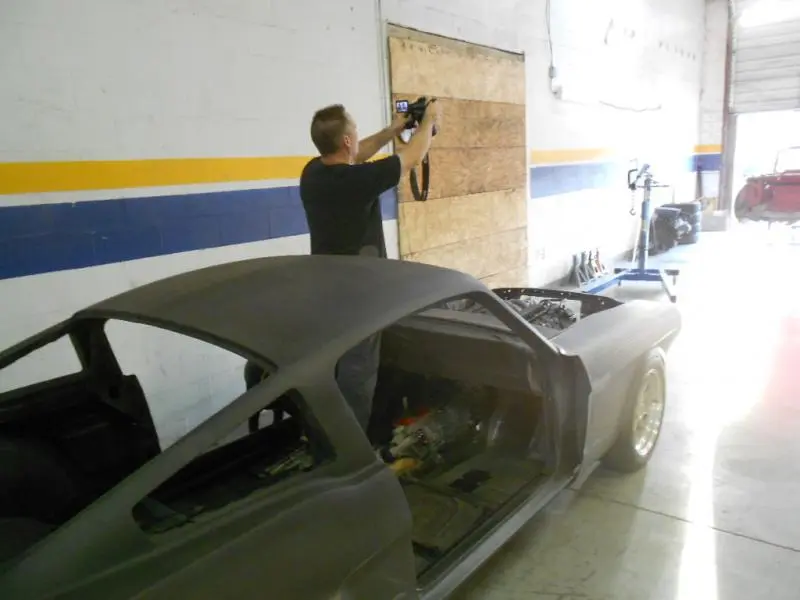

    Steve Baur the editor of Modified Mustangs & Fords getting a picture for the magazine


    #17
  18. edgars23

    edgars23 Member

    Joined:
    Oct 16, 2006
    Messages:
    75
    Likes Received:
    0
    Trophy Points:
    7
    Location:
    Los Angeles Area
    That is an awesome build. I look forward to seeing the progress.

    -Edgar
    Sent from my SGS3 using Tapatalk

    #18
  19. rusty428cj

    rusty428cj Member

    Joined:
    Sep 29, 2007
    Messages:
    726
    Likes Received:
    18
    Trophy Points:
    19
    Location:
    Port Richey Fl
    You have to do a lot of measuring before you take it apart and make sure the car is level.

    #19
  20. horse sence

    horse sence Please don't call me Mom
    SN Certified Technician

    Joined:
    Nov 29, 1999
    Messages:
    5,014
    Likes Received:
    334
    Trophy Points:
    173
    Location:
    Wile Coyote's stunt double
    + 1 on getting it level.it simply has to be or nothing will fit right.and keep checking as you go just encase you have knocked it out of level. wright your measurements down end length ,height,width, the more measurements the better

    it's looking good Rusty ,when does the article come out?
