My 1970 Mustang project - Frame/Floorpan/Subframes.

Discussion in 'Classic Mustang Specific Tech' started by BlackGMC, Feb 19, 2007.


  1. my72mach1

    my72mach1 New Member

    Joined:
    Feb 17, 2007
    Messages:
    36
    Likes Received:
    0
    Trophy Points:
    0
    Wow, car looks like it is going to be great. I've been reading through your thread and have a dumb question. What does the bead rolling do for the sheetmetal?

    #101
  2. BlackGMC

    BlackGMC New Member

    Joined:
    Feb 6, 2007
    Messages:
    247
    Likes Received:
    1
    Trophy Points:
    0
    I am not expert but it basically makes the sheetmetal a little stronger. Try this example take a sheet of paper and hold it by one end and try to make it lay straight, well the paper will fold right at the spot your holding it. Now fold the paper int half making a good crease in the paper. Now open it back up and try to hold it out again. More than likely it will stay straight.

    It is basically like welding a piece of C-Channel to the back of the sheetmetal, it provides extra bracing and strenghth without adding wieght.

    #102
  3. BlackGMC

    BlackGMC New Member

    Joined:
    Feb 6, 2007
    Messages:
    247
    Likes Received:
    1
    Trophy Points:
    0

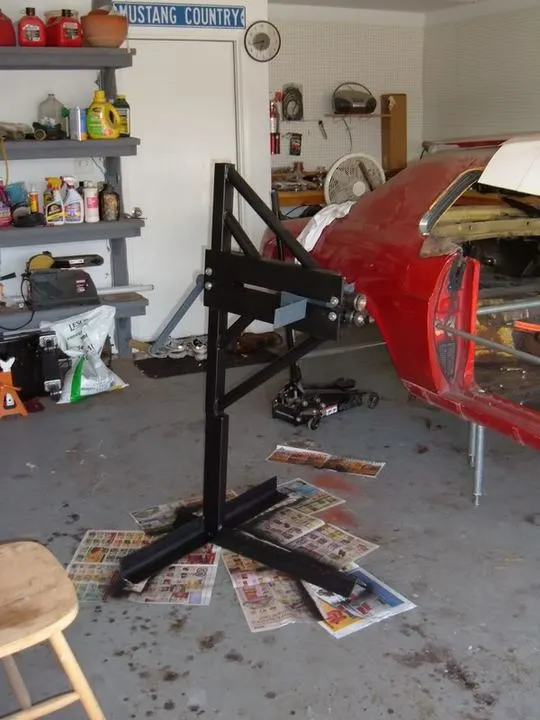

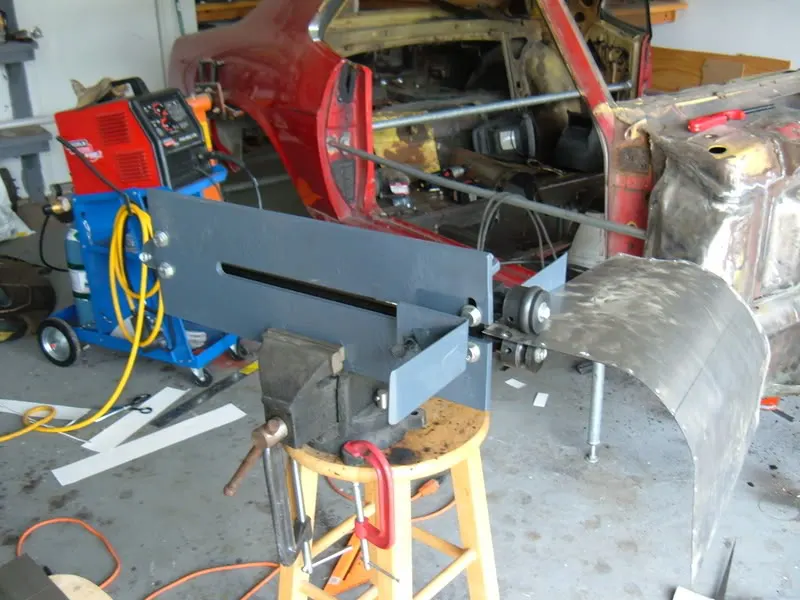

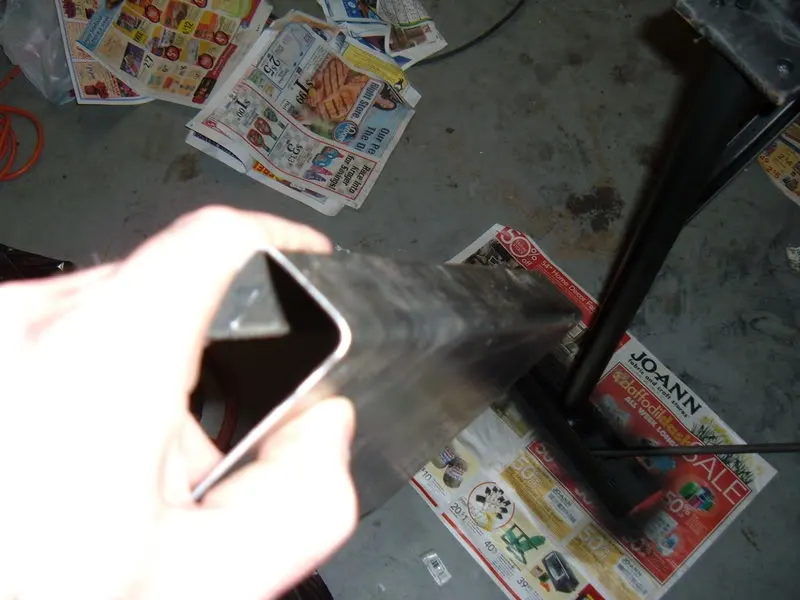

    I finally finished modifying my bead roller, but I am still trying to find an electric motor so it can be a powered instead of having to turn the crank. I canabalized an engine stand and I had some scrap steel tubing and angle iron laying around, so basically all it cost me was 2 cans of spray paint.

    Before

    [​IMG]

    After

    [​IMG]

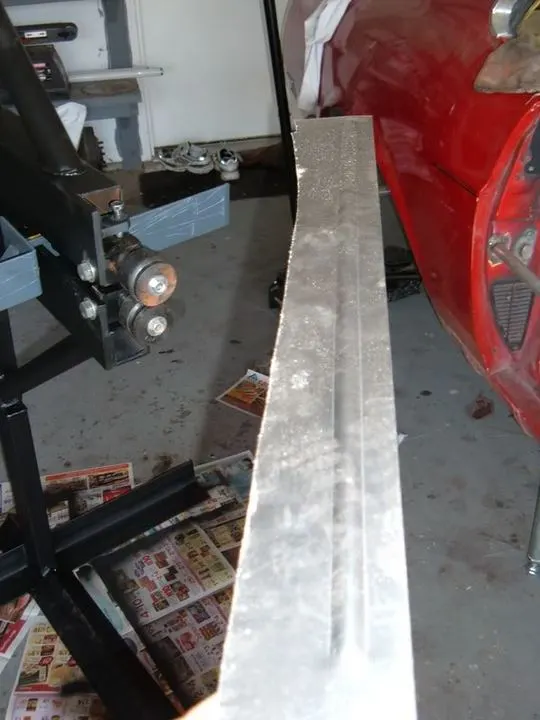

    Sample bead, notice how straight it is, I am very happy now!!!!

    [​IMG]

    #103
  4. 67coupe351w

    67coupe351w New Member

    Joined:
    Jan 31, 2004
    Messages:
    428
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Portland, OR
    Not only is the change in geometry making the steel stronger like you are describing with the paper analagy you are also strain or work hardening the metal.

    When you deform the metal it strengthens it. At the same time it makes the metal less ductile meaning it won't deform as much any more before it breaks (basicly more brittle). If you want to get really techincal on the microscopic level in the metal, defects called dislocations build up on each other as you deform the metal and interfere with each other's movement and thereby increase the metal's strength.

    A good example of this is to take a peice of your steel welding wire and put a sharp bend in it. Now try and straighten the bend back out. The metal at the bend has been work hardened and is now much stronger than the rest of the wire.

    This process (deforming metal with no heat) is also used in "cold rolled steel" to make it harder/stronger.

    Anyway all geekyness aside this is a very cool project! Now quit working on your tools and make some more progress on the car! Fab work like this is veeery inspirational for me. :nice:

    #104
  5. BlackGMC

    BlackGMC New Member

    Joined:
    Feb 6, 2007
    Messages:
    247
    Likes Received:
    1
    Trophy Points:
    0
    Thanks!!

    I still need to build a metal brake so that might be this weekend, cause I don't really want to start installing the actual floors until I can bend the edges to butt up against the other panels. Before that I still need to build seat riser and the mounting plates for the main roll bar hoop.

    NeverEnding....... That is what I should call this project...

    #105
  6. BlackGMC

    BlackGMC New Member

    Joined:
    Feb 6, 2007
    Messages:
    247
    Likes Received:
    1
    Trophy Points:
    0

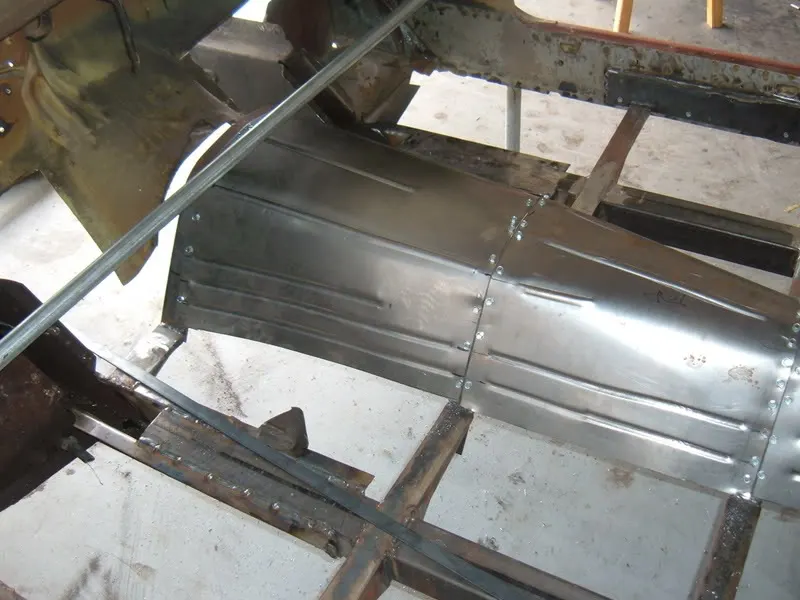

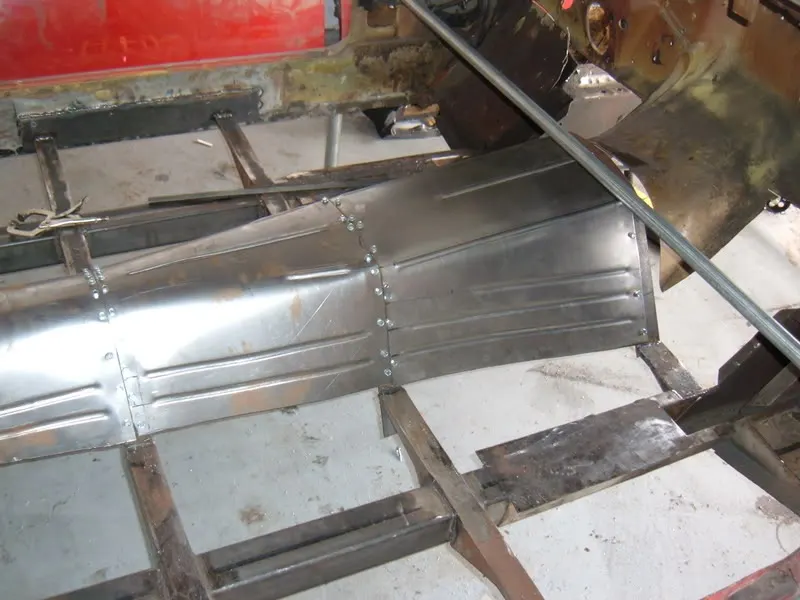

    The new beefed up bead roller made such a difference today. The beads were nice and straight, almost most makes me want to redo the previous panels. Can you tell the difference??


    [​IMG]

    [​IMG]

    #106
  7. BlackGMC

    BlackGMC New Member

    Joined:
    Feb 6, 2007
    Messages:
    247
    Likes Received:
    1
    Trophy Points:
    0

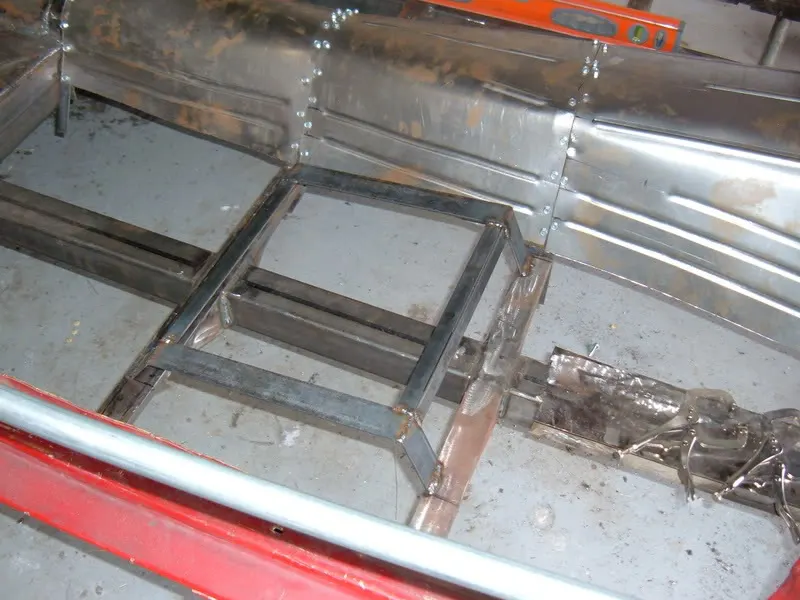

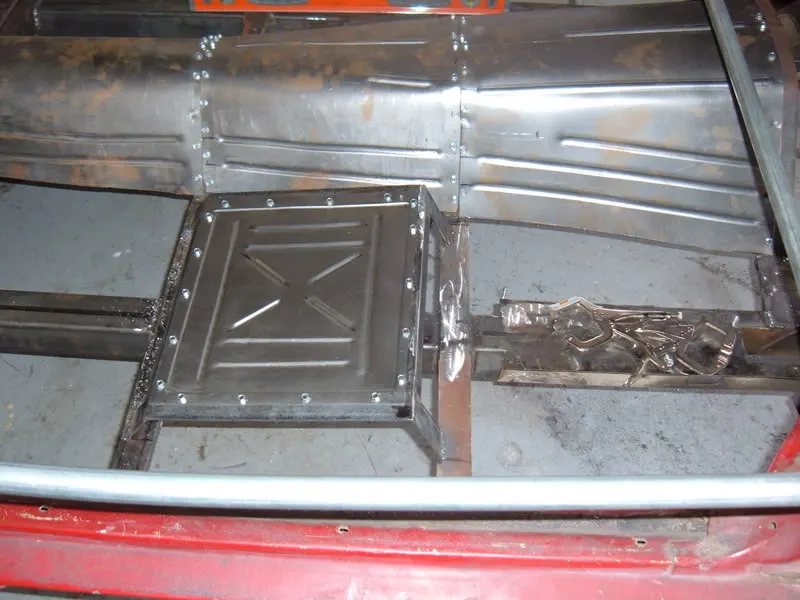

    I got one of the seat risers built and installed today. I went a little crazy with the bead roller but I think it turned out great. I still have to finish boxing it in and tie it to the tunnel and rocker panel.

    [​IMG]

    [​IMG]

    #107
  8. Pbum5

    Pbum5 Member

    Joined:
    Oct 27, 2004
    Messages:
    514
    Likes Received:
    0
    Trophy Points:
    17
    Location:
    Minneapolis, MN
    Looks good.
    Maybe this is a dumb question, but shouldn't you put the floor in before you weld in the seat risers?

    #108
  9. 351w_swap

    351w_swap New Member

    Joined:
    May 24, 2004
    Messages:
    263
    Likes Received:
    0
    Trophy Points:
    0
    I spent half of the day yesterday building my seat pans too. They look really good and they make the seats sit perfect but the 1 inch round tube hangs too low to run the exhaust down the outside edge of my frame rails and I am unhappy with it. There is no doubt that I could find a way to run the exhaust without removing the seat pans but I have to do it because I am pretty sure I like your method better. I will not be building risers though because my seats are from a 99 cobra and they need to sit all the way on the floor.

    Looking good! Oh, and I would redo the tunnel from before the bead roller modifications. It may only be the floor pans but you are doing so much work to build the car, it will bother you to know that something is not perfect. I end up redoing things all the time, sometimes several times because something is not just right and it eats away at me to know that it is not perfect.

    #109
  10. BlackGMC

    BlackGMC New Member

    Joined:
    Feb 6, 2007
    Messages:
    247
    Likes Received:
    1
    Trophy Points:
    0

    ya, i got a little ahead of myself yesterday. So I will be cutting the welds that hold the seat risers today. I thought I could work around them but, nope, I should have left them tacked. Oh well.....

    Ya I was looking at it this morning and I decided that I am going to redo those 2 ugly pieces. I just don't want to look at them everyday for the next year or so... It should not be a big deal I still have the patterns so, I will redo it next week.

    got any pics of the seat pans you made?

    #110
  11. 351w_swap

    351w_swap New Member

    Joined:
    May 24, 2004
    Messages:
    263
    Likes Received:
    0
    Trophy Points:
    0

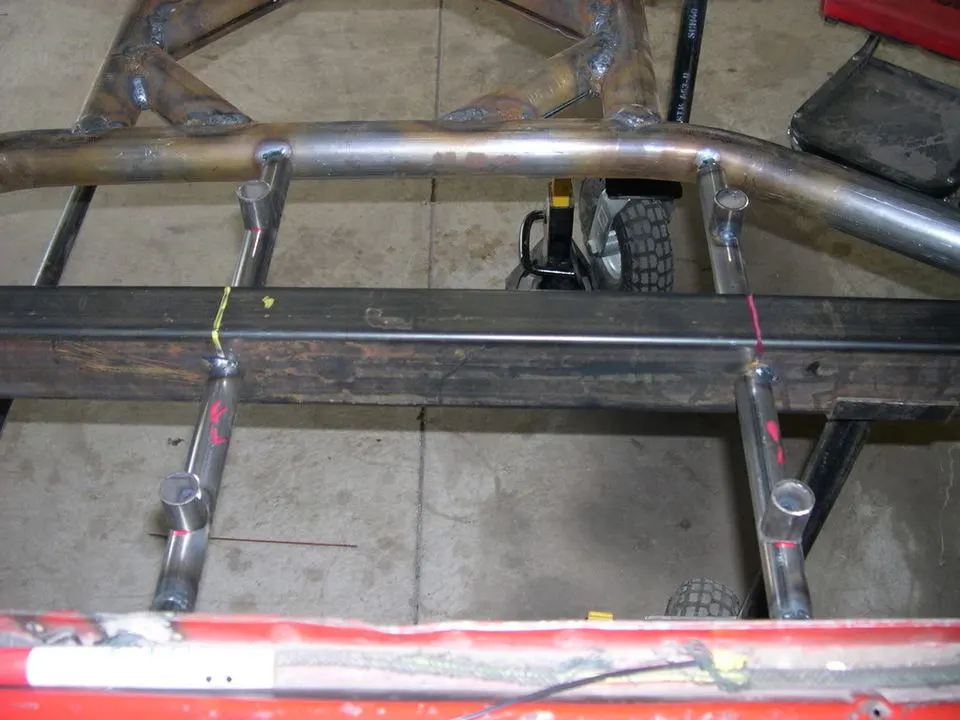

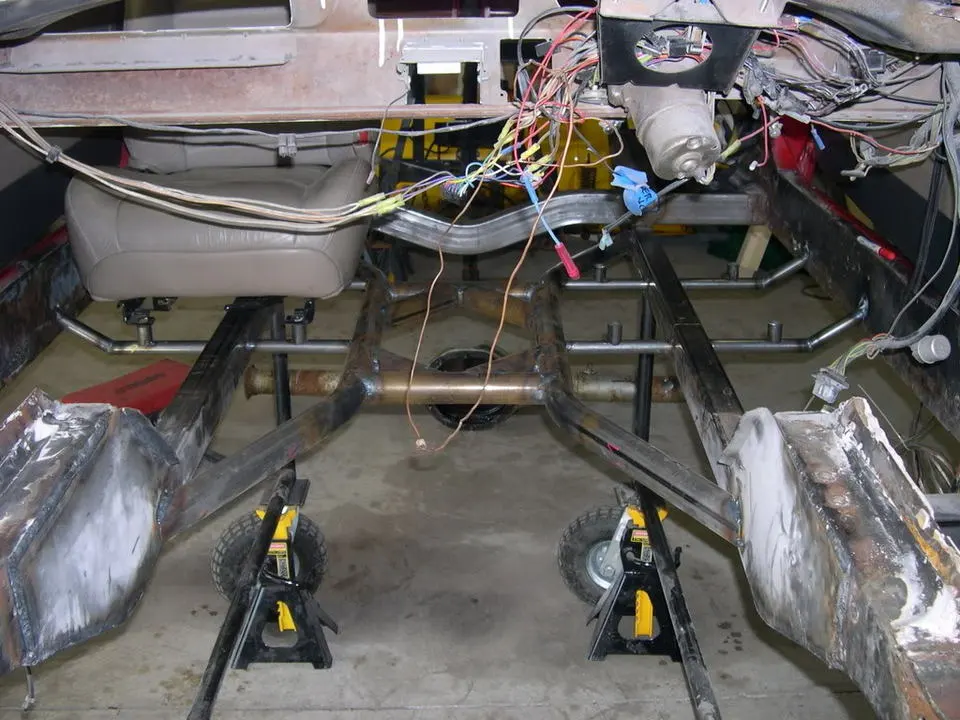

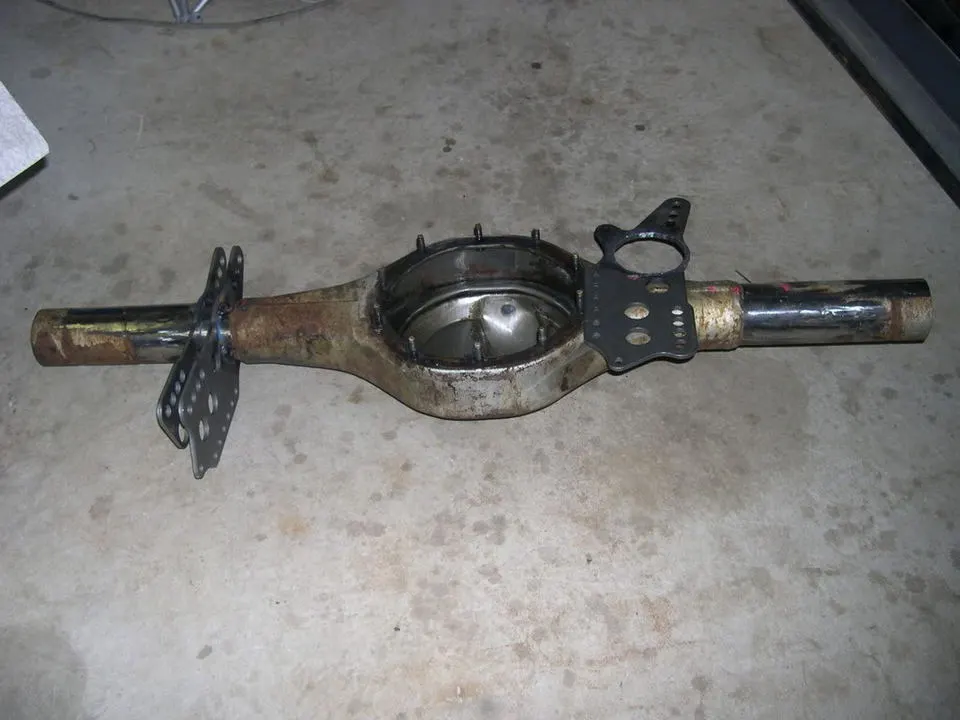

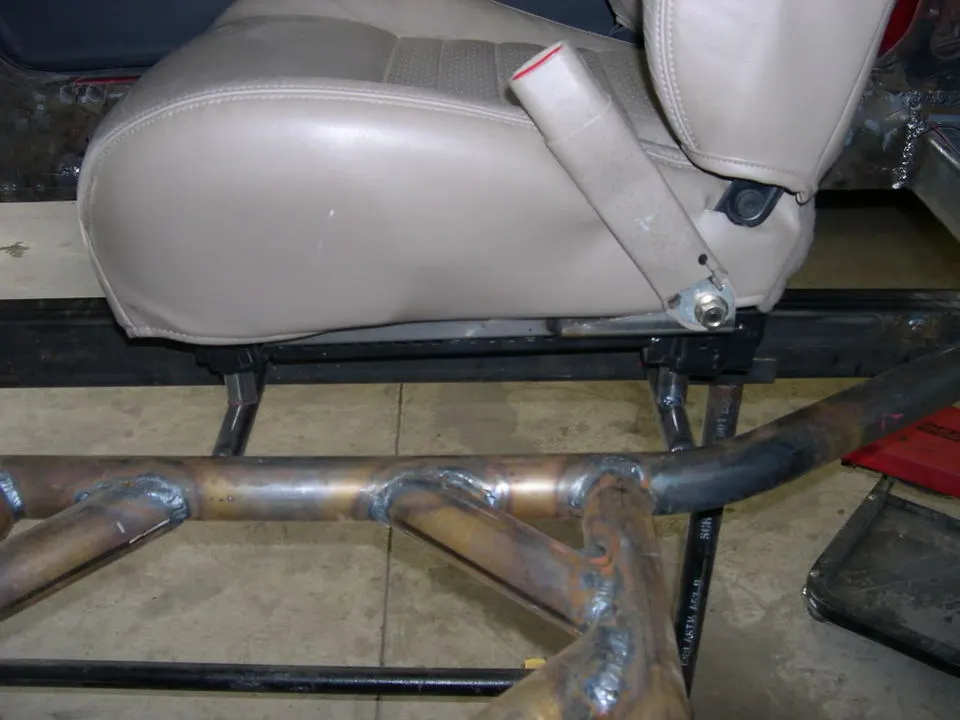

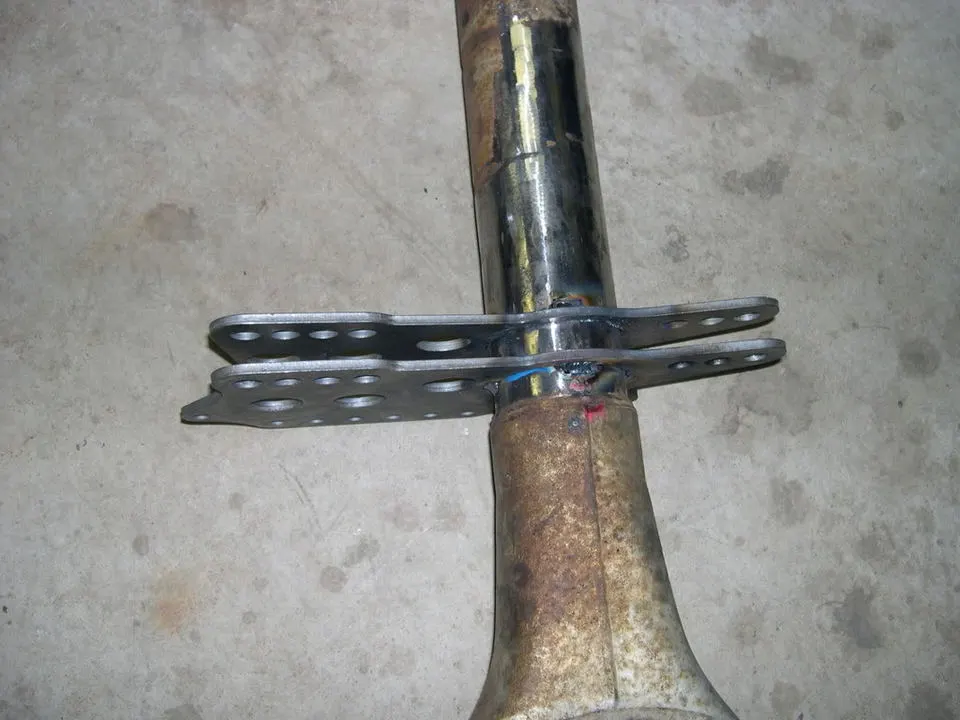

    Here is some pictures. There is a seat sitting on the passenger side. Thought you might like to see a picture of my progress on the housing as well so I snapped one.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    #111
  12. BlackGMC

    BlackGMC New Member

    Joined:
    Feb 6, 2007
    Messages:
    247
    Likes Received:
    1
    Trophy Points:
    0
    Very very nice, you put my work to shame... Have you thought more about where your going to run your exhaust?

    #112
  13. 351w_swap

    351w_swap New Member

    Joined:
    May 24, 2004
    Messages:
    263
    Likes Received:
    0
    Trophy Points:
    0
    I don't know about that but the seat pans are growing on me. I think I might keep them and box them in. I think with some skirts on the rocker I can run the exhaust past the outside of the pans and still keep it discrete. What do you think of the frame rail crossmember? I am not sure if it will need to be modified for the transmission or not but it is real stiff. I think I will do quite a bit of boxing to keep everything clean looking in the under carriage. Your work is looking great, I like the top to the seat pan riser.

    #113
  14. BlackGMC

    BlackGMC New Member

    Joined:
    Feb 6, 2007
    Messages:
    247
    Likes Received:
    1
    Trophy Points:
    0
    I like the frame rail cross member, it looks strong as hell!! But like you said you might have to modify it or add some do it for the tranny. I love the frame you have set up, but running your exhaust should be a challenge. Keep up the good work!!!

    #114
  15. BlackGMC

    BlackGMC New Member

    Joined:
    Feb 6, 2007
    Messages:
    247
    Likes Received:
    1
    Trophy Points:
    0
    Metal Brake ???s

    Well I am needing a sheet metal brake so I can continue making panels. I should only be bending 18 gauge sheet. I was thinking of going with this Harbor Freight one, it is only $59.

    http://www.harborfreight.com/cpi/ctaf/Displayitem.taf?itemnumber=41311

    [​IMG]

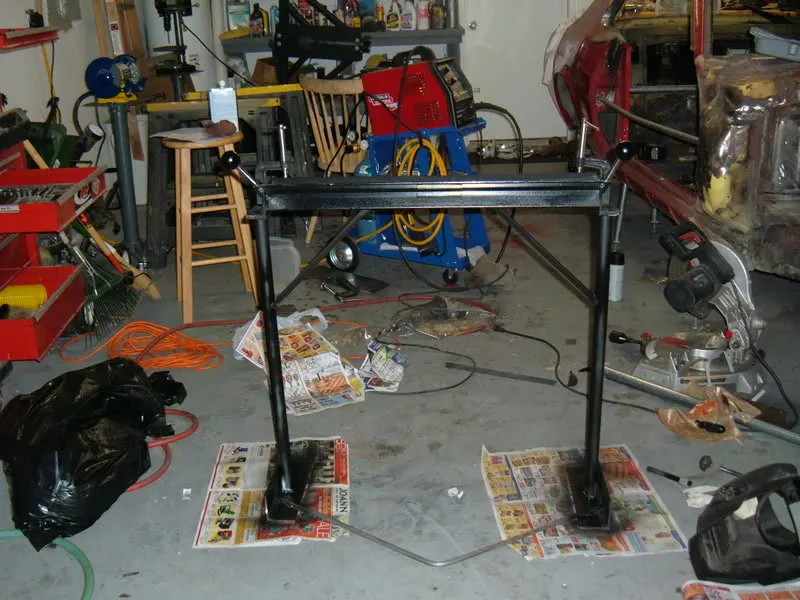

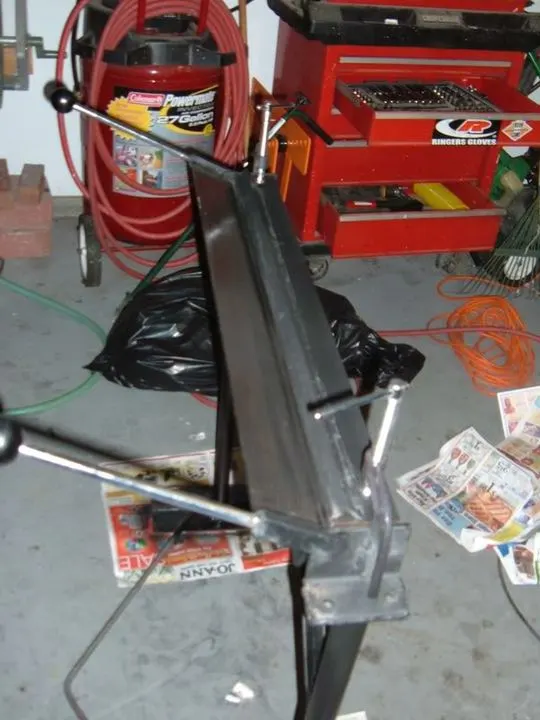

    Since it is a Harbor Freight tool, I am going to add some angle iron to all the flat pieces to add some strength to it and build a stand for it to sit on.

    Any opinions?

    #115
  16. 351w_swap

    351w_swap New Member

    Joined:
    May 24, 2004
    Messages:
    263
    Likes Received:
    0
    Trophy Points:
    0
    I would seriously consider going with this one.

    http://www.harborfreight.com/cpi/ctaf/displayitem.taf?Itemnumber=91012

    if that doesn't work, its the 36 inch one with stand and bracing. I know it is 200 dollars but it will be worth it to get higher quality bends. The one that you showed does not adjust to clamp down on the piece of steel Which will make it harder to get straight bends. There are several places to look this subject up at such as the metalmeet.com site I mentioned before. Many of them have built their own as I have started to. Before I go too much further I need to finish it but in the end it cost me about 100 bucks for a 60 inch brake and it will be much stiffer than even the 36 inch harbor freight brake.

    #116
  17. BlackGMC

    BlackGMC New Member

    Joined:
    Feb 6, 2007
    Messages:
    247
    Likes Received:
    1
    Trophy Points:
    0
    Ya, I checked out that brake and I thought about building my own, but the HF brake is not that bad. The only thing I had to reenforce was the upper plate. I did get some C-Clamps and but one end off and welded them to the brake. Actually for the money and time it bends pretty good in my opinion. I just really could not spend $200 for the nice HF one, i just wrote a big nasty check to the IRS so funding is running short. Check out the pics.

    Oh and please excuse the messy garage, I did not have time to clean it.

    [​IMG]
    [​IMG]
    [​IMG]

    #117
  18. 68FBJJZ109

    68FBJJZ109 Member

    Joined:
    May 2, 2005
    Messages:
    358
    Likes Received:
    0
    Trophy Points:
    17
    Location:
    Easton, PA
    See what did i tell you. you keep the progress up and it will be screaming down the road in no time.

    #118
  19. okibono

    okibono New Member

    Joined:
    Sep 19, 2006
    Messages:
    32
    Likes Received:
    0
    Trophy Points:
    0
    man, it is looking good...

    #119
  20. BlackGMC

    BlackGMC New Member

    Joined:
    Feb 6, 2007
    Messages:
    247
    Likes Received:
    1
    Trophy Points:
    0
    Thanks. Does anyone know what gauge steel I need to us to mount the roll bar? I was thinking of welding a 1/8 or 2/16 steel plate to the side of the rear cross member and add some addition support underneath it.

    #120
