Need Help Setting Timing, 93 Mustang

Discussion in 'Fox 5.0 Mustang Tech' started by TrAb, Jun 17, 2013.


  1. TrAb

    TrAb New Member

    Joined:
    Mar 7, 2007
    Messages:
    13
    Likes Received:
    0
    Trophy Points:
    1
    Hey guys, i recently pulled my car out of storage and im trying to check my timing to make sure its correct. First off the car is a 93 gt, but it has had a carb'd 351w put in before i bought the car. Every guide online tells me to either pull the spout or remove the vacuum line that runs to the distributor when checking the timing with a light. I cannot find a spout and it definitely doesn't have the vacuum line running to the distributor. Any ideas what could be going on guys, im not sure what all they did during the swap.
    #1
  2. TrAb

    TrAb New Member

    Joined:
    Mar 7, 2007
    Messages:
    13
    Likes Received:
    0
    Trophy Points:
    1
    [/COLOR][​IMG]

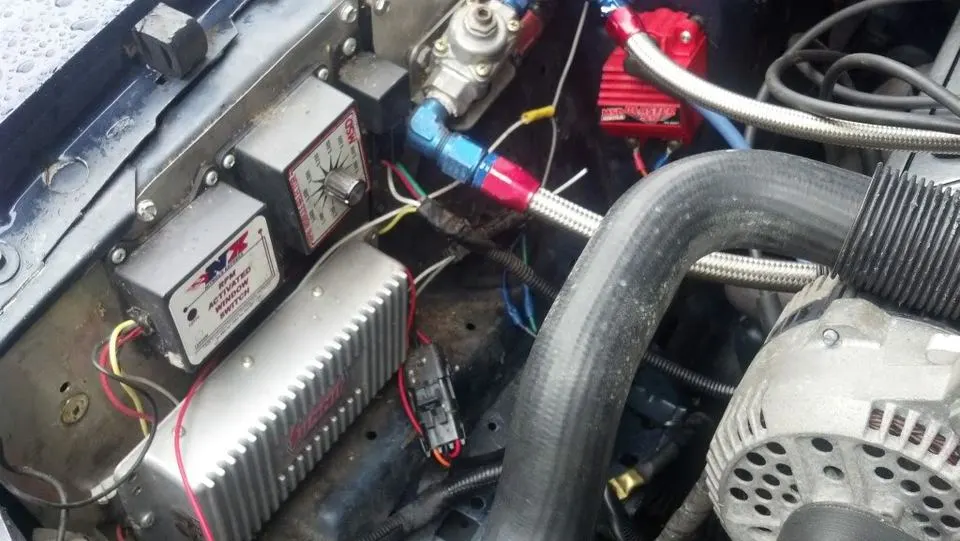

    This one looks like there was three wires coming out and one is cut
    [​IMG]

    [​IMG]

    [​IMG]
    #2
  3. jrichker

    jrichker StangNet's favorite TOOL SN Certified Technician Founding Member

    Joined:
    Mar 10, 2000
    Messages:
    21,459
    Likes Received:
    338
    Trophy Points:
    134
    Let me guess: you bought the car from someone else and didn't do any of the work we see...
    The wiring looks like a commercial for a girl with frizzy hair - an explosion in a mattress factory. No telling what has been done or how it is wired.

    It looks like someone cheaped out and used a EFI distributor. There is no mechanical advance, and no way to advance the ignition timing without a computer. The ignition timing is set at the base setting and never advances. Locked timing is costing you performance and economy.

    You're going to get to make a tour of the online auto parts store catalogs and find a truck distributor for a 351 made before 1986. It will be a unit designed to work with the DuraSpark ignition that originally came on Ford trucks. It will have an electronic pickup and a mechanical advance and a vacuum advance.

    DuraSpark II ignition diagram:

    Diagram courtesy of /www.billwrigley.com
    [​IMG]
    See http://webpages.charter.net/1bad6t/duraspark.html for more help.
    #3
  4. Noobz347

    Noobz347 Stangnet Facilities Maint Tech... Er... Janitor Admin Dude

    Joined:
    Jan 5, 1985
    Messages:
    19,542
    Showcase:
    58
    Albums:
    5
    Likes Received:
    2,378
    Trophy Points:
    174
    Please provide a pic of the harmonic damper. The forward most box resembles one used for a mag pickup/trigger.
    #4
  5. TrAb

    TrAb New Member

    Joined:
    Mar 7, 2007
    Messages:
    13
    Likes Received:
    0
    Trophy Points:
    1
    So my timing should be looked right now, i put a timing light on it last night and revved the engine at the same time and the timing marks seem to be moving when doing so. Does this not mean that it is advancing on its on?
    #5
  6. f8tlfiveo

    f8tlfiveo My wife likes my spool and blow-off valve.

    Joined:
    Aug 9, 2007
    Messages:
    1,396
    Likes Received:
    70
    Trophy Points:
    49
    If you have no advance I am pretty sure it shouldn't be moving.
    #6
