need help with a gt40 intake swap

Discussion in 'Fox 5.0 Mustang Tech' started by 91cobra/gt, Dec 12, 2010.

  1. 91cobra/gt

    91cobra/gt New Member

    Joined:
    Nov 3, 2010
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    0
    hi every one just needed some help with my gt40 swap right now i have a 91 gt and a stock intake i have got a gt40 intake that i would like to put on i took the upper intake off the car and now i need help with all the vac lines what to use and what not to use what to block and what not to block any help would be great thanks.

    #1
  2. 2002BLGT

    2002BLGT Well-Known Member

    Joined:
    Dec 18, 2003
    Messages:
    2,949
    Likes Received:
    3
    Trophy Points:
    59
    Location:
    Bedford VA
    Just take notes of where the vacuum lines go on the stock intake when you pull it off and make sure you have access to the same amount and size ports when you put the new intake on , its not any set way of doing it , just make sure you dont have any extra open ports that you forget to cap off when you are done

    #2
  3. larrym1961

    larrym1961 Active Member

    Joined:
    Dec 18, 2010
    Messages:
    496
    Showcase:
    1
    Albums:
    1
    Likes Received:
    27
    Trophy Points:
    29
    Location:
    Idaho Falls Id
    I have done both a Ford Racing GT40 and a TFS Sreet Heat Intake. I just made sure all Vaccume lines and hoses went to where they did with the stock intake. I just labeled what went to where when I pulled them off. And any other vaccume port not used needs to be capped off!

    #3
  4. BYRDPE

    Founding Member

    Joined:
    Nov 4, 1998
    Messages:
    1,559
    Likes Received:
    0
    Trophy Points:
    37
    Location:
    Memphis,Tn.
  5. 4rdnut

    4rdnut Member

    Joined:
    Dec 14, 2010
    Messages:
    188
    Showcase:
    9
    Albums:
    1
    Likes Received:
    0
    Trophy Points:
    16
    The place you will have a leak is the pcv valve grommet. The grommet they sell for the lower intake at the back never fits in the manifold tight, it will just wobble in the hole loose. A lot of people silicone it shut and tight. I found a better way, go to the auto parts store and buy a regular universal pcv valve grommet that fits in v8 aftermarket valve covers. it comes in a plastic sealed package with a breather grommet from spectre company. Then clean the intake where the grommet goes in so there is no oily residue, push the grommet in the hole, it wont be tight until you put the pcv valve in, then lightly oil the pcv valve and press it into the grommet and the whole assembly will be super tight and sealed.

    #5
  6. stykthyn

    stykthyn Commander of the snuggie cultists

    Joined:
    Jul 6, 2006
    Messages:
    8,151
    Likes Received:
    601
    Trophy Points:
    163
    Location:
    gainesville
    I just make sure that all the vacuum lines run to a tree that will fit. Vacuum is vacuum. Doesn't much matter which hose goes where. Any unused port has to be capped like said above.

    #6
  7. 91cobra/gt

    91cobra/gt New Member

    Joined:
    Nov 3, 2010
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    0
    does anyone have any pics of theres that they could post?

    #7
  8. 91cobra/gt

    91cobra/gt New Member

    Joined:
    Nov 3, 2010
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    0
    plus the new intake does not have a vacuum tree any advice is needed thanks

    #8
  9. bigvino

    bigvino Member

    Joined:
    Mar 23, 2010
    Messages:
    259
    Likes Received:
    0
    Trophy Points:
    17
    Location:
    Corpus Christi, TEXAS
    im having that problem right now... did you ever get answer to your question?

    #9
  10. jrichker

    jrichker StangNet's favorite TOOL
    SN Certified Technician Founding Member

    Joined:
    Mar 10, 2000
    Messages:
    21,912
    Likes Received:
    411
    Trophy Points:
    134
    Location:
    Dublin GA
    Vacuum is vaccum... It doesn't matter where you connect the lines as long as the hoses and fittings are the same size.

    Vacuum line connections:
    One large vacuum line from the upper front goes to the carbon canister

    One large vacuum line from the rear goes to the vacuum tree.

    One small line in the front feeds the Smog pump solenoid control valves on the rear of the passenger side wheel well..

    One small line in the rear goes to the fuel pressure regulator.

    One small line in the rear goes to the EGR suction regulator.

    One large line in the rear goes to the PVC valve.

    Diagram courtesy of Tmoss & Stang&2birds - Typical Vacuum Routing for a Fox stang 5.0: [​IMG]

    See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring Mustang FAQ - Wiring & Engine Info

    #10
  11. bigvino

    bigvino Member

    Joined:
    Mar 23, 2010
    Messages:
    259
    Likes Received:
    0
    Trophy Points:
    17
    Location:
    Corpus Christi, TEXAS
    thank you sir! you always got the answers!

    #11
  12. stangsteve94gt

    stangsteve94gt New Member

    Joined:
    Aug 6, 2013
    Messages:
    6
    Albums:
    1
    Likes Received:
    0
    Trophy Points:
    2
    i think it`s crazy how people charge $200 or more for GT40 intakes but i went to a junk yard and got a GT40 intake off an explorer and only paid $30 bucks for it. I called a machine shop and they wanted $150 to port it out but the guy i talked to was great and honest and said if i have a dremel i could do it myself so at first i was affraid to do it but said screw it since i only paid $30 for it so i ported it myself and turned out great. SO all in all i got a upper and lower GT40 intake and ported it for $30 bucks lol 021.jpg

    #12
  13. stangsteve94gt

    stangsteve94gt New Member

    Joined:
    Aug 6, 2013
    Messages:
    6
    Albums:
    1
    Likes Received:
    0
    Trophy Points:
    2

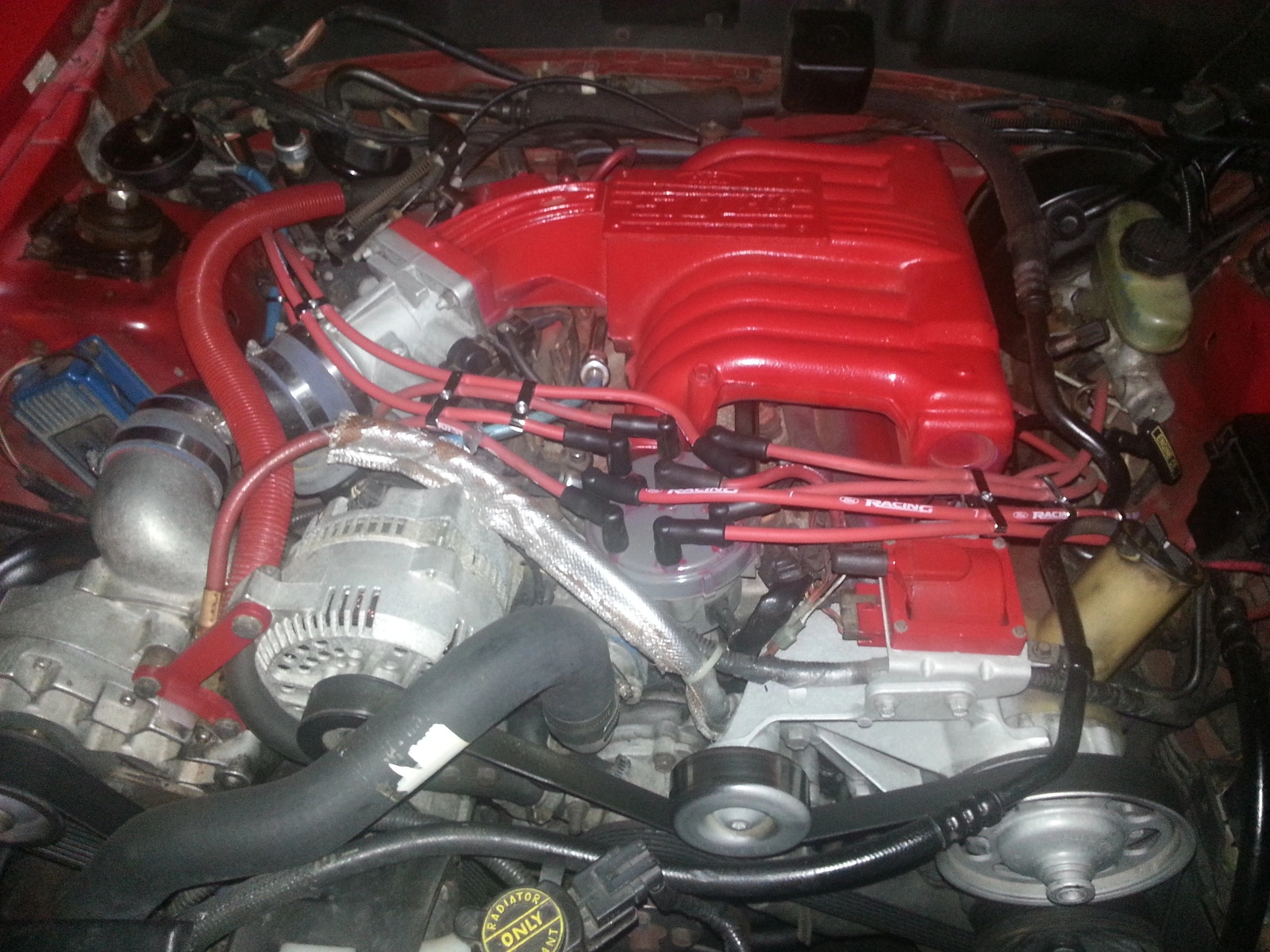

    i`m putting the intake on this weekend so this is the old one but it should work great with the vortech supercharger i`m running with 12lbs of boost

    #13
  14. mikestang63

    mikestang63 Mustang Master

    Joined:
    Aug 28, 2012
    Messages:
    4,179
    Showcase:
    20
    Albums:
    1
    Likes Received:
    1,210
    Trophy Points:
    154
    Location:
    In the garage
    If you want your intake ported, look up Tom Moss. He is the best. Period.

    #14
  15. stykthyn

    stykthyn Commander of the snuggie cultists

    Joined:
    Jul 6, 2006
    Messages:
    8,151
    Likes Received:
    601
    Trophy Points:
    163
    Location:
    gainesville
    I was just reading a build thread on corral where a guy with an e cam, t-moss explorer intake, and afr 175's laid down 320 to the wheels naturally aspirated. normally I would say that combo was good for 280-90 tops. Just goes to show how good tmoss's work is.

    #15
  16. stangsteve94gt

    stangsteve94gt New Member

    Joined:
    Aug 6, 2013
    Messages:
    6
    Albums:
    1
    Likes Received:
    0
    Trophy Points:
    2
    Oh i already did the porting myself but who is tom moss

    #16
  17. stangsteve94gt

    stangsteve94gt New Member

    Joined:
    Aug 6, 2013
    Messages:
    6
    Albums:
    1
    Likes Received:
    0
    Trophy Points:
    2
    And stykthyn if that pic is of you theres nothin better then a gorgeous girl that knows her cars

    #17
  18. stykthyn

    stykthyn Commander of the snuggie cultists

    Joined:
    Jul 6, 2006
    Messages:
    8,151
    Likes Received:
    601
    Trophy Points:
    163
    Location:
    gainesville
    tom(tmoss) is a member on this site. old school guy that ports the hell out of some intakes. he has an explorer based engine with a stock cam that lays down close to 300hp.

    #18
  19. stykthyn

    stykthyn Commander of the snuggie cultists

    Joined:
    Jul 6, 2006
    Messages:
    8,151
    Likes Received:
    601
    Trophy Points:
    163
    Location:
    gainesville
    a
    avatar is Adriana Lima

    #19
  20. madspeed

    madspeed Colonel Mustard
    Mod Dude Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    8,624
    Showcase:
    9
    Albums:
    1
    Likes Received:
    1,260
    Trophy Points:
    174
    Location:
    a van down by the river
    she was an angel!

    #20
