Need Some Help With My Belt

Discussion in '1979 - 1995 (Fox, SN95.0, & 2.3L) -General/Talk-' started by MikeH686, Sep 9, 2013.


  1. MikeH686

    MikeH686 Mine is only two inches though.

    Joined:
    Oct 12, 2011
    Messages:
    2,003
    Likes Received:
    371
    Trophy Points:
    104
    Location:
    Waldorf, MD
    So ive been chasing my tail on this issue for a week now but my belt squals like a mofo. Its all new underdrive pullies new belt tensioner pulley. At first i thought it was the alternator bearings or something when i removed the alternator it made a terrible squeal noise so replaced that and the squealing is still there now my belt routing is unconventional because i flipped the tensioner to where it pushes out to tension the belt.

    http://s1261.photobucket.com/user/mhare686/media/car2_zps59dbf99d.jpg.html

    Heres a picture of how i routed it. If someone could tell me what im doing wrong i do know between the crank and alternator i have some slop when its running.

    #1
  2. MikeH686

    MikeH686 Mine is only two inches though.

    Joined:
    Oct 12, 2011
    Messages:
    2,003
    Likes Received:
    371
    Trophy Points:
    104
    Location:
    Waldorf, MD

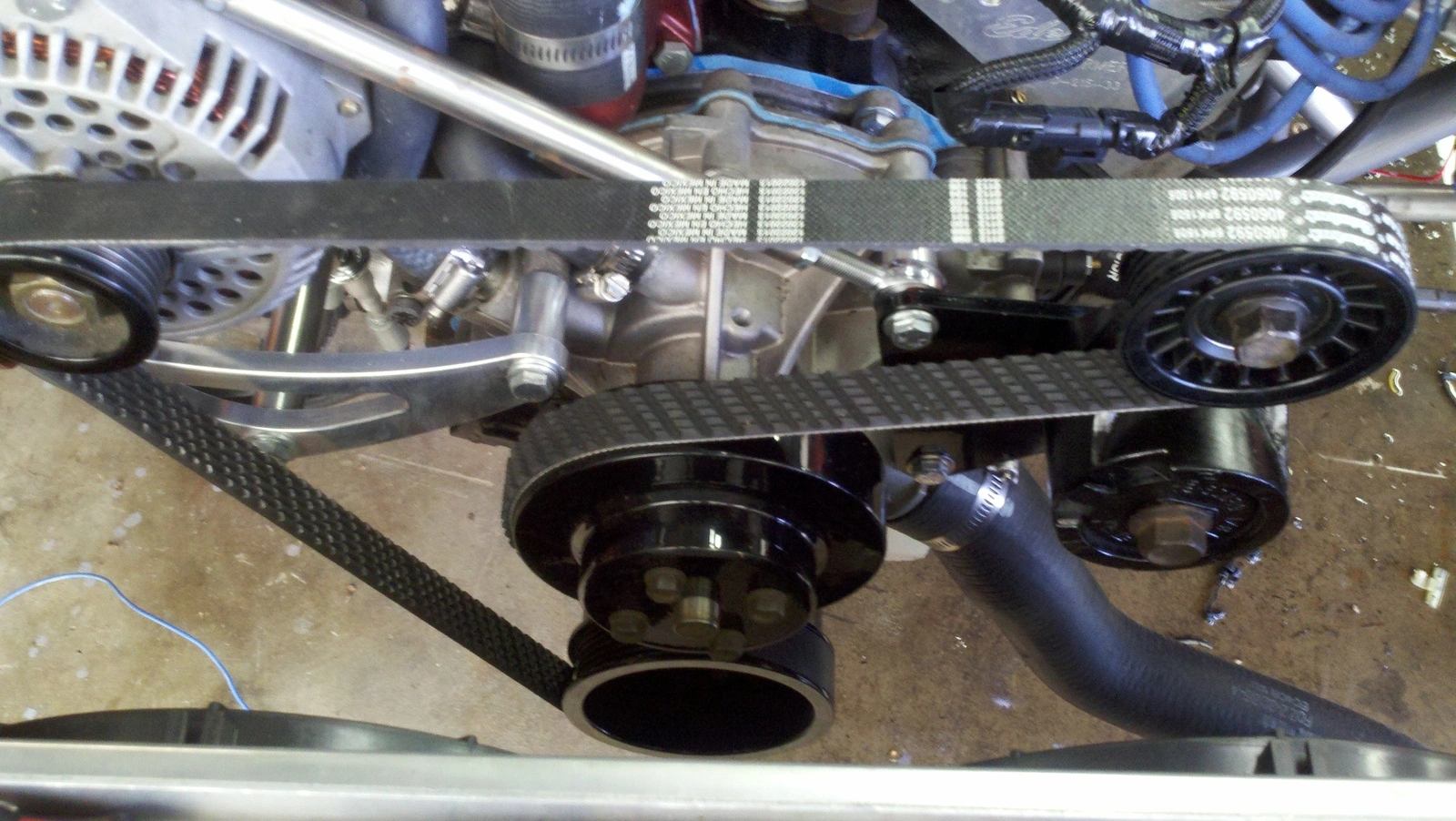

    Heres a actual picture and not a link sorry.


    Attached Files:

    #2
  3. f8tlfiveo

    f8tlfiveo My wife likes my spool and blow-off valve.

    Joined:
    Aug 9, 2007
    Messages:
    1,430
    Likes Received:
    75
    Trophy Points:
    49
    Location:
    Lancaster, PA
    Are all of your accessories in line? How much tension is on the belt?

    #3
  4. hoopty5.0

    hoopty5.0 Mustang Master

    Joined:
    Dec 14, 2010
    Messages:
    2,517
    Likes Received:
    640
    Trophy Points:
    134
    Location:
    SW Houston
    Why do you have two tensioners on there? You could clean it up by removing the factory style tensioner and using a standard rotation water pump. That way, you just have 3 pulleys and you adjust the tension with the turnbuckle on the alternator.

    #4
  5. Bullitt95

    Bullitt95 Active Member

    Joined:
    Jun 13, 2007
    Messages:
    1,298
    Showcase:
    4
    Albums:
    1
    Likes Received:
    25
    Trophy Points:
    49
    Location:
    Al Ain, United Arab Emirates

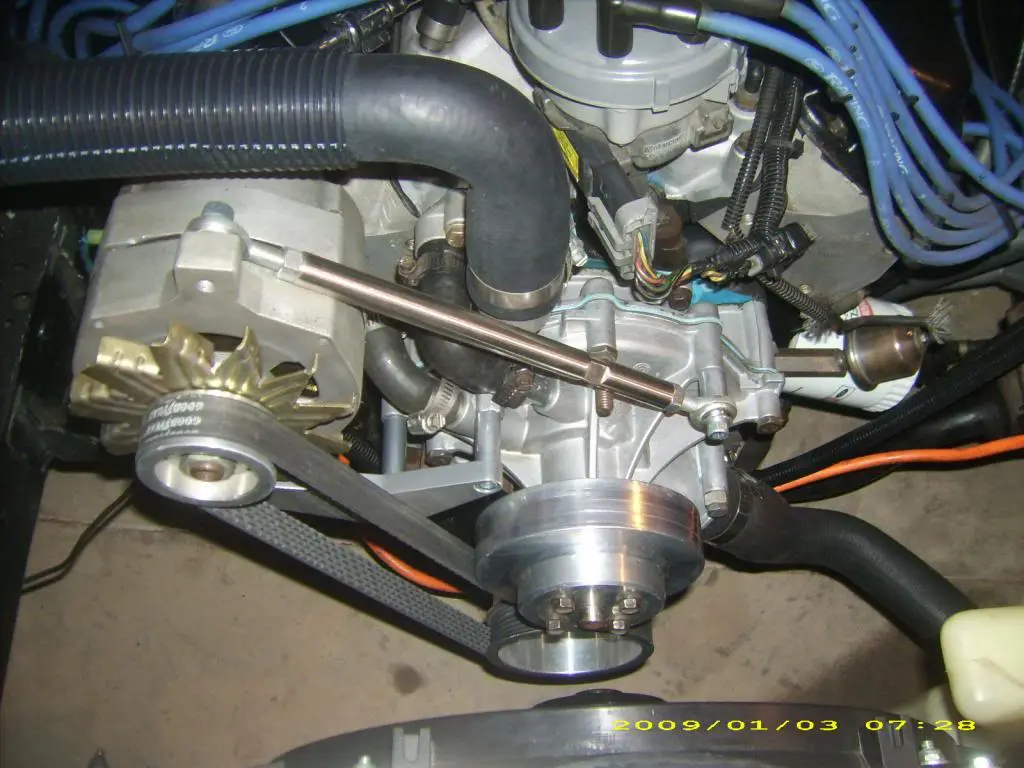

    There's nothing wrong with the routing of your belt but I suspect that there isn't enough belt tension. You might wanna relocate your tensioner as per this diagram:

    [​IMG]

    #5
  6. Rick 91GT

    SN Certified Technician Site Sponsor

    Joined:
    Nov 30, 1999
    Messages:
    9,702
    Albums:
    1
    Likes Received:
    94
    Trophy Points:
    99
    Location:
    PA
    I tried that routing years ago, March made the kit to put the factory tensioner on the drivers side. I had the same issue...squeeled like a pig since the belt was never tight enough.

    Is this a daily driver?



    Sent from my XT907 using Tapatalk 2

    #6
  7. 84Ttop

    84Ttop They make new pistons every day, so why worry?
    SN Certified Technician Mod Dude

    Joined:
    Jul 3, 2009
    Messages:
    3,304
    Likes Received:
    1,400
    Trophy Points:
    144
    Location:
    South Jersey
    Same here, never had much success with that setup.

    #7
  8. MikeH686

    MikeH686 Mine is only two inches though.

    Joined:
    Oct 12, 2011
    Messages:
    2,003
    Likes Received:
    371
    Trophy Points:
    104
    Location:
    Waldorf, MD
    Yeah daily driver and i did it this way because one i dont wanna change out my water pump and two i had the extra tensioner for more belt wrap there was a write up a couple years ago on corral that i went with he used a 59.25" belt that squealed bad and then i dropped it down to 57" and still squeals i wonder if i should take it off and add a standard pulley and use the march kit

    #8
  9. MikeH686

    MikeH686 Mine is only two inches though.

    Joined:
    Oct 12, 2011
    Messages:
    2,003
    Likes Received:
    371
    Trophy Points:
    104
    Location:
    Waldorf, MD
    So does anyone know of a standard pulley i can use in place of the tensioner i have. I want to get good belt wrap but all the brackets like the a/c elimination bracket bolts to tje power steering pump and i have neither

    #9
  10. mikestang63

    mikestang63 Mustang Master

    Joined:
    Aug 28, 2012
    Messages:
    4,063
    Showcase:
    20
    Albums:
    1
    Likes Received:
    1,153
    Trophy Points:
    154
    Location:
    In the garage
    you can buy a March or knockoff alternator bracket that has a threaded rod to adjust the belt manually. Perhaps that will solve the issue.

    [​IMG]

    You also should check the pulleys for built up gunk that can cause the belt to slip.

    #10
  11. MikeH686

    MikeH686 Mine is only two inches though.

    Joined:
    Oct 12, 2011
    Messages:
    2,003
    Likes Received:
    371
    Trophy Points:
    104
    Location:
    Waldorf, MD
    I have one already im looking for just a solid pulley to get added belt wrap around waterpump

    #11
  12. madspeed

    madspeed Colonel Mustard
    Mod Dude Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    8,516
    Showcase:
    9
    Albums:
    1
    Likes Received:
    1,246
    Trophy Points:
    174
    Location:
    a van down by the river

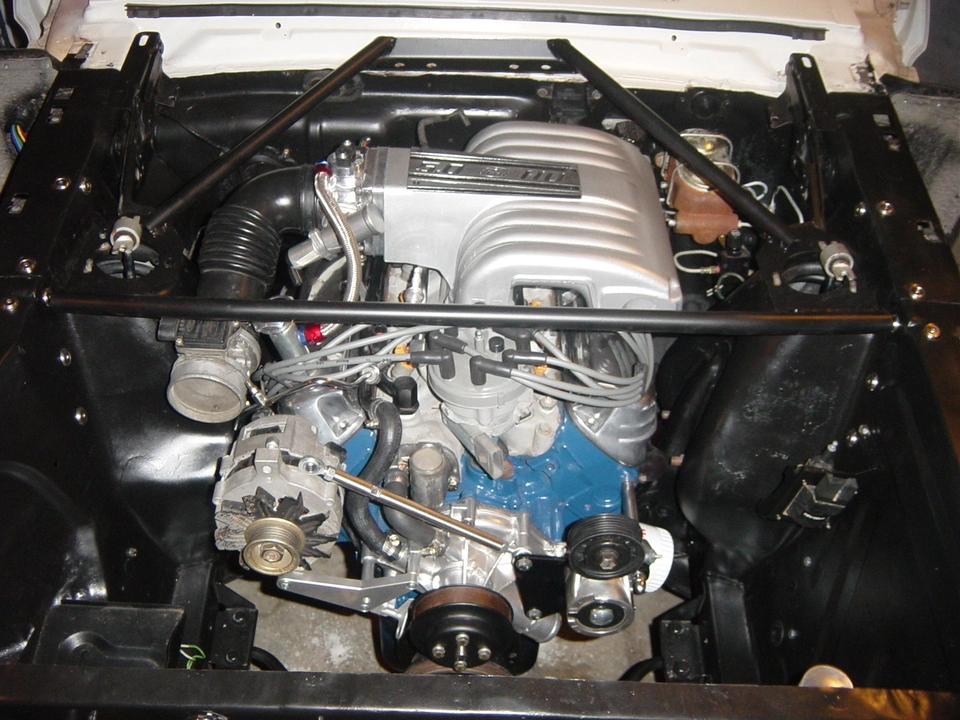

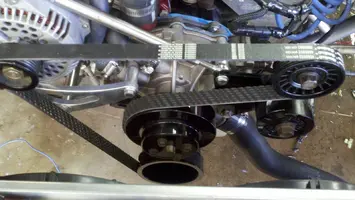

    my old setup...


    #12
  13. MikeH686

    MikeH686 Mine is only two inches though.

    Joined:
    Oct 12, 2011
    Messages:
    2,003
    Likes Received:
    371
    Trophy Points:
    104
    Location:
    Waldorf, MD
    This worked for you? What size belt

    #13
