Question About Roller Rockers

Discussion in 'Fox 5.0 Mustang Tech' started by gnx547, Sep 26, 2013.


  1. gnx547

    gnx547 Member

    Joined:
    Sep 26, 2006
    Messages:
    258
    Likes Received:
    0
    Trophy Points:
    17
    I have stud mount Crane 1.7 roller rockers and I adjusted the push rods to zero lash. I used a half turn on the nut and the I tightened down the poly lock. There is very slight movement on the rockers, should there be any movement on rockers? Or no movement at all?

    #1
  2. Gearbanger 101

    Gearbanger 101 Straight Outta Locash Super Mod

    Joined:
    Aug 11, 2002
    Messages:
    14,496
    Likes Received:
    951
    Trophy Points:
    164
    Location:
    Ontario, Canada
    What do you mean by "slight movement"? Are you meaning movement in the sense that it rocks back and forth between the valve and the push rod, or do you mean lateral movement?

    You shouldn't have any rocking back and forth between the valve stem and the pushrod. If you do, then you haven't tightened to zero lash.

    Here's a simple reference chart for the Ford Racking rocker arms. There are examples here for both stud mounted and pedestal mounted versions....

    http://www.stangnet.com/mustang-for...-other-stud-pedestal-mount-roller-rockers.28/

    #2
    Last edited: Sep 26, 2013
    5point0stang88 likes this.
  3. gnx547

    gnx547 Member

    Joined:
    Sep 26, 2006
    Messages:
    258
    Likes Received:
    0
    Trophy Points:
    17

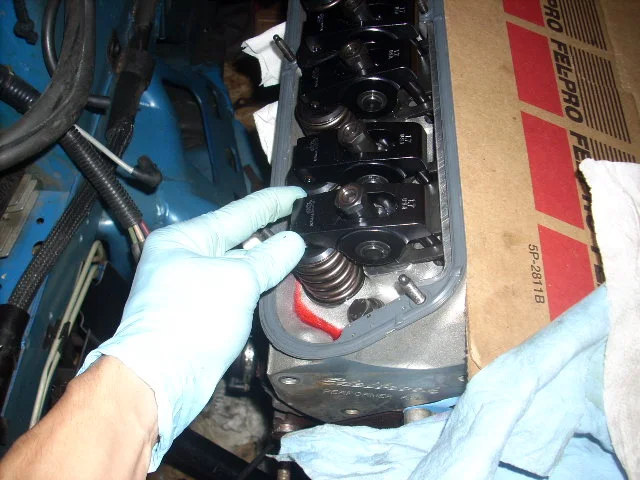

    Yes, lateral movement of the rocker. In the pic, where my 2 fingers are at, there is very little side to side movement of the rocker. Both nuts are tight. Is it normal to have very little play? Or should there be no side to side movement at all?

    [​IMG]

    #3
  4. Gearbanger 101

    Gearbanger 101 Straight Outta Locash Super Mod

    Joined:
    Aug 11, 2002
    Messages:
    14,496
    Likes Received:
    951
    Trophy Points:
    164
    Location:
    Ontario, Canada
    If either end of the rocker (the roller, or the pushrod cup) is breaking contact with either the valve stem, or the pushrod, then the rocker arms are either adjusted incorrectly, or you need longer pushrods.

    If you're getting up and down movement to the point that the arm breaks contact with either one of these two points, then you're not at zero lash. At zero lash you should have absolutely no up and down movement between the pushrod cup and the pushrod. At zero lash you should be able to spin the pushrod between your finger, with the slightest resistance, but not enough that it rattles up and down.

    Maybe you should take a video clip of the issue to give us a better idea of the problem? My thoughts are that you might be in need of longer pushrods? Did these rods come in a kit with the heads, or the rocker arms?

    #4
  5. 95Vert383AOD

    95Vert383AOD Active Member

    Joined:
    Jun 10, 2008
    Messages:
    1,300
    Likes Received:
    35
    Trophy Points:
    49
    Location:
    Providence, RI
    I think some lateral (side to side) movement is expected using guide plates. A guide plate by design isn't the greatest way to keep a rocker centered. As long as the roller tip isn't leaving the valve.

    The rocker should also be tight enough to not have and forward back play "Up down movement" but you should still be able to turn the valve stem by hand. This is assuming you are using Hydraulic Lifters.

    #5
  6. mikestang63

    mikestang63 Mustang Master

    Joined:
    Aug 28, 2012
    Messages:
    4,054
    Showcase:
    20
    Albums:
    1
    Likes Received:
    1,148
    Trophy Points:
    154
    Location:
    In the garage
    What may seem like an obvious question at this point. Did you check for proper pushrod length or simply reinstall the stock length pushrods. What head gasket are you using.

    #6
  7. gnx547

    gnx547 Member

    Joined:
    Sep 26, 2006
    Messages:
    258
    Likes Received:
    0
    Trophy Points:
    17
    The pushrods, rockers, heads were all on the engine when I bought the car. I had a bad bearing in the motor so, I replaced it with a Explorer shortbock. I'm using the Felpro 9333PT head gasket. I did not check for proper pushrod length. I looked at the roller tip and it sits in the middle of the valve. If I got longer pushrods, I think the rocker tip will be off the valve. The rocker nut is tight and there is no up and down movement.

    #7
  8. Gearbanger 101

    Gearbanger 101 Straight Outta Locash Super Mod

    Joined:
    Aug 11, 2002
    Messages:
    14,496
    Likes Received:
    951
    Trophy Points:
    164
    Location:
    Ontario, Canada
    Ok....you edited your post after I replied to you stating that you were getting up and down movement, not side to side movement?!?

    A little lateral movement (a couple of millimeters in either direction) is normal. The roller tip will have a little side to side play, as will the pushrod. They're designed to float around a little. Just as long as you're not getting any up and down movement.

    When you crank the rocker down, you should get between .020-.030 (with OEM lifters) depression on the lifter. This is called lifter pre-load. It's normal and required if you want it to function properly and stay quiet.

    A little preload is a good thing, but you don't want to crank it down so much that it starts to open the valve. This is going to hurt your cause, because not allowing the valve to close all of the way is going to bleed off some compression. The symptoms are a slight drop in power and rough idle.

    A diagram to illustrate what I mean....

    [​IMG]

    #8
  9. gnx547

    gnx547 Member

    Joined:
    Sep 26, 2006
    Messages:
    258
    Likes Received:
    0
    Trophy Points:
    17
    Yes, I'm getting side to side movement. So I know now that it is normal for the rocker to that. Thanks for the diagram

    #9
