Round Tube Subframe Connectors

Discussion in 'Fox 5.0 Mustang Tech' started by sen2two, Aug 17, 2013.


  1. sen2two

    sen2two Active Member

    Joined:
    Jul 18, 2013
    Messages:
    189
    Likes Received:
    6
    Trophy Points:
    29
    I am planning to build my own round tube subframe connectors like the ones posted by "Bobby light" in this link.

    Fox Mustang Sub Frame Connectors ques.... - Page 3 - Yellow Bullet Forums

    the only thing I am worried about is that my car is my daily driver. And I do not want round tube bulging up my carpet and getting in the way of my feet.

    anyone else here have round tube subframe connectors that you did yourself? Or have pictures of others that have done it? I am not dead set on through the floor connectors, but I am dead set on using round two over square tube.

    #1
  2. jrichker

    jrichker StangNet's favorite TOOL SN Certified Technician Founding Member

    Joined:
    Mar 10, 2000
    Messages:
    21,745
    Likes Received:
    383
    Trophy Points:
    134
    Location:
    Dublin GA

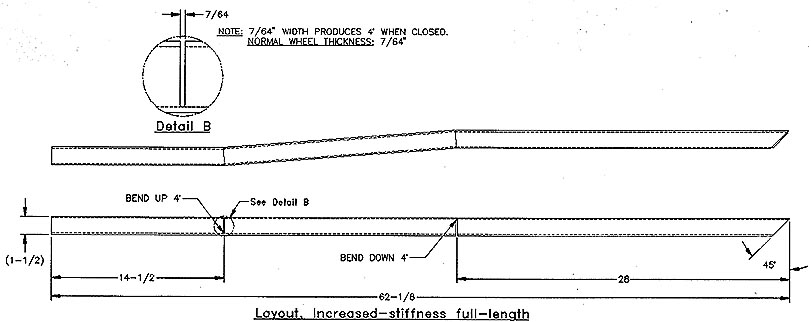

    #2
  3. sen2two

    sen2two Active Member

    Joined:
    Jul 18, 2013
    Messages:
    189
    Likes Received:
    6
    Trophy Points:
    29
    I did read the old west racing write up A few times. but I decided on round tube for my car. And I have never found a write up for a round tube set up. I want to either do it like the pictures in the link I posted or beside the frame rails like I have seen on other cars.

    #3
  4. Rick 91GT

    Rick 91GT SN Certified Technician Site Sponsor

    Joined:
    Nov 30, 1999
    Messages:
    9,702
    Albums:
    1
    Likes Received:
    94
    Trophy Points:
    99
    Location:
    PA
    can you repost the Link it isn't showing up

    Sent from my XT907 using Tapatalk 2

    #4
  5. mikestang63

    mikestang63 Mustang Master

    Joined:
    Aug 28, 2012
    Messages:
    3,953
    Showcase:
    20
    Albums:
    1
    Likes Received:
    1,110
    Trophy Points:
    144
    Location:
    In the garage
    Global West sells/sold round tube SBF. Don't know if they still do, but they were a nice piece.

    #5
  6. Rick 91GT

    Rick 91GT SN Certified Technician Site Sponsor

    Joined:
    Nov 30, 1999
    Messages:
    9,702
    Albums:
    1
    Likes Received:
    94
    Trophy Points:
    99
    Location:
    PA
    Why not square tube? 2 x 2 fits nicely inside the stock rails and can sit surprisingly flush with the floor up front.

    Here's my 25.5 chassis I did.


    Sent from my XT907 using Tapatalk 2


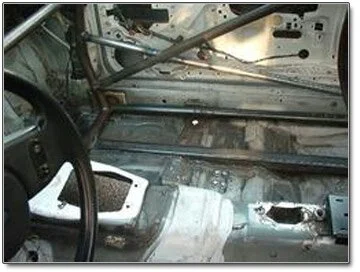

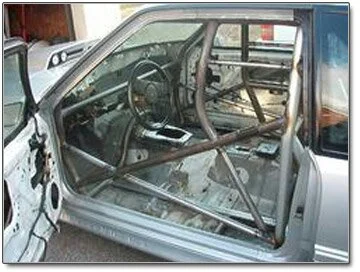

    Attached Files:

    #6
  7. reldla1996

    reldla1996 Member

    Joined:
    May 5, 2011
    Messages:
    356
    Showcase:
    5
    Albums:
    1
    Likes Received:
    22
    Trophy Points:
    19
    Location:
    Dayton, Ohio
    I bought sub frame connectors for my 67 Cougar from Global West a couple years ago, and they were round. The book Mustang Performance Handbook 2 by William Mathis has a lot of home built chassis modifications with drawings in it for the Fox Mustangs, but he showed rectangular tubing for the sub frames.

    #7
  8. jAEded

    jAEded Active Member

    Joined:
    Aug 12, 2013
    Messages:
    324
    Likes Received:
    13
    Trophy Points:
    29
    Location:
    Cali

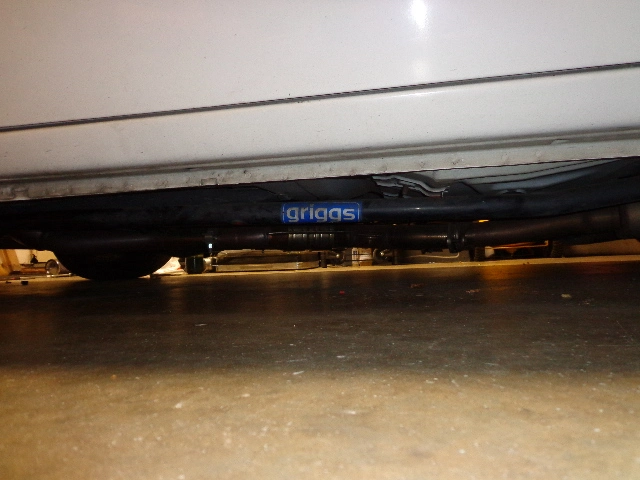

    These are Griggs. If you want some ideas?

    They are basically straight with a slight bend towards the back. I can probably get the distance measurements and the angle of the bend if you want?

    DSC00186.JPG DSC00187.JPG DSC00188.JPG

    #8
  9. 84Ttop

    84Ttop They make new pistons every day, so why worry? SN Certified Technician Mod Dude

    Joined:
    Jul 3, 2009
    Messages:
    3,266
    Likes Received:
    1,369
    Trophy Points:
    144
    Location:
    South Jersey
    I'm just wondering why round over square tube? I have square tube through the floor connectors in mine as well. It's not until 25.3 that round tube connectors are mandatory and i've only seen them installed in such a way that your beat in the carpet department.

    #9
    RangerJoe likes this.
  10. sen2two

    sen2two Active Member

    Joined:
    Jul 18, 2013
    Messages:
    189
    Likes Received:
    6
    Trophy Points:
    29
    I would very much appreciate the length and angle of the bend. That would save me the guess work.

    #10
  11. mikestang63

    mikestang63 Mustang Master

    Joined:
    Aug 28, 2012
    Messages:
    3,953
    Showcase:
    20
    Albums:
    1
    Likes Received:
    1,110
    Trophy Points:
    144
    Location:
    In the garage
    It was over 10 years ago, but what I read was the strength of round tubing was greater than the square. For most street cars, I doubt anyone would notice the difference.

    #11
  12. jAEded

    jAEded Active Member

    Joined:
    Aug 12, 2013
    Messages:
    324
    Likes Received:
    13
    Trophy Points:
    29
    Location:
    Cali

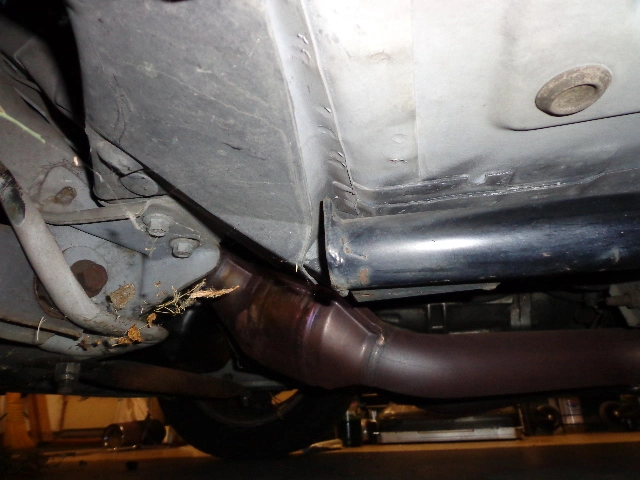

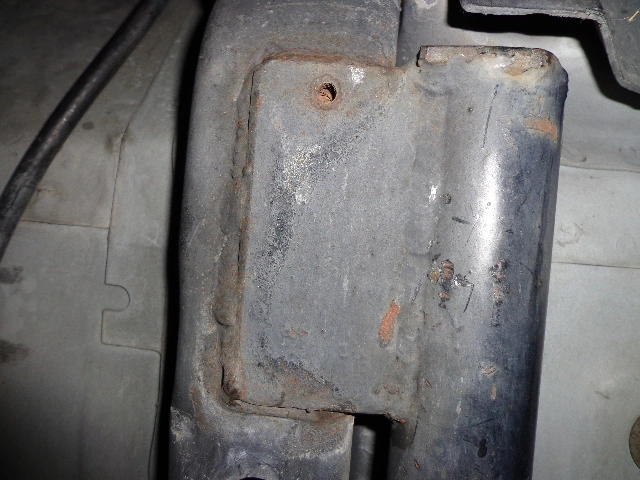

    I have 46.5", a 10 degree bend, and then 10.5". Maybe leave a 1/2" or 3/4" longer on the ends to give you some leeway. 1 5/8" diameter, but I can't tell on the wall thickness.

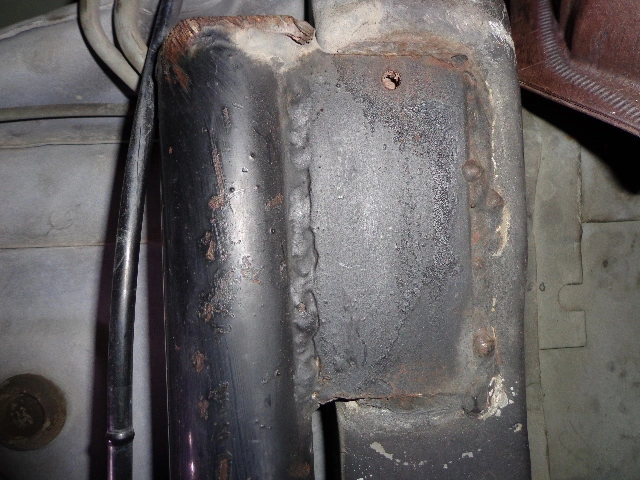

    I tried to get better pics of how and where they mounted on the front. The cars on the ground so its difficult. It stops right at the plastic wheel well shield, and looks like on the side they welded a flat tab to weld to the frame rail.

    DSC00191.JPG DSC00190.JPG

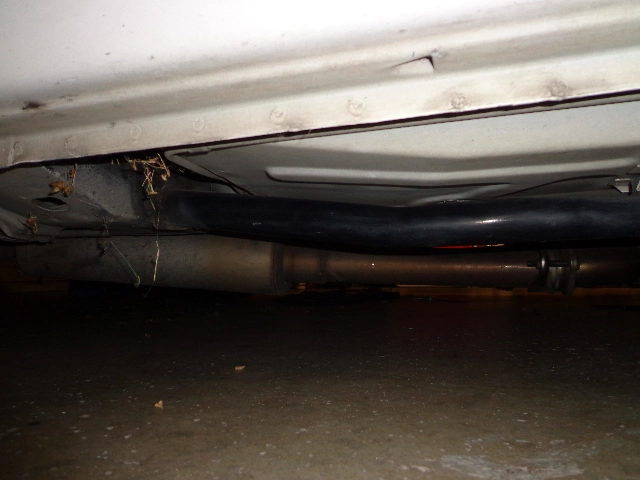

    The back, they welded a piece of flatstock to the end of the tube, then the flat to the rear subframe. You can see my rear lifting point in the far right of the pic. If that kind of helps where it is.

    #12
    Last edited: Aug 20, 2013
  13. jAEded

    jAEded Active Member

    Joined:
    Aug 12, 2013
    Messages:
    324
    Likes Received:
    13
    Trophy Points:
    29
    Location:
    Cali

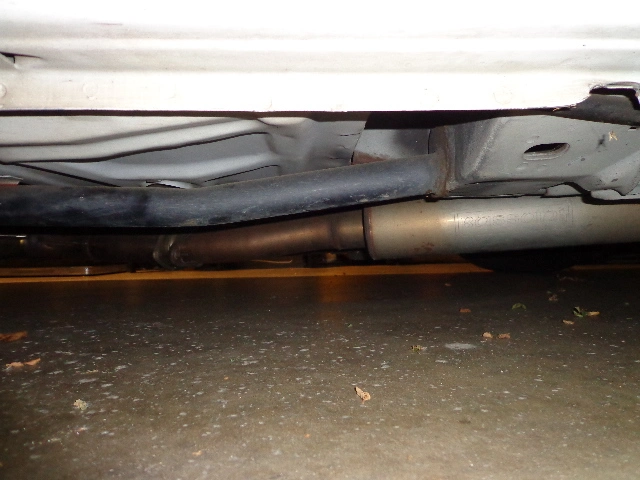

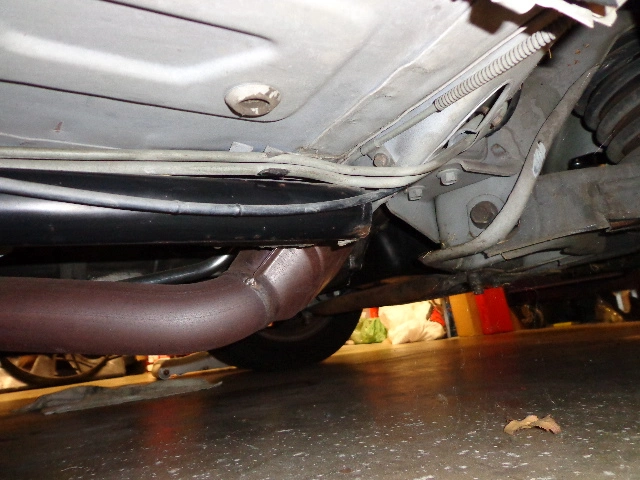

    This is the passenger side. Both sides measure the same. Angle may be 9 degrees.

    Front
    DSC00193.JPG DSC00194.JPG

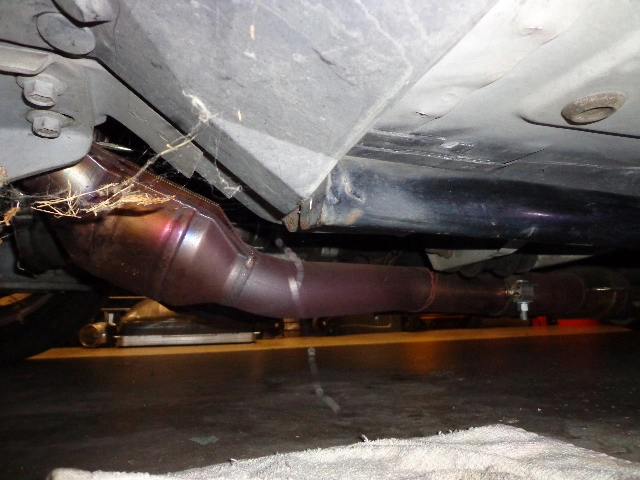

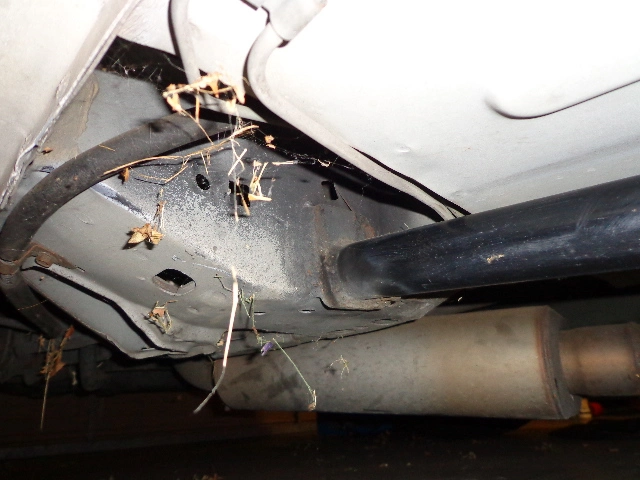

    Rear
