Seat Wiring

Discussion in '2010 - 2014 Specific Tech' started by txjcb5002, Oct 28, 2012.


  1. txjcb5002

    txjcb5002 New Member

    Joined:
    Oct 28, 2012
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    1

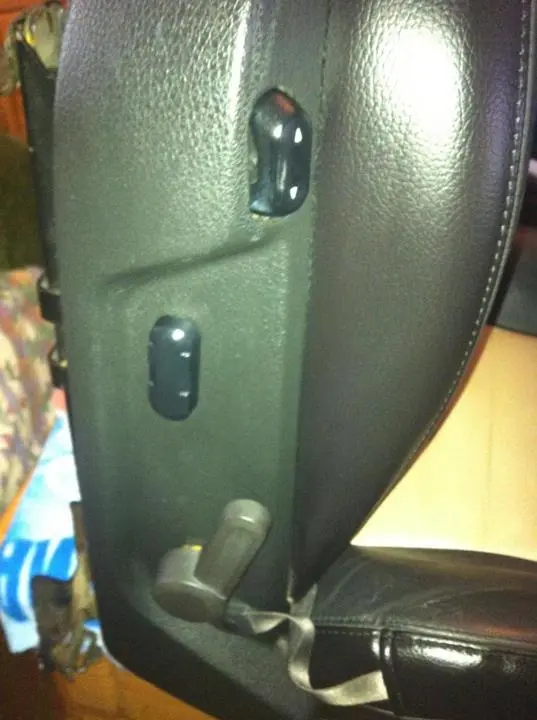

    Hello gentlemen. I am looking for some info on wiring diagrams. I picked up a set of leather, power seats from a 2010. Needing to know how to wire them up. Thanks for your time.
    [​IMG]
    [​IMG]
    [​IMG]
  2. 07 GTCS

    07 GTCS New Member

    Joined:
    Sep 3, 2012
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    1
    Are these going in a 2010? You might check under the carpet beneath the seat, you could possibly find a mate for the electrical connector.
  3. txjcb5002

    txjcb5002 New Member

    Joined:
    Oct 28, 2012
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    1

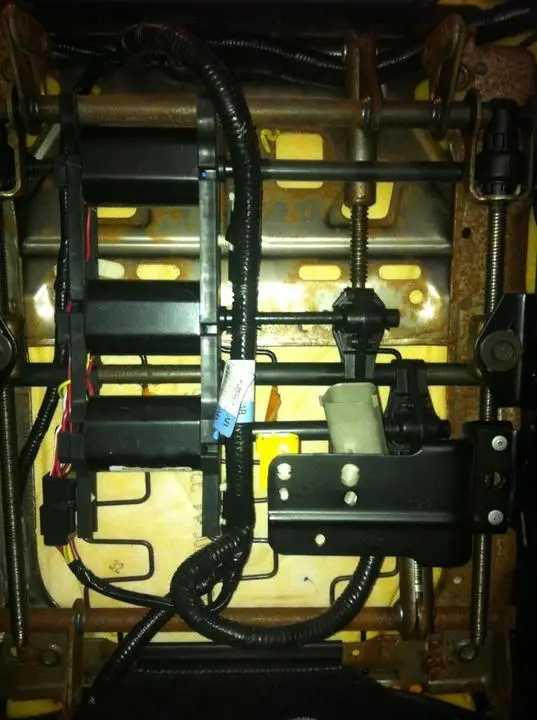

    No. I have gotten the motors figured out but there are still four more wires that I'm not sure what they are. Not really wanting to pull the covers to track them down. Hope they are heaters. You know how cold it gets in Texas. Lol
