Some pictures of my project... The Mustang SHO

Discussion in 'Classic Mustang Specific Tech' started by wicked93gs, Mar 11, 2007.


  1. wicked93gs

    wicked93gs New Member

    Joined:
    Sep 30, 2006
    Messages:
    565
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Nashville TN
    Some pictures of my project... The Mustang SHO(updated w/pictures 5/27/07)

    or project frankenstang as I like to call it...first order of business is converting a '95 Taurus SHO FWD engine to RWD, a 3.0L 24 valve DOHC v6 producing 220HP in stock form...pretty much the same as a 289 but producing 60ft/lb of torque less...but also weighing 150lbs less and since its able to rev to 8000rpm much better able to take full advantage of the t-5s gear ratios

    my engine bay
    [​IMG]

    my engine of choice
    [​IMG]

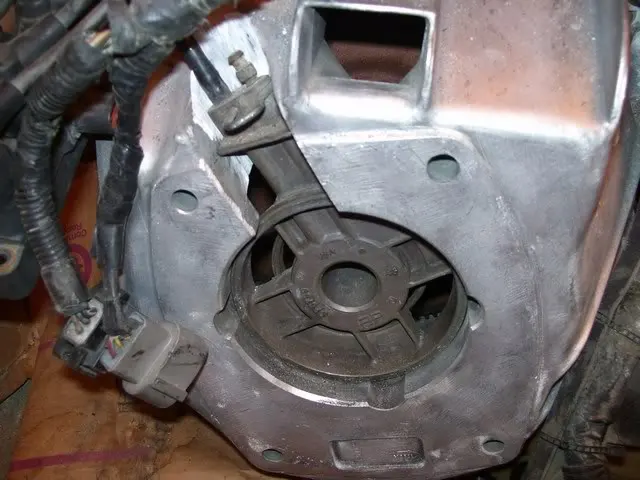

    this is the bellhousing from a 93 aerostar....the only RWD bellhousing that will bolt up to the SHO engine....with certain...modifications anyway..
    [​IMG]

    the engine and bellhousing together finally
    [​IMG]

    the project comes together...next step is to source 94- 06 v6 mustang manual tranny to work with...and a mustang II 2.8L clutch disc...a SHO clutch...SHO throw out bearing and a 289 pilot bushing and get the engine and tranny all bolted up and working together(psst, donations are always accepted...lol) then the hard part will be out of the way...then I'll get to tackle the intake manifold orientation(or mayble a custom manifold if I'm feeling brave)
    #1
  2. 68rustang

    68rustang Active Member

    Joined:
    Jan 17, 2003
    Messages:
    1,537
    Likes Received:
    0
    Trophy Points:
    36
    Location:
    Cleveland, OH
    Interesting project. It sounds like you have it thought out. Might I suggest you resize your pictures though.
    #2
  3. 68stang351

    68stang351 Founding Member

    Joined:
    May 17, 2002
    Messages:
    1,925
    Likes Received:
    13
    Trophy Points:
    39
    Location:
    Savoy TX
    Hey that's pretty cool! Keep us updated.
    #3
  4. wicked93gs

    wicked93gs New Member

    Joined:
    Sep 30, 2006
    Messages:
    565
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Nashville TN
    The mustang SHO project log(updated with pictures 5/27/07)

    well, more progress today....

    the hydraulic clutch mounted correctly when using a long input shaft T5
    [​IMG]

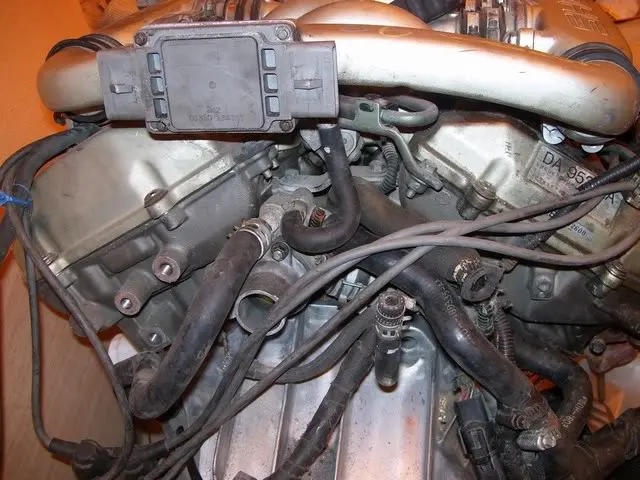

    I chopped the water outlet neck down so I can run it around to the passenger side of the engine and then up front(this is so the water neck is not preventing the engine from sitting against the firewall)
    [​IMG]

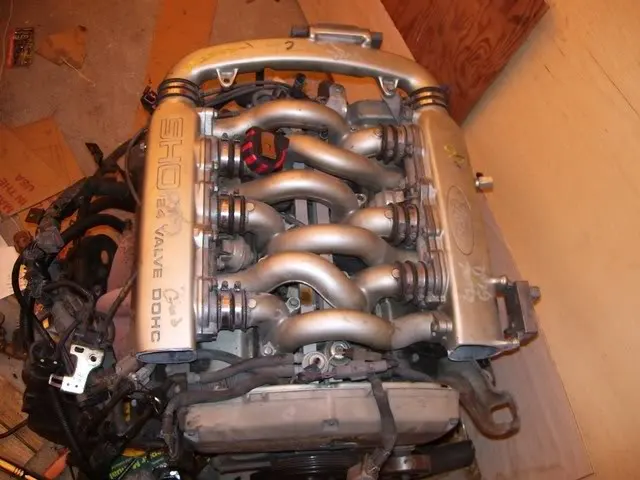

    I decided didnt want to use spacers on the intake manifold...so I got grinder happy and chopped it up...I will be using two throttle bodies...probably from a 300zx or a 3000GT....or even a geo metro...I dont care as long as they are in the 40ish mm range, the only issue with doing it this way is the plenum connector at the back still sticks out farther than I like..preventing me from getting the engine as far back in the bay as I would like...but maybe I will cut the firewall to solve this...my main concern is the shifter location...I'll see how it goes
    [​IMG]
    #4
  5. 68rustang

    68rustang Active Member

    Joined:
    Jan 17, 2003
    Messages:
    1,537
    Likes Received:
    0
    Trophy Points:
    36
    Location:
    Cleveland, OH

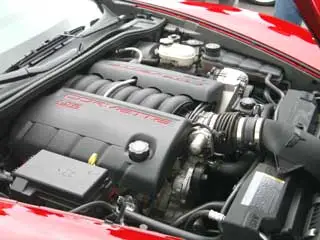

    Too late now but what was wrong with the single tbody coming off the "front" of the engine? You could have done an intake similar to the late model vettes and f-bodies, forward and down.

    [​IMG]
    #5
  6. wicked93gs

    wicked93gs New Member

    Joined:
    Sep 30, 2006
    Messages:
    565
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Nashville TN
    the problem was that I would have had to hack up my timing belt cover and use 1/2" spacers to use it...not a big deal, but this provides me an opportunity for twin entry...which is a plus since the engine will eventually be twin turbo...and finding larger throttle bodies is much easier when you start small to begin with...I'm looking for something 40mm...from there I could upgrade to 49mm dodge neon TBs...or 52mm neon TBs...etc etc if I ever need them...but reason #1 was I couldnt flip the manifold 180 dgerees(which is what I did) without hacking it up
    #6
  7. 68rustang

    68rustang Active Member

    Joined:
    Jan 17, 2003
    Messages:
    1,537
    Likes Received:
    0
    Trophy Points:
    36
    Location:
    Cleveland, OH
    Ah, I didn't realize you spun the manifold around. Much better sizes on the pics.
    #7
  8. mtbdoc

    mtbdoc New Member

    Joined:
    Nov 3, 2003
    Messages:
    245
    Likes Received:
    0
    Trophy Points:
    0
    Interesting...I LOVED my '91 SHO. That Yamaha engine was an amazing piece of work. I had an '87 Mustang GT but MUCH preferred to drive the Taurus.

    Sure is a lot of work for this transplant...makes me look again at the LS2 transplant idea I had before! At least it is an AMERICAN V-8! j/k...have fun w/ the Yammy. That is one revvin' motor, fo sho!
    #8
  9. Rusty67

    Rusty67 Well-Known Member

    Joined:
    Dec 3, 2002
    Messages:
    3,612
    Likes Received:
    13
    Trophy Points:
    59
    Location:
    SB, CA
    I believe that the v6 T5s are just the same as the early v8 T5s. I think they are just regular non-world class T5s. From what I understand they are exactly the same... I could be wrong on that tho.

    Also, I wouldn't use a pilot bushing. A pilot bearing is a much better choice. I think they are about 15 bux ? Hell, I think I've got an extra one lying around that is brand new. Any reason you wanted to go with a bushing instead ?

    Looks like you have come a long way on this project. I'd love to see it all working. Good job man !
    #9
  10. Decurion

    Decurion Member

    Joined:
    Sep 29, 2006
    Messages:
    364
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Livonia, MI
    ALL the t5s starting in 85 were world-class. According to what I read just the other day, the 94 or 99 and up (cant remember which) v6 t5 was actually stronger than most of the earlier v8 t5s.
    Its rated at 300lb-ft, and has the same 3.35 1st, 0.68 od. It was on one of the big names websites, Ill see if I can find it again.
    #10
  11. Decurion

    Decurion Member

    Joined:
    Sep 29, 2006
    Messages:
    364
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Livonia, MI
  12. 4MuscleMachines

    4MuscleMachines Member

    Joined:
    Jul 21, 2005
    Messages:
    417
    Likes Received:
    0
    Trophy Points:
    17
    Location:
    South Texas
    This is a really cool project, very original. I love that engine and the way it will look when you pop the hood open. :nice:
    #12
  13. wicked93gs

    wicked93gs New Member

    Joined:
    Sep 30, 2006
    Messages:
    565
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Nashville TN
    yep, the v6 trannys are all 300ft/lb rated and all have the longer input shaft used in the SN95 chasis which is needed in my swap because I have to make a 1/2" adapter plate that goes between the tranny and the aerostar bellhousing...as for the pilot bushing I have to use a bushing and not a bearing simply because I have to have the bushing machined down to fit inside the SHO crank, and if I used a bearing(which I have by the way...one from a 5.0) the rollers on the bearing will not survive...too much material has to be taken...but since a bushing doesnt have rollers it doesnt have that problem

    by using two "front" exhaust manifolds the engine should just barely clear the shock towers in the 66 with about 1/4" clearance on either side...with some judicious notching and solid engine mounts I should be able to make it work...at this point the only thing keeping me from test fitting the engine is I plan to convert to a TCP rack and pinion setup to minimize oil pan issues(and for better steering) but since I dont have a rack yet I dont know exactly where the rack will set...I hear it bolts in place of the front crossmember? anyone know whether this is true?

    wiring...for me the simplest part...I plan to run the engine off of MegaSquirt using EDIS-6, since I'm an old hand at MegaSquirt its a minor issue at worst(yes, I prefer a good speed density system to mass air...as long as I have full control of that system)

    anyway, I get ahead of myself, I need to tackle the pilot bushing and clutch setup next, thanks for the support guys...also keep any suggestions coming, I can always use help
    #13
  14. Rusty67

    Rusty67 Well-Known Member

    Joined:
    Dec 3, 2002
    Messages:
    3,612
    Likes Received:
    13
    Trophy Points:
    59
    Location:
    SB, CA
    Have you considered machining the crank out to accept a bearing instead of machining the bushing down to fit the crank ?

    Then again.... you provably don't want to take the engine apart for something like that.....
    #14
  15. chepsk8

    chepsk8 Founding Member

    Joined:
    Jan 15, 2001
    Messages:
    2,213
    Likes Received:
    1
    Trophy Points:
    49
    Location:
    Easton, PA
    Wicked Cool! I will follow it as well. I had always thought about grafting the front clip of a SHO, yet keeping the Mustang Sheet metal on the outside, maybe even 4WD!
    #15
  16. Decurion

    Decurion Member

    Joined:
    Sep 29, 2006
    Messages:
    364
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Livonia, MI
    :rlaugh: :notnice:
    #16
  17. wicked93gs

    wicked93gs New Member

    Joined:
    Sep 30, 2006
    Messages:
    565
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Nashville TN
    not sure there is enough material in the crank to do that, but your right, this engine will eventually be rebuilt as a 3.2L but not till I get all the bugs worked out
    #17
  18. 68stang351

    68stang351 Founding Member

    Joined:
    May 17, 2002
    Messages:
    1,925
    Likes Received:
    13
    Trophy Points:
    39
    Location:
    Savoy TX
    Any updates?
    #18
  19. Loup-garou

    Loup-garou Founding Member

    Joined:
    Aug 12, 2001
    Messages:
    337
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    New Orleans, LA
    Very cool project. I'm glad to see someone else tackle it, because I've been thinking of trying that very same combination in a plain-Jane '66 Coupe. Once I get another project cleared out of the driveway, I'm goin' SHO hunting. BTW, try a Google search for "SHO Healey" - you'll find a cool engine swap page that I located while searching for Taurus electric fan installation ideas. Top-notch work on display there.

    Have you posted this to the FordSix forums yet? If not, I'm sure those guys would love to see those pics.

    Any plans for the exhaust? I've been thinking that 2 1/4" duals with an X-pipe would be perfect.
    #19
  20. 68stang351

    68stang351 Founding Member

    Joined:
    May 17, 2002
    Messages:
    1,925
    Likes Received:
    13
    Trophy Points:
    39
    Location:
    Savoy TX
    Some company also used to sell stroker kits for those too. I believe they had like a 3.8L or 4.2L stroker kit. That would a sweet little engine.
    #20
