t5 5th gear problem
- Thread starter driver19
- Start date
-
Sponsors (?)
yeah 5th & reverse sit outside the case but it may be hard to get the tail back one and sealed properly,guess you could try but if you are going that far it is not much more to pop the tranny from the bell and then you can do it right.I mean youre still gonna have to drain trans, remove the cross mem and the shifter,speedo cable,plug for nss and even then the tail may end up hitting the exhaust necessitating dropping the exhaust,so why bother.
Yes, tailhousing can be removed with trans still in the car but to be honest it's easier to just drop the trans and do it on the bench
5th gear is pretty easy to R&R

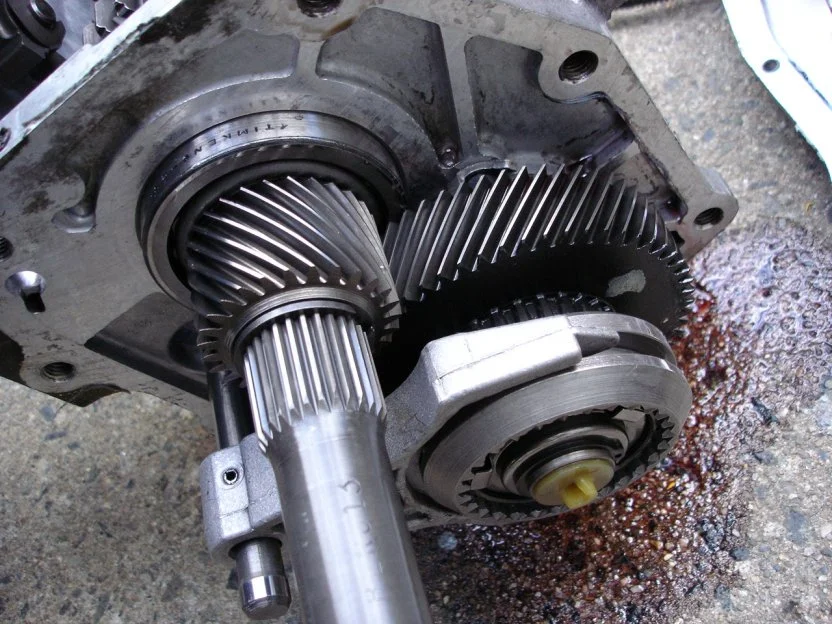

Here's a pic so you know what you are looking at. First thing you do is drive the roll pin out holding the shift fork to the rail (you can see it in the pic) and then remove the snap ring on the end of the shaft holding the synchro on. After that pull the fork/synchro out as one assembly and set aside. Try not to take it apart any more than you have to. After that, the large 5th gear (and brass blocker ring) will slide right off. WHile you have it apart this far, replace that brass blocker as it's weak. It's only a $20 part from Hanlon and might as well while you are there ya know?
The 5th driven gear (small gear) is a little harder. First remove the speedo gear and clip. There is a snap ring holding the 5th gear on so you gotta take it off first. Then getting the gear off is a crapshoot. Sometimes it slides off by hand, sometimes it needs a little heat to expand and other times it will need to be pulled. The last t-5's i have taken apart have come off by hand or with a little persuasion. I did have one that required me to pull it off. You may have to pull the mainshaft off if you can't get this gear off by hand. Sorry to say it but pray for some good luck when you do this that it comes off. If you do get it off, rememeber which side of the gear was facing in. There is a small lip cut on the inside, this faces the trans. Good luck

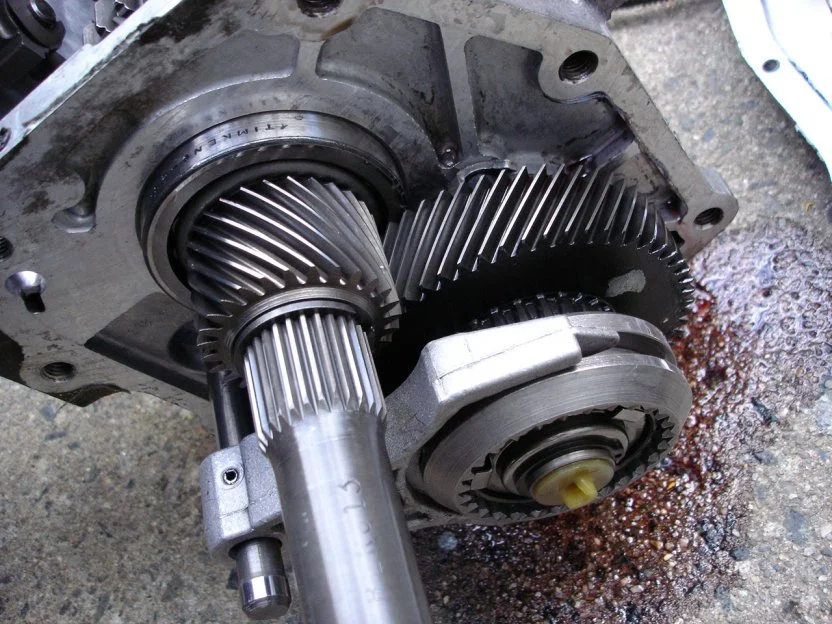

Here's a pic so you know what you are looking at. First thing you do is drive the roll pin out holding the shift fork to the rail (you can see it in the pic) and then remove the snap ring on the end of the shaft holding the synchro on. After that pull the fork/synchro out as one assembly and set aside. Try not to take it apart any more than you have to. After that, the large 5th gear (and brass blocker ring) will slide right off. WHile you have it apart this far, replace that brass blocker as it's weak. It's only a $20 part from Hanlon and might as well while you are there ya know?
The 5th driven gear (small gear) is a little harder. First remove the speedo gear and clip. There is a snap ring holding the 5th gear on so you gotta take it off first. Then getting the gear off is a crapshoot. Sometimes it slides off by hand, sometimes it needs a little heat to expand and other times it will need to be pulled. The last t-5's i have taken apart have come off by hand or with a little persuasion. I did have one that required me to pull it off. You may have to pull the mainshaft off if you can't get this gear off by hand. Sorry to say it but pray for some good luck when you do this that it comes off. If you do get it off, rememeber which side of the gear was facing in. There is a small lip cut on the inside, this faces the trans. Good luck
Attachments
Euphoric306
New Member
- Apr 5, 2004
- 905
- 0
- 0
hmmm... i thought about this and how would you go about removing the roll pin that holds the shift hammer onto the shift rail (where the ball of the actual shifter goes into) while the tranny is still in the car..... seems like that owuld be pretty difficult, and that is necessary to remove the tailshaft.
IMO much easier just to pull the damn thing.... you have to remove the H pipe and crossmember to pull just the tailhousing anyway, so all that's left is unbolting the t5 from the bellhousing and givin 'er a yank
IMO much easier just to pull the damn thing.... you have to remove the H pipe and crossmember to pull just the tailhousing anyway, so all that's left is unbolting the t5 from the bellhousing and givin 'er a yank
See http://www.ttcautomotive.com/English/onlineorder/product.asp to download a FREE service manual for T5 or Tremec 3550
You will need the Adobe Acrobat viewer which is also a free download – http://www.adobe.com/products/acrobat/readstep2.html
See http://www.hanlonmotorsports.com/ or http://www.ddperformance.com/index2.htm for parts
A T5 rebuild kit with syncros, bearings and other small parts costs about $160. It does not include any gears or shafts.
http://cartapes.com also has a video on how to rebuild your T5 or Tremec. It costs less than $20, and is worth every penny of it.
I did a Tremec 3550 rebuild, and it wasn't that difficult. The video was an immense help, and I would recommend viewing it. At $20, it will give you an opportunity to look and decide for yourself if you think that it is something you want to try to do.
Trans & clutch R & R:
Before you get started, buy a Chilton or Haynes shop manual. You will need it for the bolt torques and patterns.
1.) Jack up the car front and rear, use jack stands to be safe.
2.) Put a 2x4 wood block under the engine oil pan to support the engine. Jack it up slightly. This prevents damage to the motor mounts when the transmission mount is removed. The oil pan is plenty strong for this purpose.
3.) Label all the wiring for the transmission before disconnecting it. Disconnect the O2 sensor cables at their connectors. Disconnect the speedo cable by pulling it straight out of the VSS sensor, or by removing the bolt that holds the VSS sensor in place. If you remove the VSS sensor, zip bag & tag it along with the bolt that secures in place.
4.) Remove the drive shaft, the rear bolts are 12 MM. You will need a high quality 12 point wrench for this: do not skimp or you risk rounding off the bolt heads. A helper to step on the brake to keep the drive shaft from turning will be helpful. Use your foot to apply pressure to the wrench to loosen the bolts. Note the yellow markings in the drive shaft and write down their alignment.
5.) Put a catch pan under the rear of the transmission to catch the fluid when you slide the yoke out of the transmission. I recommend that you drain the transmission at this time. There is a pair of pipe plug filler ports on the side of the transmission. Use the lower plug to drain the fluid.
6.) Inside the car, remove the shifter boot and then remove the shifter handle
7.) Remove the H pipe & rear trans cross member. The chassis to cross member bolts are metric, you need a 15 MM & 17 MM socket or wrench. Note the direction and size of the humps on the cross member and write it down. Inspect the rear transmission mount and replace if damaged.
8.) Remove the transmission. You will need a long extension & a universal joint with a ¾” socket. A transmission jack or a helper is almost a must have unless you can bench press 75-100 pounds with ease.
8.) Remove the clutch cable cover and pry the throwout bearing arm forward enough to slide the cable off.
9.) Remove the bell housing using the long extension & a universal joint socket. Note how the throwout bearing rides it the throwout bearing arm, and which end faces the clutch pressure plate. Write it down or make a drawing if necessary.
10.) Remove the bolts securing the pressure plate to flywheel. Be sure to label & zip bag them separately from the rest of the parts. Work in a star pattern to reduce stress on the pressure plate mounting tabs.
11.) Remove the flywheel mount bolts, as you will need to either replace or re-surface the flywheel. Be sure to label & zip bag them separately from the rest of the parts. Tap the locator dowels out of the flywheel with a 1/4" pin punch. Zip bag them together with the flywheel bolts.
12.) Inspect the transmission input shaft where the throwout bearing rides. Replace it if worn or damaged.
13.) Inspect the throwout bearing, throwout bearing arm and ball pivot stud for wear or damage.
14.) Inspect the rear oil seal for leakage and replace if required.
15.) Remove & replace the pilot bearing. A puller borrowed or rented is helpful here. A wood block will be used to drive it home.
16.) Install the flywheel, noting that the bolts are an odd pattern, and it only lines up one way so that all the bolts go in easily. Torque to specs according to the shop manual.
17.) Install the clutch disk with the hub springs facing the rear of the car. Use a pilot tool available for $3-$4 from the auto parts store to line it up.
18. Install the pressure plate, be sure to use the pilot tool prior to tightening the pressure plate bolts. Torque to specs according to the shop manual. Remove the pilot tool when you are finished torquing the bolts.
19.) Install the throwout bearing on the throwout bearing arm, noting the direction of the bearing and it mounting in the arm.
20.) Install the bell housing. Torque to specs according to the shop manual.
21. Install the transmission, have the transmission jack or helper at hand to lift it into place. Watch out that the stub of the shifter does not tear the shifter boot. Some 7/16 bolts with the heads cut off can be used to help support the transmission as you slide it home. It may be necessary to press the clutch pedal to get the transmission to slide the last ½” or so. Remove the guide studs if you used them & torque to specs according to the shop manual.
22.) Reinstall the clutch cable by prying on the throwout bearing arm. Replacement of the stock cable or quadrant is recommended if you haven’t already done so. With adjustable cables, both nuts go on the back side of the throwout bearing arm.
23.) Reinstall the rear crossmember & transmission mount. Torque to specs according to the shop manual.
24.) Reinstall the wiring and speedo cable or VSS sensor if you removed it.
25.) Reinstall the drive shaft, slide the yoke in place. Align the rear yellow markings and install the bolts. A helper to step on the brake to keep the drive shaft from turning will be helpful. Use your foot to apply pressure to the wrench to tighten the bolts.
26.) Remove the jack from under the engine oil pan.
27.) Refill the transmission with the proper fluid. T5’s use Dextron ATF, Tremec 3550’s use GM Synchromesh. There is a pair of pipe plug filler ports on the side of the transmission. Use the top plug as the filler port.
28.) Adjust the clutch cable according the manufacturer’s instructions if you have an adjustable cable & quadrant. Set the emergency brake and use the drag it provides in order to determine where the clutch starts to engage. You should have 1 -1 ½” free play from the top. The cable will not have any slack and will have some preload on it when properly adjusted.
29.) Re-install the H pipe and remaining items.
30.) When you have visually checked all the bolts, fittings and other parts are present and not interfering with each other, then take the car down off the jack stands.
31.) Be prepared to put the car back up on the jack stands to adjust the clutch and tighten up any loose items found after the test drive..
You will need the Adobe Acrobat viewer which is also a free download – http://www.adobe.com/products/acrobat/readstep2.html
See http://www.hanlonmotorsports.com/ or http://www.ddperformance.com/index2.htm for parts
A T5 rebuild kit with syncros, bearings and other small parts costs about $160. It does not include any gears or shafts.
http://cartapes.com also has a video on how to rebuild your T5 or Tremec. It costs less than $20, and is worth every penny of it.
I did a Tremec 3550 rebuild, and it wasn't that difficult. The video was an immense help, and I would recommend viewing it. At $20, it will give you an opportunity to look and decide for yourself if you think that it is something you want to try to do.
Trans & clutch R & R:
Before you get started, buy a Chilton or Haynes shop manual. You will need it for the bolt torques and patterns.
1.) Jack up the car front and rear, use jack stands to be safe.
2.) Put a 2x4 wood block under the engine oil pan to support the engine. Jack it up slightly. This prevents damage to the motor mounts when the transmission mount is removed. The oil pan is plenty strong for this purpose.
3.) Label all the wiring for the transmission before disconnecting it. Disconnect the O2 sensor cables at their connectors. Disconnect the speedo cable by pulling it straight out of the VSS sensor, or by removing the bolt that holds the VSS sensor in place. If you remove the VSS sensor, zip bag & tag it along with the bolt that secures in place.
4.) Remove the drive shaft, the rear bolts are 12 MM. You will need a high quality 12 point wrench for this: do not skimp or you risk rounding off the bolt heads. A helper to step on the brake to keep the drive shaft from turning will be helpful. Use your foot to apply pressure to the wrench to loosen the bolts. Note the yellow markings in the drive shaft and write down their alignment.
5.) Put a catch pan under the rear of the transmission to catch the fluid when you slide the yoke out of the transmission. I recommend that you drain the transmission at this time. There is a pair of pipe plug filler ports on the side of the transmission. Use the lower plug to drain the fluid.
6.) Inside the car, remove the shifter boot and then remove the shifter handle
7.) Remove the H pipe & rear trans cross member. The chassis to cross member bolts are metric, you need a 15 MM & 17 MM socket or wrench. Note the direction and size of the humps on the cross member and write it down. Inspect the rear transmission mount and replace if damaged.
8.) Remove the transmission. You will need a long extension & a universal joint with a ¾” socket. A transmission jack or a helper is almost a must have unless you can bench press 75-100 pounds with ease.
8.) Remove the clutch cable cover and pry the throwout bearing arm forward enough to slide the cable off.
9.) Remove the bell housing using the long extension & a universal joint socket. Note how the throwout bearing rides it the throwout bearing arm, and which end faces the clutch pressure plate. Write it down or make a drawing if necessary.
10.) Remove the bolts securing the pressure plate to flywheel. Be sure to label & zip bag them separately from the rest of the parts. Work in a star pattern to reduce stress on the pressure plate mounting tabs.
11.) Remove the flywheel mount bolts, as you will need to either replace or re-surface the flywheel. Be sure to label & zip bag them separately from the rest of the parts. Tap the locator dowels out of the flywheel with a 1/4" pin punch. Zip bag them together with the flywheel bolts.
12.) Inspect the transmission input shaft where the throwout bearing rides. Replace it if worn or damaged.
13.) Inspect the throwout bearing, throwout bearing arm and ball pivot stud for wear or damage.
14.) Inspect the rear oil seal for leakage and replace if required.
15.) Remove & replace the pilot bearing. A puller borrowed or rented is helpful here. A wood block will be used to drive it home.
16.) Install the flywheel, noting that the bolts are an odd pattern, and it only lines up one way so that all the bolts go in easily. Torque to specs according to the shop manual.
17.) Install the clutch disk with the hub springs facing the rear of the car. Use a pilot tool available for $3-$4 from the auto parts store to line it up.
18. Install the pressure plate, be sure to use the pilot tool prior to tightening the pressure plate bolts. Torque to specs according to the shop manual. Remove the pilot tool when you are finished torquing the bolts.
19.) Install the throwout bearing on the throwout bearing arm, noting the direction of the bearing and it mounting in the arm.
20.) Install the bell housing. Torque to specs according to the shop manual.
21. Install the transmission, have the transmission jack or helper at hand to lift it into place. Watch out that the stub of the shifter does not tear the shifter boot. Some 7/16 bolts with the heads cut off can be used to help support the transmission as you slide it home. It may be necessary to press the clutch pedal to get the transmission to slide the last ½” or so. Remove the guide studs if you used them & torque to specs according to the shop manual.
22.) Reinstall the clutch cable by prying on the throwout bearing arm. Replacement of the stock cable or quadrant is recommended if you haven’t already done so. With adjustable cables, both nuts go on the back side of the throwout bearing arm.
23.) Reinstall the rear crossmember & transmission mount. Torque to specs according to the shop manual.
24.) Reinstall the wiring and speedo cable or VSS sensor if you removed it.
25.) Reinstall the drive shaft, slide the yoke in place. Align the rear yellow markings and install the bolts. A helper to step on the brake to keep the drive shaft from turning will be helpful. Use your foot to apply pressure to the wrench to tighten the bolts.
26.) Remove the jack from under the engine oil pan.
27.) Refill the transmission with the proper fluid. T5’s use Dextron ATF, Tremec 3550’s use GM Synchromesh. There is a pair of pipe plug filler ports on the side of the transmission. Use the top plug as the filler port.
28.) Adjust the clutch cable according the manufacturer’s instructions if you have an adjustable cable & quadrant. Set the emergency brake and use the drag it provides in order to determine where the clutch starts to engage. You should have 1 -1 ½” free play from the top. The cable will not have any slack and will have some preload on it when properly adjusted.
29.) Re-install the H pipe and remaining items.
30.) When you have visually checked all the bolts, fittings and other parts are present and not interfering with each other, then take the car down off the jack stands.
31.) Be prepared to put the car back up on the jack stands to adjust the clutch and tighten up any loose items found after the test drive..
Euphoric306 said:
Wouldn't be that tough. Would be nice if you has someone in the car to help you though.
But as someone familiar with t-5's i would yank the trans out. Now was is this something i would suggest a 1st timer to do as it's possible but not easy. Take it out and it will be cake
