things not lining up (front bumper support mounting) --Pics--

[fuzymealchosen1]

ok so ive looked for a long time for pics but i cant find anything. i took my bumper cover off and it looks like those are mounts. but they dont line up.

the car didnt have the bumper support when i got it, so i bought a bumper from some guy on craigslist.

can you guys tell if im missing mounts or something cuz its lining up really weird. i seen some with the the gas filled bumper shock thing, but it looked like there was something bolted o the front of these plate things.

i got it all screwed on and the bumper was offset cuz the way they bolted on.

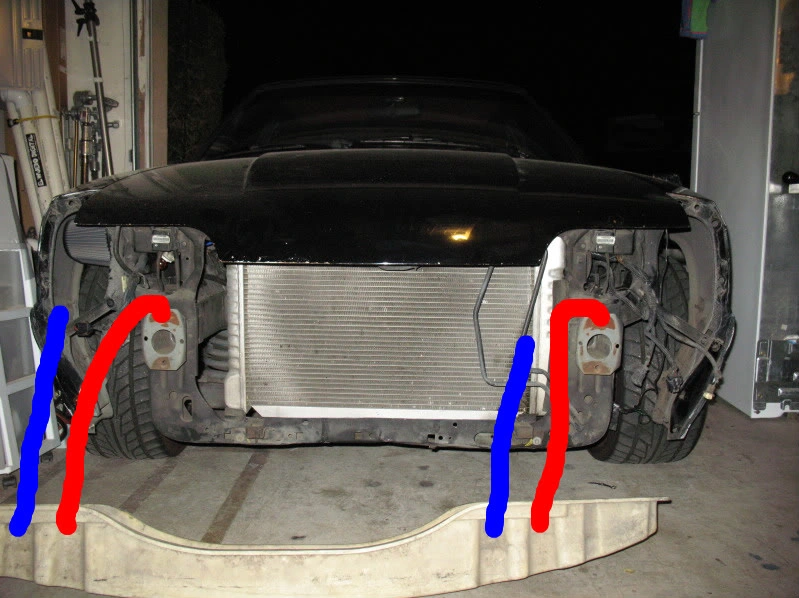

red line is what they bolted to, and blue line is the open hole



[SMOKEDYA]

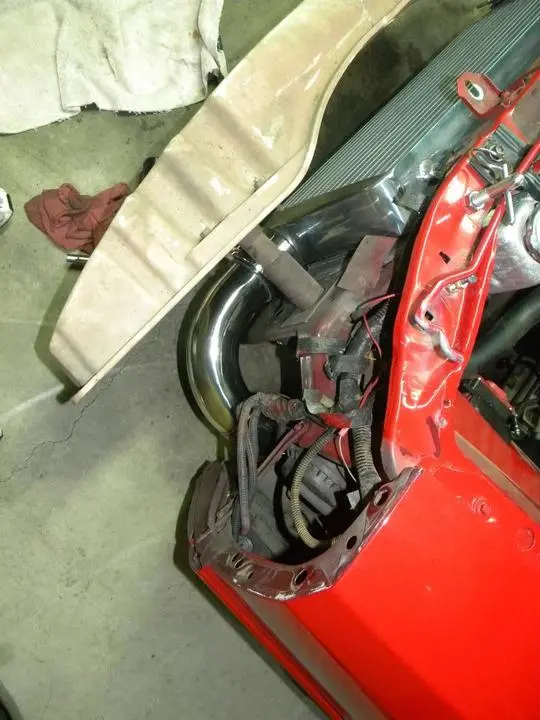

It's not lining up cause someone has removed the bumper shocks that bolt to the fiberglass and the metal.See what i'm talking about! peace

john



[fuzymealchosen1]

wow thanks for the pic i couldnt find anything like that.

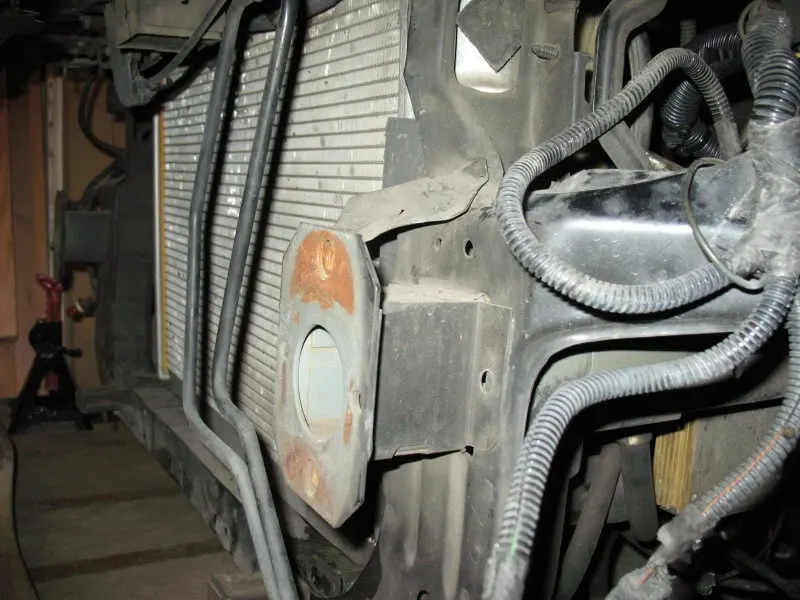

but see how where i would put brackets how its got the extra metal and its sticking way out? i cant find the hole that the bolt goes in to bolt the shock thing in either.

what year is yours?



[faststang90]

this is mine on my 1993 car. think they changed it to the bolt on after 1989.

View attachment 208633

View attachment 208634



[faststang90]

look here but u should be able to find in a junk yard

IMPACT ABSORBER FRONT 1990-1993 - CJ Pony Parts, Inc.



[fuzymealchosen1]

thanks for the pic, yea your looks just like mine, and thanks, how do you guys find all these diagrams and stuff! i couldnt find anything. thanks tho, ill check pick a part for those bumper shocks.



[SMOKEDYA]

Mine is an 89 and it actually bolted threw the frame rail?If i remember right? peace







john
