Today's Project PICS n VID

[95strokerPSU]

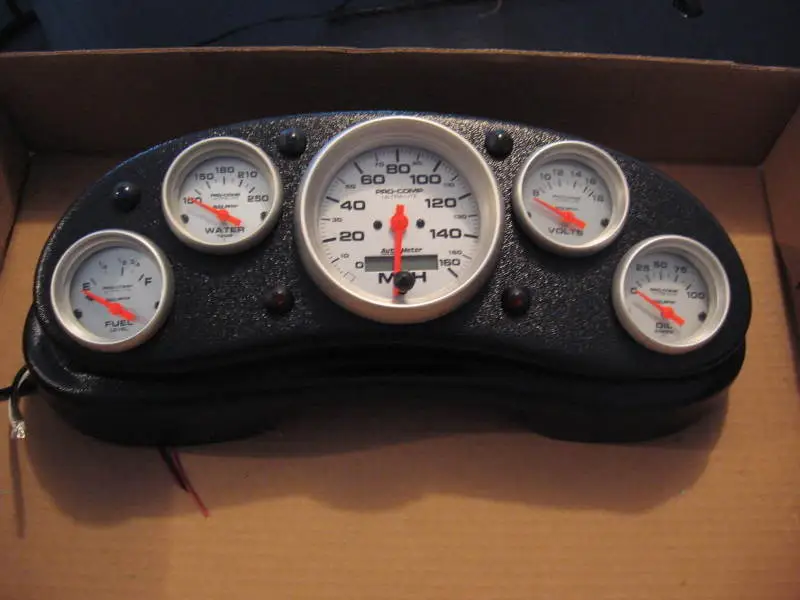

Today I'm going to wire up all my new gauges and fix the wiring for my hidden antenna. I got the bezel from Florida5.0 and couldn't be happier. The quality is top notch and their customer service is one of the best I've dealt with. I hope to finish today, but I'm going to take my time and do it right with heat shrink and everything.

Here's a short clip I took when i though my HG was blown. http://smg.photobucket.com/albums/v164/331StangKO/Posted%20for%20Stangnet/?action=view&current=MVI_0279.flv



[95strokerPSU]

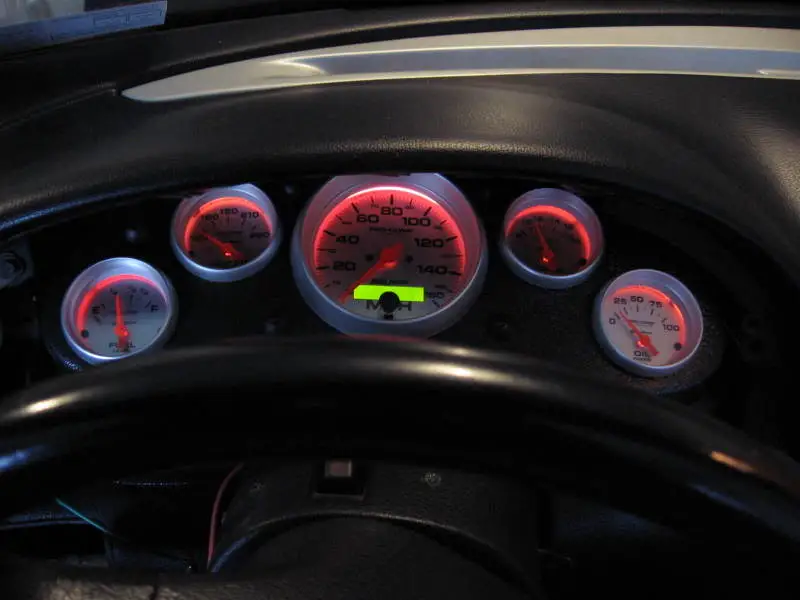

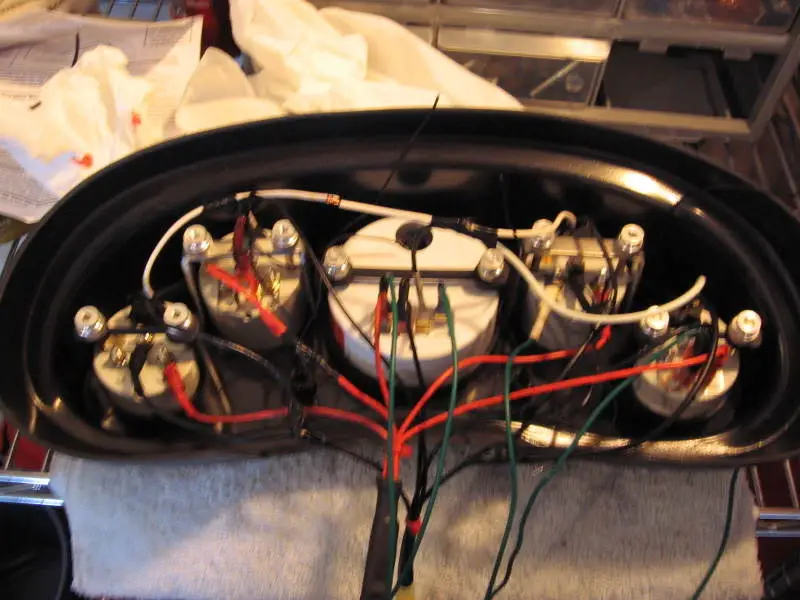

I got everything wired, I just need to remove the steering column bezel to get it all the way in. I'll finish it up tomorrow. Here's two more pics



[Bosko5.0]

Looks good but wheres the tack, IT sounds sic



[urban96]

looks good. only thing i woulda done different is went with the phantom II or the other reverse glow gauges that they make only because i found the gauges you have can be tricky to see at night sometimes



[gmkillr]

Why did you think your head gasket was blown?
I take it that its not blown?
Nice looking setup you have there!



[Mr. Hawver]

Looks good but wheres the tack

Agreed! Also, where is the tach?



[95strokerPSU]

Why did you think your head gasket was blown?
I take it that its not blown?
Nice looking setup you have there!

I had coolant in my oil, but it turns out it was the lower intake gasket.

Tach will be on the dash next to the a pillar.



[trav_19]

thats what i figured for the tack i really like that set up i like the red bulbs too usually they are green...do they program your miliage for you or something or how does that work??



[95riosnake]

so any pics of it completed? Looks great so far, I like the red



[WhiteDevil]

so any pics of it completed? Looks great so far, I like the red

Yeah i wanna see!



[sn-95matt5-0]

so that completely replaces the factory gauges

i'm thinking bout goin this route since i've heard our gauges arent the most accurate

looks awesome



[95strokerPSU]

Not finished yet. I got hammered Saturday night so there was no chance of getting anything done Sunday. I should have some time this Sunday to finish it. All I need to do is wire the volt gauge to a better power source and solder and wrap all of the connections to the stock cluster harnesses.

Does anyone know if the CEL comes on with the key on engine off?



[The Green GT]

Does anyone know if the CEL comes on with the key on engine off?

brb

EDIT: Yes



[95strokerPSU]

brb

EDIT: Yes

Thanks. I need to figure out which wire is for the CEL. My haynes diagram said pink/light green but that's what I hooked the LED to and it's not lighting.



[94GTLaserRC]

:OT: Sorry..but what Body kit is that on your car?
RC



[95strokerPSU]

It's a Xenon. I got it from a local dealer, but I've seen it on eBay before.



[94GTLaserRC]

I thought so by the back in the vid, but the side view did NOT look like it.. That's what I have, but I will be ditching it soon!
RC
