Tranny Cooler

Discussion in 'Classic Mustang Specific Tech' started by rsev216, Sep 30, 2013.


  1. rsev216

    rsev216 Member

    Joined:
    Nov 17, 2003
    Messages:
    102
    Likes Received:
    0
    Trophy Points:
    17
    Location:
    Pinetop, Az
    I am planning to convert my 65 Vert from a C4 to a 91 Mustang AOD this winter. I want to add a trans cooler but not sure where to put it. Does someone want to tell me where to stick it? ;)

    #1
  2. Falcon79

    Falcon79 Active Member

    Joined:
    Apr 7, 2009
    Messages:
    210
    Likes Received:
    7
    Trophy Points:
    29
    Location:
    Dallas, TX
    Where the sun don't shine!!!! Haha!

    Really though, in front of your radiator or on the side of your fender apron underneath the fluid bag/tank might work. Are you running hard lines or rubber?

    #2
  3. rsev216

    rsev216 Member

    Joined:
    Nov 17, 2003
    Messages:
    102
    Likes Received:
    0
    Trophy Points:
    17
    Location:
    Pinetop, Az
    The transmission people I talked with recommend running the fluid through the radiator before going to a cooler. The plan is to run the hard line to the radiator with a rubber line out of the radiator to the cooler and a hard line back to the AOD.

    #3
  4. robert912005

    robert912005 Member

    Joined:
    Sep 8, 2009
    Messages:
    144
    Showcase:
    39
    Albums:
    1
    Likes Received:
    3
    Trophy Points:
    19
    Location:
    Evansville, Indiana

    I agree... and defiantly in front of the radiator... that way when the air blows through your rad. then it will also go through you cooler.

    #4
  5. Tim65GT

    Tim65GT Active Member

    Joined:
    Feb 25, 2004
    Messages:
    1,149
    Likes Received:
    0
    Trophy Points:
    37
    Location:
    West Texas

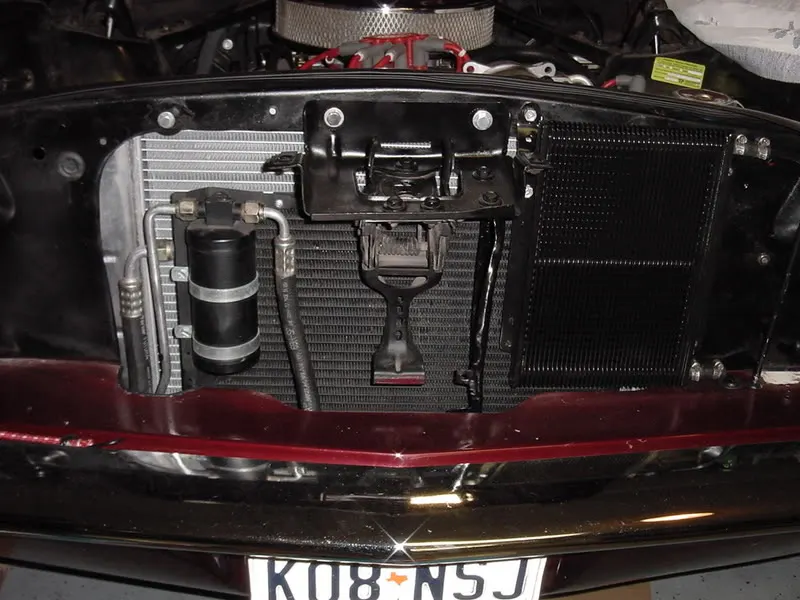

    I put mine here

    [​IMG]

    #5
  6. rsev216

    rsev216 Member

    Joined:
    Nov 17, 2003
    Messages:
    102
    Likes Received:
    0
    Trophy Points:
    17
    Location:
    Pinetop, Az
    Does having it in front of the radiator affect engine temp?

    #6
  7. rbohm

    Founding Member

    Joined:
    Apr 13, 2002
    Messages:
    6,387
    Likes Received:
    268
    Trophy Points:
    124
    Location:
    tucson,az
    what he has in mind i think will be the wrong shape. he will probably want something more, shall we say rounded for your suggestion.:p:rlaugh:

    not really. but the best place for a trans cooler is going to be in the coolest air stream possible, he might have to hire the fonz:D:D

    #7
  8. robert912005

    robert912005 Member

    Joined:
    Sep 8, 2009
    Messages:
    144
    Showcase:
    39
    Albums:
    1
    Likes Received:
    3
    Trophy Points:
    19
    Location:
    Evansville, Indiana

    Or he could be like the guy from beerfest and be s***ing pancakes for weeks.:rlaugh:

    #8
    rbohm likes this.
  9. Boogie's AutoRama

    Boogie's AutoRama New Member

    Joined:
    Jun 23, 2013
    Messages:
    14
    Likes Received:
    0
    Trophy Points:
    2
    That will work fine.
    But I've had mine running straight to the cooler for years with no issues.

    My thinking was to get all the heat out of the radiator I could.

    #9
  10. rbohm

    Founding Member

    Joined:
    Apr 13, 2002
    Messages:
    6,387
    Likes Received:
    268
    Trophy Points:
    124
    Location:
    tucson,az
    i might take issue with that routing. transmissions want consistent temperatures, not just cool temps. and a way to get that consistent temperature is to use an aftermarket cooler that is way over sized before the cooler in the radiator. that way you get a more consistent fluid temperature back to the trans of about 210 degrees. it also helps cool the engine a bit as well.

    #10
  11. mtaqua

    mtaqua Member

    Joined:
    Oct 7, 2006
    Messages:
    345
    Likes Received:
    4
    Trophy Points:
    19
    I run an after market cooler in front of the radiator. 8" convertor on the street, temp stays at 210-220 on the exit line and 160-180 in the pan. Usually, the temps in the pan match the engine temps. I don't have an integral cooler in my radiator.

    #11
  12. Rusty67

    Rusty67 Well-Known Member

    Joined:
    Dec 3, 2002
    Messages:
    3,617
    Likes Received:
    13
    Trophy Points:
    59
    Location:
    SB, CA
    Thermostatic valve on bypass to the tranny cooler when open... forget running it through the radiator =)

    It is more complicated in some ways but I like this method best personally.

    If not, run it to the cooler first then to the radiator.

    #12
    Last edited: Nov 6, 2013
  13. rsev216

    rsev216 Member

    Joined:
    Nov 17, 2003
    Messages:
    102
    Likes Received:
    0
    Trophy Points:
    17
    Location:
    Pinetop, Az
    Thanks for the suggestions! I have a B&M cooler and the tranny rebuilt. One more question... which fitting on the tranny is the output and which the return line?

    #13
  14. mtaqua

    mtaqua Member

    Joined:
    Oct 7, 2006
    Messages:
    345
    Likes Received:
    4
    Trophy Points:
    19
    http://www.transmissioncoolers.us/H7B.html this is my cooler if the B&M doesn't work for you. If the lines are the same as the TH400 leaves from the lower port and returns back into the trans on the top one.

    #14
