TRICK FLOW HEAD INFO!!!

Discussion in 'SN95 4.6L Mustang Tech' started by ScortLX, Nov 4, 2008.


  1. ScortLX

    ScortLX Founding Member

    Joined:
    Mar 20, 2001
    Messages:
    261
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Parker, Colorado
    From Ken at Modular Depot:

    "It was hard to keep this secret as long as we have, but now have the go ahead to spill the beans! Trick Flow is releasing a brand new 2v head and it's what we've all be waiting on.

    They flows over 240cfm out of the box!

    Exhaust valve is swaped with where the exhaust lash adjuster was. This allows much higher lift cams on stock shortblocks. The best news is, this modifcation was done and still uses a standard PI cam design so all the cams for the PI heads will work with these heads.

    The cam towers bolt on. This means in the event of damage to one of the cam towers (oiling problem etc) they can be swapped out, this problem no longer trashes the whole head!

    The heads are drilled to accepted both windsor and romeo valve covers!

    These heads will be available first quarter of 2009. They have already been on a development car for 6,000 miles so these heads are not just a concept, they are real.

    The demand for these heads are expected to be high. Final pricing has not been set but expect them to be competitive with fully loaded PI heads coming out of the top shops out there."

    Flow Numbers:

    INTAKE

    Twisted Wedge PI SVO
    lift CFM vs. PI vs SVO
    0.1 56.2 51 54 10.20% 4.07%
    0.2 122.5 102 106 20.10% 15.57%
    0.3 172.7 138 155 25.14% 11.42%
    0.4 212.6 153 177 38.95% 20.11%
    0.5 233.3 156 193 49.55% 20.88%
    0.55 241 159 203 51.57% 18.72%
    0.6 236.3 160 206 47.69% 14.71%
    0.65 241.7


    EXHAUST

    Twisted Wedge PI SVO
    lift CFM
    0.1 42.6 49 46 -13.06% -7.39%
    0.2 95.9 84 90 14.17% 6.56%
    0.3 134.8 107 119 25.98% 13.28%
    0.4 164.4 123 134 33.66% 22.69%
    0.5 174.6 133 140 31.28% 24.71%
    0.55 177.4 136 141 30.44% 25.82%
    0.6 180.1 138 143 30.51% 25.94%
    0.65 182.3


    Thought I would share the info with everyone! Man...I may start saving for a N/A 2v to just have right now. :nice:
  2. hotmustang331

    hotmustang331 New Member

    Joined:
    Apr 29, 2004
    Messages:
    3,038
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Bastrop,TX
    AWESOME! GREAT news for the 2V guys thats for sure! Nice port job and they will be flowing better than 4V heads!


    Sponsored Ad

  3. lvmustanggt

    lvmustanggt New Member

    Joined:
    Apr 10, 2006
    Messages:
    750
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Las Vegas
    Real good new but is this head little too late ? As 2010 mustang gt are comming.
  4. SVT32VDOHC

    SVT32VDOHC waiting for the next hack atta Founding Member

    Joined:
    Nov 23, 2001
    Messages:
    4,502
    Likes Received:
    21
    Trophy Points:
    69
    Location:
    Motor City
    Any info on the spark plug holes??? Are they gonna have more threads, so the 4.6L 2V engine will stop blowing the plugs out??? That'd be nice.
  5. ScortLX

    ScortLX Founding Member

    Joined:
    Mar 20, 2001
    Messages:
    261
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Parker, Colorado
    I just asked on another board, so we will see what info we get. :nice:
  6. Mossberg

    Mossberg Active Member

    Joined:
    Jul 22, 2003
    Messages:
    1,217
    Likes Received:
    0
    Trophy Points:
    36
    Location:
    ATL, Shawty
    Bout damn time.:nice:
  7. Tim2002GT

    Tim2002GT Founding Member

    Joined:
    Apr 10, 2002
    Messages:
    846
    Likes Received:
    3
    Trophy Points:
    29
    Location:
    Tulsa, Oklahoma
    Yeah, but there are still alot of power hungry 2 valves out there!:D
  8. ItsStock02

    ItsStock02 Member

    Joined:
    Aug 19, 2008
    Messages:
    496
    Likes Received:
    4
    Trophy Points:
    19
    Location:
    Westland, MI
    can't wait to see some dyno numbers!
    Posted via Mobile Device
  9. fudleyd

    fudleyd New Member

    Joined:
    Jan 11, 2003
    Messages:
    183
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Littleton, CO
    That is totally awesome man, I know I will be checking them out! I plan on keeping my '99 for a long time. :nice:
  10. BurningRubber

    BurningRubber Active Member

    Joined:
    Dec 6, 2004
    Messages:
    2,828
    Likes Received:
    23
    Trophy Points:
    48
    Oh hell yeah!

    I might wait and go N/A afterall!!!
  11. lvmustanggt

    lvmustanggt New Member

    Joined:
    Apr 10, 2006
    Messages:
    750
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Las Vegas
    I live in vegas but have to work, buddy of mine is at sema now . I told him to go see the head , he just called me saying he saw it. He is going to email me pic tonight , asap I will post picture here.
  12. Winters98GT

    Winters98GT Whoop...whoop-whoop-whoop-whoop...GANGNAM STYLE!!! Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    7,435
    Likes Received:
    422
    Trophy Points:
    124
    Location:
    H Town
    I've heard a rumor that a test car made around 370rwhp with these heads and were NOT ported. The car had comp 270's on it....

    however, I would guess that these heads will not sale very well. The short term enthusiasm will probably be great, but with the 2010 platform coming out, it will make it tough over the long haul. Of course, mustang boards and hardcore guys will love this, but the average joe that picks up a 4-10k car is unlikely to spend 3000-4000+ for heads, cams, install and tune. Too bad this head wasn't out 10 years ago...
  13. SaleenGT2001

    SaleenGT2001 Well-Known Member

    Joined:
    Jul 19, 2005
    Messages:
    2,936
    Likes Received:
    1
    Trophy Points:
    58
    Location:
    Four Oaks NC
    370 on a N/A 2V???????????????????????????????????????????//

    i just dont see how that is possible. it took me 10 psi to make that much power!!!
  14. Winters98GT

    Winters98GT Whoop...whoop-whoop-whoop-whoop...GANGNAM STYLE!!! Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    7,435
    Likes Received:
    422
    Trophy Points:
    124
    Location:
    H Town
    time will be the determining factor.

    From KenB of modular depot

  15. 98COBRA281

    98COBRA281 Active Member

    Joined:
    Nov 25, 2007
    Messages:
    1,457
    Likes Received:
    27
    Trophy Points:
    49
    Location:
    Port St. Lucie, Florida
    it possible, a member here"TGJ" made like 360 rwhp with ported npi's through an auto........
  16. Winters98GT

    Winters98GT Whoop...whoop-whoop-whoop-whoop...GANGNAM STYLE!!! Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    7,435
    Likes Received:
    422
    Trophy Points:
    124
    Location:
    H Town

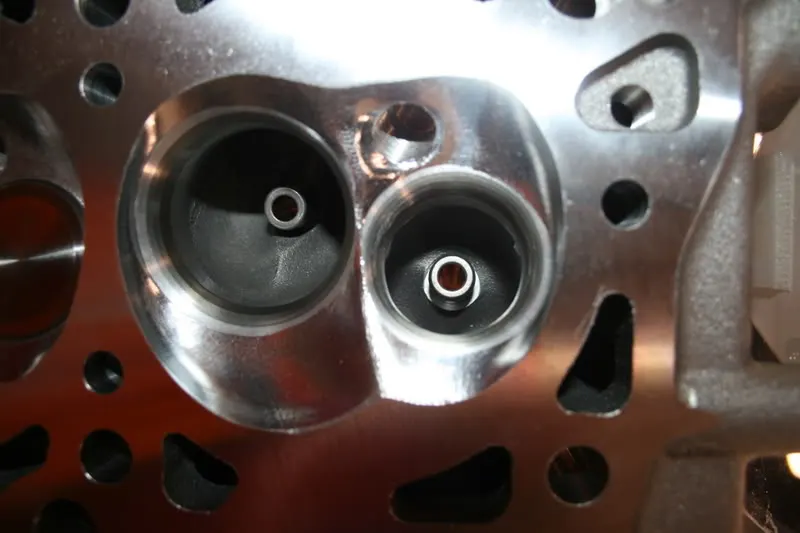

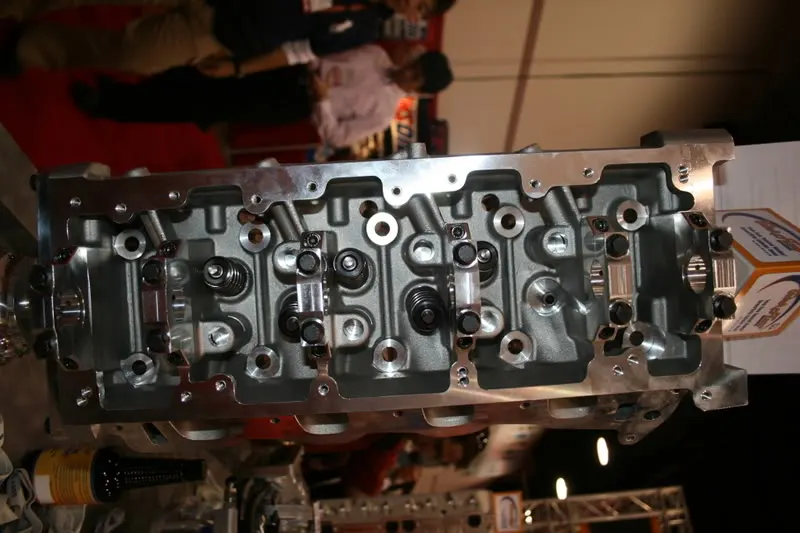

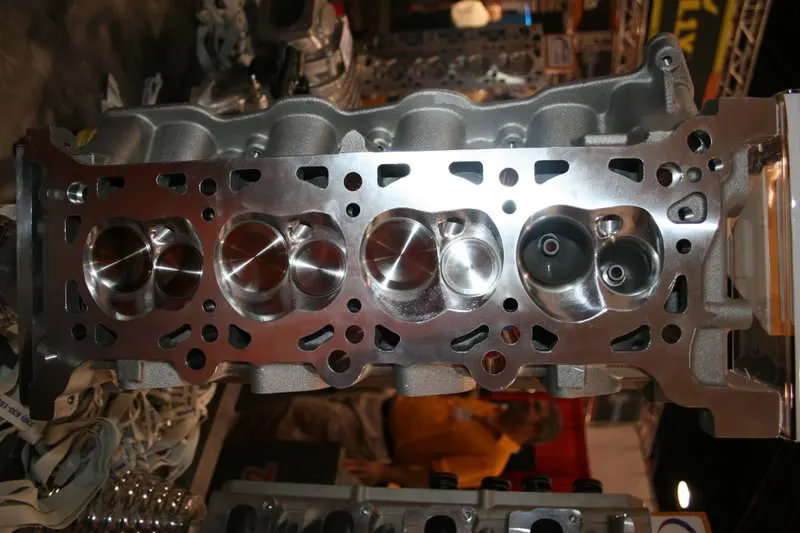

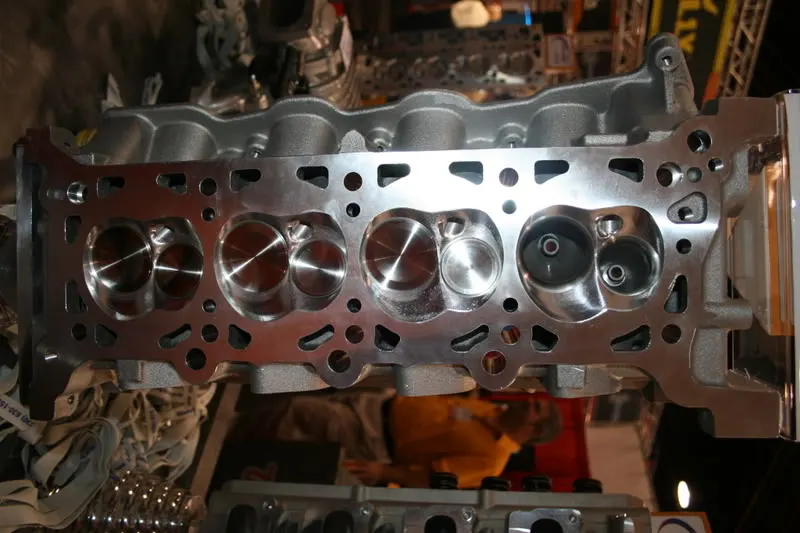

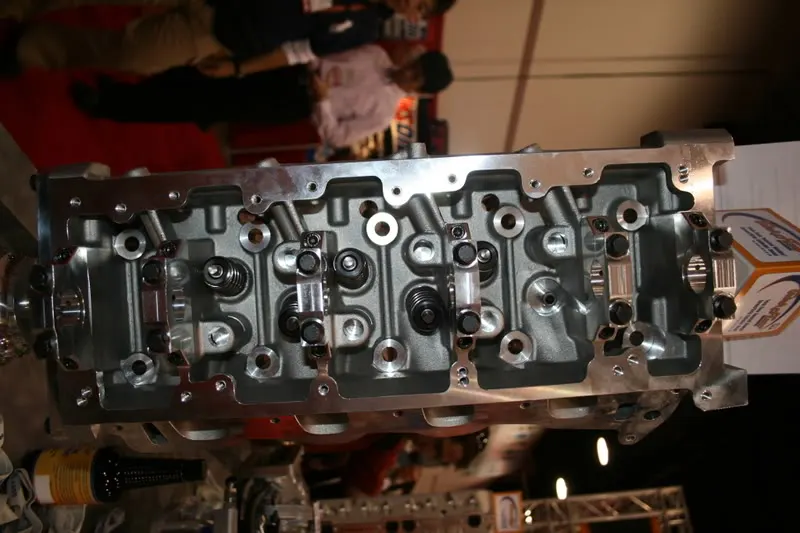

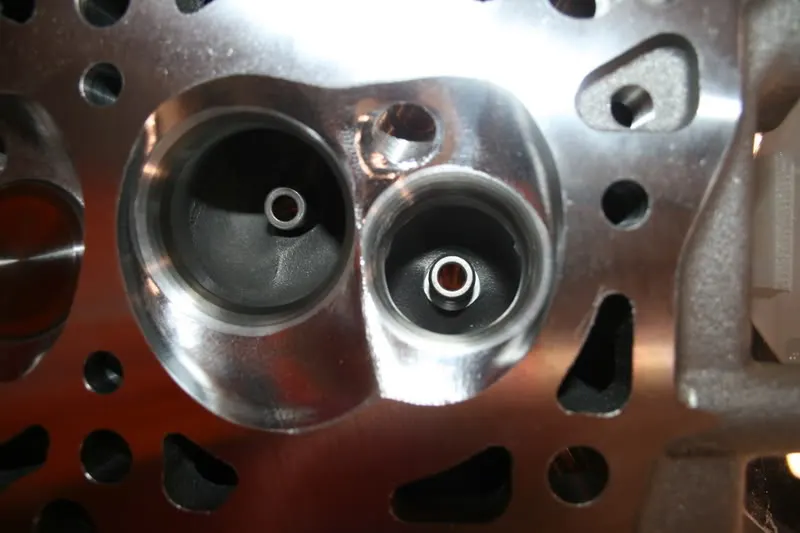

    here they are.....

    [​IMG]

    [​IMG]

    [​IMG]
  17. Winters98GT

    Winters98GT Whoop...whoop-whoop-whoop-whoop...GANGNAM STYLE!!! Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    7,435
    Likes Received:
    422
    Trophy Points:
    124
    Location:
    H Town
    I've also heard these heads come loaded with nice valves, and will be priced under 2000 grand. A cheaper, better head fully put together for around the same price as a set of ported fox lake or other PI heads.
  18. 98COBRA281

    98COBRA281 Active Member

    Joined:
    Nov 25, 2007
    Messages:
    1,457
    Likes Received:
    27
    Trophy Points:
    49
    Location:
    Port St. Lucie, Florida
    wow, look how they have the valves angled:hail2:
  19. mransr

    mransr Founding Member

    Joined:
    Nov 4, 2000
    Messages:
    1,085
    Likes Received:
    11
    Trophy Points:
    48
    Location:
    Riverside, SoCal
    ohhhh...them are sexy
  20. 98COBRA281

    98COBRA281 Active Member

    Joined:
    Nov 25, 2007
    Messages:
    1,457
    Likes Received:
    27
    Trophy Points:
    49
    Location:
    Port St. Lucie, Florida
    i cant wait to see a 400rwhp N/A 2v :drool:
