Twin Turbo Build Progress -pics-

Discussion in '1994 - 1995 Specific Tech' started by OrangeMustangGt, Aug 11, 2005.


  1. 331 stang91

    331 stang91 Member

    Joined:
    Oct 16, 2004
    Messages:
    261
    Likes Received:
    0
    Trophy Points:
    16
    good luck keep posting pics !!!!
  2. OrangeMustangGt

    OrangeMustangGt Founding Member

    Joined:
    Mar 8, 2002
    Messages:
    1,985
    Likes Received:
    0
    Trophy Points:
    36
    ok guys an update. I just took some pics:

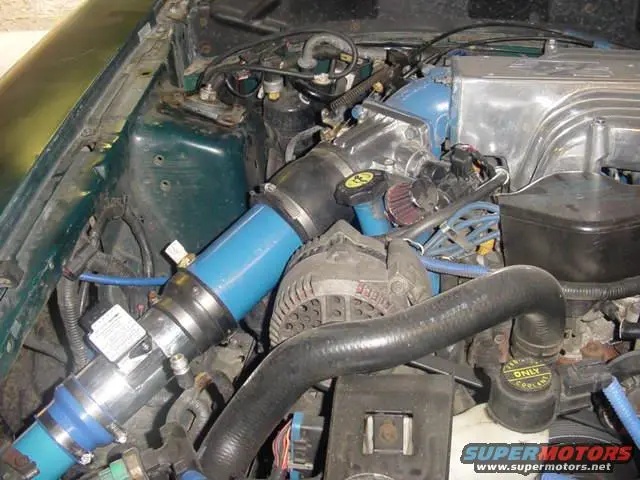

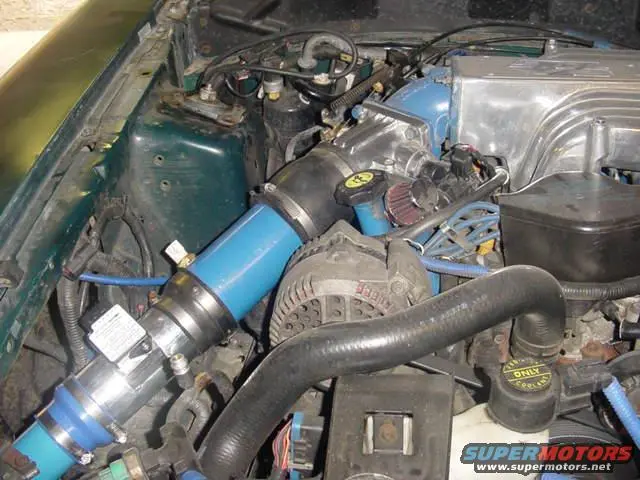

    here is the Engine bay basically how it will look when im done....lol it looks just like i got a cold air kit on it.

    [​IMG]

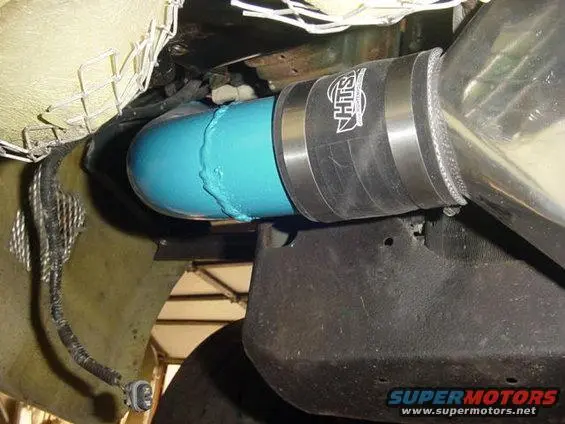

    Here is the intake tube coming down the pass side fender area into the intercooler
    [​IMG]
    Here is the Intercooler mounted..dont mind the car's paint. Its getting a coat of DSG when im done.....The intercooler fits perfect in the opening of the saleen spoiler....it looks badass IMO.
    [​IMG]
    [​IMG]

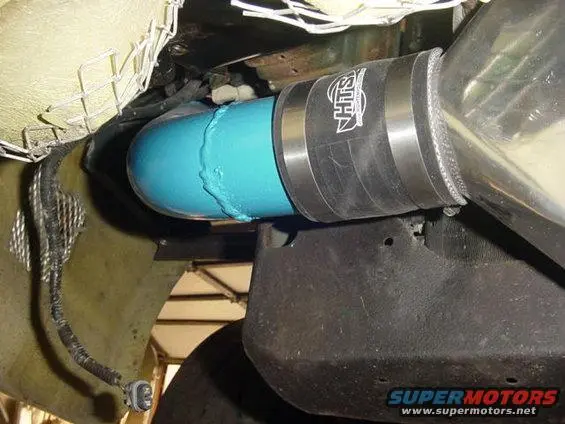

    Here is the Intake piping the runs from the intercooler, over the driver;s side tire area and down the wheel whell to under tha rocker area
    [​IMG]

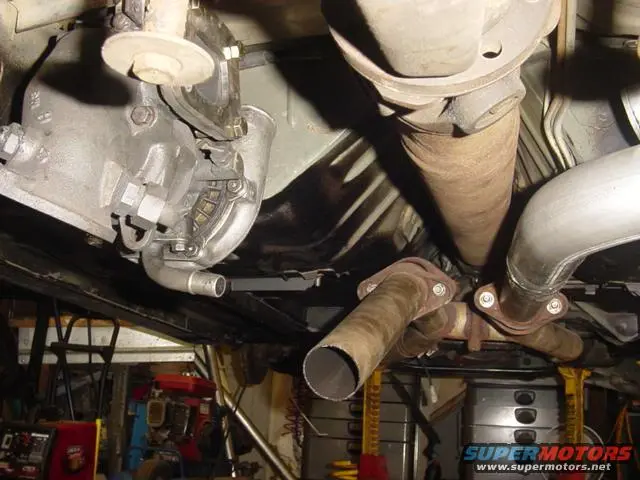

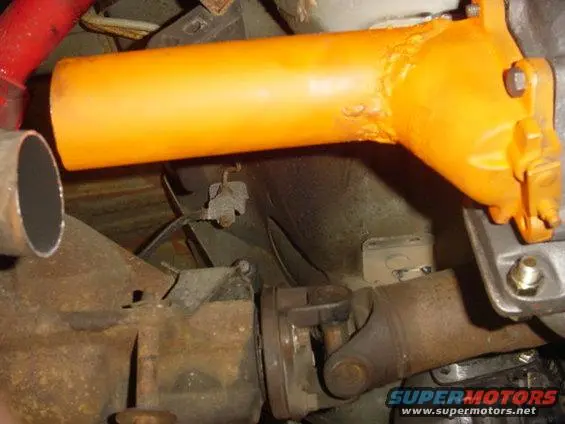

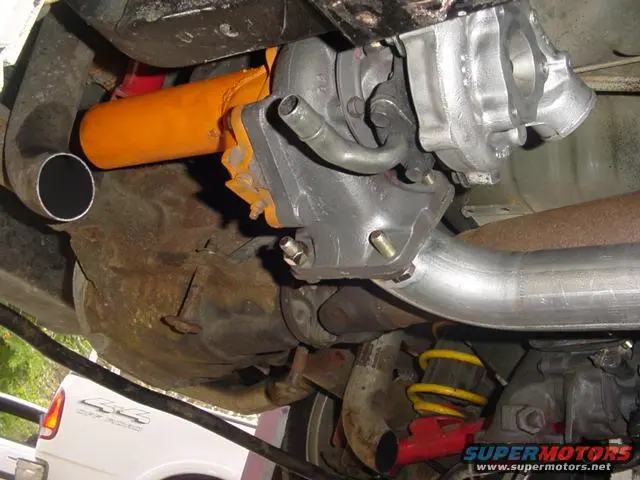

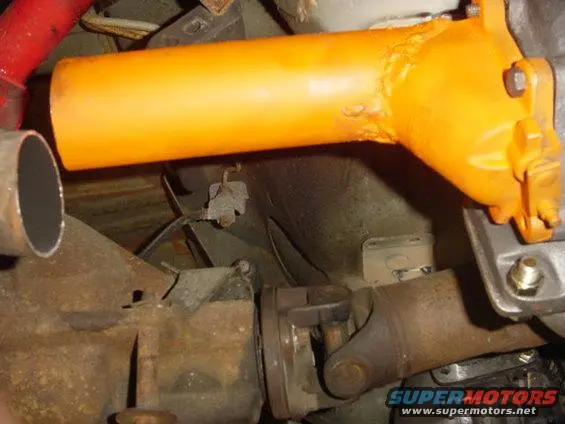

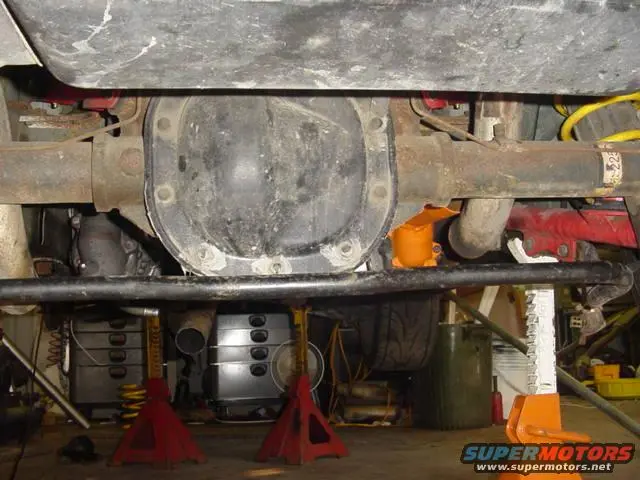

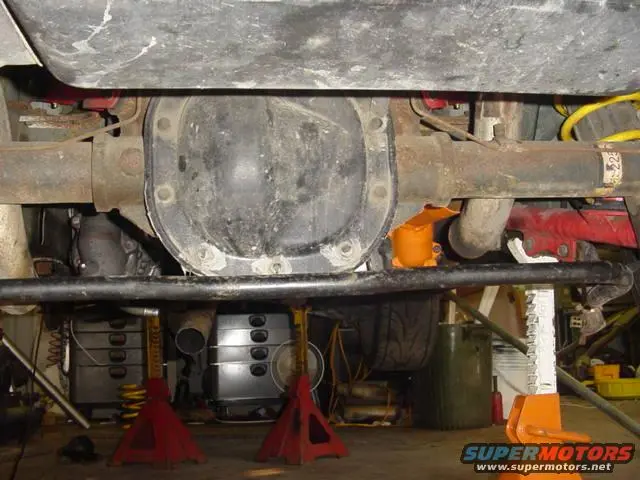

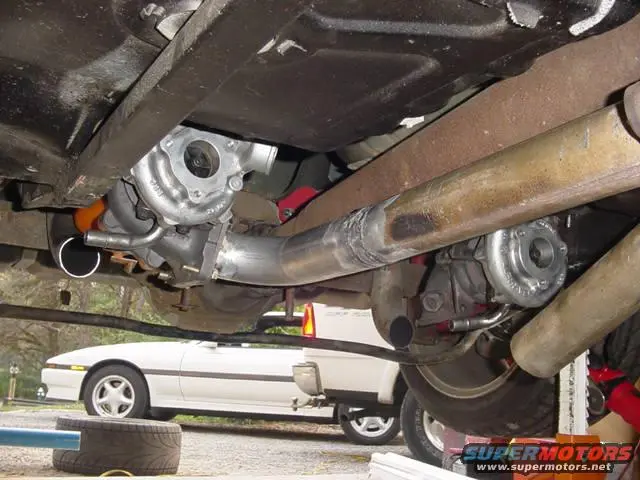

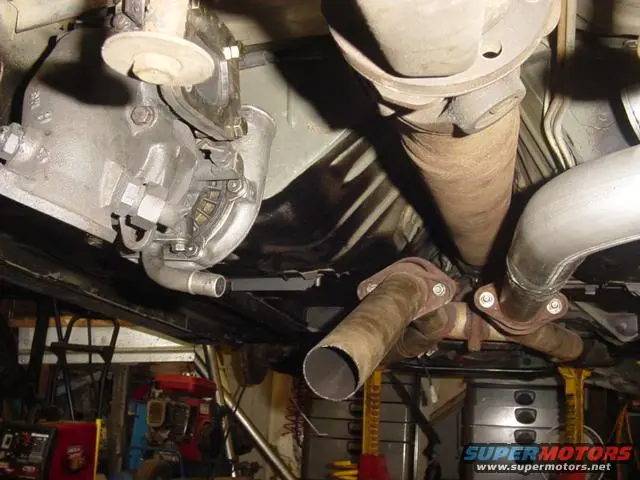

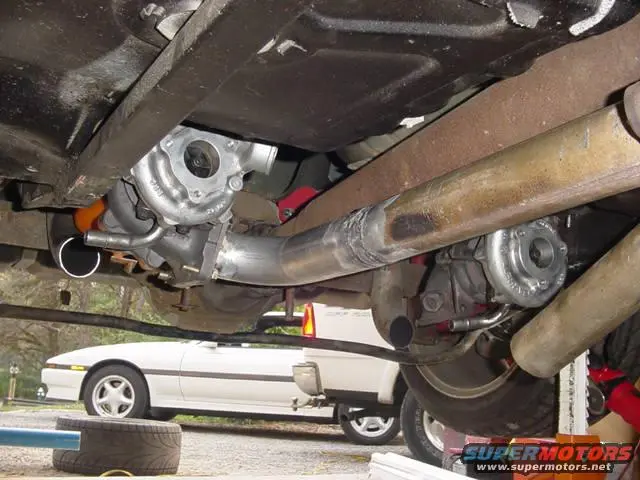

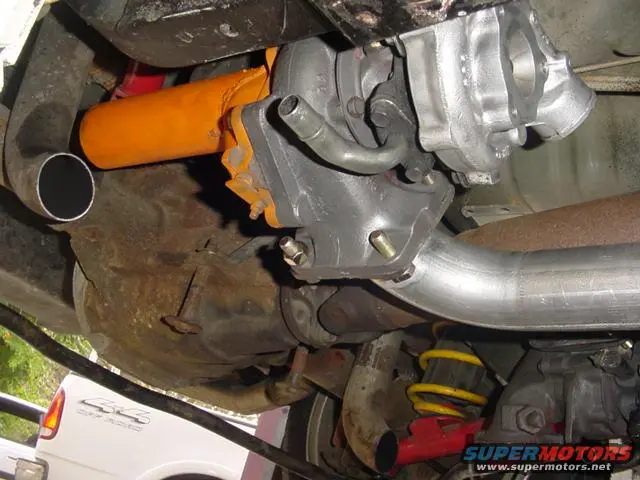

    Here are just some random pics of the twins....the pass side is mostly mocked up, the driver's side still needs to have the waste-gate housing modified like i did to the driver's. I showed a pic of how the system really dosent hang down too much at all.
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    anyway...right now ill be working on getting the exhaust inlet to the driver's side, and welding up the wastegate housing.
  3. donjohn

    donjohn New Member

    Joined:
    Feb 8, 2004
    Messages:
    1,770
    Likes Received:
    0
    Trophy Points:
    0
    somebody's been freakin busy.. sweetness!
  4. 1slow95

    1slow95 Founding Member

    Joined:
    May 17, 2002
    Messages:
    1,803
    Likes Received:
    2
    Trophy Points:
    48
    That looks really good!

    Is that a Supra with waffles?
  5. OrangeMustangGt

    OrangeMustangGt Founding Member

    Joined:
    Mar 8, 2002
    Messages:
    1,985
    Likes Received:
    0
    Trophy Points:
    36
    HAHA ya it is. Those are my stock rims that my brother bolted up to his 87' turbo supra. looks much better than the ugly rims it has IMO
  6. yellow1995Cobra

    yellow1995Cobra New Member

    Joined:
    Dec 23, 2002
    Messages:
    2,981
    Likes Received:
    0
    Trophy Points:
    0
    hey since you have water cooled turbos. DId you think about putting in a water tank in the trunk, and runnin a pump to feed the turbos with water.. THen just fill it up with ice water at the track. WOuldnt be practical for street driving, but i bet it would drop ur inlet temps alot with the ice


    look awesome so far btw, keep up the good work!
  7. OrangeMustangGt

    OrangeMustangGt Founding Member

    Joined:
    Mar 8, 2002
    Messages:
    1,985
    Likes Received:
    0
    Trophy Points:
    36
    damn man...not a bad idea....i wasent even planning on using the water jacket at all. I dont know how much that will drop temps tho? Anyhow at some point i will have to try that....i would need another pump tho. Thanks man
  8. 1105

    1105 I AM the random post master...bow down

    Joined:
    May 3, 2003
    Messages:
    3,882
    Likes Received:
    0
    Trophy Points:
    0
    Everything is looking good except that damn screen infront of your intercooler... It needs to go
  9. Zero Signal

    Zero Signal Active Member

    Joined:
    Feb 24, 2003
    Messages:
    2,645
    Likes Received:
    0
    Trophy Points:
    46
    Good to see progress. Should be quite interesting once you fire it up.
  10. Blackened302

    Blackened302 New Member

    Joined:
    Jul 21, 2005
    Messages:
    1,477
    Likes Received:
    0
    Trophy Points:
    0
    woa ****, dude, that looks freakin awesome. keep posting them pics!
  11. mytight95

    mytight95 Active Member

    Joined:
    Apr 11, 2003
    Messages:
    2,609
    Likes Received:
    0
    Trophy Points:
    46
    Man i have to give you Props, you are doing one of the most original turbos i have seen on anything. In the pic, i like how they don't sit any lower than mufflers on my car do....

    One question i came up with is, your cold side piping is gonna be where? On top of the exhaust, or what, and are you gonna have any clearance issues once the suspension is loaded up again... Not doubting you in any way just trying to educate myself.... good luck and great job so far...



    jason
  12. OrangeMustangGt

    OrangeMustangGt Founding Member

    Joined:
    Mar 8, 2002
    Messages:
    1,985
    Likes Received:
    0
    Trophy Points:
    36
    whell, im still figuring out the cold side. what i think im gonna do is have the pass side go straight up into the rear seat area, cross over, then come down, merge, then meet that blue 2/1/2 pipe along the side skirt area...more pics coming...
  13. Killercanary

    Killercanary The car that set the bar. Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    5,726
    Likes Received:
    1
    Trophy Points:
    76
    SWEET progress man! I'm impressed so far!
  14. sKyZ

    sKyZ Banned

    Joined:
    Apr 28, 2005
    Messages:
    148
    Likes Received:
    0
    Trophy Points:
    0
    Nice.. How many HP will it be pushing? ..and when are you gunna come to do my car up like that?
  15. VibrantRedGT

    VibrantRedGT "STANGNET'S PENGUIN SMACKER" Super Mod

    Joined:
    Nov 30, 1999
    Messages:
    15,557
    Likes Received:
    220
    Trophy Points:
    114
    The white Supra with the pony wheels is teh balls.
  16. Mac-man

    Mac-man New Member

    Joined:
    Nov 7, 2003
    Messages:
    300
    Likes Received:
    0
    Trophy Points:
    0
    you have definately got one nice set up going. i have been following ur thread since u started it and i must say u r doing a very nice job.
  17. 94TURBO5 O

    94TURBO5 O New Member

    Joined:
    Mar 14, 2004
    Messages:
    2,568
    Likes Received:
    0
    Trophy Points:
    0
    You are doing a GREAT JOB my friend! :nice: Def a unique set up and if it works well then you can make some $$ fabbing those systems up.
    Props to you big time b/c I know how little room is under those frigg'n jack stands. It sucks everytime you go under and forget a socket or something! :mad:
    We can all just dream we have a lift in our garages though like Andy :D

    I'm excited for you to complete this up successfully and accomplish your goal and vision.
  18. SM0k3

    SM0k3 Founding Member

    Joined:
    Jun 3, 2001
    Messages:
    586
    Likes Received:
    0
    Trophy Points:
    16
    holy crap, im subscribing to this right now.....ive always wanted to do the JYTT setup on my SN95 since i never finished it with my fox but the biggest problem was getting all my stuff(smog, a/c, etc)
  19. mcmmotorsports

    mcmmotorsports Member

    Joined:
    Apr 12, 2004
    Messages:
    693
    Likes Received:
    0
    Trophy Points:
    17
    It is funny, I have been thinking of doing this setup for a long time too.
    However, I was thinking of doing a single setup instead of a twin. STS Turbo Systems is the company that does remote turbos and their site says that an intercooler is not required since the intake charge cools through the extended piping from the back to the front. So, back to my main question, would this setup work with a single, let say, T4?
    BTW, you are officially my new god, I PRAY TO YOU!! :hail2:
    If this works, I will be right behind you!

    Here are some more sites to look at:
    http://www.turbothunderbird.com/pics.php
    http://www.ststurbo.com/
  20. OrangeMustangGt

    OrangeMustangGt Founding Member

    Joined:
    Mar 8, 2002
    Messages:
    1,985
    Likes Received:
    0
    Trophy Points:
    36
    whell, i know sts says you dont need an i/c, but i wanted to run a small one anyway, a pipe cant cool off that much. Next, the reason i did twin is because its easier. The stang has a dual exhaust. You could do a single, say like a MP t-70 or somethin with a real small a/r. but then you run into having the crossover tube near the axle, if you mount it where i mounted mine.
