Twin Turbo Build Progress -pics-

Discussion in '1994 - 1995 Specific Tech' started by OrangeMustangGt, Aug 11, 2005.


  1. BlueOvalStangGT

    BlueOvalStangGT Active Member

    Joined:
    Oct 28, 2003
    Messages:
    2,908
    Likes Received:
    0
    Trophy Points:
    46
    Location:
    Tampa Florida....USF!!!
    Dude thats pretty badass, keep the pics coming!

    #81
  2. need a fast car

    need a fast car New Member

    Joined:
    Jan 2, 2003
    Messages:
    146
    Likes Received:
    0
    Trophy Points:
    0
    where did you buy the carpet from, and how is the fitment? thanks

    #82
  3. _MATiC

    _MATiC New Member

    Joined:
    Sep 24, 2003
    Messages:
    142
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    El Paso, TX
    that def. looks awesome...maDD props for diy..whats the part number for those seats..i needa pick some of them up! :)

    #83
  4. SM0k3

    SM0k3 Founding Member

    Joined:
    Jun 3, 2001
    Messages:
    584
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    La Palma, California
    whos doing all the welding for you? thats my biggest problem....i've been thinking about getting a welder from harbor frieght and just practice.

    #84
  5. stprorolla49

    stprorolla49 Active Member

    Joined:
    Oct 9, 2004
    Messages:
    1,476
    Likes Received:
    14
    Trophy Points:
    39
    Location:
    Fairfield, CT/North Jersey
    my dad bought a tig welder last fall at the carisle swap meet, and its the best tool hes bought.....ive practiced so much on it, and its such a useful tool.....definately go for it, and practice a lot :D

    green machine- the setup is coming along awesome man....big props to you for being the first to attempt this kinda setup on here......i cant wait to see it when its all finished man :D

    #85
  6. 95riosnake

    95riosnake Member

    Joined:
    Dec 21, 2003
    Messages:
    639
    Likes Received:
    0
    Trophy Points:
    17
    Location:
    Pittsburgh, PA
    This might be a stupid question, but what is up with the gold/orange-ish paint? :shrug: Just curious

    #86
  7. 94gts

    94gts New Member

    Joined:
    Jul 5, 2004
    Messages:
    889
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Carmel, New York
    HAHA i just saw that a minute ago but cound't figure out what kinda car it was

    #87
  8. 95Mustang302

    95Mustang302 Member

    Joined:
    Mar 31, 2005
    Messages:
    303
    Likes Received:
    0
    Trophy Points:
    16
    sweet ass mang!!

    #88
  9. fawcett

    fawcett Member

    Joined:
    Sep 11, 2003
    Messages:
    380
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Cohasset, Ma
    keep those posts comming, im very interested. please post more pics, we all want to see what you're doing under there!
    great work man,
    -Fawcett

    #89
  10. Jeff7477

    Jeff7477 Founding Member

    Joined:
    Jul 2, 2001
    Messages:
    176
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Lincoln, Nebraska USA
    You do realize you will get almost no power from the turbos in those locations don't you?

    #90
  11. OrangeMustangGt

    OrangeMustangGt Founding Member

    Joined:
    Mar 8, 2002
    Messages:
    1,983
    Likes Received:
    0
    Trophy Points:
    36
    Location:
    Cape Cod, MA
    ^...we will see about that :D

    Anyhow, i finally got em fully piped in and mounted. Its complete right out the tail-pipes. I also got the oil line from the sender fitting through a tee, out to the back of the car, i just need to do the return line now, finish my cold side outlets, and make up my cold inlets through the side vents( i ordered some zenon scoops to go over the area to give me some more room for filters

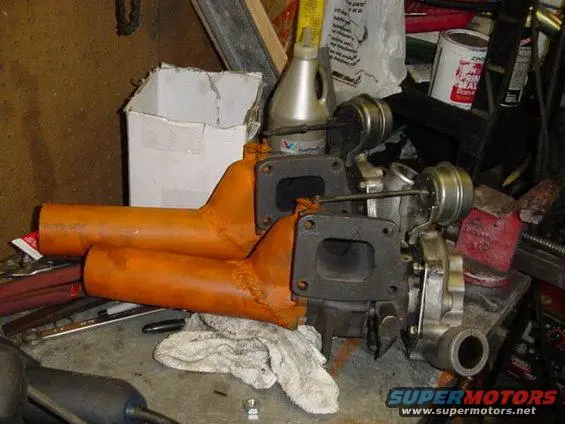

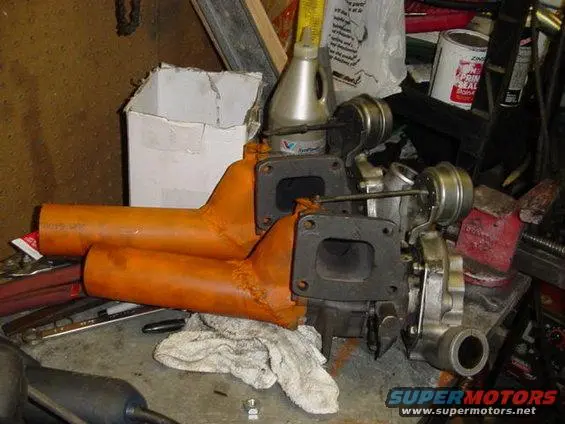

    Anyhow, here are the turbos, You can see where i cut the wastegate flange and welded in some 2-1/2 tubes to go straight out to the tailpipes.
    [​IMG]
    Here are the mounts i made to hang the turbos....nothing special, just holds em up there:
    Pass side with oil feed hole
    [​IMG]
    Drivers side
    [​IMG]

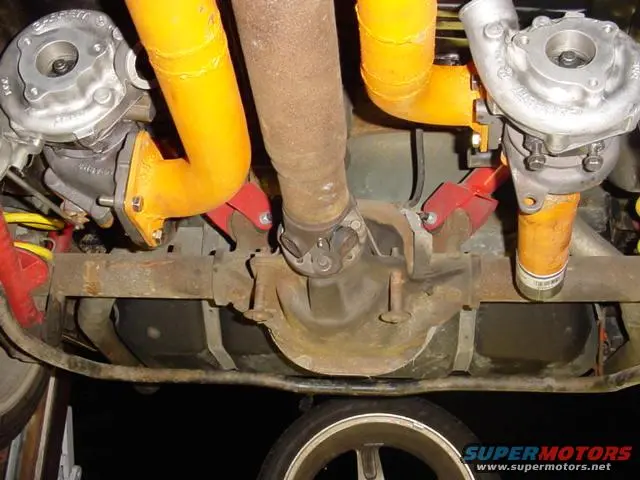

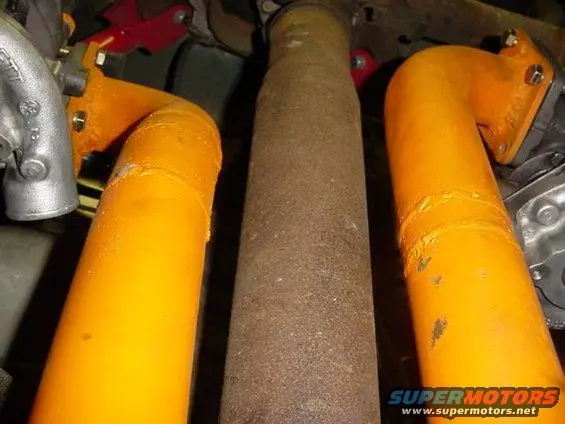

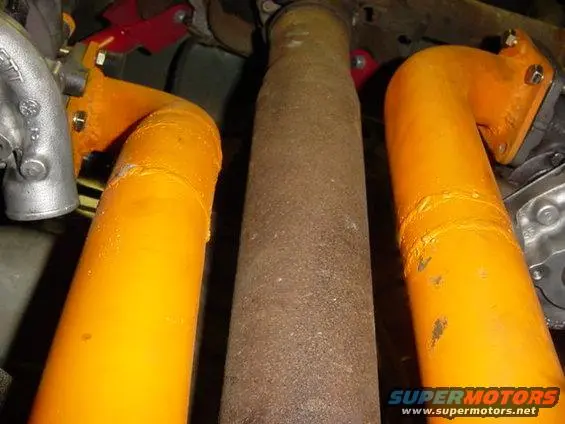

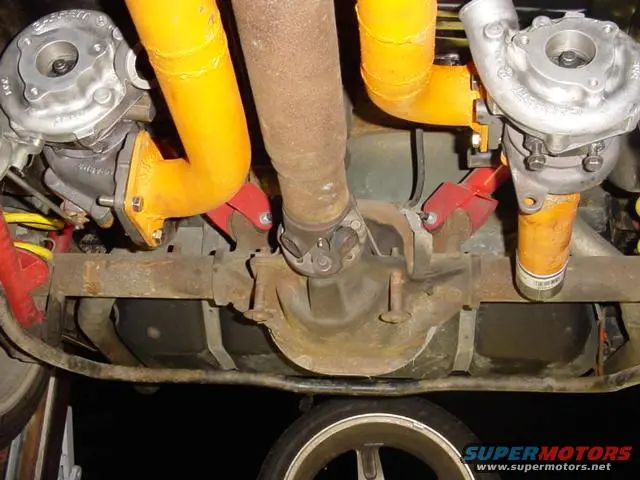

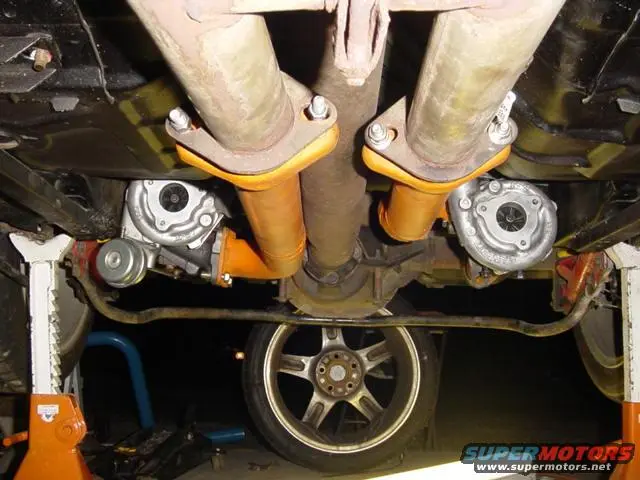

    Here they are fully piped in
    [​IMG]
    [​IMG]
    [​IMG]

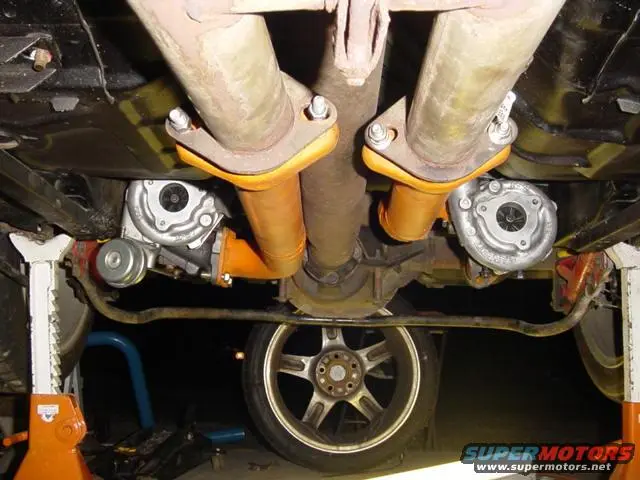

    Here are the outlets where the turbos connect to the tailpipes
    [​IMG]
    [​IMG]

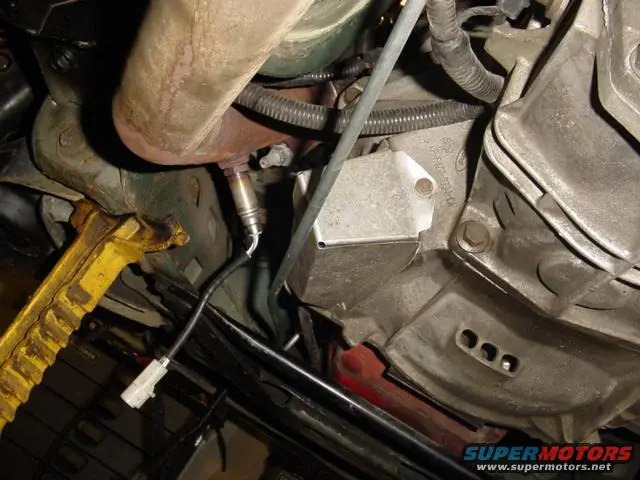

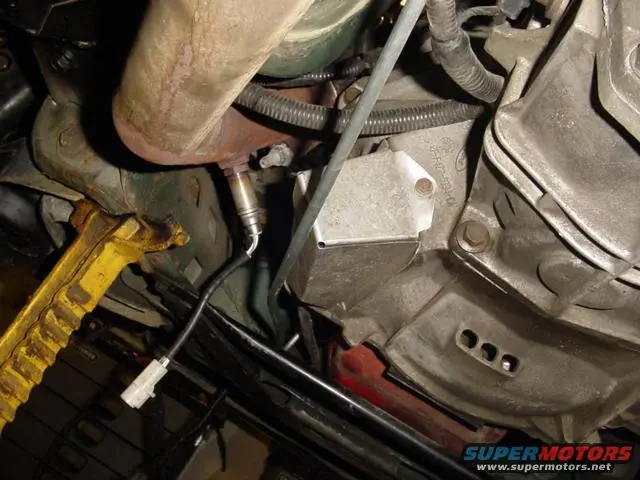

    here is a pic of the 5/16 oil feed line
    [​IMG]

    tommorow im gonna work on getting the cold side done now that i finally got all my flanges

    #91
  12. donjohn

    donjohn New Member

    Joined:
    Feb 8, 2004
    Messages:
    1,770
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Irvine - Southern California
    wow, that's looking sweet

    i thought you were going to run a second oil pump?

    #92
  13. rulesR4suckers

    rulesR4suckers New Member

    Joined:
    May 1, 2005
    Messages:
    72
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Fairview Heights, IL
    Man, that's some crazy s..t!!!! Well done!!!!!!!!!!!!!!

    #93
  14. AznStanger3v

    AznStanger3v Active Member

    Joined:
    Aug 11, 2003
    Messages:
    2,033
    Likes Received:
    0
    Trophy Points:
    47
    Location:
    Northern VA
    i am very impressed with you. youve come a long way since i remember a couple years ago. dont listen to ol' boy up there talking about not making power. anything is better than stock. good luck, i hope everything goes flawlessly :nice:

    #94
  15. yellow1995Cobra

    yellow1995Cobra New Member

    Joined:
    Dec 23, 2002
    Messages:
    2,981
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Massachusetts

    you do realize your a dumbass noob right?



    Looking good man, i hope u make it up to the track this fall with it so i can check this thing out.

    #95
  16. BlackVert

    BlackVert Mustang Master

    Joined:
    Oct 3, 2003
    Messages:
    5,614
    Likes Received:
    7
    Trophy Points:
    78
    Location:
    Bethesda, MD
    I have three things to say:

    1. dude, you are flying through this build! :nice:

    2. you might consider wrapping the headers and exhaust. it might heep some of the heat in which would help the turbos spool better.

    3. :hail2: :cheers: :)

    #96
  17. AznStanger3v

    AznStanger3v Active Member

    Joined:
    Aug 11, 2003
    Messages:
    2,033
    Likes Received:
    0
    Trophy Points:
    47
    Location:
    Northern VA
    :rlaugh: :lol: low blow

    #97
  18. Zero Signal

    Zero Signal Active Member

    Joined:
    Feb 24, 2003
    Messages:
    2,645
    Likes Received:
    0
    Trophy Points:
    46
    Location:
    Tucson, AZ
    We should petition the mods to change your status from Super Stallion to "The Real MacGuyver"

    I second the wrapping. Do it all the way to the turbines, anything helps!

    #98
  19. 95riosnake

    95riosnake Member

    Joined:
    Dec 21, 2003
    Messages:
    639
    Likes Received:
    0
    Trophy Points:
    17
    Location:
    Pittsburgh, PA
    I have to admit you had that coming, Jeff7477. Read up on STS turbo systems and you'll see why this setup can work.

    #99
  20. Blackened302

    Blackened302 New Member

    Joined:
    Jul 21, 2005
    Messages:
    1,477
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    McAllen, South TX
    nice progress. i look forward to the next set of pics.

    #100
