Vortech Blown 93 LX Hatch in NJ

Discussion in 'Fox Body Mustangs For Sale' started by FoxEffect89LX, Nov 2, 2010.


  1. FoxEffect89LX

    FoxEffect89LX New Member

    Joined:
    Feb 22, 2006
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    1
    Up for sale I have a factory black interior, factory sunroof 1993 Mustang LX Hatchback. Original 5.0 car. Its also an original AOD car. No 5spd swap or manual to auto swap. Let me first start by saying that I DO NOT NEED to sell this car, although I could certainly use the money (I believe we all could in this economy). Therefore I will not take offers that I believe are too low given the amount of money I've invested. I have over 25,000 in receipts for this car including parts and labor. I've kept almost every single receipt, as well as the cam card and the two Dyno sheets from the cars two stages of tune.

    The majority of the car was built and assembled at Radical Racing in Atco, NJ under the guidance and expertise of Craig Radovich. The short block was machined and assembled by Lorenzo at Lorenzo's Fast Flow Cylinder Heads/Machine Shop near Phili, PA. The car was Dyno'd on a Dynojet and tuned by Craig with a Diablosport chip. With 14lbs of boost and a street tune it made 496rwhp and 448ft/lbs of torque.

    Below I will list the current modifications to the car and its current condition, to the best of my ability.

    Engine:
    Factory Roller 302 block, bored .030 over
    Stock Crank, Turned and Polished
    Eagle SIR I-Beam Rods
    Diamond Forged Blower Pistons (9.3:1CR)
    FRPP Main Girdle
    Melling HV Oil Pump
    ALL ARP Hardware
    Moroso Steel 7qt Street/Strip Oil pan
    Comp Cams Custom Blower Cam (Have Cam Card on file, spec's on request)
    Comp Cams Hyd Roller Lifters
    Complete Trick Flow top-end Kit w/Street Heat heads and Intake, Black intake and valve covers, heads are un-ported out of the box
    ARP Head Studs
    Cometic Head Gaskets
    Felpro 1250 Intake Gaskets
    Harland Sharp/Fox Lake 1.6 RR (correct geometry to prevent valveguide wear)
    Accufab 75MM TB and EGR

    Exhaust System:
    BBK Ceramic Un-Equal Length 1 5/8" headers w/2.5" collector
    Bassini Stainless X-Pipe w/High Flow Cats
    MAC Catback w/3.5" Stainless Tips

    Supercharger:
    Vortech V-2 SQ
    2.95 inch Blower pulley (13.5-14lbs)
    Anderson Ford Motorsports Powerpipe
    Pro-M 80mm MAF

    Fuel System:
    60lb Injectors
    Complete Aeromotive Fuel System Kit
    Includes: Brand new sumped tank, A1000 fuel pump, dual micron filters, all braided stainless lines and AN fittings, Fuel Rails, Fuel Regulator, all wiring and hardware

    Ignition/Electrical:
    MSD 6AL (older unit, on car when purchased 5-6yrs ago)
    MSD RPM switch for shift light
    FACTORY FORD Distributor and TFI module (purchased BRAND NEW FROM FORD 2 yrs ago)
    MSD Cap-A-Dapt Kit (to clear fuel rails)
    FRPP 9mm Red Ign Wires
    Autolite Plugs
    3G 130 Amp alternator
    Optima Red Top Battery, relocated to trunk
    Downs Box
    Battery Cut-Off Switch mounted to right of license plate

    Cooling System:
    Proform Elec Water Pump
    Ron Davis Alum 4-Core Radiator
    Proform Elec Fan w/on-off switch mounted on shifter bezel
    180* T-Stat

    Transmission:
    Lentech Strip Terminator AOD
    Full Manual Valvebody - no trans brake
    Alto Red clutches
    One-Piece Input Shaft
    Electronic Overdrive on 12v switch, mounted on shifter bezel
    Trans is rated to 1,000hp (feel free to check Lentech's website for spec's)
    PTC 3800 stall Non-Lockup Converter
    B&M Pro Stick Magnum Grip shifter w/Line Lock System

    Front Brakes/Suspension/Steering:
    UPR Complete K-Member Kit - chromeoly tubular control arms, coilovers with 150lb springs, UPR bumpsteer kit
    Lakewood 70/30 Struts
    UPR Caster Camber Plates
    Power Stop Cross Drilled rotors, long wheel studs installed
    Hawk HPS Pads
    New Factory Ford Calipers
    Brand new Master Cylinder and Booster
    Stainless Braided brake lines
    Hurst Line Lock System

    Rear Brakes/Suspension:
    COMPLETELY REBUILT Rear Drum System -All new wheel cylinders, shoes, drums, springs, hardware, stainless braided lines
    UPR Pro Street Non-Adj Upper and Lower Control Arms
    Stock springs
    Lakewood 50/50 Shocks

    Drivetrain/Rear end:
    FRPP Alum Driveshaft
    Lakewood D/S Safety Loop
    Factory 8.8 housing
    FRPP 3.73 ring & pinion
    FRPP 31 Spline Trak Lok Diff
    Moser 31 Spline C-Clip Axles w/Long Studs
    Downs Motorsport Rearend Girdle

    Wheels/Tires:
    FRONT 15x3.5in Weld Draglites with 165R15 Radial Fronts
    REAR 15x9in Weld Draglites with 275/60R15 Mickey Thompson DR's

    Exterior:
    Cervini's Fiberglass Cobra R 3" Cowl Hood, Bolt-On
    FRONT COLOR: GM Auburn Myst Pearl Metallic
    REAR COLOR: Nissan Magenta Red

    Interior/Gauges:
    Factory Black Interior, mint carpet, d/s seat has a slight rip along seam, un-molested dash, ashtray door works, newer armrest purchased from latemodel resto 2 years ago, I'd give the interior an 8 out of 10.
    Autometer 3-Gauge A-Pillar Pod w/Sport Comp Gauges
    Boost, Oil Pressure and Water Temperature
    Gauge Bezel Mounted Shift Light

    While I'm on the interior I'd like to point out something that I should mention. The car had an older Viper Alarm system installed in it when i got it. It gave me a few problems over the years and I recently removed it entirely from the car, along with alot of other messy wiring that I found that was cluttering up the car. There was originally some sort of sensor and an arming indicator light mounted just to the right of the steering column underneath the instrument panel, those two pieces are now removed. There are currently holes there now where they used to be. I've thought about getting two large plastic push pins to remedy the problem, just haven't gotten around to it. Not a deal breaker in my opinion, but worth noting.

    Some notes on the paint. I absolutely love the color scheme, its one of the reasons I was so drawn to the car to begin with. Its one of those love it or hate it things. It was originally the previous owner's wife's car. He had some friend of his paint it, the colors are nice but the prep job he did on the car wasn't exactly perfect. There are chips in alot of places, especially on the front, and the clearcoat on the fiberglass hood has completely peeled off.It had been peeling slowly over the years and finally most of it has came off. I've pondered the idea of getting it re-prepped/painted and re-cleared, but while thats happening I figured i'd repaint the whole car. Obviously funds haven't quite allowed that to happen.

    Also the pics I've posted are with the previous Mickey Thompson I had on the car which were 275/50R15's. The car currently rides on 275/60R15's and the rear tires are two inches taller. The fender lips were rolled originally with the shorter drag radials on the car and I had absolutely no problems with rubbing. Since the taller tires have been on the car I've had a slight problem with the L/R tire rubbing here and there on certain bumps. A UPR rear coilover kit for $260 could easily solve the problem, again funds haven't allowed me to remedy this situation as of late.

    Its only been down the track 4 times in the entire 5 years I've owned it. And the track time was very recent, in early october. It was an extremely cold and windy night, and the best pass I could muster was 11.27@124mph. Keep in mind this is was the first time I've ever been down the 1/4 mile in anything. That was with spinning through all of 1st gear, some of 2nd, and a resulting crappy 1.97 60ft time. This car is without a doubt a high 10 second car in proper conditions. Theres still more power to made from the motor, If I was to keep the car I'd be upgrading to the Si trim blower and running a Snow Meth kit. Could easily see about another 50rwhp.

    I've tried my best to describe the car as honestly and accurately as possible. I will be attempting to take updated photo's of the car with the taller rear tires and flat, un-cleared hood. Photo's will hopefully be taken this weekend.

    My asking price for this car is $11,500 or best offer. The car is located in High Bridge, NJ zip code 08829. The car is currently registered, inspected and insured in NJ. The title is clean and clear and the car is 100% paid for. The inspection sticker is good until June of 2012. My name is Asah, my e-mail address is [email protected]. I can be reached on my cell phone at 908-303-7859. I work two jobs and have a very busy schedule, If i don't answer leave a message and I'll get back to you as soon as possible. Thank you very much for looking, I look forward to hearing from you all.

    Attached Files:

  2. FoxEffect89LX

    FoxEffect89LX New Member

    Joined:
    Feb 22, 2006
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    1

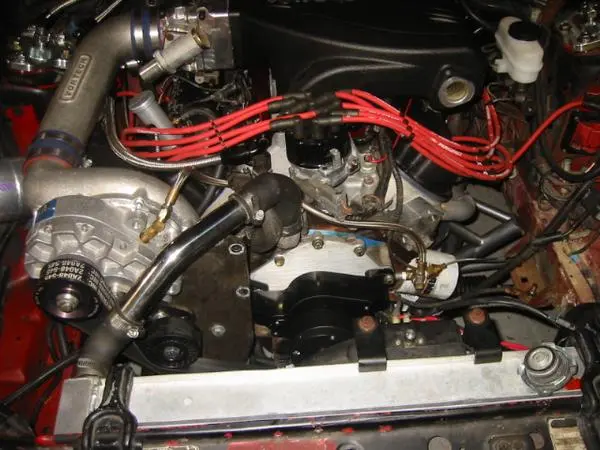

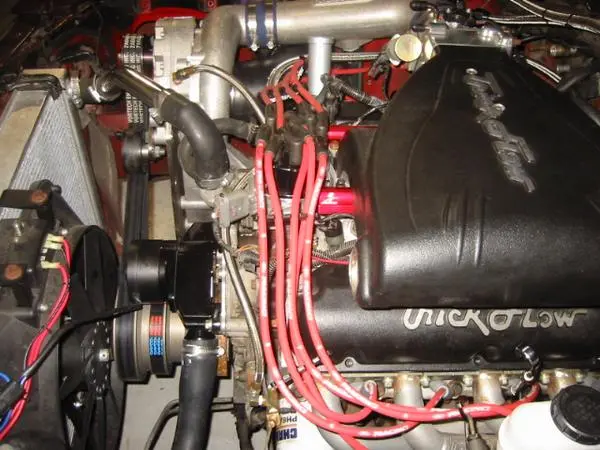

    ENGINE SHOTS

    Pics of the Engine Bay when Radical installed the new Fuel System, K-Member, Manual Rack, and 60lbs injectors.

    Attached Files:

  3. FoxEffect89LX

    FoxEffect89LX New Member

    Joined:
    Feb 22, 2006
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    1

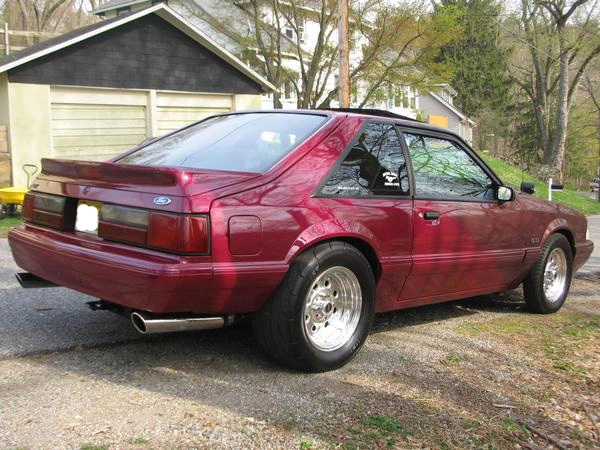

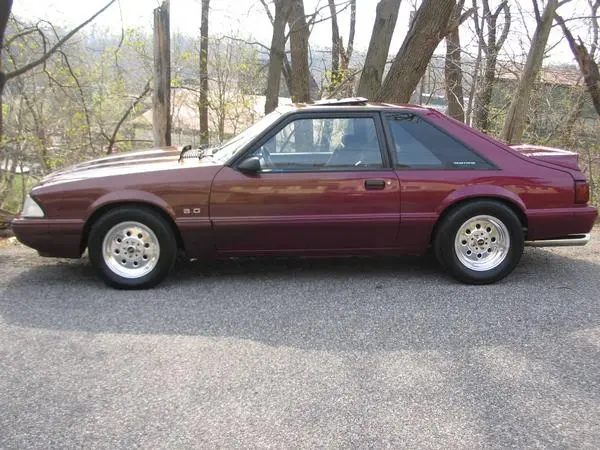

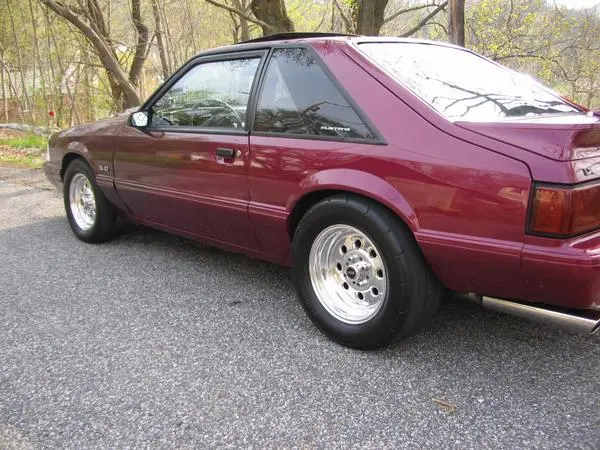

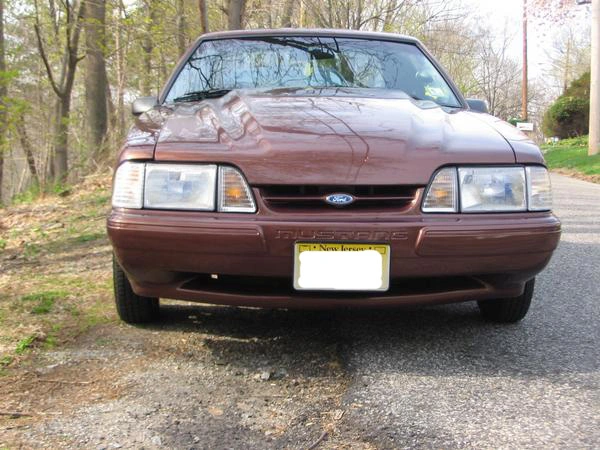

    More Exterior Shots.

    Attached Files:

  4. FoxEffect89LX

    FoxEffect89LX New Member

    Joined:
    Feb 22, 2006
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    1
  5. FoxEffect89LX

    FoxEffect89LX New Member

    Joined:
    Feb 22, 2006
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    1
    *BUMP* C'mon guys you can't even touch this car for this price if you were to build it again piece by piece. I now have pictures of the car with the taller tires and a shot of the hood with the missing clear coat. Can't post em cause I'm maxed out on attachments. Please call or e-mail if your interested. I am willing to negotiate.
  6. FoxEffect89LX

    FoxEffect89LX New Member

    Joined:
    Feb 22, 2006
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    1
    *BUMP* for the day
  7. FoxEffect89LX

    FoxEffect89LX New Member

    Joined:
    Feb 22, 2006
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    1
    *BUMP* May consider trades plus cash on your end. Interested in 93-96 F150 4x4 5.0 V8 trucks or a straight trade on a newer 04 and up F150 4x4 of equal value, no rust buckets, possibly a buell xb12 lightening, and a plated and nj street legal KTM dirtbike. Let me know what you have.
  8. FoxEffect89LX

    FoxEffect89LX New Member

    Joined:
    Feb 22, 2006
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    1
  9. FoxEffect89LX

    FoxEffect89LX New Member

    Joined:
    Feb 22, 2006
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    1
    TTT Somebody please make me an offer.
  10. FoxEffect89LX

    FoxEffect89LX New Member

    Joined:
    Feb 22, 2006
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    1
  11. FoxEffect89LX

    FoxEffect89LX New Member

    Joined:
    Feb 22, 2006
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    1
  12. FoxEffect89LX

    FoxEffect89LX New Member

    Joined:
    Feb 22, 2006
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    1
  13. FoxEffect89LX

    FoxEffect89LX New Member

    Joined:
    Feb 22, 2006
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    1
  14. FoxEffect89LX

    FoxEffect89LX New Member

    Joined:
    Feb 22, 2006
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    1
    TTT Lowered price to $11,500 OBO
