Water Pump Bolt Broke Off Inside (with Pictures)

Discussion in 'Fox 5.0 Mustang Tech' started by j0rd4n, Sep 14, 2013.


  1. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7

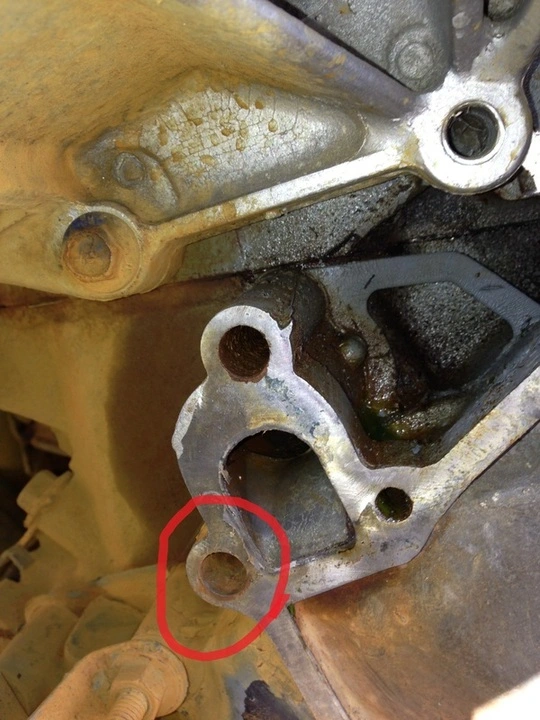

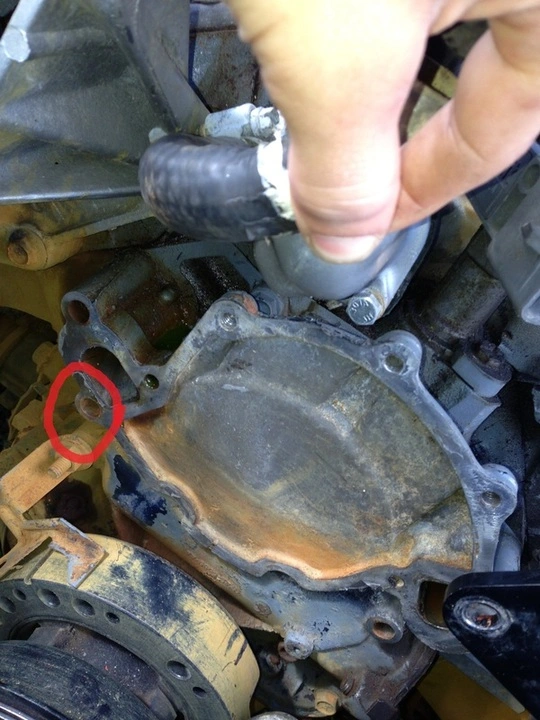

    i was replacing the water pump on my 88 notch and it was going smoothly.
    i got to the last bolt and it was harder to turn so i carefully tried to get it out but it broke off inside. they had put "never-cease" on all of the bolts except for one...

    half of the thread of the bolt is broke off inside and im wondering what do. the bolt wont thread back in at all because the end of it is bent as well as broken.


    [​IMG]
    #1
  2. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7
  3. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7
  4. mikestang63

    mikestang63 Mustang Master

    Joined:
    Aug 28, 2012
    Messages:
    3,441
    Likes Received:
    894
    Trophy Points:
    144
    You can attempt to spray some PB blaster and then try an easy out to get that bolt, but you risk damaging the aluminum timing cover if not careful. Drill, tap, and helicoil that hole is the best option at this point.l. I would use stainless steel replacement bolts, run all the bolt holts with a tap to remove any crud, and anti-seize on all the threads.
    #4
  5. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7

    thanks for the super quick response!!

    ive never tapped a bolt and extracted it before, so forgive me if i ask a dumb question. Can i drill and tap the hole where it is, or will i have to remove it from out of the engine and then do it, so its perfectly straight and i dont drill too far into the engine?
    #5
  6. 5point0stang88

    5point0stang88 Active Member

    Joined:
    Sep 10, 2011
    Messages:
    173
    Likes Received:
    12
    Trophy Points:
    29

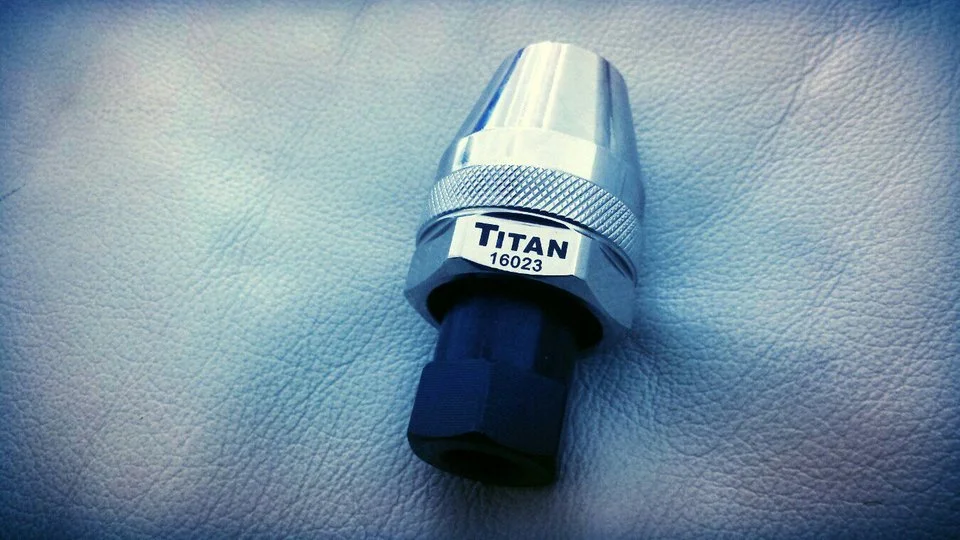

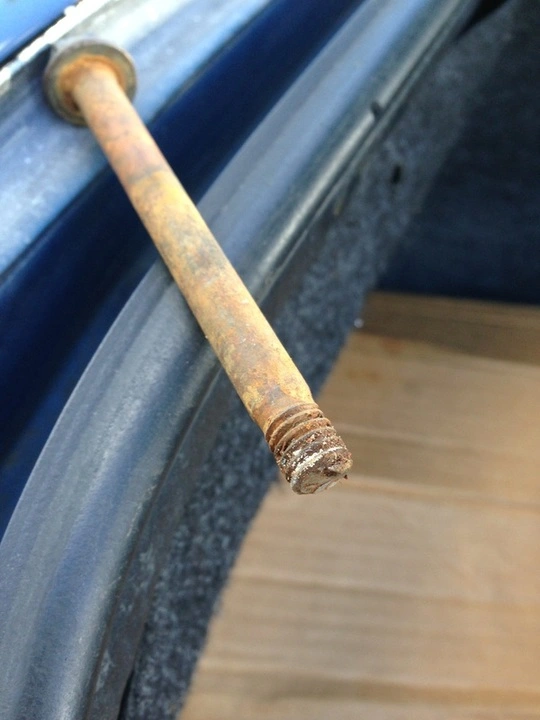

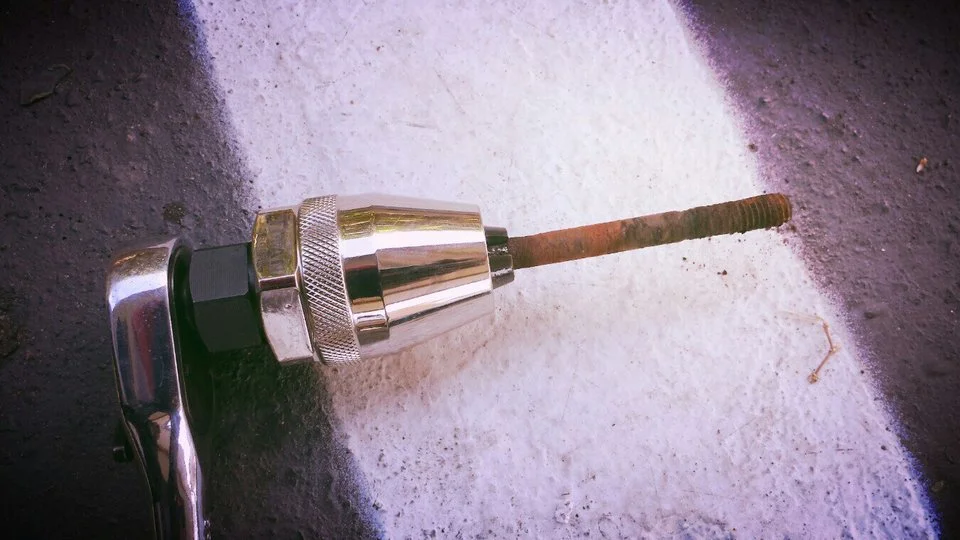

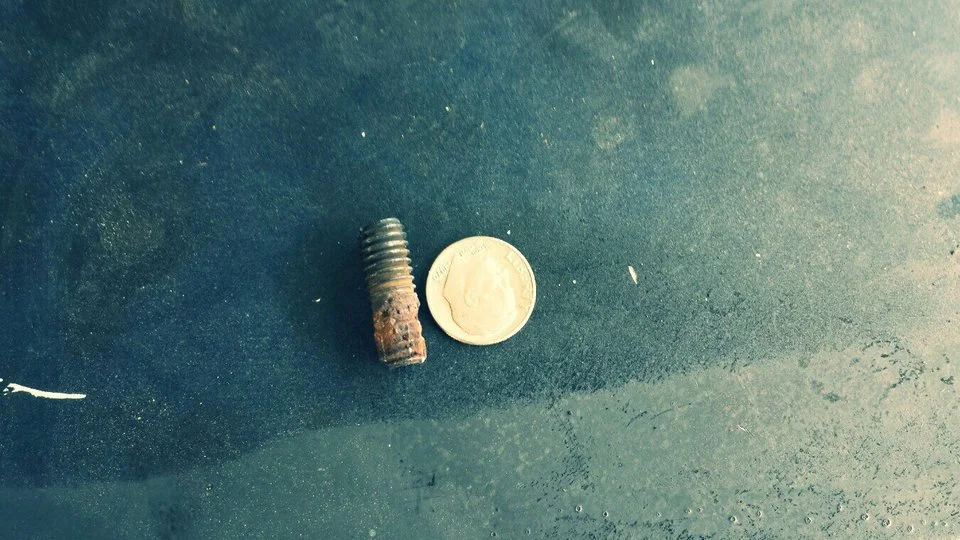

    You should be fine. No need to drill. I had 3 bolts break on me and I removed the studs with a special tool. After I soaked with pb blaster.
    [​IMG][​IMG][​IMG][​IMG]

    Sent from my SPH-L720 using Tapatalk 4
    #6
  7. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7


    i cant tell from the pictures how that tool works? The part of the bolt that is broke off is atleast a .5 to an inch into the hole. How does that tool extract it?
    #7
  8. 5point0stang88

    5point0stang88 Active Member

    Joined:
    Sep 10, 2011
    Messages:
    173
    Likes Received:
    12
    Trophy Points:
    29

    View: https://www.youtube.com/watch?v=fjlnqlWDbfo&feature=youtube_gdata_player

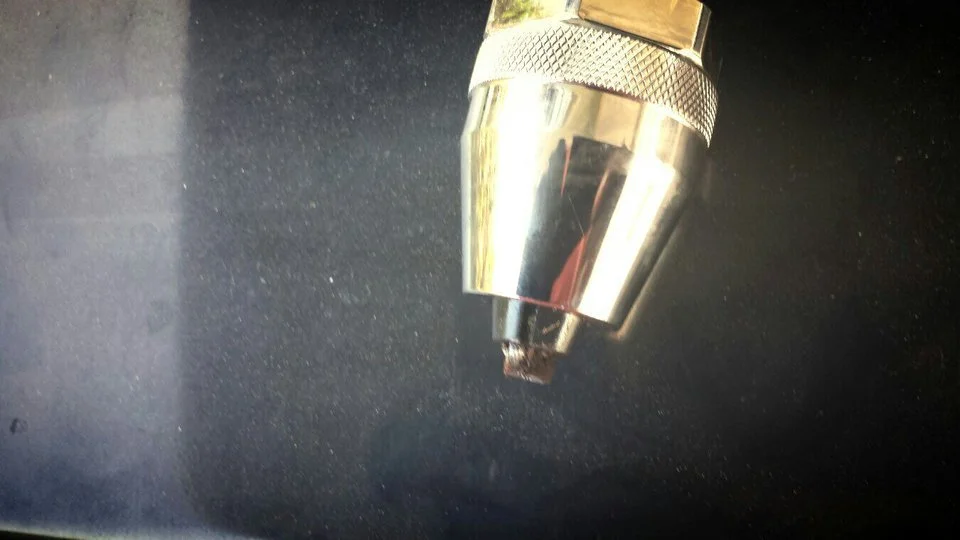

    The teeth clamp down on it as you tighten the grip, then back out. The force is 360 degrees so it comes out great. Only 15$ for this tool.

    Sent from my SPH-L720 using Tapatalk 4
    #8
  9. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7

    The stud i need to extract tho isnt just sticking out like it is in that video. it is broke off inside the timing cover how could i possibly grab onto it with that tool?
    #9
  10. 5point0stang88

    5point0stang88 Active Member

    Joined:
    Sep 10, 2011
    Messages:
    173
    Likes Received:
    12
    Trophy Points:
    29

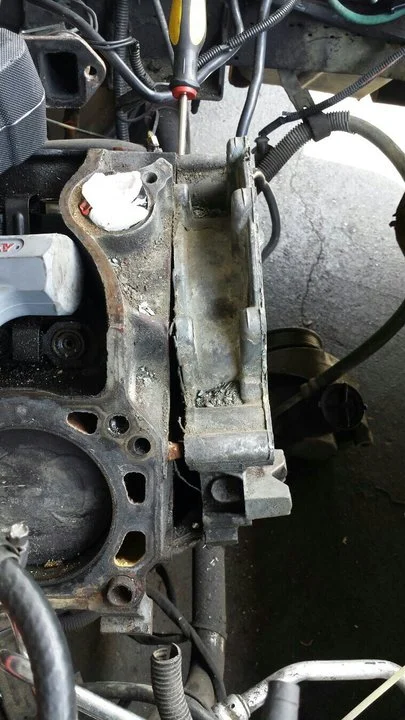

    That timing cover will come off regardless, and stud will be waiting for you. I had to pry it off with a screw driver and dead blow hammer because of the gasket and rtv. That hole in the cover isn't threaded just take it off

    Sent from my SPH-L720 using Tapatalk 4
    #10
  11. 5point0stang88

    5point0stang88 Active Member

    Joined:
    Sep 10, 2011
    Messages:
    173
    Likes Received:
    12
    Trophy Points:
    29
    [​IMG]

    Sent from my SPH-L720 using Tapatalk 4
    #11
  12. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7
    oh ok. i thought maybe i wasnt going to have to take the timing cover off. dont i have to remove the crank pulley because it looks like its all connected
    #12
  13. 5point0stang88

    5point0stang88 Active Member

    Joined:
    Sep 10, 2011
    Messages:
    173
    Likes Received:
    12
    Trophy Points:
    29
    Yes to both, my crank pulley and balancer came right off.

    Sent from my SPH-L720 using Tapatalk 4
    #13
  14. Grabbin' Asphalt

    Grabbin' Asphalt Mustang Master

    Joined:
    Jun 11, 2013
    Messages:
    1,940
    Likes Received:
    277
    Trophy Points:
    94
    Easiest way is to get a half size smaller diameter drill bit and drill into whats in there. Normally the thin side wall of broken bolts will be thin enough to fall out into pieces. If any is left inside you could step up the drill bit size and pray PB blaster etc into it and soak it and maybe just blow it out. Then you could lube up another bolt and run it into it breaking up the pieces off the wall and clean the remaining parts of the thread. I'd try that before taking the timing cover off. Unless you just wanna get in there and replace the chain etc while you're there.
    #14
  15. 5point0stang88

    5point0stang88 Active Member

    Joined:
    Sep 10, 2011
    Messages:
    173
    Likes Received:
    12
    Trophy Points:
    29
    Also I got ARP water pump and timing cover bolts as well as anti seize

    Sent from my SPH-L720 using Tapatalk 4
    #15
    jAEded likes this.
  16. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7
  17. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7
    Why did this happen? I barely turned even turned it I heard this piece is important for timing also
    #17
  18. Grabbin' Asphalt

    Grabbin' Asphalt Mustang Master

    Joined:
    Jun 11, 2013
    Messages:
    1,940
    Likes Received:
    277
    Trophy Points:
    94
    yup, thats your pointer to actually set the timing.
    #18
  19. Grabbin' Asphalt

    Grabbin' Asphalt Mustang Master

    Joined:
    Jun 11, 2013
    Messages:
    1,940
    Likes Received:
    277
    Trophy Points:
    94
    This is where a mark of a pencil line/pen line on your distributor shaft base/block would come in handy, along with a mark to line up the rotor on the distributor wall under the cap. Until you could get a replacement timing pointer.
    #19
  20. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7
