Water Pump Bolt Broke Off Inside (with Pictures)

Discussion in 'Fox 5.0 Mustang Tech' started by j0rd4n, Sep 14, 2013.


  1. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7

    what am i doing wrong? i dont think this thing is big enough maybe but my uncle said it was plenty big enough when he lent me it
    #21
  2. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7
    its getting dark now but i'd like to have the timing cover ready to come off by the end of the night
    #22
  3. Rick 91GT

    Rick 91GT SN Certified Technician Site Sponsor

    Joined:
    Nov 30, 1999
    Messages:
    9,702
    Albums:
    1
    Likes Received:
    94
    Trophy Points:
    99
    Location:
    PA
    That's the wrong style puller for a balancer and you risk damage if you use it.

    If you have a Autozone or Advance Auto local go rent the correct tool...ask for a harmonic balancer puller.

    Sent from my XT907 using Tapatalk 2
    #23
    j0rd4n likes this.
  4. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7
    thanks!
    #24
  5. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7
    do you know of any video that has a demo ? i dont understand how it works
    #25
  6. Grabbin' Asphalt

    Grabbin' Asphalt Mustang Master

    Joined:
    Jun 11, 2013
    Messages:
    1,940
    Showcase:
    25
    Albums:
    1
    Likes Received:
    277
    Trophy Points:
    94
    Location:
    Atlanta, Ga
    Do what @Rick91gt said and go to the auto store before it closes. Then stop eveything your doing and find some "how to" youtube videos, so you can visual see something and then go back to work tonight.
    #26
  7. Noobz347

    Noobz347 Stangnet Facilities Maint Tech... Er... Janitor Admin Dude

    Joined:
    Jan 5, 1985
    Messages:
    19,921
    Showcase:
    58
    Albums:
    5
    Likes Received:
    2,484
    Trophy Points:
    174
    Location:
    Box behind Walmart
  8. Grabbin' Asphalt

    Grabbin' Asphalt Mustang Master

    Joined:
    Jun 11, 2013
    Messages:
    1,940
    Showcase:
    25
    Albums:
    1
    Likes Received:
    277
    Trophy Points:
    94
    Location:
    Atlanta, Ga
  9. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7

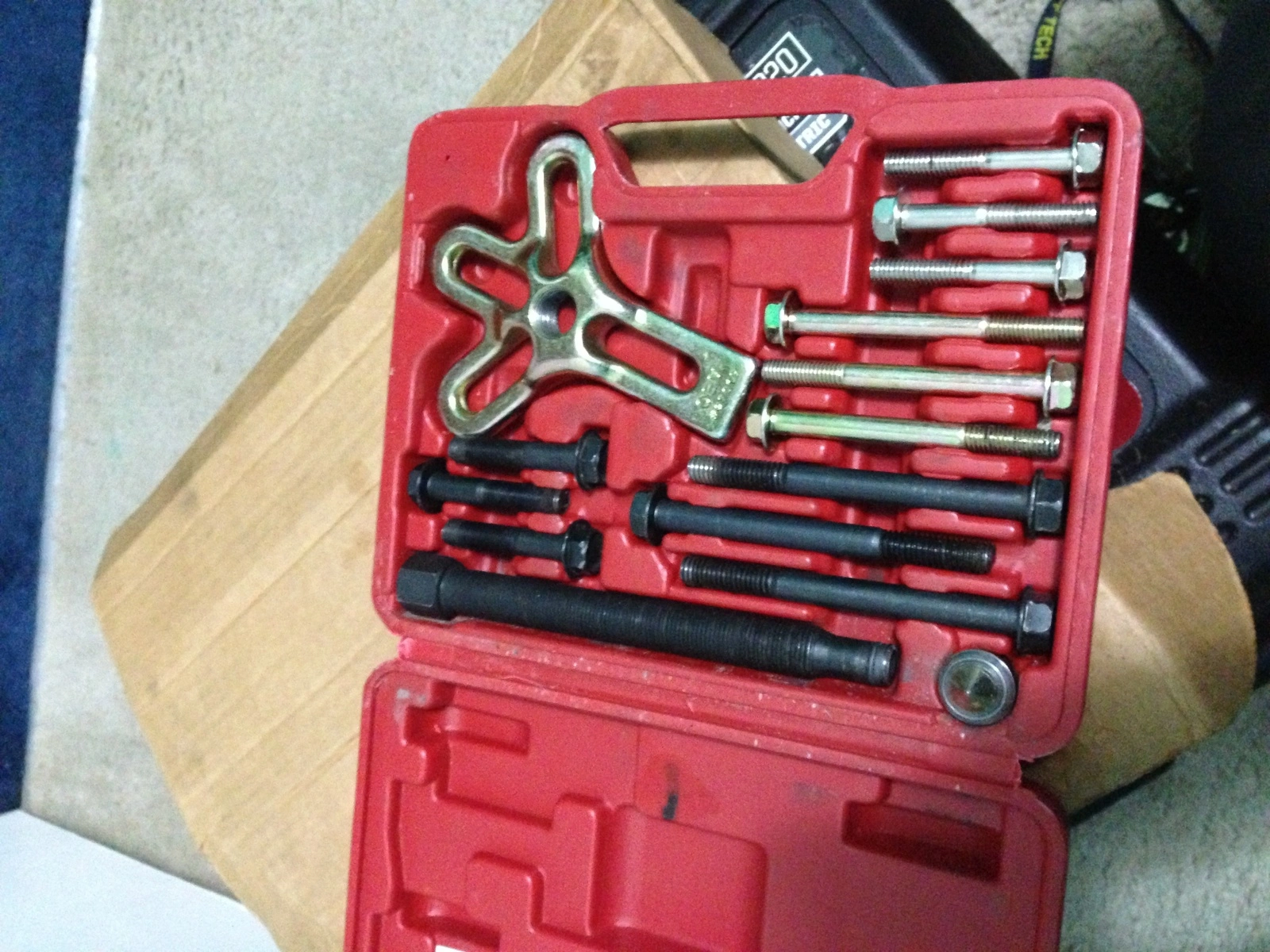

    i was able to rent this one before they closed, i just match up the rig
    #29
  10. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7
    i was able to rent this one before they closed, i just match up the right bolts to my piece right?
    #30
  11. Noobz347

    Noobz347 Stangnet Facilities Maint Tech... Er... Janitor Admin Dude

    Joined:
    Jan 5, 1985
    Messages:
    19,921
    Showcase:
    58
    Albums:
    5
    Likes Received:
    2,484
    Trophy Points:
    174
    Location:
    Box behind Walmart
    Yep
    #31
    j0rd4n likes this.
  12. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7
    ok thanks again, i should be able to finish tomorrow. its almost midnight here now hah
    #32
  13. Grabbin' Asphalt

    Grabbin' Asphalt Mustang Master

    Joined:
    Jun 11, 2013
    Messages:
    1,940
    Showcase:
    25
    Albums:
    1
    Likes Received:
    277
    Trophy Points:
    94
    Location:
    Atlanta, Ga
    Yup, know the feeling, had an untimely oil pump shaft break once at a friends house in the boonies, ....long story :rolleyes:
    #33
  14. mikestang63

    mikestang63 Mustang Master

    Joined:
    Aug 28, 2012
    Messages:
    3,822
    Showcase:
    20
    Albums:
    1
    Likes Received:
    1,057
    Trophy Points:
    144
    Measure the distance the balancer is from the timing cover, so you will know the approximate distance when you go to reinstall it. Spray some pb blaster on the balancer (sometimes you need to heat up the balancer around the crank) and REMOVE THE BALANCER WASHER when you removed the balancer bolt or you will snap off the removal tool bolt in the crank snout.

    When you take of the timing cover, make sure to get the two front oil pan bolts on the bottom, and be careful not to tear the pan gasket. I would inspect and replace the front seal on the cover as cheap insurance. Inspect the timing cover for warpage, rust, or pitting. They are aluminum and often leak. You will need to remove the old timing cover gasket and clean the mating surfaces- brake clean, some gasket scraper, or straight razors work. If the lower pan gasket it fairly new and is the rubber kind, you can get away with reusing it. Stuff a rag or cover the exposed pan opening to avoid getting any gasket of crap in the pan. If the pan gasket is old, ripped or cork. cut the front pieces off and buy new cork pieces. Make sure all of the gasket surfaces are squeaky clean,

    Might as well check the timing chain while you have the timing cover off for slop or broken teeth. Better to replace it now than doing this job twice. Test fit the timing cover and pan gaskets- you'll need to trim them. Set the new gaskets with Blue RTV on both sides of the gaskets and put a blob of RTV in the corners of the pan gasket. Let it set up. Reinstall the timing cover

    When you go to reinstall the balancer, check to see if the rubber inuslator is sticking out or if the outer ring has shifted. They are cheap and you should repalce it if damaged. If the crank snout is a little nicked up or has gunk on it, lightly take some emery and buff it out. Also, I would stick the balancer in an oven for a 1/2 hour or so at 300, and lightly oil the crank snout. Align the keyway and push it on with your hand as far as it will go, making sure it is straight. Use the installer bolt tool to reinstall the balancer, when the balance is fully installed, reinstall the original bolt and torque it to 90-100 ft lbs. Do not use a hammer or impact gun to install the balancer.
    #34
  15. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7

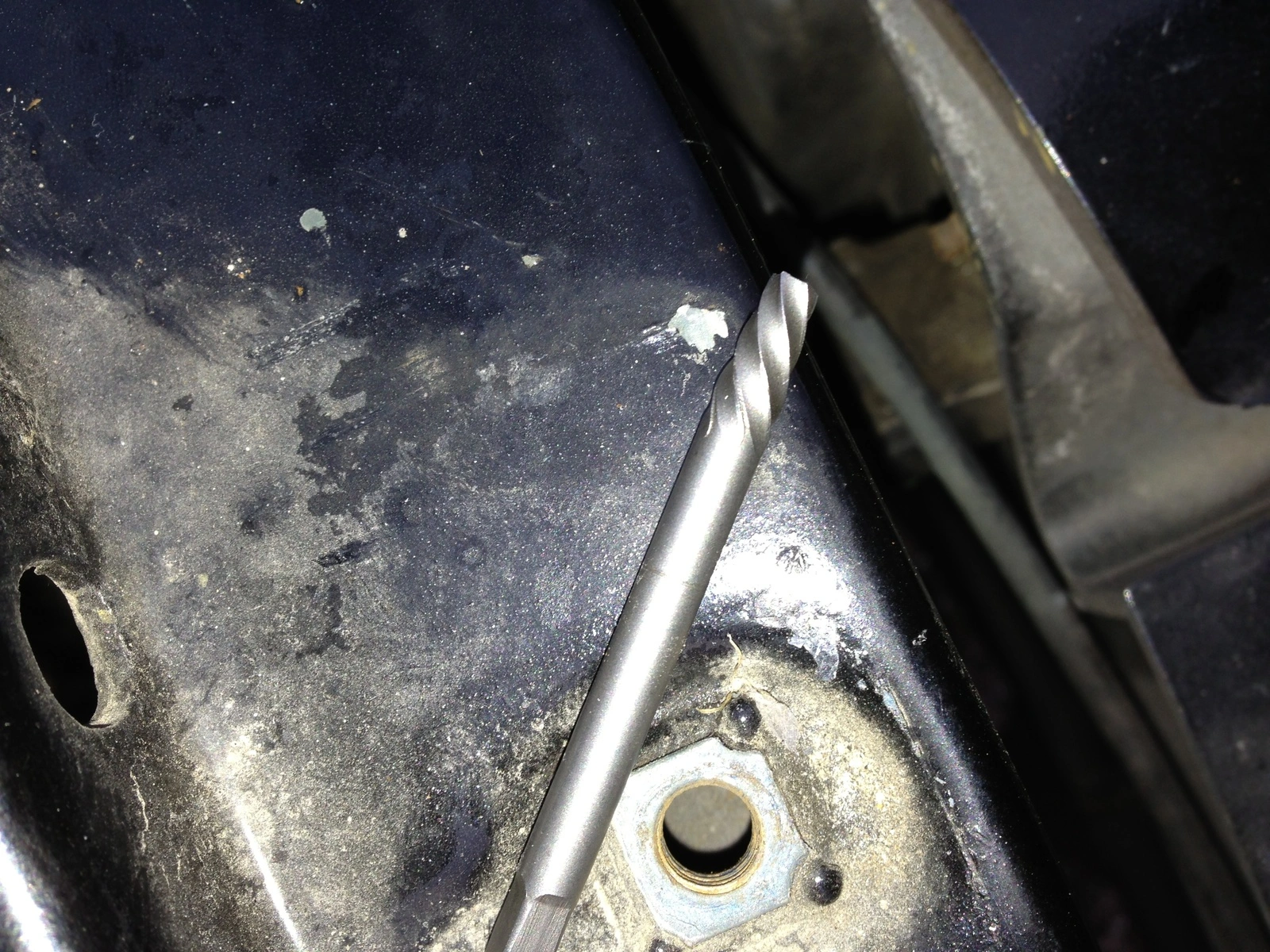

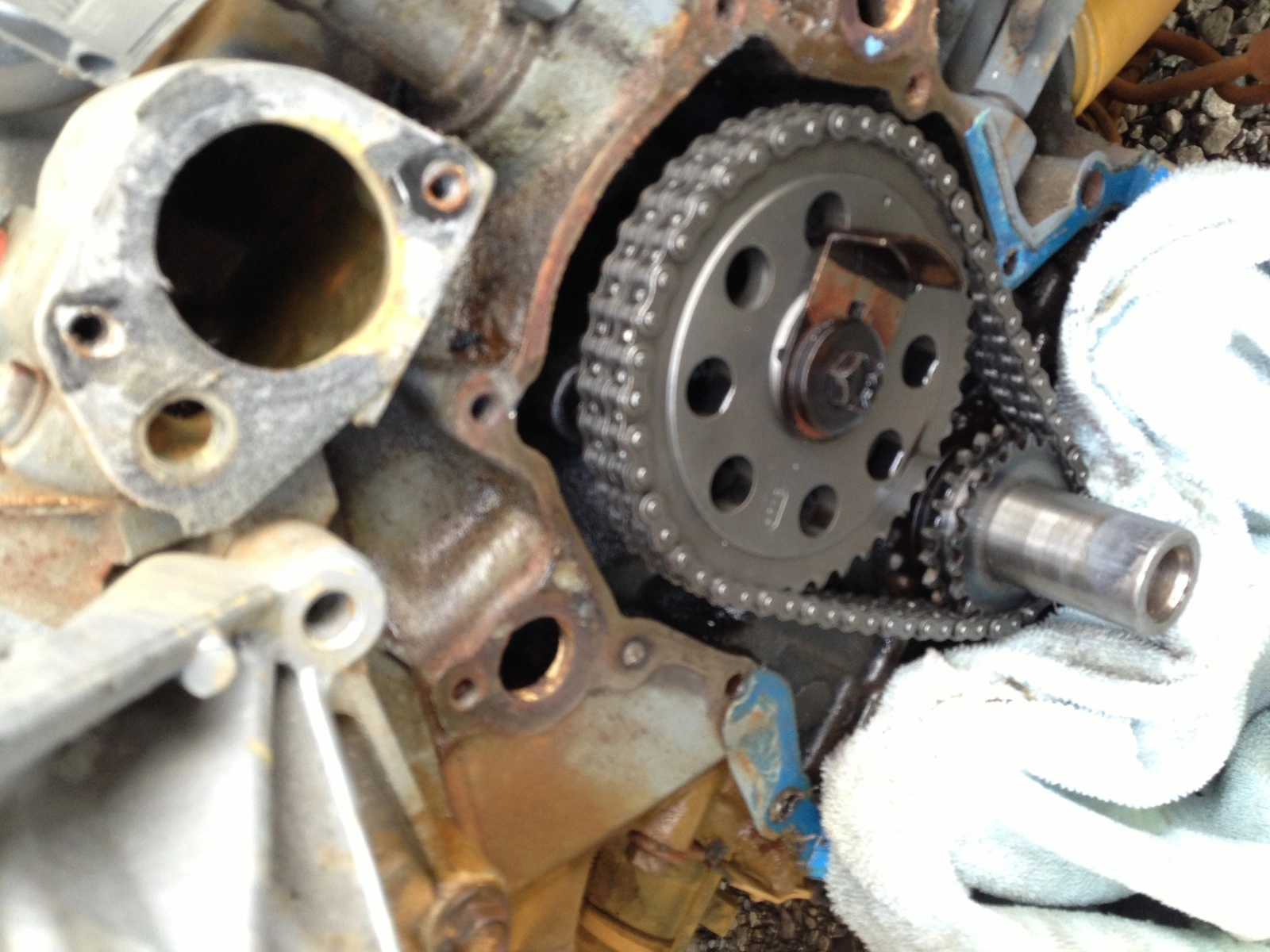

    image.jpg image.jpg
    #35
  16. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7

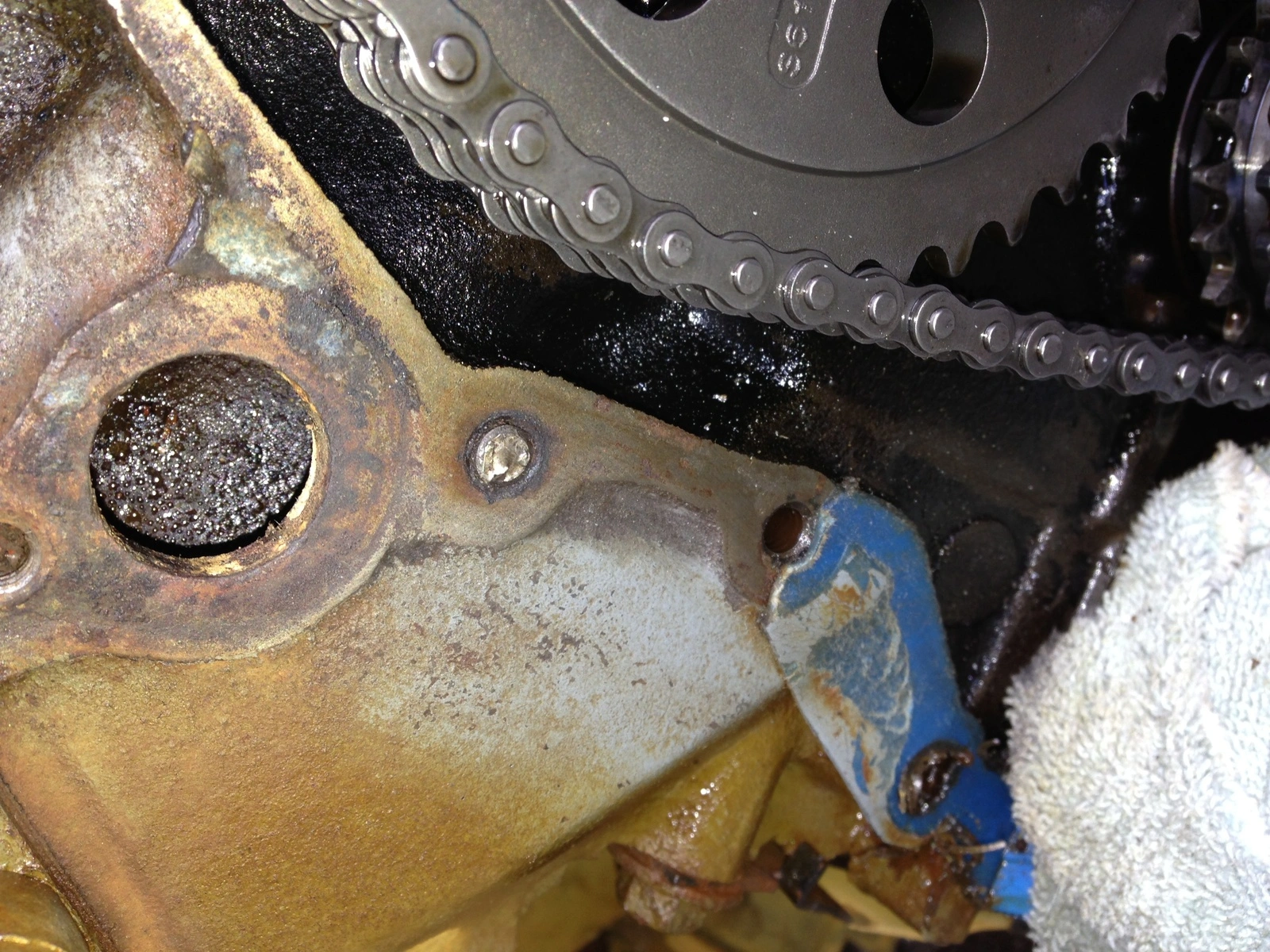

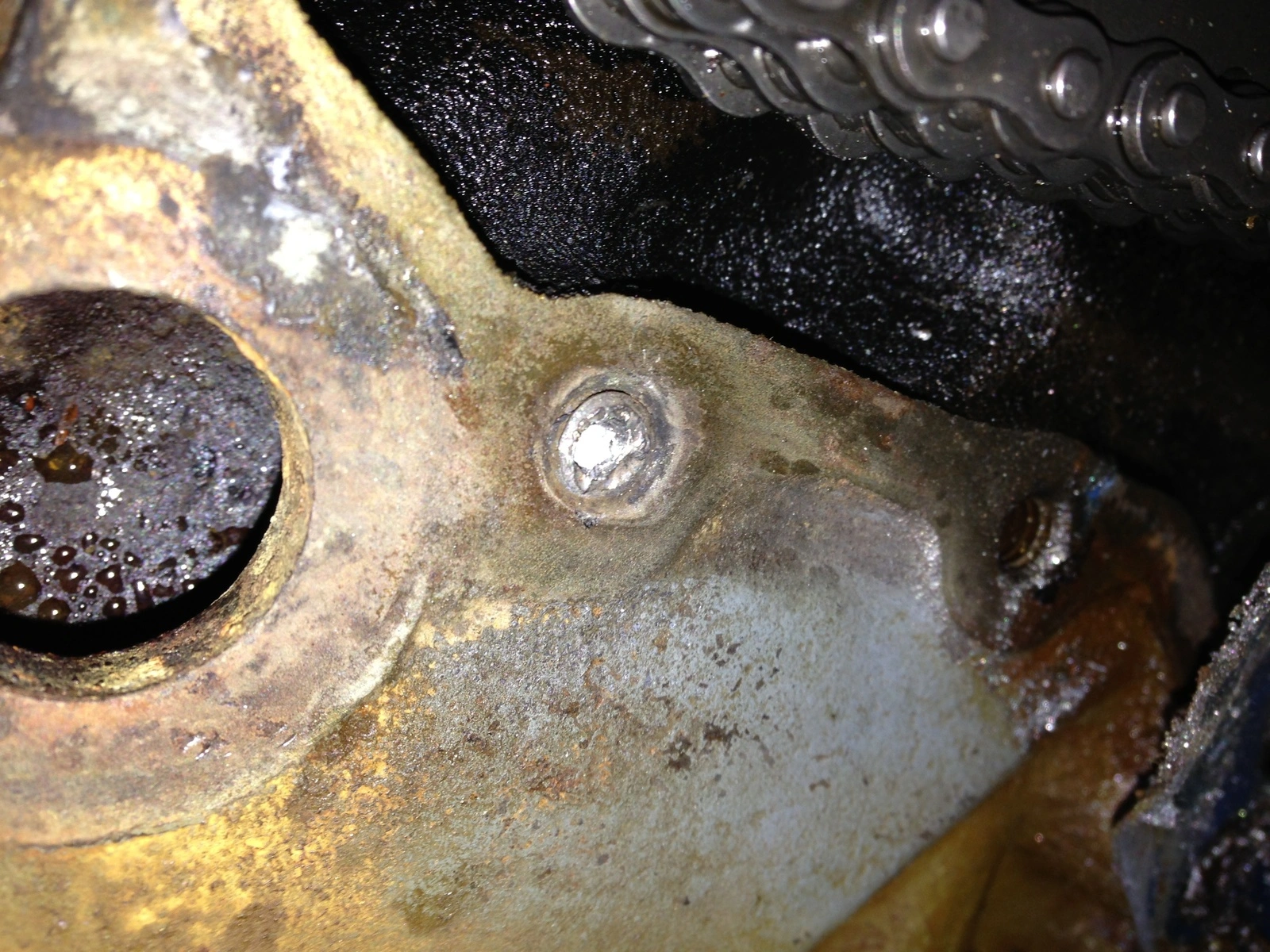

    image.jpg image.jpg

    The easy out broke right as I tried to hammer it in. I didn't even begin to twist it yet
    #36
  17. mikestang63

    mikestang63 Mustang Master

    Joined:
    Aug 28, 2012
    Messages:
    3,822
    Showcase:
    20
    Albums:
    1
    Likes Received:
    1,057
    Trophy Points:
    144
    Hammer? You don't hammer the easy out into the stripped bolt. You first use a center punch, then drill out the bolt to the size of the easy out. The easy it is a reverse thread to remove the bolt.
    Watch this video that shows the proper way to use the tool.

    #37
  18. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7
    I watched that exact video.
    You see the part where he taps it in with a hammer? I did that and it broke off the tip into the hole I pre drilled
    #38
  19. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7
    I definitely hit it harder than that tho because the first time when I started to spin it in came off so I thought I should hit it in the hole slightly harder
    #39
  20. jrichker

    jrichker StangNet's favorite TOOL SN Certified Technician Founding Member

    Joined:
    Mar 10, 2000
    Messages:
    21,599
    Likes Received:
    359
    Trophy Points:
    134
    Location:
    Dublin GA
    Drill bits and easy outs are extremely hard and cannot be removed by ordinary means. It takes a solid carbide bit and extreme care to remove a broken drill bit or broken easy out. Now it is tow time to the automotive machine shop and pain in the wallet..:(
    #40
