Water Pump Bolt Broke Off Inside (with Pictures)

Discussion in 'Fox 5.0 Mustang Tech' started by j0rd4n, Sep 14, 2013.


  1. jrichker

    jrichker StangNet's favorite TOOL SN Certified Technician Founding Member

    Joined:
    Mar 10, 2000
    Messages:
    21,822
    Likes Received:
    403
    Trophy Points:
    134
    Location:
    Dublin GA
    I hear sobbing and see tears coming from a 5.0 Mustang lover's wallet. :(

    #61
  2. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7

    ez out is out but i mulitated the hole. i was able to thread the next size into it nicely tho.

    #62
    Last edited: Sep 19, 2013
  3. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7
  4. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7

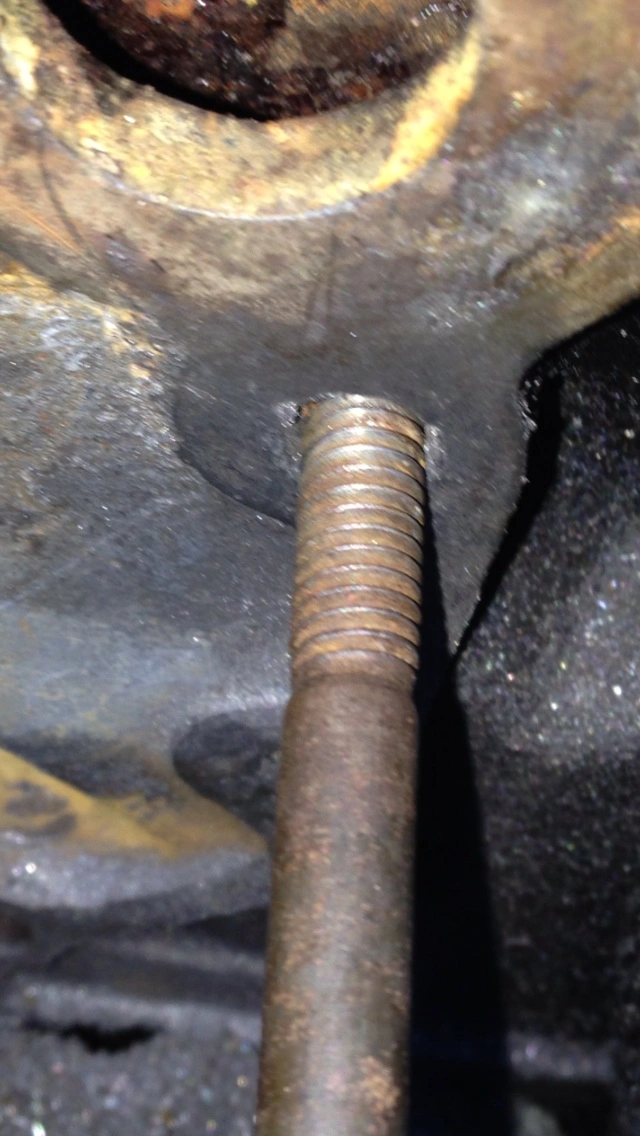

    no me and brother figured things outs. i mulitated the hole i know :shrug: i couldnt get the damn ez out but i did end up getting it out eventually. my brother and i ended up threading the hole nicely threw with the next size up bolt (3/8). luckily it fits through the timing cover, it doesnt fit through the water pump but it will take 2 seconds of drilling one of the holes of the pump. im learning as i go :loser:so this is the last time i use easy outs.

    the bolt was flush with the block what should i have done instead of "ez outing" it? because those things are crap. should i just drill it out with a center punch and rethread instead of getting hardened steel stuck in it.

    #64
  5. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7

    #65
  6. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7

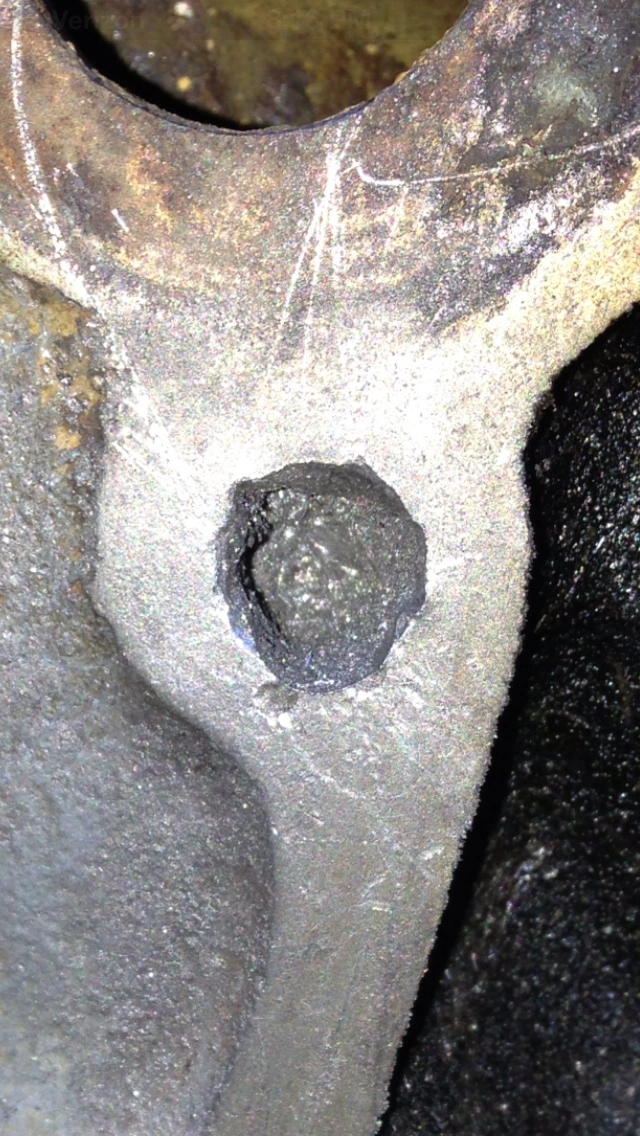

    I did all that drilling and ended up finally being able to punch it out

    #66
  7. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7
  8. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7
  9. Noobz347

    Noobz347 Stangnet Facilities Maint Tech... Er... Janitor Admin Dude

    Joined:
    Jan 5, 1985
    Messages:
    20,404
    Showcase:
    59
    Albums:
    8
    Likes Received:
    2,609
    Trophy Points:
    174
    Location:
    Box behind Walmart

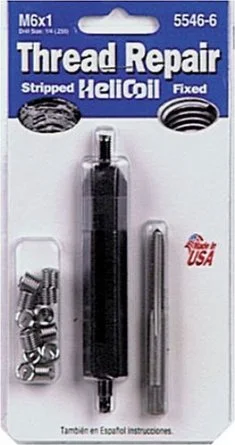

    Now (assuming you got the whole bolt out) would be a good time to pick up and install a helicoil.

    #69
  10. jrichker

    jrichker StangNet's favorite TOOL SN Certified Technician Founding Member

    Joined:
    Mar 10, 2000
    Messages:
    21,822
    Likes Received:
    403
    Trophy Points:
    134
    Location:
    Dublin GA
    #70
    Last edited: Sep 19, 2013
  11. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7


    so with the heliocoil it will allow me to take the 3/8 thread i was able to make in my mutilated hole, and then put in the helicoil insert to have the original 5/16 thread in my hole. then i would be able to able to use the original sized bolt?

    #71
  12. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7
    i watched the video and that seems like what he did im just trying to be sure. that would be a much better idea then having to drill one hole of my water pump and have to use one oversized bolt haha.

    #72
  13. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7
    :doh:

    unfortunately i tapped the hole with a regular 3/8 tap because i didnt know at the time how helicoil inserts work. i wont be able to do that now because i didnt tap the hole with the special helicoil tap which allows to me to put in the insert. i assume this wont work is because the thread pattern is different on both sides of the insert? i believe the only route i can go now is to put my one oversized bolt in and make the water pump hole a tad bigger.

    please just correct me if im wrong :doh:

    #73
    Last edited: Sep 19, 2013
  14. jrichker

    jrichker StangNet's favorite TOOL SN Certified Technician Founding Member

    Joined:
    Mar 10, 2000
    Messages:
    21,822
    Likes Received:
    403
    Trophy Points:
    134
    Location:
    Dublin GA
    It seem that you have shot yourself in the foot, because now a HeliCoil won't work - the thread sizes are wrong for a HeliCoil.

    You will need to proceed with the larger bolt and hope that it isn't too big for the water pump...

    #74
  15. 1200gt

    1200gt Member

    Joined:
    Nov 30, 1999
    Messages:
    305
    Likes Received:
    21
    Trophy Points:
    19
    This is amazing!!!!:pop: The Pro's 2 -vs- The Grimlins 10!

    This is like watching those guys ski off a mountain while behind them there is a huge avalanche barreling down on them... yet, they seem to be having fun!


    This predicament would be like Horror Movie on Steroids for me!

    #75
  16. mikestang63

    mikestang63 Mustang Master

    Joined:
    Aug 28, 2012
    Messages:
    4,054
    Showcase:
    20
    Albums:
    1
    Likes Received:
    1,148
    Trophy Points:
    154
    Location:
    In the garage
    Hopefully this does not turn into a costly education. Let me offer one last suggestion as it seems my prior posts fell on dead ears. Loctite makes a chemical type of thread former. You put it on the bolt and in the bolt hole, let it set up and it forms a useable thread. Hopefully you didn't hog out the hole so large that the loctite won't work.

    http://www.amazon.com/Loctite-Form-A-Thread-repair-kit-grey/dp/B000WSEUII

    I would try that over jamming an oversized bolt in.

    #76
    Last edited: Sep 20, 2013
    j0rd4n likes this.
  17. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7
    well apparently the regular tap for a 3/8 bolt and the tap for the 3/8 helicoil must not be far off because somehow i threaded in the insert perfectly then the oiriginal 5/16 bolt torqued down just fine. me and my brother did one last "Hoo-rah" today and now the car is back together running perfectly with no water leak.

    i dont see the big deal? worst case scenario the block is made of cast-iron i could of completely welded up the hole and started a fresh hole.

    i know i mutilated the hole, im not afraid to say im the definition of a novice mechanic. this is literally my first bolt extraction LOL

    im 21 yrs old and just got interested in mechanics like a year ago. this is my second car

    im pleased to let you know that my car is now completely back together and there is zero water leak.

    #77
  18. Noobz347

    Noobz347 Stangnet Facilities Maint Tech... Er... Janitor Admin Dude

    Joined:
    Jan 5, 1985
    Messages:
    20,404
    Showcase:
    59
    Albums:
    8
    Likes Received:
    2,609
    Trophy Points:
    174
    Location:
    Box behind Walmart
    There's a couple of things you can do here. One is find a stepped stud in SAE size and thread. Good luck with that one because they seem to be getting harder and harder to find.

    The other thing you can do is buy a short length of STAINLESS all-thread and cut the smaller end yourself.

    Thread-lok Blue, would a good addition to the threads going into the block with either of these options.

    #78
    j0rd4n likes this.
  19. jrichker

    jrichker StangNet's favorite TOOL SN Certified Technician Founding Member

    Joined:
    Mar 10, 2000
    Messages:
    21,822
    Likes Received:
    403
    Trophy Points:
    134
    Location:
    Dublin GA
    Neat idea! That's what I like about Stangnet: I can learn new techniques from other people's experience and background. :D

    #79
    j0rd4n likes this.
  20. j0rd4n

    j0rd4n Member

    Joined:
    Jul 30, 2013
    Messages:
    80
    Likes Received:
    0
    Trophy Points:
    7
    well apparently the regular tap for a 3/8 bolt and the tap for the 3/8 helicoil must not be far off because somehow i threaded in the insert perfectly then the oiriginal 5/16 bolt torqued down just fine. me and my brother did one last "Hoo-rah" today and now the car is back together running perfectly with no water leak.

    #80
