What Are The Single Wire Connectors On Front Of Each Head?

Discussion in '2005 - 2009 Specific Tech' started by 805mustang, Jul 5, 2013.

  1. 805mustang

    805mustang Member

    Joined:
    Jun 6, 2013
    Messages:
    76
    Likes Received:
    1
    Trophy Points:
    9
    What are the single wire connectors on the front of each cylinder head? They are about a square inch in size and are related to the cam sensors? Diodes?

    #1
  2. Scott2

    Scott2 New Member

    Joined:
    Sep 16, 2009
    Messages:
    26
    Showcase:
    24
    Albums:
    1
    Likes Received:
    0
    Trophy Points:
    2
    Location:
    King City, Ontario, Canada
    If you mean these, they are the Camshaft Position Sensors.

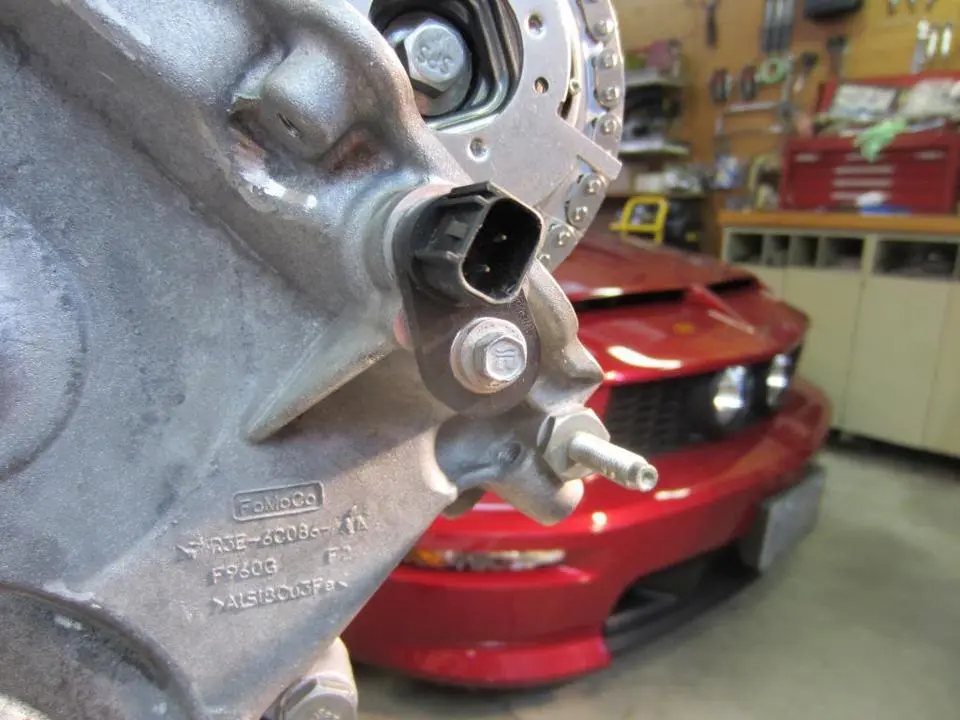

    Right hand:

    [​IMG]

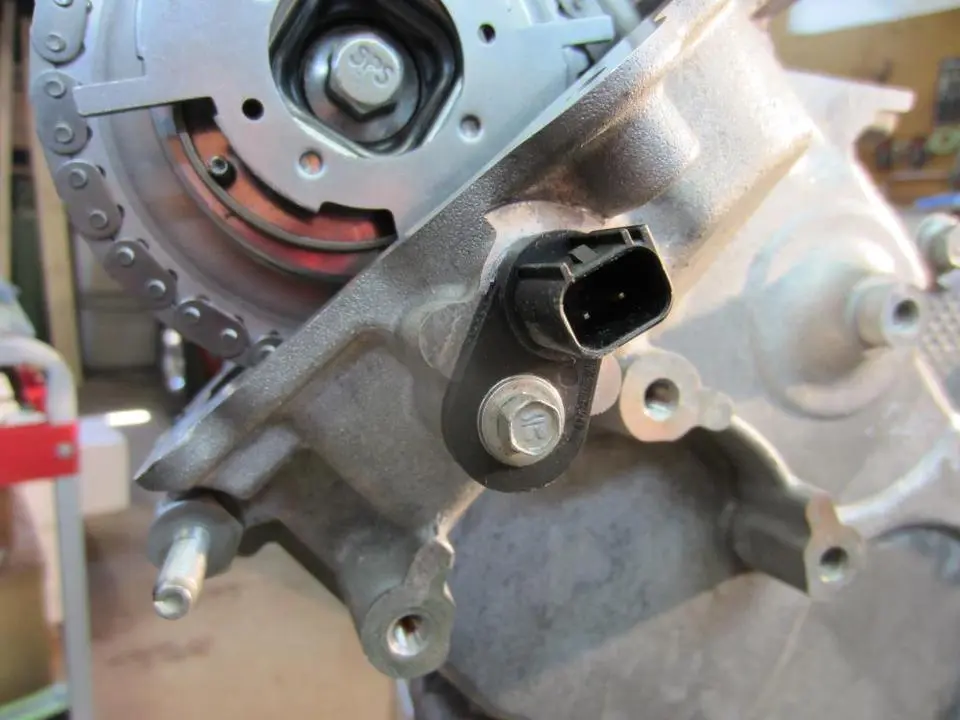

    Left hand:

    [​IMG]

    #2
  3. 805mustang

    805mustang Member

    Joined:
    Jun 6, 2013
    Messages:
    76
    Likes Received:
    1
    Trophy Points:
    9
    No..... not those ones, they are 1 wire (black) and they come from a what looks like a square peice of plastic that is attached to a bracket. Does not go into the cylinder head but they are fastened to it! Only 1 wire. Thanks though. I can't think of what they would be used for but if you unplug one or the other cam sensor and var cam servo change values so it must have to do with them. I have seen them befor but never questioned what they are for!

    #3
  4. SpartaPerformance

    Site Sponsor

    Joined:
    Nov 5, 2006
    Messages:
    2,175
    Likes Received:
    25
    Trophy Points:
    59
    Location:
    Long Island NY
    How about a pic?

    #4
  5. Scott2

    Scott2 New Member

    Joined:
    Sep 16, 2009
    Messages:
    26
    Showcase:
    24
    Albums:
    1
    Likes Received:
    0
    Trophy Points:
    2
    Location:
    King City, Ontario, Canada
    A pic would certainly help!

    #5
  6. Scott2

    Scott2 New Member

    Joined:
    Sep 16, 2009
    Messages:
    26
    Showcase:
    24
    Albums:
    1
    Likes Received:
    0
    Trophy Points:
    2
    Location:
    King City, Ontario, Canada
    OK, if only one wire to it and it is about an inch square and about 1/4" to 3/8" thick I am guessing you are talking about a Radio Ignition Interference Capacitor.
