What T5 do I have...4cyl or V8?

[mattkimsey]

Ok - I'm doing a rebuild on the trans and the little metal ID tag says "13-52-199"

Also, on the tailhousing it has "13-52-066-919" and the maincase has 13-52-065-908"

The 2nd gear has 31 teeth.

Is this a v8 trans or 4 banger?



[jrichker]

The tag shows it to be a 90-91, V8 model T5 rated at 300ft/lbs of torque.
First gear = 3.35:1
Second gear 1.99:1
Thrid gear 1.33:1
Fourth gear 1:1
Fifth gear .68:1



[mattkimsey]

My neighbor seems to believe 31 teeth on 2nd gear means it's a 4cyl (and someone put the original tag back on).....his wife's has 30 teeth on 2nd.

Can you comment on the teeth count?



[mattkimsey]

edit double post



[Mustang78]

jrichter-is there somewhere i can print out the decoding information? Thanks

~Mark~



[jrichker]

Diagram courtesy of Tmoss & Stang&2birds

See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring http://www.veryuseful.com/mustang/tech/engine/ Everyone should bookmark this site.

Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

Fuel, alternator, A/C and ignition wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

Complete computer, actuator & sensor wiring diagram for 88-91 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

Vacuum diagram 89-93 Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg

HVAC vacuum diagram
http://www.veryuseful.com/mustang/tech/engine/images/Mustang_AC_heat_vacuum_controls.gif

TFI module differences & pinout
http://www.veryuseful.com/mustang/tech/engine/images/TFI_5.0_comparison.gif

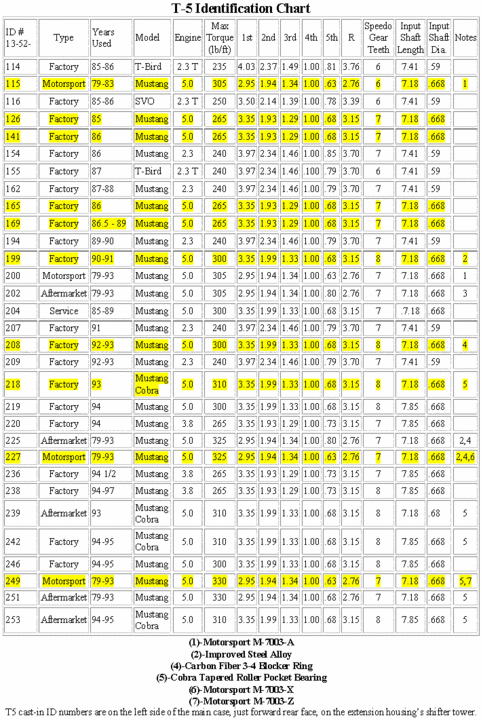

T5 identifer tag information
http://www.veryuseful.com/mustang/tech/engine/images/T5Identifier.gif



[Mustang5L5]

My neighbor seems to believe 31 teeth on 2nd gear means it's a 4cyl (and someone put the original tag back on).....his wife's has 30 teeth on 2nd.

Can you comment on the teeth count?

31 teeth on 2nd gear IS a 90-93 v8 rated at 300 ft-lbs.


30 tooth 2nd gear is the 85-89 265 ft-lb version



[mattkimsey]

31 teeth on 2nd gear IS a 90-93 v8 rated at 300 ft-lbs.


30 tooth 2nd gear is the 85-89 265 ft-lb version

Thanks His wife has '91 model so apparently someone swaped a non world class trans in her car before she bought it.



[Mustang5L5]

Thanks His wife has '91 model so apparently someone swaped a non world class trans in her car before she bought it.

Both versions are world class. The only Mustangs not to have a WC t-5 were the 1984 and early 1985 Mustangs. Ever since they've all been WC. It only refers to the use of 3-peice synchros and different bearings. That's all.
