Whats this called????

Discussion in '1994 - 1995 Specific Tech' started by stangin it, Dec 18, 2003.


  1. stangin it

    stangin it Founding Member

    Joined:
    Sep 26, 2002
    Messages:
    554
    Likes Received:
    0
    Trophy Points:
    0
    Its hard to explain and i cant take a pic now because the car is at the mechanic. There are 4 lines in a bundle that come from inside the fenderwell, they are four different colors: red, green, white, and pinkish. The green white and red one come out of a harness looking thing its got 3 holes in it in a triangular shape. Well when i did my headswap i decided to burn these 3 holes shut with a lighter because i figured im geting rid of my smog anyway i wont need this. Wrong i need one of them for my EGR. Someone told me that harness works as a soleniod and that i cant just pull vaccum from anywhere for the EGR. Does anyone know the name of this harness looking thing so i can get a new one or of a way to fix my EGR problem??? I know its hard to understand i have a hard time typing things i dont fully understand. Thanx... Mike
    #1
  2. Stanggrl95

    Stanggrl95 New Member

    Joined:
    Aug 17, 2003
    Messages:
    68
    Likes Received:
    0
    Trophy Points:
    0
    You can trace out and run a vacume hose to the output of the vacume solinoid for the egr to the egr,or the part I think would be called a vacume engine harness, FORD will know.
    #2
  3. rockin_rick

    rockin_rick Member

    Joined:
    Oct 10, 2003
    Messages:
    970
    Likes Received:
    0
    Trophy Points:
    17

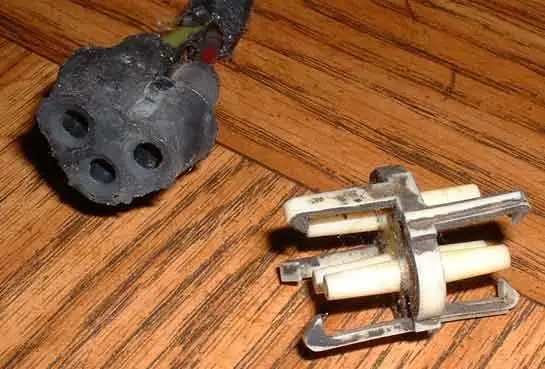

    Here's a pic of what you are talking about. My white line is broken off. The red connects to the intake vac. The green goes to the EGR. The white is to the AIRB. The pinkish from the fender goes to the AIRD. I might have the AIRD and AIRB backwards.

    Inside the fender, the red feeds the 3 solenoids. One each for the EGR, AIRB, and AIRD. The outputs of the 3 solenoids go to the 3 valves through the green, white, and pinkish lines.

    If you go to ford and get a new one, please post back here and let me(us) know how much it cost for what pieces.

    Rick

    Attached Files:

    #3
  4. RIO5.0

    RIO5.0 Mustang Master

    Joined:
    Feb 17, 2001
    Messages:
    6,873
    Likes Received:
    3
    Trophy Points:
    88
    O.T......Rick...when'd you do the gold member thing??? Just noticed that...
    #4
  5. rockin_rick

    rockin_rick Member

    Joined:
    Oct 10, 2003
    Messages:
    970
    Likes Received:
    0
    Trophy Points:
    17
    A few days ago. I got tired of the slow server. As you know, this server is so much faster. I wonder if they purposely slow down the other one to entice you into getting the goldmember subscription... I also like the fact that the pics automatically display. Do pics that I post (as a goldmember) automatically display for everyone else? I doubt it, but am unsure. That would be a nice feature, so that when I post a pic, more people will see it.

    I'm surprised that they don't advertise the goldmember thing more. I never seen or heard anything about it, until someone posted a link that was on the goldmember server, and then I couldn't see it. When I went to sign up, I had a hard time just finding out how to do it. I ended up having to find a post that referenced a thread on the goldmember server, and then go from there.

    Rio, how long have you had it? Have you found that it was worth it in the long run?

    Later,
    Rick
    #5
  6. BLACKKNIGHT94

    BLACKKNIGHT94 New Member

    Joined:
    May 16, 2003
    Messages:
    19
    Likes Received:
    0
    Trophy Points:
    0
    By the looks of it, that line might go to the back of your intake. Green is always EGR vacum. They should connect to an good vacum source and green to EGR. Get a vacum and electrical book from your local dealership.
    #6
  7. stangin it

    stangin it Founding Member

    Joined:
    Sep 26, 2002
    Messages:
    554
    Likes Received:
    0
    Trophy Points:
    0
    Thanx for the pic is there something else that plugs into the white part with the prong on it???
    #7
  8. DaveB

    DaveB Founding Member

    Joined:
    Jul 13, 2002
    Messages:
    637
    Likes Received:
    0
    Trophy Points:
    0
    How hard is it to get that thing out? I accidentally melted them to my headers when I first put them on :bang: . Right now they're togther with tape :rlaugh: .
    #8
  9. rockin_rick

    rockin_rick Member

    Joined:
    Oct 10, 2003
    Messages:
    970
    Likes Received:
    0
    Trophy Points:
    17

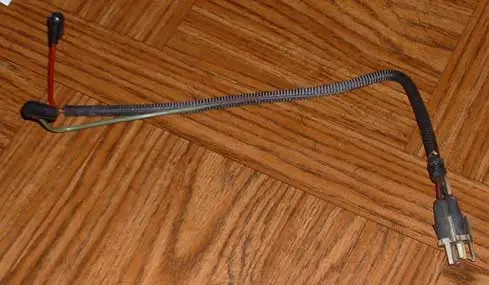

    The white prongged thing is a vac coupler for the 3 lines. The other thing that plugs into it is the fender vac harness. It should look like the end of the harness shown in the pic.

    I assume that your coupler is missing or still atached to the fender harness. But if you are not using the smog and just EGR, you could just run a normal vac line from the intake to the EGR solenoid, and from the solenoid to the EGR valve. You may also have to cap off a 'passthrough' vac port on the EGR solenoid, if there is one (I've never seen that solenoid or know how the vac is shared between the 3 solenoids.) More than likely the main vac feed to the solenoids (red line) is just tee-ed off into each solenoid.

    Getting the new harness would be easier to install, though. It would also look more stock.


    It goes to the hex shaped vac fitting on the intake near the throttle body. The fuel pressure regulator and the line to the vac manifold by the brake booster also gets it's vac there.

    Rick

    Attached Files:

    #9
  10. FordStang

    FordStang Founding Member

    Joined:
    Sep 20, 2002
    Messages:
    862
    Likes Received:
    0
    Trophy Points:
    0
    Can i Remove those Wires above, if i remove my EGR and emission equipment??
    #10
  11. rio95

    rio95 Member

    Joined:
    Nov 18, 2003
    Messages:
    835
    Likes Received:
    0
    Trophy Points:
    17
    i plugged all four of those wires coming out of the fender and i believe two spots near the intake manifold and then took my pump out and the hose going to the back of the heads (also plugged that). my car runs fine still except for the check engine light. i don't know too much about all of this, but it worked for me. what exactly is the EGR?
    #11
  12. RIO5.0

    RIO5.0 Mustang Master

    Joined:
    Feb 17, 2001
    Messages:
    6,873
    Likes Received:
    3
    Trophy Points:
    88
    roi95....Did you "set" the plunger on the EGR when you removed it??? With that plunger all the way out...The CE light is gonna stay on....Set the plunger 1/2 closed and secure it...Your CE will go out...Just went thru that last month.

    I removed all the smog tubing, airpump, EGR,. I made block-off plates for the tubes behind the motor...A recent code checking revealed nada... :nice:
    #12
  13. Matts89LX5.0

    Matts89LX5.0 Founding Member

    Joined:
    Nov 1, 2002
    Messages:
    1,317
    Likes Received:
    0
    Trophy Points:
    36
    good luck mike, heres a bump for ya
    #13
  14. Slow5.0

    Slow5.0 New Member

    Joined:
    Feb 13, 2003
    Messages:
    2,561
    Likes Received:
    0
    Trophy Points:
    0
    What if I have a few lines disconected like from smog pump valves
    #14
  15. Slow5.0

    Slow5.0 New Member

    Joined:
    Feb 13, 2003
    Messages:
    2,561
    Likes Received:
    0
    Trophy Points:
    0

    How I can get that Gold Member thing
    #15
  16. rockin_rick

    rockin_rick Member

    Joined:
    Oct 10, 2003
    Messages:
    970
    Likes Received:
    0
    Trophy Points:
    17
    go here - http://members.pro3i.com

    So far I think it's worth it. Pages load sooooooo much faster.


    Are you still running the EGR? If you don't run the EGR, AIRB, or AIRD valves, you can disconnect the red 'feed' from the intake, and cap it off. If you use any of these valves, you need the red 'feed' connected.


    Rick
