WTF EGR valve plugged in, but no vacuum hose to it.

Discussion in 'Fox 5.0 Mustang Tech' started by Rerun, Jun 29, 2004.


  1. Rerun

    Rerun Founding Member

    Joined:
    Mar 31, 2002
    Messages:
    314
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    South Bay, California
    So persuant to another thread, I was gonna go clean out my EGR valve today. I look at it, it's plugged into the sensor, but the vacuum hose is capped off. Should I just unplug the EGR sensor too? I'm currently getting an insufficient EGR flow code when I run my codes.
    #1
  2. FLA5.0

    FLA5.0 New Member

    Joined:
    Jun 25, 2004
    Messages:
    45
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Saint Cloud, Fl
    If the vacuum line is disconnected, you're not getting any flow through the EGR valve. If not working properly, you get higher combustion chamber temps leading to a leaner fuel mix, and higher octane requirements. Quote from 'The Official 5.0 Technical Reference and Performance Handbook': " Disconnecting the vacuum line to the EGR valve will not improve performance"
    #2
  3. Rerun

    Rerun Founding Member

    Joined:
    Mar 31, 2002
    Messages:
    314
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    South Bay, California
    I wonder why the previous owner disconnected it in the first place? :shrug:

    Maybe it went bad or something, I guess I should pull it off and test it. Although, the vacuum hose that's capped off looks way too big to sit on that little pin ontop of the EGR valve.
    #3
  4. FLA5.0

    FLA5.0 New Member

    Joined:
    Jun 25, 2004
    Messages:
    45
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Saint Cloud, Fl
    He was probably like I used to be 'if I didn't know what it was...I probably didn't need it'. I've since gotten a lot smarter! :D
    #4
  5. Michael Yount

    Michael Yount Advanced Member

    Joined:
    Apr 10, 2002
    Messages:
    9,047
    Likes Received:
    0
    Trophy Points:
    77
    Location:
    Charlotte, NC
    Manifold vacuum doesn't get connected to the egr valve. Manifold vacuum goes to the egr switch on the firewall; there's another outlet on the egr switch -- that gets connected to the egr valve. The switch also connects to the wiring harness. The computer tells the switch when/how much vacuum to put to the egr valve. At idle, it blocks the vacuum so the valve stays closed. At w.o.t. it's also blocked - valve stays closed. The computer tells the switch to send vacuum to the egr under part throttle conditions. That exhaust gas in the chamber displaces a little air/oxygen resulting a cooler combustion chamber. That cooler chamber allows more timing and a leaner mixture to be run. That results in lower emissions and better gas mileage. Other than the clutter, there's really no downside to having the egr system properly functioning. It doesn't hurt w.o.t. performance, and it helps part throttle performance and mileage.
    #5
  6. Cobra351

    Cobra351 New Member

    Joined:
    Mar 11, 2004
    Messages:
    132
    Likes Received:
    0
    Trophy Points:
    0
    Little piggybacking here. :D Should there be vacuum to the egr valve when the car is at idle? The vacuum line running to my egr has no vacuum at least not when idling.
    #6
  7. Cobra351

    Cobra351 New Member

    Joined:
    Mar 11, 2004
    Messages:
    132
    Likes Received:
    0
    Trophy Points:
    0
    WOW you must have been reading my mind Michael Yount! Your post was not there when I started mine. I am a slow typer. Thank You you answered my question.
    #7
  8. Michael Yount

    Michael Yount Advanced Member

    Joined:
    Apr 10, 2002
    Messages:
    9,047
    Likes Received:
    0
    Trophy Points:
    77
    Location:
    Charlotte, NC
    At idle you should be able to remove the hose from the egr valve and nothing will happen. That's because at idle the ecu should be telling the egr switch on the firewall to block the vacuum signal to the valve. If you pull the hose off the egr at idle, and it changes the way the engine runs (or if you put your finger over that hose and it sucks) then the egr system is malfunctioning in some way - probably a bad egr switch.
    #8
  9. Benboi92GT

    Benboi92GT Member

    Joined:
    Dec 29, 2011
    Messages:
    79
    Likes Received:
    0
    Trophy Points:
    7
    Going to revive a stupidly old thread here.

    I just recently got done building the top end of a 95 F150 with a 5.0. Ed Curtis cam, tfs 170 heads (non-egr), Moss ported lower manifold, etc.. I capped off the egr hose that went to the T that bolted t the back of the old heads, so there should't be any vacuum going to the valve. Valve is still there and plugged in, and no CEL or codes for it.

    The truck will SCREAM from a dig and blow the tires off, but at cruising speeds if I go to accelerate it will sort of bog down unless I punch it to the floor and really force the tranny to downshift. The truck is shifting at like 1500 rpm, and with 3:73 gears it spins a whopping 2000 rpm at 70 miles per hour. It has NOT been dynoed yet, and at first I thought oh its just a tuning thing, tranny functions and shift points need to be adjusted, etc.. Now I'm curious if it's the computer seeing that the egr isnt opening and pulling timing (hence killing partial throttle performance).

    No codes except 311 - Thermactor air system something or another.

    Any ideas?
    #9
  10. jrichker

    jrichker StangNet's favorite TOOL SN Certified Technician Founding Member

    Joined:
    Mar 10, 2000
    Messages:
    21,600
    Likes Received:
    359
    Trophy Points:
    134
    Location:
    Dublin GA
    The EGR and Thermactor Air System are two different animals.
    Some basic theory to clarify how things work is in order…

    Code 311-Thermactor air system inoperative
    Thermactor Air System

    Revised 17-Sept-2011 to add testing procedure.

    The Thermactor air pump (smog pump) supplies air to the heads or catalytic converters. This air helps break down the excess HC (hydrocarbons) and CO (carbon monoxide). The air supplied to the catalytic converters helps create the catalytic reaction that changes the HC & CO into CO2 and water vapor. Catalytic converters on 5.0 Mustangs are designed to use the extra air provided by the smog pump. Without the extra air, the catalytic converters will clog and fail.

    The Thermactor air pump draws air from an inlet filter in the front of the pump. The smog pump puts air into the heads when the engine is cold and then into the catalytic converters when it is warm. The Thermactor control valves serve to direct the flow. The first valve, TAB (Thermactor Air Bypass) or AM1 valve) either dumps air to the atmosphere or passes it on to the second valve. The second valve, TAD (Thermactor Air Diverter valve or AM2 valve) directs it to the heads or the catalytic converters. Check valves located after the TAB & TAD solenoids prevent hot exhaust gases from damaging the control valves or pump in case of a backfire. The air serves to help consume any unburned hydrocarbons by supplying extra oxygen to the catalytic process. The computer tells the Thermactor Air System to open the Bypass valve at WOT (wide open throttle) minimizing engine drag. This dumps the pump's output to the atmosphere, and reduces the parasitic drag caused by the smog pump to about 2-4 HP at WOT. The Bypass valve also opens during deceleration to reduce or prevent backfires.

    Code 44 RH side air not functioning.
    Code 94 LH side air not functioning.

    The computer uses the change in the O2 sensor readings to detect operation of the Thermactor control valves. When the dump valve opens, it reduces the O2 readings in the exhaust system. Then it closes the dump valve and the O2 readings increase. By toggling the dump valve (TAB), the computer tests for the 44/94 codes.

    Failure mode is usually due to a clogged air crossover tube, where one or both sides of the tube clog with carbon. The air crossover tube mounts on the back of the cylinder heads and supplies air to each of the Thermactor air passages cast into the cylinder heads. When the heads do not get the proper air delivery, they set codes 44 & 94, depending on which passage is clogged. It is possible to get both 44 & 94, which would suggest that the air pump or control valves are not working correctly, or the crossover tube is full of carbon or missing.


    [​IMG]


    Computer operation & control for the Thermactor Air System
    Automobile computers use current sink technology. They do not source power to any relay, solenoid or actuator like the IAC, fuel pump relay, or fuel injectors. Instead the computer provides a ground path for the positive battery voltage to get back to the battery negative terminal. That flow of power from positive to negative is what provides the energy to make the IAC, fuel pump relay, or fuel injectors work. No ground provided by the computer, then the actuators and relays don't operate.

    One side of the any relay/actuator/solenoid in the engine compartment will be connected to a red wire that has 12-14 volts anytime the ignition switch is in the run position. The other side will have 12-14 volts when the relay/actuator/solenoid isn't turned on. Once the computer turns on the clamp side, the voltage on the computer side of the wire will drop down to 1 volt or less.

    In order to test the TAD/TAB solenoids, you need to ground the white/red wire on the TAB solenoid or the light green/black wire on the TAD solenoid.

    For 94-95 cars: the colors are different. The White/Red wire (TAB control) is White/Orange (Pin 31 on the PCM). The Green/Black wire (TAD control) should be Brown (pin 34 at the PCM). Thanks to HISSIN50 for this tip.

    Testing the system:

    To test the computer, you can use a test light across the TAB or TAD wiring connectors and dump the codes. When you dump the codes, the computer does a self test that toggles every relay/actuator/solenoid on and off. When this happens, the test light will flicker.

    Disconnect the big hose from smog pump: with the engine running you should feel air output. Reconnect the smog pump hose & apply vacuum to the first vacuum controlled valve: Its purpose is to either dump the pump's output to the atmosphere or pass it to the next valve.

    The next vacuum controlled valve directs the air to either the cylinder heads when the engine is cold or to the catalytic converter when the engine is warm. Disconnect the big hoses from the back side of the vacuum controlled valve and start the engine. Apply vacuum to the valve and see if the airflow changes from one hose to the next.

    The two electrical controlled vacuum valves mounted on the rear of the passenger side wheel well turn the vacuum on & off under computer control. Check to see that both valves have +12 volts on the red wire. Then ground the white/red wire and the first solenoid should open and pass vacuum. Do the same thing to the light green/black wire on the second solenoid and it should open and pass vacuum.

    Remember that the computer does not source power for any actuator or relay, but provides the ground necessary to complete the circuit. That means one side of the circuit will always be hot, and the other side will go to ground or below 1 volt as the computer switches on that circuit.

    The computer provides the ground to complete the circuit to power the solenoid valve that turns the
    vacuum on or off. The computer is located under the passenger side kick panel. Remove the kick panel & the cover over the computer wiring connector pins. Check Pin 38 Solenoid valve #1 that provides vacuum to the first Thermactor control valve for a switch from 12-14 volts to 1 volt or less. Do the same with pin 32 solenoid valve #2 that provides vacuum to the second Thermactor control valve. Starting the engine with the computer jumpered to self test mode will cause all the actuators to toggle on and off. If after doing this and you see no switching of the voltage on and off, you can start testing the wiring for shorts to ground and broken wiring. An Ohm check to ground with the computer connector disconnected & the solenoid valves disconnected should show open circuit between the pin 32 and ground and again on pin 38 and ground. In like manner, there should be less than 1 ohm between pin 32 and solenoid valve #2 and pin 38 & Solenoid valve #1.

    If after checking the resistance of the wiring & you are sure that there are no wiring faults, start looking at the solenoid valves. If you disconnect them, you can jumper power & ground to them to verify operation. Power & ground supplied should turn on the vacuum flow, remove either one and the vacuum should stop flowing.

    Typical resistance of the solenoid valves is in the range of 20-70 Ohms.

    Theory of operation:
    Catalytic converters consist of two different types of catalysts: Reduction and Oxidation.
    The Reduction catalyst is the first converter in a 5.0 Mustang, and the Oxidation converter is the second converter. The Oxidation converter uses the extra air from the smog pump to burn the excess HC. Aftermarket converters that use the smog pump often combine both types of catalysts in one housing. Since all catalytic reactions depend on heat to happen, catalytic converters do not work as efficiently with long tube headers. The extra length of the long tubes reduces the heat available to operate the O2 sensors and the catalytic converters. That will cause emissions problems, and reduce the chances of passing an actual smog test.


    Now for the Chemistry...
    "The reduction catalyst is the first stage of the catalytic converter. It uses platinum and rhodium to help reduce the NOx emissions. When an NO or NO2 molecule contacts the catalyst, the catalyst rips the nitrogen atom out of the molecule and holds on to it, freeing the oxygen in the form of O2. The nitrogen atoms bond with other nitrogen atoms that are also stuck to the catalyst, forming N2. For example:

    2NO => N2 + O2 or 2NO2 => N2 + 2O2

    The oxidation catalyst is the second stage of the catalytic converter. It reduces the unburned hydrocarbons and carbon monoxide by burning (oxidizing) them over a platinum and palladium catalyst. This catalyst aids the reaction of the CO and hydrocarbons with the remaining oxygen in the exhaust gas. For example:

    2CO + O2 => 2CO2

    There are two main types of structures used in catalytic converters -- honeycomb and ceramic beads. Most cars today use a honeycomb structure." Quote courtesy of How Stuff Works (HowStuffWorks "Catalysts")

    What happens when there is no extra air from the smog pump...
    As engines age, the quality of tune decreases and wear causes them to burn oil. We have all seem cars that go down the road puffing blue or black smoke from the tailpipe. Oil consumption and poor tune increase the amount of HC the oxidation catalyst has to deal with. The excess HC that the converters cannot oxidize due to lack of extra air becomes a crusty coating inside the honeycomb structure. This effectively reduces the size of the honeycomb passageways and builds up thicker over time and mileage. Continuous usage under such conditions will cause the converter to fail and clog. The extra air provided by the Thermactor Air System (smog pump) is essential for the oxidation process. It oxidizes the added HC from oil consumption and poor tune and keeps the HC levels within acceptable limits.

    Newer catalytic converters do not use the Thermactor Air System (smog pump) because they are designed to work with an improved computer system that runs leaner and cleaner
    They add an extra set of O2 sensors after the catalytic converters to monitor the oxygen and HC levels. Using this additional information, the improved computer system adjusts the air/fuel mixture for cleaner combustion and reduced emissions. If the computer cannot compensate for the added load of emissions due to wear and poor tune, the catalytic converters will eventually fail and clog. The periodic checks (smog inspections) are supposed to help owners keep track of problems and get them repaired. Use them on an 86-95 Mustang and you will slowly kill them with the pollutants that they are not designed to deal with.



    Some review of how it works...

    EGR System theory and testing

    Revised 29-Sep-2013 to add code definitions for EGR sensor and EVR regulator.

    The EGR shuts off at Wide Open Throttle (WOT), so it has minimal effect on performance. The addition of exhaust gas drops combustion temperature, increases gas mileage and reduces the tendency of the engine to ping. It can also reduce HC emissions by reducing fuel consumption. The primary result of EGR usage is a reduction in NOx emissions. It does this by reducing the amount of air/fuel mixture that gets burned in the combustion process. Less air from the intake system means less air to mx with the fuel, so the computer leans out the fuel delivery calculations to balance things out. This reduces combustion temperature, and the creation of NOx gases. The reduced combustion temp reduces the tendency to ping.

    The computer shuts down the EGR system when it detects WOT (Wide Open Throttle), so the effect on full throttle performance is too small to have any measurable negative effects.

    The EGR system has a vacuum source (line from the intake manifold) that goes to the EVR, computer operated electronic vacuum regulator. The EVR is located on the back of the passenger side shock strut tower. The computer uses RPM, Load. and some other factors to tell the EVR to pass vacuum to open the EGR valve. The EGR valve and the passages in the heads and intake manifold route exhaust gas to the EGR spacer (throttle body spacer). The EGR sensor tells the computer how far the EGR valve is open. Then computer adjusts the signal sent to the EVR to hold, increase or decrease the vacuum. The computer adds spark advance to compensate for the recirculated gases and the slower rate they burn at.

    The resistor packs used to fool the computer into turning off the CEL (Check Engine Light) off are a bad idea. All they really do is mess up the data the computer uses to calculate the correct air/fuel mixture. You can easily create problems that are difficult to pin down and fix.

    [​IMG]

    Troubleshooting:
    There should be no vacuum at the EGR valve when at idle. If there is, the EVR (electronic vacuum regulator) mounted on the backside of the passenger side wheelwell is suspect. Check the vacuum line plumbing to make sure the previous owner didn’t cross the vacuum lines.

    Diagram courtesy of Tmoss & Stang&2birds. (the diagram says 88 GT, but the EGR part is the same for 86-93 Mustangs)
    [​IMG]

    The EGR sensor is basically a variable resistor, like the volume control on a radio. One end is 5 volt VREF power from the computer (red/orange wire). One end is computer signal ground (black/white), and the middle wire (brown/lt green) is the signal output from the EGR sensor. It is designed to always have some small voltage output from it anytime the ignition switch is the Run position. That way the computer knows the sensor & the wiring is OK. No voltage on computer pin 27 (brown/lt green wire) and the computer thinks the sensor is bad or the wire is broken and sets code 31. The voltage output can range from approximately .6-.85 volt. A defective or missing sensor will set codes 31 (EVP circuit below minimum voltage) or 32 ( EGR voltage below closed limit).

    The EVR regulates vacuum to the EGR valve to maintain the correct amount of vacuum. The solenoid coil should measure 20-70 Ohms resistance. The regulator has a vacuum feed on the bottom which draws from the intake manifold. The other vacuum line is regulated vacuum going to the EGR valve. One side of the EVR electrical circuit is +12 volts anytime the ignition switch is in the run position. The other side of the electrical circuit is the ground path and is controlled by the computer. The computer switches the ground on and off to control the regulator solenoid. A defective EVR will set codes 33 (insufficient flow detected), 84 (EGR Vacuum Regulator failure – Broken vacuum lines, no +12 volts, regulator coil open circuit, missing EGR vacuum regulator.)


    EGR test procedure courtesy of cjones

    To check the EGR valve:
    Bring the engine to normal temp.

    Connect a vacuum pump to the EGR Valve or see the EGR test jig drawing below. Connnect the test jig or to directly to manifold vacuum.

    Do not connect the EGR test jig to the EVR (Electronic Vacuum Regulator).


    Apply 5in vacuum to the valve. Using the test jig, use your finger to vary the vacuum

    If the engine stumbled or died then EGR Valve and passage(there is a passageway through the heads and intake) are good.

    If the engine did NOT stumble or die then either the EGR Valve is bad and/or the passage is blocked.

    If the engine stumbled, connect EGR test jig to the hose coming off of the EGR Valve.
    Use your finger to cap the open port on the vacuum tee.
    Snap throttle to 2500 RPM (remember snap the throttle don't hold it there).
    Did the vacuum gauge show about 2-5 in vacuum?
    If not the EVR has failed

    EGR test jig
    [​IMG]

    To test the computer and wiring to the computer, you can use a test light across the EVR wiring connectors and dump the codes. When you dump the codes, the computer does a self test that toggles every relay/actuator/solenoid on and off. When this happens, the test light will flicker. If the test light remains on the computer or the wiring is suspect.

    To check the EVR to computer wiring, disconnect the EVR connector and connect one end of the Ohmmeter to the dark green wire EVR wiring. Remove the passenger side kick panel and use a 10 MM socket to remove the computer connector from the computer. Set the Ohmmeter to high range and connect the other ohmmeter lead to ground. You should see an infinite open circuit indication or a reading greater than 1 Meg Ohm. If you see less than 200 Ohms, the dark green wire has shorted to ground somewhere.
    Last edited: Mar 14, 2014
    #10
  11. Benboi92GT

    Benboi92GT Member

    Joined:
    Dec 29, 2011
    Messages:
    79
    Likes Received:
    0
    Trophy Points:
    7
    Thanks for the informative post as always @jrichker. Sorry I wasn't very clear, I was aware that the 311 had to do with smog and not the egr. I just included that information to verify that I didn't have any egr codes and that I had already dumped the codes before coming here to post.

    I believe I have the 311 for 1 of 2 reasons. One possible reason is that I have an aftermarket y-pipe from Magnaflow with a newer high-flow converter, and the other is that I have the tfs track heat 170s. I had to delete the crossover tube. I deleted the crossover tube at the red line in this pic:

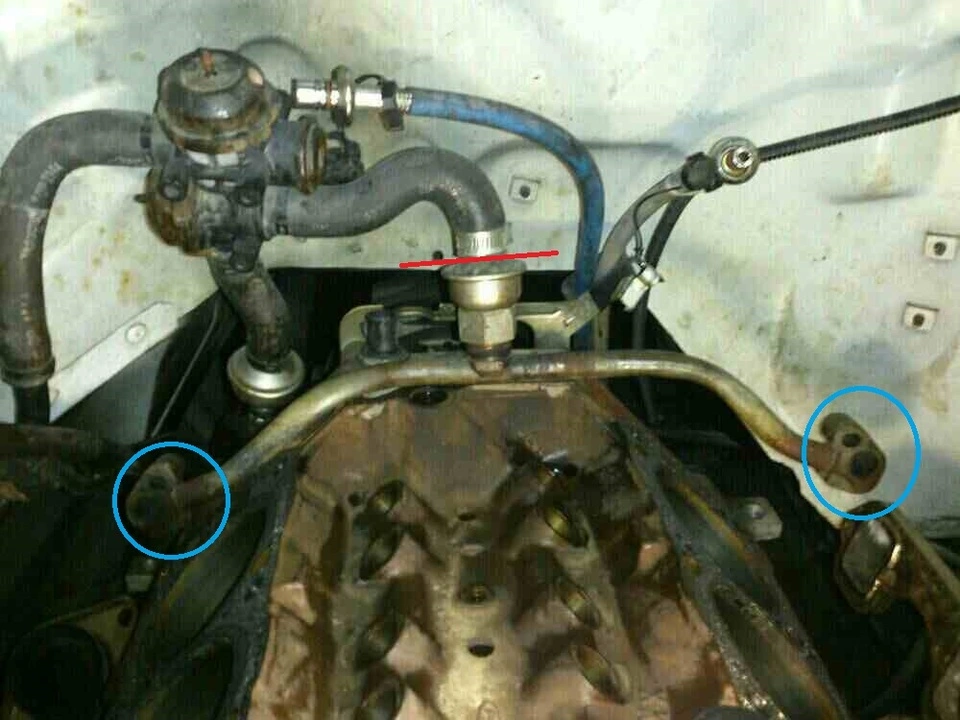

    [​IMG]

    Everything else (all smog and egr equipment) is hooked up exactly as it was stock. I also misspoke in my last post; I suppose there actually IS vacuum to the egr, it just isnt getting the exhaust gases returned? Am I correct in assuming this or does the crossover tube have literally NOTHING to do with the egr? I guess what I'm asking is, with how I have things currently set up, could that cause poor throttle response and the truck to bog down at partial throttle?

    Side note: I am not sure if this is important, but I have this as well:

    http://shop.fiveologyracing.com/EGR-ELIMINATOR-EGR-ELI.htm

    I have not run the truck with it plugged in yet, because I'm not sure how it would react with the egr valve still on the truck with vacuum going to it.
    Last edited: Mar 15, 2014
    #11
  12. jrichker

    jrichker StangNet's favorite TOOL SN Certified Technician Founding Member

    Joined:
    Mar 10, 2000
    Messages:
    21,600
    Likes Received:
    359
    Trophy Points:
    134
    Location:
    Dublin GA
    The crossover tube has nothing to do with the EGR. The best thing to do is to put a cap on the diverter valve or plug in the hose where it comes off the diverter valve to the crossover pipe.

    Avoid the EGR eliminator. It is best for the computer to see a nonfunctioning EGR so that it turns it off and operates with normal timing and fuel mixture settings.
    #12
  13. Benboi92GT

    Benboi92GT Member

    Joined:
    Dec 29, 2011
    Messages:
    79
    Likes Received:
    0
    Trophy Points:
    7
    Okay cool. So my poor throttle response at partial throttle shouldn't have anything to do my current setup in regards to the smog/egr.

    Like I said, from a dig it will blow the tires off, and if I really punch it to the floor she will downshift normally. It just seems to bog down under light acceleration at cruising speeds.
    #13
  14. Mustang5L5

    Mustang5L5 Car used in adult film "Highway Gangbang-InDaButt" SN Certified Technician Founding Member

    Joined:
    Feb 19, 2001
    Messages:
    21,625
    Likes Received:
    307
    Trophy Points:
    124
    Location:
    Massachusetts
    Unplug the EGR sensor. The check engine light should come on. That will turn the function off in the computer. See if it runs better like that.
    #14
  15. Benboi92GT

    Benboi92GT Member

    Joined:
    Dec 29, 2011
    Messages:
    79
    Likes Received:
    0
    Trophy Points:
    7
    Won't there still be vacuum going to it? I will try it and see. Should I clear the ecm first?
    #15
  16. madspeed

    madspeed Colonel Mustard Mod Dude Founding Member

    Joined:
    Nov 30, 1999
    Messages:
    8,316
    Showcase:
    9
    Albums:
    1
    Likes Received:
    1,192
    Trophy Points:
    174
    Location:
    a van down by the river
    The vacuum wont be doing anything since the computer will disable the function if the sensor is unplugged
    #16
  17. Mustang5L5

    Mustang5L5 Car used in adult film "Highway Gangbang-InDaButt" SN Certified Technician Founding Member

    Joined:
    Feb 19, 2001
    Messages:
    21,625
    Likes Received:
    307
    Trophy Points:
    124
    Location:
    Massachusetts
    Just unplug it. You should see results almost immediately. EGR will disable in the ECM, check engine light comes on, and you can see if you have any difference in drivability.
    #17
  18. Benboi92GT

    Benboi92GT Member

    Joined:
    Dec 29, 2011
    Messages:
    79
    Likes Received:
    0
    Trophy Points:
    7
    Okay I'll give it a shot.
    #18
  19. Benboi92GT

    Benboi92GT Member

    Joined:
    Dec 29, 2011
    Messages:
    79
    Likes Received:
    0
    Trophy Points:
    7
    Just out of curiosity, how is it that my EGR could possibly be working as intended when my heads no longer have EGR ports? How would this affect drivability.
    #19
  20. Mustang5L5

    Mustang5L5 Car used in adult film "Highway Gangbang-InDaButt" SN Certified Technician Founding Member

    Joined:
    Feb 19, 2001
    Messages:
    21,625
    Likes Received:
    307
    Trophy Points:
    124
    Location:
    Massachusetts
    It shouldn't be. But it thinks it is for some reason unless you have a code. I'm not familiar with F150 3-digit codes, but on the Mustang a code 31 will turn off the function and flash the CEL.

    That's why i suggested to pull the plug off the sensor. That should generate a code that tells the computer to turn off the EGR function.

    This is pretty much a "try and and see if you get any results" sort of thing
    #20
