yoke/universial pics....is this right?

Discussion in 'Classic Mustang Specific Tech' started by streetgrande69, Nov 5, 2004.


  1. streetgrande69

    streetgrande69 Founding Member

    Joined:
    Nov 2, 2002
    Messages:
    975
    Likes Received:
    0
    Trophy Points:
    0
    #1
  2. Ozsum2

    Ozsum2 New Member

    Joined:
    Jul 28, 2004
    Messages:
    794
    Likes Received:
    0
    Trophy Points:
    0
    That ain't right. The bearing cap should be out against the clip.
    #2
  3. bnickel

    bnickel Founding Member

    Joined:
    Aug 21, 2002
    Messages:
    5,642
    Likes Received:
    0
    Trophy Points:
    77

    exactly, you have the wrong u-joint bro
    #3
  4. streetgrande69

    streetgrande69 Founding Member

    Joined:
    Nov 2, 2002
    Messages:
    975
    Likes Received:
    0
    Trophy Points:
    0

    ok, help me find the right set-up

    yokeu-joint is from a 89 mustang with an aod, what universial do i need?
    #4
  5. Route666

    Route666 Active Member

    Joined:
    Aug 17, 2003
    Messages:
    1,654
    Likes Received:
    4
    Trophy Points:
    39
    Does the U-joint fit flush in the driveshaft?

    I ask because if it is too small for the DS and the yoke, you'll need a different size I guess, but if it fits properly in the DS, and not in the yoke, you'll need a different yoke, or change the DS.
    #5
  6. 302 coupe

    302 coupe Founding Member

    Joined:
    Mar 2, 2000
    Messages:
    1,996
    Likes Received:
    0
    Trophy Points:
    36
    don't even bother with trying to go by application. Take some measurements with a dial caliper and note style/location of the lock rings. Then go to a knowledgeable parts store and match it up with the measurements in the back of their u-joint book.
    #6
  7. JB66

    JB66 New Member

    Joined:
    Aug 21, 2004
    Messages:
    565
    Likes Received:
    0
    Trophy Points:
    0
    From the previous thread...
    FYI also...
    Some AOD/E's and all the 4R70Ws also have larger diameter output shaft bushings & larger diameter yokes. All models have the same 28 spline output shaft profile, so small bushing tail shaft housings can be swapped on from any model, including from an AOD. This is also the same as C-4 transmissions which makes swaps easy.
    #7
  8. Ozsum2

    Ozsum2 New Member

    Joined:
    Jul 28, 2004
    Messages:
    794
    Likes Received:
    0
    Trophy Points:
    0



    Not me. HE!!!
    #8
  9. ForceFed70

    ForceFed70 That's why they call it "dope" Founding Member

    Joined:
    Dec 6, 1999
    Messages:
    4,820
    Likes Received:
    1
    Trophy Points:
    69
    Don't bother replacing a yoke or DS if they arn't the same width. They make adapter U-joints just for this reason. Very common in 4x4 applications.
    #9
  10. Clark

    Clark Founding Member

    Joined:
    Aug 5, 1999
    Messages:
    659
    Likes Received:
    0
    Trophy Points:
    0
    That picture scares me! I agree that the joint should have come apart, you are fortunate. When I switched from a FMX to AOD, I broke down and purchased a yoke from National parts that accepted my stock u-joint :nice:
    #10
  11. streetgrande69

    streetgrande69 Founding Member

    Joined:
    Nov 2, 2002
    Messages:
    975
    Likes Received:
    0
    Trophy Points:
    0

    i agree, it maybe should have came apart, i'm lucky. well, its at the driveline shop getting balanced and hes gonna put on Spicer u-joints so i can toss the napa brand u-joints.

    all i've read on the aod swap, i never remember reading about the front yoke being special, just a typical aod yoke and joints, it it was a surprise when i found that i needed something special. anyway just more info for my swap page on my site i guess.
    #11
  12. streetgrande69

    streetgrande69 Founding Member

    Joined:
    Nov 2, 2002
    Messages:
    975
    Likes Received:
    0
    Trophy Points:
    0

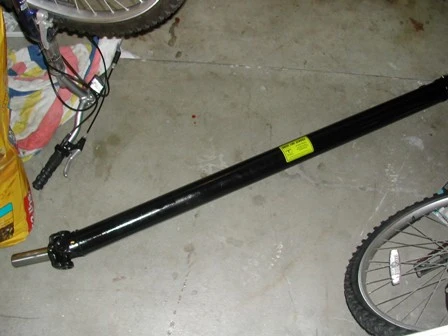

    all better now, new spicer u-joints and completely balanced, $150 later. thanks to san diego drive line.
