Z-bar Conversion Kit Intallation

Discussion in 'Classic Mustang Specific Tech' started by BullittStangV8, Feb 21, 2007.


  1. BullittStangV8

    BullittStangV8 Founding Member

    Joined:
    Oct 5, 2002
    Messages:
    1,106
    Likes Received:
    0
    Trophy Points:
    36
    Location:
    NJ
    Anyone have any links to diagrams/write ups about how to mount/install the z-bar conversion kits needed to run a z-bar style clutch set up on a late 5.0? (the kit mounts on the transmission I believe instead of the block). I did a search and didnt find any specifics. Since 5.0 swaps are so common, it would be good to get some pics/write ups done.
    Mike
  2. 68RCodeConv

    68RCodeConv New Member

    Joined:
    Oct 2, 2003
    Messages:
    345
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Houston, TX
    Its pretty simple. Triangular piece with three holes. One is threaded. The two non-threaded holes mount under two of the tranny-to-engine bolts. The pivot supplied with the kit screws into the threaded hold. Pretty much only goes on one way.
  3. BullittStangV8

    BullittStangV8 Founding Member

    Joined:
    Oct 5, 2002
    Messages:
    1,106
    Likes Received:
    0
    Trophy Points:
    36
    Location:
    NJ
    I'm sorry for not being so clear. I understand how the z bar conversion plate mounts, but more of how you run you z-bar and linkages to the clutch fork when using the conversion kit.
  4. BullittStangV8

    BullittStangV8 Founding Member

    Joined:
    Oct 5, 2002
    Messages:
    1,106
    Likes Received:
    0
    Trophy Points:
    36
    Location:
    NJ
    Ok. I finally figured it out, So i figure I should do a little write up for people who try and do the same swap/install.

    So late model roller block into a 65-66 mustang, with toploader, and still using factory Z-bar.

    1) you need the conversion bracket
    2) You need the bracket for the other side of the z-bar to pivot on, which is located under the steering box, and the frame rail.
    3) the bolts to mount the above mentioned bracket to the frame.

    1) Mount the z-bar conversion bracket on to the transmission, with the "pivot point" facing toward the front of the car.
    2) Mount the frame bracket on to the car, with the felt washer and bearing
    3) The z-bar will pivot inbetween the header primaries if you are using LT's.
    4) Mount the zbar onto the clutch rod, and onto the z-bar pivot and frame pivots.
    5) Adjust the threaded rod which activated the clutch rod, as the distances are slightly different after the swap.
    6) Hooker super comp headers will need to be clearanced to allow the bracket on the transmission to fit.

    Hope this helps, because it took me a heck of a long time to figure it out, since i was missing the frame bracket.

    Mike
  5. 65ShelbyClone

    65ShelbyClone Founding Member

    Joined:
    Sep 9, 2000
    Messages:
    4,709
    Likes Received:
    14
    Trophy Points:
    69
    Location:
    Antelope Valley, SoCal
    If I had seen this earlier, I could have just taken a picture of what's on my car. It even has a scattershield which makes the conversion bracket non-bolt-on.
  6. BullittStangV8

    BullittStangV8 Founding Member

    Joined:
    Oct 5, 2002
    Messages:
    1,106
    Likes Received:
    0
    Trophy Points:
    36
    Location:
    NJ
    wow that really sucks. I've realized theres not really too many true "bolt ons" when modifying a classic car beyond stock parts.
  7. 65ShelbyClone

    65ShelbyClone Founding Member

    Joined:
    Sep 9, 2000
    Messages:
    4,709
    Likes Received:
    14
    Trophy Points:
    69
    Location:
    Antelope Valley, SoCal
    Even then you're lucky if things fit like they're supposed to. :rolleyes:

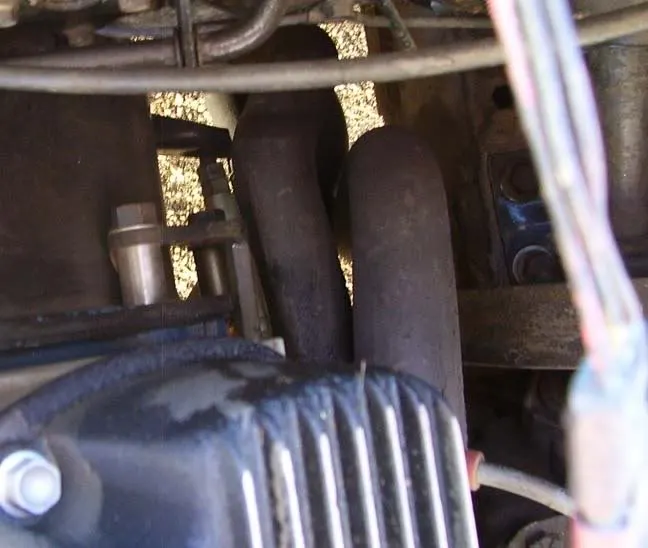

    Case in point:
    [​IMG]
