Engine 1991 Ford Mustang LX 5.0 Broken Vacuum Wires Need Part Numbers

tnjmagoo

New Member
May 4, 2018
4
0
1
50
Colorado

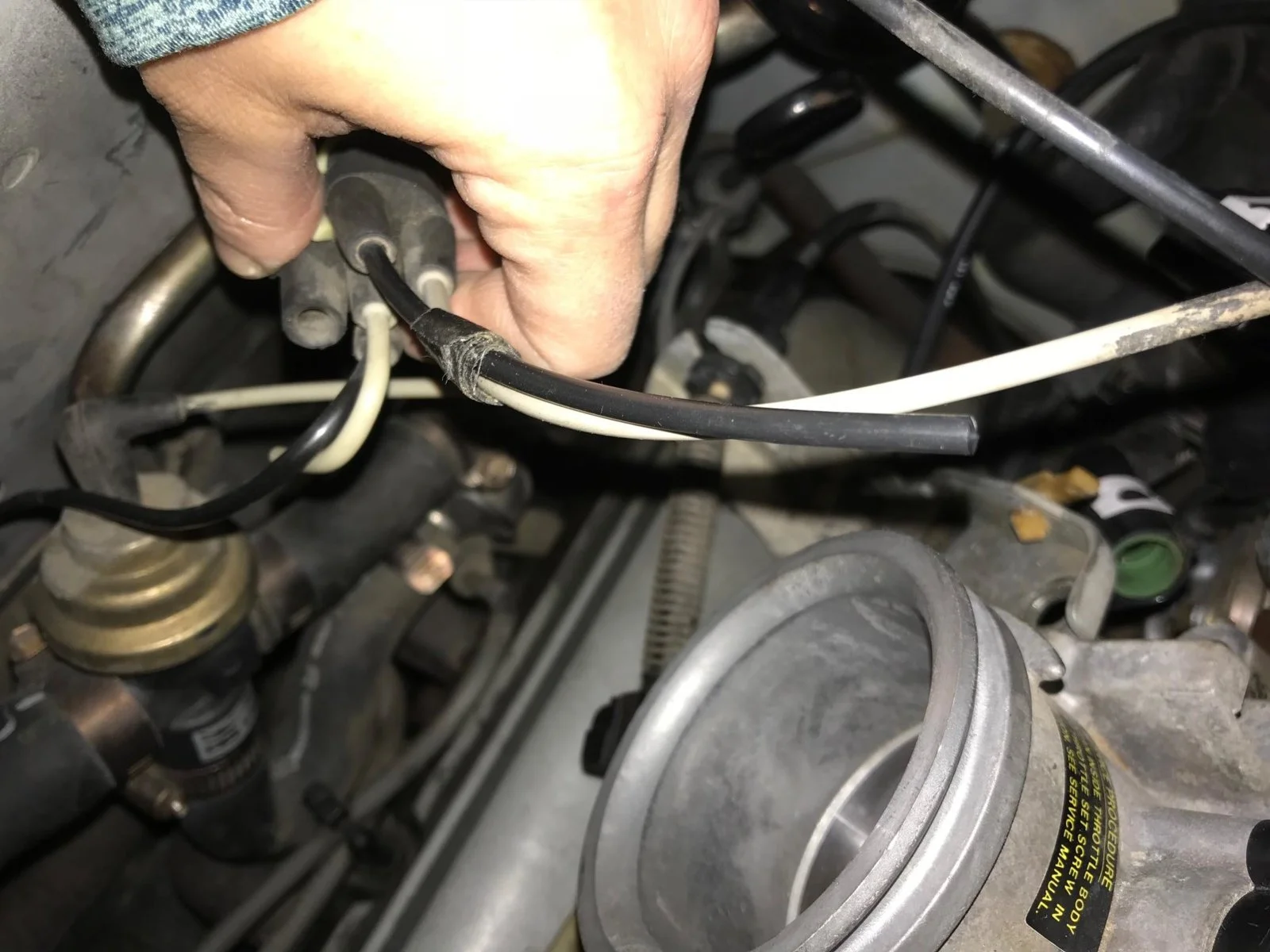

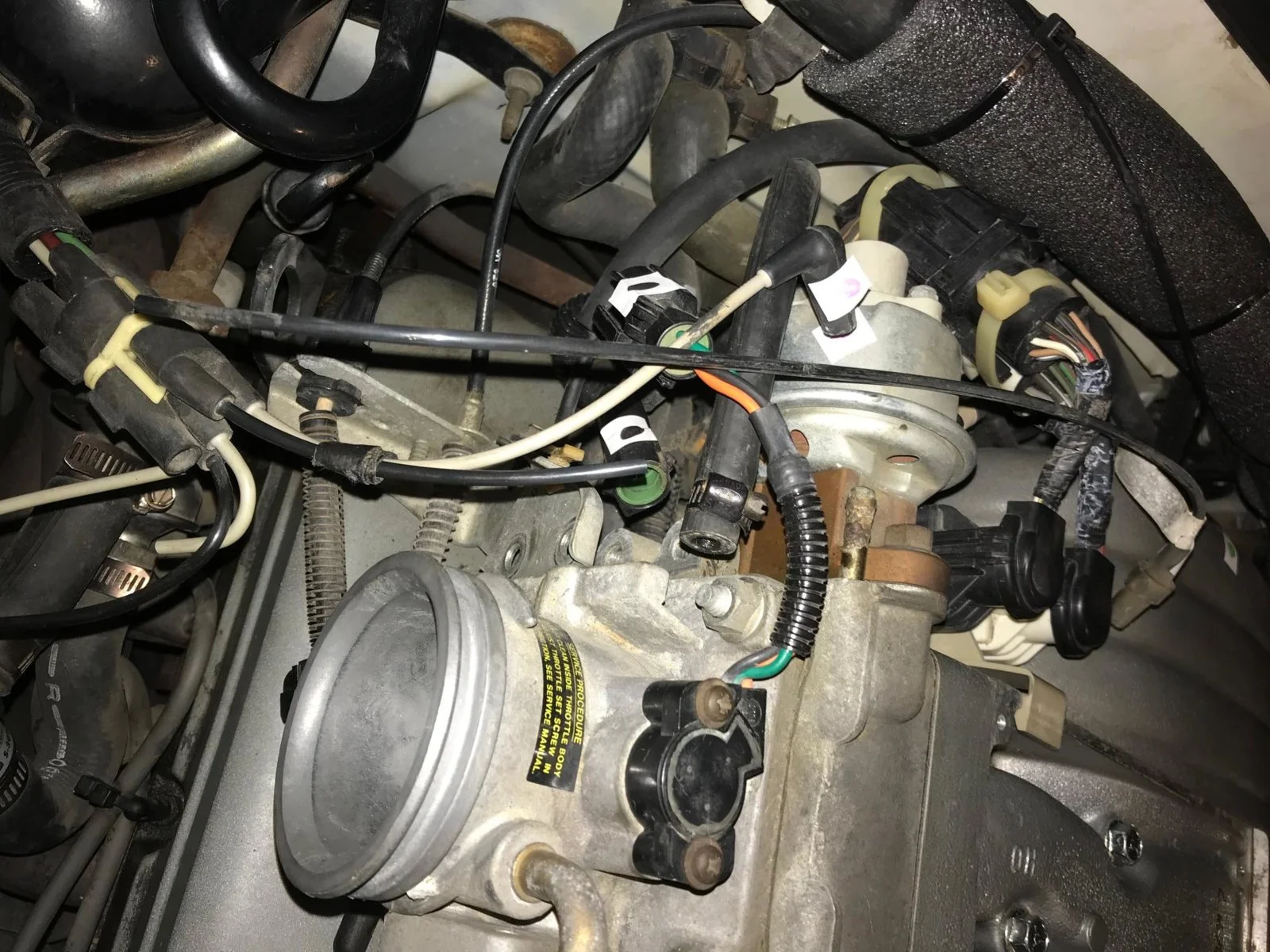

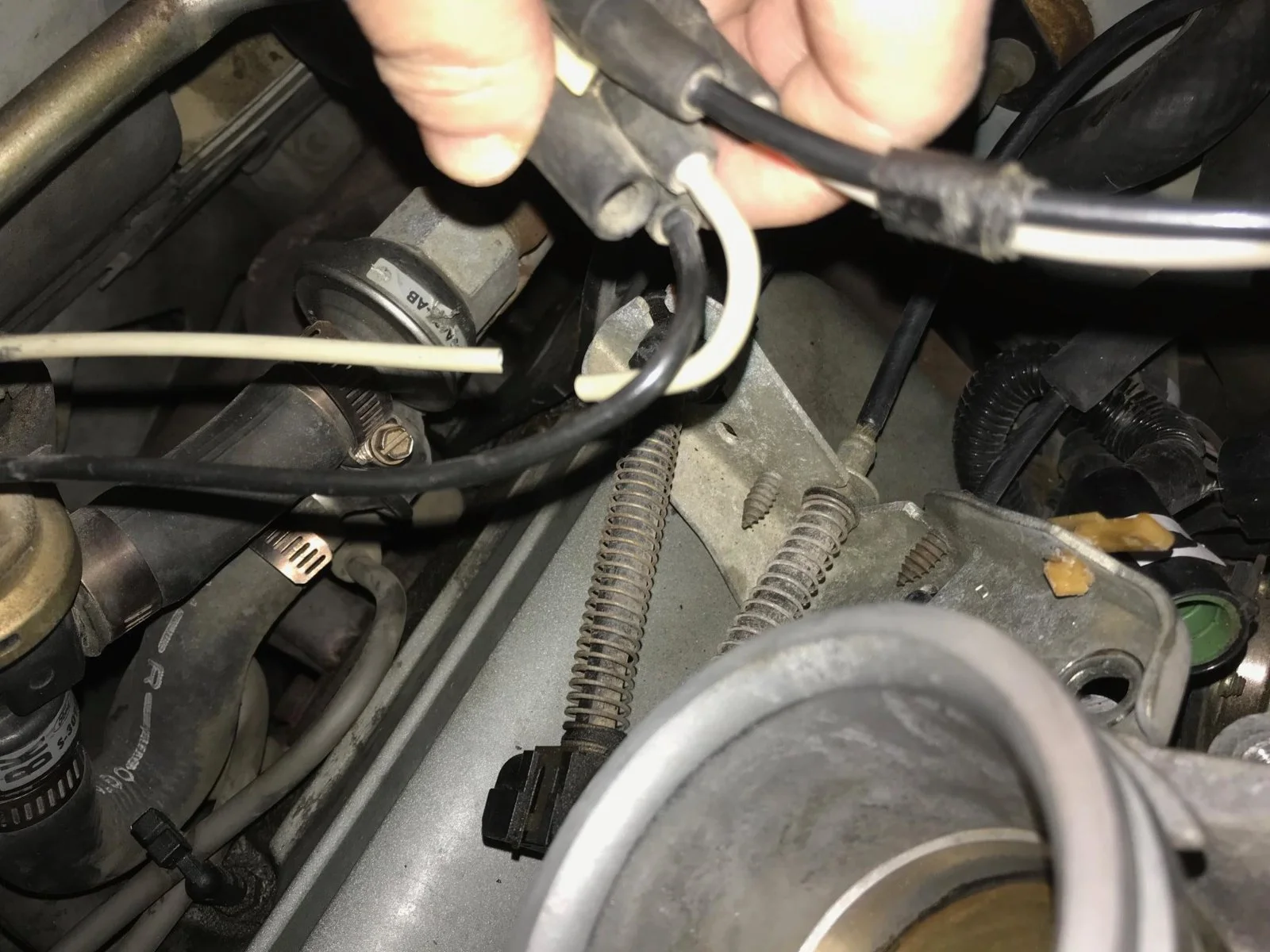

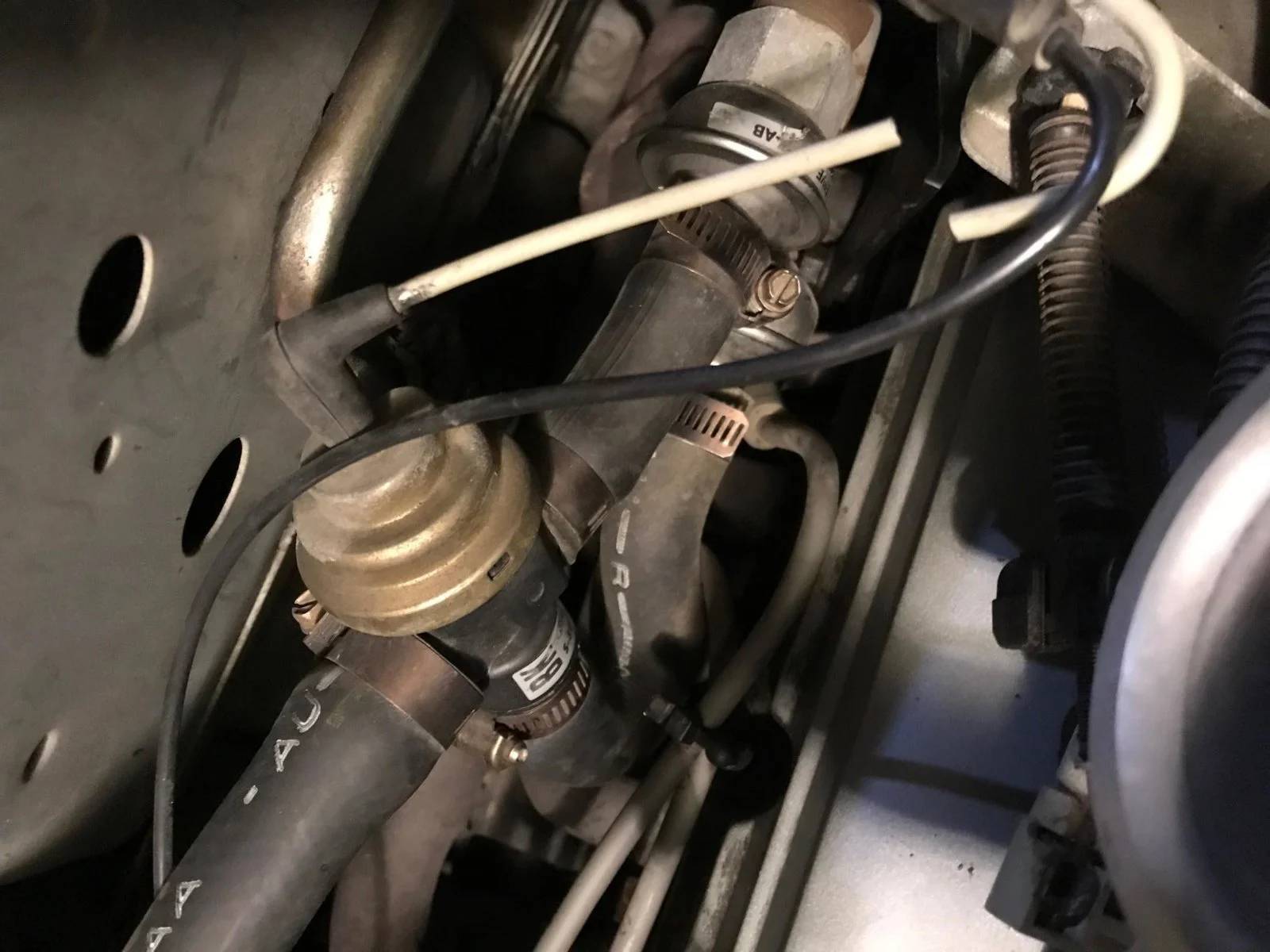

Hey guys. Taking off My intake to do the valve covers and a few wires just stated breaking. I believe they are vacuum wires. Can you tell me the part number so I can get new ones? Pictures attached.


Attachments

  • Sponsors (?)


Mstng93SSP

You have a nice rear end there Dave.
15 Year Member
Nov 29, 1999
1,300
1,515
174
Mililani, Hawaii
I don't think you can get the factory vacuum lines anymore. You can just use regular rubber vacuum line to connect them where they broke. Those are always brittle.


Mustang5L5

Mod Dude
Feb 18, 2001
30,801
7,244
224
Massachusetts
They aren't available anywhere. I used a piece of heat shrink to shrink over the two broken ends and reconnect them. You can also take a short piece of vacuum hose and connect the two ends by sliding one end in each side


General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
12,383
3,930
193
polk county florida
I thought the part numbers were BLACK for the black one and WHITE for the white one. :rolleyes:
We are talking about vacuum wires right?
Damn that lights flash'n again, gotta get that fixed. :)


tnjmagoo

New Member
May 4, 2018
4
0
1
50
Colorado
I thought the part numbers were BLACK for the black one and WHITE for the white one. :rolleyes:
We are talking about vacuum wires right?
Damn that lights flash'n again, gotta get that fixed. :)
For people in the future that need help with vacuum lines on a Ford Mustang, I got a great answer from a knowledgeable Mustang owner that isn't a comedian and genuinely wants to help.

He said:

"If they're not sold out of it,Autozone sells vacuum lines, the hard nylon vacuum tubing in a few different sizes. Our Foxbodys use either 1/8 or 5/32 tubing.It comes in a package,either in the help section or behind the counter where the spools of rubber hose sits.The package comes with a 3' roll of tubing.The part numbers are listed below.

If you pull the vacuum nipple/elbow off the end of the oem vacuum hose (where the hose connects to the vacuum fitting on the egr valve,intake,fpr,etc,etc) you'll notice the hose end has a raised ridge on it.This prevents the vacuum nipple from pulling off the hose easily.IOW- it keeps the nipple attached to the hose.If your vacuum nipple is loose on the hose,with the new tubing,you can put heat shrink tubing over the hose & nipple to keep them locked together. AZ should have this too.

5/32= #47418
1/8= #47417 "


General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
12,383
3,930
193
polk county florida
a few wires just stated breaking.
First of all I'm glad you thought it was funny. Second, there is no such thing as vacuum wires. Now before you get out of breath proof read before you post, it's not that big a deal but there is a grammar policeman here and he will chime in, but thats ok too because it's all in fun.
if it ain't fun, I ain't do'n it!
and smile, it makes people wonder what your up to.


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
26,891
2,557
224
73
Dublin GA
You are going to need this....

The following are diagrams courtesy of Tmoss & Stang&2birds

Vacuum diagram 89-93 Mustangs


See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring; http://www.veryuseful.com/mustang/tech/engine/ Everyone should bookmark this site.



TFI module wiring for 94-95 Mustang GT
http://www.veryuseful.com/mustang/tech/engine/images/Mustang-94-95-IgnitionControlModule.gif

Complete computer, actuator & sensor wiring diagram for 94-95 Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/94-95_5.0_EEC_Wiring_Diagram.gif

Complete computer, actuator & sensor wiring diagram for 91-93 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/91-93_5.0_EEC_Wiring_Diagram.gif

Complete computer, actuator & sensor wiring diagram for 88-90 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

Fuel, alternator, A/C and ignition wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

O2 sensor wiring harness
http://www.veryuseful.com/mustang/tech/engine/images/mustangO2Harness.gif

Vacuum diagram 89-93 Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg

HVAC vacuum diagram
http://www.veryuseful.com/mustang/tech/engine/images/Mustang_AC_heat_vacuum_controls.gif

TFI module differences & pin out
http://www.veryuseful.com/mustang/tech/engine/images/TFI_5.0_comparison.gif

Fuse box layout
http://www.veryuseful.com/mustang/tech/engine/images/MustangFuseBox.gif

Mustang 5.0 Lights and Radio schematic, by TMoss:
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxLights-Radio_diag.gif

87-92 power window wiring
http://www.veryuseful.com/mustang/tech/engine/images/mustang87-92 PowerWindowWiring.gif

93 power window wiring
http://www.veryuseful.com/mustang/tech/engine/images/mustang93PowerWindows.gif

T5 Cutaway showing T5 internal parts
http://www.veryuseful.com/mustang/tech/engine/images/5_Speed_Cutaway_Illustrated.jpg

Visual comparison of the Ford Fuel Injectors, picture by TMoss:
http://www.veryuseful.com/mustang/tech/engine/images/Ford_Injector_Guide.jpg

Convertible top motor wiring http://www.veryuseful.com/mustang/tech/engine/images/mustang88VertTopMotorCkt.gif

Engine mounted fuel injector harness
http://www.veryuseful.com/mustang/tech/engine/images/mustangEngineHarness.gif

Location of the TPS, IAB, and the 10-pin connectors on a 5.0, picture by TMoss:
http://www.veryuseful.com/mustang/tech/engine/images/TPS_IAB_Pic.jpg

Starter circuit
http://forums.stangnet.com/attachment.php?attachmentid=21328&d=1080916057

Alternator diagram for 94-95 Mustangs.
http://www.veryuseful.com/mustang/tech/engine/images/Mustang-94-95-Alt.gif


MFE92

5 Year Member
Aug 25, 2010
1,094
368
114
Phoenix
Buy about 6 feet of standard vacuum line, ponder the routing from source to each component, and re-run them directly, without going through the junction that only served to make assembly easier at the factory.

  • Agree
Reactions: jrichker
