Engine 1991 Please Help -No Start No Click Starter Problems

Itss.cole

New Member
Nov 11, 2018
7
0
1
17
Covington,Georgia
So I got a 91 foxbody 5.0 and it came with the silonoid disconnected and the NNS all 3 wires twisted together. So I hook the silonoid up get a battery and when I would touch the last battery terminal on it even without the key in I would here a loud starter click and when I would go to crank it from the silonoid , it would try to crank but I let off because smoke started coming from the starter and now there’s no click and when I try to jump the silonoid nothing happens,no turning over or click or anything. (New silonoid)

  • Sponsors (?)


General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
11,683
3,731
193
polk county florida
Here is what you need to do in my humble opinion, get a good repair manual, a chiltons or haynes is ok but they lack in some areas. It would help if you know how to use a volt olm meter. Find the correct way to hookup the nss and make sure your battery cables and all the grounds are good. If the previous owner jimmied the nss together than there is a high likelihood other stuff is going to be too.
Post some pics of the stang and let us see what you got.


General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
11,683
3,731
193
polk county florida
I don't know, cats, dogs or maybe cats chasing dogs? I would guess since this is a mustang forum pics of your car? Engine compartment pics too, that way we can see if you have obvious issues there.


Itss.cole

New Member
Nov 11, 2018
7
0
1
17
Covington,Georgia

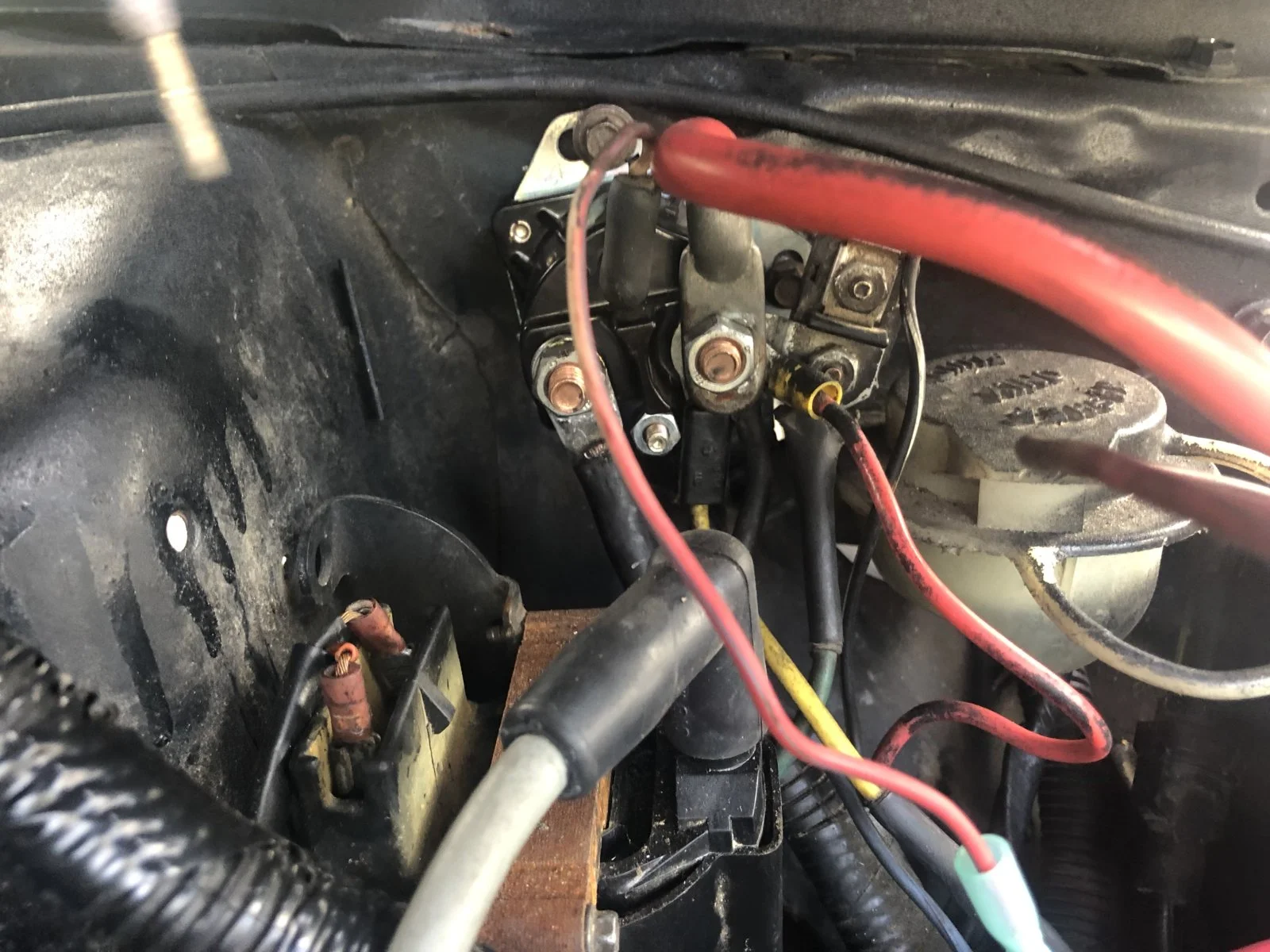

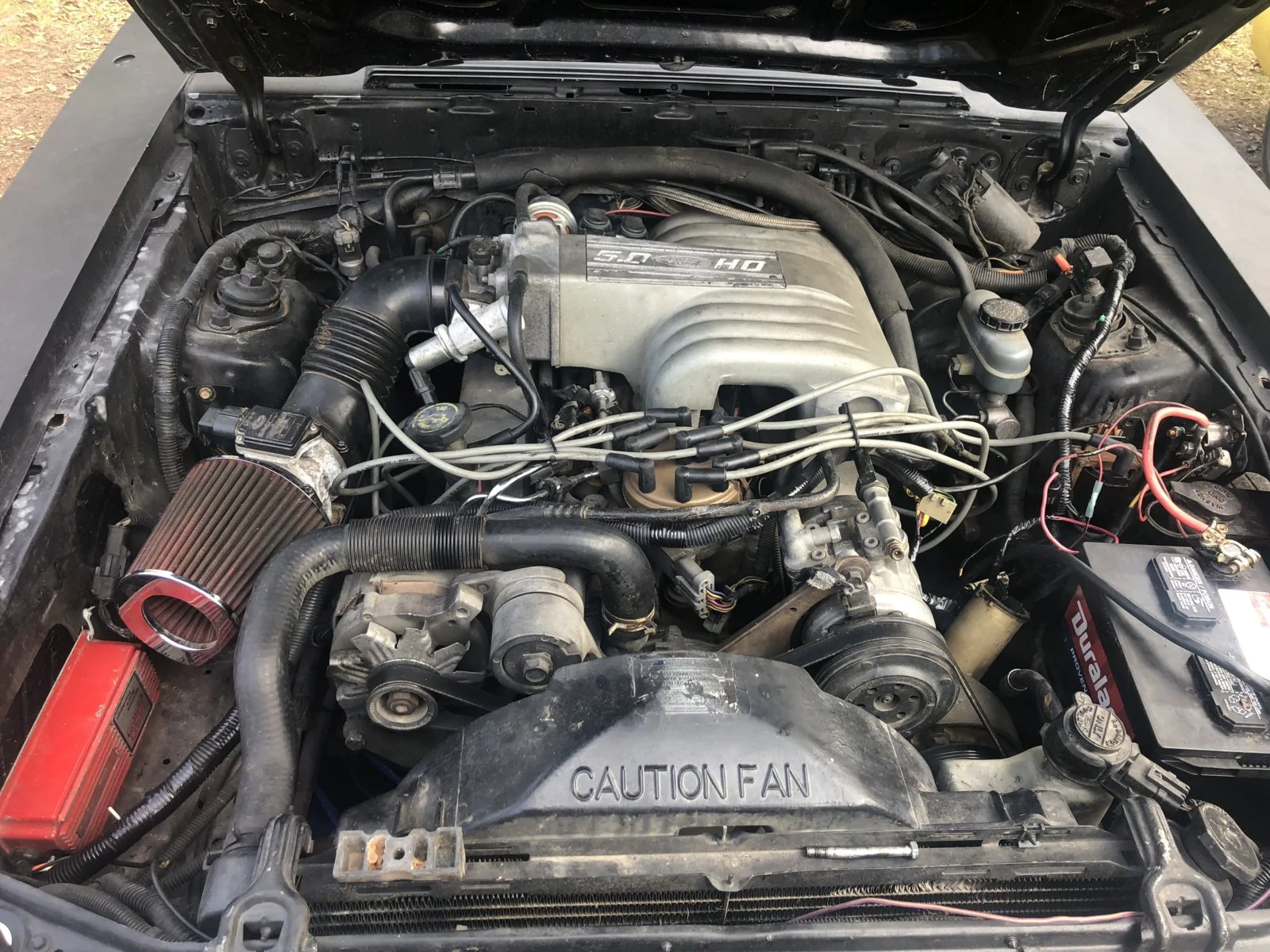

I don't know, cats, dogs or maybe cats chasing dogs? I would guess since this is a mustang forum pics of your car? Engine compartment pics too, that way we can see if you have obvious issues there.


Attachments

General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
11,683
3,731
193
polk county florida

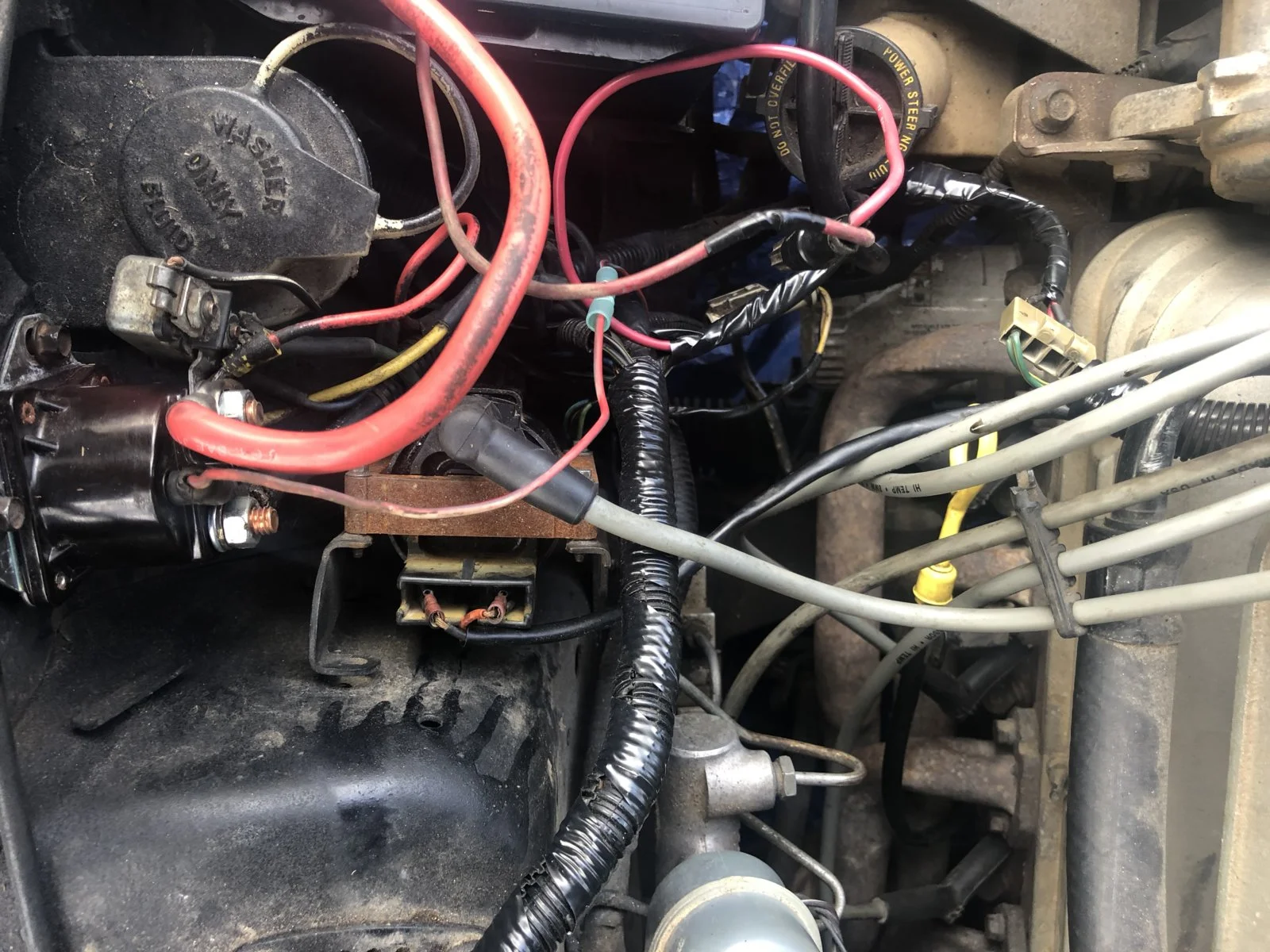

Wiring around the solenoid and coil for starters, sketchy connectors and discolored wires don't carry power very well. Every place that has new tape wrapped wires needs to be looked at.

  • Like
Reactions: Boostedpimp

General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
11,683
3,731
193
polk county florida
As said in post #2, google assembly manual for your year stang and get acquainted with the wiring diagrams for your year car, there are some wiring changes for different years. Learn to solder, look around for members that have done wiring on their stangs. Several members here have done some rewiring on their cars.
use the search button at the top right of the page. It looks like a magnifying glass.


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
26,735
2,497
224
73
Dublin GA
No Crank checklist for 5.0 Mustangs

Revised 24-Oct-2013 to update voltage drop figures.

No crank, slow crank and stuck starter solenoid problems have the same root causes – low battery voltage and poor connections. For that reason, they are grouped together.
Use the same initial group of tests to find the root cause of slow crank, no crank and stuck solenoid problems.

Since some of the tests will bypass the safety interlocks, make sure that the car is in neutral and the parking brake is set. Becoming a pancake isn’t part of the repair process…


1.) Will the car start if it is jumped? Then clean battery terminals and check battery for low charge and dead cells. A good battery will measure 12-13 volts at full charge with the ignition switch in the Run position but without the engine running.
A voltmeter placed across the battery terminals should show a minimum of 9.5-10 volts when the ignition switch is turned to the Start position and the starter engages or tries to engage. Less than this will result in a clicking solenoid, or slow cranking (if it cranks at all) or a starter solenoid that sticks and welds the contacts together.

Most auto parts stores will check your battery for free. It does not have to be installed in the car to have it checked; you can carry it with you to the auto parts store.

The battery posts and inside of the battery post terminals should be scraped clean with a knife or battery post cleaner tool. This little trick will fix a surprising number of no start problems.

The clamp on with 2 bolts battery terminal ends are a known problem causer. Any place you see green on a copper wire is corrosion. Corrosion gets in the clamped joint and works its way up the wire under the insulation. Corroded connections do not conduct electricity well. Avoid them like the plague...

If the starter solenoid welds the contacts, then the starter will attempt to run anytime there is power in the battery. The cables and solenoid will get very hot, and may even start smoking. The temporary fix for a welded starter solenoid is to disconnect the battery and smack the back of the solenoid housing a sharp blow with a hammer. This may cause the contacts to unstick and work normally for a while.


A voltmeter is handy if you are familiar with how to use it to find bad connections. Measure the voltage drop across a connection while trying to start the car: more than .25 volts across a connection indicates a problem. The voltage drop tests need to be done while cranking the engine. It's the current flowing through a connection or wire that causes the voltage drop.

See http://assets.fluke.com/appnotes/automotive/beatbook.pdf for help for help troubleshooting voltage drops across connections and components. .



Voltage drops should not exceed the following:
200 mV Wire or cable
300 mV Switch or solenoid
100 mV Ground
0.0V Connections
A voltage drop lower that spec is always acceptable.

2.) Check the battery to engine block ground down near the oil filter, and the ground behind the engine to the firewall. All grounds should be clean and shiny. Use some sandpaper to clean them up.

3.) Jump the big terminals on the starter solenoid next to the battery with a screwdriver - watch out for the sparks! If the engine cranks, the starter and power wiring is good. The starter relay is also known as a starter solenoid.

The rest of the tech note only concerns no crank problems. If your problem was a stuck solenoid, go back to step 1.

4.) Then pull the small push on connector (small red/blue wire) off the starter solenoid (Looks like it is stuck on a screw). Then jump between the screw and the terminal that is connected to the battery. If it cranks, the relay is good and your problem is in the rest of the circuit.

5.) Remember to check the ignition switch, neutral safety switch on auto trans and the clutch safety switch on manual trans cars. If they are good, then you have wiring problems.

Typical start circuit...
Diagram courtesy of Tmoss & Stang&2birds


6.) Pull the starter and take it to AutoZone or Pep Boys and have them test it. Starter fails test, then replace it. If you got this far, the starter is probably bad.


Starter solenoid wiring for 86-91 Mustang



Starter solenoid wiring 92-93 Mustang or earlier Mustang with upgraded high torque mini starter.
[


Electrical checks for the switches and starter solenoid

Remove the small red/blue wire from the starter solenoid. Use a screwdriver to bridge the connection from the battery positive connection on the starter solenoid to the small screw where the red/blue wire was connected. The starter should crank the engine. If it does not, the starter solenoid is defective or the battery lacks sufficient charge to crank the engine.

If the starter does crank the engine, the problem is in the clutch safety circuit (5 speed) or Neutral Sense Switch (auto trans) or ignition switch.


See the Typical start circuit diagram above for wiring information for troubleshooting.

You will need a voltmeter or test lamp for the rest of the checks. Connect one lead of the voltmeter or test lamp to ground. The other lead will connect to the item under test.
Look for 12 volts on the white/pink wire when the ignition switch is turned to the Start position. Check the ignition switch first.
No 12 volts, replace the ignition switch.

The next step will require you to push the clutch pedal to the floor (5 speed) or put the transmission in neutral (auto trans) while the ignition switch is turned to the Start position.
Good 12 volts, check the clutch safety switch (5 speed) or Neutral Sense Switch (auto trans) for good 12 volts on both sides of the switches. No 12 volts on both sides of the switch and the switches are defective or out of adjustment. Check the wiring for bad connections while you are at it.


Itss.cole

New Member
Nov 11, 2018
7
0
1
17
Covington,Georgia
No Crank checklist for 5.0 Mustangs

]

I completely read that entire post but my condit
No Crank checklist for 5.0 Mustangs

Revised 24-Oct-2013 to update voltage drop figures.

No crank, slow crank and stuck starter solenoid problems have the same root causes – low battery voltage and poor connections. For that reason, they are grouped together.
Use the same initial group of tests to find the root cause of slow crank, no crank and stuck solenoid problems.


Since some of the tests will bypass the safety interlocks, make sure that the car is in neutral and the parking brake is set. Becoming a pancake isn’t part of the repair process…

1.) Will the car start if it is jumped? Then clean battery terminals and check battery for low charge and dead cells. A good battery will measure 12-13 volts at full charge with the ignition switch in the Run position but without the engine running.
A voltmeter placed across the battery terminals should show a minimum of 9.5-10 volts when the ignition switch is turned to the Start position and the starter engages or tries to engage. Less than this will result in a clicking solenoid, or slow cranking (if it cranks at all) or a starter solenoid that sticks and welds the contacts together.

Most auto parts stores will check your battery for free. It does not have to be installed in the car to have it checked; you can carry it with you to the auto parts store.

The battery posts and inside of the battery post terminals should be scraped clean with a knife or battery post cleaner tool. This little trick will fix a surprising number of no start problems.

The clamp on with 2 bolts battery terminal ends are a known problem causer. Any place you see green on a copper wire is corrosion. Corrosion gets in the clamped joint and works its way up the wire under the insulation. Corroded connections do not conduct electricity well. Avoid them like the plague...

If the starter solenoid welds the contacts, then the starter will attempt to run anytime there is power in the battery. The cables and solenoid will get very hot, and may even start smoking. The temporary fix for a welded starter solenoid is to disconnect the battery and smack the back of the solenoid housing a sharp blow with a hammer. This may cause the contacts to unstick and work normally for a while.


A voltmeter is handy if you are familiar with how to use it to find bad connections. Measure the voltage drop across a connection while trying to start the car: more than .25 volts across a connection indicates a problem. The voltage drop tests need to be done while cranking the engine. It's the current flowing through a connection or wire that causes the voltage drop.

See http://assets.fluke.com/appnotes/automotive/beatbook.pdf for help for help troubleshooting voltage drops across connections and components. .



Voltage drops should not exceed the following:
200 mV Wire or cable
300 mV Switch or solenoid
100 mV Ground
0.0V Connections
A voltage drop lower that spec is always acceptable.

2.) Check the battery to engine block ground down near the oil filter, and the ground behind the engine to the firewall. All grounds should be clean and shiny. Use some sandpaper to clean them up.

3.) Jump the big terminals on the starter solenoid next to the battery with a screwdriver - watch out for the sparks! If the engine cranks, the starter and power wiring is good. The starter relay is also known as a starter solenoid.

The rest of the tech note only concerns no crank problems. If your problem was a stuck solenoid, go back to step 1.

4.) Then pull the small push on connector (small red/blue wire) off the starter solenoid (Looks like it is stuck on a screw). Then jump between the screw and the terminal that is connected to the battery. If it cranks, the relay is good and your problem is in the rest of the circuit.

5.) Remember to check the ignition switch, neutral safety switch on auto trans and the clutch safety switch on manual trans cars. If they are good, then you have wiring problems.

Typical start circuit...
Diagram courtesy of Tmoss & Stang&2birds


6.) Pull the starter and take it to AutoZone or Pep Boys and have them test it. Starter fails test, then replace it. If you got this far, the starter is probably bad.


Starter solenoid wiring for 86-91 Mustang



Starter solenoid wiring 92-93 Mustang or earlier Mustang with upgraded high torque mini starter.
[


Electrical checks for the switches and starter solenoid

Remove the small red/blue wire from the starter solenoid. Use a screwdriver to bridge the connection from the battery positive connection on the starter solenoid to the small screw where the red/blue wire was connected. The starter should crank the engine. If it does not, the starter solenoid is defective or the battery lacks sufficient charge to crank the engine.

If the starter does crank the engine, the problem is in the clutch safety circuit (5 speed) or Neutral Sense Switch (auto trans) or ignition switch.


See the Typical start circuit diagram above for wiring information for troubleshooting.

You will need a voltmeter or test lamp for the rest of the checks. Connect one lead of the voltmeter or test lamp to ground. The other lead will connect to the item under test.
Look for 12 volts on the white/pink wire when the ignition switch is turned to the Start position. Check the ignition switch first.
No 12 volts, replace the ignition switch.

The next step will require you to push the clutch pedal to the floor (5 speed) or put the transmission in neutral (auto trans) while the ignition switch is turned to the Start position.
Good 12 volts, check the clutch safety switch (5 speed) or Neutral Sense Switch (auto trans) for good 12 volts on both sides of the switches. No 12 volts on both sides of the switch and the switches are defective or out of adjustment. Check the wiring for bad connections while you are at it.
I completely read that entire post but my condition right now is..
I installed a new starter and wires it up with new wires(not new ground) I jump the silonoid because it won’t even try to from the key not even silonoid click.
It tries and sounds like it will but I does.
It was also a manual car- changed to automatic and hasn’t been started since the swap(I didn’t do the swap)
And when I connect the battery I hear the starter engage and if I try to start it then leave the battery cable on and let it sit there for like 30secs after trying the start starts to smoke a little until I take the cable off. The key turns the car all the way over except key start,turn over position like doesn’t even click. What could this be because the clutch safety switch is twisted together as a bypass but I also don’t even know about nitural sensor switch or whatever that’s called I thought it was nutrual safety switch.


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
26,735
2,497
224
73
Dublin GA
How many of the tests did you actually do?
Which tests did you skip because you didn't understand the process or it looked like too much work?
