Fox 24lb Injectors W/ Stock Maf And Eec??

turboneil

New Member
Nov 24, 2014
9
0
1
32
hi everyone,

I recently bought a 89 5.0 and I wasn't told the car had 24lb injectors or a upgraded maf.. so the question is I looked and found that I have a stock maf with 24lb injectors.. is there any way to find out if I have a 93 cobra eec? the car runs great and I don't notice any richness while driving. no sputtering or misfiring.

  • Sponsors(?)


hoopty5.0

mechanicus terribilis
Mod Dude
Dec 14, 2010
7,203
6,031
204
SW Houston

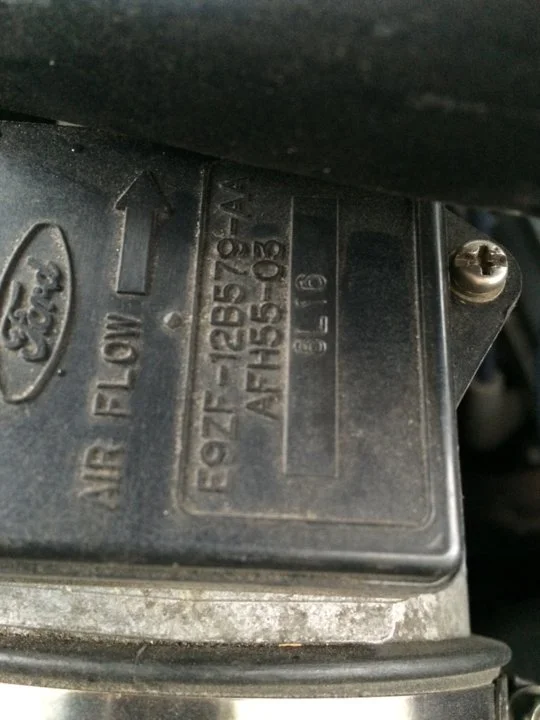

Post a pic of the MAF, if you can. If they were mis-matched, you'd know for sure. The car would not run as well as yo say it does. Can't see the chip in that pic, either.


turboneil

New Member
Nov 24, 2014
9
0
1
32

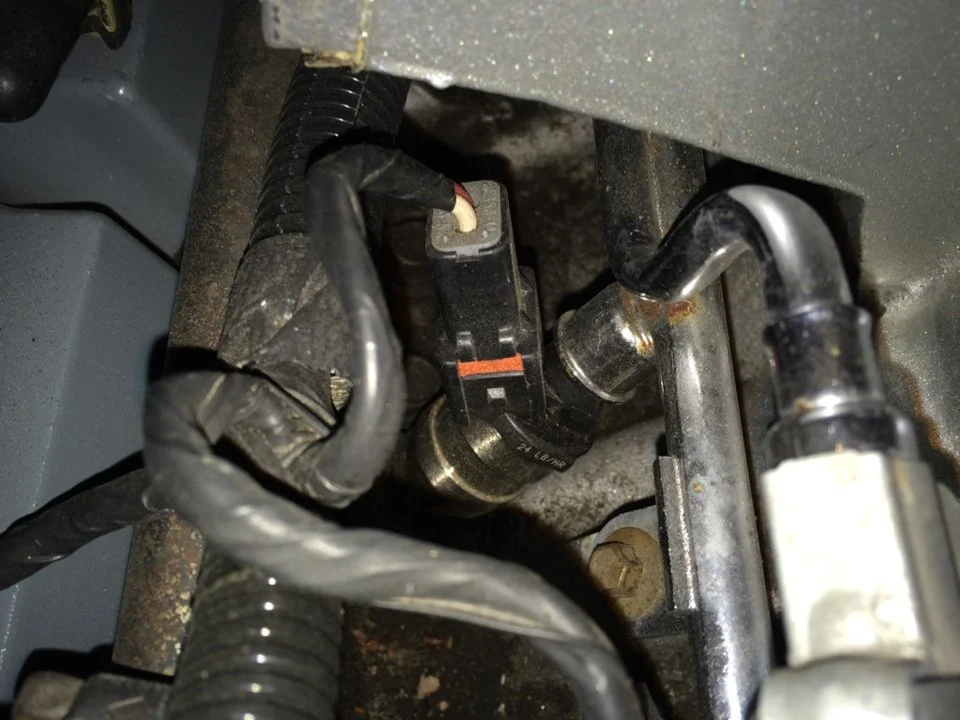

It looks like a stock maf. But on the injectors they are chrome/silver with black tops saying 24/lbs car idles fine and doesn't show any signs of richness. (Black smoke/ unburnt fuel) no stuttering.


tca7291

I can see your wieners.
5 Year Member
Sep 1, 2011
1,802
151
143
Raleigh, NC

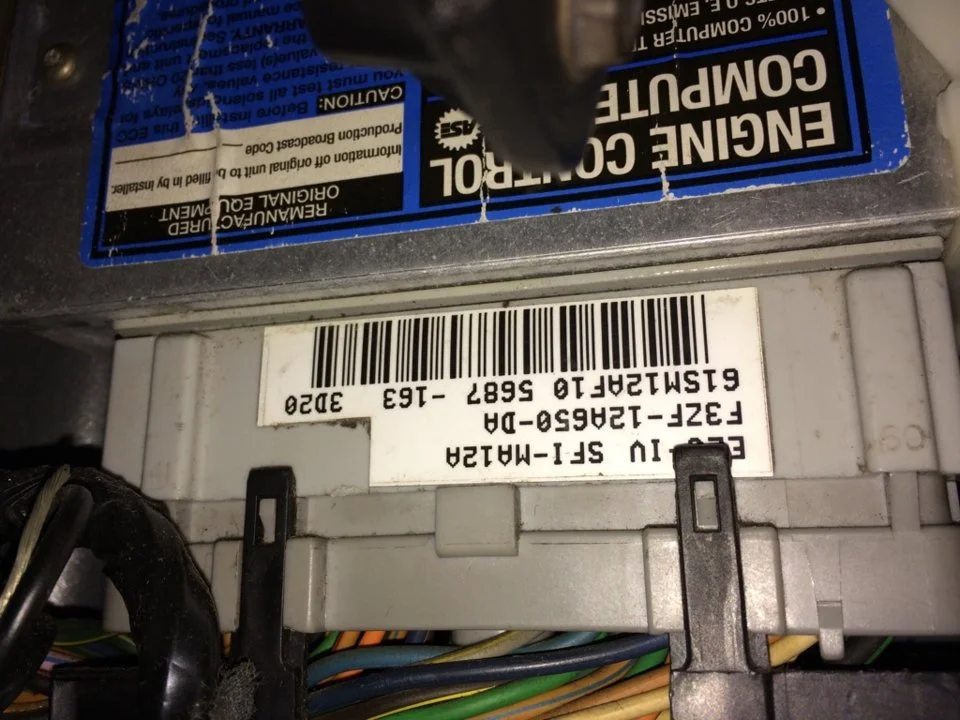

Reman stock ecu, and maf (at least the sensor), for #19 injectors. Have you checked to see if you have a chip plugged into the back of the ecu?


turboneil

New Member
Nov 24, 2014
9
0
1
32
Not yet I pulled the kick panel off and just looked at it. So if I pull it out I can tell if it's been chipped?


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,210
2,726
234
74
Dublin GA
lowendmac.com
Diagrams courtesy of Tmoss & Stang&2birds

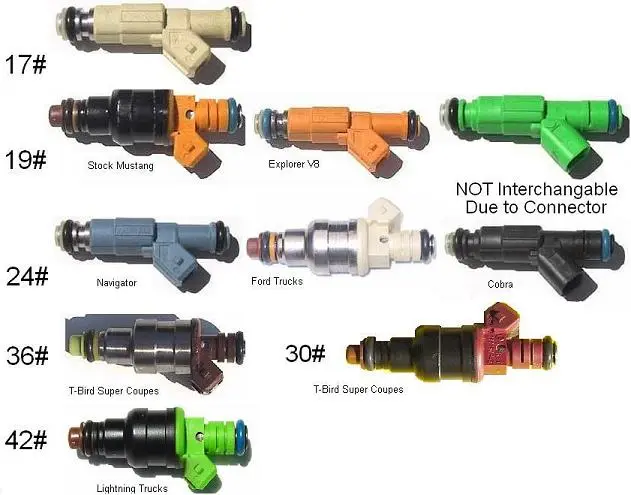

Visual comparison of the Ford Fuel Injectors, picture by TMoss:


See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring http://www.veryuseful.com/mustang/tech/engine/ Everyone should bookmark this site.

Complete computer, actuator & sensor wiring diagram for 91-93 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/91-93_5.0_EEC_Wiring_Diagram.gif

Complete computer, actuator & sensor wiring diagram for 88-91 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

Fuel, alternator, A/C and ignition wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

O2 sensor wiring harness
http://www.veryuseful.com/mustang/tech/engine/images/mustangO2Harness.gif

Vacuum diagram 89-93 Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg

HVAC vacuum diagram
http://www.veryuseful.com/mustang/tech/engine/images/Mustang_AC_heat_vacuum_controls.gif

TFI module differences & pin out
http://www.veryuseful.com/mustang/tech/engine/images/TFI_5.0_comparison.gif

Fuse box layout
http://www.veryuseful.com/mustang/tech/engine/images/MustangFuseBox.gif

87-92 power window wiring
http://www.veryuseful.com/mustang/tech/engine/images/mustang87-92 PowerWindowWiring.gif

93 power window wiring
http://www.veryuseful.com/mustang/tech/engine/images/mustang93PowerWindows.gif

T5 Cutaway showing T5 internal parts
http://www.veryuseful.com/mustang/tech/engine/images/5_Speed_Cutaway_Illustrated.jpg

Visual comparison of the Ford Fuel Injectors, picture by TMoss:
http://www.veryuseful.com/mustang/tech/engine/images/Ford_Injector_Guide.jpg


Attachments

turboneil

New Member
Nov 24, 2014
9
0
1
32
Thanks for the links!
also I called a strictly mustang performance shop about my situation. Told me not to worry about it until it shows symptoms of excessive fuel.
