408W shortblock never installed

Status
Not open for further replies.
I believe its a '74 351W block. The block has been machined (line boring, magnaflux, align honing, assembly, decking, boiling/cleaning/painting the block)
The following parts have been installed:
Probe Ford 408W Dish Top -33.8cc - SRS Piston Set
Scat 4340 Forged Crank (Internally Balanced)
Probe Connecting Rods
Probe Dish Pistons
Rod Bearings
Main Bearings

Specs on the Comp Cams Magnum Hydraulic Roller Cam installed:
Cam Style: Hydraulic roller tappet
Basic Operating RPM Range: 3,000-6,500
Intake Duration at 050 inch Lift: 230
Exhaust Duration at 050 inch Lift: 230
Duration at 050 inch Lift: 230 int./230 exh.
Advertised Intake Duration: 286
Advertised Exhaust Duration: 286
Advertised Duration: 286 int./286 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.598 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.598 in.
Valve Lift with Factory Rocker Arm Ratio: 0.598 int./0.598 exh. lift
Lobe Separation (degrees): 110
Intake Valve Lash: 0.000 in.
Exhaust Valve Lash 0.000 in.

I received the shortblock in a trade for my cobra. I would love to keep it and put it in my GT but I just don't have the time/money.
I have receipts for the build and parts.

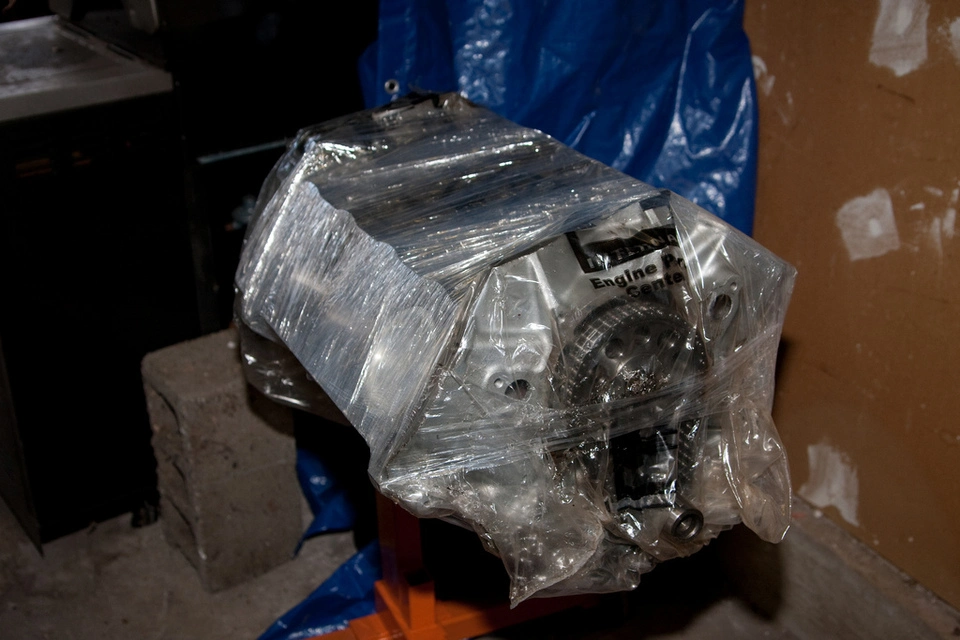

block is shrink wrapped and sitting on an engine stand in the garage.

$2250 shipped truck freight

  • Sponsors (?)


Hi, Newbe here, Would this fit my 1996 Ford Mustang GT 4.6?
I have a superCharger on it and the SCT 4 Bank Chip.

If i could put this in my car, what would it need??
What is the Motor HP rated for?

Thanks.

It would take alot of work to put this in your 96. Completely different style of engine and alot of wiring and suspension mods to make it work.

If you had a 94-95, would be much easier, although still not that easy.

Hope that helps

OP- Good luck with the sale, looks like a nice set up
