So I started the 5 Lug swap journey this morning . I have an issue . Axles in with NRC brackets the caliper bracket is not even close to centered . I loosens up one side to show how much it has to come over . What do you guys thing ? Axles not in all the way ? Maybe moser didn't machine the stubs enough to sit all the way in ?

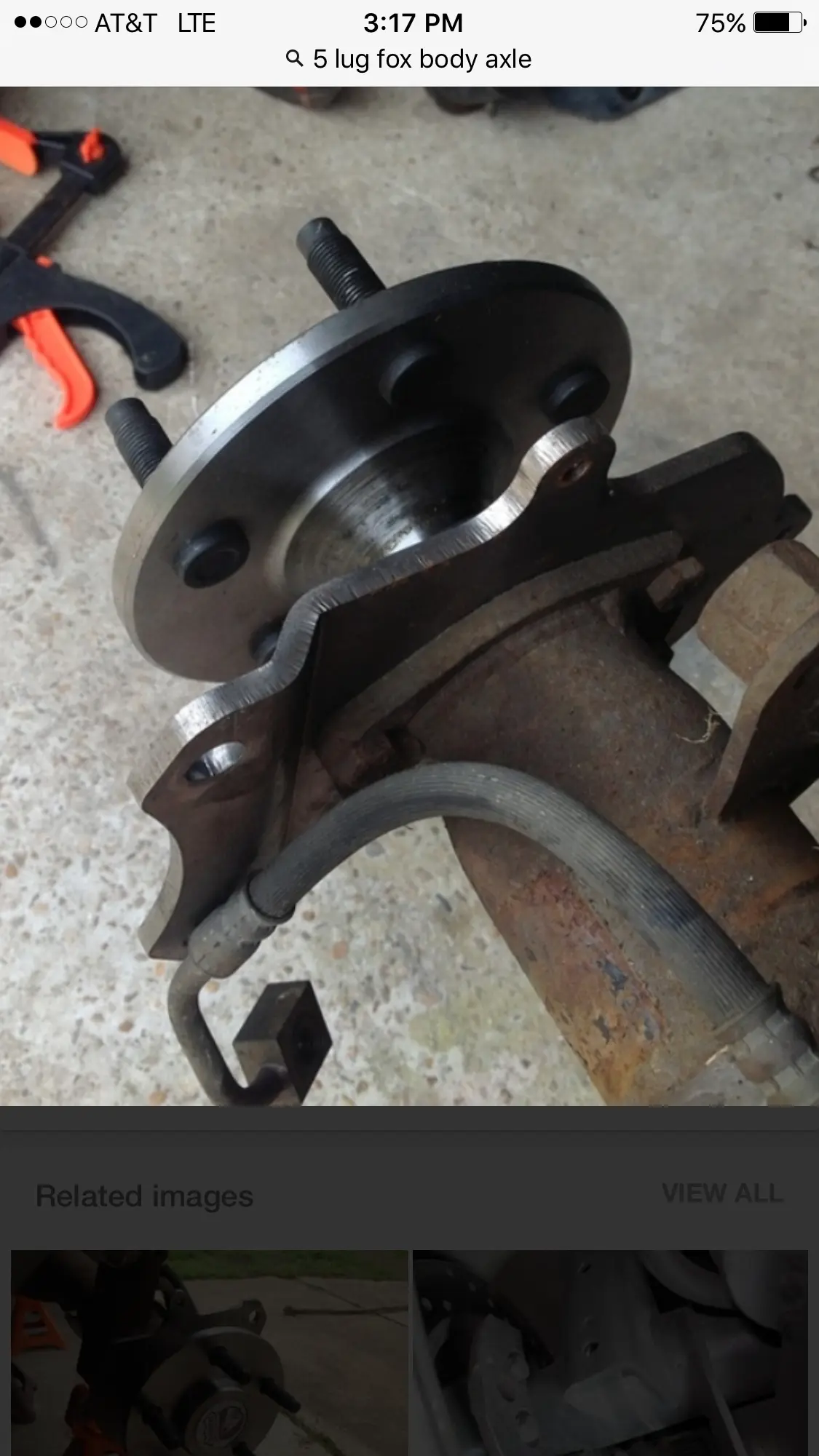

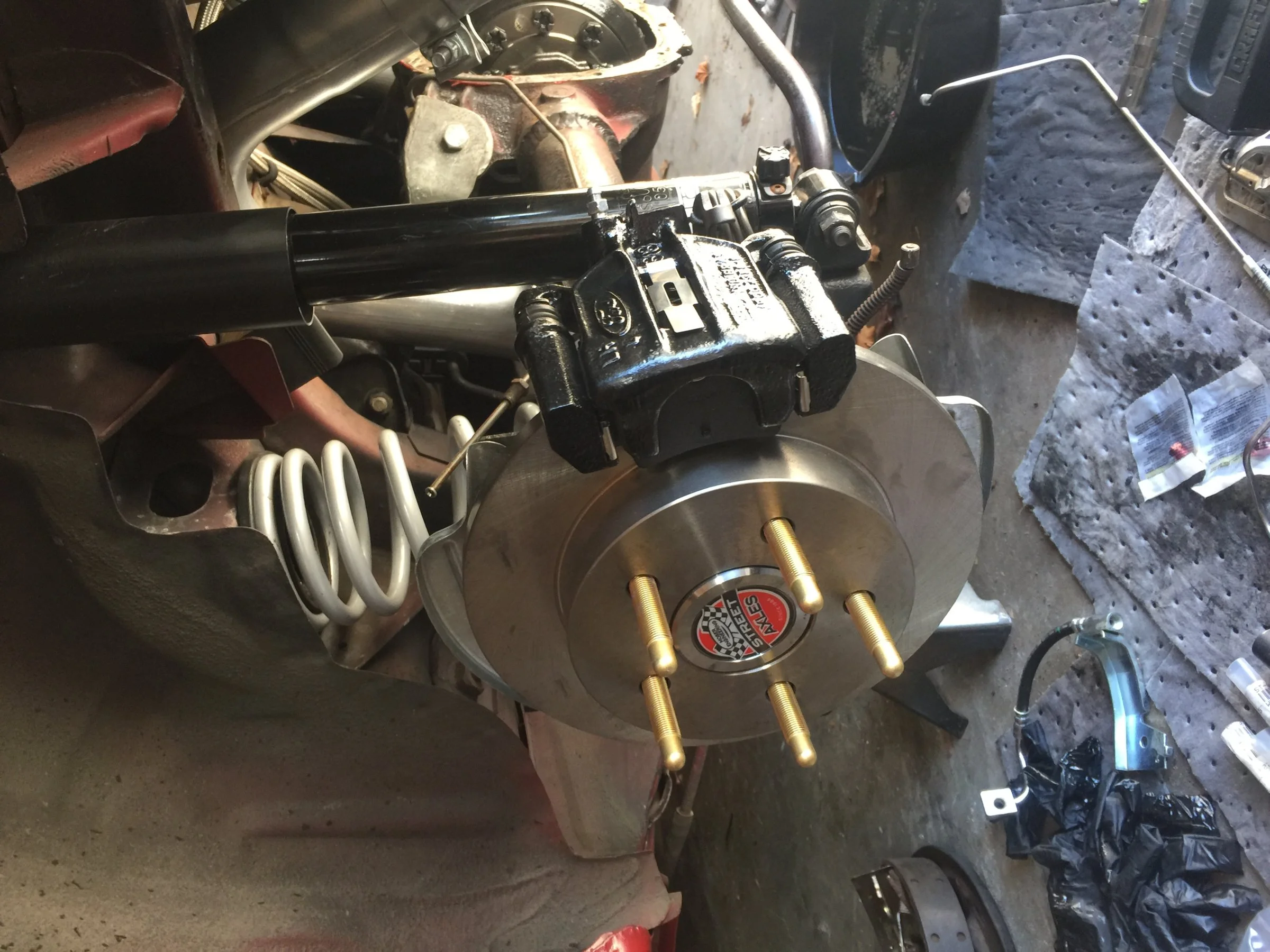

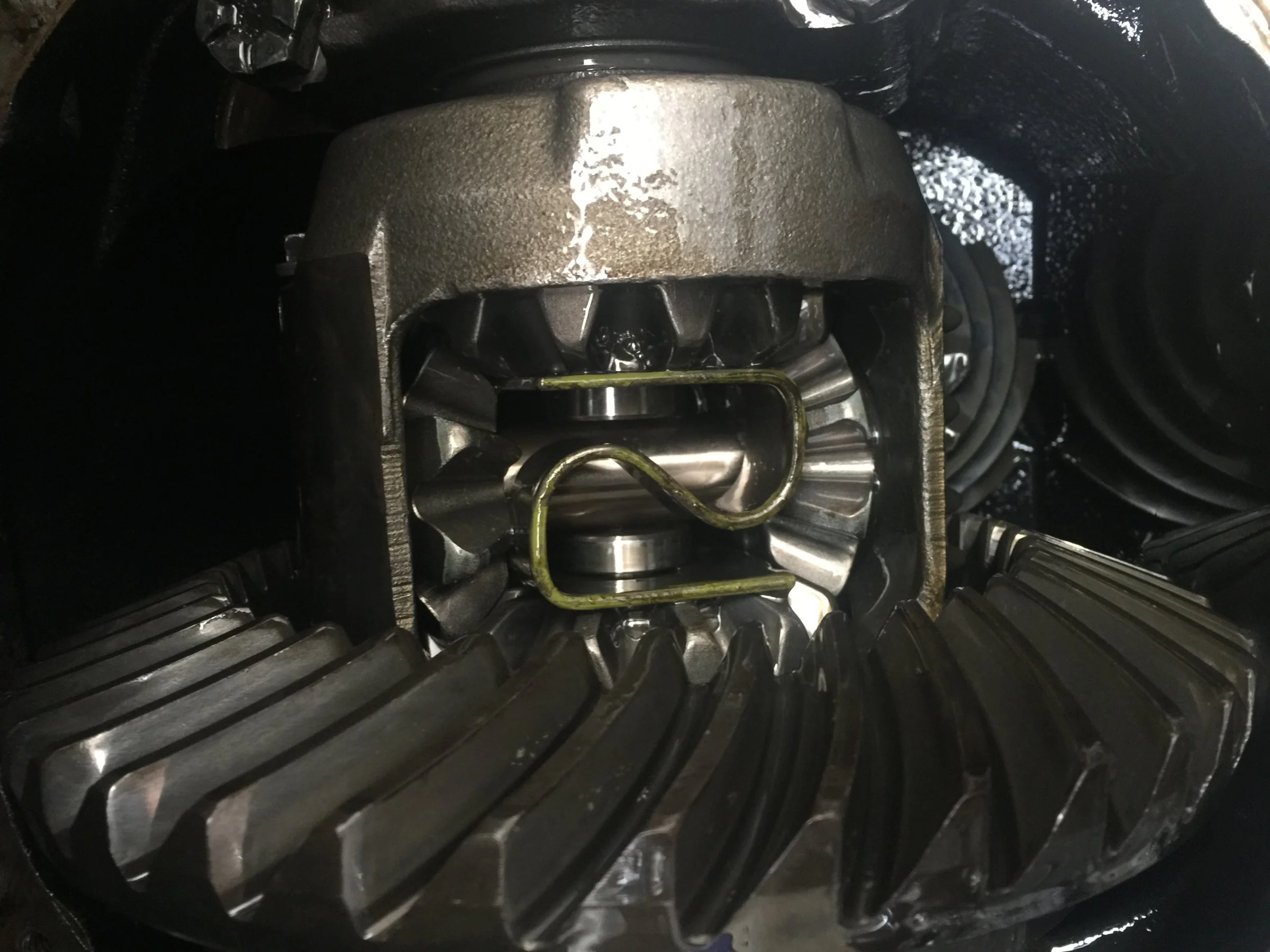

First pic shows how far the axle is still out with the c clips and pin in the diff .

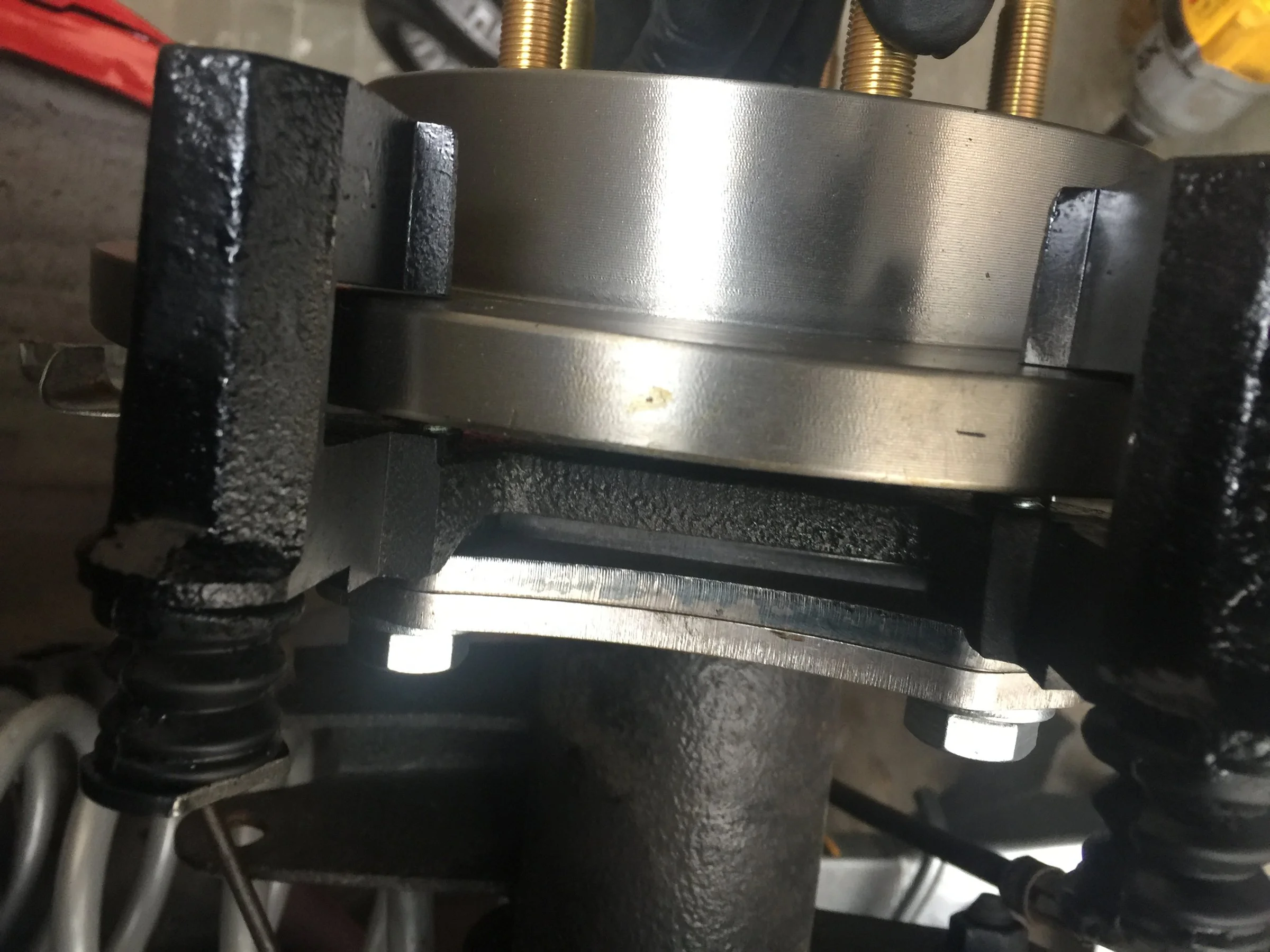

Next is with the bracket right showing how off it is . Last pic how much Id need to space it to center it .

What do we think is the issue here ?

  • Sponsors(?)


TOOLOW91

If you're the village idiot what's that make me?
15 Year Member
Nov 29, 1999
6,977
6,636
234
S.I.NY
Here is the picture with the bracket tightened all the way up showing how off it would be .

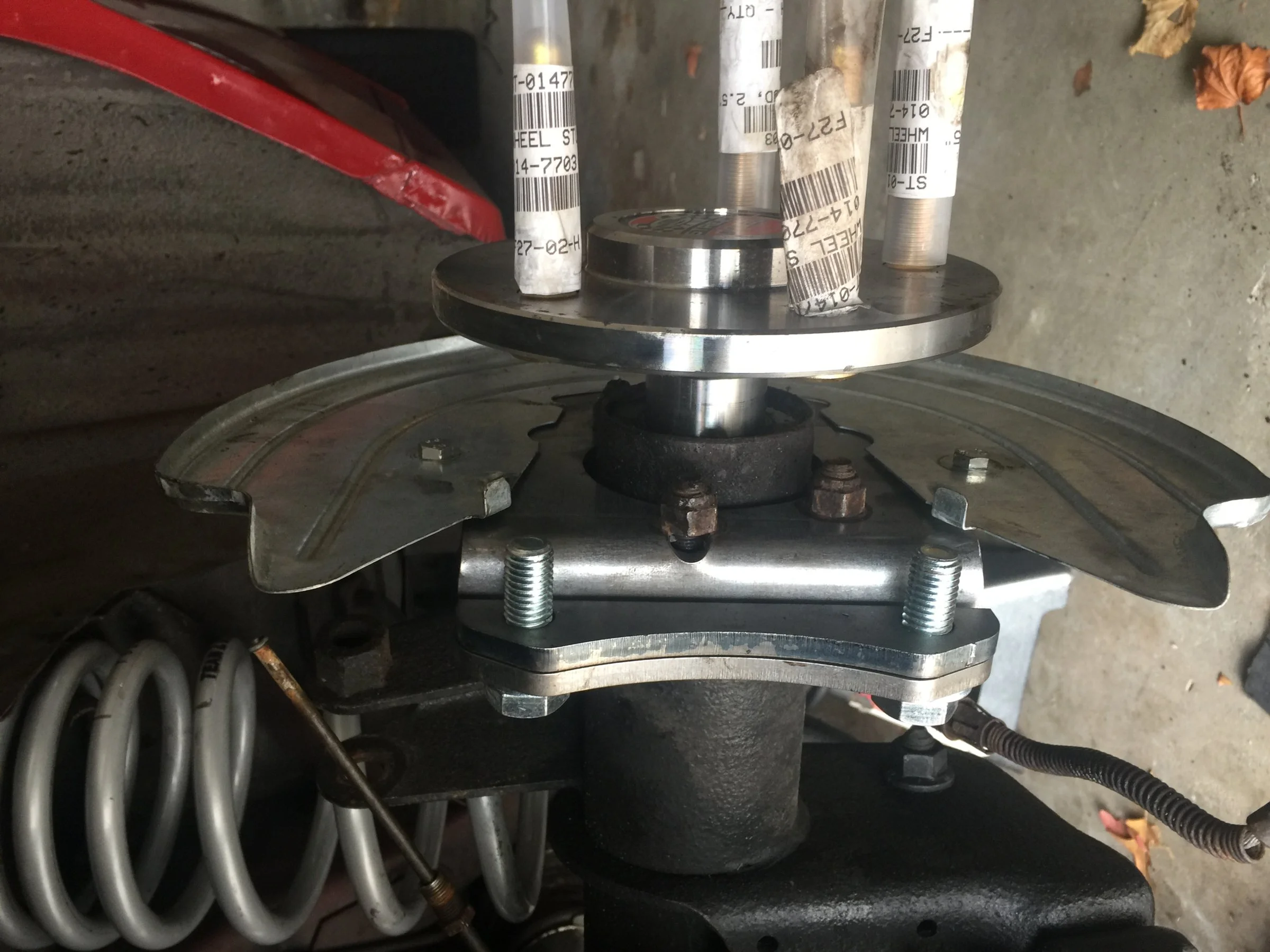

And one of the rear showing the axles in all the way .

Sorry all the pics are turned they show Straight on my phone .
