Well, it is a generalization honestly, but true enough as a rule of thumb depending on pump flow and engine VE...just less work for the regulator to do, so it will last longer.

  • Sponsors(?)


kevbot

Member
Mar 29, 2020
39
23
18
31
Fargo
Got my brake and fuel lines in the mail.
Ordered the Modern driveline clutch master cylinder kit and will start looking at building the slave side of things myself.

I did start tearing the motor down.

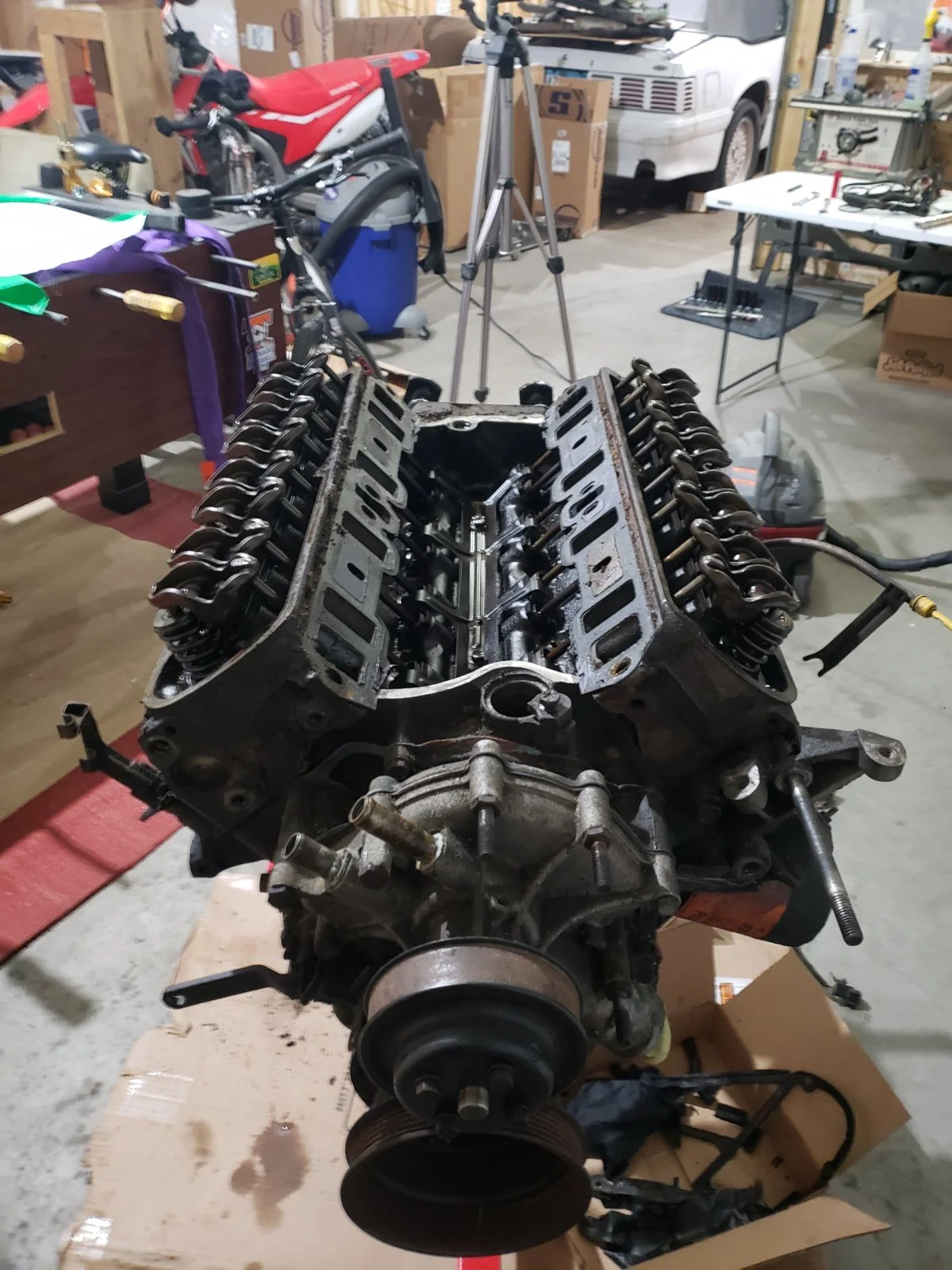

5.0 teardown.jpg

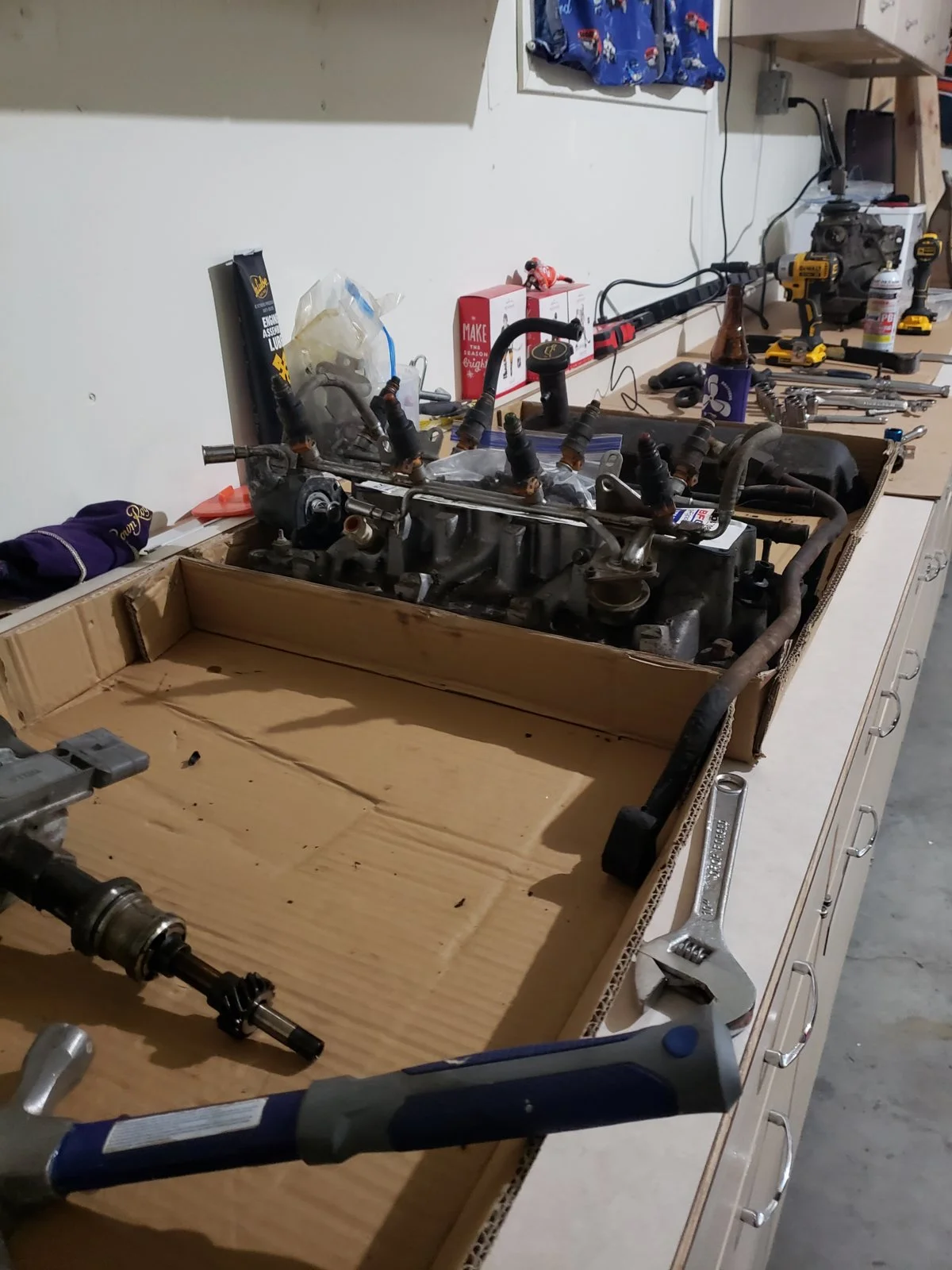

5.0 teardown1.jpg

  • Like
Reactions: 1 user

kevbot

Member
Mar 29, 2020
39
23
18
31
Fargo

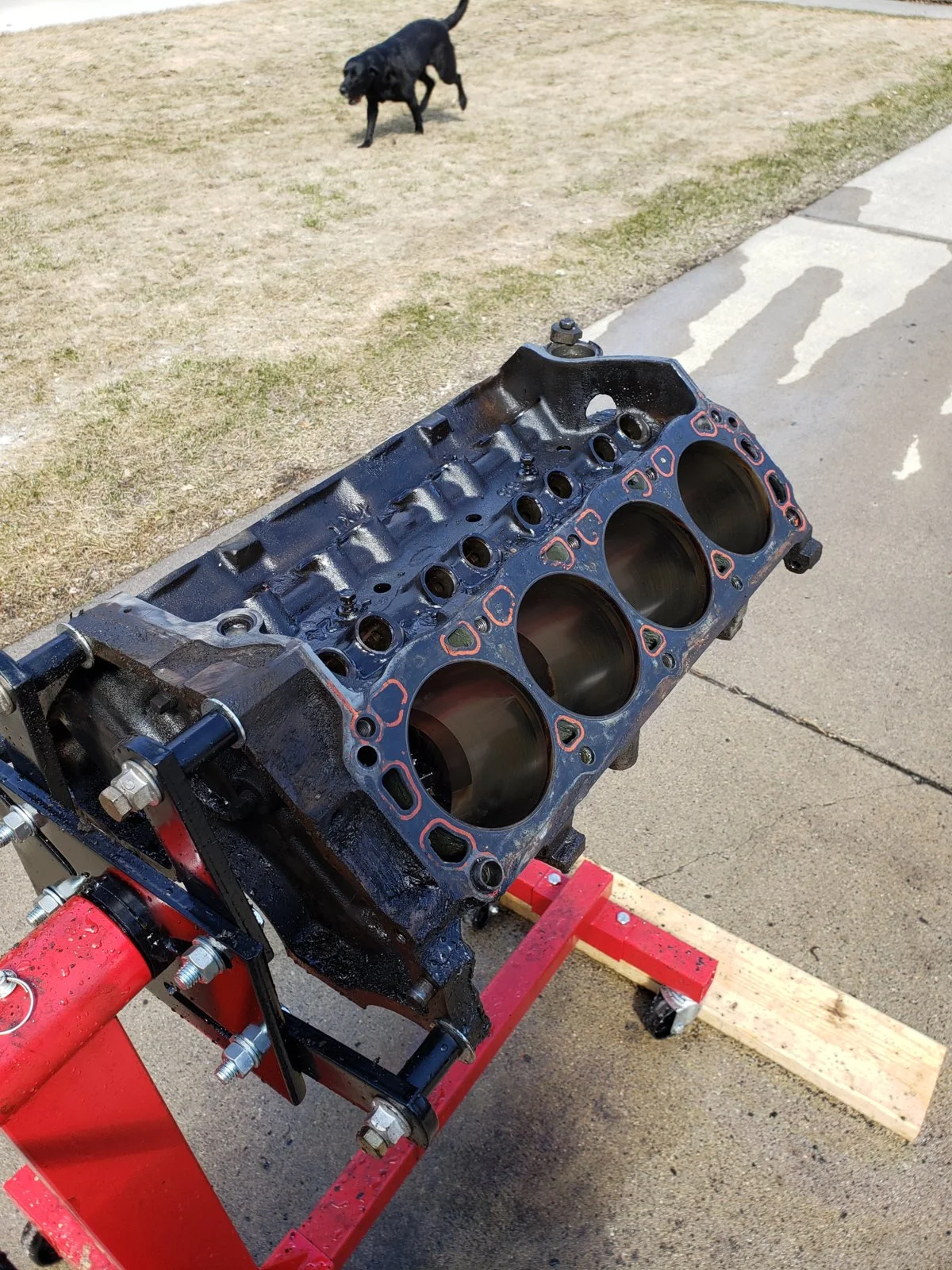

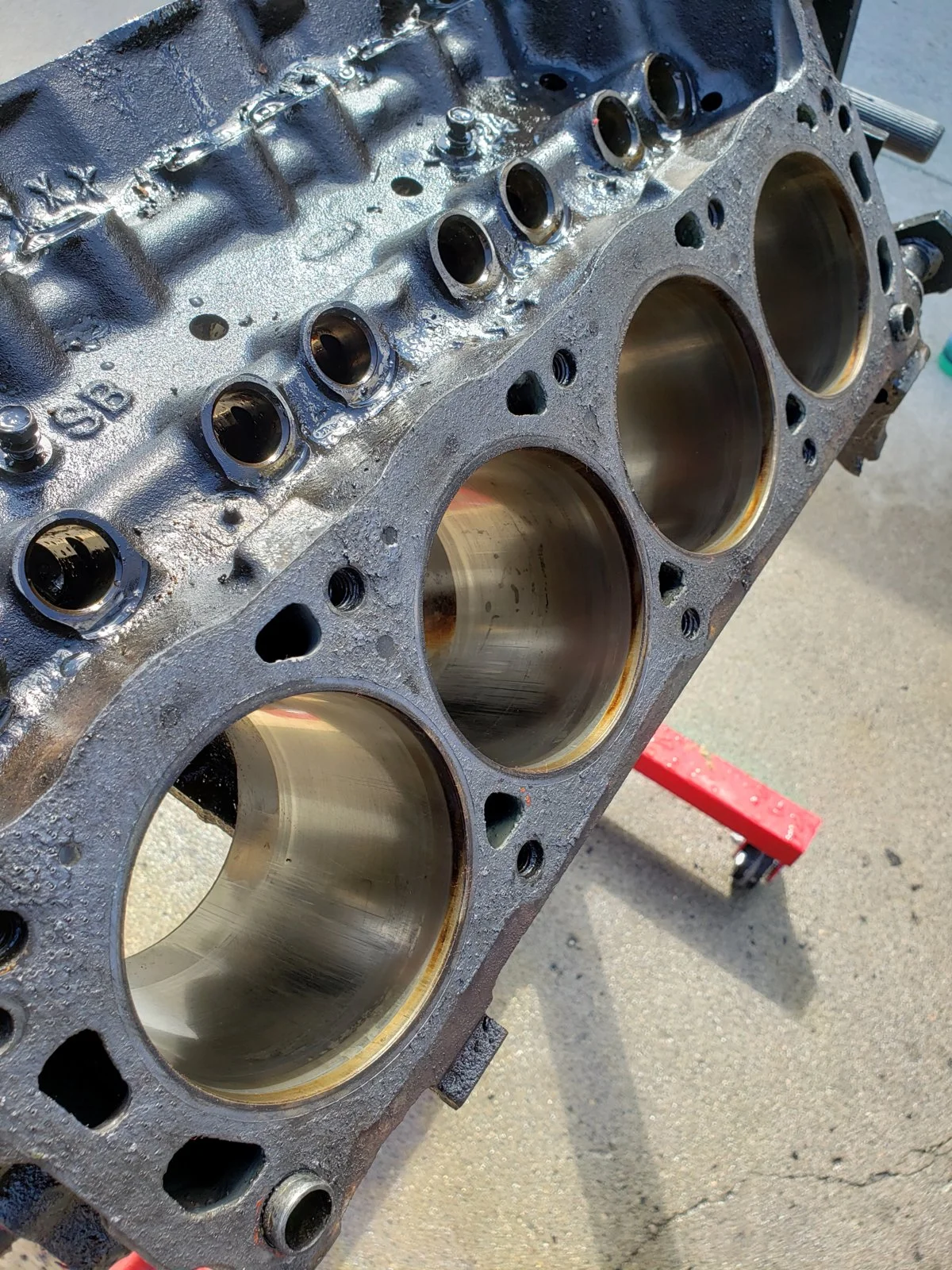

I was just planning on rings, bearings, and gaskets but I am not sure about these cylinder walls. How do you all think they look?
I will try and get better pictures tonight.



wicked93gs

10 Year Member
Sep 30, 2006
1,106
179
93
Nashville TN
Those walls look like they need a hone at the very least....maybe even boring, but you would have to put a telescoping gauge in there and mic it to know for sure, either way the machine shop just became involved....start looking at pistons, if you end up boring you might as well bump the compression a touch...SBF pistons are cheap enough after all


kevbot

Member
Mar 29, 2020
39
23
18
31
Fargo
Dropped the block off at the machine shop and they are going to check the clearance and see if I can get away with a hone, if not they will give it a bore.

Last edited:
  • Like
Reactions: 1 user

kevbot

Member
Mar 29, 2020
39
23
18
31
Fargo
Block is still at the machine shop so I started working on the brake lines, fuel lines, clutch, and steering rack. Bending lines is very tedious and time consuming, plus making the template takes awhile as well!

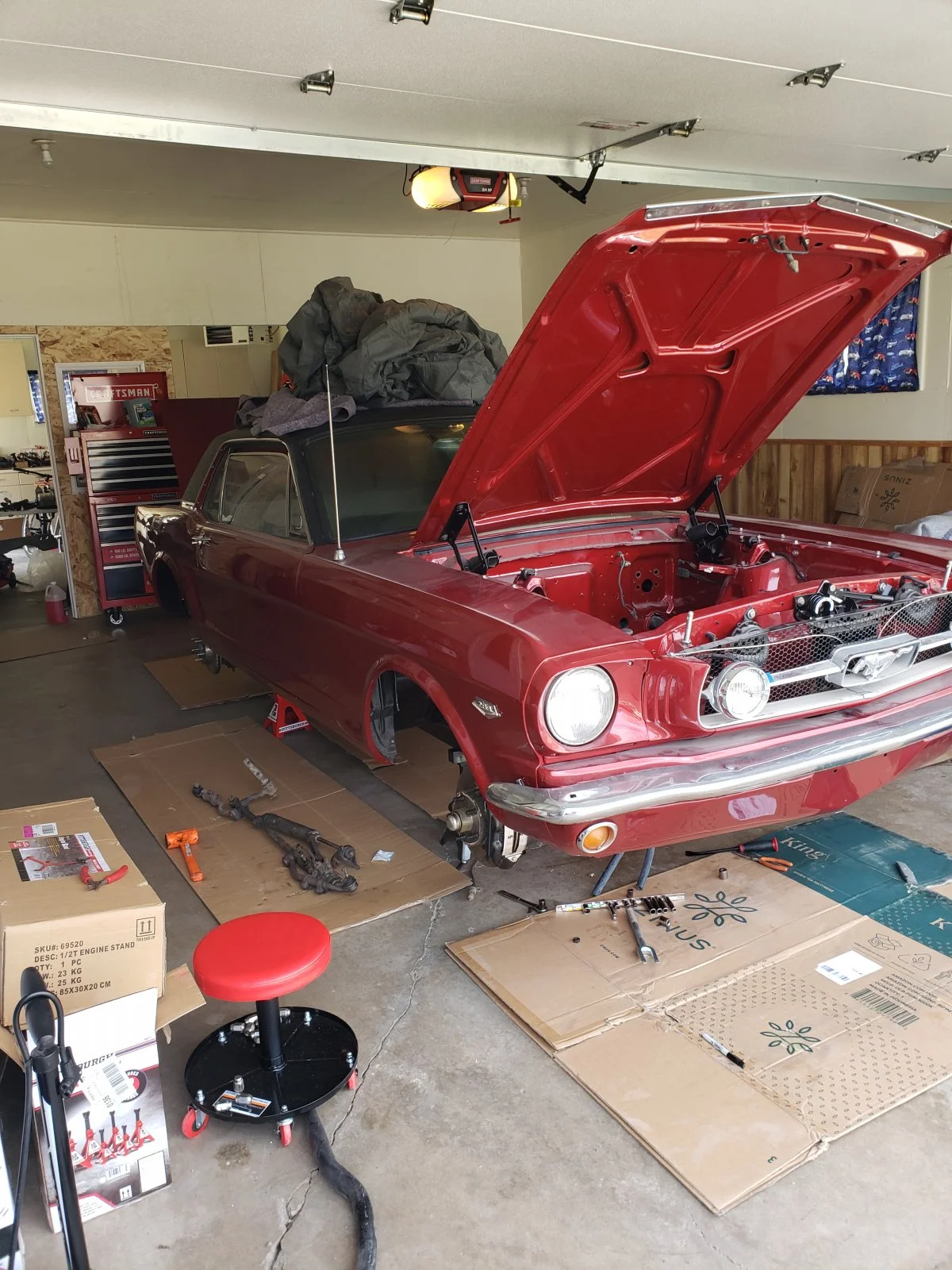

stands 1.jpg


Ignore the messy garage, finally got the foxbody out and am going to start cleaning up.

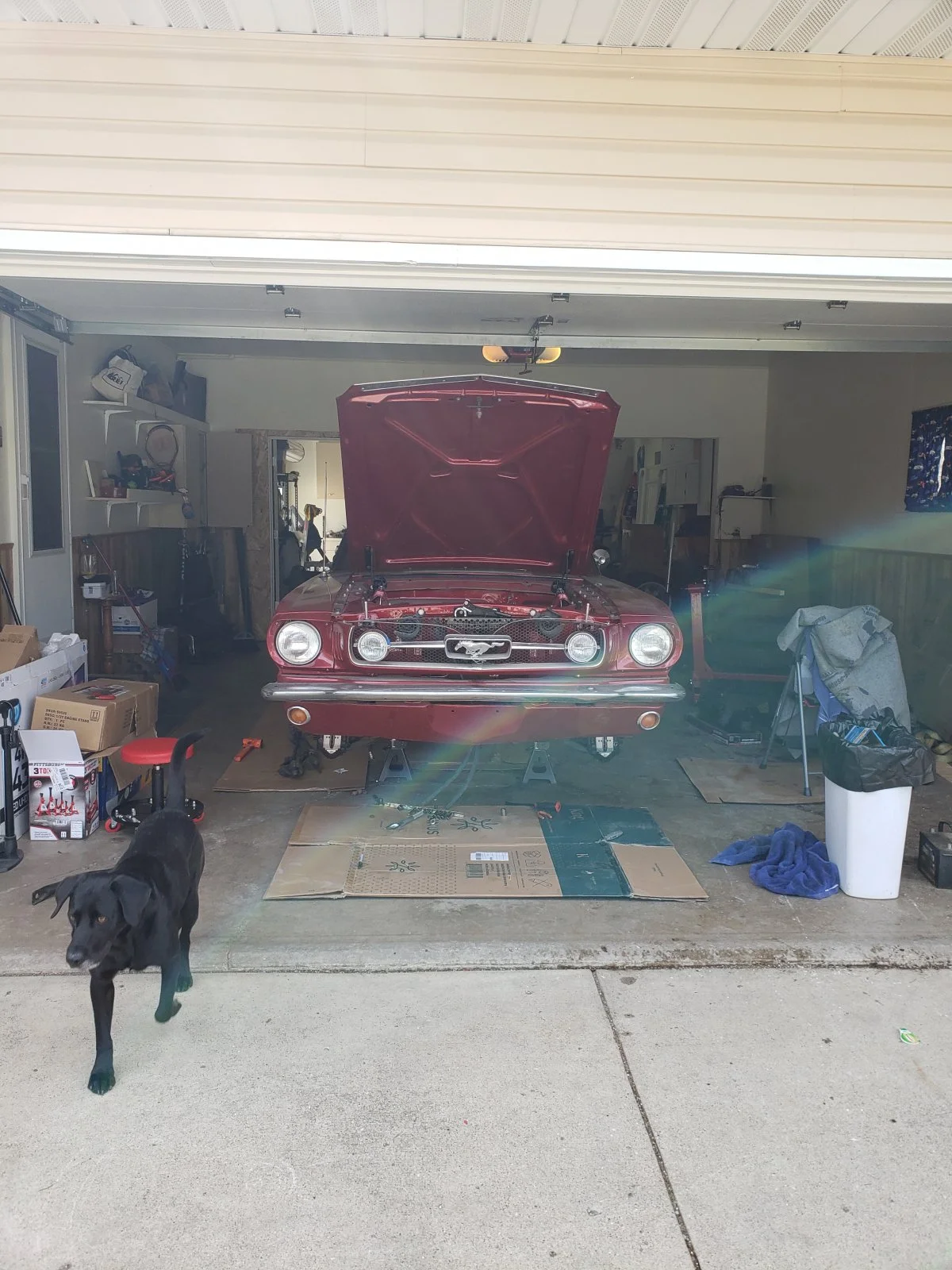

stands 2.jpg


Had to throw a wheel on :)

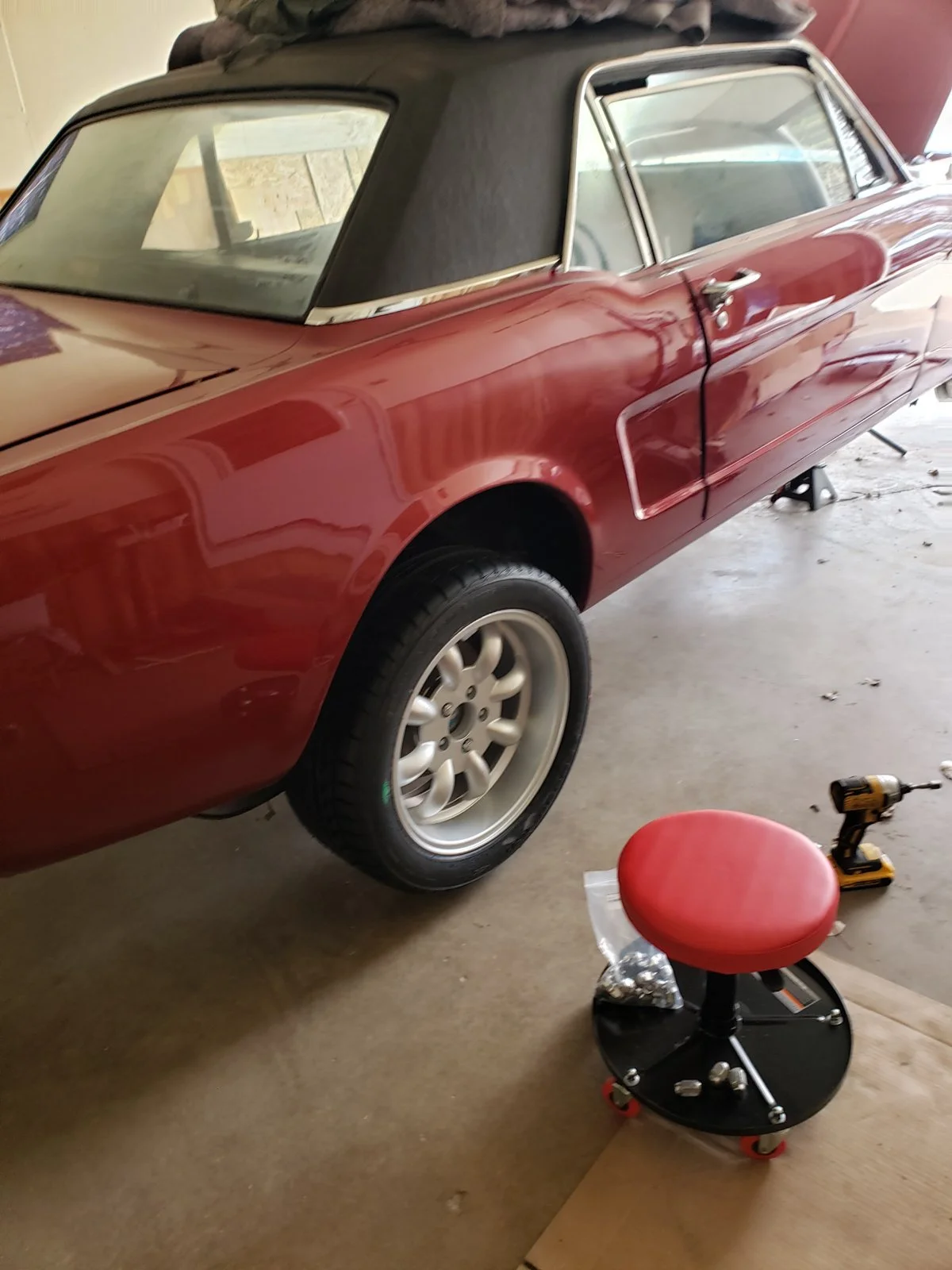

stands 3.jpg

  • Like
Reactions: 2 users

kevbot

Member
Mar 29, 2020
39
23
18
31
Fargo
Also when I got the wheels off I noticed that the car is missing the rear passenger caliper and I cant find it anywhere! :fuss:


kevbot

Member
Mar 29, 2020
39
23
18
31
Fargo
Just heard back from the machine shop and they said it looks like the block has already been honed out once and it also has a broken tab where it connects to the bellhousing, I dont remember it having a broken tab so I am not sure on that one.


kevbot

Member
Mar 29, 2020
39
23
18
31
Fargo
Might be worth a craigslist or facebook marketplace search for another block...302 blocks are pretty cheap usually

Already doing so, wish I would've done more research before making the Fox GT purchase and just went with a explorer.


kevbot

Member
Mar 29, 2020
39
23
18
31
Fargo
Found a whole explorer or around that price that I might jump on. I already pulled a gt40 upper and lower intake from a JY, but the heads were 40p's and I didnt want to mess with header issues.

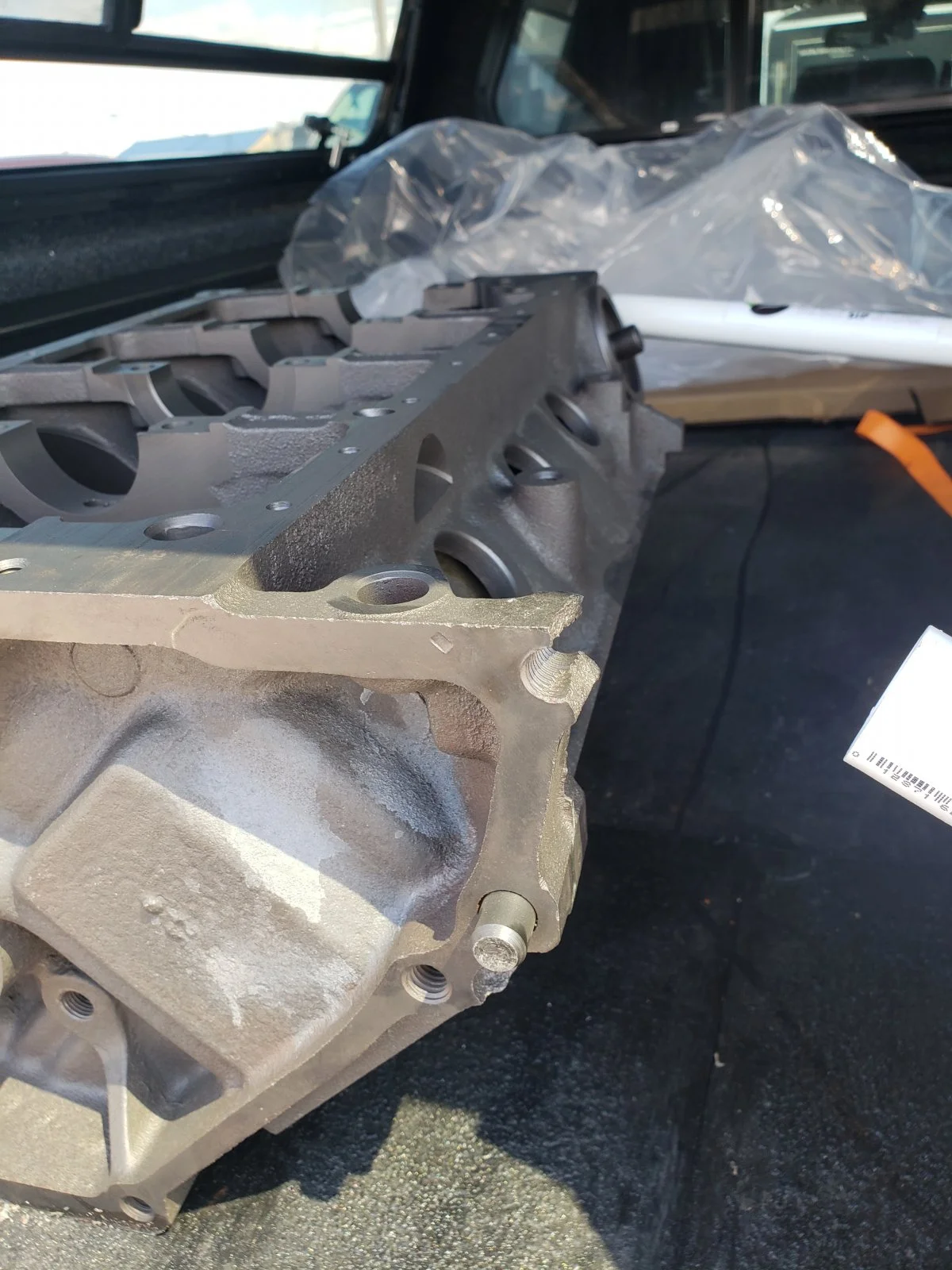

Here is the broken tab, doesn't look to terrible.

  • Sad
Reactions: 1 user

kevbot

Member
Mar 29, 2020
39
23
18
31
Fargo
Plan is to pickup a 96 explorer this weekend and then get it to the scrap yard before my neighbors start calling me the trash collector

  • Like
Reactions: 1 user

wicked93gs

10 Year Member
Sep 30, 2006
1,106
179
93
Nashville TN
They make header specifically for GT40P heads in a classic mustang, but many non-specific headers fit too...either way, def worth the extra power the heads bring to deal with finding headers that work(or even making your own). The block does look repairable for anyone with some experience welding cast iron...chances are that its not even critical anyway...but a better block to start with is certainly a better option.


2Blue2

will be trying this sex one when I can find it
Mod Dude
Mar 5, 2019
3,041
2,007
143
54
Oahu
wasn't the engine stand just bolted to that hole a couple of pics ago?

still sucks, bring on the exploder

  • Like
Reactions: 1 users

kevbot

Member
Mar 29, 2020
39
23
18
31
Fargo
They make header specifically for GT40P heads in a classic mustang, but many non-specific headers fit too...either way, def worth the extra power the heads bring to deal with finding headers that work(or even making your own). The block does look repairable for anyone with some experience welding cast iron...chances are that its not even critical anyway...but a better block to start with is certainly a better option.

I was thinking the same that it was not critical and I probably could get by either getting it welded or drilling it out and using a longer bolt, metal plate, and a nut. The explorer is $500 so I might as well pull the motor and then drop it off at the JY and get $100 back.

wasn't the engine stand just bolted to that hole a couple of pics ago?

still sucks, bring on the exploder

It was but that was on the other side in the pics, unfortunately I didn't document the pictures very well. Could have broke at the machine shop or when we loaded it.


General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
20,142
6,804
203
polk county florida
I think the exploder 8.8 is a 31 spline carrier, if so I would keep that or sell it to recoup some cash. Just think'n.
