92 LX 5..0 radio wiring

elmo77166

New Member
Apr 17, 2021
6
0
1
67
Irwin, PA

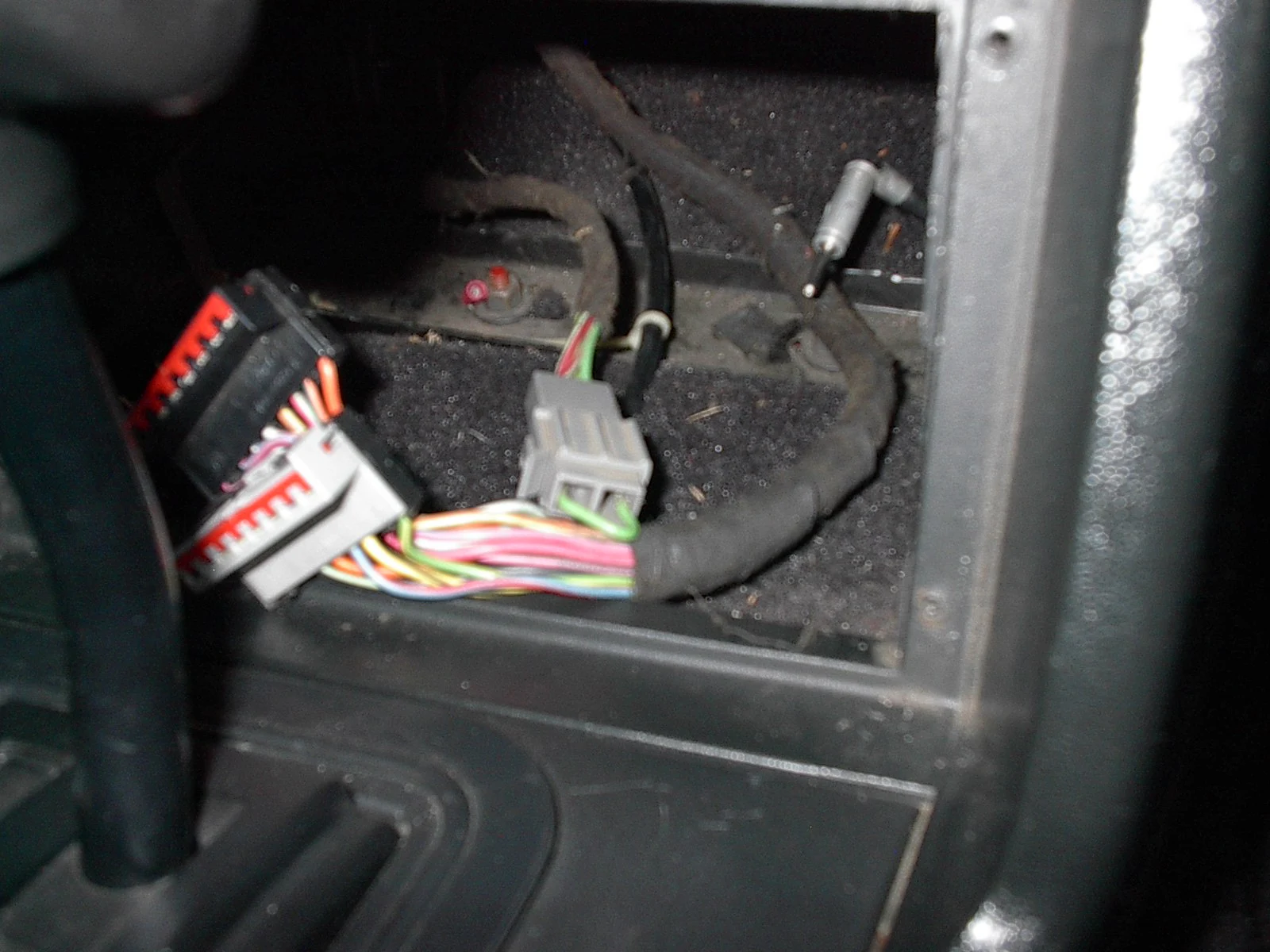

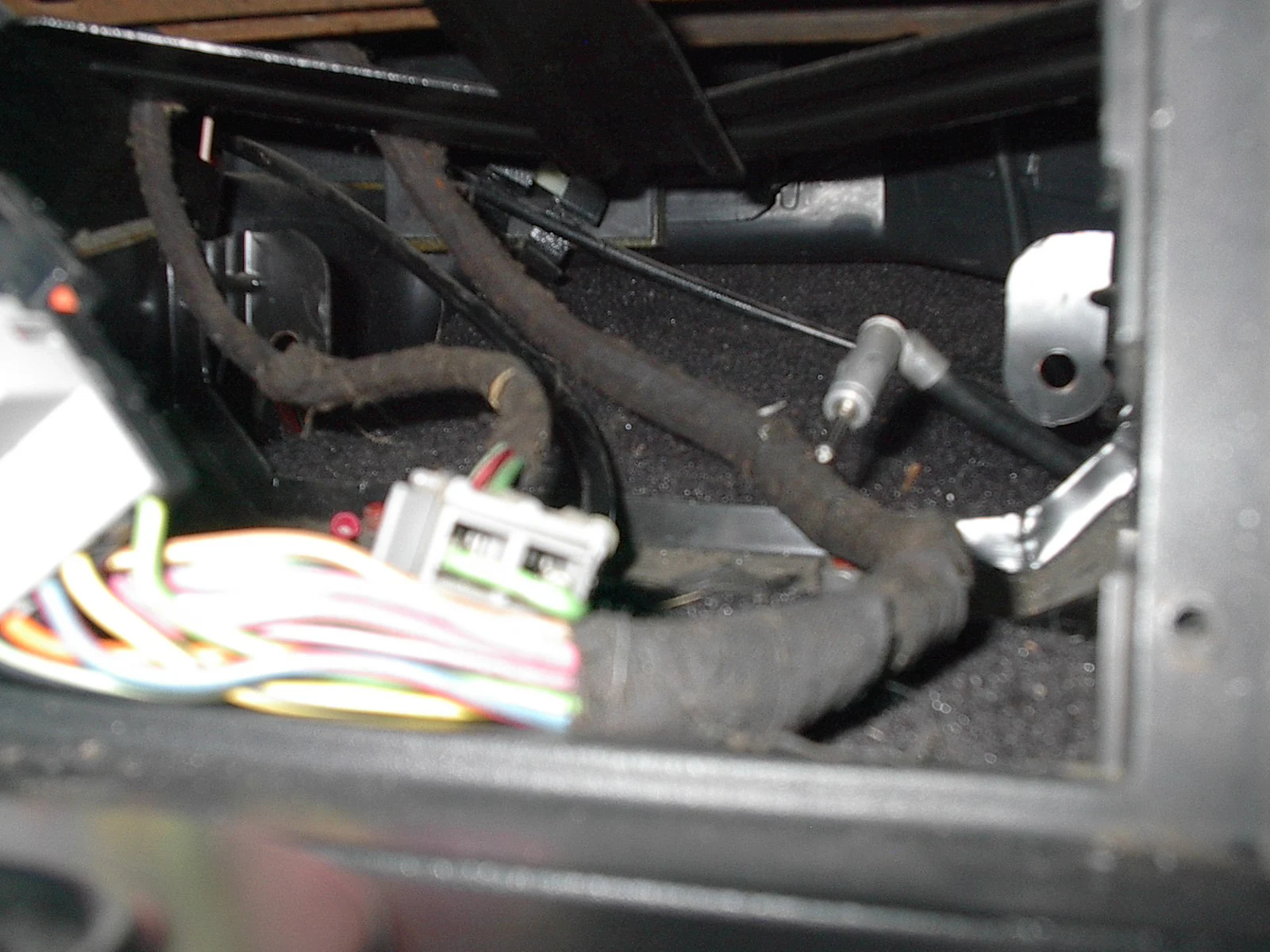

I need some help figuring out what factory radio was in my car There is a aftermarket but I want to go back to a factory Radio These are the wire's in the radio cavity. I do have 6 speakers bot It looks like no amp was every installed. Any ideas on which direction to go and what radio to look for. Thanks


Attachments

  • IM001067.JPG
    309.1 KB · Views: 20
  • IM001068.JPG
    303.7 KB · Views: 19
  • Sponsors(?)


Mustang5L5

Put lubricant all over the balls
Mod Dude
Feb 18, 2001
36,522
12,470
224
Massachusetts
You'll need the amplifier, the amp harness and the headunit, which was specific to 87-92.

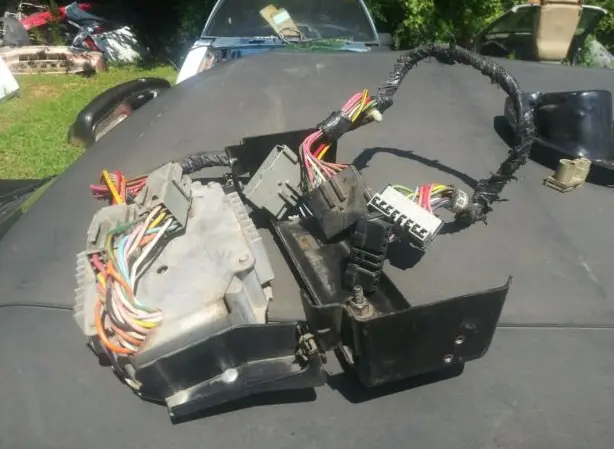

Here is the amp and wiring. You can see the plugs here are similar to the black gray plug in your photo and would plug into this

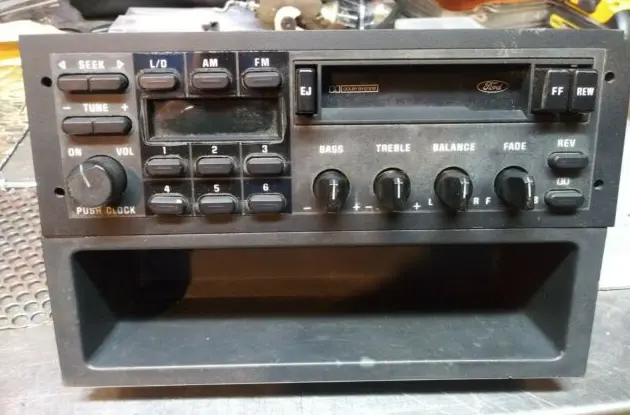

This is the 87-92 radio





You can also convert to the 1993 style radio setup (if you can find one) by following this thread


  • Useful
Reactions: 1 user

Mustang5L5

Put lubricant all over the balls
Mod Dude
Feb 18, 2001
36,522
12,470
224
Massachusetts
What has me confused is I can only find one plug for the amp and it has a jumper plug on it.

That's not the amp wiring. That plug with the jumper would normally connect to the clutch switch that turns off cruise control. The jumper tells me your car does not have cruise control. Tuck that wire in the back and forget about it.

You should only have two plugs. The amp harness plugs into these two plugs. That harness is in the picture above.


Mustang5L5

Put lubricant all over the balls
Mod Dude
Feb 18, 2001
36,522
12,470
224
Massachusetts
Also if if find the correct radio can I just use the plugs I have and not use the Amp? will the radio work without it?

Yes, although I'm not 100% sure the door speakers will work.

The same radio us used with and without the amp. Amps are more plentiful than the radios so i don't think you'll have that issue
