Added BBK Long tube/BBK no cat X/Pypes Cat - weird sounds

fitnage

Member
May 26, 2020
13
2
13
50
columbus
Hey Everyone,

I have a 03 Mach 1.

I just added BBK Long tube/BBK no cat X/Pypes Violator Cat.

Weird sounds appeared....I replaced the header gaskets with percy's aluminum..thinking it was a leak. Same exact sound.

Before headers...no sounds i could hear.

Here is the before sound.

View: https://youtu.be/01PwmSv9ozc


After

View: https://youtu.be/pNAd8_260sQ


Any help would be appreciated.

***FYI...I added MSD Blaster coils and JLT Cold air as well.

Last edited by a moderator:
  • Sponsors(?)


Nightfire

I dont know what "CT" means but HOW DARE YOU
15 Year Member
Dec 1, 2002
3,431
224
133
TX
Exhaust is not youre problem. Tighten down all you plugs. Honestly it sounds like bad lash adjusters

  • Like
Reactions: 1 user

fitnage

Member
May 26, 2020
13
2
13
50
columbus
Believe it or not..that was my next item to review. I just hate removing/connecting that JLT....painful. Thanks.


Nightfire

I dont know what "CT" means but HOW DARE YOU
15 Year Member
Dec 1, 2002
3,431
224
133
TX
Most likely just one. It wont hurt to pull the covers and inspect. Look for one that has collapsed.


fitnage

Member
May 26, 2020
13
2
13
50
columbus
Ok..sounds like fun.....just realized I have torn torque box(es)....at least I have more stuff to do. I only paid $1300 for the mach 1...so I am having fun.

Thanks again.


Nightfire

I dont know what "CT" means but HOW DARE YOU
15 Year Member
Dec 1, 2002
3,431
224
133
TX
Pray that its the adjusters......otherwise that explains why you got it for so cheap


fitnage

Member
May 26, 2020
13
2
13
50
columbus

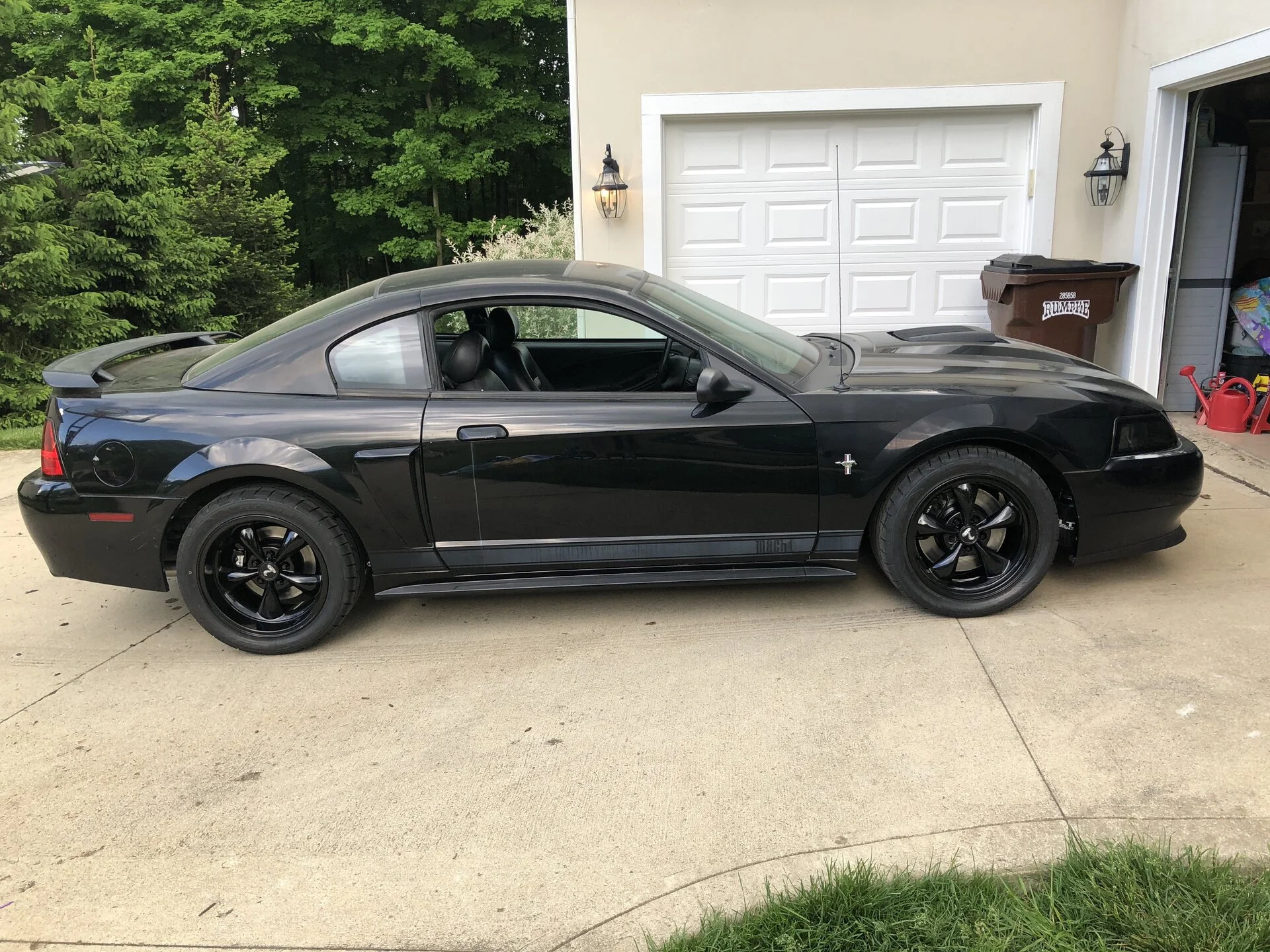

Ehhh...this is my toy. Adjusters today....engine tomorrow....ehh...its all fun and games. I enjoy working on the car. I'm just an IT guy goofing around in my spare time. Thanks for the advice. XQzH4ElvRim3KkgPxWfTtw.jpg


fitnage

Member
May 26, 2020
13
2
13
50
columbus
So lash adjusters were replaced. Only 1 looked damaged....but none were collapsed. Fired up the car and the exact same sound. I will try and record it once i get the fuel rails situation worked out. Needless to say, I am disappointed this did not solve the problem. Any other advice would be greatly appreciated.


Nightfire

I dont know what "CT" means but HOW DARE YOU
15 Year Member
Dec 1, 2002
3,431
224
133
TX
Worn out timing chain guides? Its definitely metal-to-metal contact


nickyb

WAIT,you now have a pair?
10 Year Member
Apr 3, 2009
968
427
93
58
nevada
I'm an old school guy,always have to look at the last thing changed or worked on.My opinion is your noise is in the exhaust , this is common sense since your before video was o.k. Find leak fix leak move on.

  • Like
Reactions: 1 user

fitnage

Member
May 26, 2020
13
2
13
50
columbus
I plan on putting the car up high and doing some rear end work....and probably blowing air into the exhaust and using some soapy water...while I am busy underneath. We shall see.


7991LXnSHO

10 Year Member
Sep 1, 2010
4,405
1,206
184
Kearney, NE
A mechanic’s stethoscope is cheap at HFT and is almost priceless in chasing down noises. A long screwdriver with the fat end to your ear works as a touch sound probe, but it looks goofy and I worry about the other end hitting a moving part and ending up a yearly Darwin Award winner.
It sounds like valve train noise to me, but injectors and accessory drive items can make similar sounds.


fitnage

Member
May 26, 2020
13
2
13
50
columbus
I used a mechanics stethoscope today. It is actually quite amazing. I really feel (hear) what is going on inside where I was touching. I used it over the valve cover bolts and on bolts and other things around the timing chain(s) areas.

The passenger side valves and timing areas sound super quiet. The drivers front valve covers have some noise...the front 2 sets had the most "clicking".

Maybe valve guides.

I will spend some time trying to hear the noise in the stethoscope at the same time hearing the exhaust out the back. Seems like a challenge.

I do think this will be my new go to tool for noises....I am not a fan of odd noises. Unfortunately....this Ford seems a bit on the weird noise side at the moment....and how can you hear anything with all that racket those Ford injectors make. Good grief they are noisy.

Thanks for the advice and I plan to post as I go. See what the next thing brings in the saga of the weird noise.

  • Like
Reactions: 1 user

stormsedge

Active Member
Jun 17, 2018
348
102
53
Here
I'm an old school guy,always have to look at the last thing changed or worked on.My opinion is your noise is in the exhaust , this is common sense since your before video was o.k. Find leak fix leak move on.

^^^This^^^
