Airbag Light

Fri Guy

Active Member
May 10, 2007
225
86
38
I hadn't started my 1990 GT in about a couple of months and yesterday after charging up the battery I fired it up. Everything seemed good other than my Airbag light was blinking. What are the most common issues that cause the light to blink? Is it anything to worry about it something I should address quickly?

  • Sponsors (?)


Mustang5L5

Put lubricant all over the balls
Mod Dude
Feb 18, 2001
39,459
15,308
224
The power supply module, is that just for the airbag or the car? Basically wondering if this will cause my car to be down in the near future.

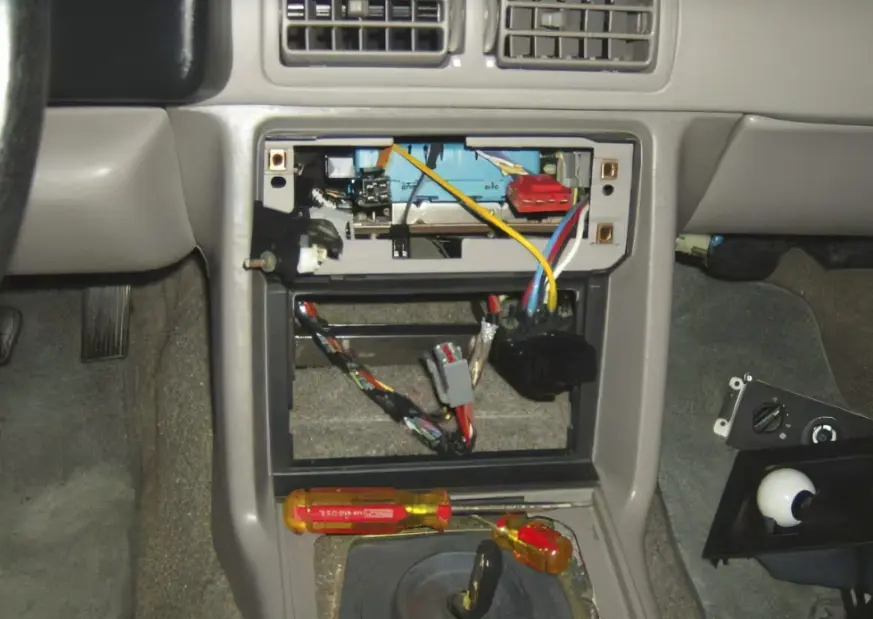

Airbag only. Blue box mounted behind the HVAC controls. Won't affect the ability to drive.


  • Like
Reactions: 1 user

KRUISR

5 Year Member
Apr 16, 2015
1,364
608
133
When I got my 90GT going I had a code 4 air bag light. It was the sensor/module located behind the driver seat, under the quarter window, behind the trim. I simply unplugged it, cleaned the terminals and reconnected everything. No issues since - 5 years later. My car had been sitting disassembled for 14 years before restarting.

  • Like
Reactions: 1 users

nickyb

WAIT,you now have a pair?
10 Year Member
Apr 3, 2009
1,633
841
143
I have the code 6 light, from what I've read it's probably the clock spring. If I leave it alone will it cause any harm?
if the clockspring is bad it can affect the cruise control and horn , car will still run normally.
as they no longer make clocksprings for our cars there is a way to splice a 94/95 clockspring in.


Fri Guy

Active Member
May 10, 2007
225
86
38
Does cruise/horn work?

The challenge here is finding a clockspring. If you don't want to fix it, i would disconnect the airbag and power supply just to be safe and pull the bulb from the cluster.

Those 90's Ford airbags are VERY powerful.

View: https://youtu.be/EUH6pDek5dY

Cruise doesn't work, hasn't worked in years. I'll have to check and see if the horn is working.
