Aluminum radiator install Write-Up (long)

lightblade

Member
Aug 7, 2004
366
0
17
Didn't come with vehicle specific instructions so here ya go. My instructions lol.

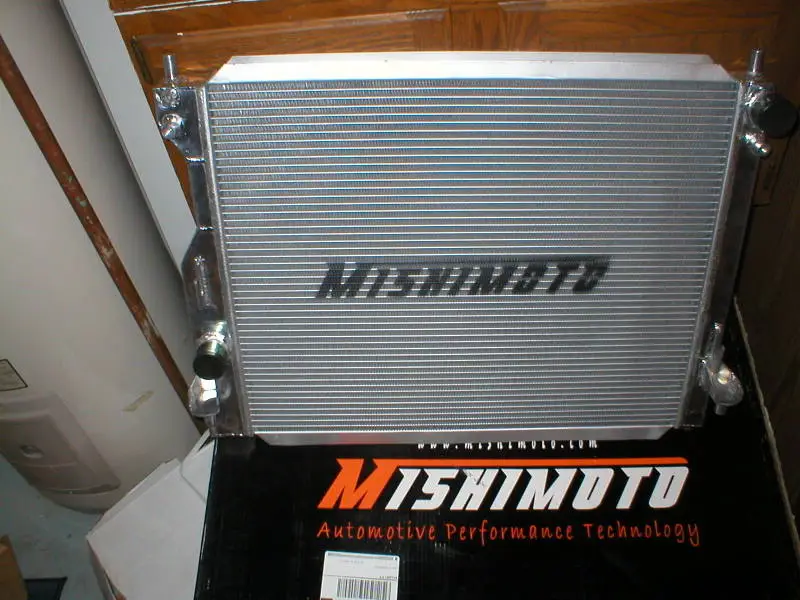

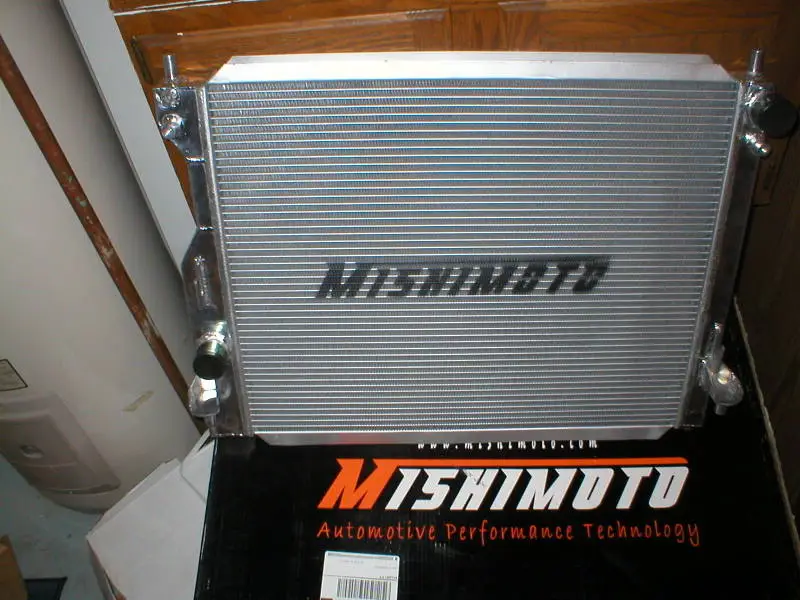

Mishimoto 52mm dual core aluminum radiator.


Tools I used: All kinds of plyers, flat-tip screwdriver, 8,10mm sockets, wrench 4 inch extension, 8mm racheting wrench, 2 hands, and elbow grease. Oh and a drain pan for the coolant.

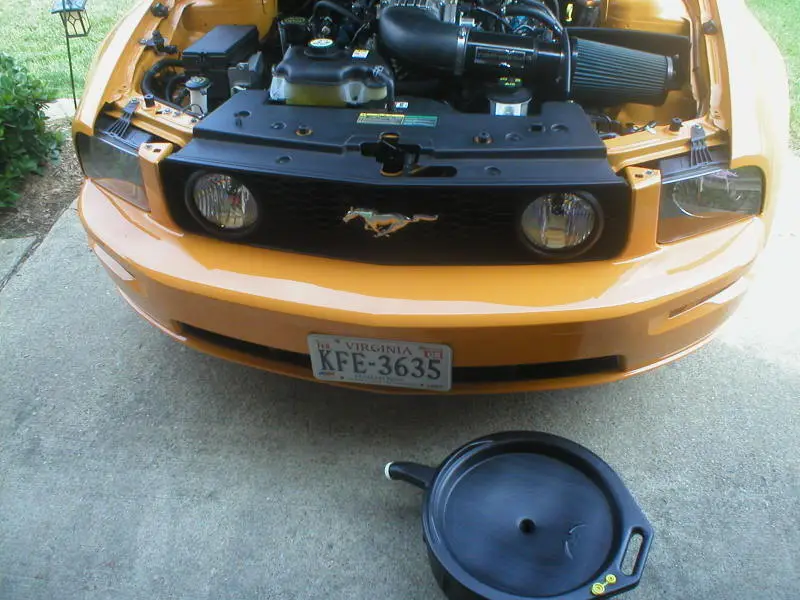

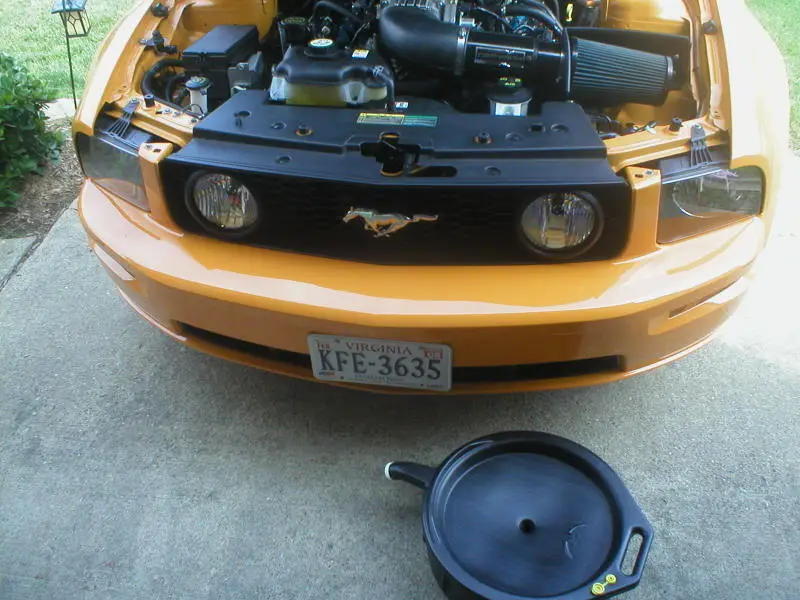

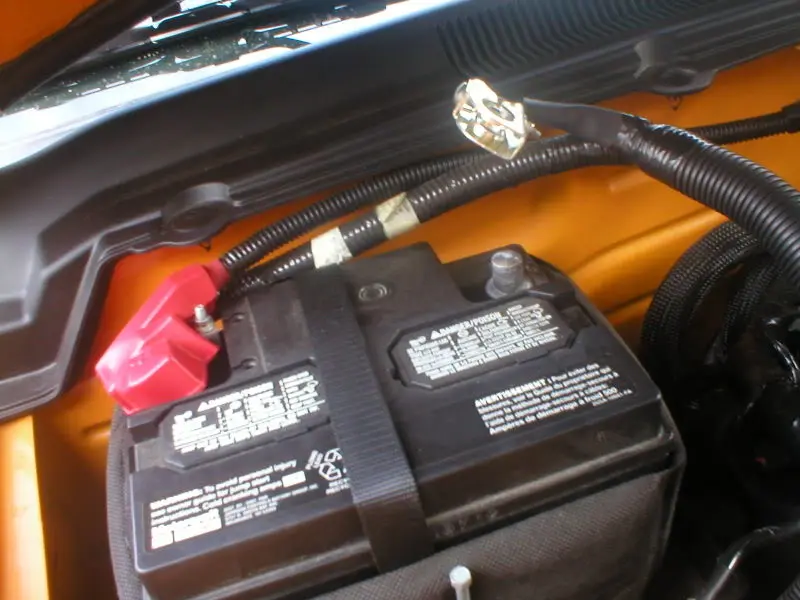

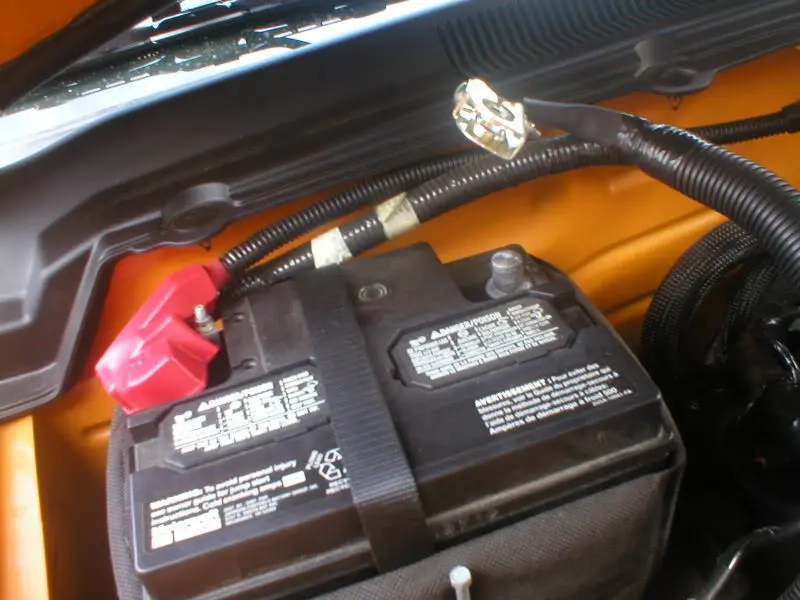

First off, disconnect negative battery terminal. Jacked up the front end and set her on jackstands.

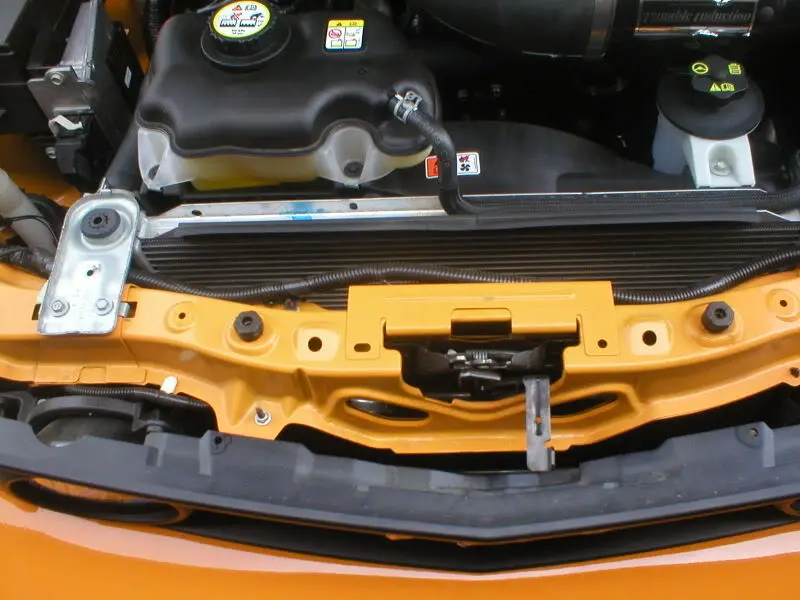

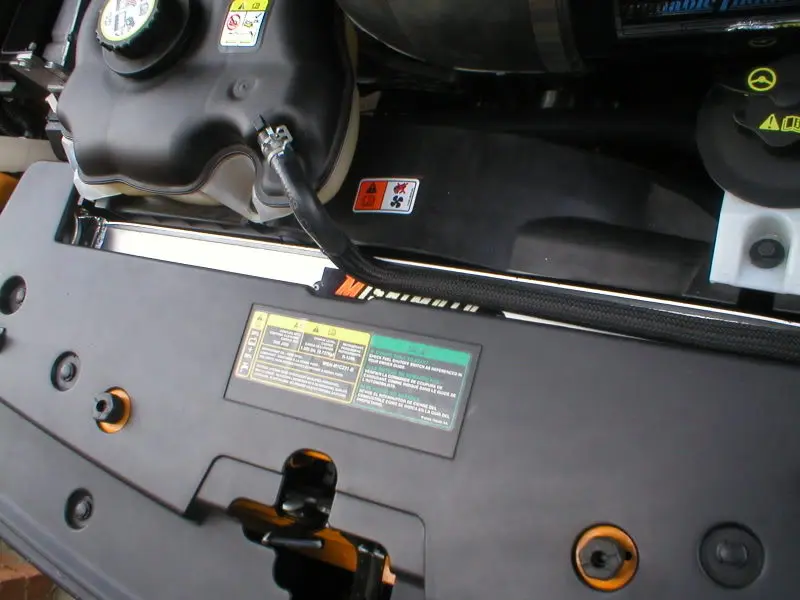

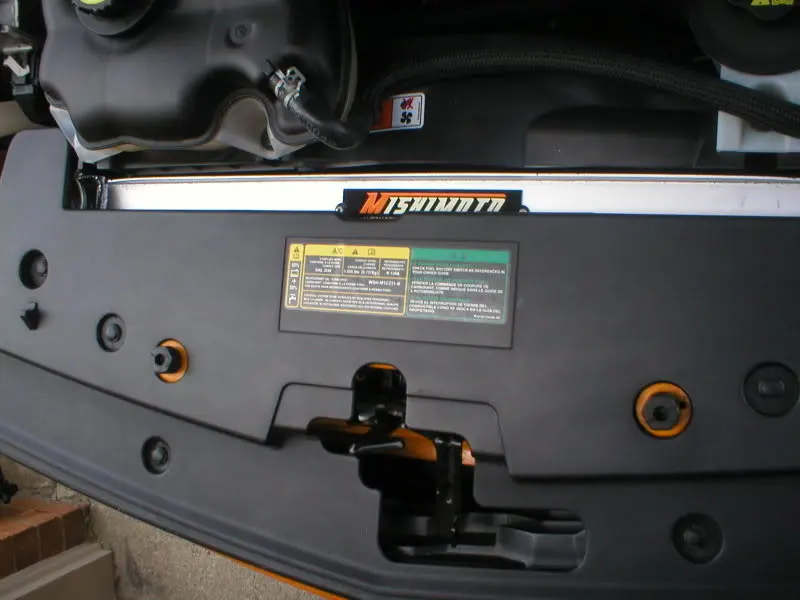

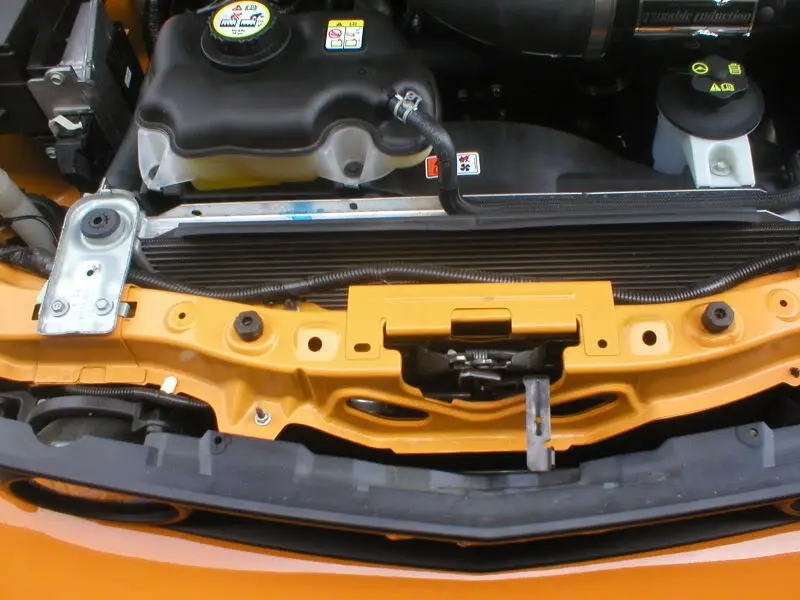

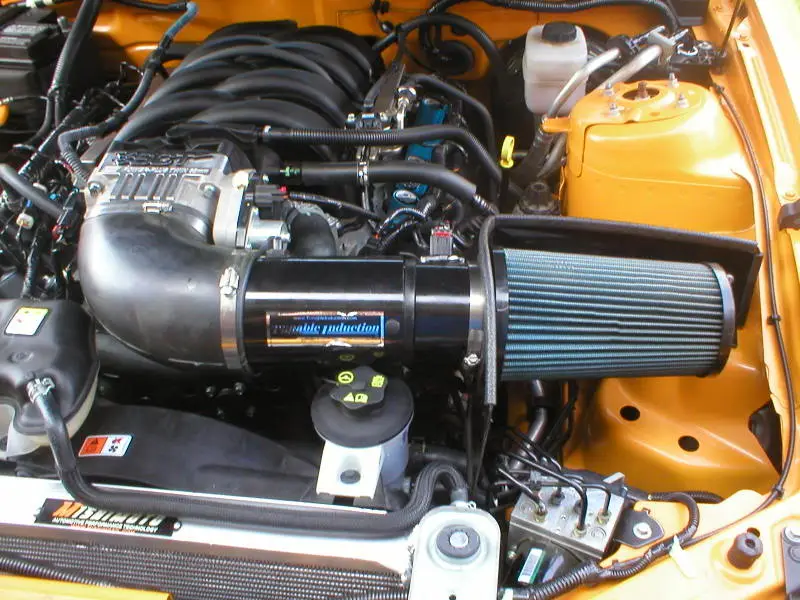

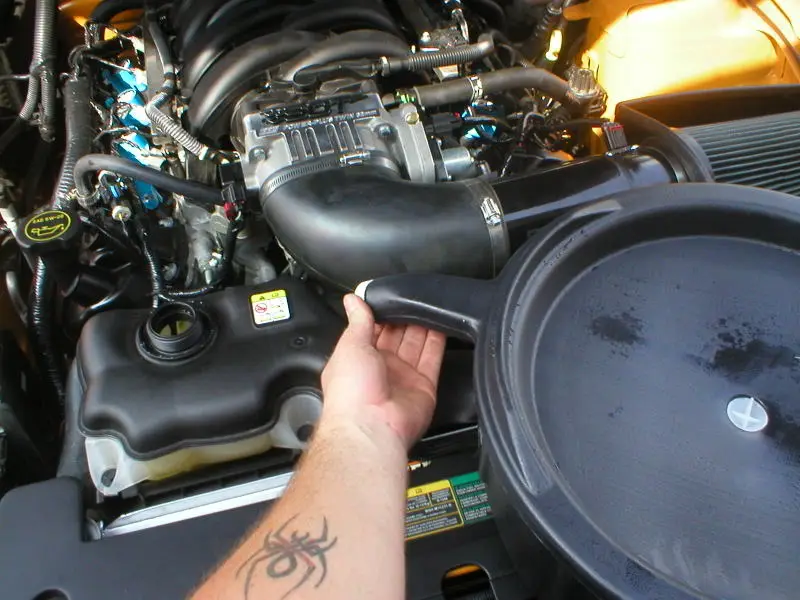

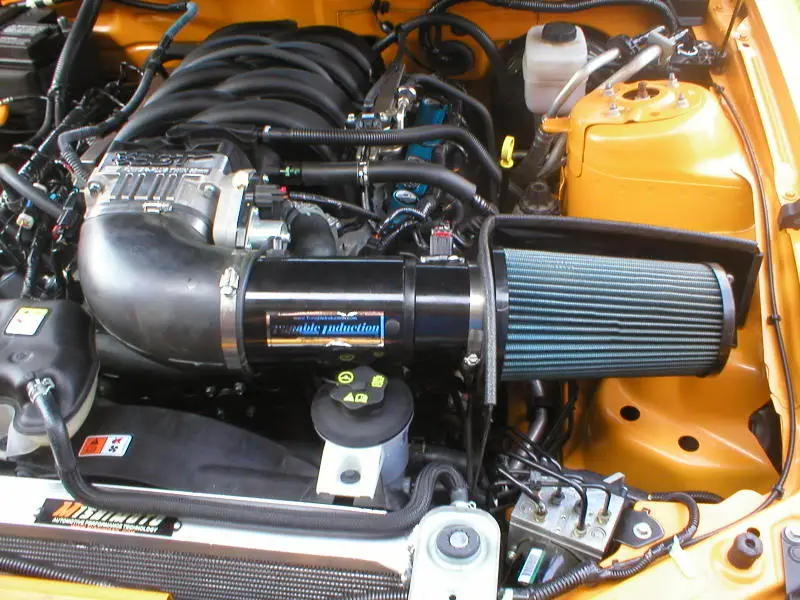

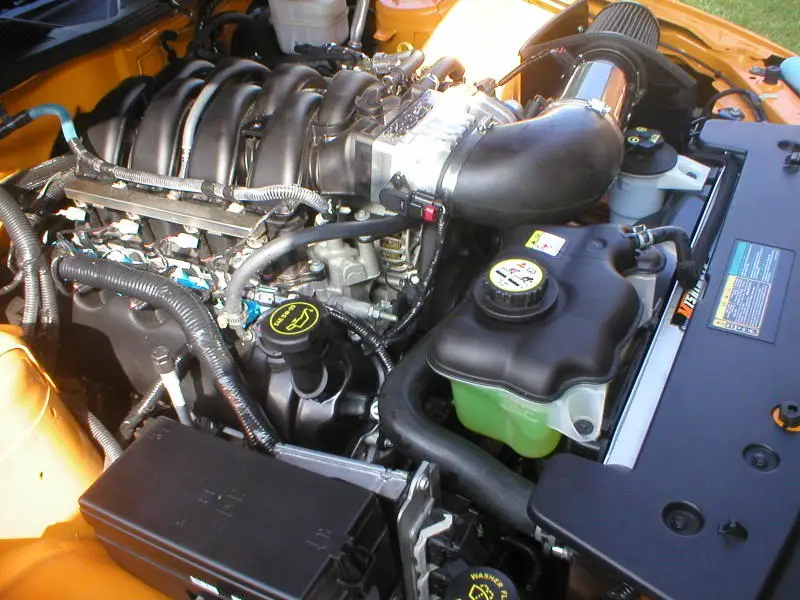

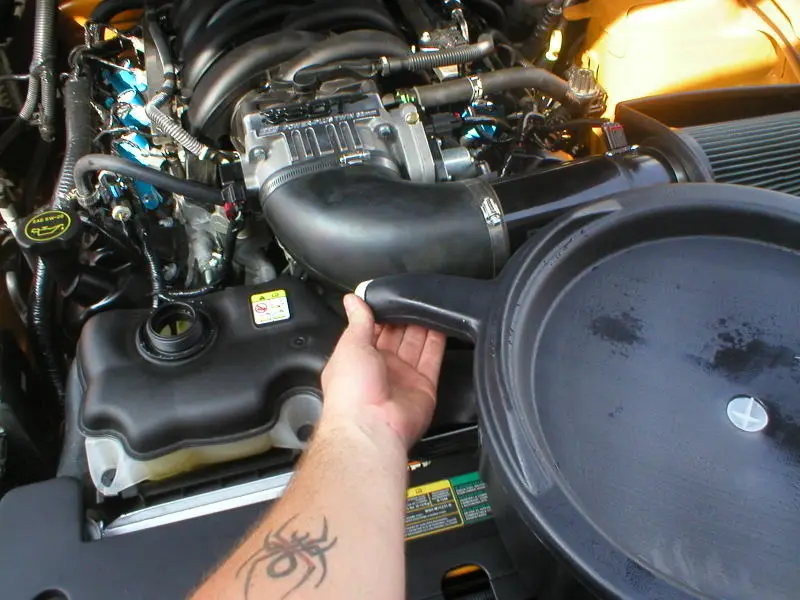

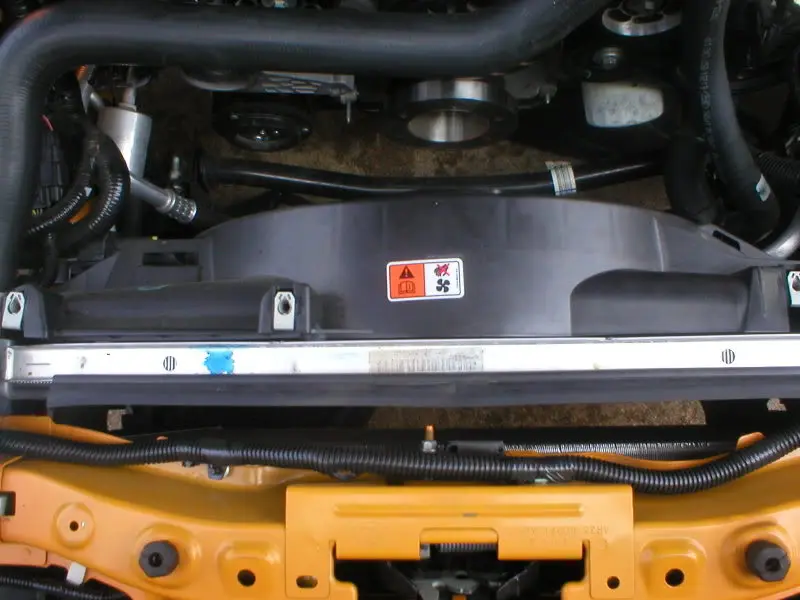

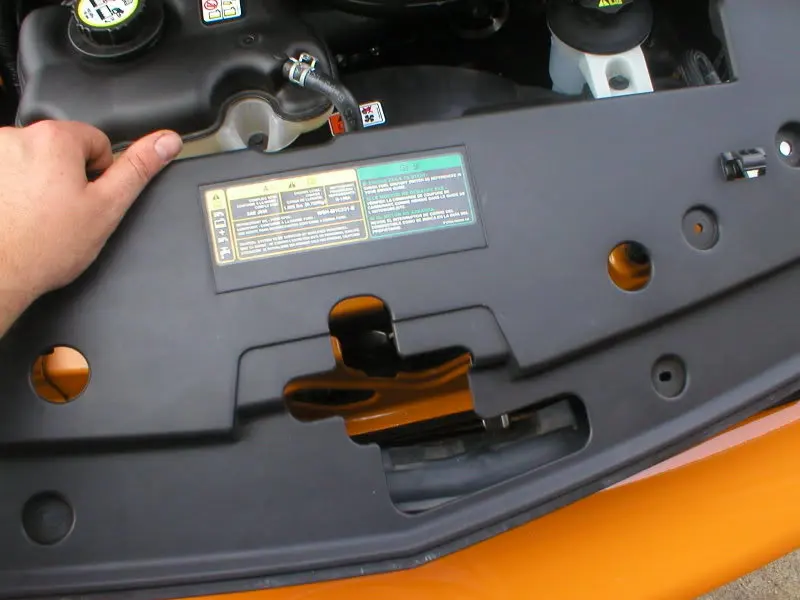

Remove interference(intake, radiator cover, platic cover underneath bumper)

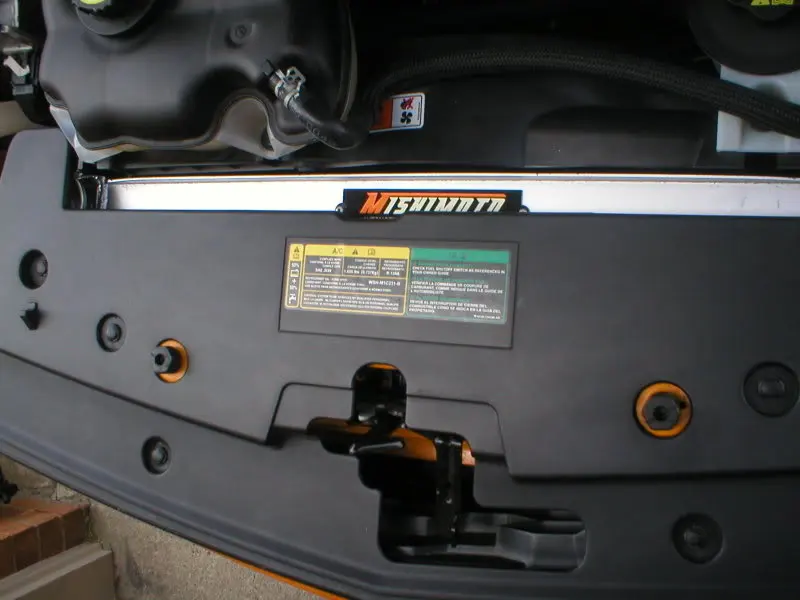

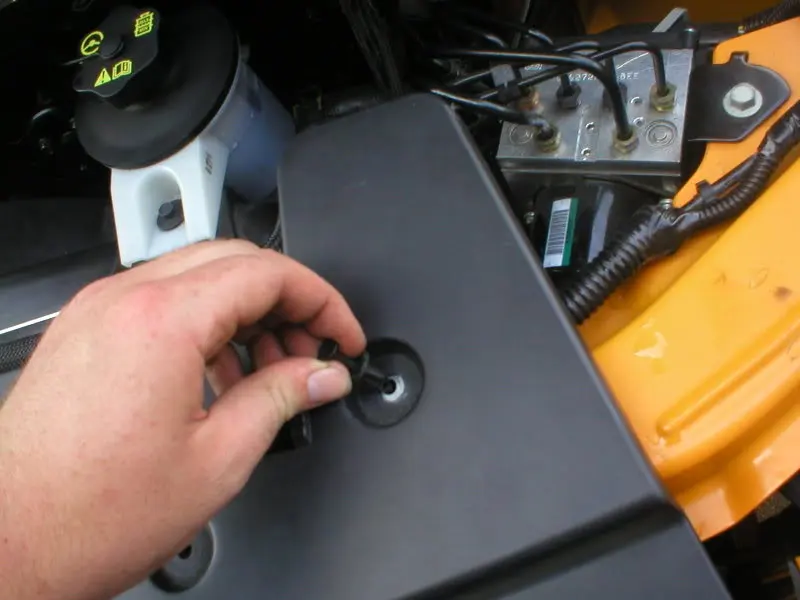

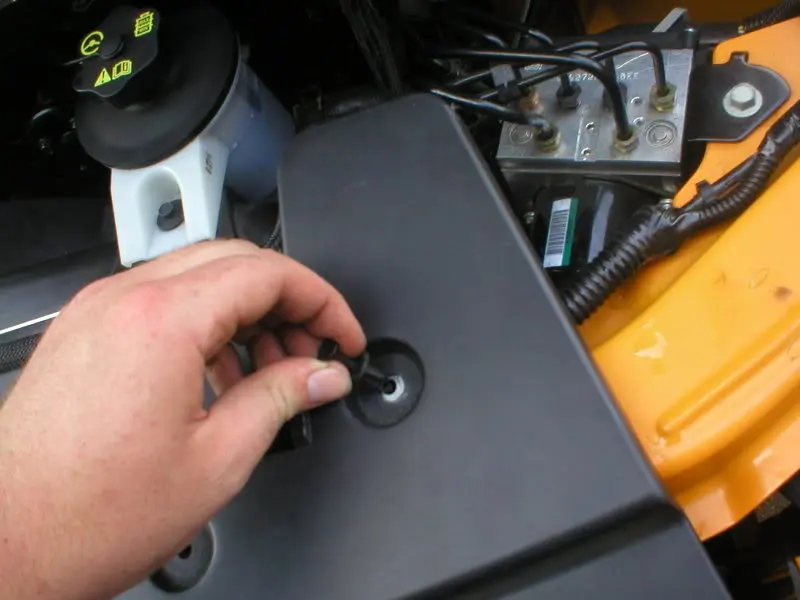

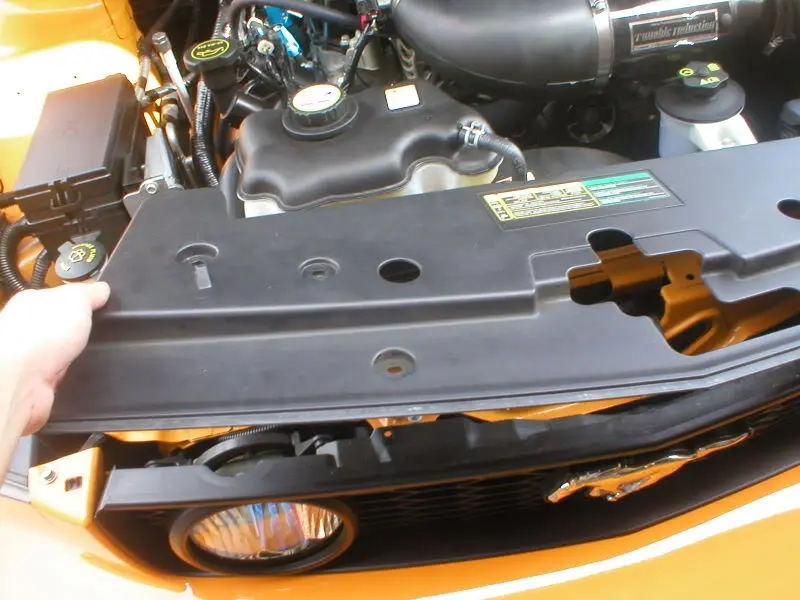

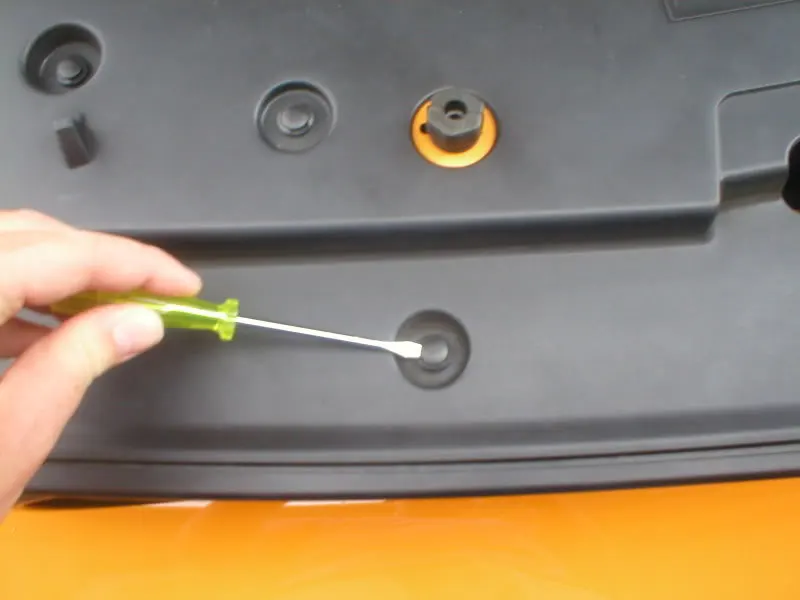

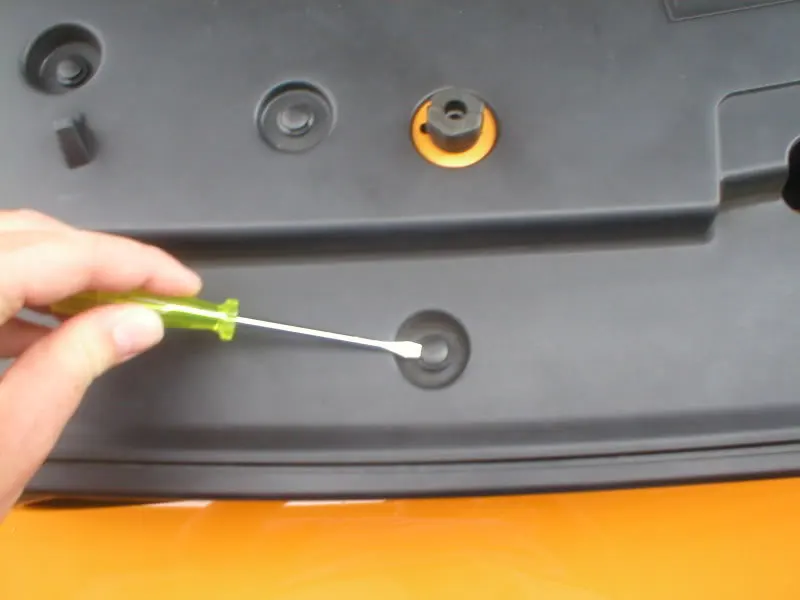

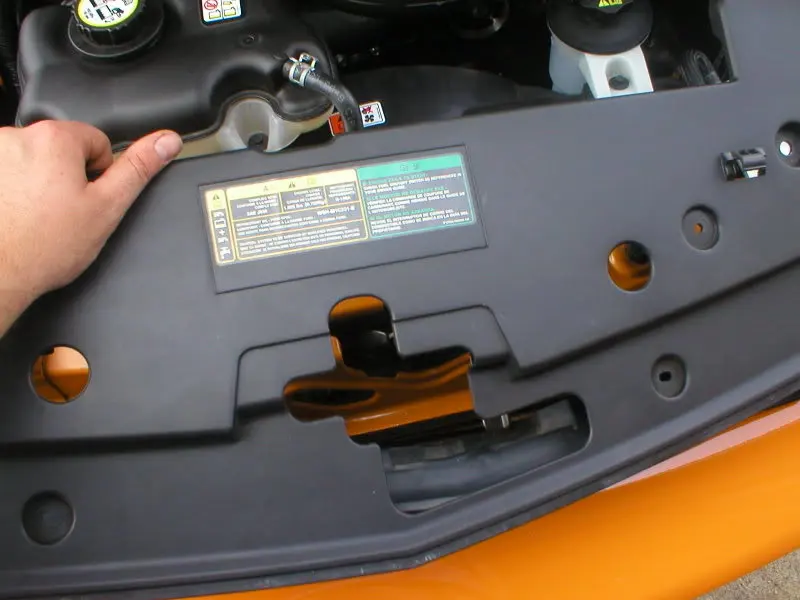

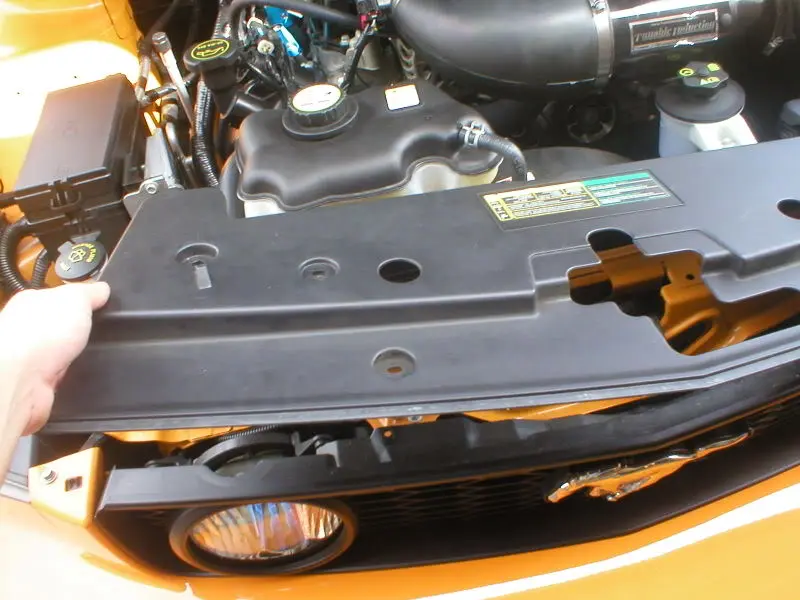

6 plastic screws hold on the radiator cover, I used a flattip screwdriver to lift up and pull them out

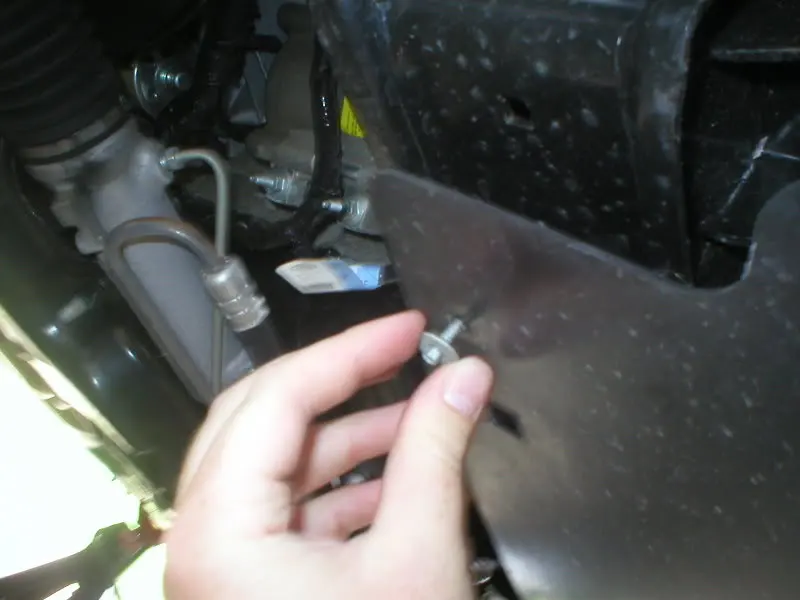

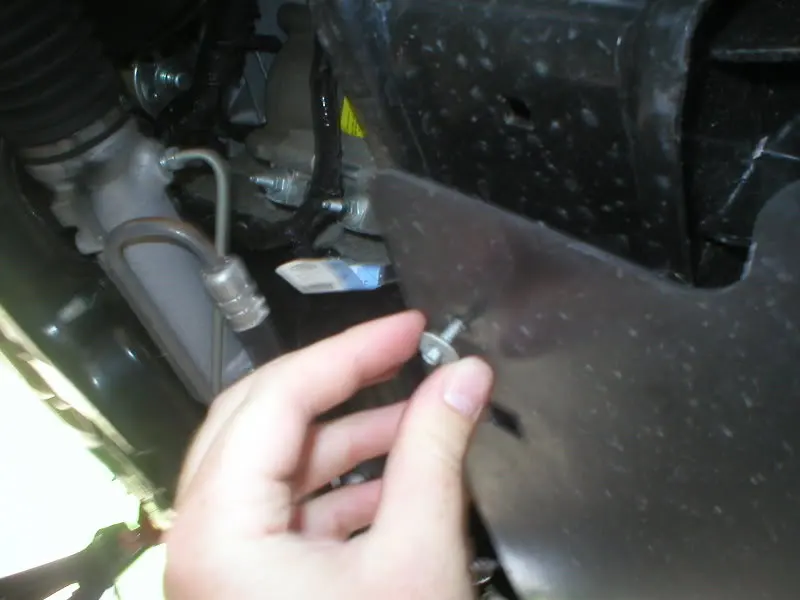

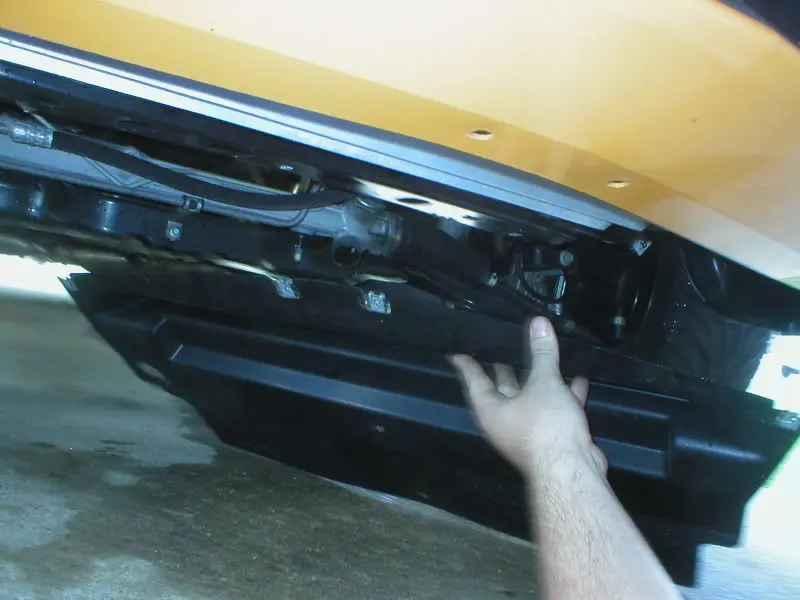

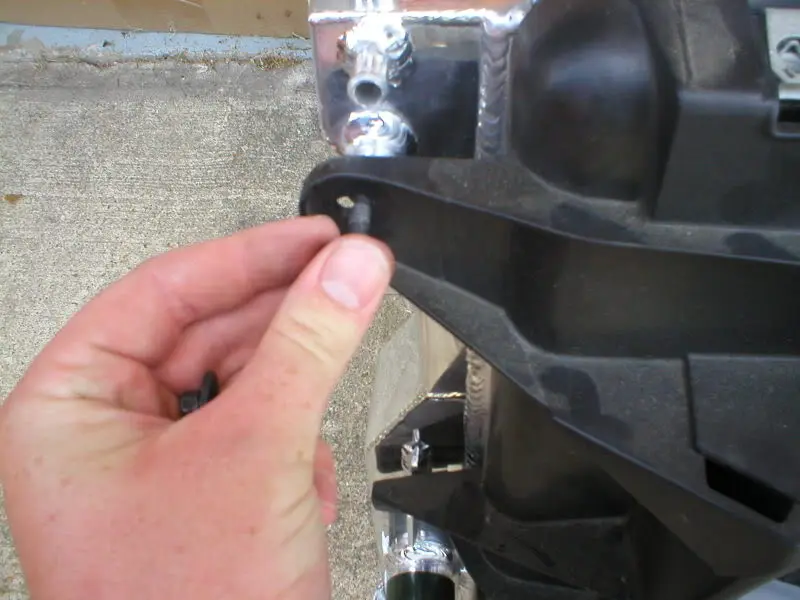

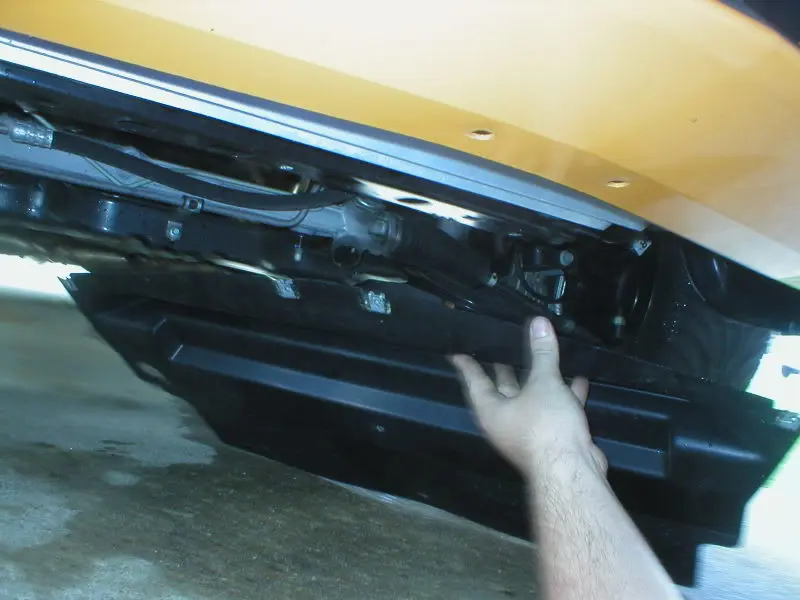

Remove the plastic guard under the radiator I used plyers to remove these little bolt/screws

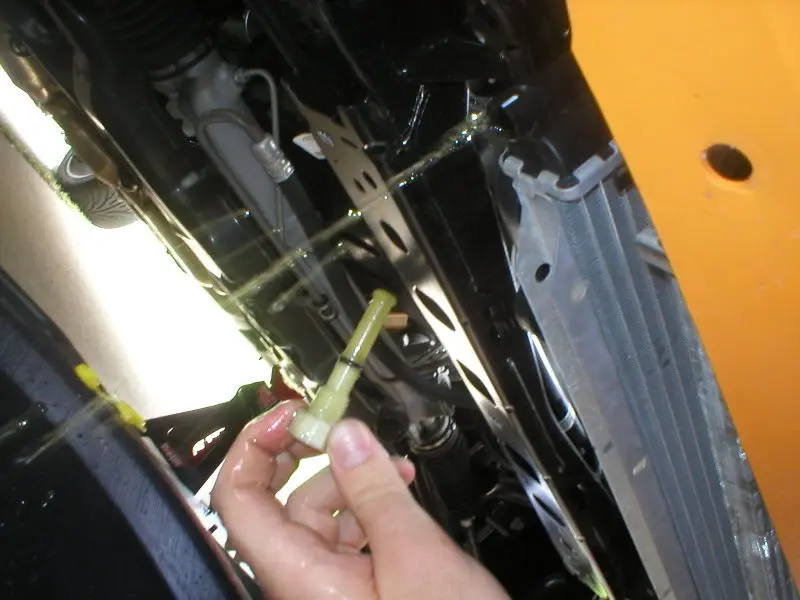

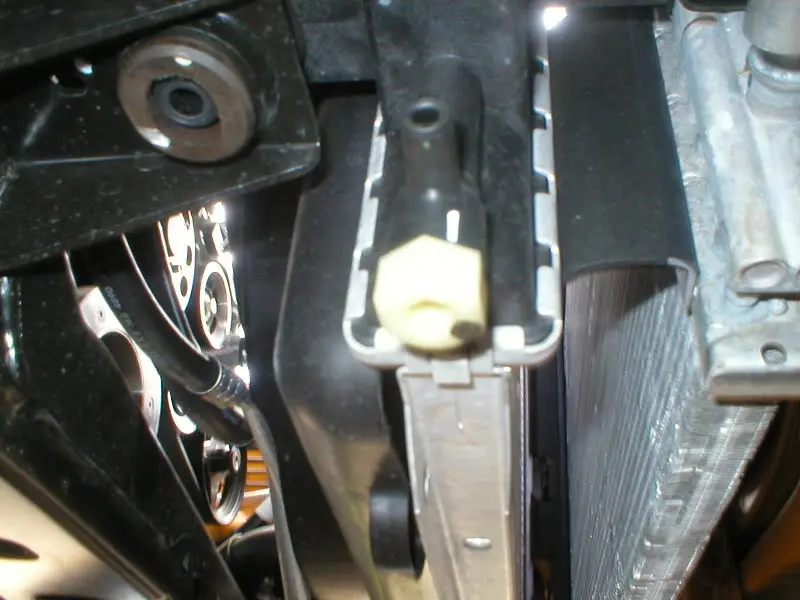

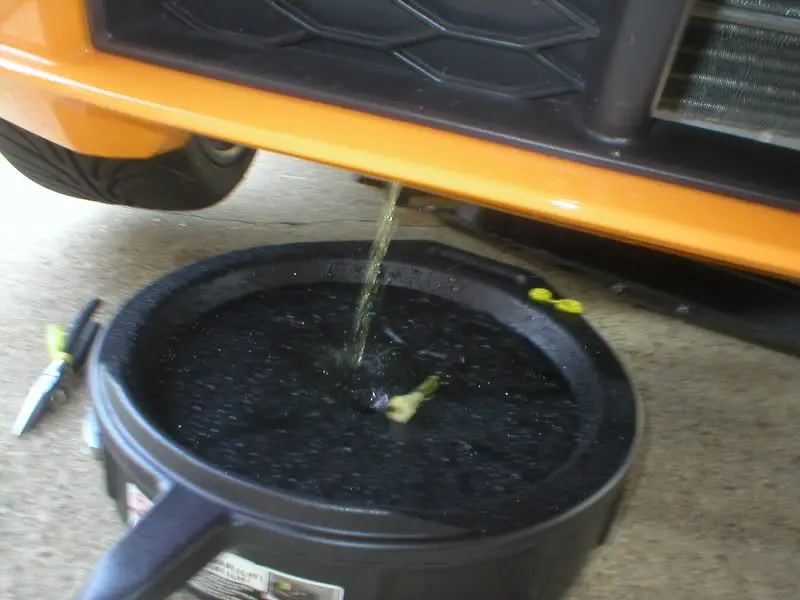

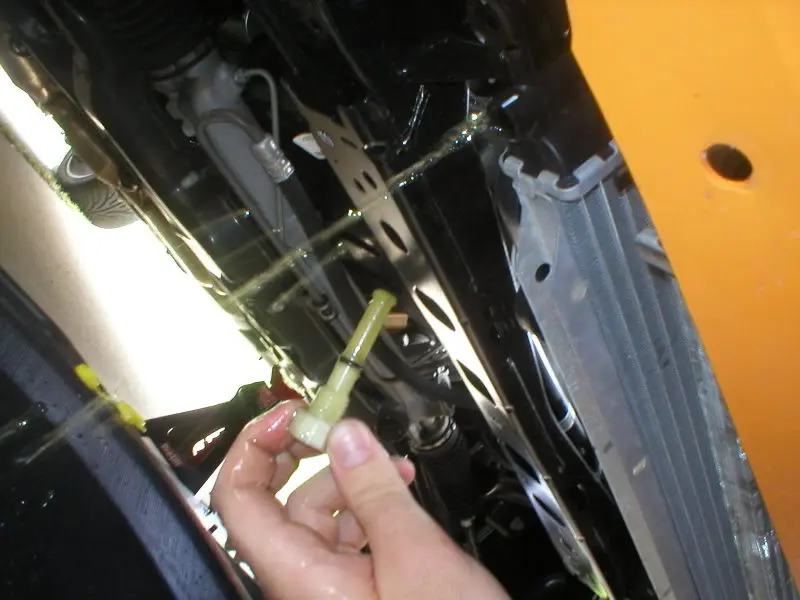

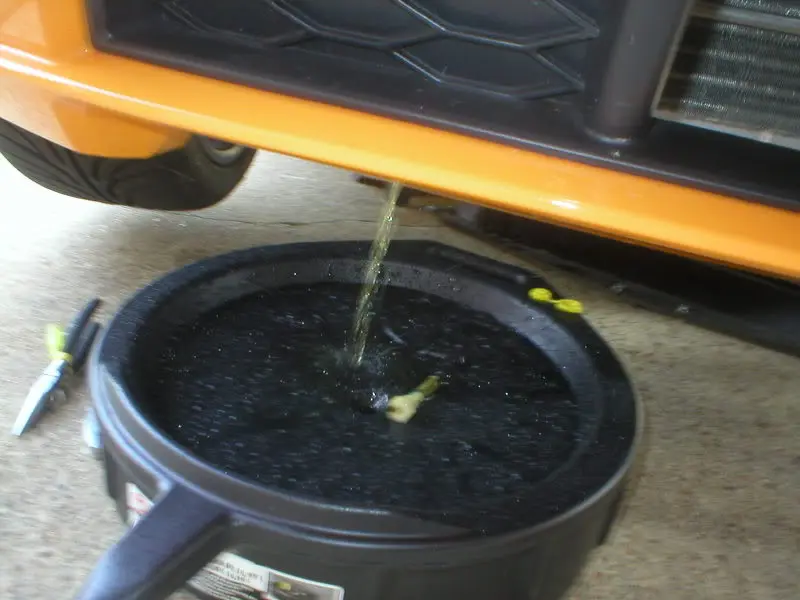

Next I drained the coolant, I used an allen wrench to remove the drain plug or "pet ****"

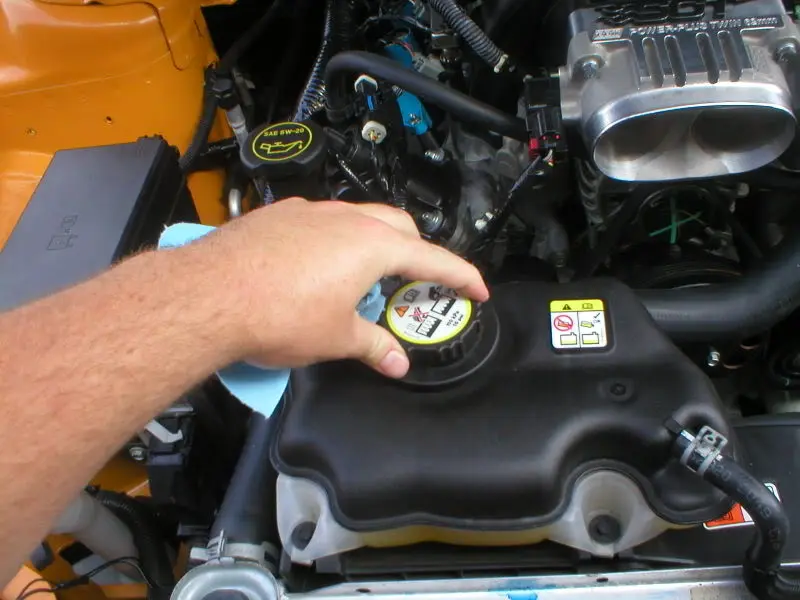

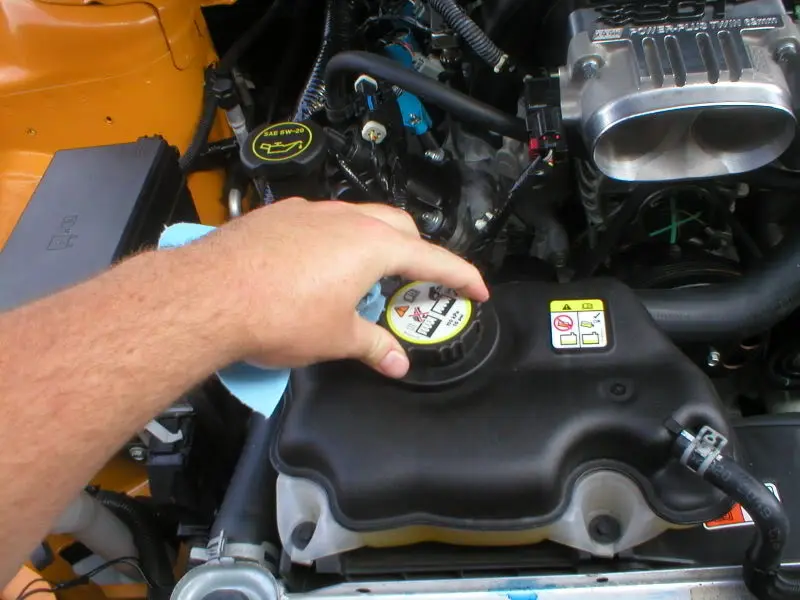

Crack open the coolant cap on the resevoir to act as a vent and adjust the drain rate


Squeeze the coolant hoses to drain excess coolant

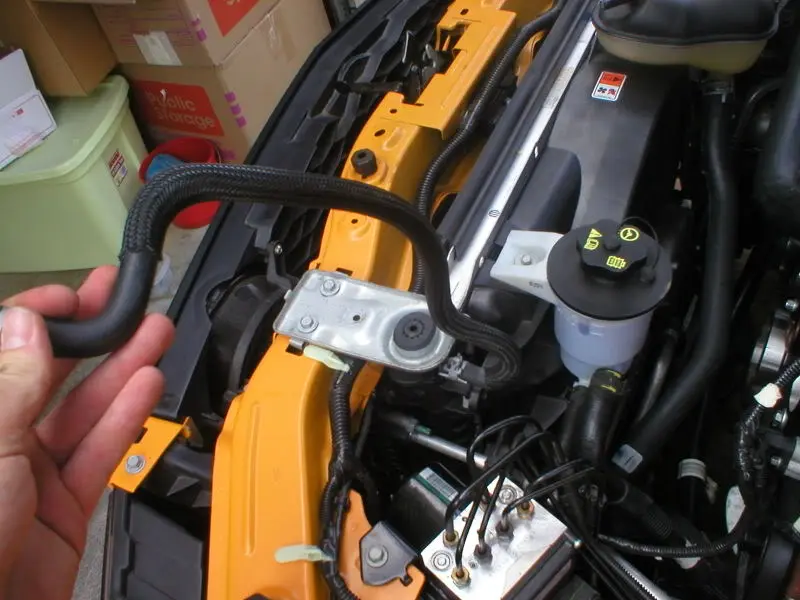

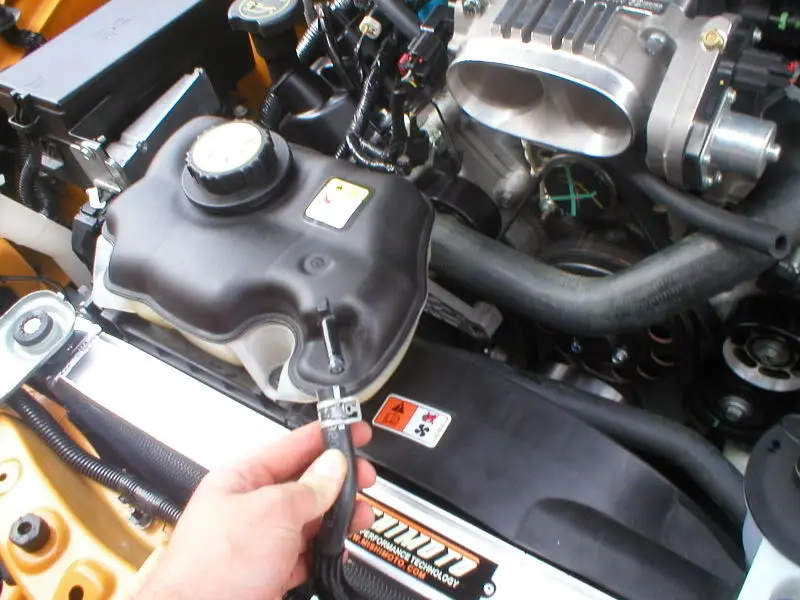

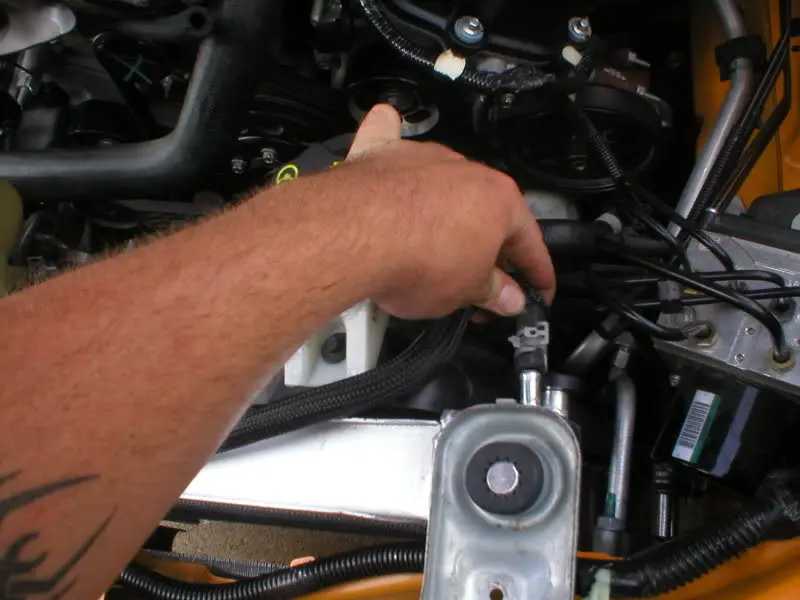

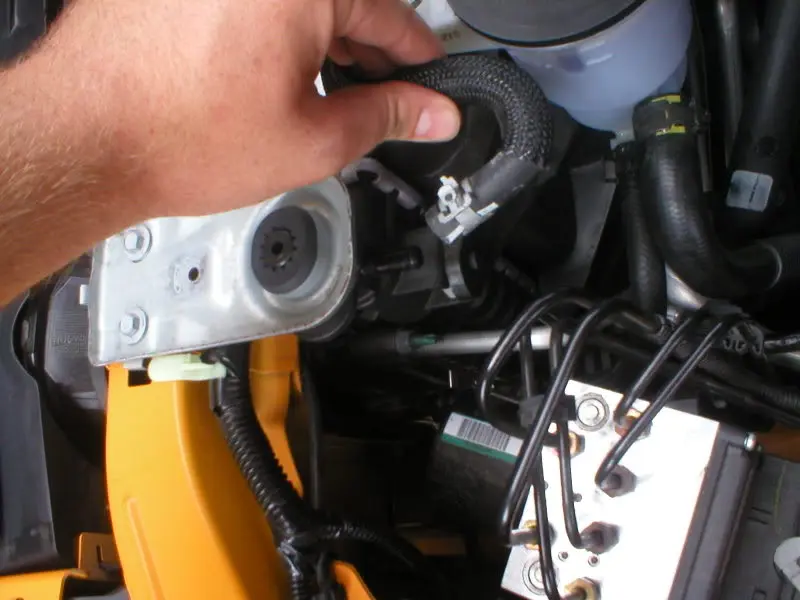

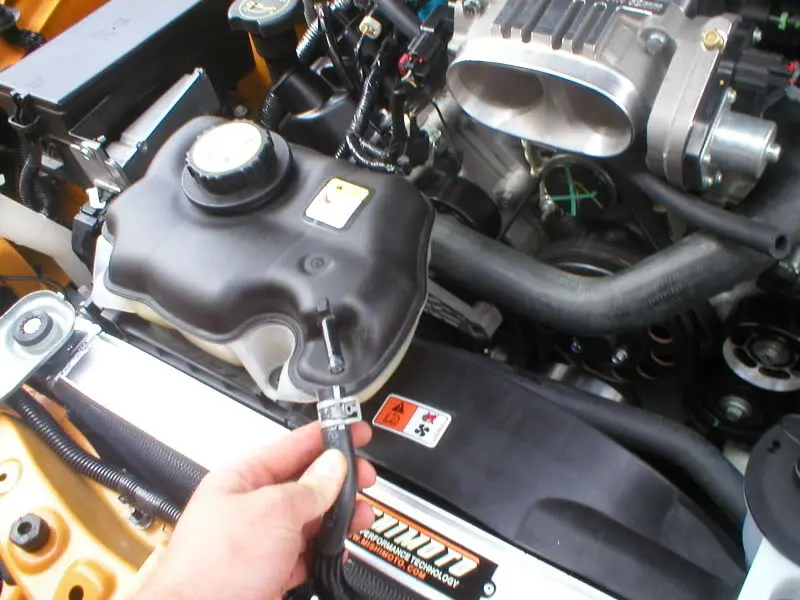

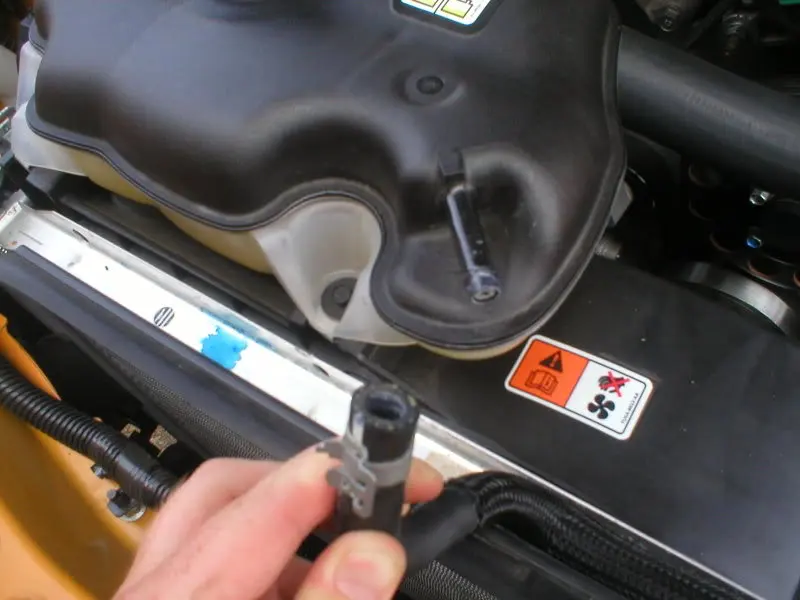

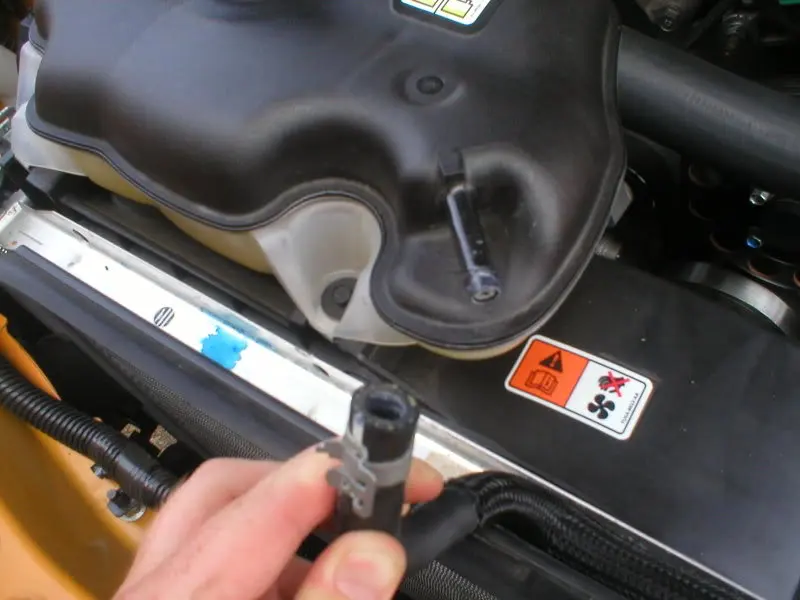

Remove the samll hose going from the top of the radiator the coolant resevoir tank

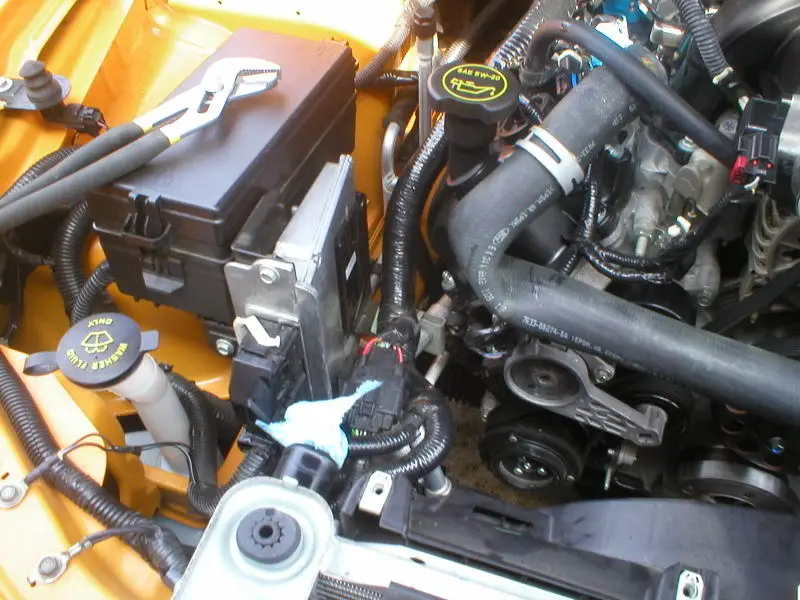

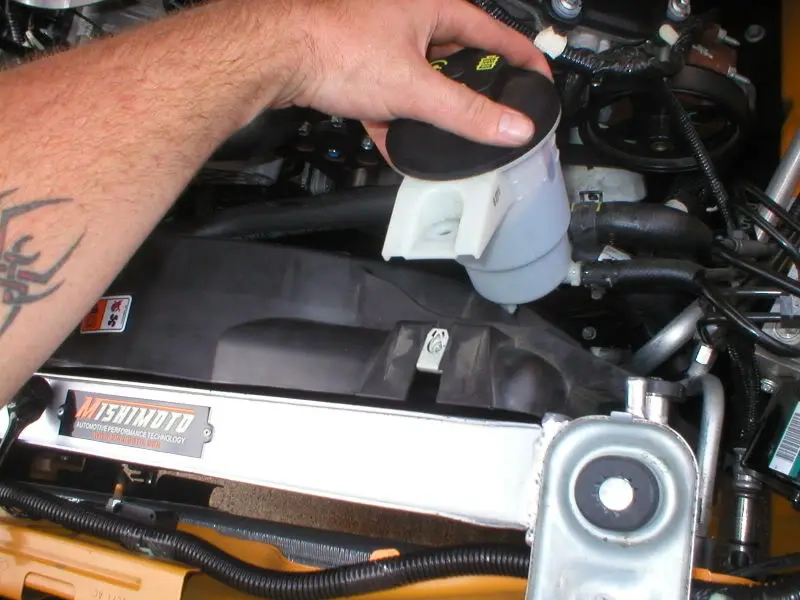

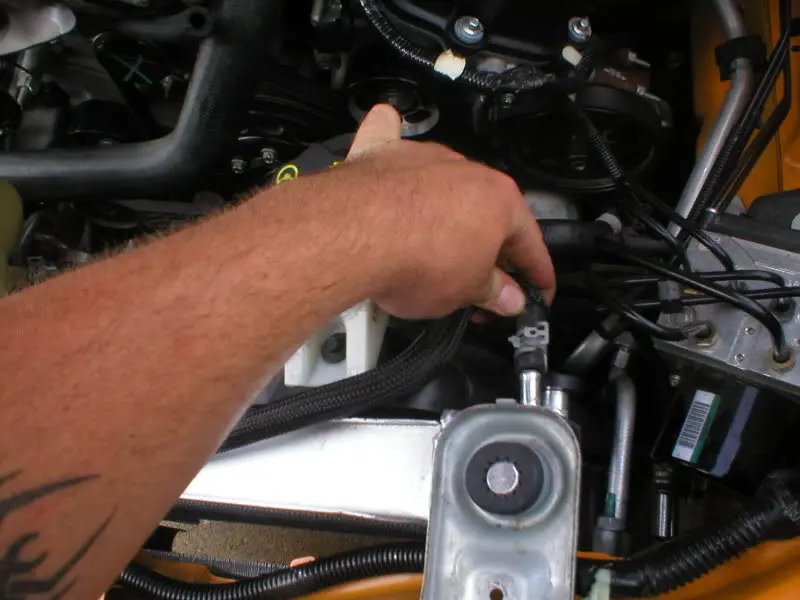

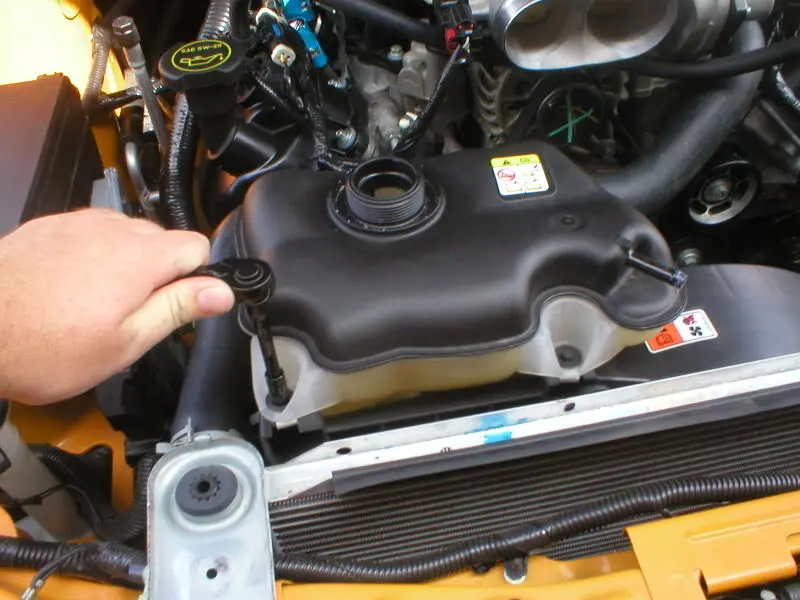

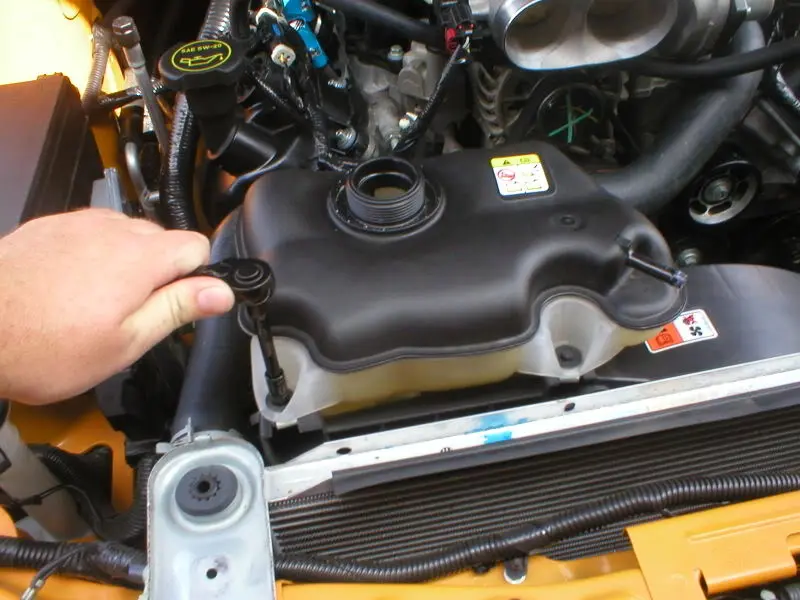

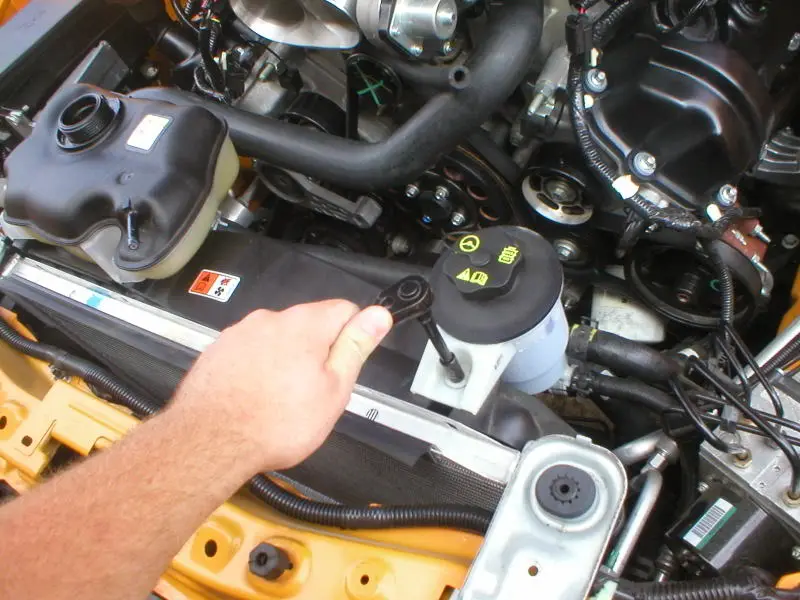

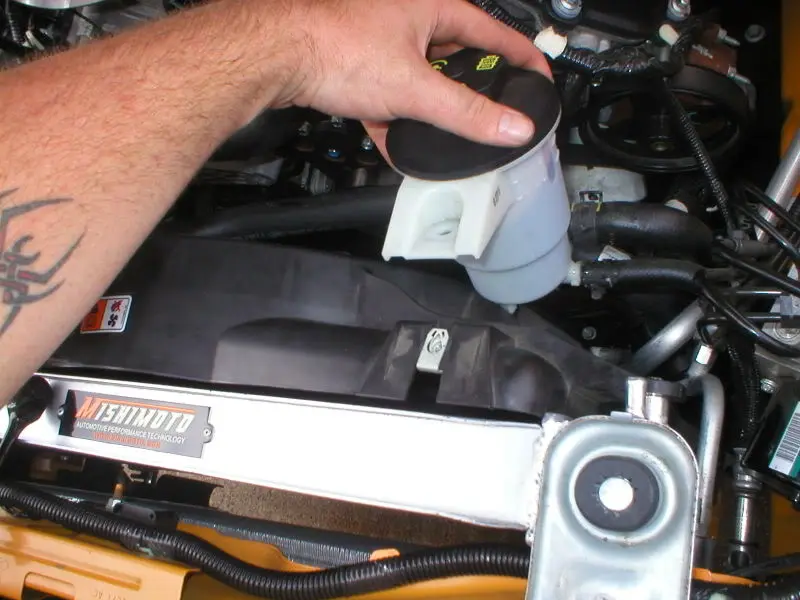

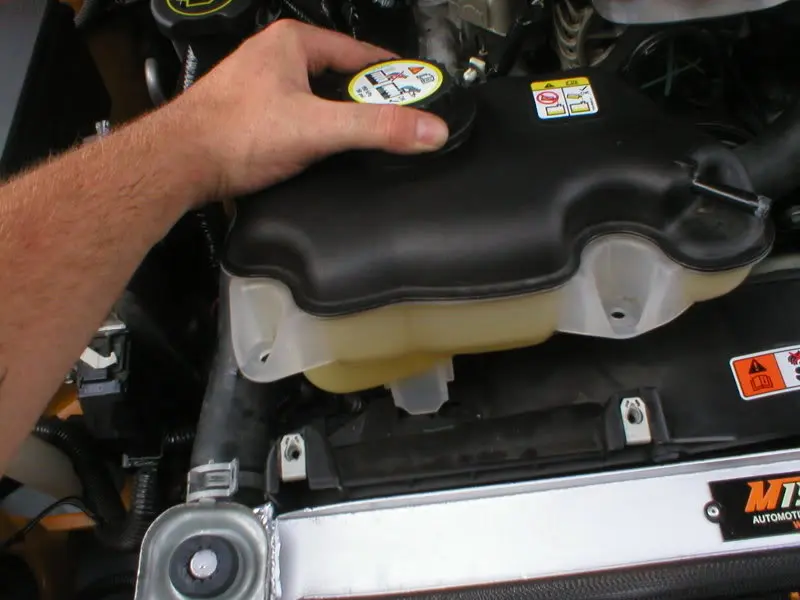

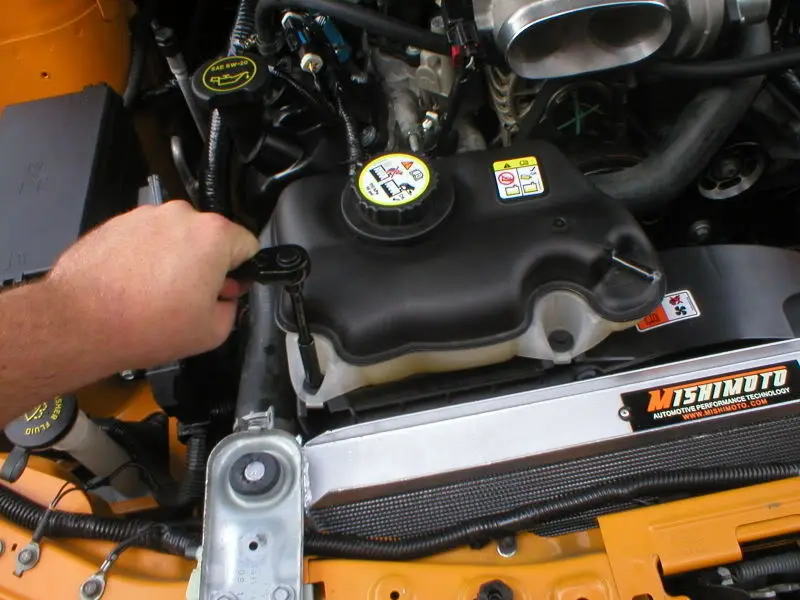

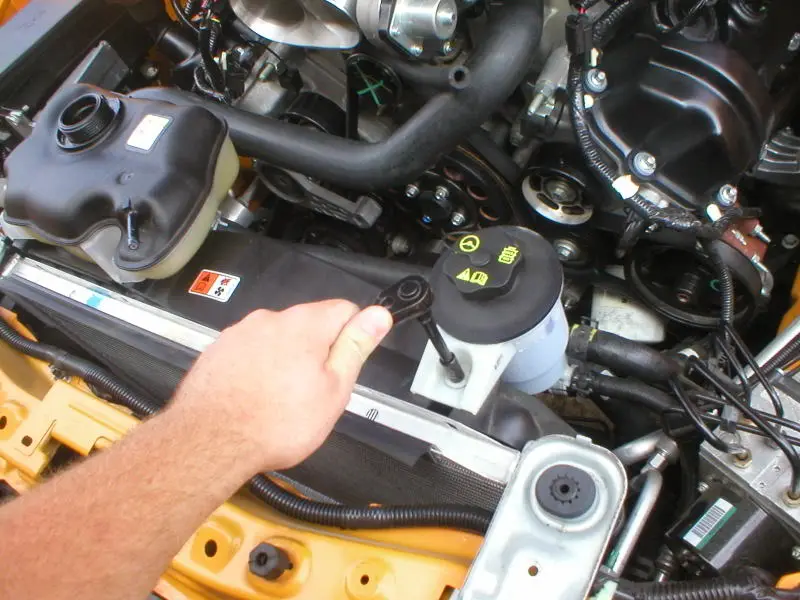

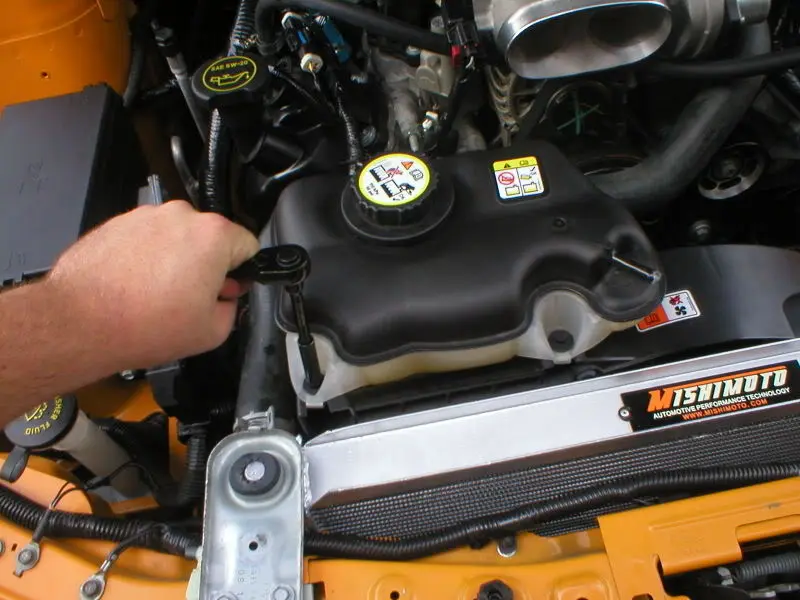

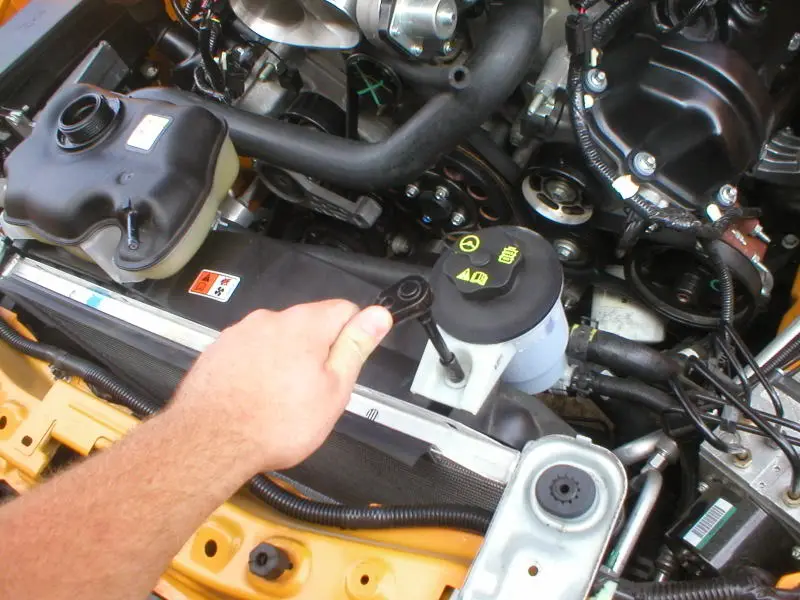

Remove the power steering fluid and coolant tanks, from the fan shroud

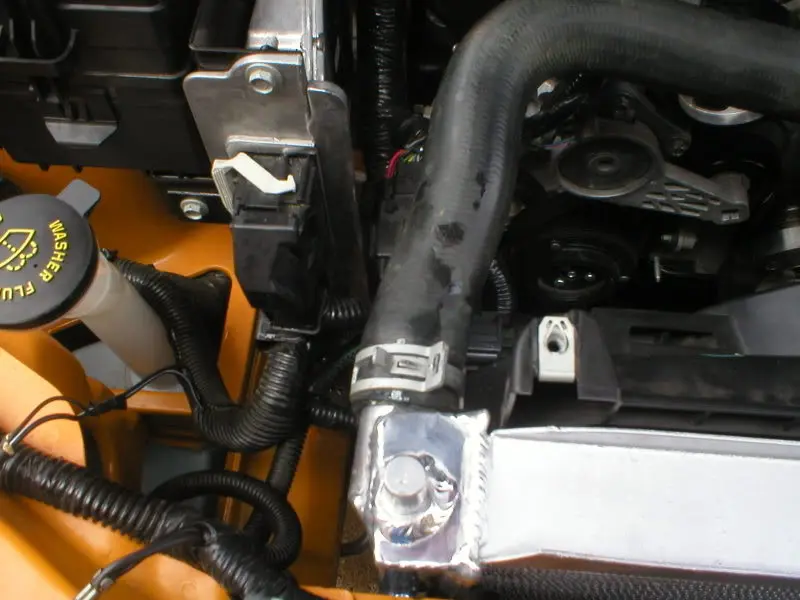

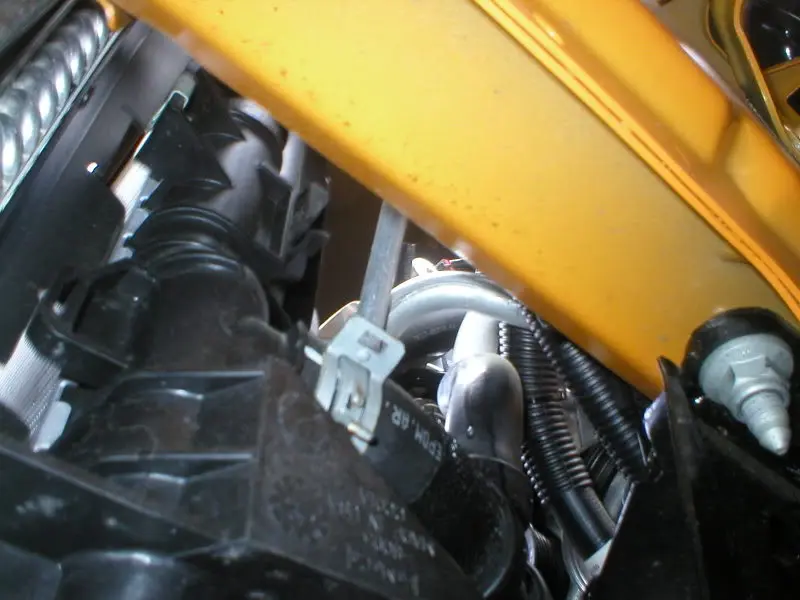

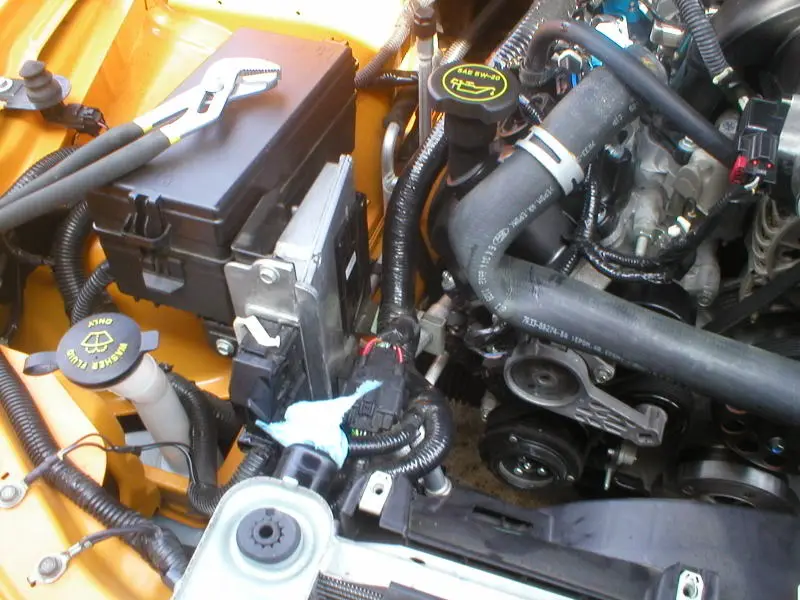

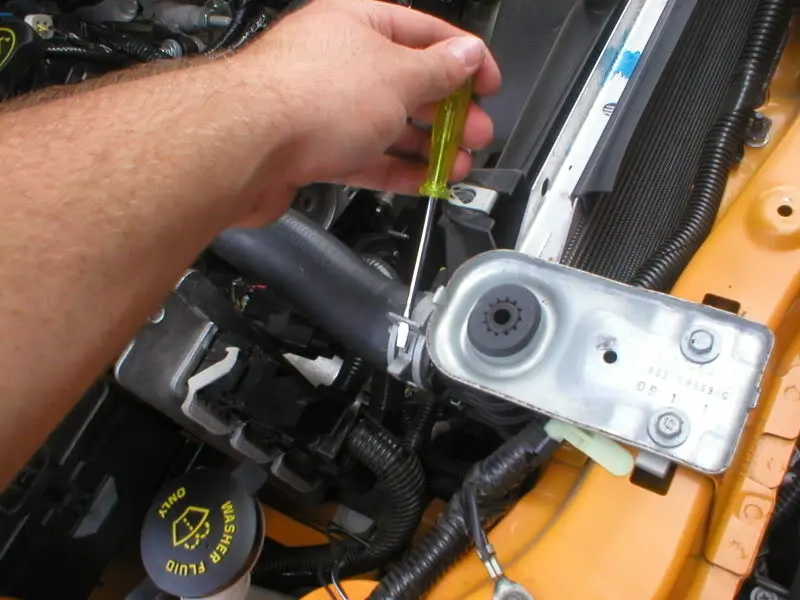

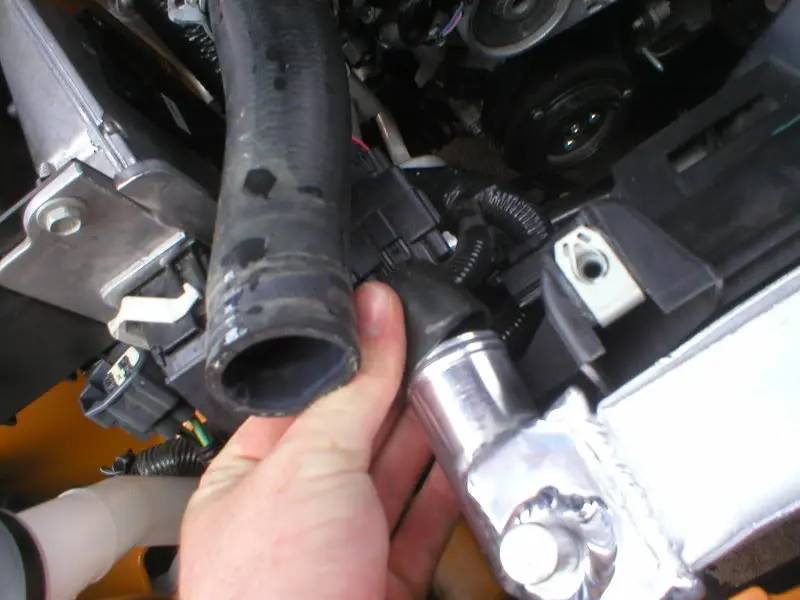

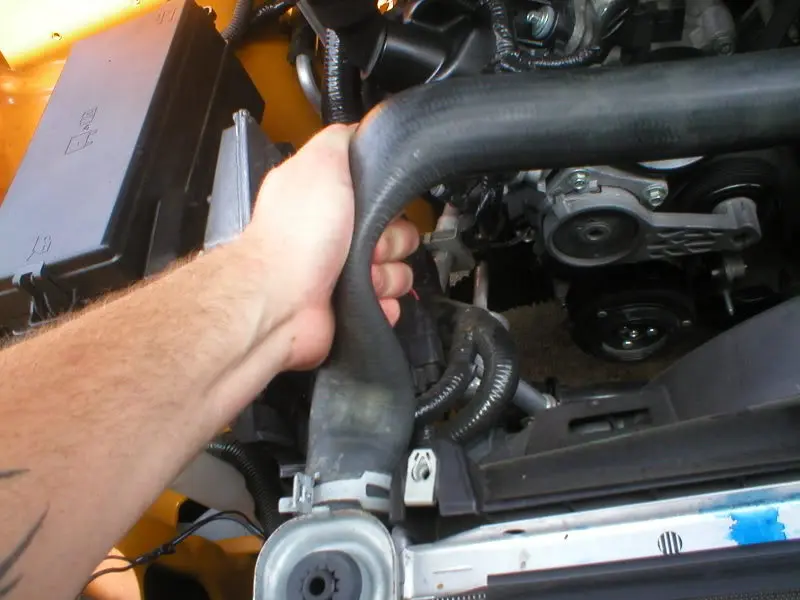

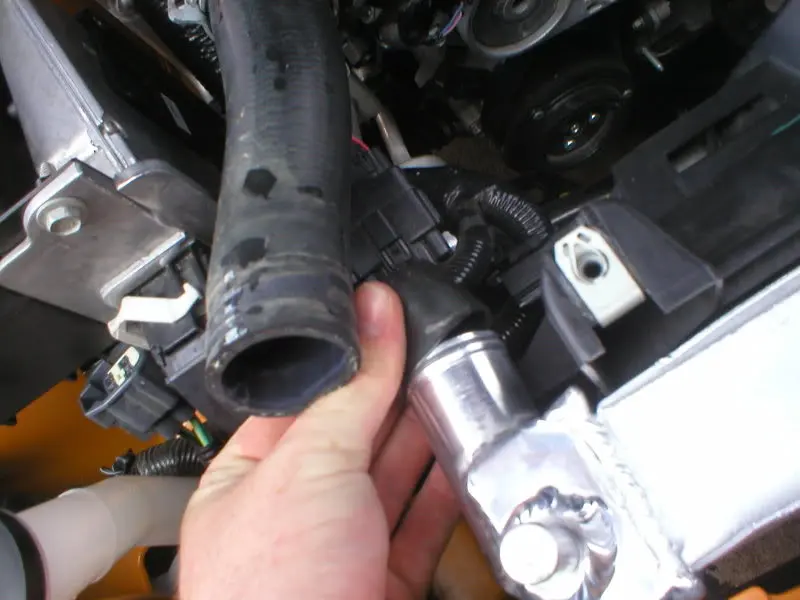

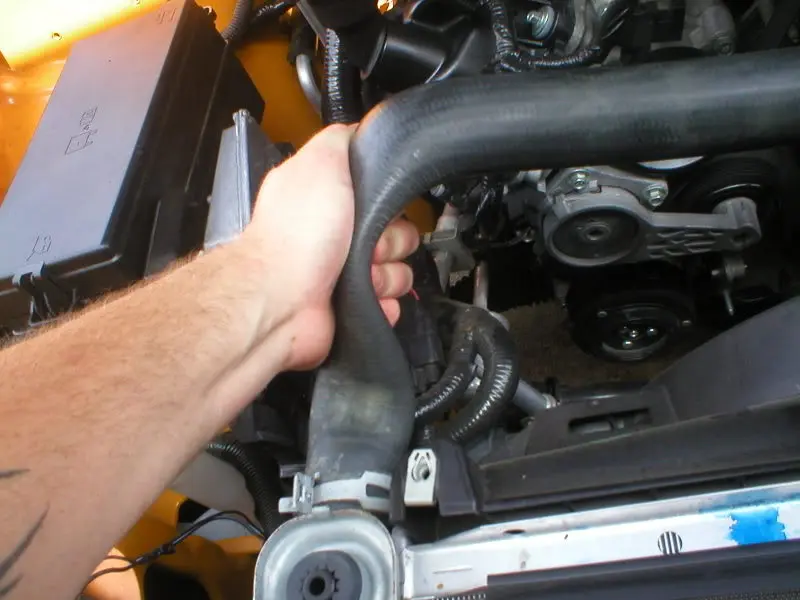

Remove the upper/large coolant hose, I used plyers and a screwdrive to remove the clamps

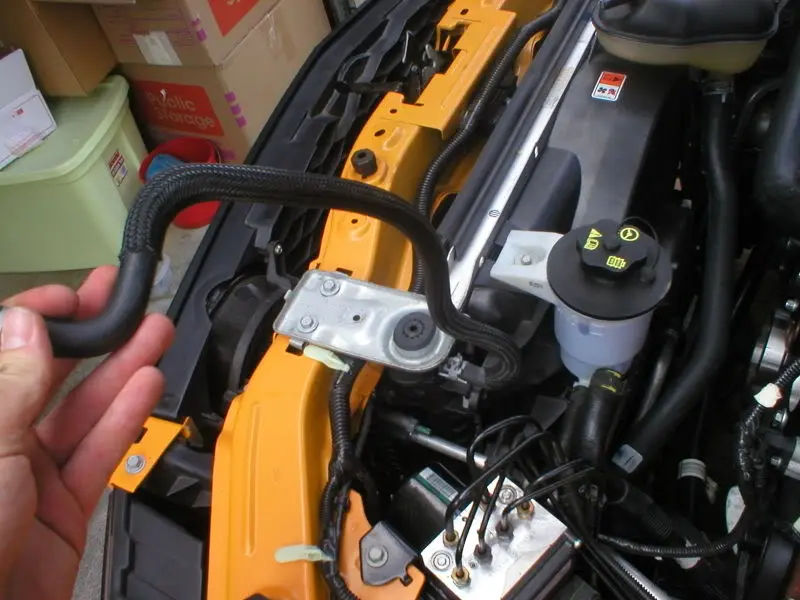

Tuck the hose out of the way.

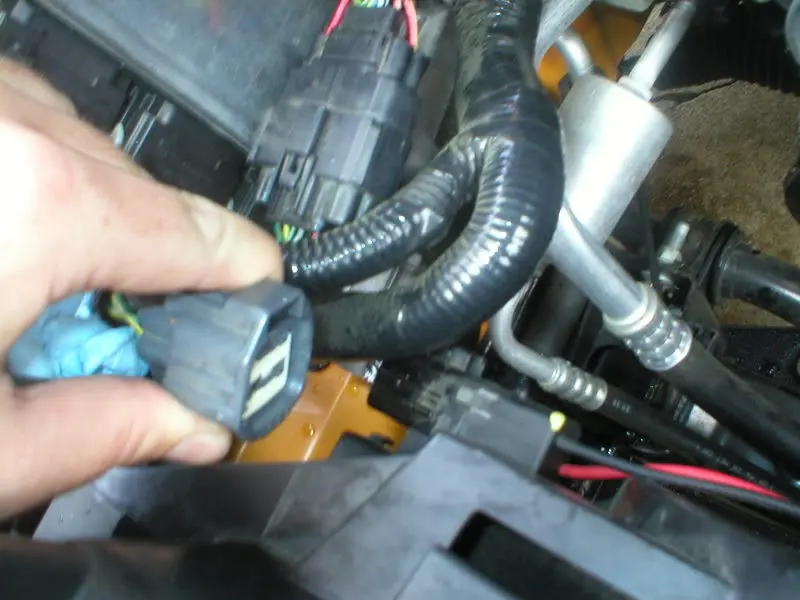

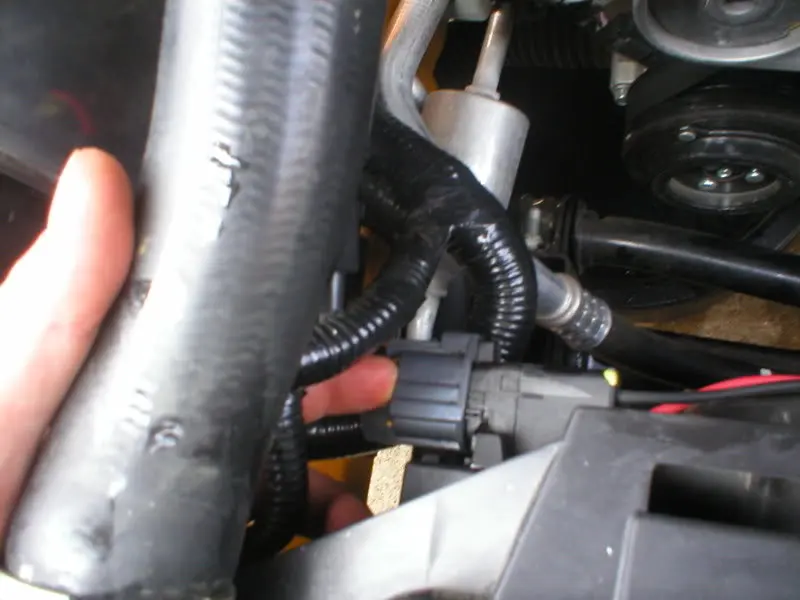

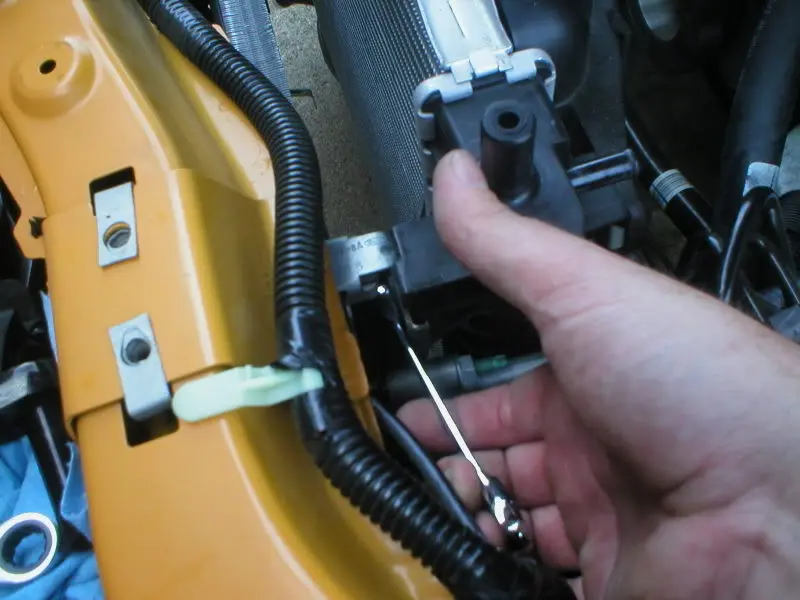

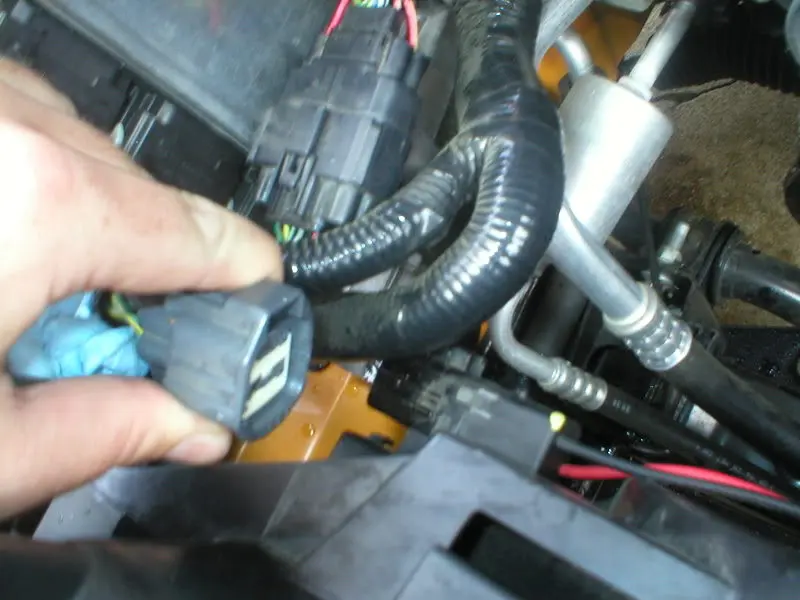

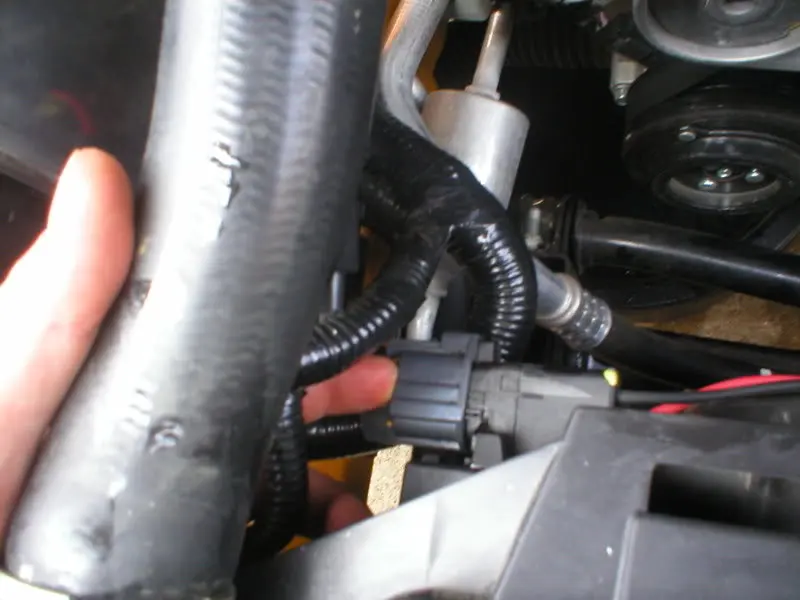

Disconnect the fan power cable

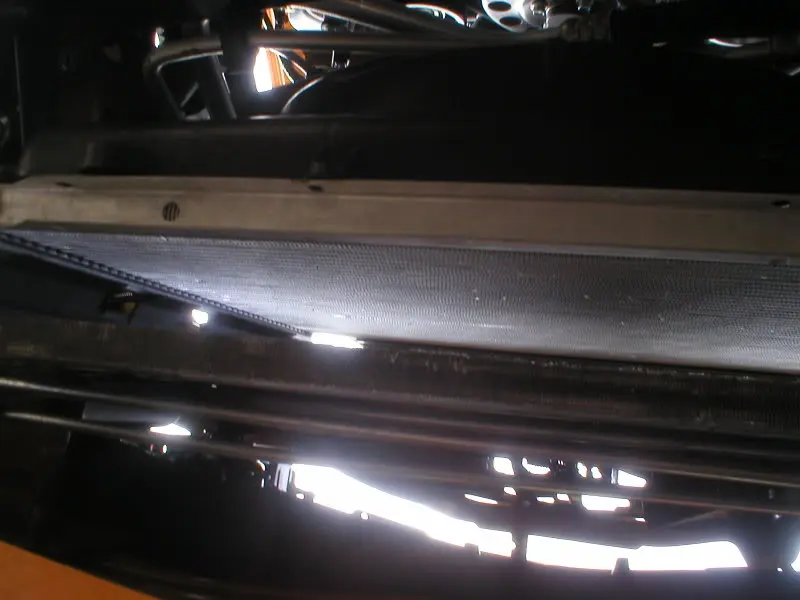

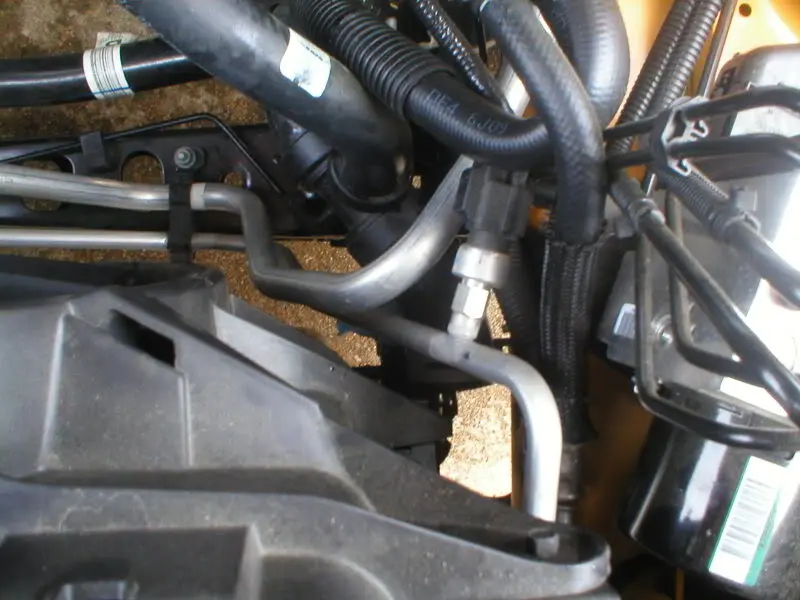

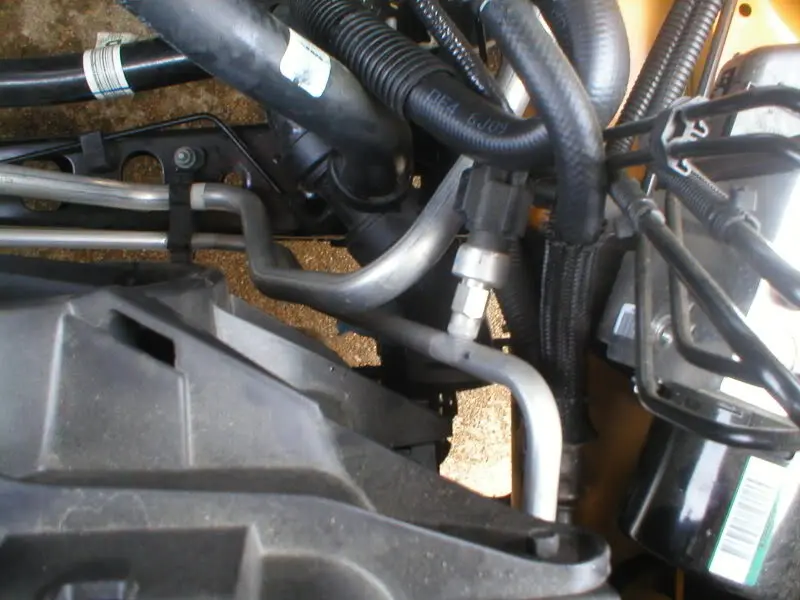

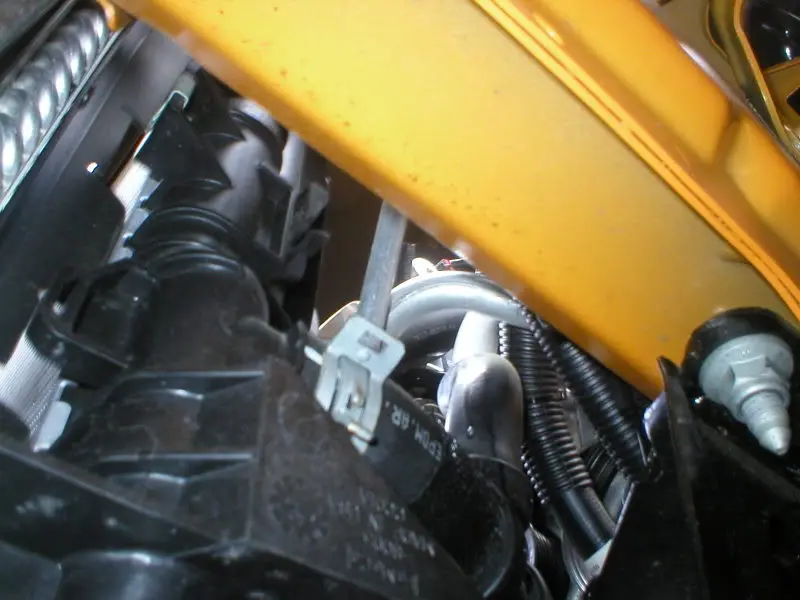

Remove the lower/large coolant hose from the radiator

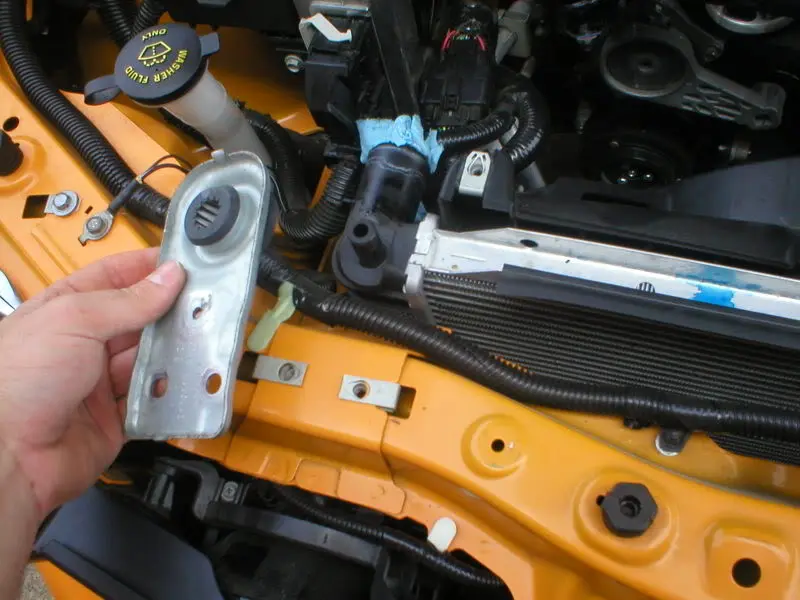

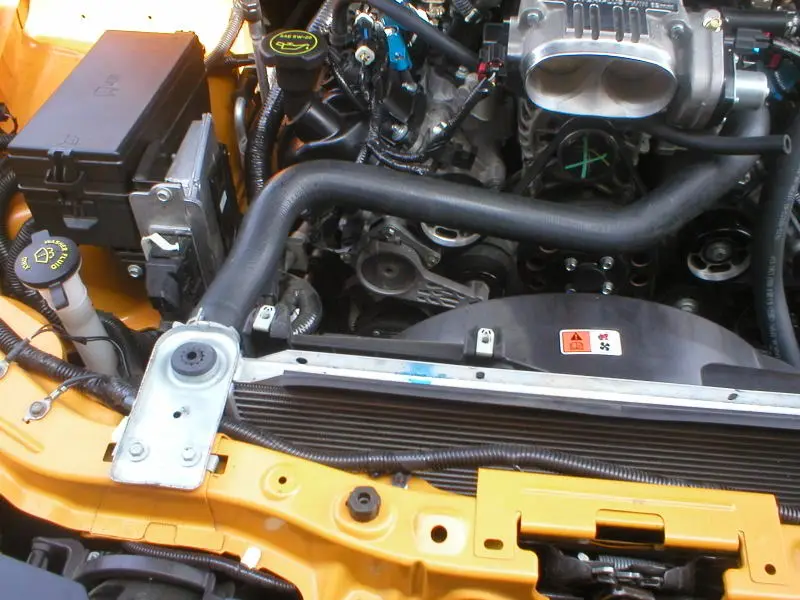

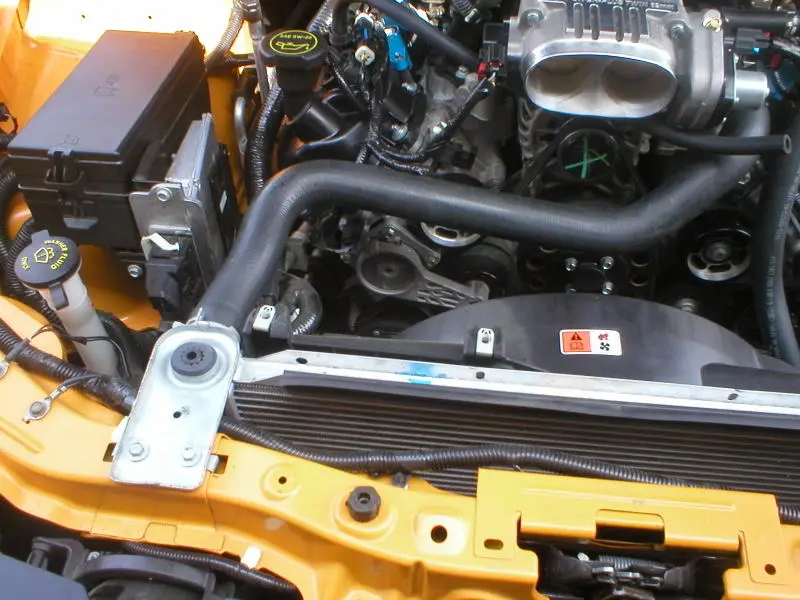

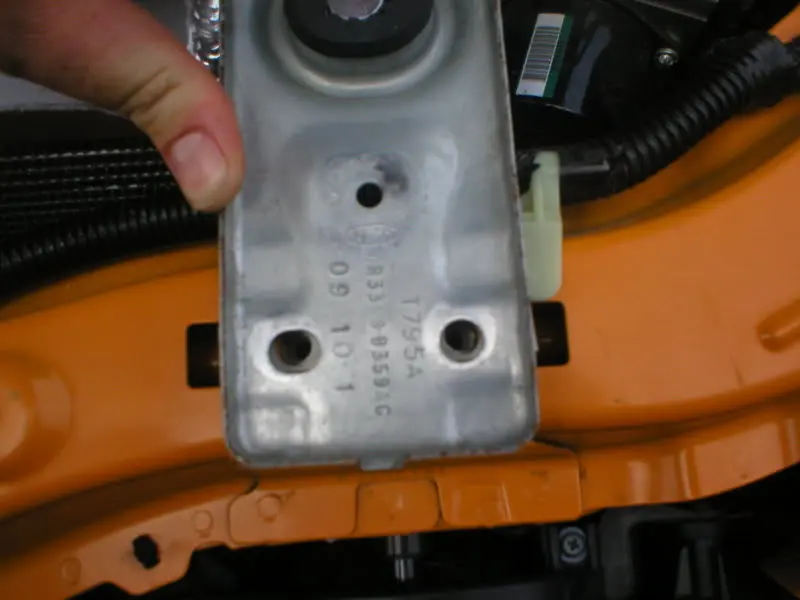

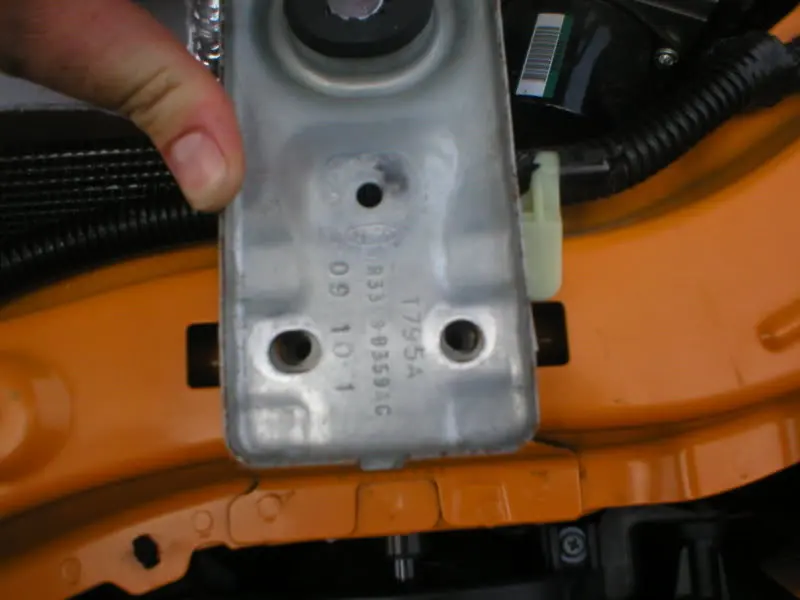

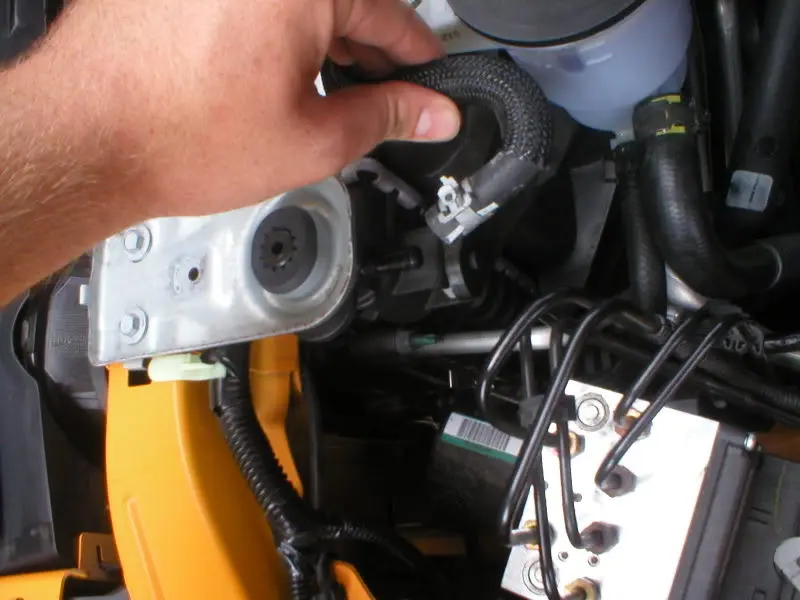

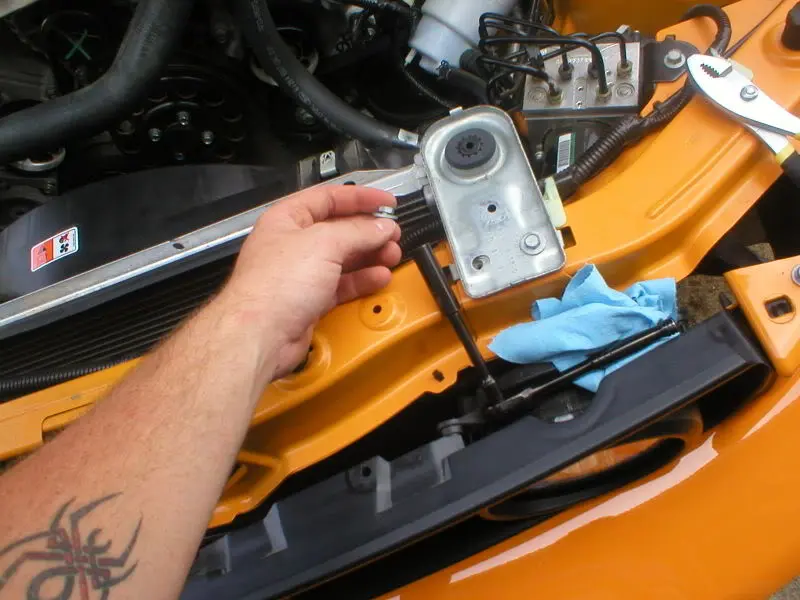

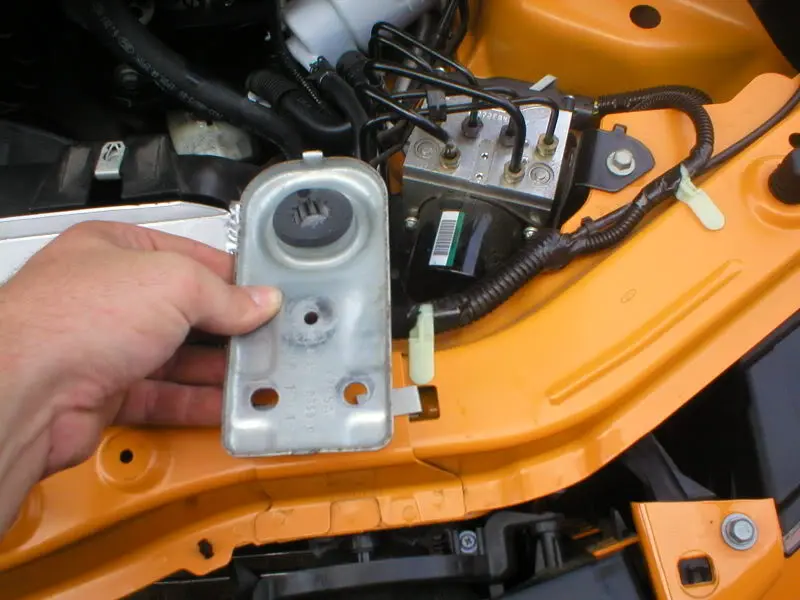

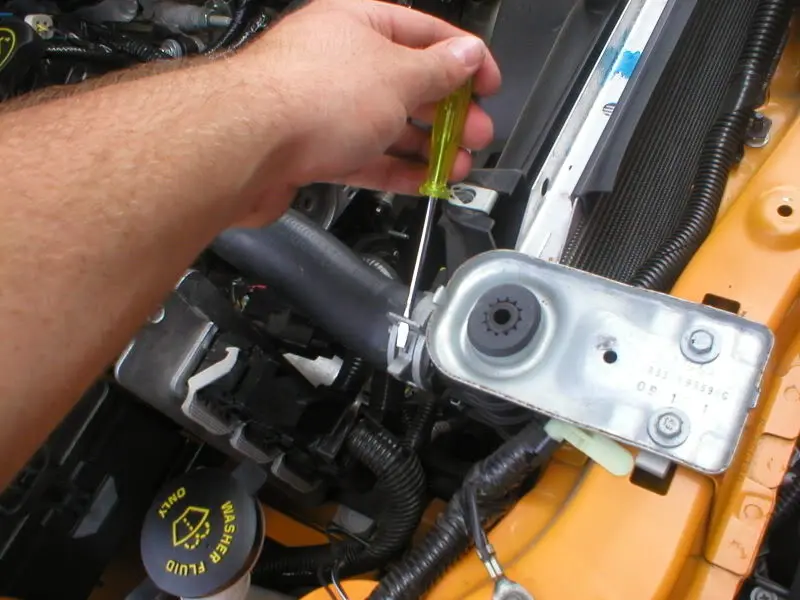

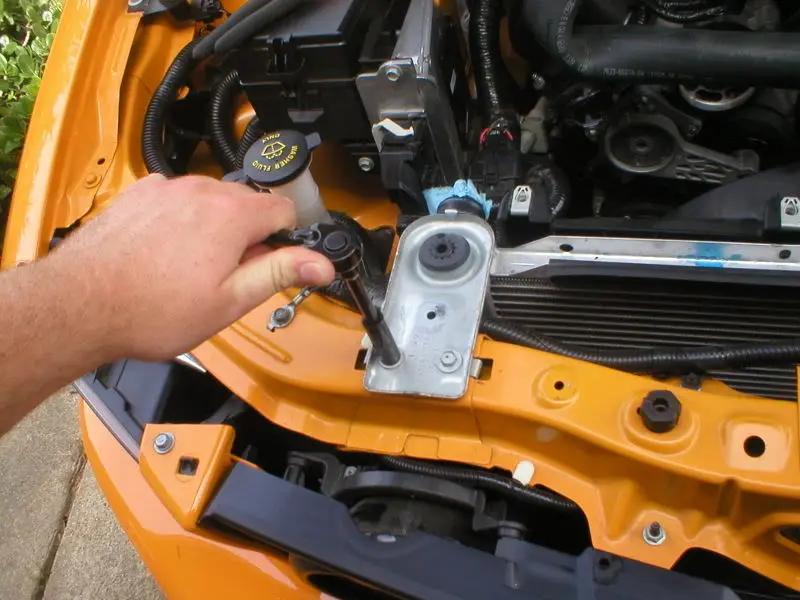

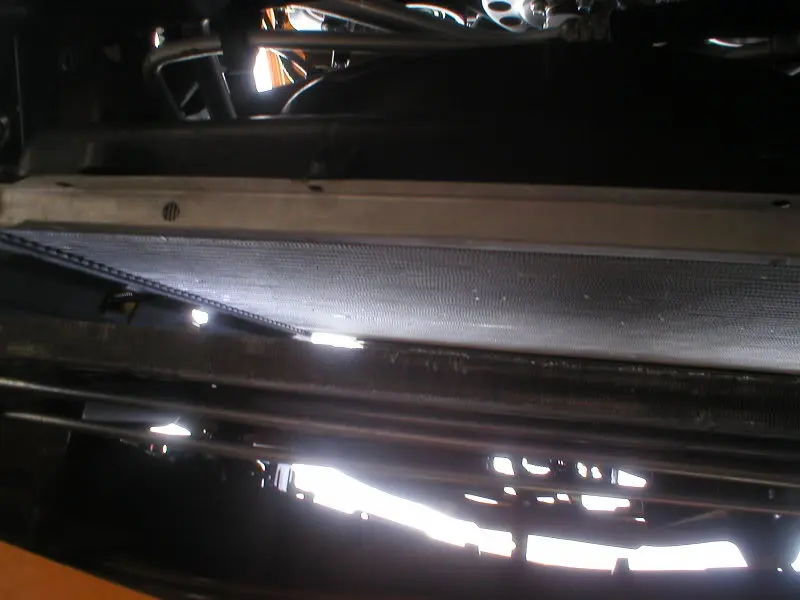

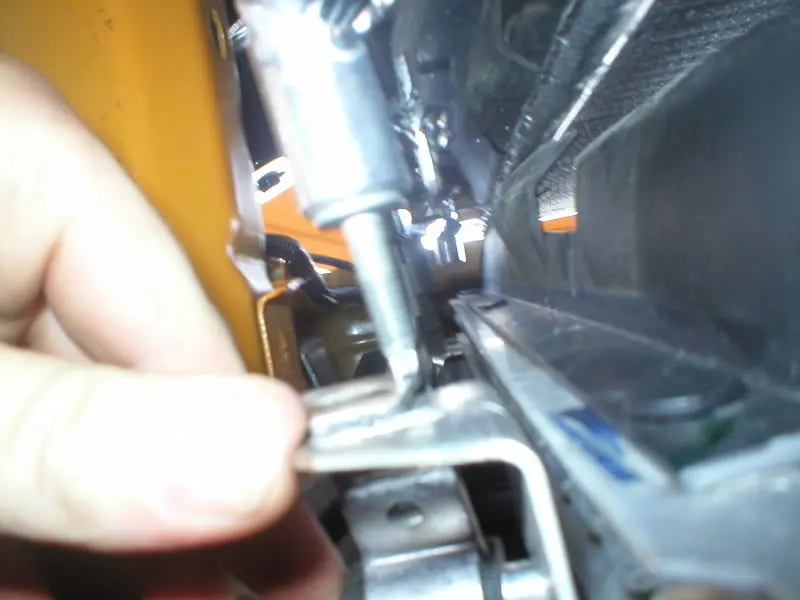

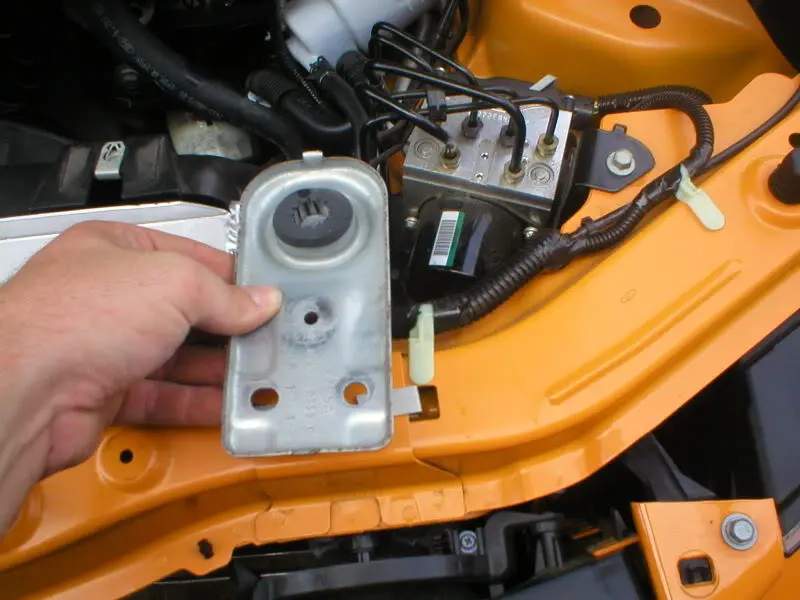

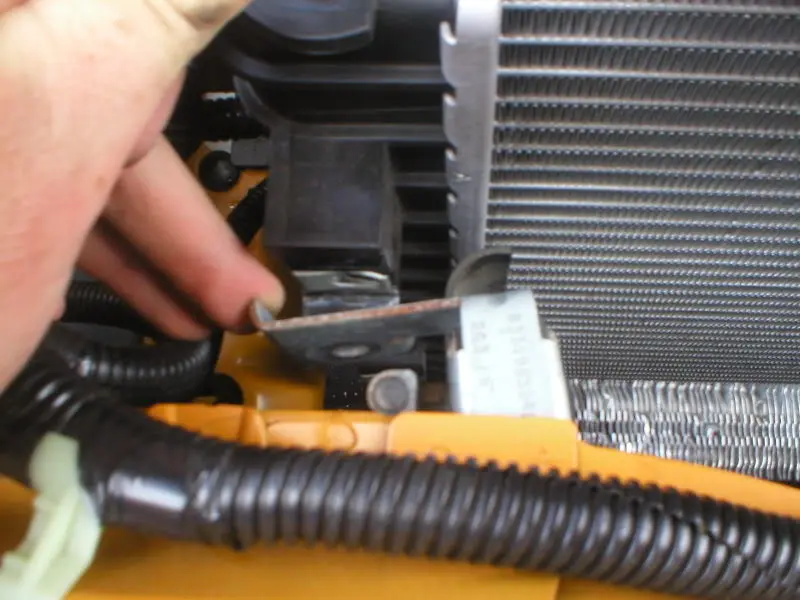

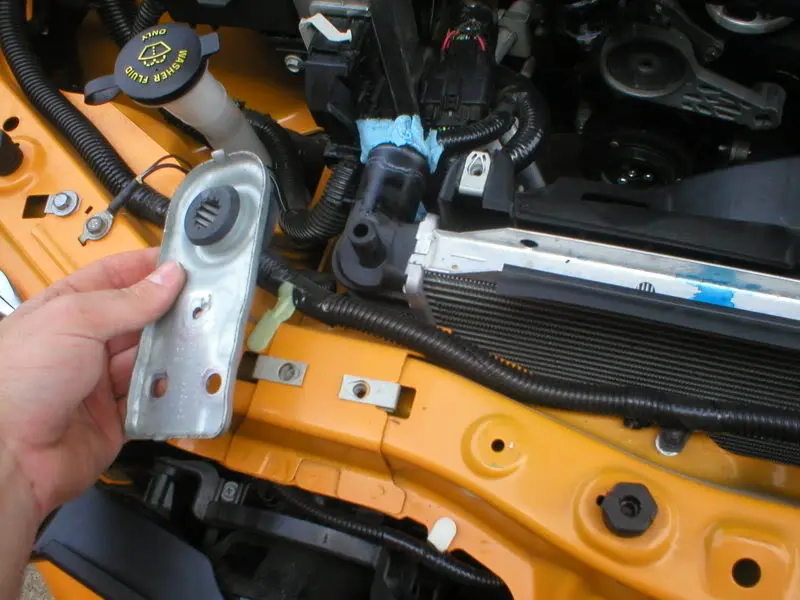

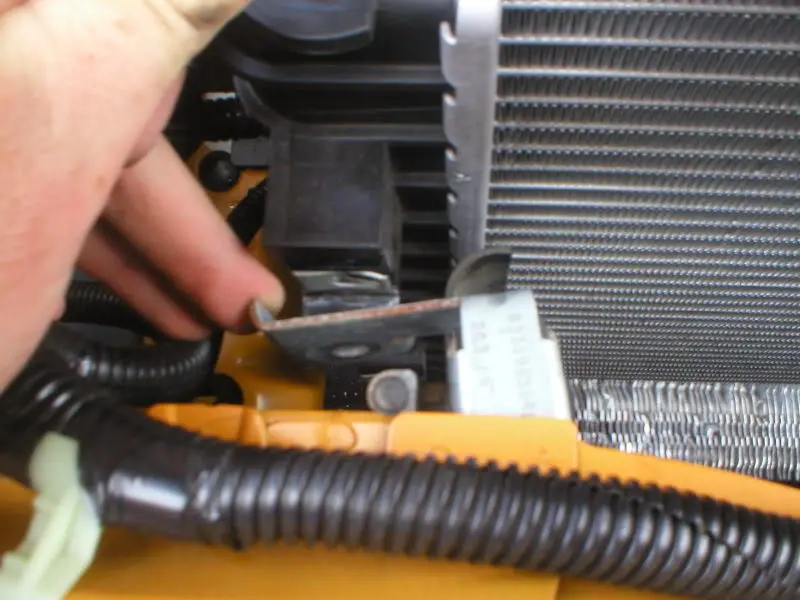

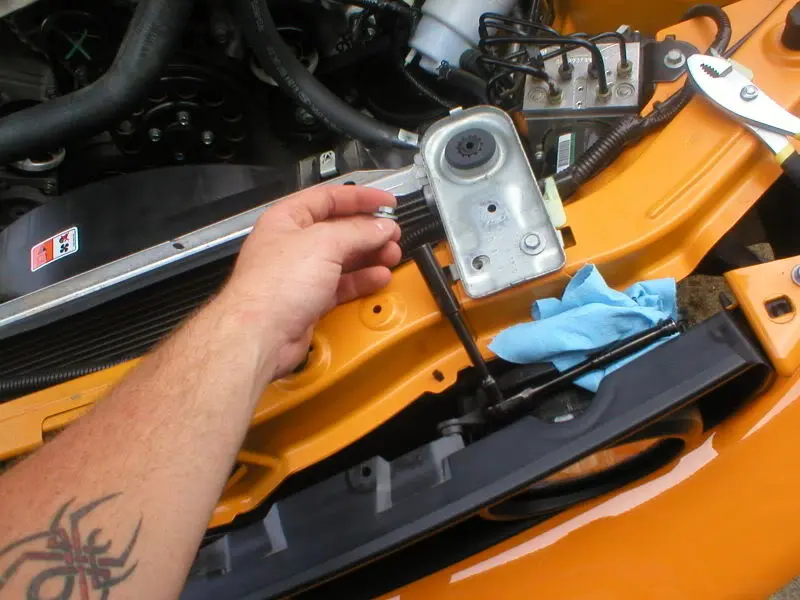

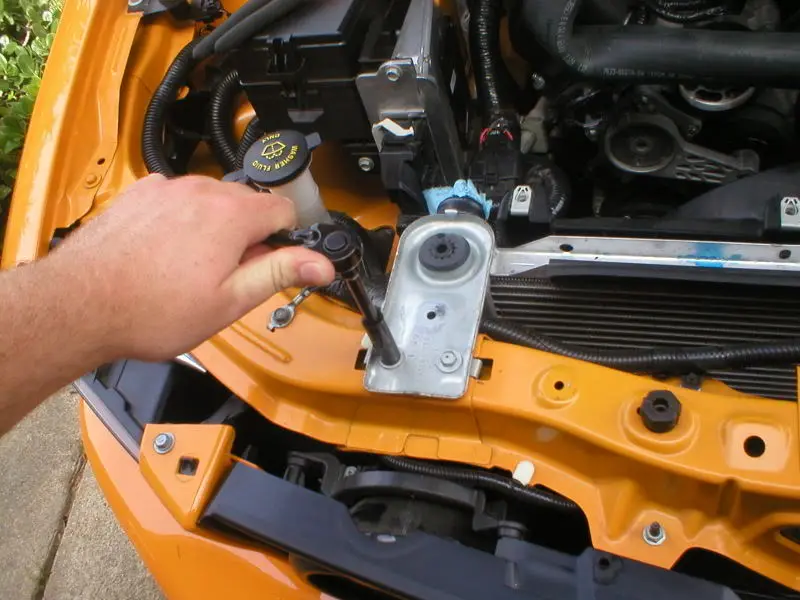

There are 2 plates on top that hold the radiator in place, remove the 4 bolts to take these off.

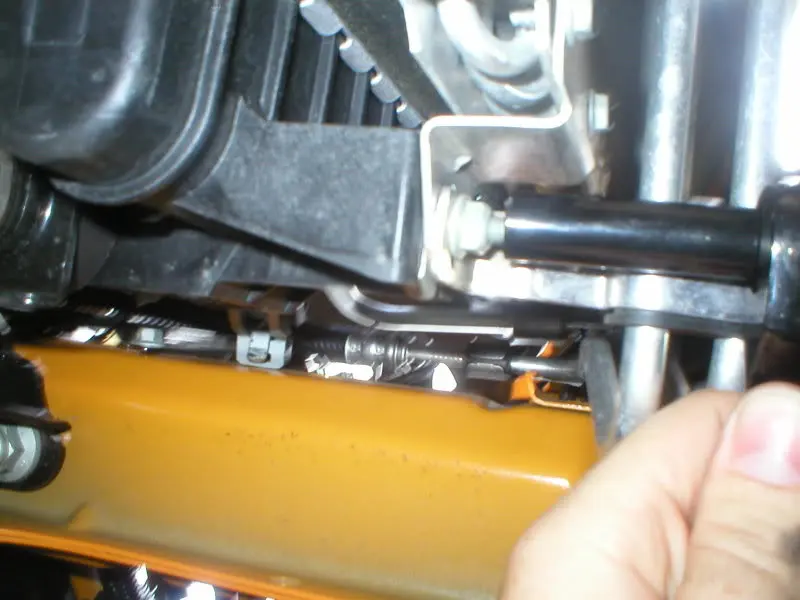

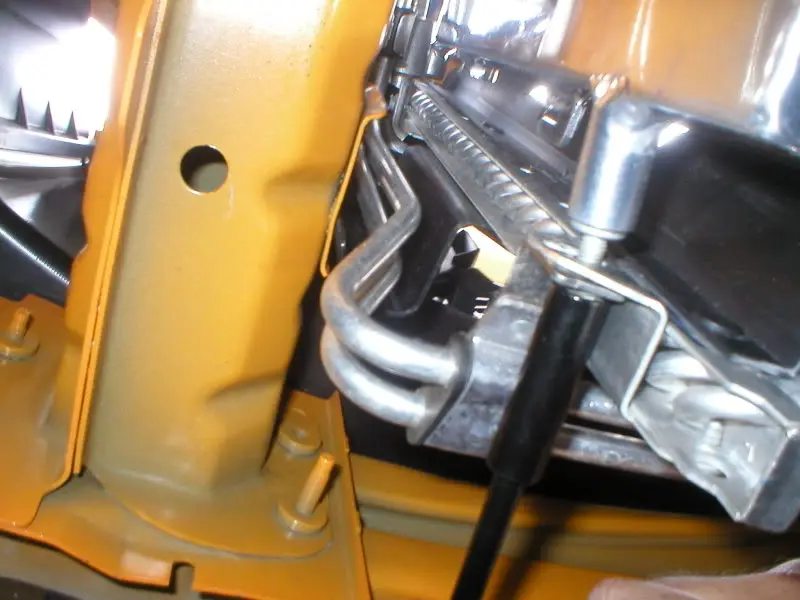

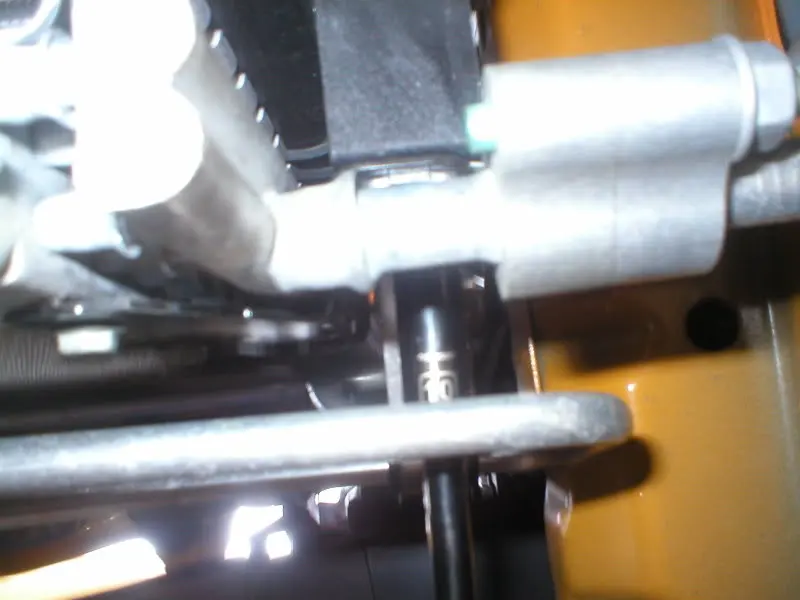

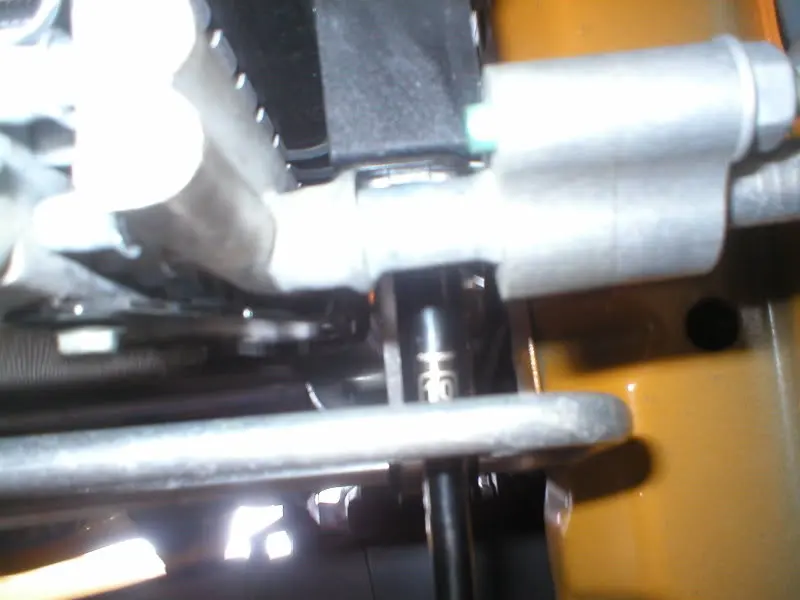

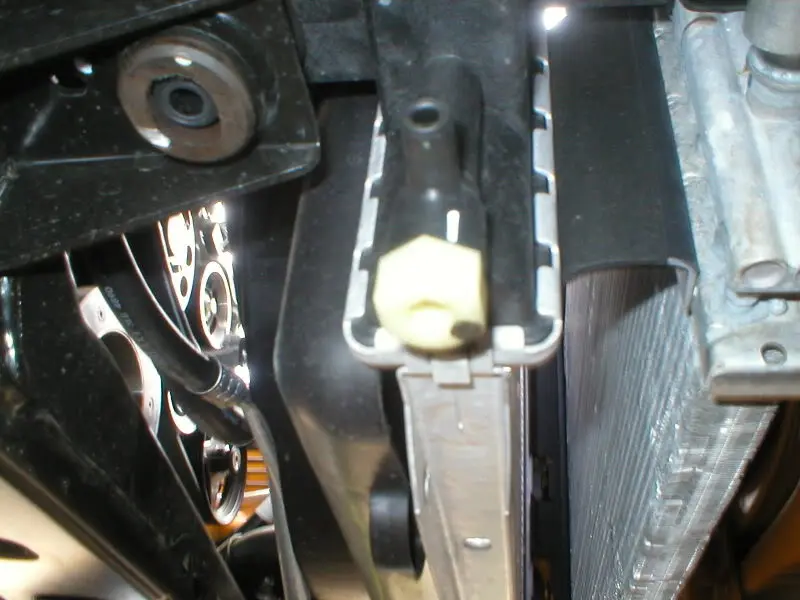

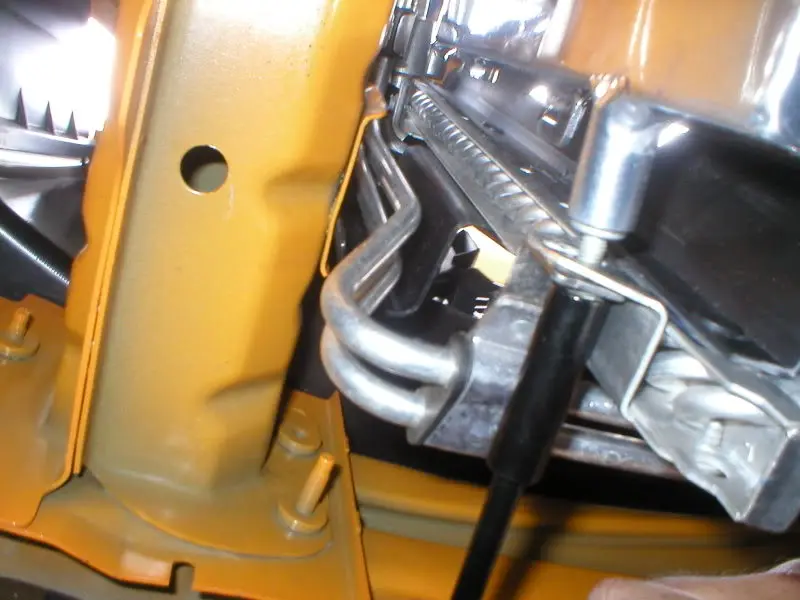

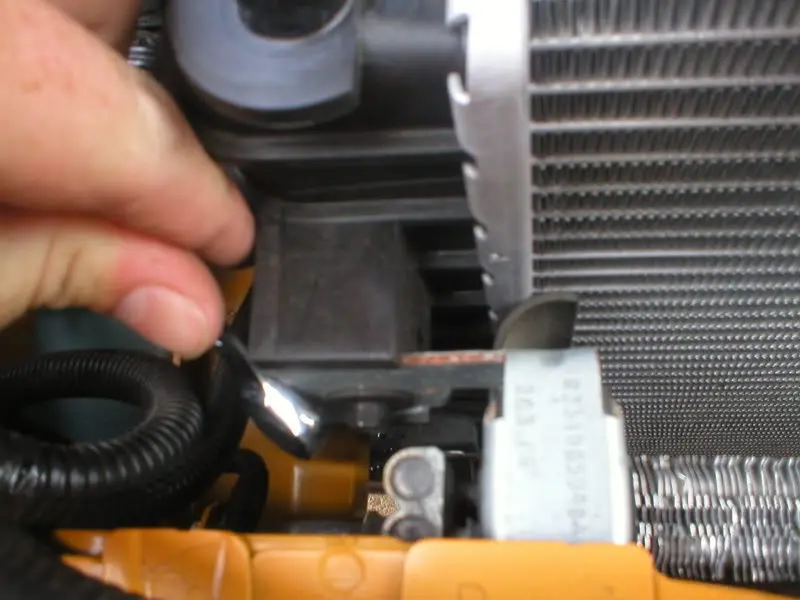

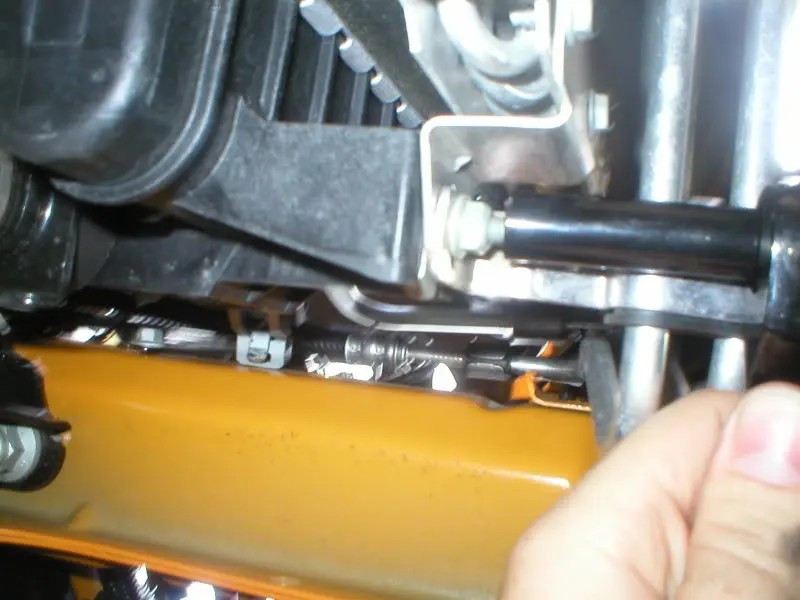

There are 2 bolts on each side at the bottom of the radiator, remove them

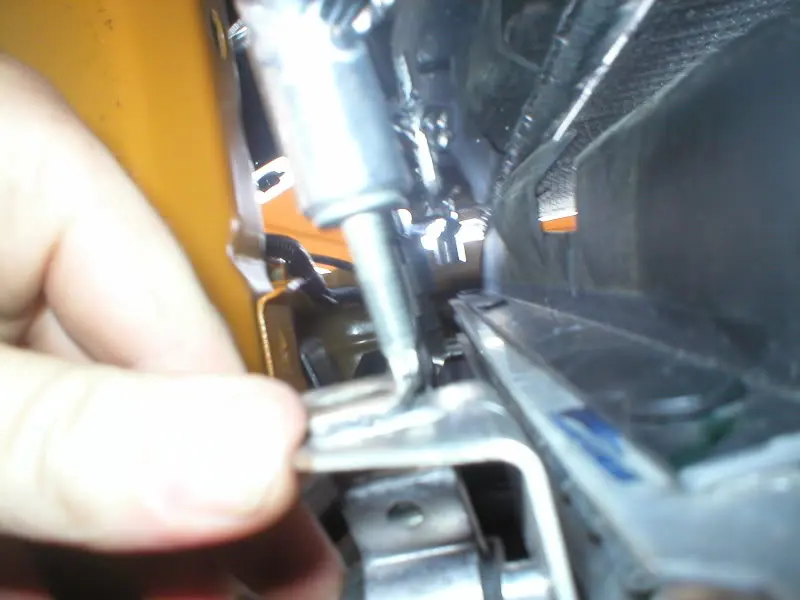

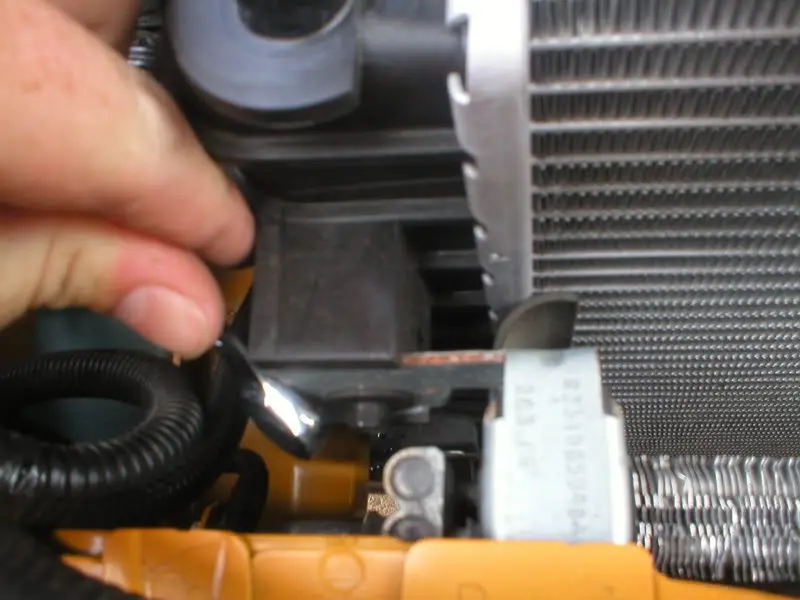

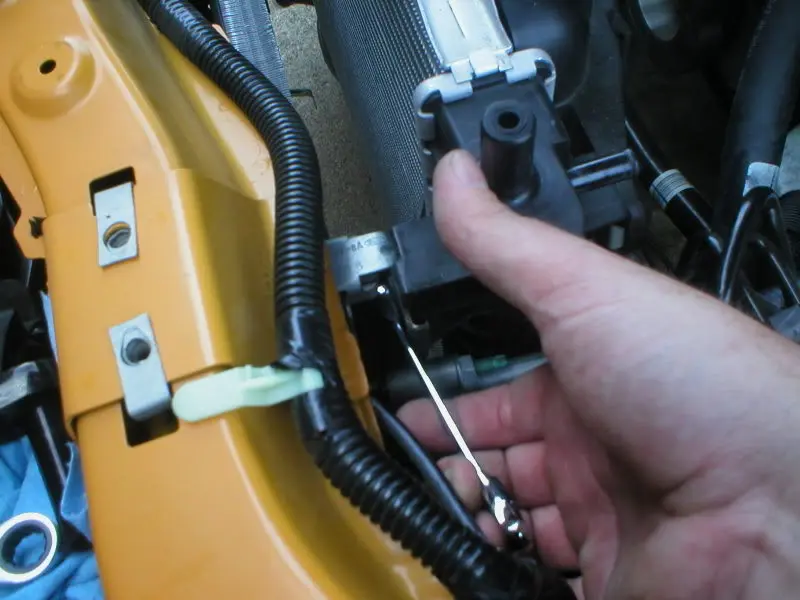

Its almost out, 2 more bolts on the top foward of the radiator, i used a racheting wrench for these

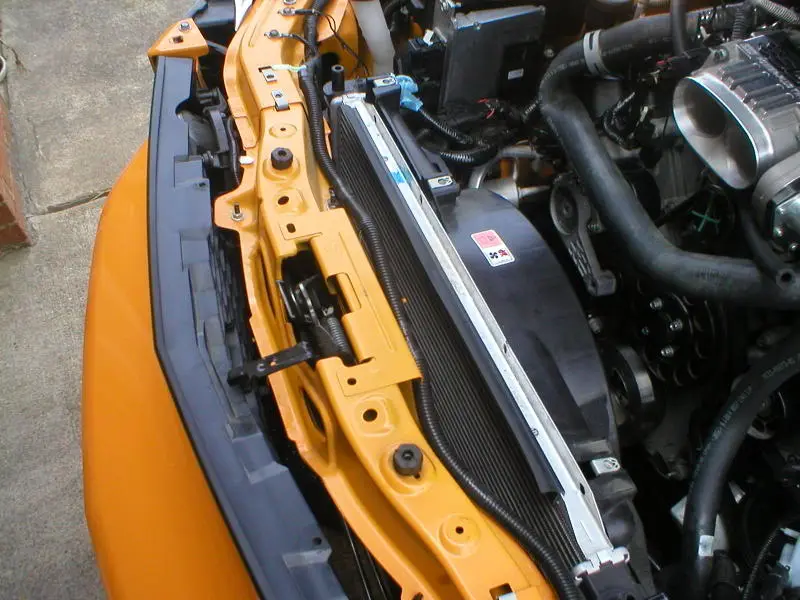

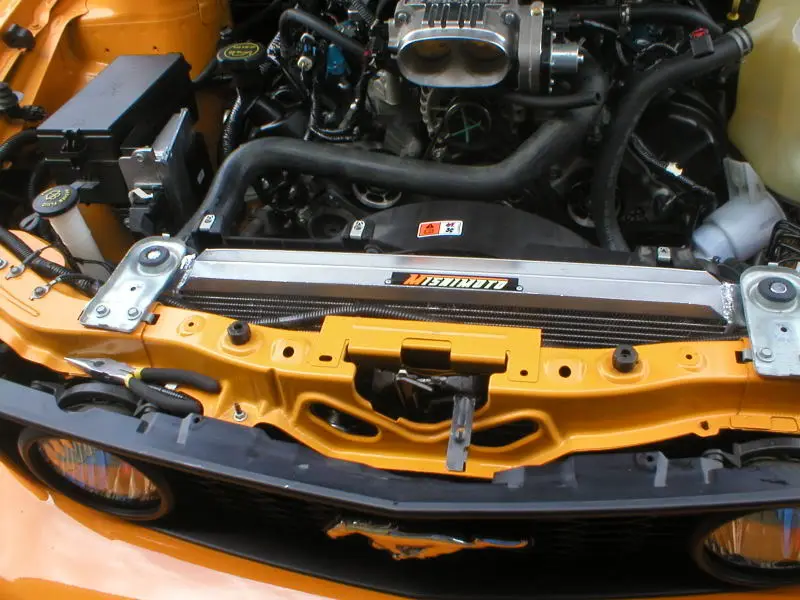

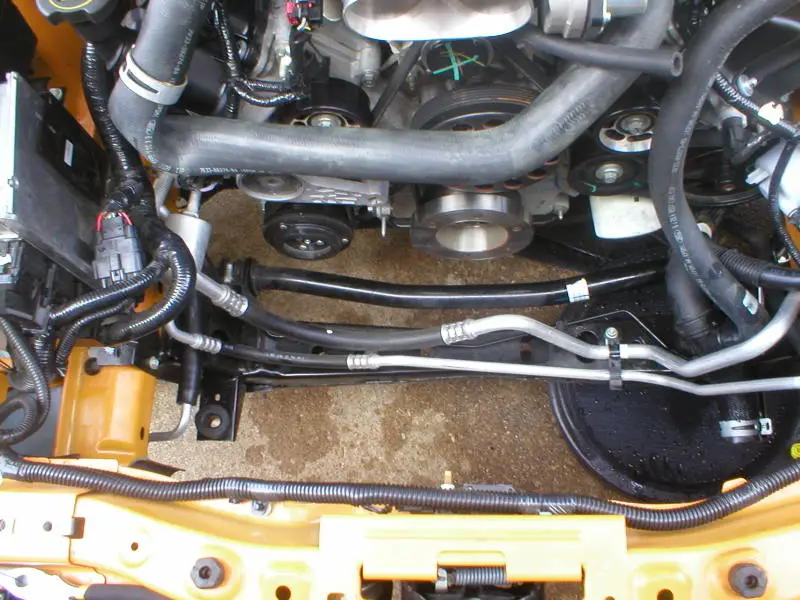

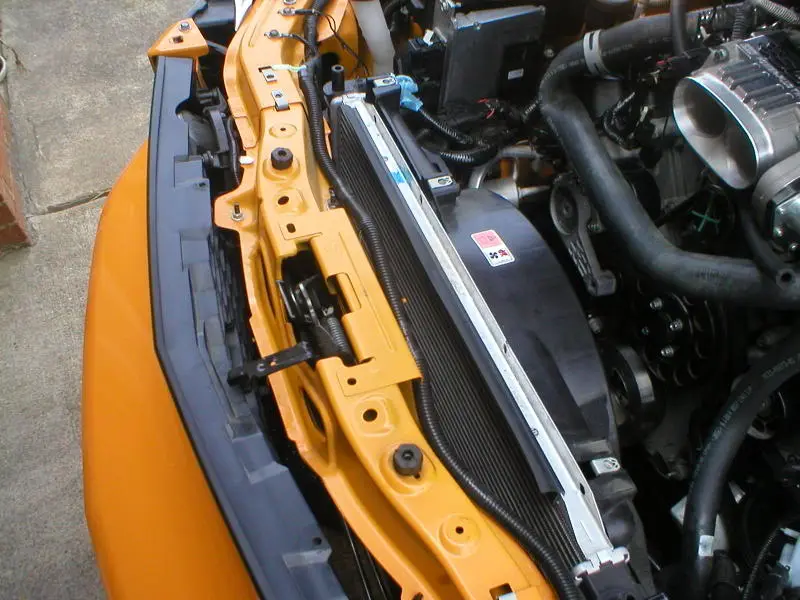

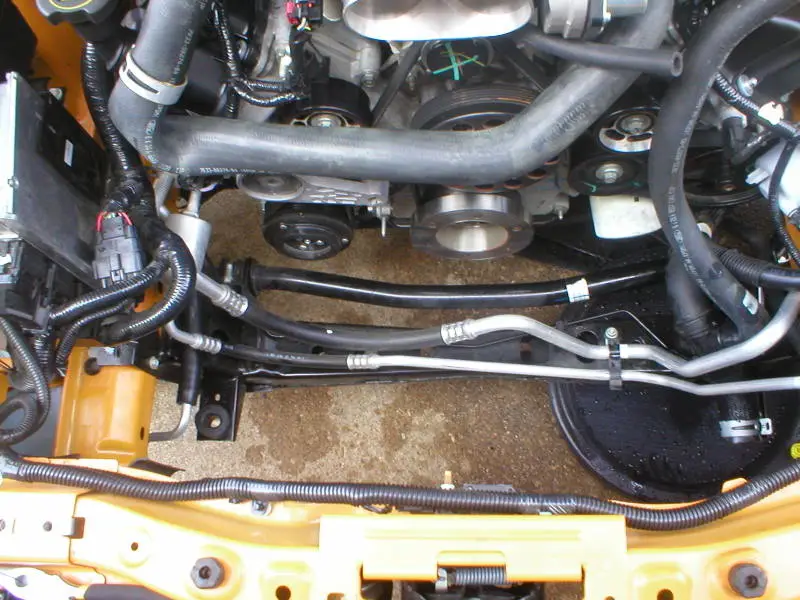

Now the radiator is completely unbolted, pull her out, becareful not to damge anything.


Attachments

  • AUG07066.jpg
    78.7 KB · Views: 266
  • AUG07.jpg
    69.5 KB · Views: 288
  • AUG07031-1.jpg
    70.8 KB · Views: 257
  • AUG07033-1.jpg
    30.4 KB · Views: 271
  • AUG07034.jpg
    73.6 KB · Views: 281
  • AUG07035.jpg
    71.7 KB · Views: 269
  • AUG07037-1.jpg
    42.1 KB · Views: 253
  • AUG07039-1.jpg
    45.8 KB · Views: 269
  • AUG07032-1.jpg
    81.1 KB · Views: 268
  • AUG07040-1.jpg
    65.6 KB · Views: 273
  • AUG07041-1.jpg
    46.7 KB · Views: 258
  • AUG07042-1.jpg
    60.4 KB · Views: 256
  • AUG07043-1.jpg
    69.3 KB · Views: 259
  • AUG07044-1.jpg
    59.2 KB · Views: 273
  • AUG07053-1.jpg
    61.8 KB · Views: 282
  • AUG07045-1.jpg
    54.5 KB · Views: 264
  • AUG07046-1.jpg
    75 KB · Views: 266
  • AUG07047-1.jpg
    59.9 KB · Views: 252
  • AUG07048-1.jpg
    84.6 KB · Views: 269
  • AUG07049-1.jpg
    76.5 KB · Views: 270
  • AUG07050-1.jpg
    85.7 KB · Views: 238
  • AUG07051-1.jpg
    62.6 KB · Views: 292
  • AUG07052-1.jpg
    71.8 KB · Views: 266
  • AUG07054-1.jpg
    87.7 KB · Views: 269
  • AUG07055-1.jpg
    60.8 KB · Views: 248
  • AUG07056-1.jpg
    59.5 KB · Views: 266
  • AUG07057-1.jpg
    70.9 KB · Views: 261
  • AUG07058-1.jpg
    75.9 KB · Views: 250
  • AUG07059-1.jpg
    73.5 KB · Views: 268
  • AUG07060.jpg
    73.9 KB · Views: 263
  • AUG07061.jpg
    83.5 KB · Views: 242
  • AUG07062-1.jpg
    40.8 KB · Views: 273
  • AUG07063-1.jpg
    55.3 KB · Views: 242
  • AUG07064.jpg
    56.7 KB · Views: 272
  • AUG07065-1.jpg
    66.4 KB · Views: 260
  • AUG07066-1.jpg
    63 KB · Views: 261
  • AUG07067-1.jpg
    88.7 KB · Views: 254
  • Sponsors (?)


Aluminum rad install part 2

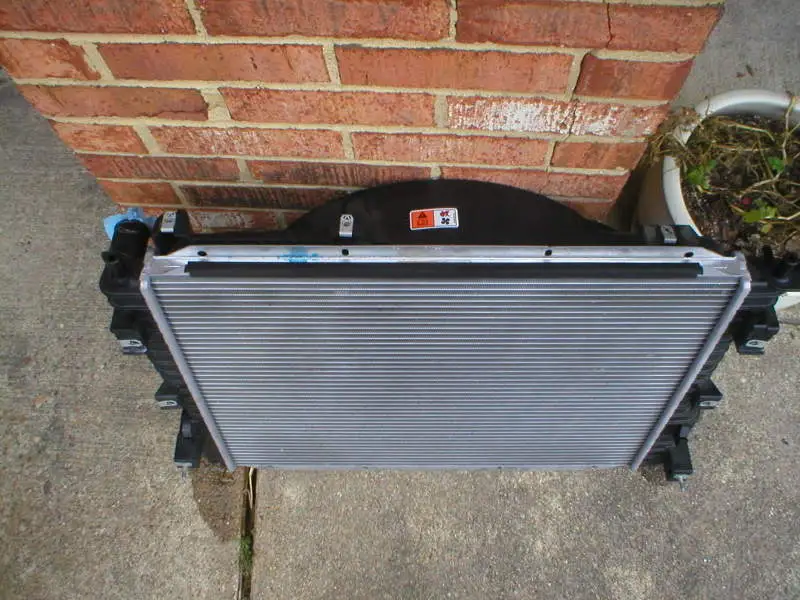

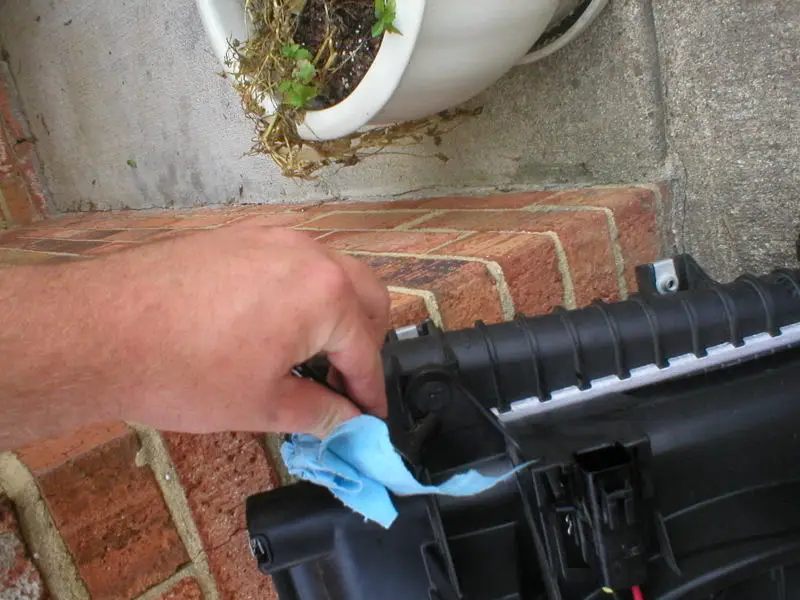

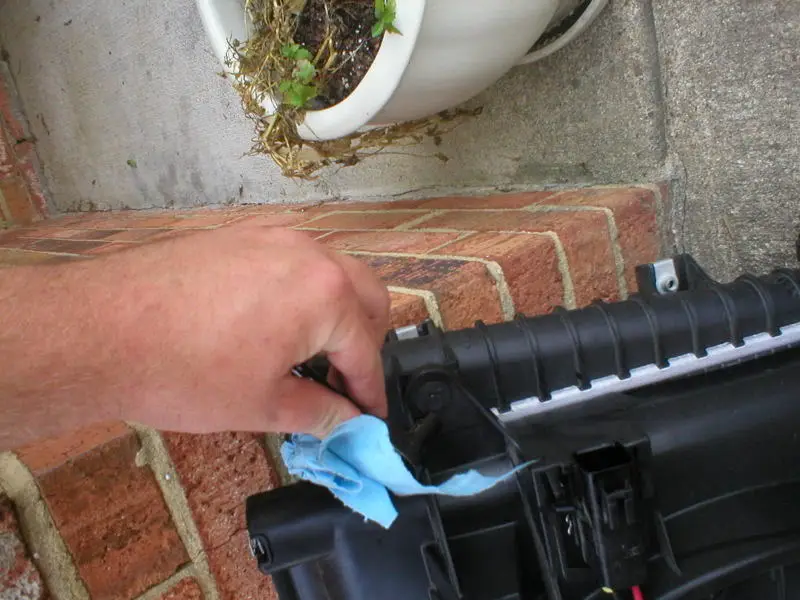

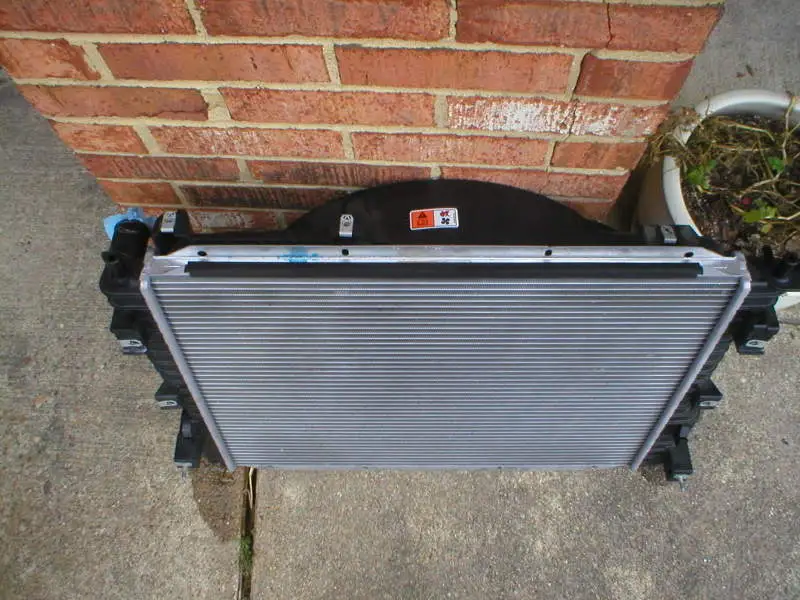

The Old Radiator

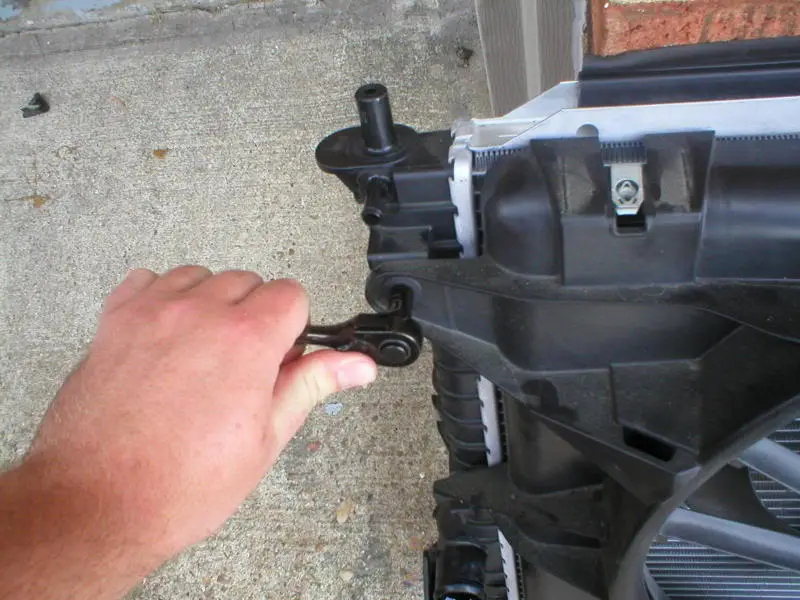

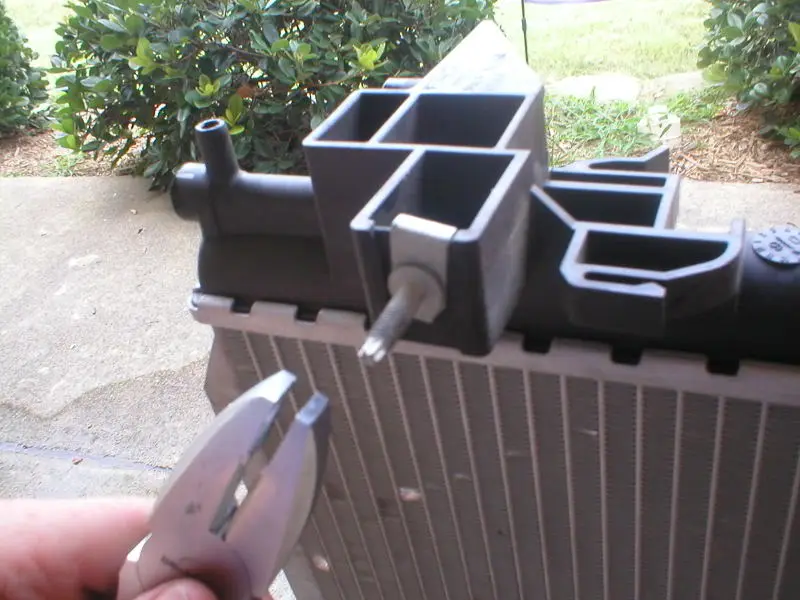

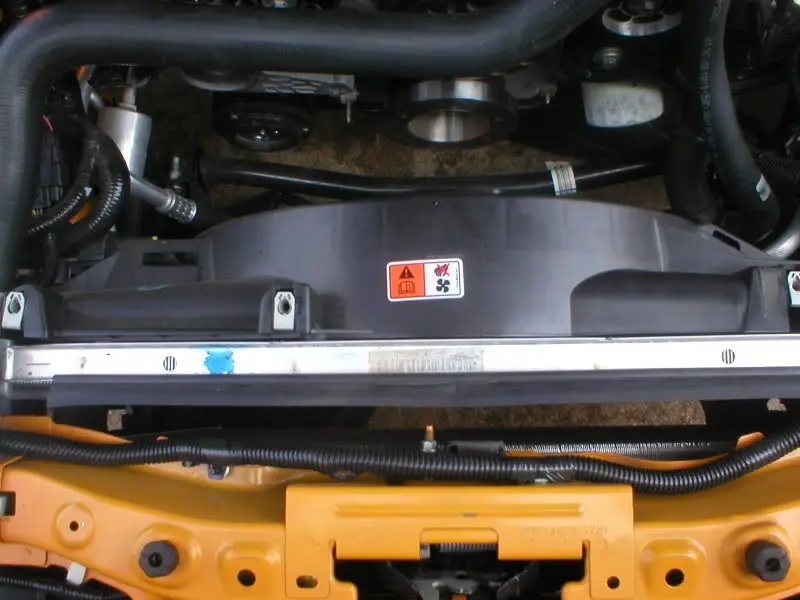

Remove the fan shroud, just 2 bolts on each side

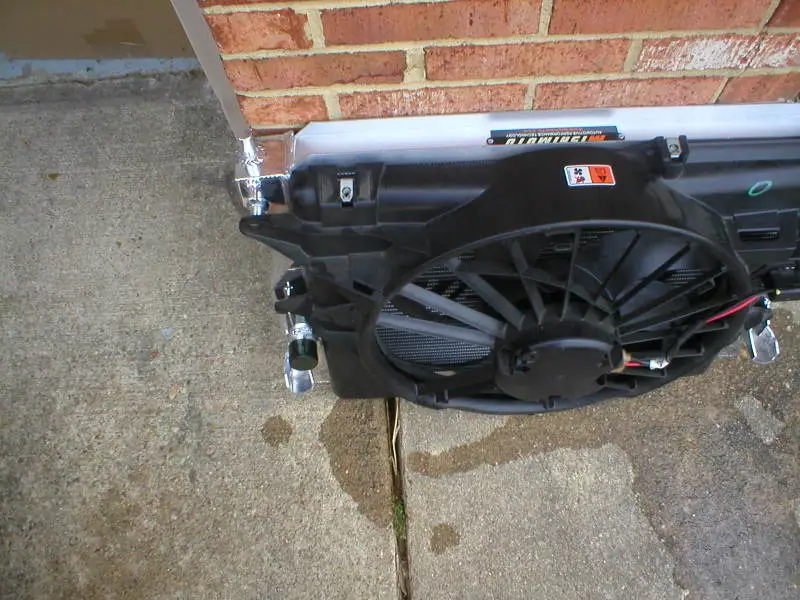

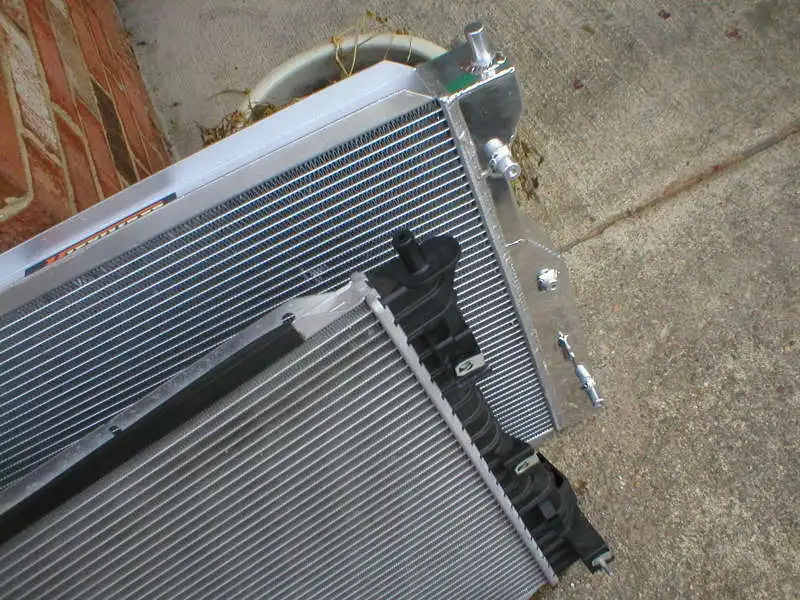

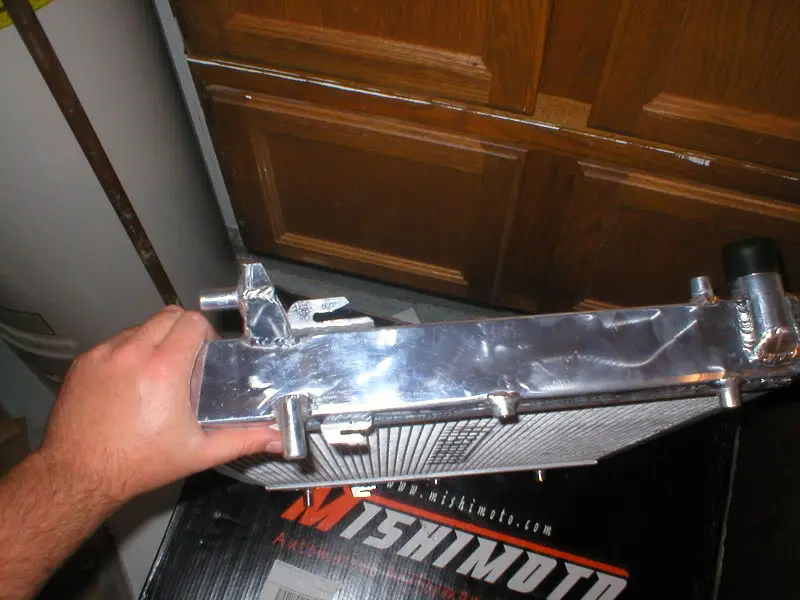

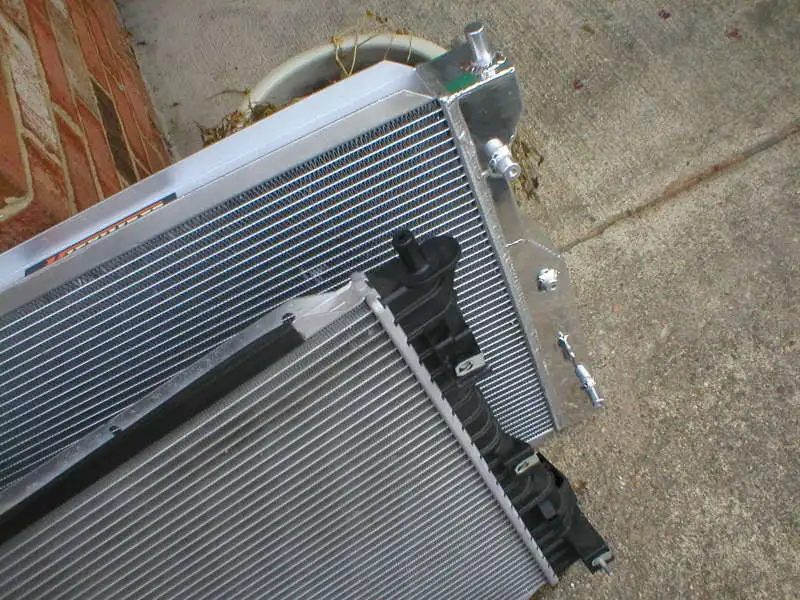

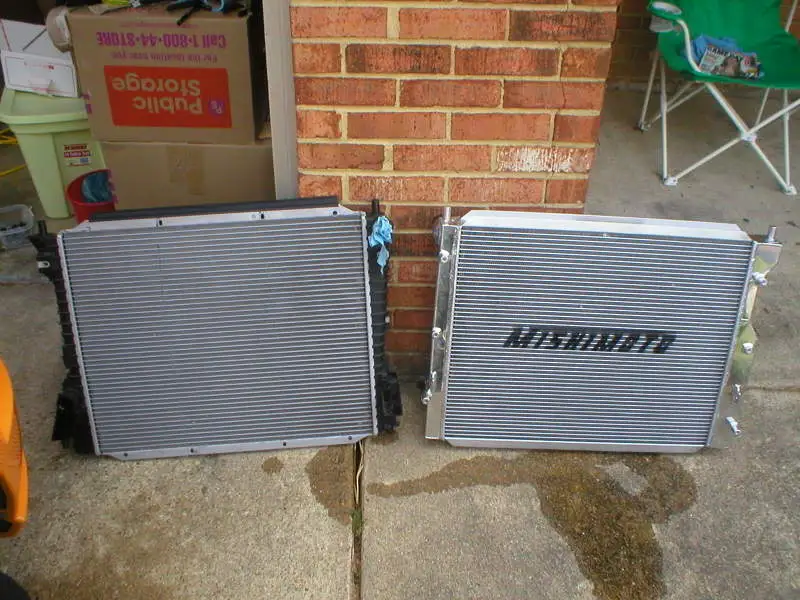

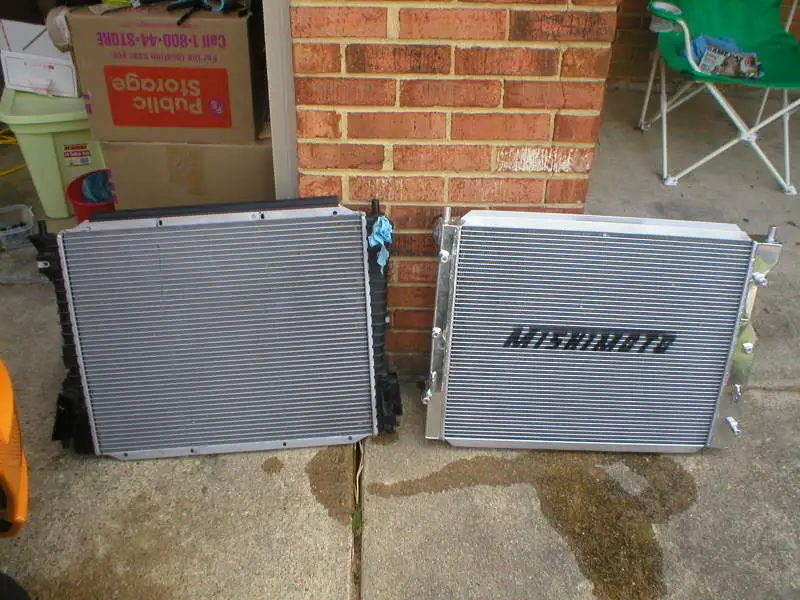

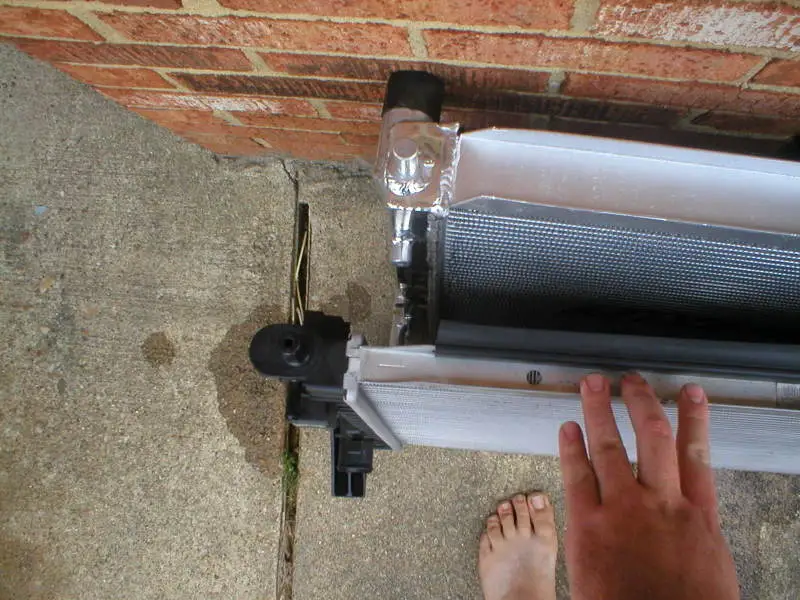

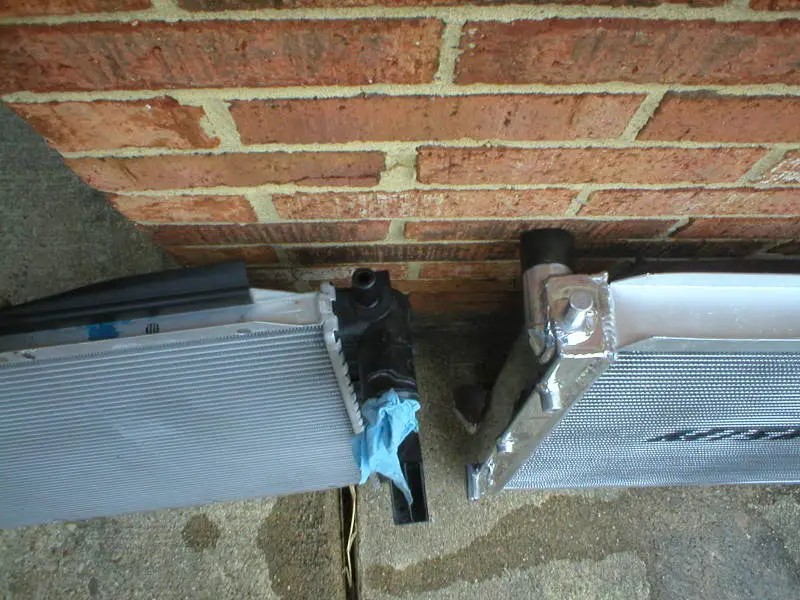

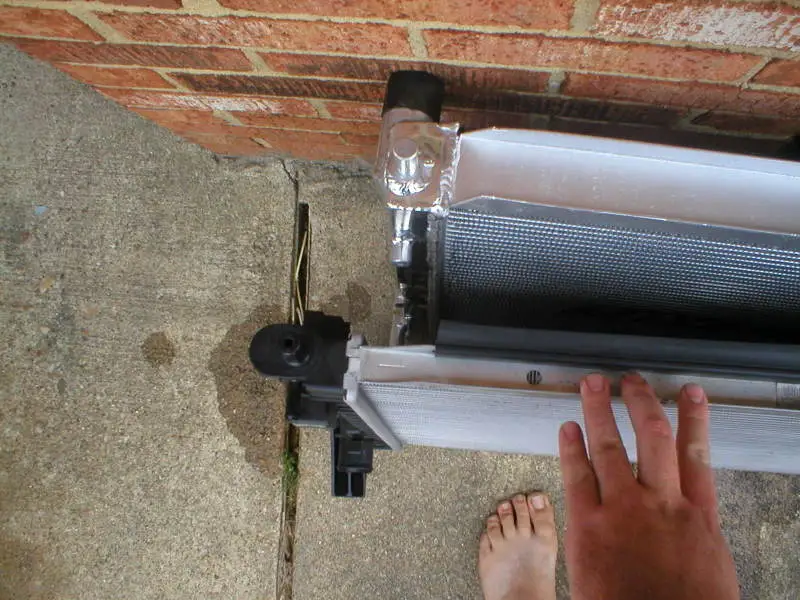

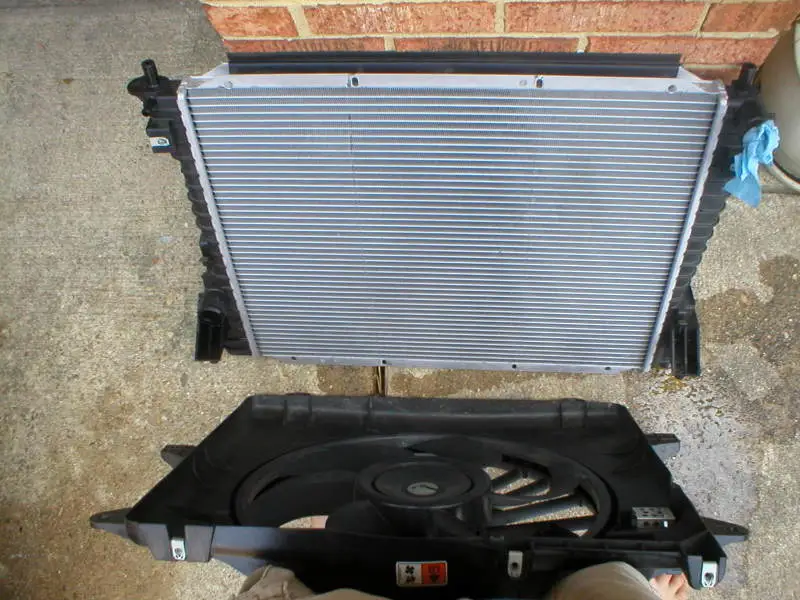

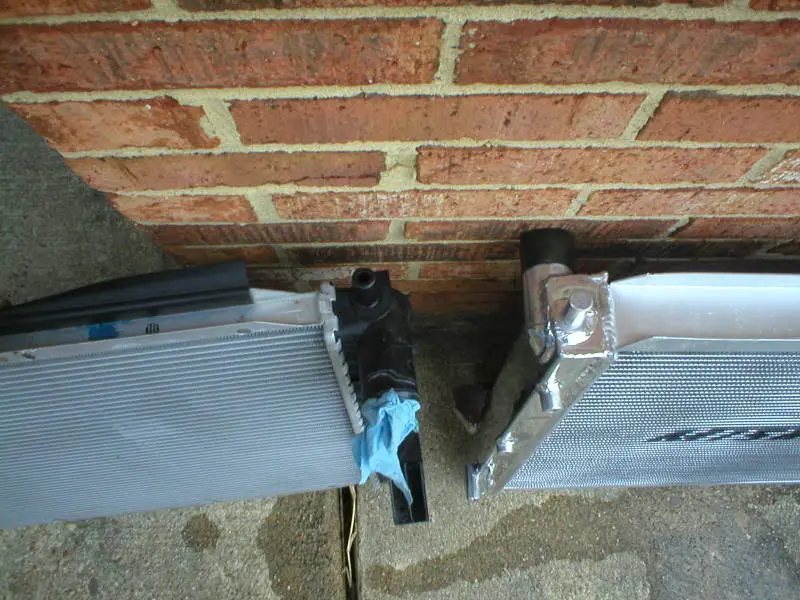

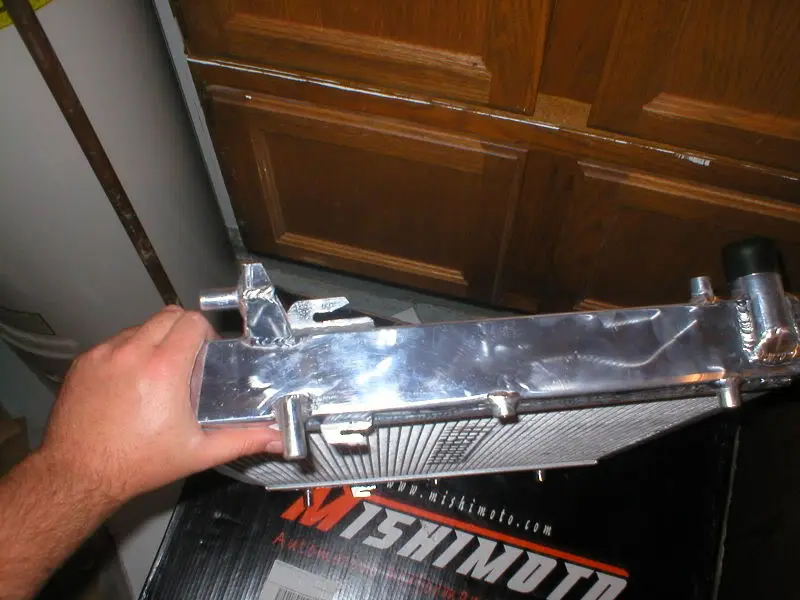

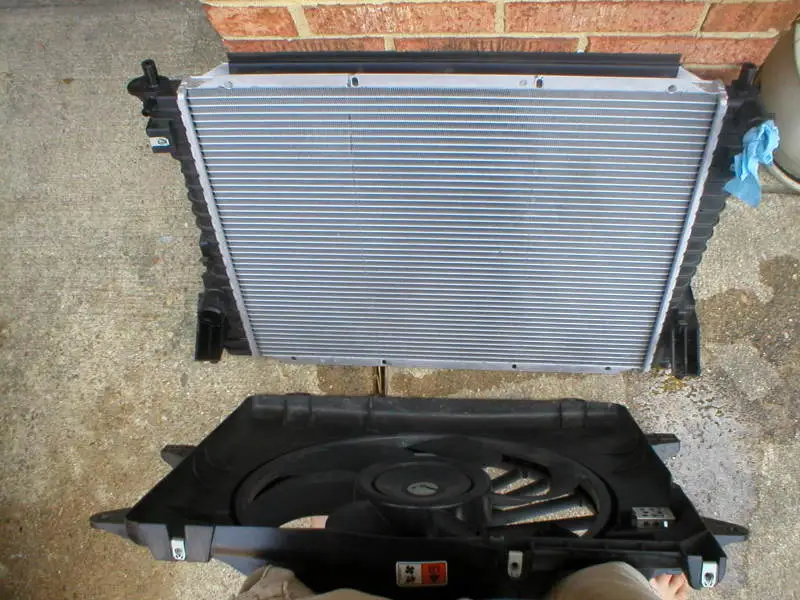

A side by side comparison:

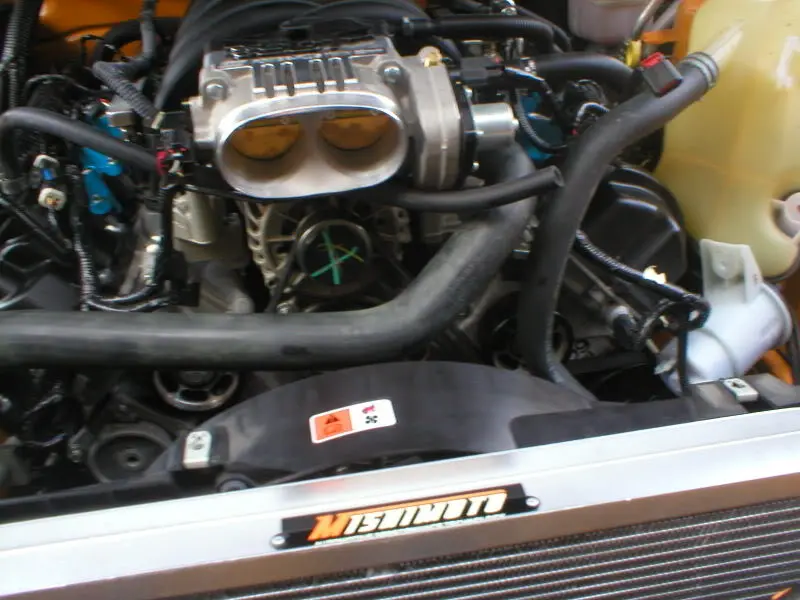

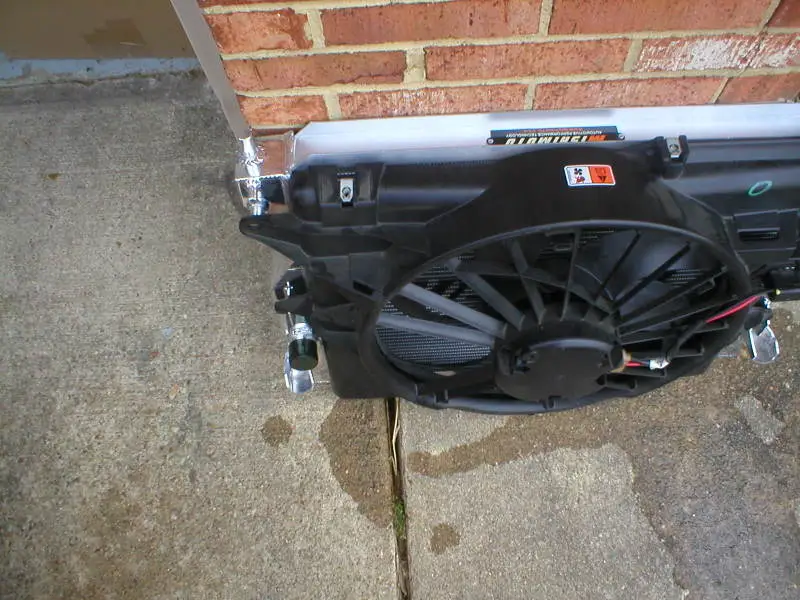

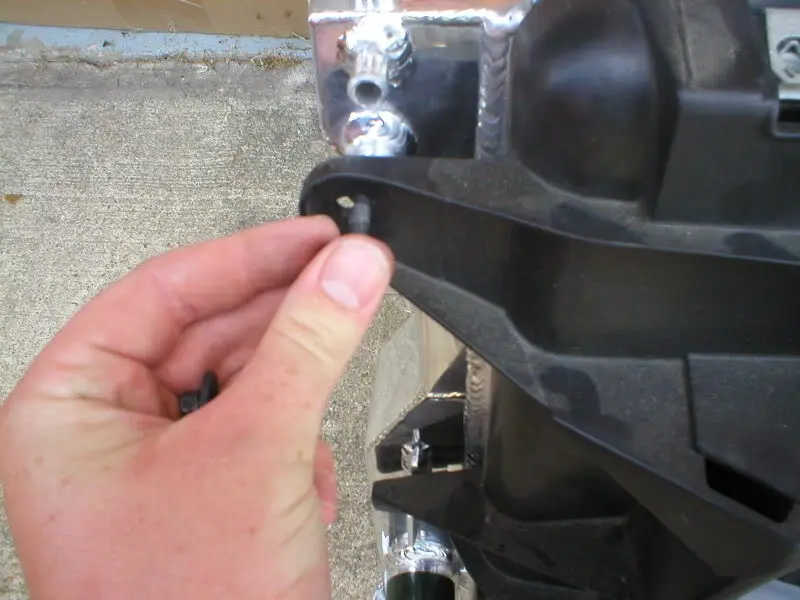

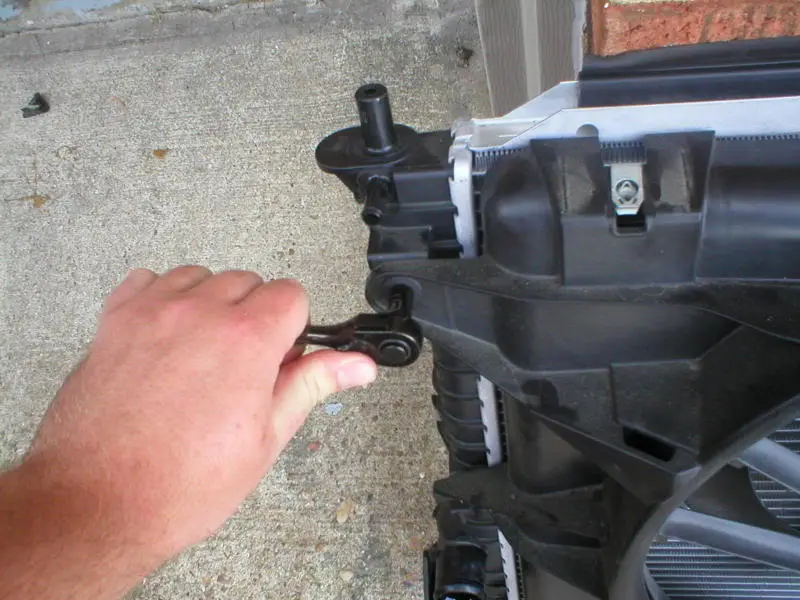

Install the fan shroud assembly to the new radiator with the same 2 bolts



Now lower the new radiator in, careful not mess it up!

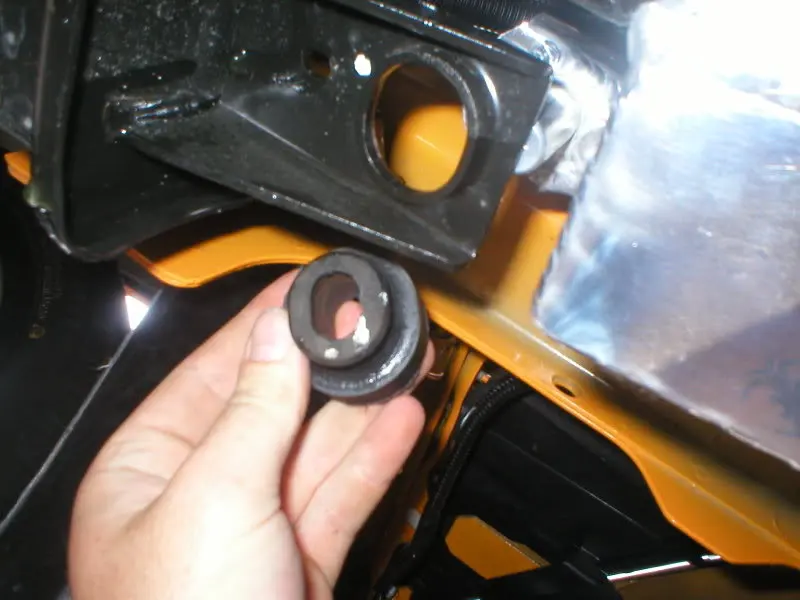

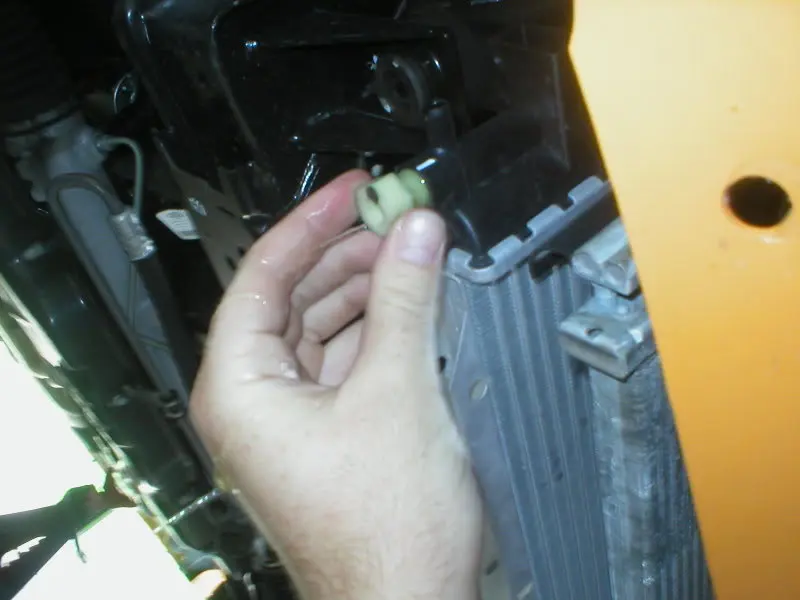

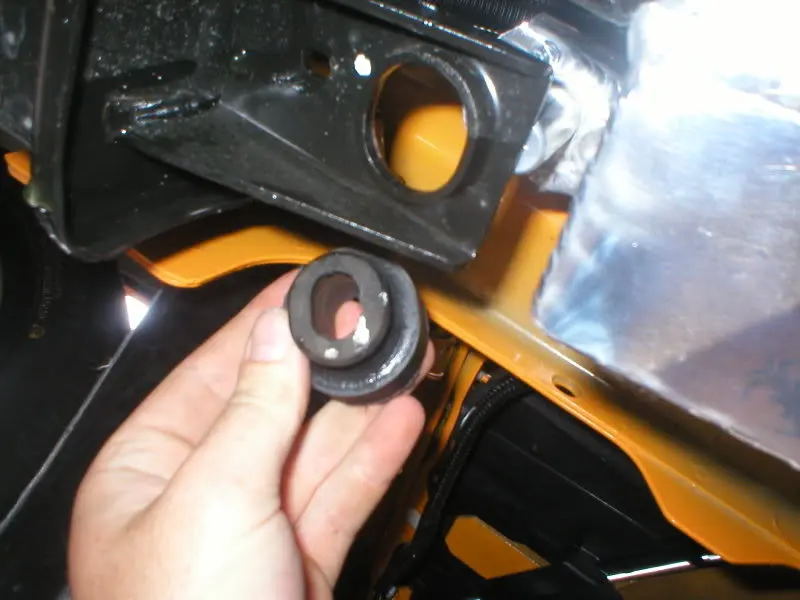

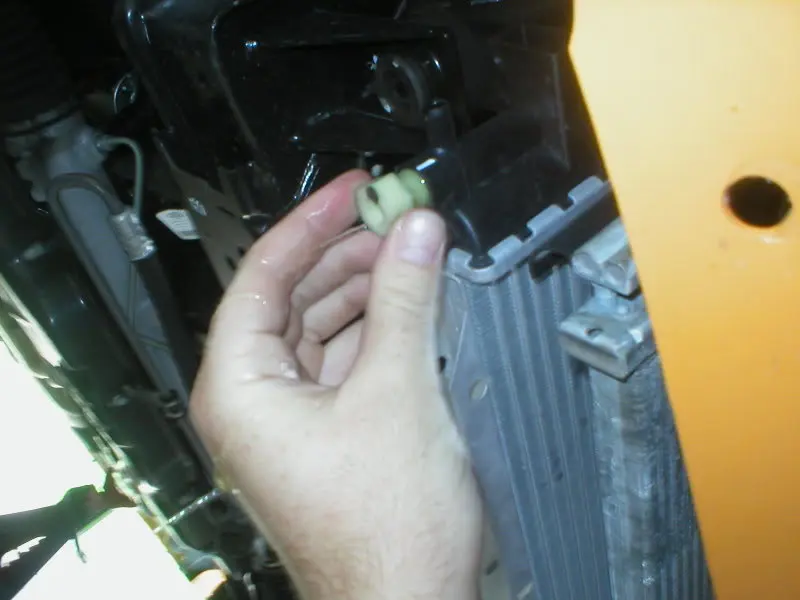

The radiator rests in the same holes at the bottom, make sure you snag the rubber grommets off the old radiator frist

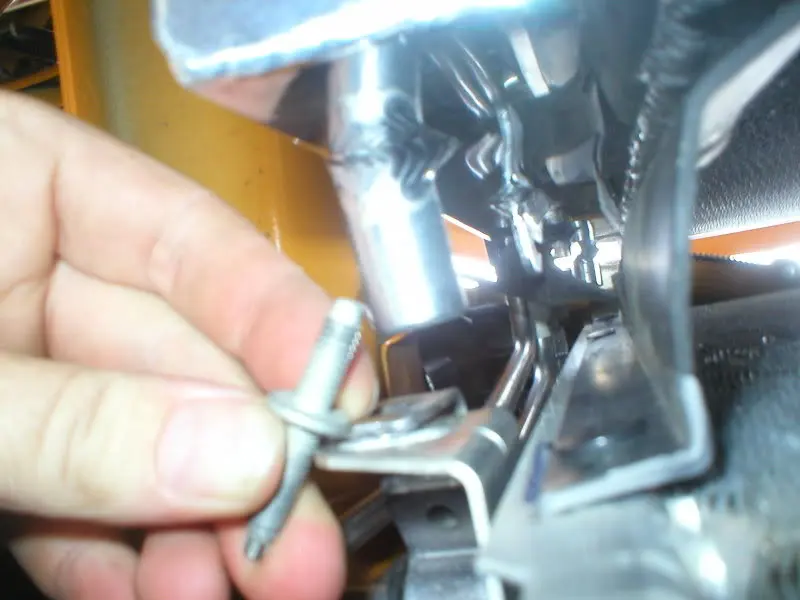

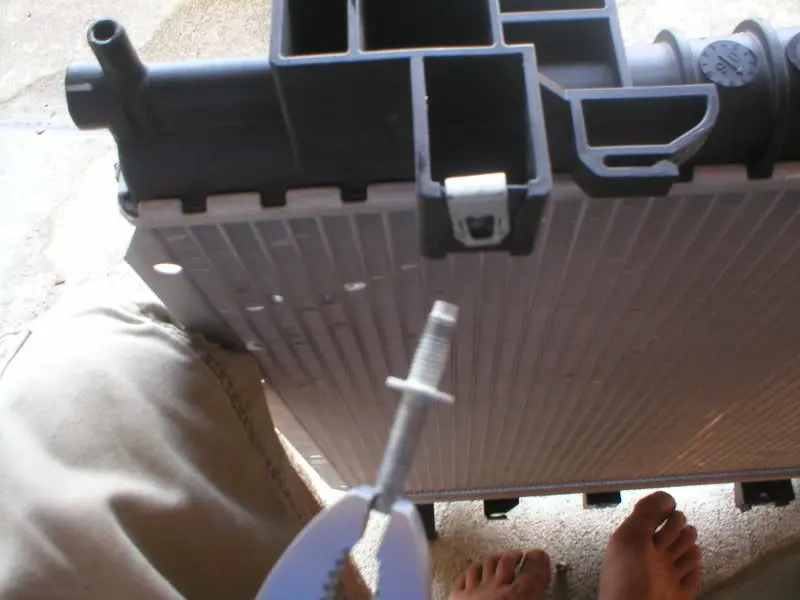

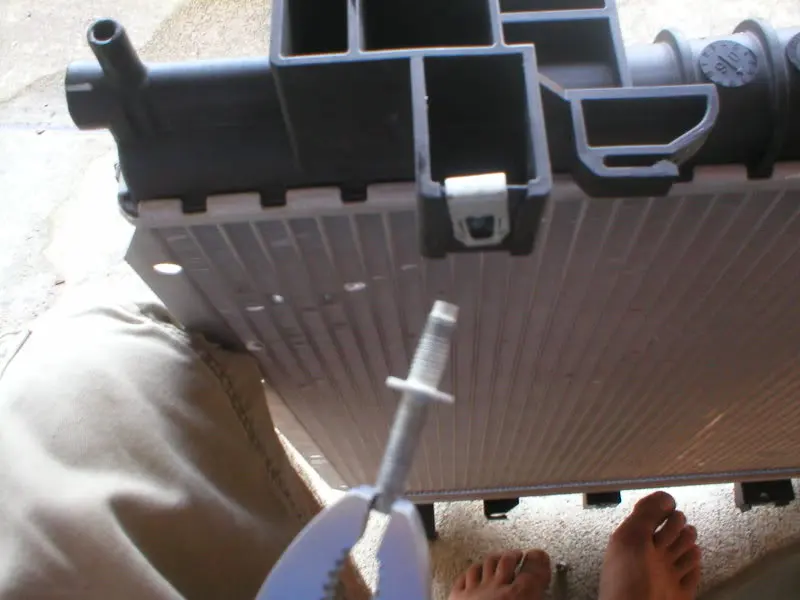

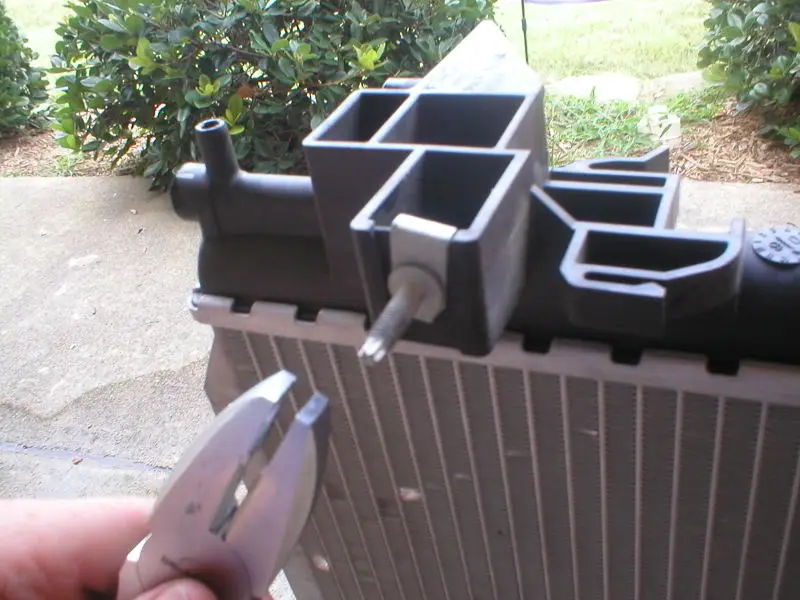

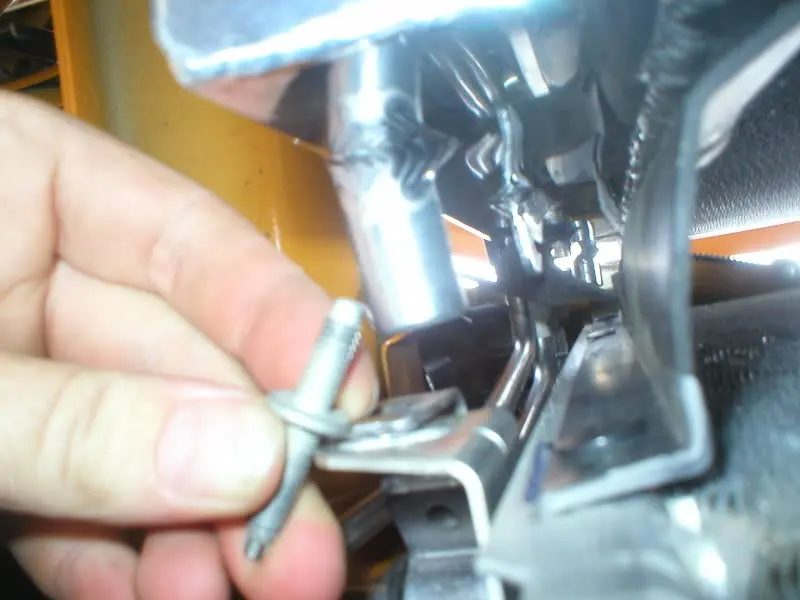

Aslo remove the 2 screw studs from the old radiator and but them on the bottom of the new rad

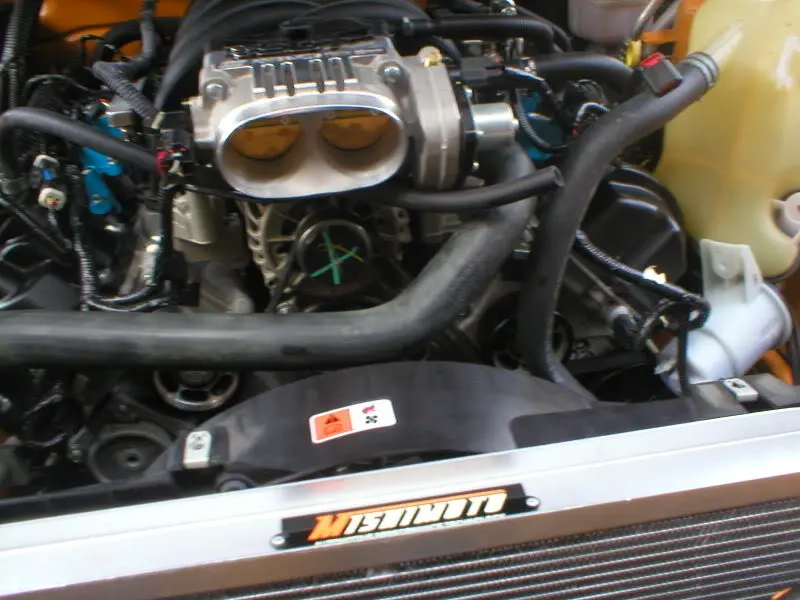

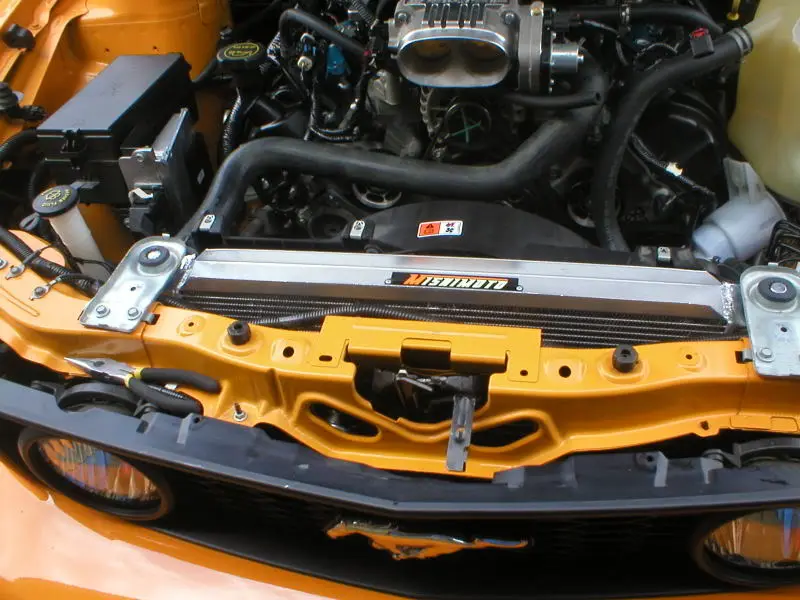

Reinstall the top mounting plates



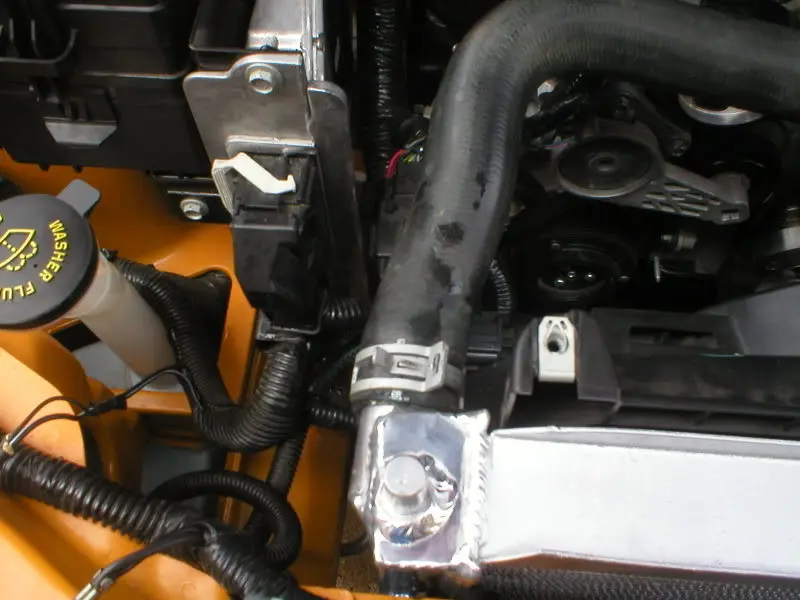

Reconnect coolant hoses



Connect the fan power cable

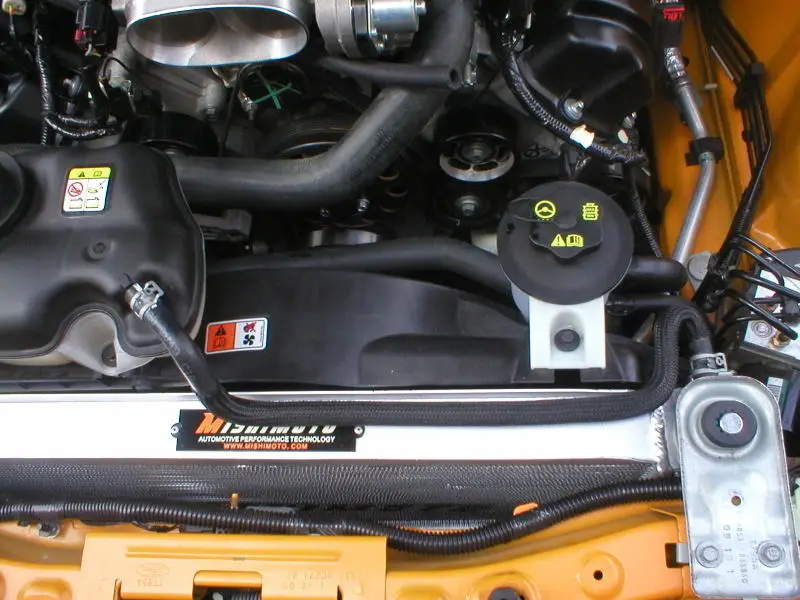

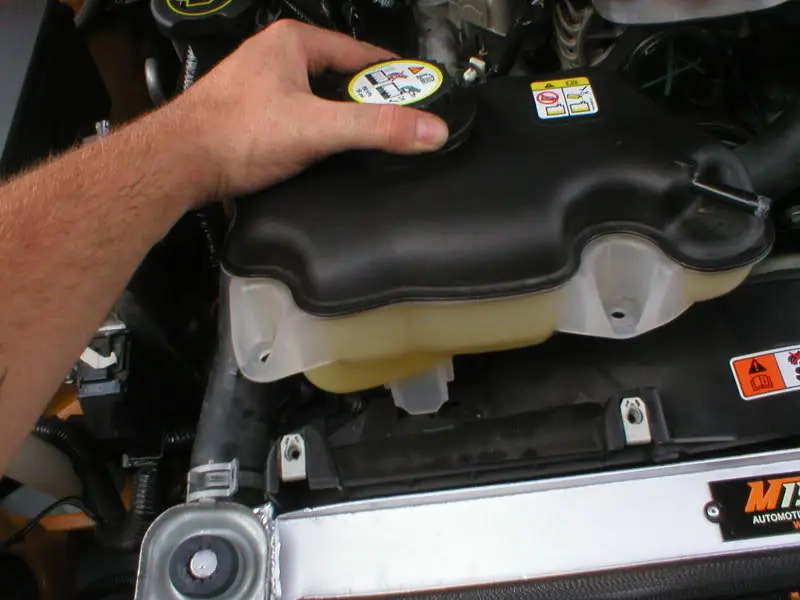

Reinstall the coolant/power steering fluid tanks on the fan shroud

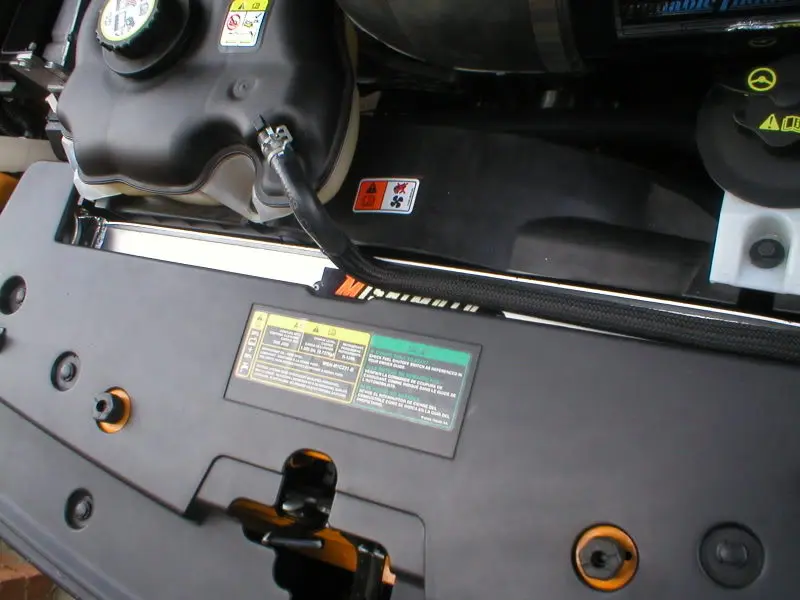

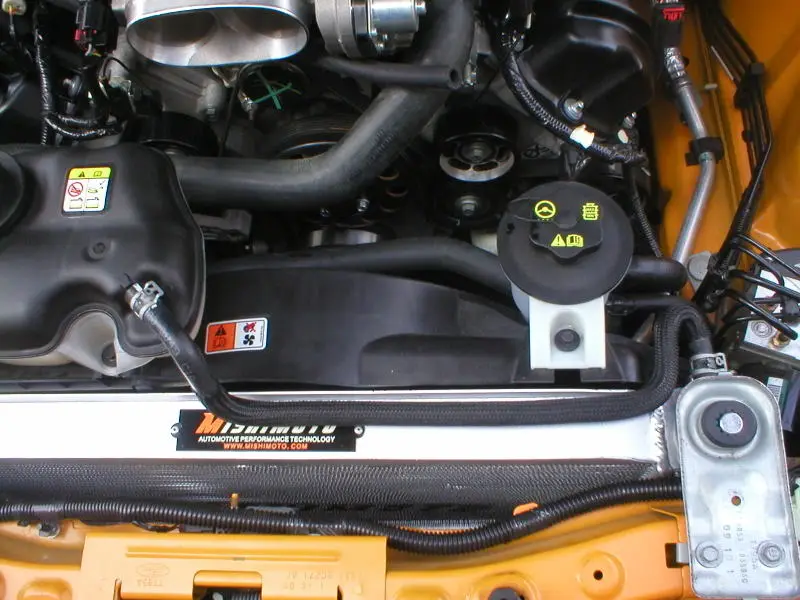

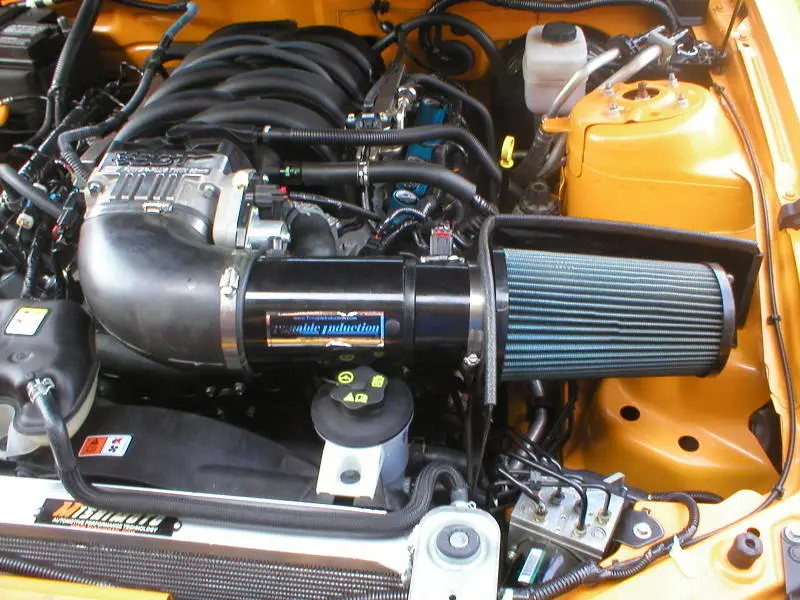

Reinstall the interference








Fill her back up with coolant and check for leaks, note you will have to add more coolant as the new radiator has a larger capacity


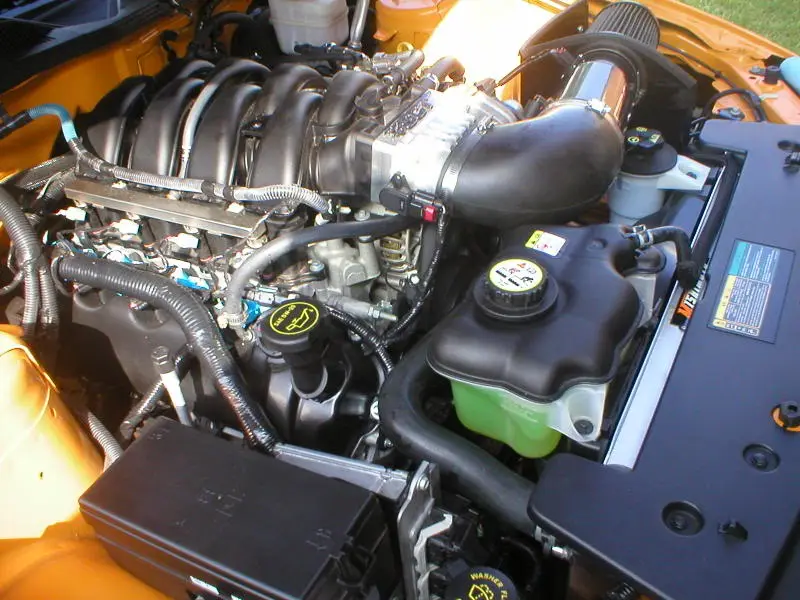

ALL DONE!!!
