Anybody Know What These Connectors Are And Where To Find Them?

87dixiegt

New Member
Aug 19, 2016
19
1
1
24

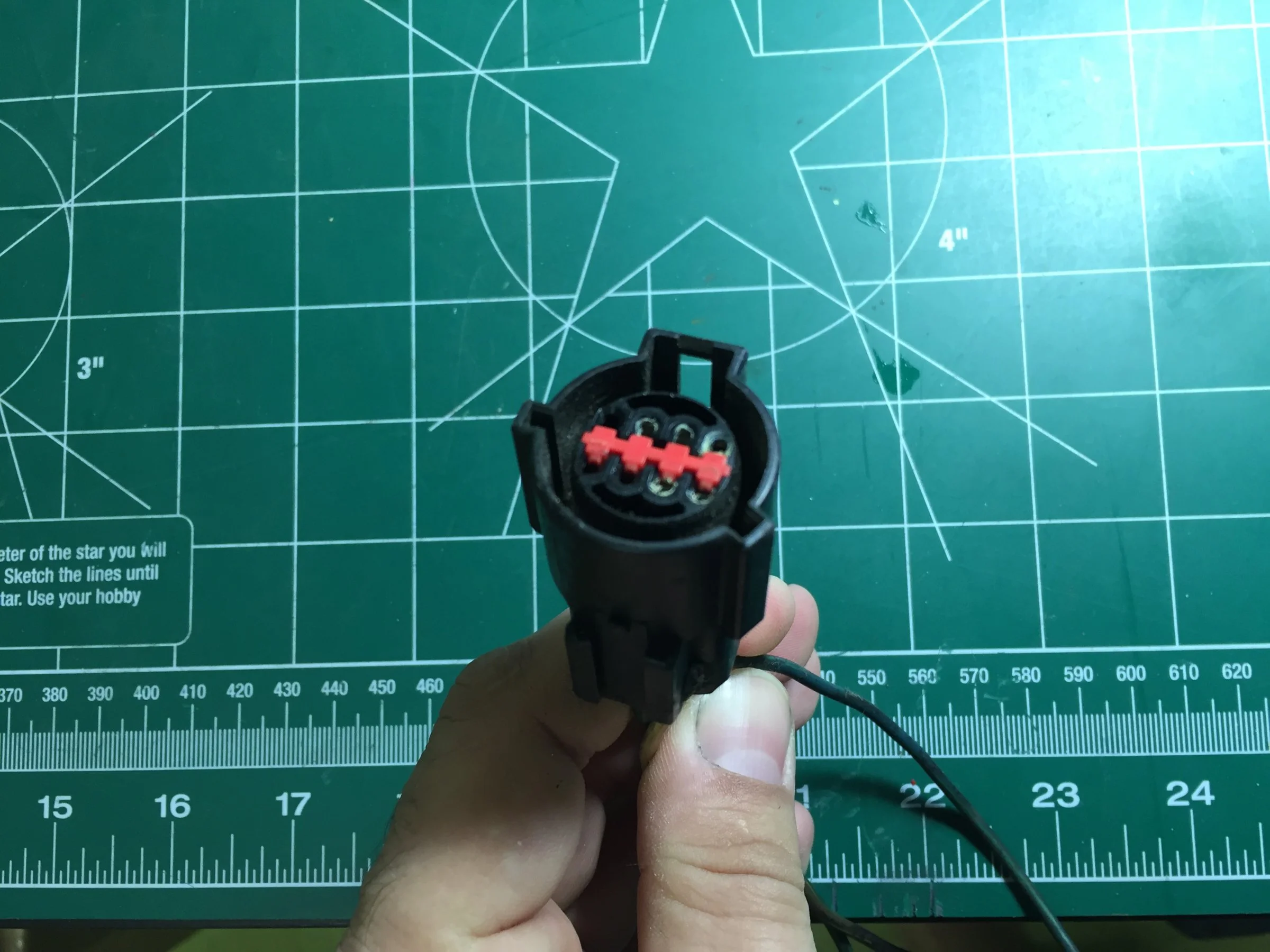

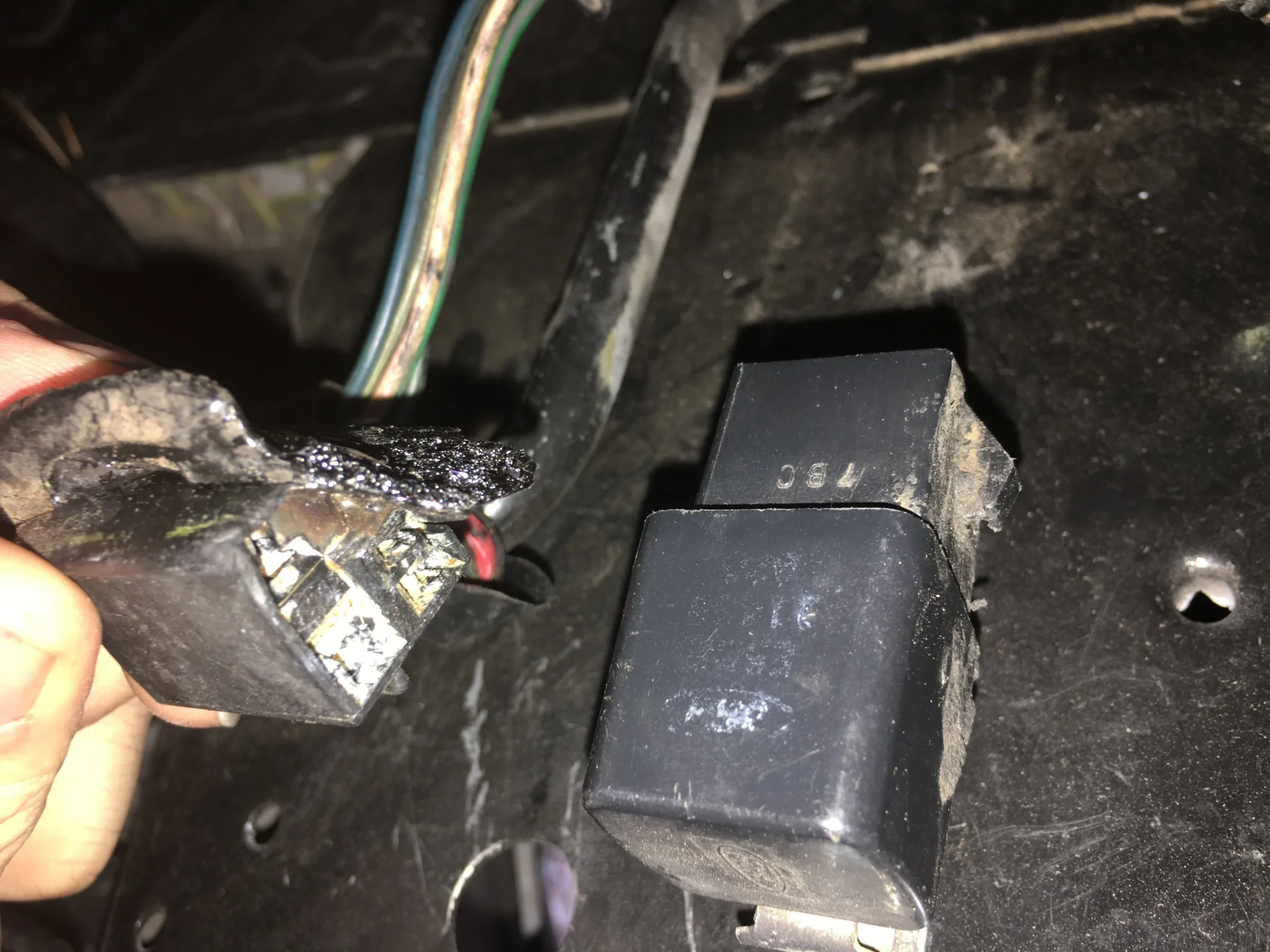

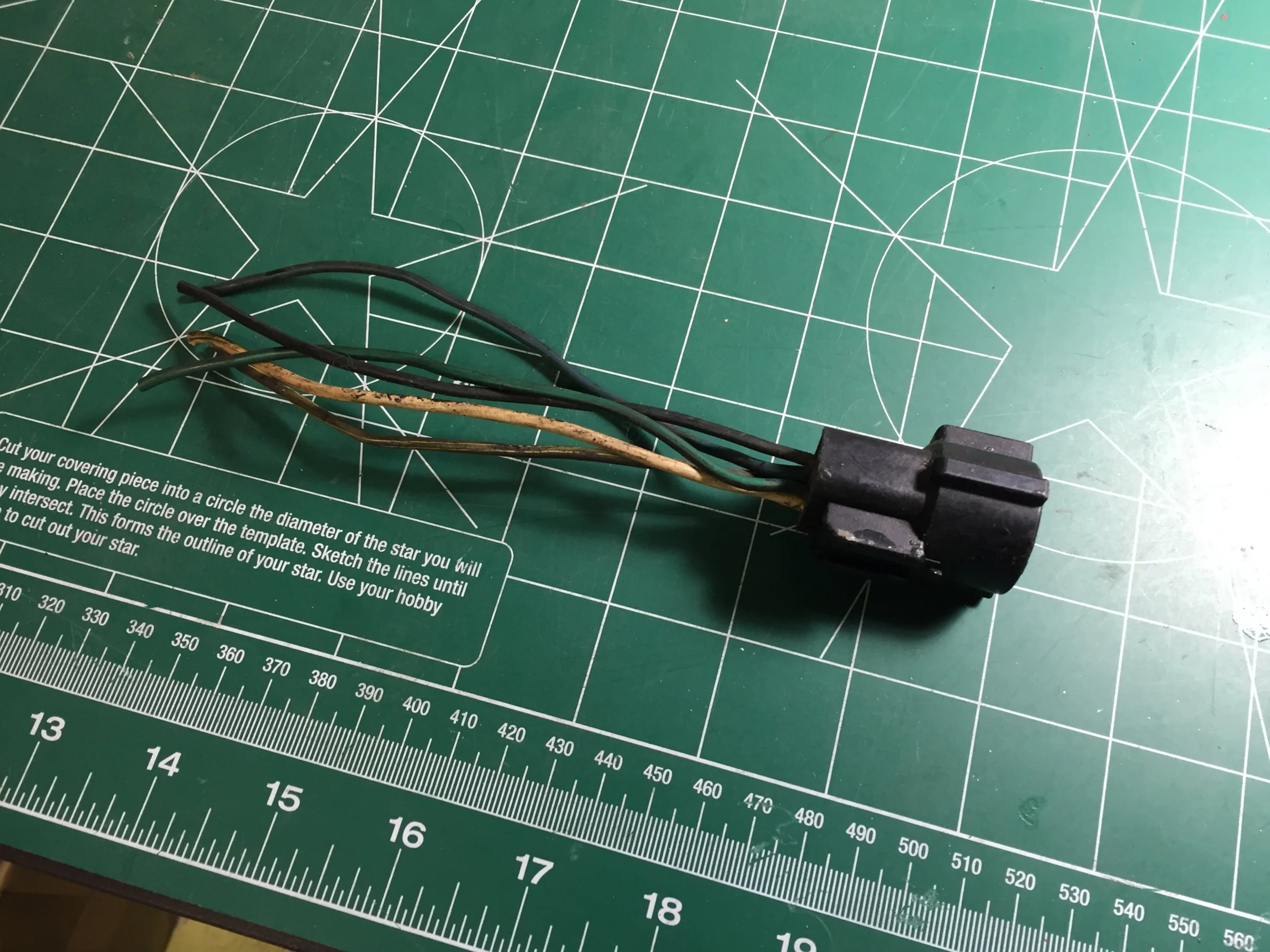

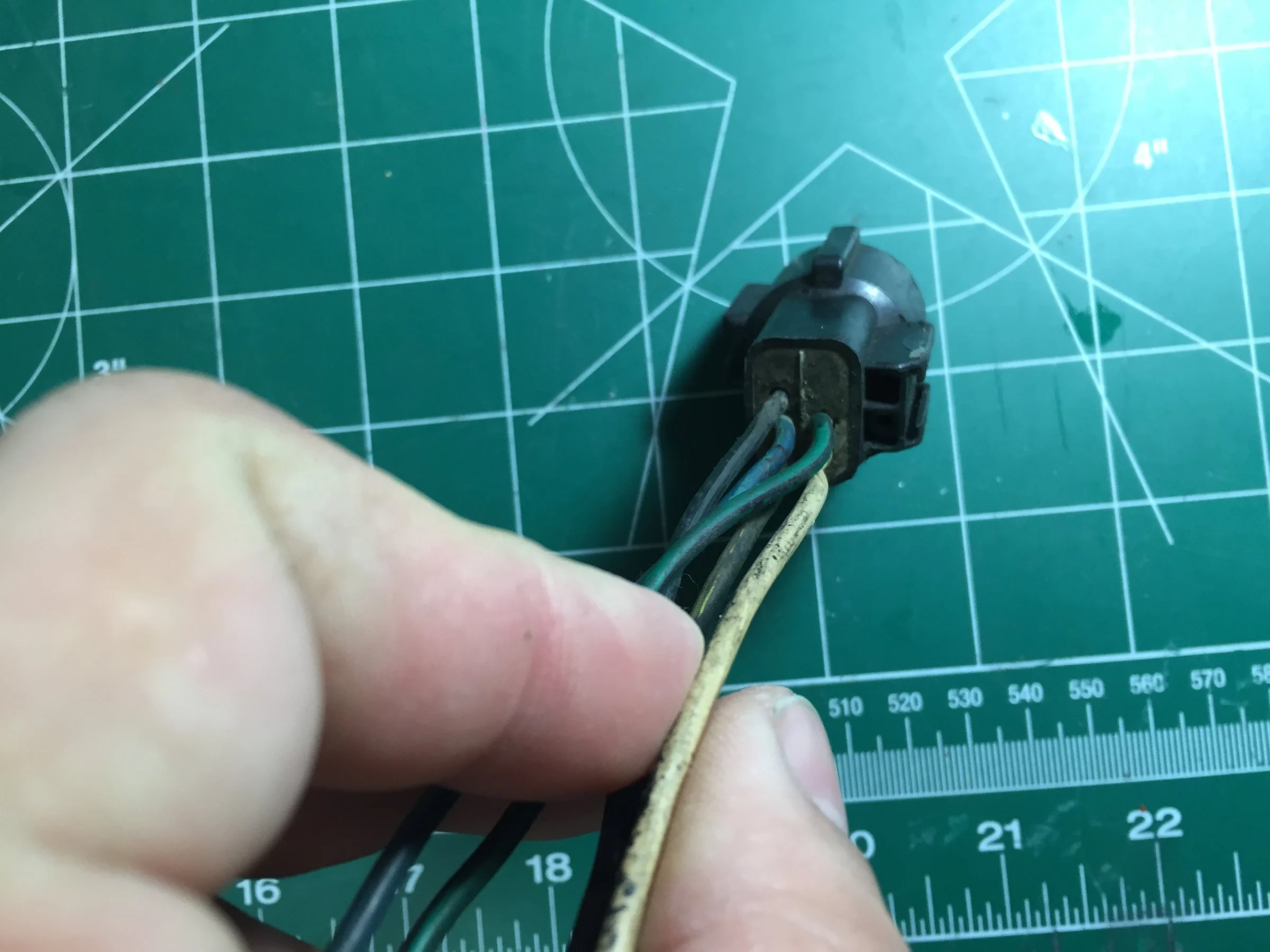

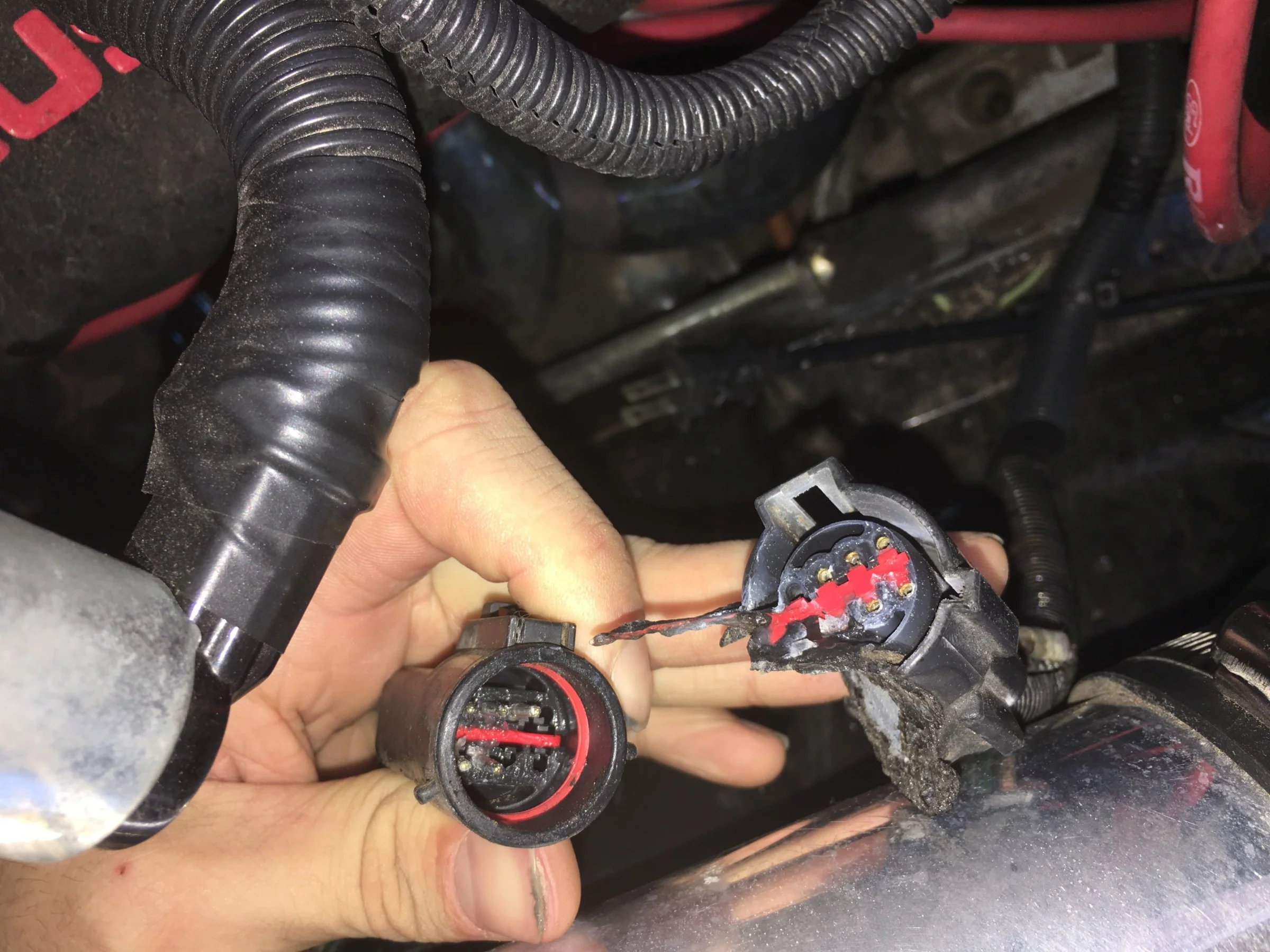

I started it up one day and i guess some of the wiring fell on the header! anyone know what these go to and where to find them?


Attachments

  • IMG_3827.JPG
    486.8 KB · Views: 159
  • IMG_3826.JPG
    546 KB · Views: 174
  • Like
Reactions: Mclay
  • Sponsors(?)


liljoe07

5 Year Member
Feb 18, 2009
1,622
363
124
Cartersville,Ga
Looks like 02 harness connector and AC WOT relay. Relay should be easy to find. You could use any similar relay socket. The 02 will probably need to be sourced at a junkyard.


87dixiegt

New Member
Aug 19, 2016
19
1
1
24
Looks like 02 harness connector and AC WOT relay. Relay should be easy to find. You could use any similar relay socket. The 02 will probably need to be sourced at a junkyard.


Would it cause the car to not run? Cause it stopped running when it happened


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,365
2,697
234
75
Dublin GA
lowendmac.com
I have a junk harness, where you located
Watch out the 87 O2 senor harness doesn't work with anything but an 87 without modifying it,

The 88-93 auto and 5 speed O2 senor harnesses are transmission specific and can't be interchanged without modifying them.



87dixiegt

New Member
Aug 19, 2016
19
1
1
24
Watch out the 87 O2 senor harness doesn't work with anything but an 87 without modifying it,

The 88-93 auto and 5 speed O2 senor harnesses are transmission specific and can't be interchanged without modifying them.


Do you think this is why my car isn't starting? Or is it not that big of a deal?


Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
34,951
11,058
224
Massachusetts
Do you think this is why my car isn't starting? Or is it not that big of a deal?

Yes, if the wires shorted out here, it would cause the car to not start. Also a chance it damaged the ecu.

O2 harnesses are year and trans specific. There a jumper on the harness that if not pinned correctly can short the pin46 trace on the ecu.


87dixiegt

New Member
Aug 19, 2016
19
1
1
24
Yes, if the wires shorted out here, it would cause the car to not start. Also a chance it damaged the ecu.

O2 harnesses are year and trans specific. There a jumper on the harness that if not pinned correctly can short the pin46 trace on the ecu.


Okay thank you for the info, the other one is just AC related correct?


General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
18,751
6,185
193
polk county florida
Do you know if it's an 87 harness?
Have no clue as to where it came from, I am kind of a pack rat when it comes to fox stuff. I used to work on 60's mustangs and learned about stuff that would be hard to find when cars get old, some stuff just will/can't be reproduced.
I still have an original spring bracket for a 67 4v carb and an ash tray thats never been used for a 67, go figure.


Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
34,951
11,058
224
Massachusetts
What year and model is your car? 1987?

If so, I have a 1987 O-2 sensor plug (o2 sensor side only, not the engine harness side) for a 1987 without the jumper. I think It has about 3-4" of wire. I'll take a pic later


87dixiegt

New Member
Aug 19, 2016
19
1
1
24
sorry guys its been a busy week, i dont have any junkyards near me so im hoping one of you could ship that out? i can just solder them all on and hope that works.
