belt routing diagrams

notch351

Member
Jul 30, 2010
110
2
19
I was wondering if anyone else has used the belt routing diagram floating around to reroute/ bypass the smog pump pulley on 94-95 gt/ cobras. I recently tried with the recommended belt size of 90.2 in and it fit but my tension-er pulley was bottomed out as soon as i started the car you could hear/ see it hitting on the stop. so i am in search of the proper belt size tried a 89.5 in' belt. it was to small. also i did not feel comfortable with how close the belt comes to touching the oil cooler tubes. any thoughts

  • Sponsors (?)


It kind of depends on what pulleys you are running. I'm running underdrive on the alternator and crank, with a stock pulley on the water pump. I also ran a smaller pulley on the idler with an 88.5" belt.

Kurt

The correct belt size might vary from that shown in my diagram depending on which pulleys you have and which brand of belt you choose.


Attachments

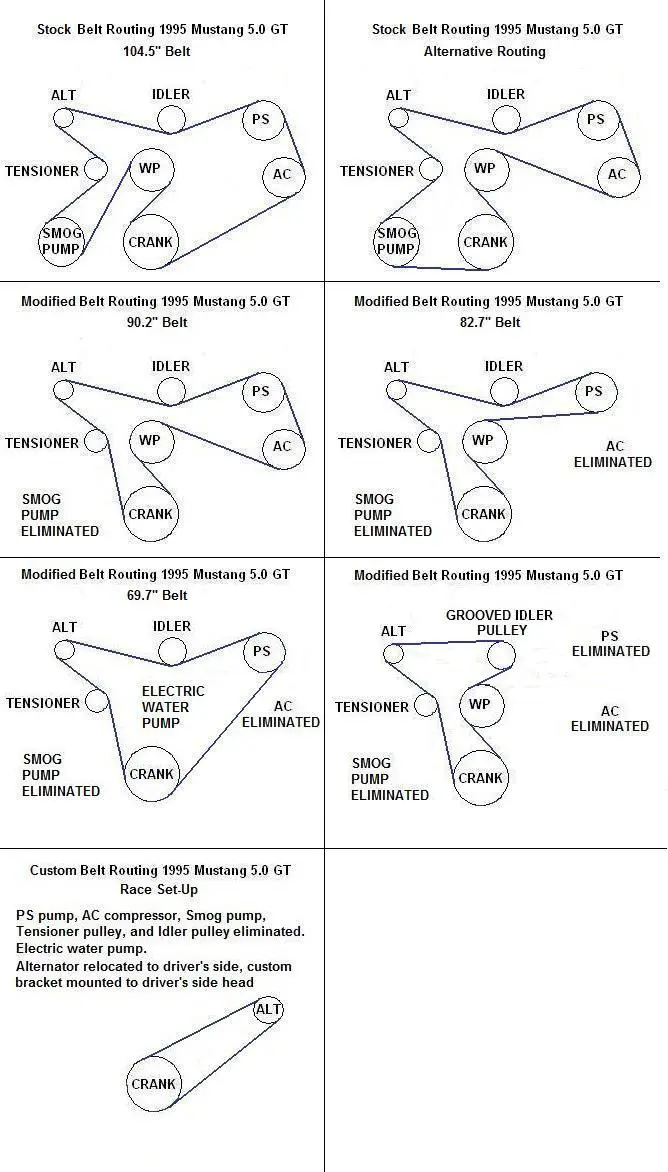

  • 94-95 Mustang Belt Routing.jpg
    94-95 Mustang Belt Routing.jpg
    112 KB · Views: 96
