belt routing

[Blackened302]

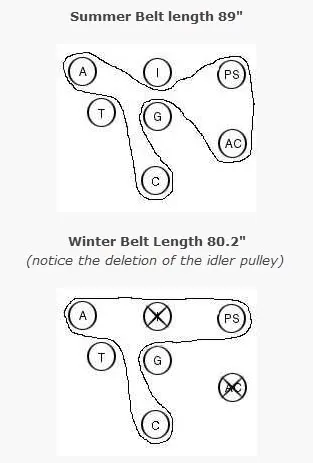

don't have my Chilton's at hand and was hoping you gents could tell me if the following diagram of the belt routing is correct:

i'm really only interested in the top portion of the pic (not the a/c delete).

isn't the stock belt size 105.5"?



[bill302]

top diagram is correct if the smog pump is removed without a pulley in its place.



[Blackened302]

ah! didn't notice that smog wasn't there.

anyone have a diagram of the routing w/ everything on and a stock belt size?

real reason is i'm trying to get the Mac pulleys on, but my stock belt doesn't fit (which Mac says it's supposed to). i don't think i was routing it incorrectly, but i'd like to make sure.
