Ran into a soft pedal problem with the brakes on my '84. Did a 5 lug conversion while staying with rear drums. (95 mustang spindles with the calipers, etc.. and 10" 94 ranger drums out back) Problem I'm having is when I first completed and bled the brakes, the pedal was rock hard and right at the top, maybe 1/2 inch pedal movement before they started getting hard. Now that the engine is in and running, the pedal goes almost to the floor and there's hardly any brakes. They are grabbing, but not much at all.

Here's a list of the stock parts vs. what I currently have.

Stock '84 parts:
Master cylinder-.827 bore
Front calipers-2.36 bore
Wheel cylinders-.750 bore

Here's what I currently have on the car:
Stock '84 master-.827 bore
95 mustang calipers-2.59 bore
94 ranger wheel cylinders-.813 bore

Brakes were bled before the engine was in (no vacuum) and once again with it running once it was in. If I pump them a couple of times with the engine off, the brakes seem to firm up. When I pump them with the engine running, they never firm up. I also noticed with the engine off, it SEEMS like the pedal sinks very slowly, but not 100% sure on this, it was a long day and I was getting tired of messing with them.

Should I have gone with a master cylinder with a larger bore, like a 85 Lincoln town car master or maybe something else? Could this just be the master bore is now too small?
Any thing else I missed?

Stuck on this and couldn't find the info searching through the brake thread. Nothing I could find was for a disc/drum set-up using 95 spindles.

  • Sponsors(?)


2000xp8

SN Certified Technician
Aug 8, 2003
6,830
1,001
194
NJ
This sounds similar to what used to happen to people when they did the Lincoln caliper swap.
Mike (mustang5L5) will probably have your answer, he has all the MC info rattling around in his head.
I have to believe the MC is undersized and you may need the 94/95 cobra unit.
Personally I don't believe in doing one end at a time.
I think it's easier to do all 4 corners at once.


Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
32,844
8,996
224
Massachusetts
Long story short, there is no MC that really works well with rear drums and one of the SN95 disk options. Best you'll get is close.

Two options,

94-95 Cobra MC with appropriate 2-3 port conversion which is a PITA to do on a pre-87 due to SAE vs metric brake fittings

Or change the front brake setup to one that is closer in size to the stock 60mm fox body calipers. The 66mm calipers on the 94-98 GT are huge and require a much bigger MC


The closest you'll get to stock feel would be with a 99-04 Cobra 13" front setup. It would be a slightly firmer than stock pedal. Next closest is the 99-04 GT 10.8" setup. It would be slightly softer.

The 94-98 GT calipers are roughly 20% larger in bore. The 15/16" cobra MC is roughly 25% larger. It would be close, but it's a huge PITA to plumb in.


If you are considering rear disk, it would make things easier

  • Like
Reactions: General karthief

LX Dave

Active Member
Jul 2, 2017
131
63
38
45
Been checking into converting the rear to disc as this makes the most sense. There's so much info out there and so many different ways to do it, I''m trying to get things straight.

My car currently has a 8.8 rear in it with 5 lug Ranger axles.
I would also, if possible, like to keep the current front brakes. Everything on this car is new.

Would this list be what I need?
94-98 V-6 calipers and brackets
93 Cobra master cylinder
94-95 V-6 brake booster
87-up E-brake handle with weld mod to self adjuster
(2) FMS M-2809-A rear E-brake cables
(1) FMS M-2810-A front E-brake cable
Proportioning valve for rear line
Soft lines from axle to caliper

There's a few 94-95 cars in the yard i go to and could at least get brackets and cores, maybe even a good booster.
OR
There's a ton of 99-04 v-6 cars there too. Anything from them work?

If I have to make up adapter lines, that's no problem. Napa here has all the fittings that I would need and I have the Eastwood flaring tool.

Not sure if this helps or not, this car was a complete restoration and I had to replace all of the brake lines, so if I have to remake or modify a couple lines, no problem. I really appreciate the help on this.


2000xp8

SN Certified Technician
Aug 8, 2003
6,830
1,001
194
NJ
I'd stick to north race car brackets in the rear, this way you don't widen the track width.


Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
32,844
8,996
224
Massachusetts
My car currently has a 8.8 rear in it with 5 lug Ranger axles.
I would also, if possible, like to keep the current front brakes. Everything on this car is new.

Would this list be what I need?
94-98 V-6 calipers and brackets
93 Cobra master cylinder
94-95 V-6 brake booster
87-up E-brake handle with weld mod to self adjuster
(2) FMS M-2809-A rear E-brake cables
(1) FMS M-2810-A front E-brake cable
Proportioning valve for rear line
Soft lines from axle to caliper
The car being an 84 makes adapting the lines for the MC and such a little more difficult due to the SAE vs 87+ metric fittings. If you can cut and flare and get the fittings you need, it will be much easier.

ANyway, you need to decide which brake system you are going to copy. SInce you state you are going to use 95 Mustang front brakes, i would copy the 94-98 GT/V6 setup.

So up front the spindles, rotors and calipers and lines. MC and booster should be 94-95 GT/V6 MC and booster.

Out back, if you want to keep the 5-lug ranger axles, you need the North Race car, or LRS offset caliper brackets. That will let you run the 5-lug axles you already have. Then, pick up all the rear disk parts from any 94-04 GT or V6 mustang at the wrecking yard.

No need to weld the parking brake. There is a cheap clip that allows the brake to be adjusted later.

The ford racing parking brake cables are discontinued. The center cable doesn't work with the 79=86 cars. The rear cables are available from LRS.

Ont thing that would make it easier is to grab some 99-04 GT/V6 front dual piston calipers from the junkyard. Make sure the pistons are free as they have a tendency to freeze up when the car sits. WIth those calipers, you might be able to get away with just bolting up an 85 town car 1" MC. Plug and play.


I also made a post about my ideal junkyard 5-lug swap

  • Like
Reactions: 2000xp8

2000xp8

SN Certified Technician
Aug 8, 2003
6,830
1,001
194
NJ
Thanks for posting the E brake repair part mike.
Goes to show you how long I've been not reading disc brake conversion posts (I felt for a while there was just too many and no different info was changing hands).
Honestly, I never did anything to my handle. Always seemed to work fine, had to pull it a bit further, but nothing notable.
I could have welded it, I just didn't feel the need to remove it and do so.
I ordered that bracket, the price is way up over the original post years ago, about the best I could find it was $24 shipped at tasca, regardless, it's much easier than removing it.


LX Dave

Active Member
Jul 2, 2017
131
63
38
45
Very helpful info there. Thanks for that. Thinking since I already have all new front brakes ('95), I'm going to copy the rest of the system from the 94-95 cars.
Maybe I can even find a parking brake handle that has the clip already on it.

One more thing, does anybody have more details on gutting the proportioning valve? Everything I have found is kind of vague on exactly what to do.
And, should I grab that from the '94-95 car too?


2000xp8

SN Certified Technician
Aug 8, 2003
6,830
1,001
194
NJ
If the proportioning valve is the same as 86-93, you just have to buy the ford racing plug and take the parts out of the stock one.
Then you need to do a 3 to 2 port conversion.
For the gutting it, it's as simple as removing a big nut, taking the parts out and replacing it with the ford racing nut/plug.

I could have sworn my was a real ford part, but I guess whatever works.


LX Dave

Active Member
Jul 2, 2017
131
63
38
45
As easy as just pulling everything out and putting that plug in? Well, that WAS easy. Thanks for that.

I did find where someone commented by doing that, you loose the shuttle valve and if there's a major leak, there's no safety anymore. Is that really a concern?


Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
32,844
8,996
224
Massachusetts
I ordered that bracket, the price is way up over the original post years ago, about the best I could find it was $24 shipped at tasca, regardless, it's much easier than removing it.
Damn. Price really has gone up on that part.

I did find where someone commented by doing that, you loose the shuttle valve and if there's a major leak, there's no safety anymore. Is that really a concern?
I've pulled apart a few combo valves and found the shuttle valve to be frozen in place, especially on systems with old dark brake fluid. I wouldn't put much faith in it.

  • Like
Reactions: Shakerhood

Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
32,844
8,996
224
Massachusetts
I could have sworn my was a real ford part, but I guess whatever works.
It used to be. Then they discontinued it and LRS picked up the slack.

Times sure have changed. A lot of our go-to parts are slowly becoming discontinued and obsolete


90sickfox

I didn't really have an issue with the stink...
SN Certified Technician
Mar 2, 2015
5,210
4,283
203
42
You could swap the whole brake system out of a 94 95. You'd have to use a 93 cobra booster...or move a stud and weld your rod onto the 94 95 booster rod.

I used 98 gt front brakes and sn95 rear with v6 98 prop valve and master cylinder. The brakes wouldn't lock up because of the smaller factory booster in my 89. Would be a b**ty clencher any time traffic stopped suddenly.

Last edited:
  • Like
Reactions: Shakerhood

Shakerhood

15 Year Member
Oct 28, 2004
3,266
167
114
Ohio
It used to be. Then they discontinued it and LRS picked up the slack.

Times sure have changed. A lot of our go-to parts are slowly becoming discontinued and obsolete
Way back when I did my brake conversion I went ahead and bought doubles of several parts assuming they would be harder to find in the future, wish I had picked up many other parts over the years too, a tubular GT40 Intake is one I wish I had.


KRUISR

Active Member
Apr 16, 2015
186
51
38
49
I went with a MC and prop valve from a 99-04 NON-ABS car. They have the single brake line to the rear like a fox. This gives 4 wheel discs, factory brake line routing and an MC and prop valve properly sized. I used a 95 booster (because my original one was frozen to the stock MC and I couldn't separate). Some slight firewall mods will be required to install the booster (and I slightly clearanced the strut tower to slide it in).

As far as a e-brake handle, I used one from an '01 and moved the rear floor mount tab forward about 1" (modded bracket shown below). This bolted right in, was the same size handle and solved the tensioner issue. I fabricated the front e-brake cable bracket similar to an 94-04 and used '95 cables.


Everything I put in was used wrecker parts except e-brake cables and any fabbed brackets.


nickyb

Active Member
Apr 3, 2009
220
75
38
nevada
I went with a MC and prop valve from a 99-04 NON-ABS car. They have the single brake line to the rear like a fox. This gives 4 wheel discs, factory brake line routing and an MC and prop valve properly sized. I used a 95 booster (because my original one was frozen to the stock MC and I couldn't separate). Some slight firewall mods will be required to install the booster (and I slightly clearanced the strut tower to slide it in).

As far as a e-brake handle, I used one from an '01 and moved the rear floor mount tab forward about 1" (modded bracket shown below). This bolted right in, was the same size handle and solved the tensioner issue. I fabricated the front e-brake cable bracket similar to an 94-04 and used '95 cables.


Everything I put in was used wrecker parts except e-brake cables and any fabbed brackets.
I also used the 95 prop valve,but I just swapped out the guts.the ebr
ake I used the clip from a 96.


LX Dave

Active Member
Jul 2, 2017
131
63
38
45
Well, I was going to update last night, but carried away pulling things apart last night.

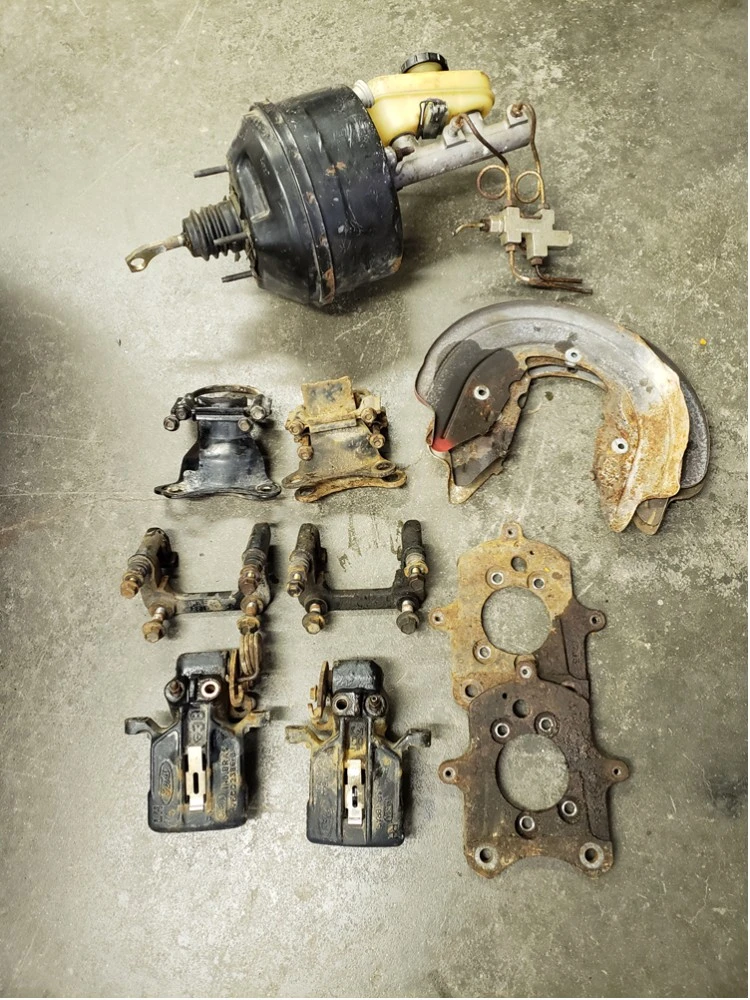

Went to the yard yesterday and got some parts.


Calipers, brackets and related off of a 2004. Master, booster, and dust shields off a '95.

Here's where things get a little strange.....

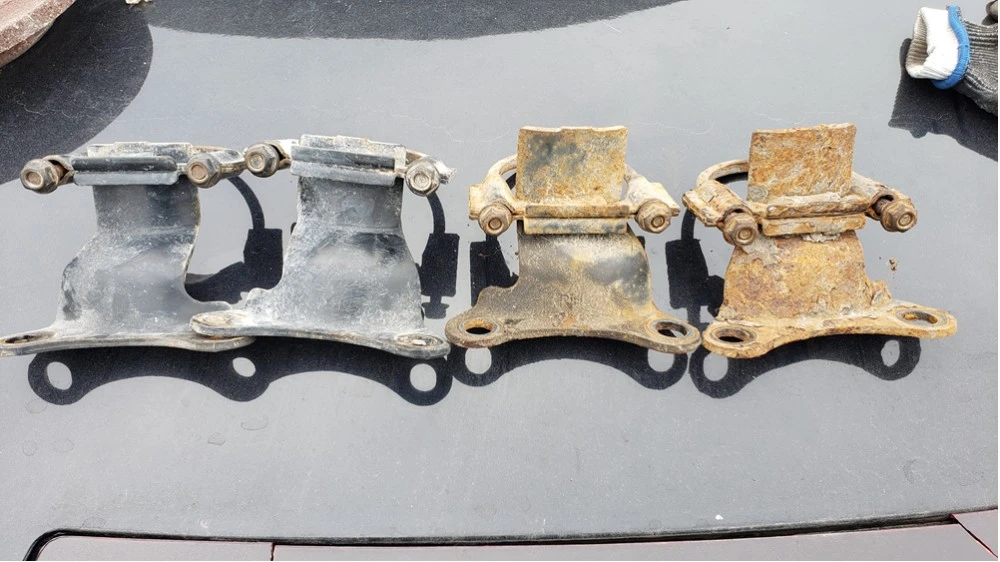

The anti-moan brackets on the left are off of the '95, the rusty ones on the right are off the '04. Hmm, which ones do I need....glad I got both sets.
I wanted to use the cleaner ones, but they wouldn't fit. The upper control arm bracket is in the way of the U-bolt. My luck, I had to use the rusty ones off the '04.

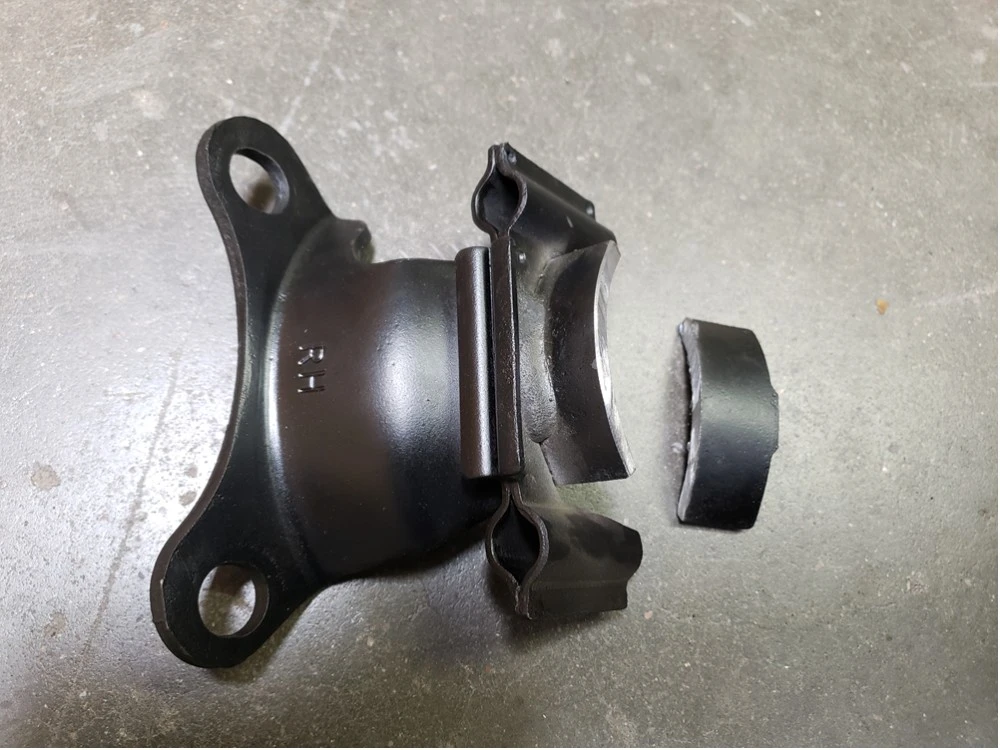

Still had to trim them to fit though.

Had to cut off about 3/4" so they would clear the bracket on the axle. The U-bolt went through the middle of the bracket and clears. (pic taken after blasting and powder-coating)

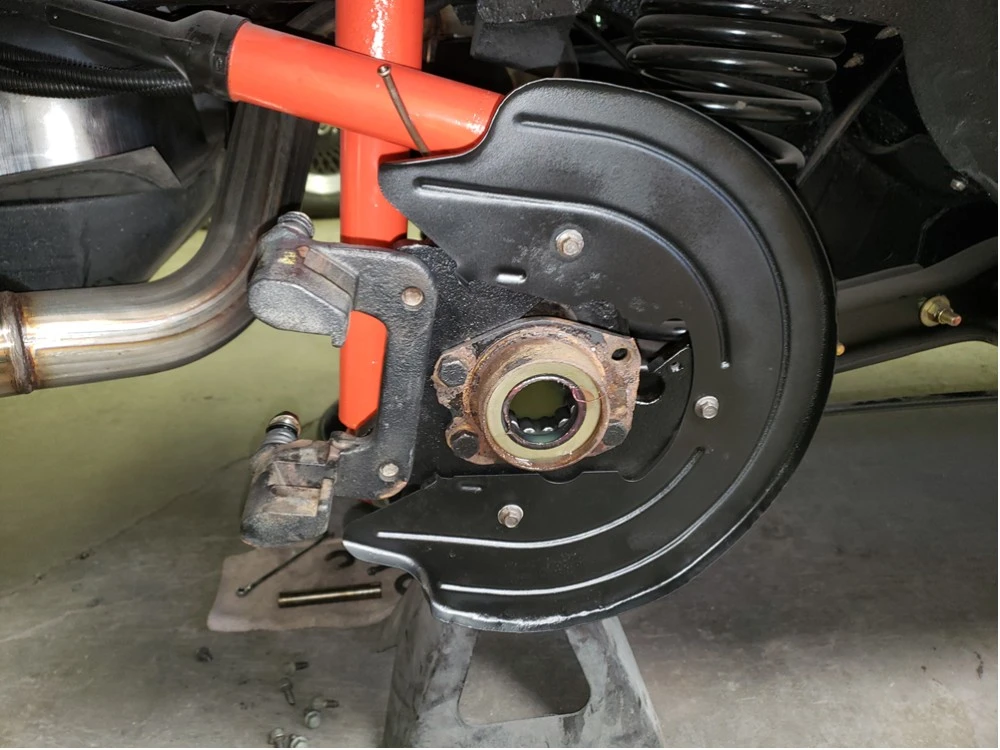

Here's where I am now

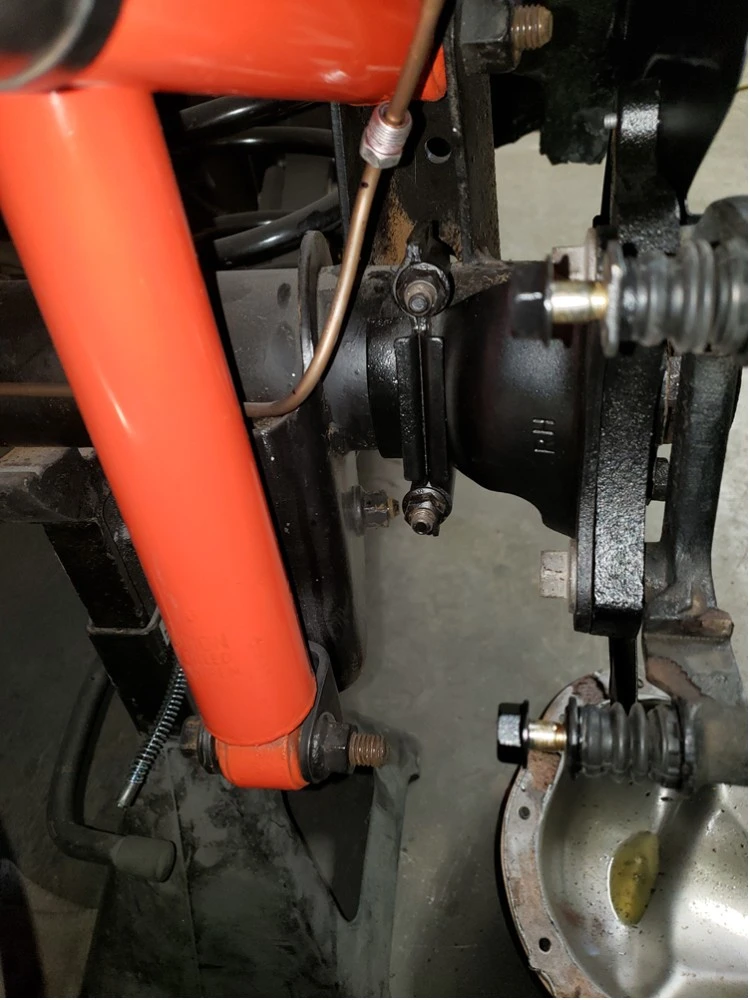

Caliper bracket attached just to get the anti-moan bracket in place.

You can see where the U-bolt goes through and If it wasn't cut, it would hit the lower control arm bracket.

For the main caliper brackets (ones attached to axle tube), I decided to use the switch and flip method. Cut an opening in the bracket to get them on the inside of the mounting flange and switch sides. This way I can retain the stock axles.

Got new calipers, rotors, pads, hoses, master cylinder and a '93 Cobra booster coming. Going to get a master without reservoir so I can use one from an Explorer or Ranger. They are just a rectangle reservoir with no angled top. I pulled one off a '97 Ranger and it fits the '95 Mustang master. Yep, all these are just for cores. There were no good parts there.

So far, this is pretty easy. (Once things got figured out with the help I've gotten). The hard part is going to be the parking brake. I was all set to pull a parking brake handle out of another car when a light came on. On the '84, the adjuster for the cable goes through the tunnel on the right side of the handle. On '87-up, it goes through on the left of the handle. Gonna have to dig into this more before I order cables or anything. Maybe next week I'll just grab a newer handle and see how I can modify it to work. If I used a '87-up handle, it would end up waaaay off center.

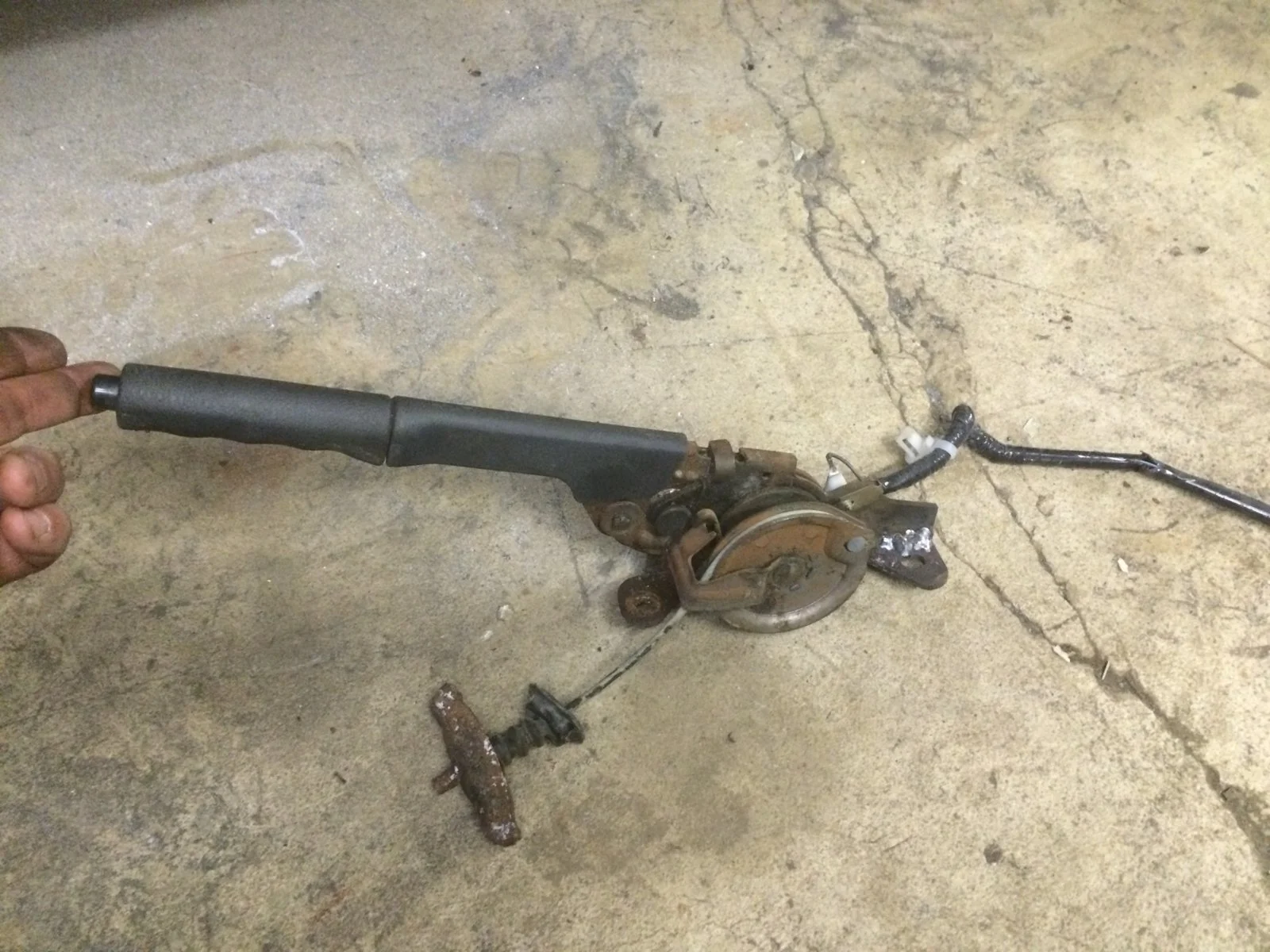

Oh, almost forgot, I did at least get the clip for the e-brake handle just in case I need one.

Last edited:

LX Dave

Active Member
Jul 2, 2017
131
63
38
45
I went with a MC and prop valve from a 99-04 NON-ABS car. They have the single brake line to the rear like a fox. This gives 4 wheel discs, factory brake line routing and an MC and prop valve properly sized.
How's the brake bias between front to rear? I could do this, but it's going to be a tough one getting the flaring tool down there to put on different fittings. Have to loot at that again.


KRUISR

Active Member
Apr 16, 2015
186
51
38
49
The bias is basically like a stock 99-04. You need the Non-ABS one because it is the only one that doesn't have individual lines to each wheel. Think about it, you have 94-04 rear brakes and if you have the dual piston 99-04 front calipers, you essentially are 99-04 brakes on a fox.

I pulled the MC and Prop Valve from the same car and kept them connected. I also took the first 4-6" of the brake lines coming out of the prop valve so that I would have the correct fittings. I don't recall the flare required anymore, but basically I moved the stock fox fitting down the brake line enough to cut off the flare (1/4-3/8" of tubing), swap fittings and re-flare for the new prop valve. I did my change over with the engine out so access was not an issue. If you can't get the flare tool down to the lines, you may be able to undo and remove the line from the car and flare off the car, or remake new lines off car and install.

Thread starter Similar threads Forum Replies Date
TMIproducts Could Use Some Help With Our Show Cars Brake System - Thanks. 2005 - 2014 S-197 Mustang -General/Talk- 9
wicked93gs brake system newbie here...need some help Classic Mustang Specific Tech 9
Dusstbuster Quick Brake system help/info needed SN95 4.6L Mustang Tech 0
5 IN NEED OF HELP!!! BRAKE SYSTEM! SVT Tech Forum 8
XXL Expired __ Hawk Performance Talon 3-piston Brake System #hcks3005 For S-197 - New - Free Ship Wheels Tires Brakes 1
LBC_88 Coupe Best Brake System For Coupe ? Fox 5.0 Mustang Tech 6
reenmachine ABS Electric Power Brake System Wheels/Tires/Brakes 1
1 Braking System Fox 5.0 Mustang Tech 3
notchnut Baer Claw brake system SN95 4.6L Mustang Tech 6
DNA DOA Need your suggestions on upgrading stock brake system. 1979 - 1995 (Fox, SN95.0, & 2.3L) -General/Talk- 1
I candy brake system question Fox 5.0 Mustang Tech 9
2013 Geee T Aftermarket rotors or all new brake system? SN95 4.6L Mustang Tech 21
urban96 how much brake fluid to flush the system? 1994 - 1995 Specific Tech 10
C brake system Fox 5.0 Mustang Tech 14
Cobain03 What brake systems do you have? SN95 4.6L Mustang Tech 3
Stang|ess if air gets into my brakes system SN95 4.6L Mustang Tech 19
Therian Who knows brake systems best? 1994 - 1995 Specific Tech 12
B Hydra Brake System(Is anyone using this kit to remove the brake booster) 1979 - 1995 (Fox, SN95.0, & 2.3L) -General/Talk- 2
Davin Important Brake System Discussion.. 1994 - 1995 Specific Tech 1
Booksix New brake system, car won't stop! Fox 5.0 Mustang Tech 10
68torinogt cobra brake system Fox 5.0 Mustang Tech 8
1 Baer System Brake Question-Fox Owners Fox 5.0 Mustang Tech 1
B replaced entire brake system now having strange issues Fox 5.0 Mustang Tech 5
ocbaud flushing brake system SN95 4.6L Mustang Tech 2
6 Questions about plumbing a brake system Classic Mustang Specific Tech 5
Edbert Lets talk about brake systems Classic Mustang Specific Tech 20
juiced_94gt wOULD AIR IN THE BRAKE SYSTEM CAUSE THIS? 1994 - 1995 Specific Tech 6
squall9393 Brake System Question 1994 - 1995 Specific Tech 6
W Baer Disc Brake Systems Classic Mustang Specific Tech 7
S Got the Pictures of the 13" Cobra Brake system 1994 - 1995 Specific Tech 17
redwilly02 2001 GT Hydro Braking System SN95 4.6L Mustang Tech 0
N8Miller Question about suspension and upgraded front brake system Fox 5.0 Mustang Tech 5
L LOOKING TO UPGRADE BRAKE SYSTEM FROM STOCK...ANY ADVICE?? Fox 5.0 Mustang Tech 6
P Brake System Light in Dash Classic Mustang Specific Tech 8
L Brake systems??? Fox 5.0 Mustang Tech 1
SNAKEYES86GT Will this brake system work on an '86GT? Fox 5.0 Mustang Tech 3
B NEW BRAKE SYSTEM BLEEDING SEQUENCE? SN95 4.6L Mustang Tech 4
9 Brake System Fox 5.0 Mustang Tech 1
D The definitive SN95 GT to Cobra brake upgrade. Part numbers and pictures. 1996 - 2004 SN95 Mustang -General/Talk- 1
C Brakes 1965 - 1973 Classic Mustangs -General/Talk- 0
K Fox Rear Brakes - where in the holly heck do these go? 1979 - 1995 (Fox, SN95.0, & 2.3L) -General/Talk- 13
Red50Fox 88 Mustang GT 5 lug / disc conversion (almost done!) parking brake question 1979 - 1995 (Fox, SN95.0, & 2.3L) -General/Talk- 2
Cheapskate207 Brakes Need help with Brake ID Fox 5.0 Mustang Tech 12
9 Big Brake Wheels SN95 4.6L Mustang Tech 0
C Fox Source for master cylinder brake lines? 1979 - 1995 (Fox, SN95.0, & 2.3L) -General/Talk- 5
revhead347 Drivetrain 33 spline SN axle with ABS and parking brake build 1994 - 1995 Specific Tech 2
91GTstroked Brakes Bad brake booster! Fox 5.0 Mustang Tech 14
isaiahfig71 brake issue 1996 - 2004 SN95 Mustang -General/Talk- 1
isaiahfig71 Brake light issue SN95 4.6L Mustang Tech 0
J Hand brake issue Fox 5.0 Mustang Tech 4
Similar threads
