CAN'T IDENTIFY REAR END

ZILLA

New Member
Nov 19, 2019
4
0
1
58
Florida

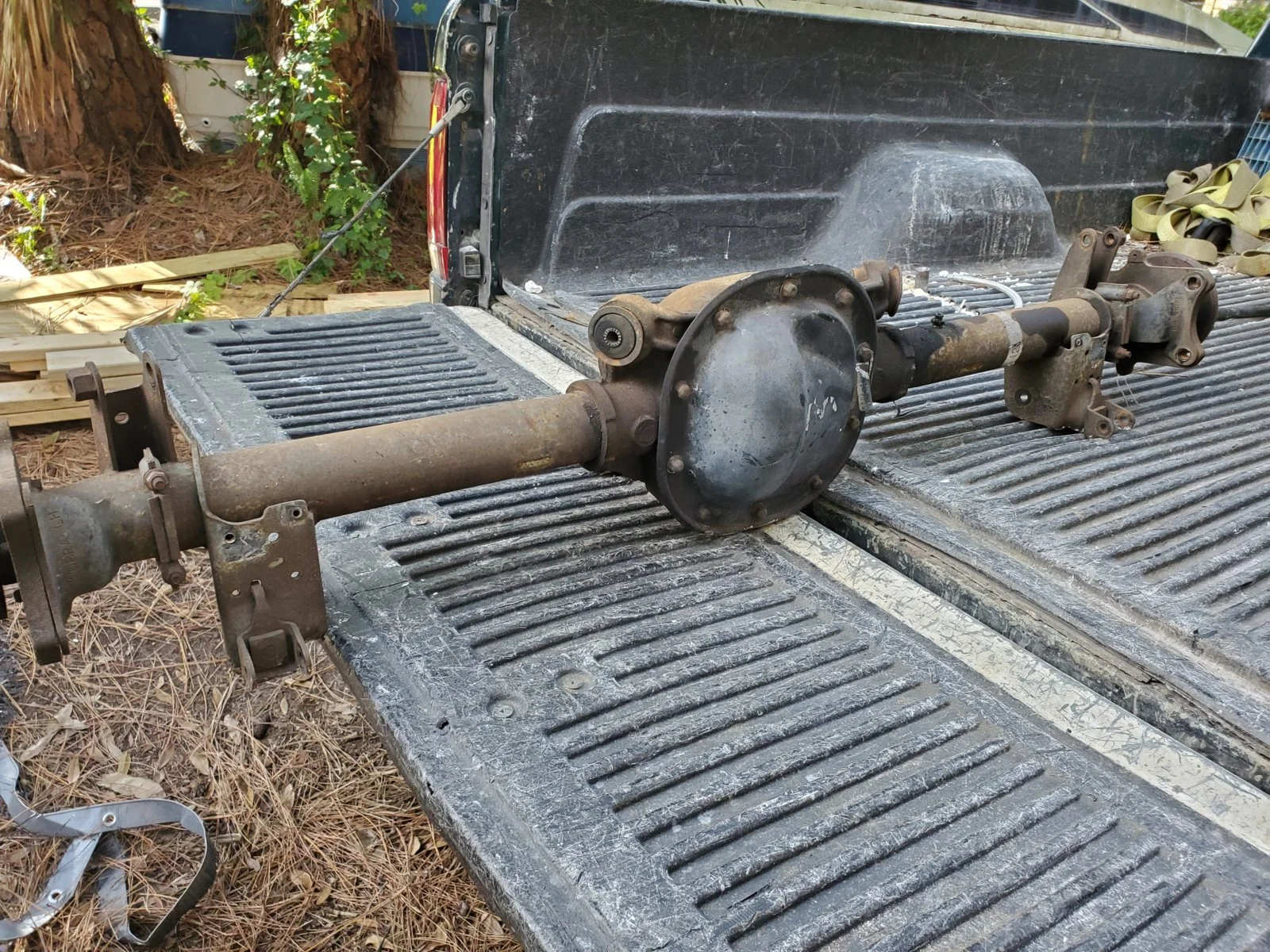

I have a Ford 8.8.

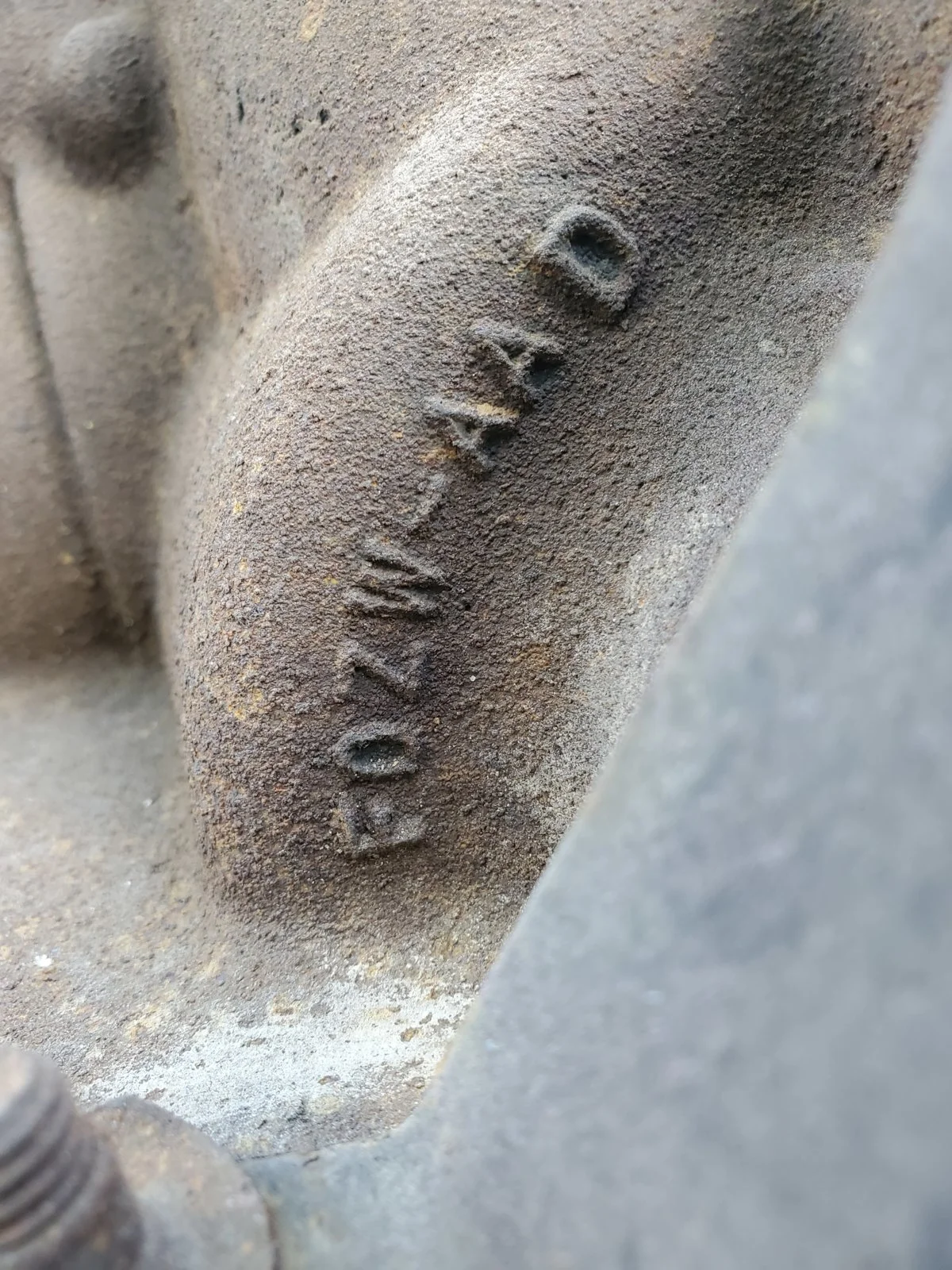

The casting numbers on the rear diff are F0ZW-AAD.

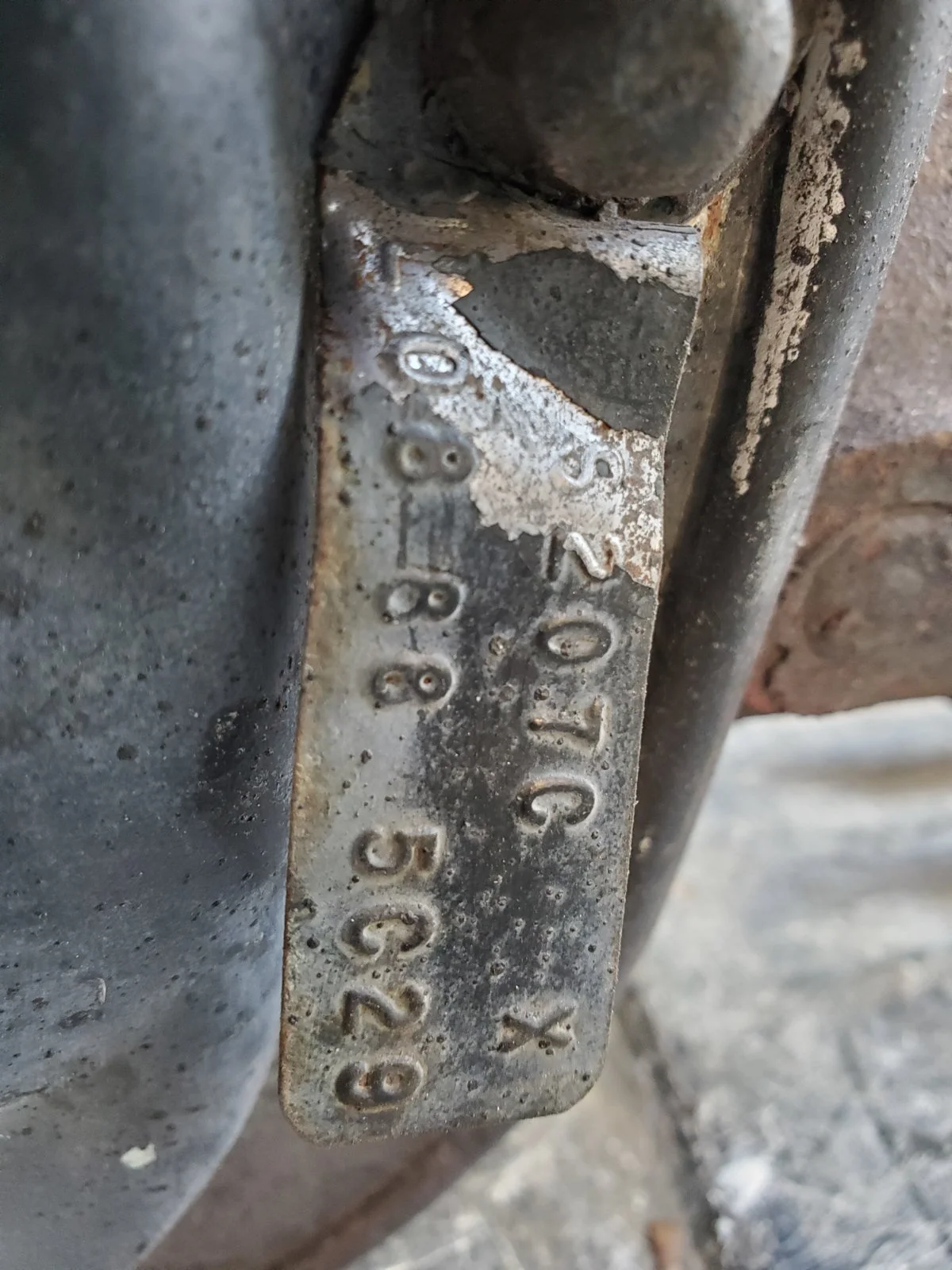

The tag reads:
S207C X
L08 88 5C29

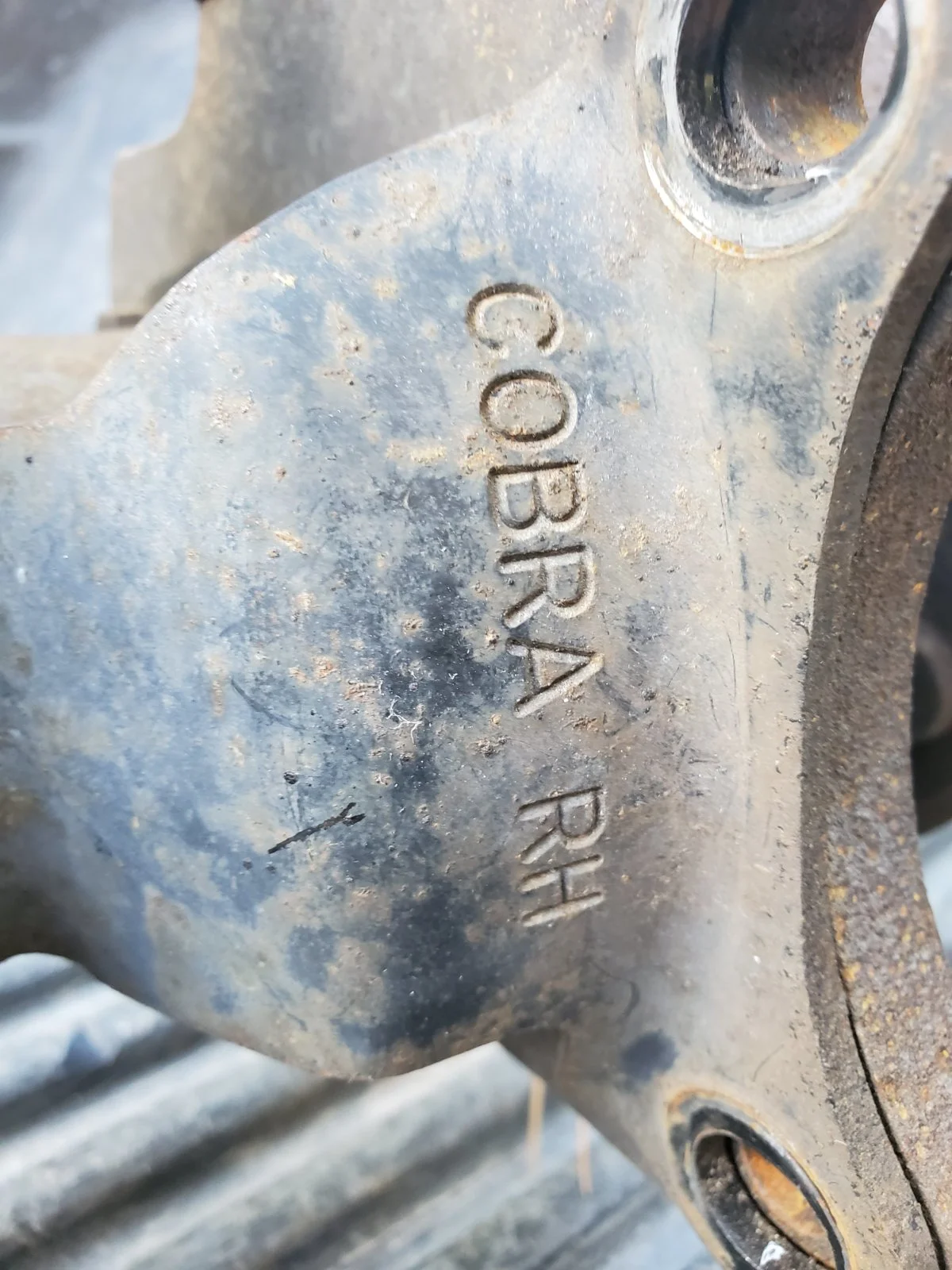

But the brake mounts read
COBRA RH
COBRA LH
And appear to be factory installed. Is this possible? Limited slip 308 Cobra rear end cast in 1990?
Does that even exist? Go 15741923642974699995117564674572.jpg 15741923908642447113606420582071.jpg 15741924105366823790893018115476.jpg 1574192443717535791339099380203.jpg


Attachments

  • Sponsors(?)


ZILLA

New Member
Nov 19, 2019
4
0
1
58
Florida
@FoxChasis may respond, he seems to be an authority on part numbers. All I can tell you is it's an 3.08 gear track lock
Thanks you can see the gears outside just inside the hub face, does that make it 94 and up? mostly I'm trying to identify it because I'm thinking about using it in a diesel trike project. So obviously I'm going to need to add brake suspension etc etc


ZILLA

New Member
Nov 19, 2019
4
0
1
58
Florida

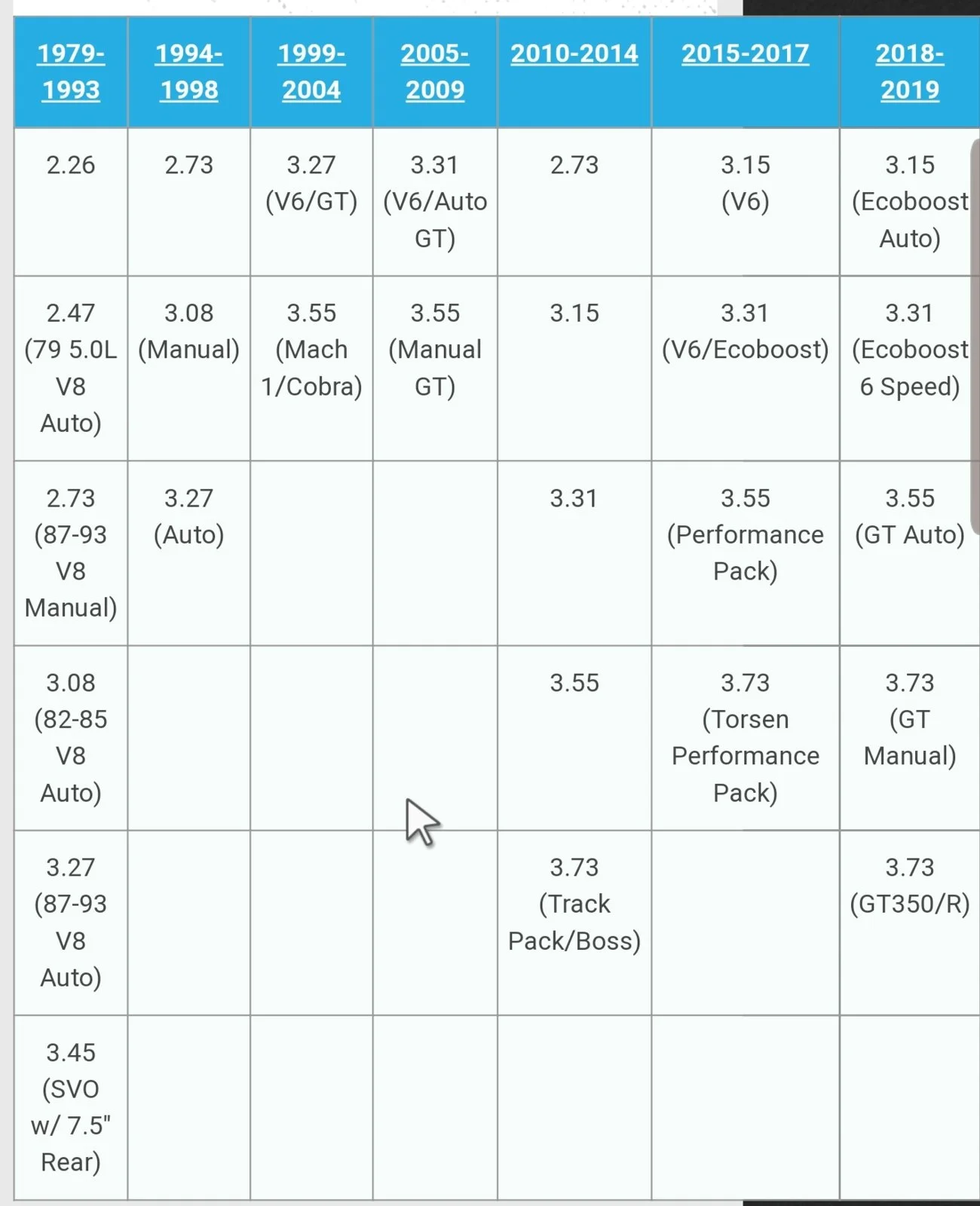

I think I may have just found the answer to my questions. I found this on LMR's website. I'm pretty sure this came out of a manual transmission 94 to 98 mustang and then somebody swapped out the Cobra supports to facilitate their choices brakes. Any confirmation (or correction) of that would be appreciated.


FoxChasis

5 Year Member
Dec 23, 2003
433
132
63
foxchassis.com
The differential HOUSING was originally engineered for 1990 Mustang. The housing is for an 8.8 it and was used until a major revision was required.

Date on the tag is from 1995.

S207C = axle code (S = Sterling axle plant)
X
3L08 = 3.08:1 axle ratio, Traction-Lok differential
88 = 8.8" ring gear
5C29 = axle assembly built on March 29, 1995

  • Informative
Reactions: General karthief

ZILLA

New Member
Nov 19, 2019
4
0
1
58
Florida
The differential HOUSING was originally engineered for 1990 Mustang. The housing is for an 8.8 it and was used until a major revision was required.

Date on the tag is from 1995.

S207C = axle code (S = Sterling axle plant)
X
3L08 = 3.08:1 axle ratio, Traction-Lok differential
88 = 8.8" ring gear
5C29 = axle assembly built on March 29, 1995
Thanks
