Drivetrain Clutch fork/throwout bearing/cable adjustment

Waz900

Member
Apr 22, 2005
31
4
18
Sewell, New Jersey
Hey guys, I would like to get your opinions. I am putting my 88 5-speed car back together. Aside from the t-5, everything is brand new. MDX clutch, throwout bearing, clutch fork, pivot stud, Maximum Motorsports cable and quadrant, and firewall adjuster. The car previously had a junk cable and the stock plastic quadrant with no adjuster.

My issue is that I can’t get my clutch to disengage to put the car in gear. Every gear grinds. I installed it with the bell housing on. I know I messed up the fork and bent the prongs the first time around, but I learned from my mistake and I would have bet my paycheck that I did it right this time. The first time around I didn’t replace the pivot stud, so when I got a new, fork, I did the pivot stud too.

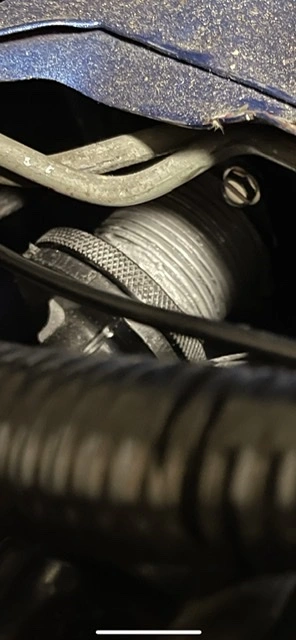

Everything is greased as it should be, and it looks like everything moves smoothly until I try to move it when the engine is running. I’ve turned out the firewall adjuster most of the way, but I still have maybe a 1/4” or 1/2” to keep going before I contact my 93 cobra booster. I’m on jackstands basically in final assembly with a full t-5, exhaust and driveshaft already installed, so I REALLY don’t want to have to pull it back out. Looking for some advice. I’m attaching a picture of my firewall adjuster as it currently sits. I have a video of the fork moving with the car off, but I’m on my phone, so I’ll have to upload it when I get to a computer. Thanks for your help.


Attachments

  • F004B6F1-E874-49F9-A411-5BA629230065.jpeg
    59 KB · Views: 49
  • Sponsors(?)


Waz900

Member
Apr 22, 2005
31
4
18
Sewell, New Jersey

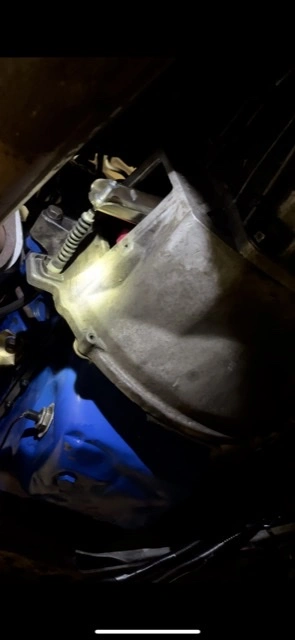

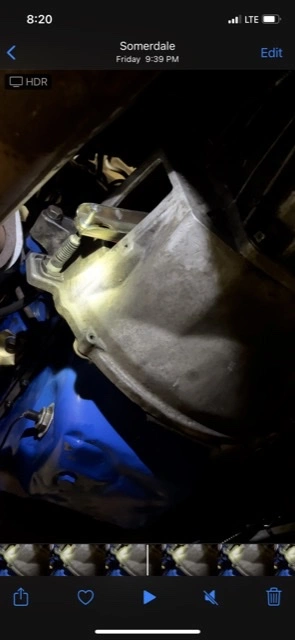

It’s incredibly frustrating to upload a video from an iPhone to this forum, unless I’m doing something wrong. Here are two photos of my fork inside the bell housing. One is disengaged and the other is fully engaged. Everything flows smoothly. Not sure if this is much help. I’m just not sure if I should take it all apart, or if I just need to adjust the adjuster all the way out as far as I can.


Attachments

  • 53E17EA5-4BC3-42BF-B7AD-C0A419205766.jpg
    35.9 KB · Views: 49
  • D66F4A33-A102-4634-B135-80473937B9EF.jpg
    43.4 KB · Views: 46

Boostedpimp

15 Year Member
May 8, 2003
1,230
450
124
NJ
Since it all new I would try with the adjuster out a little bit more at a time until your adjusted enough that your disengaging correctly. As the clutch wears you'll screw the adjuster out over time.

Last edited:

90sickfox

Wasn't a pretty sight...and I've got big hands
SN Certified Technician
Mar 2, 2015
5,811
4,899
203
43
The adjuster screws out from firewall as clutch wears.

What clutch quadrant do you have at the pedal ?

Check the metal around where the adjuster goes. There should not be any cracks coming out from that hole. There's also a small 90° edge to the left that should be straight. I've seen the firewall actually being the issue. The can start to collapse when the pedal is pressed.


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,441
2,772
234
75
Dublin GA
lowendmac.com
Clutch Adjustment for stock and aftermarket setups
Revised 28-Apr-2016 to include need for longer cable with single hook quadrant

Clutch adjustment with stock cable and quadrant
There is a self-adjusting mechanism for the clutch cable. As the clutch wears the cable tension changes, that is why there is a self-adjusting mechanism built into the clutch pedal. On the clutch pedal there is a toothed plastic quadrant with a ratchet pawl that engages the quadrant. As you pull up on the clutch pedal, it ratchets and takes any slack out of the clutch cable. Mess around with the pedal or even bump it while the end that fits in the clutch fork is loose, and it tries to take up the slack in the cable. That has the effect of shortening the cable.

Do the clutch adjustment first before considering any other problems. With the stock plastic quadrant and cable, pull up on the clutch pedal until it comes upward toward you. It will make a ratcheting sound as the self-adjuster works. To release to tension of the stock quadrant, use a screwdriver to lift the ratchet paw up and out of engagement with the quadrant teeth.

You can use a screwdriver to lift the ratchet pawl off the quadrant teeth. That will allow you to move the quadrant to allow more slack in the cable. If the cable is too loose, pull up on the pedal. The ratchet pawl will allow the quadrant to take up the slack in the cable and lock the adjustment.

The following applies to aftermarket clutch cables and quadrants.
Adjustable cables are used when the plastic quadrant is replaced with an aftermarket metal quadrant. The downside to this setup is that you have to get under the car to adjust the clutch. Add a firewall adjuster to an adjustable cable setup and you can spare yourself from getting back under the car to make any fine adjustment that you desire.

The fancy 2 and 3 hook quadrants are for use with stock length cable and a firewall adjuster. Use the firewall adjuster and screw in and out to take the slack out of the cable and get the clutch engagement point just where you want it.

Binding clutch cable
A binding clutch cable will make the clutch very stiff. If the cable is misrouted or has gotten too close to the exhaust, it will definitely bind. The binding common to adjustable cables is often due to misplacement of the adjusting nuts on the fork end of the cable. This will also cause the cable to wear and fray. Both nuts should be on the back side of the fork so that the domed nut faces the fork and the other nut serves as jam or locknut to the domed nut.

Clutch pedal adjustment
Clutch pedal adjustment with aftermarket quadrant and cable: I like to have the clutch completely disengaged and still have about 1.5” travel left before the pedal hits the floor. This means that I have only about 1” of free play at the top before the pedal starts to disengage the clutch. Keep in mind that these figures are all approximate. When properly adjusted, there will not be any slack in the clutch cable. You will have 4-15 lbs. preload on the clutch cable. With a non-adjustable cable and a firewall adjuster, the cable needs to go in the second hook of the quadrant. Single hook quadrants used with a firewall adjuster may make the clutch too tight, causing it to slip. The possible exception to this is the Maximum Motorsports cable which is a bit longer to make it work with a single hook quadrant.

Adjustable clutch cable tips:
Loosening the cable adjustment nut (throwout bearing arm moves to the rear of the car) moves the disengagement point towards the floor.

Tightening the cable adjustment nut (throwout bearing arm moves to the front of the car) moves the disengagement point towards the top of the pedal.

Firewall adjuster tips
Turning the firewall adjuster IN makes the engagement point closer to the floor since it loosens the cable. You have to push the pedal to the floor to disengage the clutch. Too loose a cable and the clutch won't completely disengage and shifting will be difficult. Gears will grind and you may have difficulty getting the transmission in first gear when stopped.

Turning the firewall adjuster OUT makes the engagement point farther from the floor since it tightens the cable. You push a short distance to disengage the clutch. Too tight a cable will cause clutch slippage.

Aftermarket solutions to the problem:
The quadrant needs to be replaced if you use any type of aftermarket cable or adjuster. My preference is a Ford Racing quadrant, adjustable cable and Steeda firewall adjuster. The adjustable Ford Racing cable is just as good as the stock OEM cable. It allows a greater range of adjustment than a stock cable with a aftermarket quadrant and firewall adjuster. Combined with the Steeda adjuster, it lets you set the initial cable preload and then fine tune the clutch engagement point to your liking without getting under the car.

Using a stock OEM cable, firewall adjuster and a single hook quadrant may result in not having any free pedal travel before the clutch starts to disengage. I found this out the hard way.

See Summit Racing - High Performance Car and Truck Parts l 800-230-3030 for the following parts.

Ford Racing M-7553-B302 - Ford Racing V-8 Mustang Adjustable Clutch Linkage Kits - Overview - SummitRacing.com Cable and quadrant assembly $90


The Ford Racing Adjustable cable is available as a separate part:
Clutch Cable, Adjustable, Ford, Mercury, 5.0L, Kit FMS-M-7553-C302_HE_xl.jpg

[url=http://www.summitracing.com/parts/SDA-555-7021/]Steeda Autosports 555-7021 - Steeda Autosports Firewall Cable Adjusters - Overview - SummitRacing.com
Steeda firewall adjuster. $40

575166


Fix for the quadrant end of the cable popping out of the quadrant when installing a replacement cable courtesy of Grabbin' Asphalt
attachments\575167




Help for those who have replaced the clutch assembly and are still having problems with adjustment:
The next step doesn't make much sense it you already have the transmission installed, but just for sake of discussion, here it is:
The throwout bearing sits in the clutch fork arm with the wave springs pressing on the rear flange of the throwout bearing.

throwout-bearing-placement-in-clutch-fork-arm-gif.86276


Major differences between the distance between the flywheel surface and the clutch fingers may require tinkering with the clutch fork pivot ball. Stack your old pressure plate, clutch disc and flywheel up like they were when installed in the car. Tighten down all the pressure plate bolts and measure the distance between the clutch fingertips and the flywheel face.
Too much thickness will cause the clutch fork arm to sit too far back to get the clutch cable on the quadrant. It may even sit against the rear or the bell housing hole for the clutch fork arm. In that case, reduce the pivot ball height.
Too little thickness will cause the clutch fork arm to sit too far forward and bottom out against the front side of the bell housing hole for the clutch fork arm.. This will prevent the clutch from fully disengaging.
In other words, the clutch fork arm should sit positioned midway or a little towards the rear in the bell housing hole for the clutch fork arm when the cable is properly tensioned.

  • Useful
Reactions: 1 user

Waz900

Member
Apr 22, 2005
31
4
18
Sewell, New Jersey
Sorry for the late feedback guys. I eventually figured it out, but I had to eventually pull the whole thing out. I put the trans in myself the first time around. I think I may have knocked off the throwout bearing from the clips or the pivot stud from the clutch fork. I pulled everything out, and started from scratch. I had the clutch cable in place, which I didn't have last time. I used this as a little bit of a brace to keep the fork in place as I slid in the transmission. I also had a buddy and a better trans jack to help support the weight. I eventually got it going. Thanks for your input.
