Fuel Correct fuel pressure tool for 86

MercRS

Member
Jan 15, 2003
55
1
8
Chicago,IL
Visit site
Have a 4 86 Capris
I bought a fuel pressure kit on eBay it's useless
Bought a permanent type that you leave on schrader valve it leaks and won't read.
Can someone link a known working tool with the right adapter
On eBay or Amazon
I can't find one
Thanks

  • Sponsors(?)


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,347
2,822
234
74
Dublin GA
lowendmac.com
@MercRS

The local auto parts store will have what you need...
Advance Auto Parts or AutoZone
Actron Fuel Pressure Tester Kit
Part # CP7818


Or

Build your own...

Fuel pressure gauge adapter fittings:
http://www.holley.com/products.asp?product=17945NOS AN 4 to 1/16” pipe
http://www.holley.com/products.asp?product=16785NOS 1/16” male pipe to 1/8” female pipe

Or
See http://www.autometer.com/cat_accessorieslist.aspx?pid=10

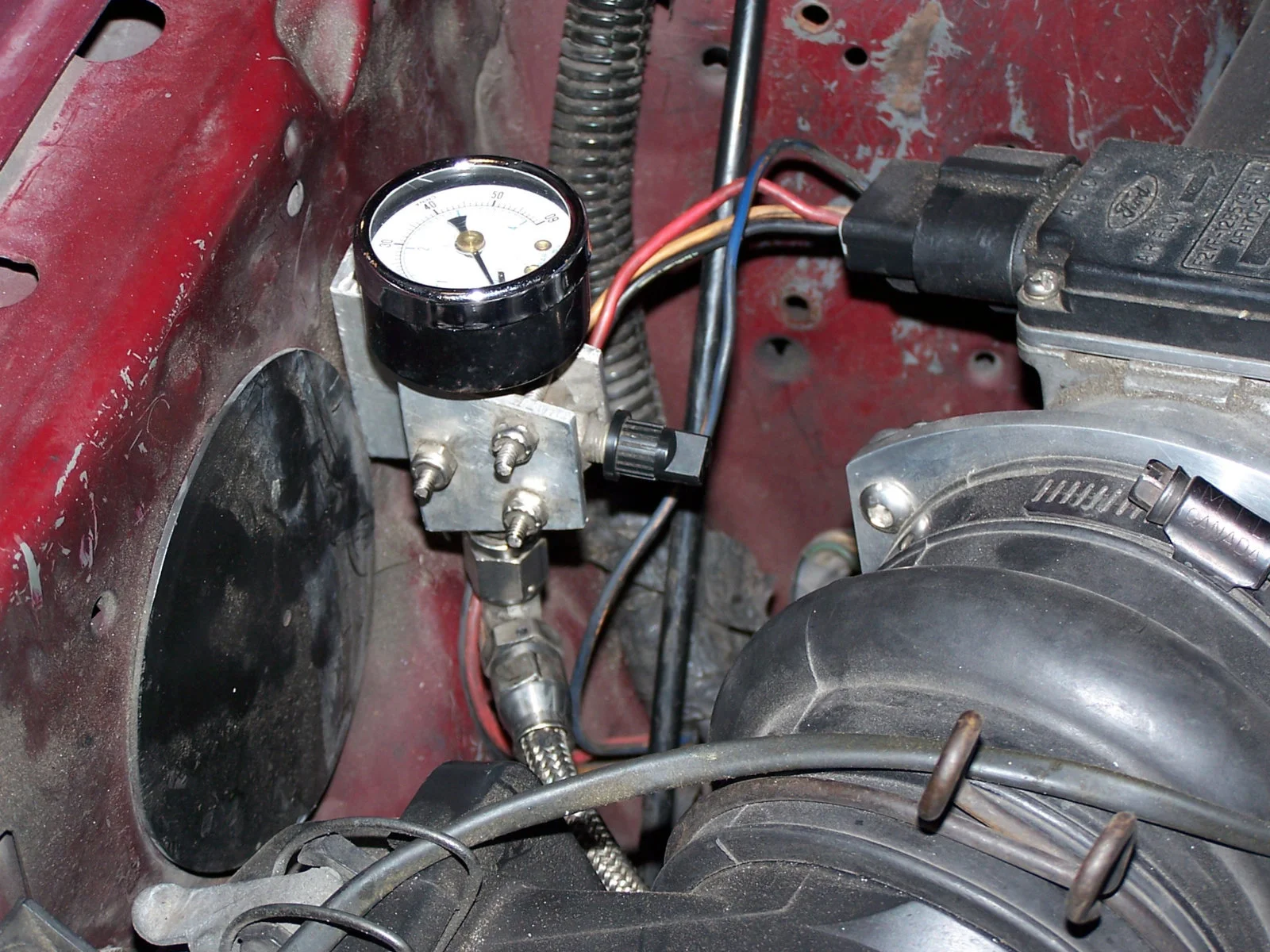

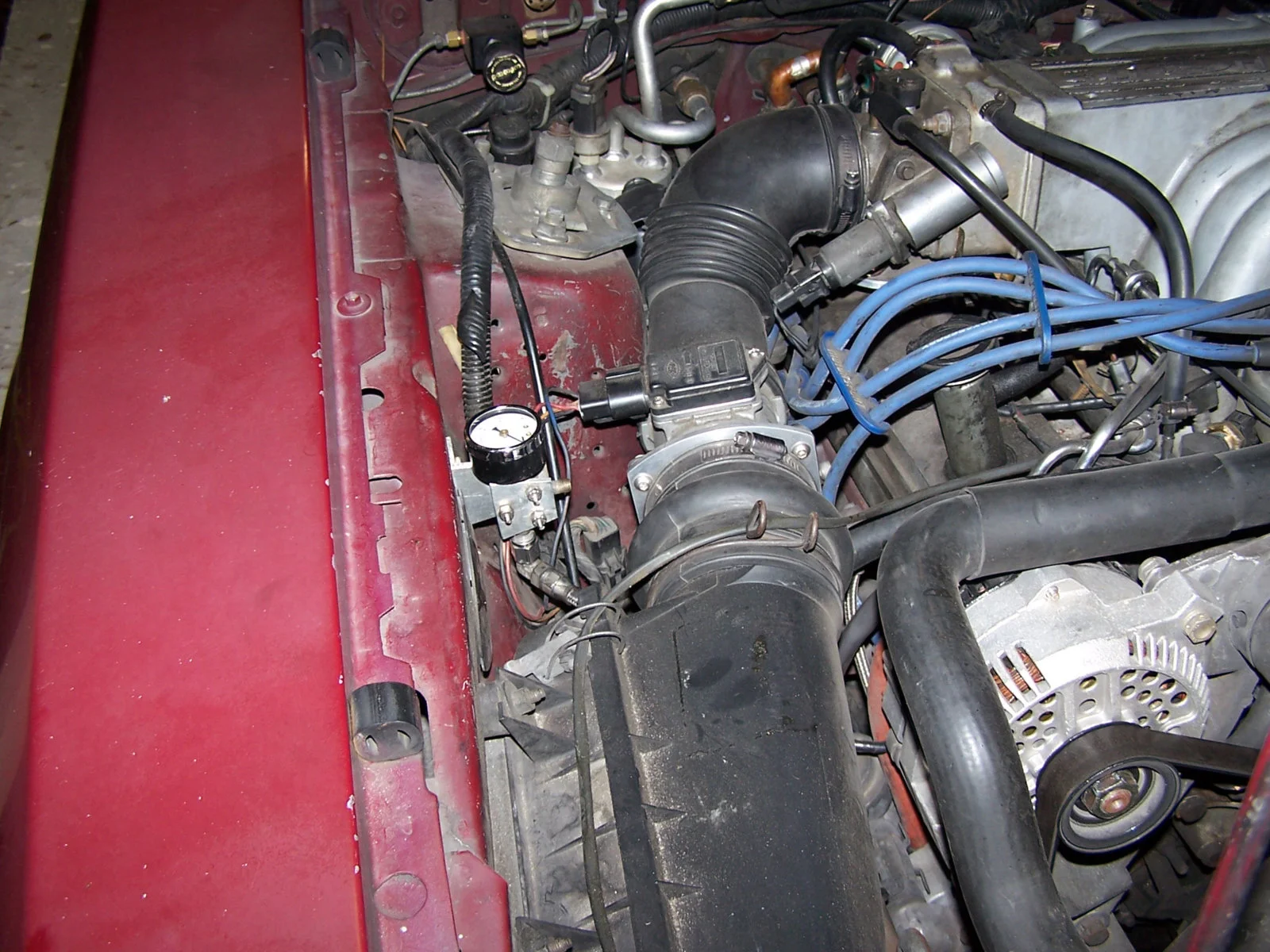

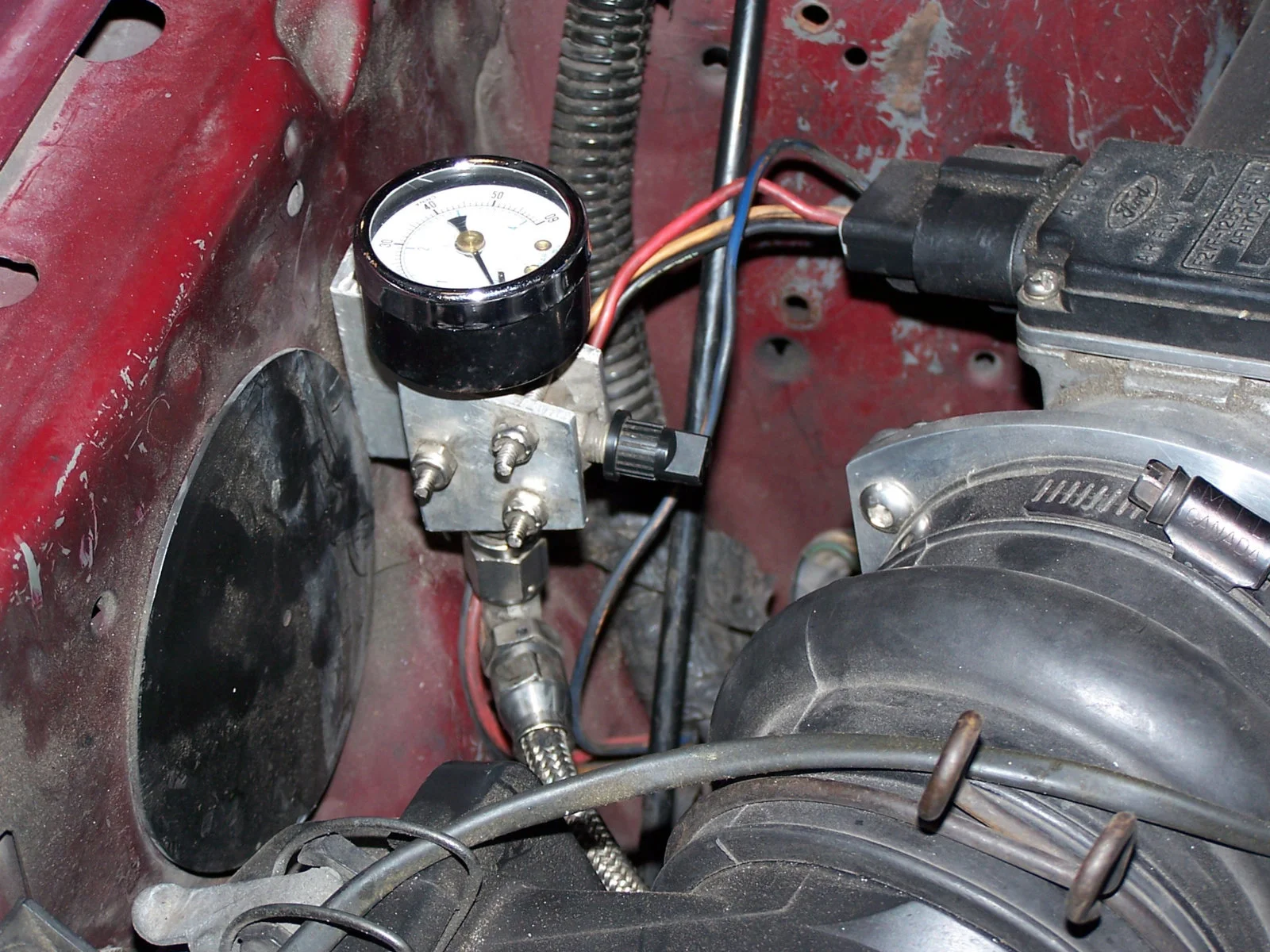

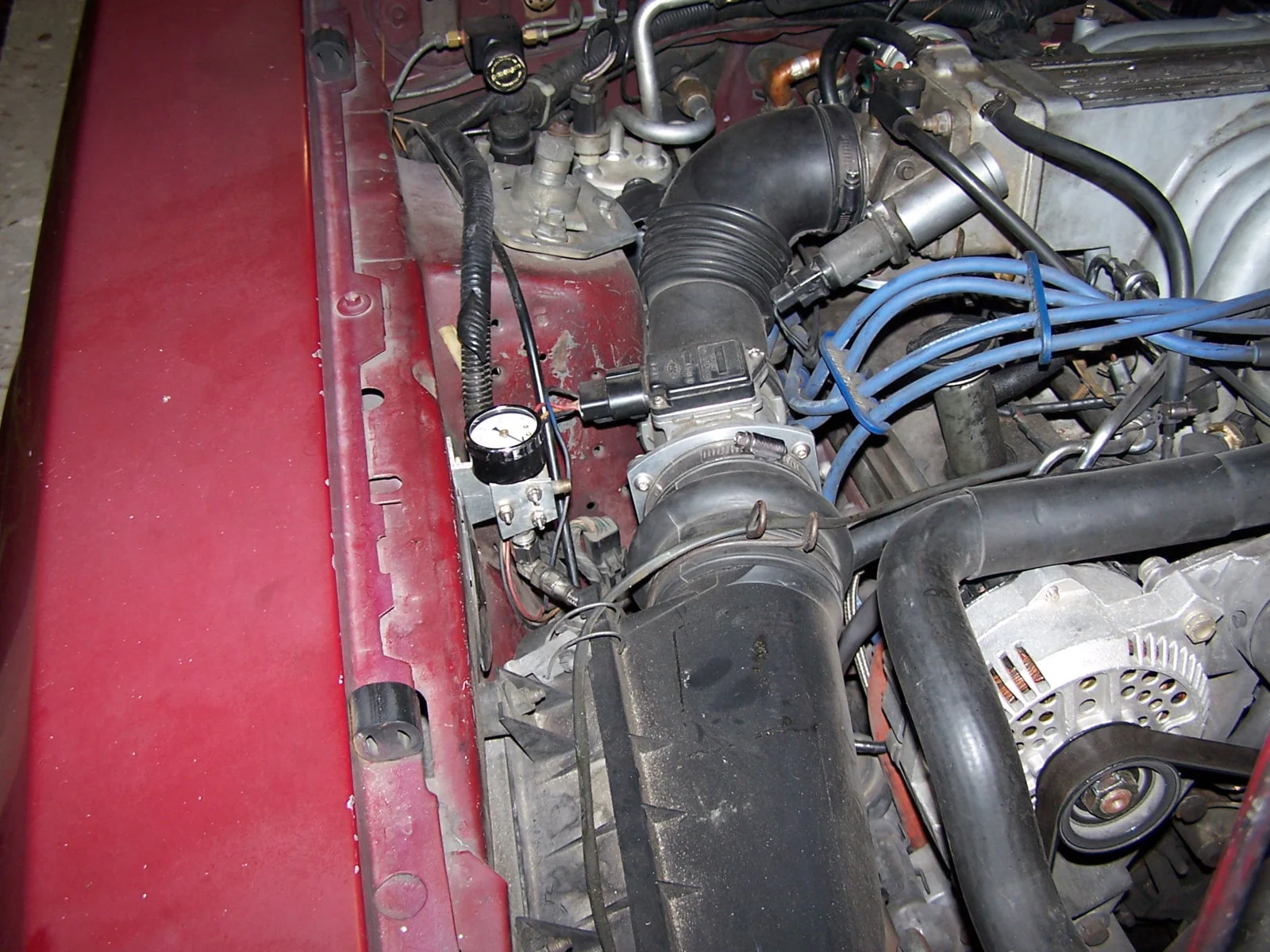

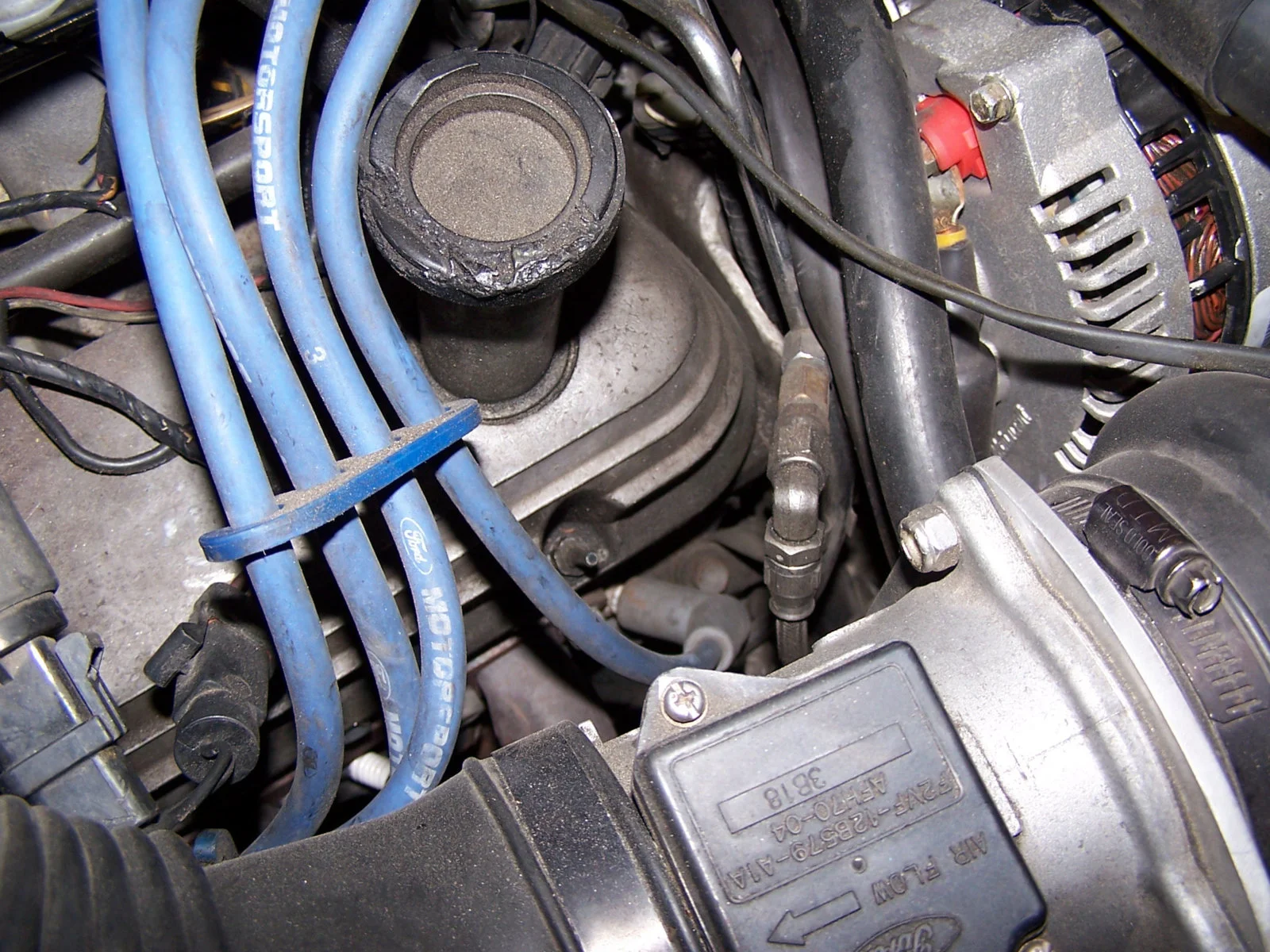

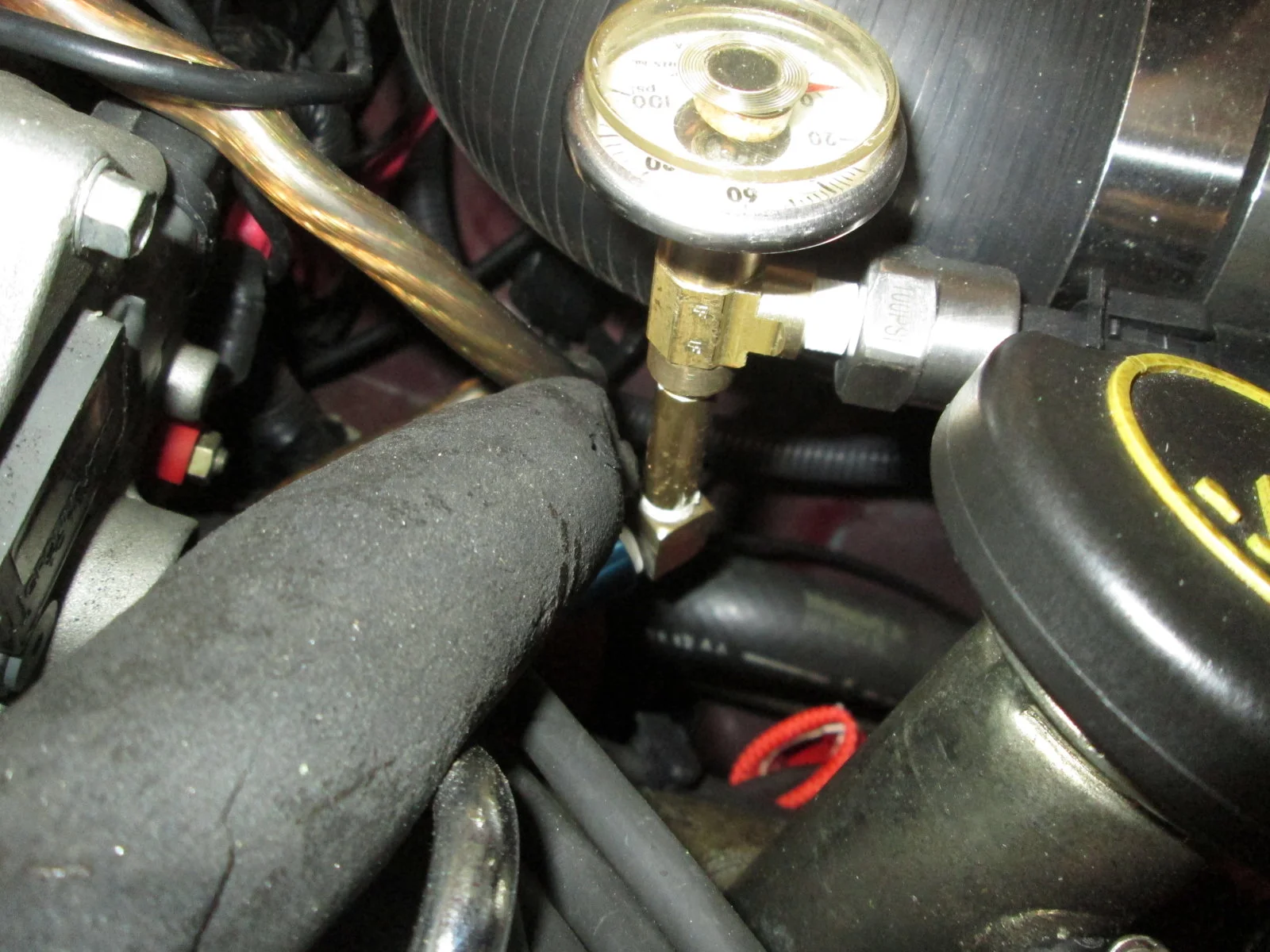

I made my own pressure gauge and holder. I bought the NOS or Autometer adapter that you screw into the place on the fuel line where the Schrader valve goes. You have to remove the Schrader valve, but save it, since you will reuse it. I ran a piece of SS (stainless steel) braided hose to a 1/8” pipe brass tee fitting that I mounted on the fender well by the MAF. I made a mount bracket out of aluminum angle I got from Home depot and bolted it to the fender well. Then I mounted the brass tee to it with some machine screws and a plate. I sandwiched the brass tee between the aluminum angle and a flat piece of aluminum that I trimmed off the extra aluminum angle. Three screws laid out in a triangle pattern go through both pieces of aluminum to clamp the tee in place. Put the Schrader valve in the spare port of the brass tee. I used a cheap industrial gauge from MSC Direct (http://www1.mscdirect.com/ P/N 56468499). It works great and was cheaper than (less than $8) anything Summit had.

If you look through the MSC Direct catalog, you can find any type of gauge you want, including liquid filled. You only need a liquid filled gauge if you mount it directly on the engine. The liquid filling dampens out the vibrations. .However there are a couple of people who have had nasty engine fires when the gauge or the fuel injector rail broke due to vibration because of the gauge directly mounted on the fuel injector rail.

You can buy the Autometer Stainless Steel braided hose for like $60. Or a local shop that makes hydraulic hose assemblies can make it for you at a cheaper price. Ordinary low pressure hydraulic hose can be used in place of the Stainless Steel braided hose, the Stainless Steel braided hose just looks nice. I got mine for $4 at a place that sells industrial and military surplus parts of all kinds. The Stainless Steel braided hose goes for about $4+ a foot and the fittings are probably about $6-$10 each. You can make your own and save some $$$, the shops may have a setup or labor charge to fabricate the hose assembly.

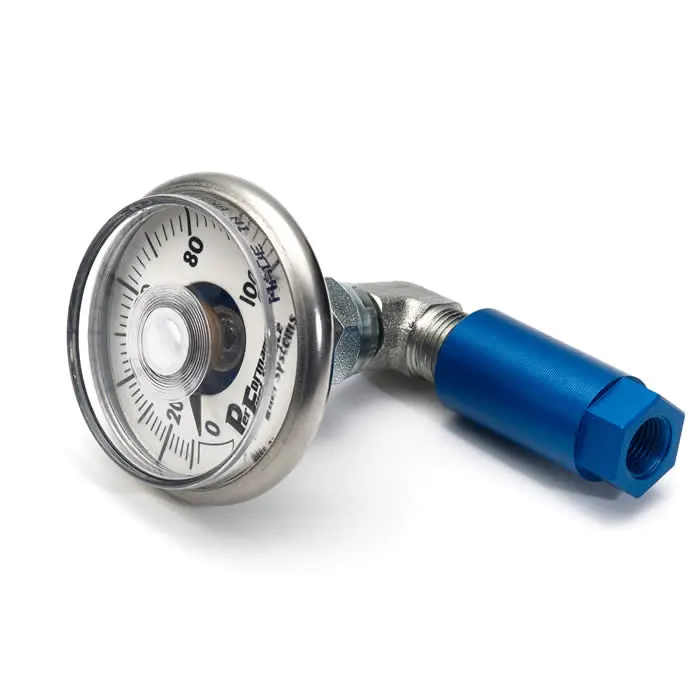

Safety device to prevent major fuel loss in the event of a failure of the hose, fittings or gauge...
