Dash Lights Please Help.

TerrellRN

New Member
May 29, 2022
7
0
1
46
Bay Area California
Hello! I have searched for the last hour or so but cant find an answer.
I have a 93 GT convertible stock. All of the exterior lights are good, rear view mirror lights and aftermarket radio work. However, the dash lights do not come on with the headlights. Also, I can not see or hear the turn signal from inside the car, but they do appear on the outside. I checked fuse 13 and it was good. What could be wrong? Thanks


Mustang5L5

Put lubricant all over the balls
Mod Dude
Feb 18, 2001
39,201
15,101
224
Massachusetts
Is the dimmer adjusted to full brightness? Spin it til it clicks and turns the dome light on, then turn back until it just turns the dome light off. That should be full brightness.

For the turn signals, both the hazards and blinkers work outside the vehicle?


TerrellRN

New Member
May 29, 2022
7
0
1
46
Bay Area California
Is the dimmer adjusted to full brightness? Spin it til it clicks and turns the dome light on, then turn back until it just turns the dome light off. That should be full brightness.

For the turn signals, both the hazards and blinkers work outside the vehicle?
Yep. I adjust the dimmer and the lights don't come on. Both hazards and blinkers work outside.


Mustang5L5

Put lubricant all over the balls
Mod Dude
Feb 18, 2001
39,201
15,101
224
Massachusetts

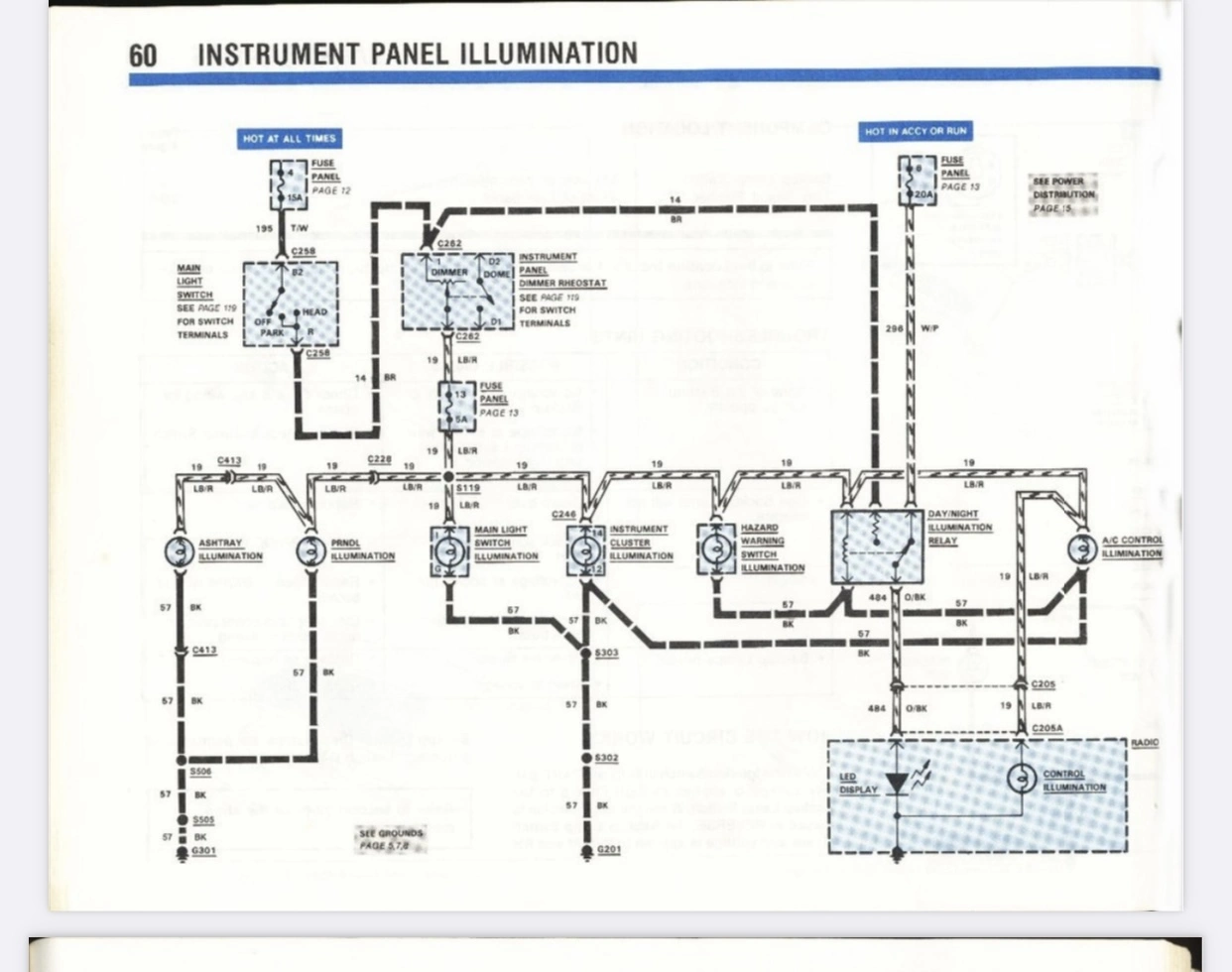

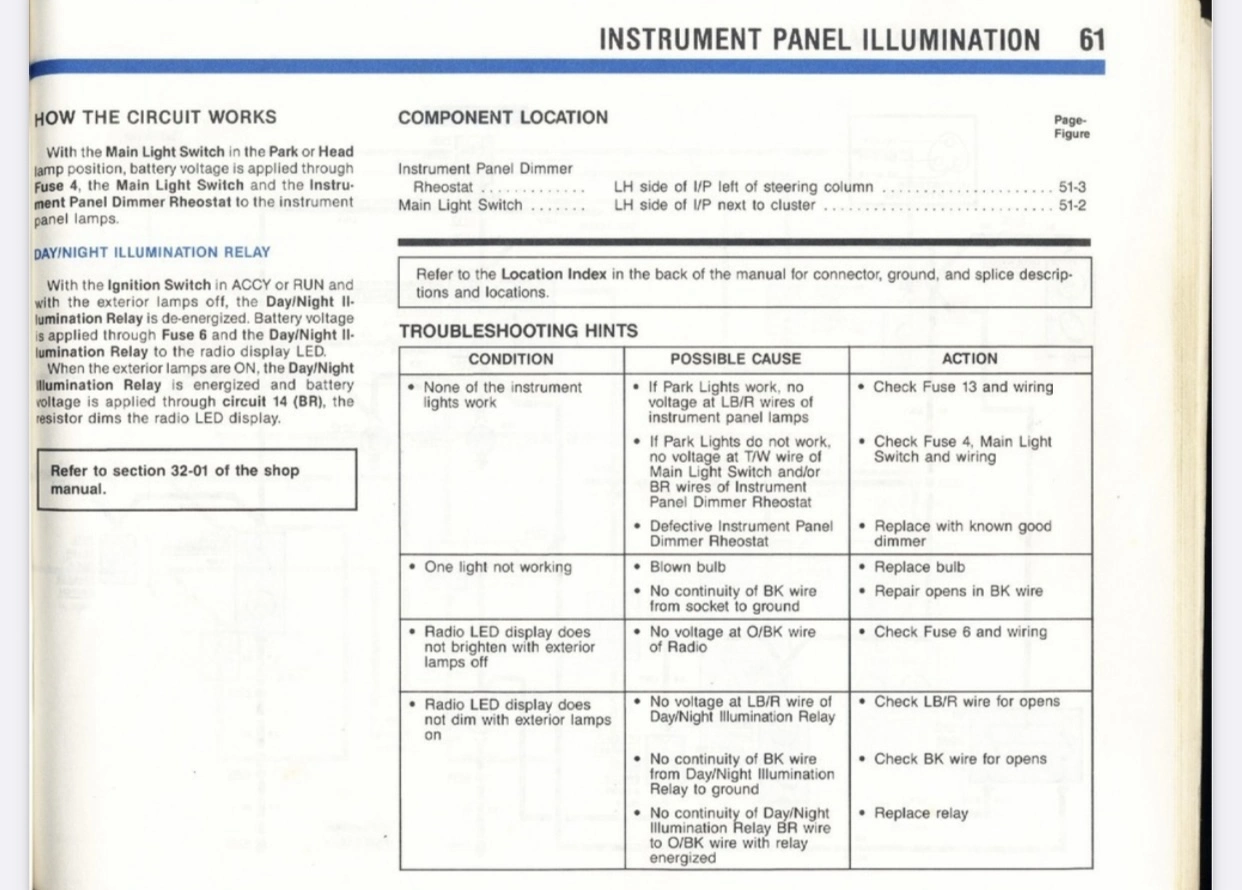

This is for an '88, but '93 should be similar. If not i can post the 93 diagram later. I just happened to have the '88 PDF on my phone.


I know you said you checked fuse 13, but did you check for power at fuse 13 to ground? If you don't have it, the dimmer is junk.



Last edited:
  • Useful
  • Like
Reactions: 1 users

TerrellRN

New Member
May 29, 2022
7
0
1
46
Bay Area California
I bought a dimmer switch from LMR. I had already had an appointment at a local speed shop to have sub frame connectors and a high flow water pump installed, so I am having them install the switch in too. I am just too busy this week to mess with car. When I went to drop of the dimmer, they had showed me the head light and fog light connectors were burnt up! No clue how the lights were still working. So I am replacing all of that stuff too. It's my first fox body. So much good info above. Thanks a lot guys


Wayne Waldrep

Before I post a pic, do you have one of yours?
15 Year Member
Apr 14, 2003
1,251
688
143
56
Cuba, AL
1. Keep the old dimmer switch since it may not be bad. Actually keep anything they take off. It's yours. My understanding is the lmr switches don't have the last bump that turns on interior lights. Someone else can confirm this but i remember it being discussed....i think.
2. Make sure they know the proper method of installing subframe connectors. The weight of the car must be on the chassis (sitting on tires). No exception on this.

I'm sure you knew these two but just in case. Post up results when you get them.


90sickfox

Wasn't a pretty sight...and I've got big hands
SN Certified Technician
Mar 2, 2015
6,407
5,492
203
44
It's very common for the fog light and headlight switches to overheat on GT cars. There's also a wire at the electrical connector for the ignition switch that melts, too. The fix for this is to install a relay in the fog light circuit. It should be triggered by the fog light switch with its own battery positive and ground. You can have them place it at the fog light harness below the drivers headlight. A standard 30 amp relay will work. This is a very common issue.
