electrical problems need help

[rudy herrera]

i have a 1990 mustang lx my door lock have no power to them my driver seat has no power to it and my stereo al so has no power
all of this i tems are not getting no power to them
is there a fuse to this items i need help



[jrichker]

Check the fuse diagram...



Diagram courtesy of Tmoss & Stang&2birds

See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring Mustang FAQ - Wiring & Engine Info Everyone should bookmark this site.

Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

Fuel, alternator, A/C and ignition wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

Complete computer, actuator & sensor wiring diagram for 88-91 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

Vacuum diagram 89-93 Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg

HVAC vacuum diagram
http://www.veryuseful.com/mustang/tech/engine/images/Mustang_AC_heat_vacuum_controls.gif

TFI module differences & pinout
http://www.veryuseful.com/mustang/tech/engine/images/TFI_5.0_comparison.gif

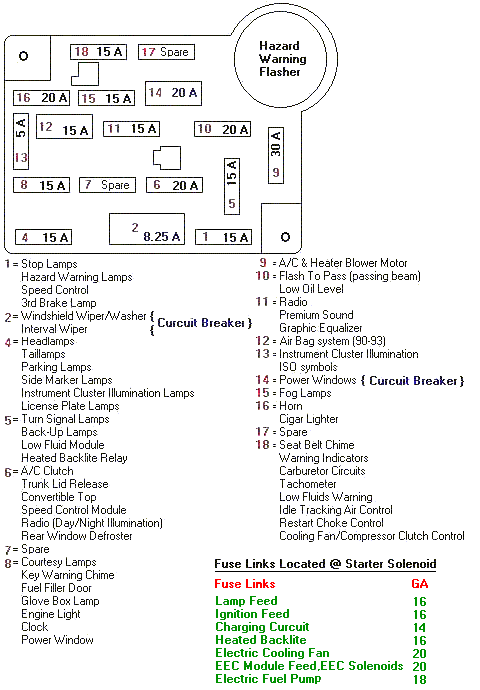

Fuse box layout
http://www.veryuseful.com/mustang/tech/engine/images/MustangFuseBox.gif



[rudy herrera]

my car is leaking gas

to day i noticed a realy strong gas smell so i got off and checked it out i noticed that the smell was coming from the back there were stains of old fuel around the part that caome from the body to the tank like the piece that guids the gas form the hole were you pump gas well there is a leak there and the gas comes out i also have half a tanked fuel up



[ID89GT]

If you are saying it is leaking where the filler tube goes in from where you fill it, then you need a new filler neck grommet. Like a 30 dollar part
