Engine Engine - Need to know how to get to the vacuum reservoir for the smog pump.

jrichker

StangNet's favorite TOOL
In Remembrance. Thank you for your contributions
Mar 10, 2000
27,513
2,853
234
I need to find the vacuum reservoir for the smog pump. If you look at the 2 solenoid valves on the passenger side inner fender well metal, there are the 2 Thermactor Air (smog) pump valves that control the flow from the smog pump to the cylinder head or the exhaust system.

Smog pump solenoid airflow control valve (standalone view)
lrs-9465a_3081-jpg.110449



I have vacuum being delivered to a tube in a hole in the fender well and a vacuum line coming out of the fender well in the same spot. But I don't have any vacuum at either one of the 2 control valves.

attachments\50636


Has anyone removed the passenger side fender or inner fender liner? I need to get in that area to inspect for damage and loose vacuum lines.

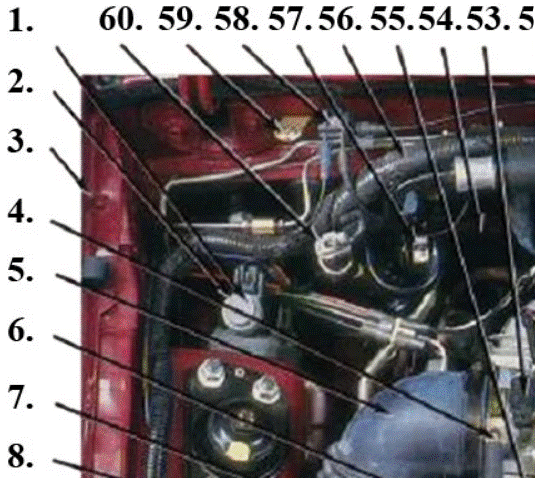

See areas 1,2,3 on the picture below...
smog pump control vavles location.gif

Last edited:

Willybill32

But at least it's tight!
Jul 16, 2019
424
199
53
I’ve removed the passenger inner fender in the past, and the vacuum reservoir is inside that fender close to where the two lines you mention go thru the fender well.

Bill

  • Like
Reactions: 1 user

Mustang5L5

Put lubricant all over the balls
Mod Dude
Feb 18, 2001
39,449
15,300
224
The circular ball is for the HVAC controls so they don't randomly change on you when you go WOT. The little cylinder canister near the front connects to the TAD/TAB. That's your huckleberry.
