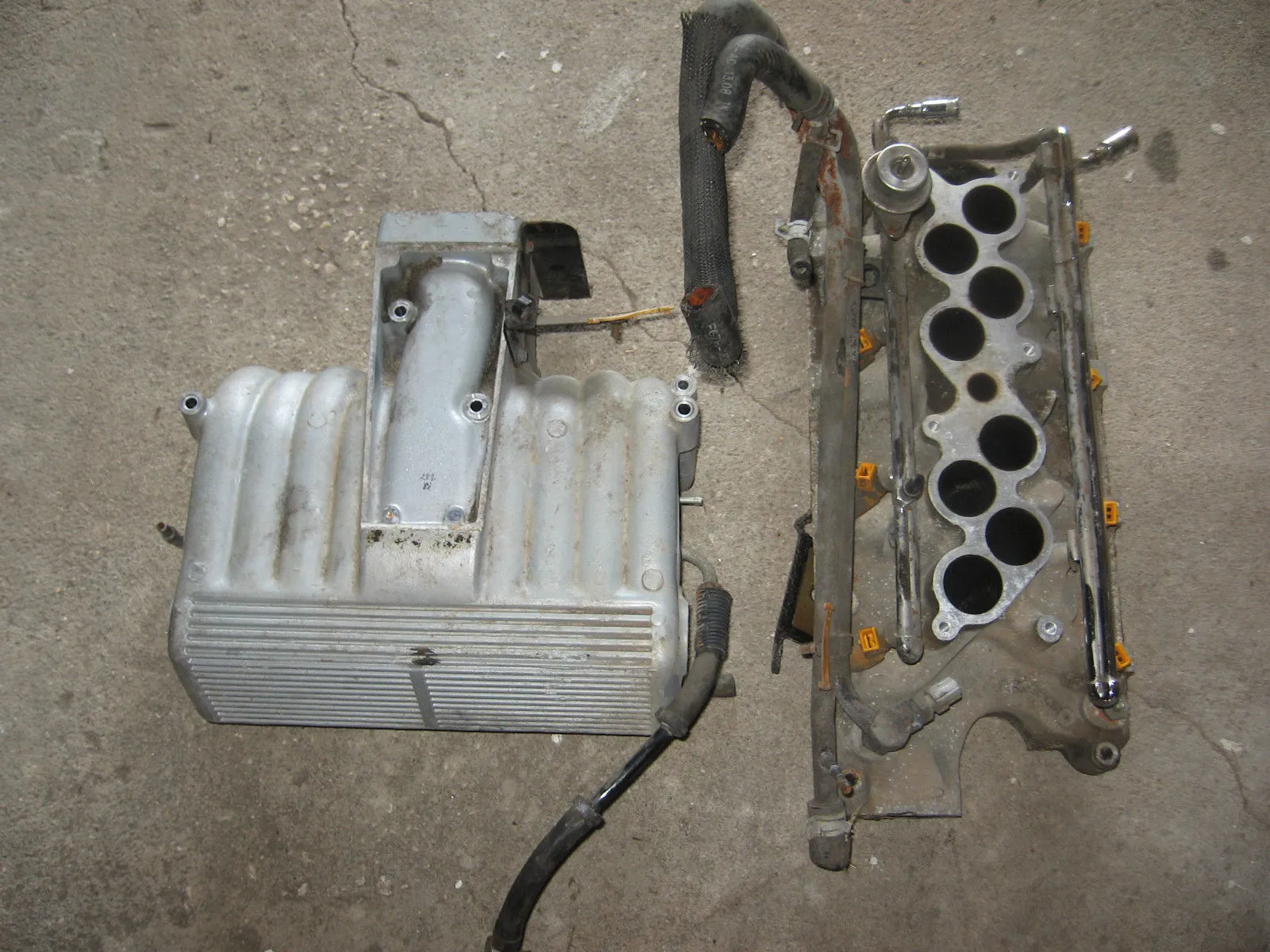

So I'm finally around to sharing some of my Explorer intake, GT 40 head build. Ya I know. I'm just playing. It's on the cheap but mostly for fun. I figured someone would like to look at it anyhow. I have lots of progress and pics along the way. I'll post stuff as I can. So it started with an intake I bought on Ebay.

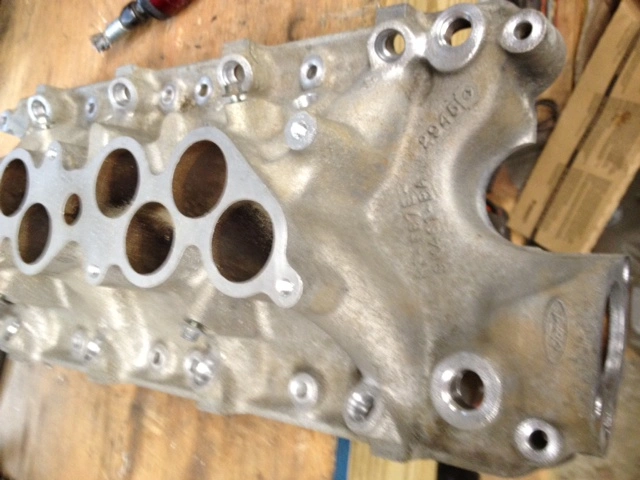

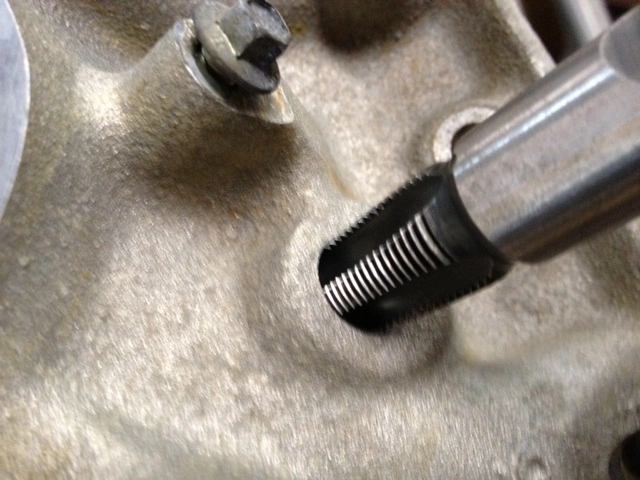

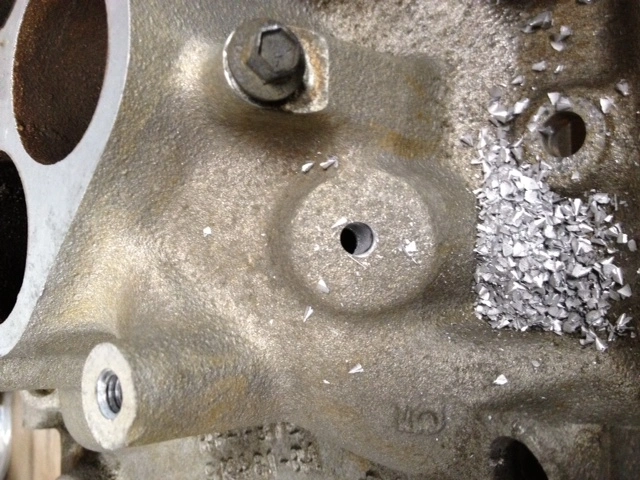

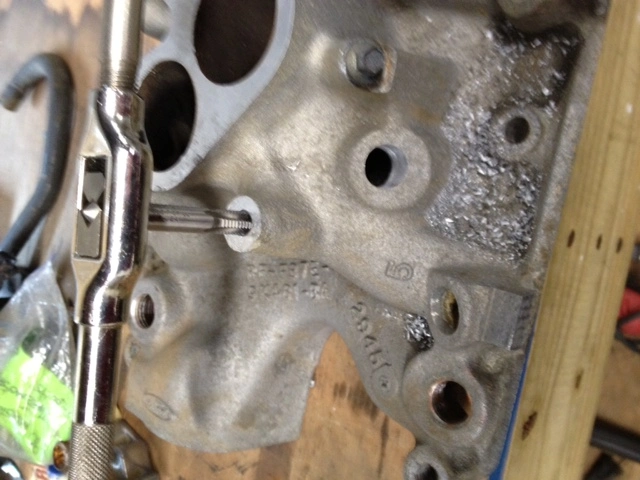

I cleaned it up and removed some unused vacuum ports, drilled and tapped the needed bosses for my application.
Intake 1.JPG
Intake 4.JPG
Intake 5.JPG
Intake 6.JPG
Intake 7.JPG

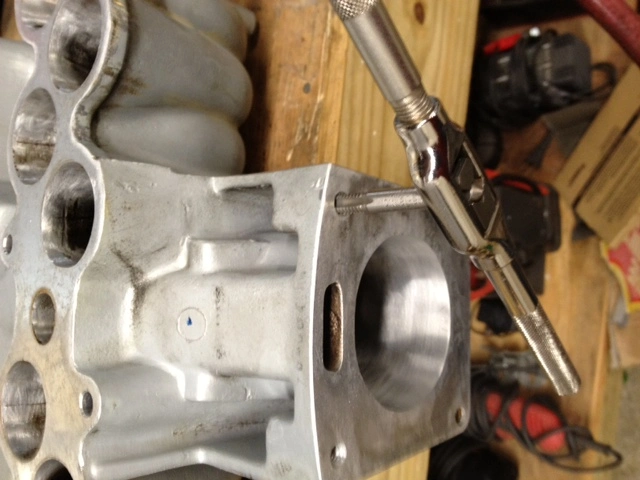

Minor port work on the opening to make it measure 70 mm to make me feel better. It was close anyhow.
Intake 8.JPG

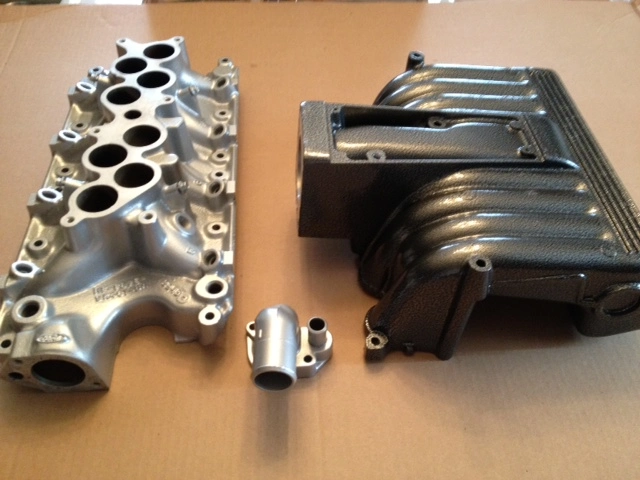

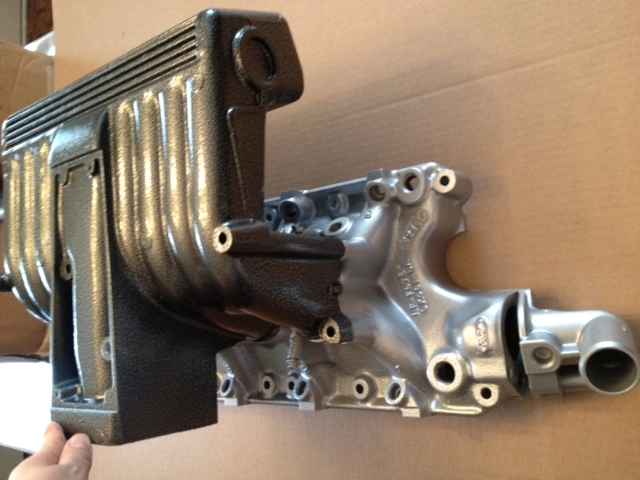

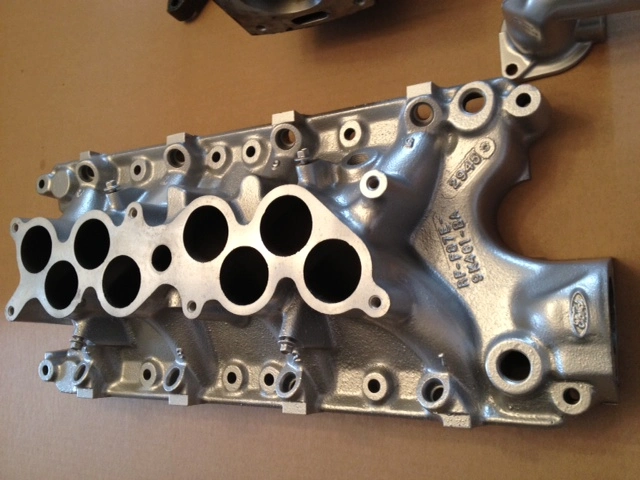

Can you say powder coated?
Intake 9.JPG
Intake 10.JPG
Intake 11.JPG

That's all for today. I'll post more later.

  • Like
Reactions: elarm1
  • Sponsors(?)


gearheadboy

15 Year Member
Jan 15, 2003
1,425
177
84
47
Greencastle Pa
Thanks guys. After some sleep and a day of working I remembered where the rest of the pics were.
Intake 13.JPG

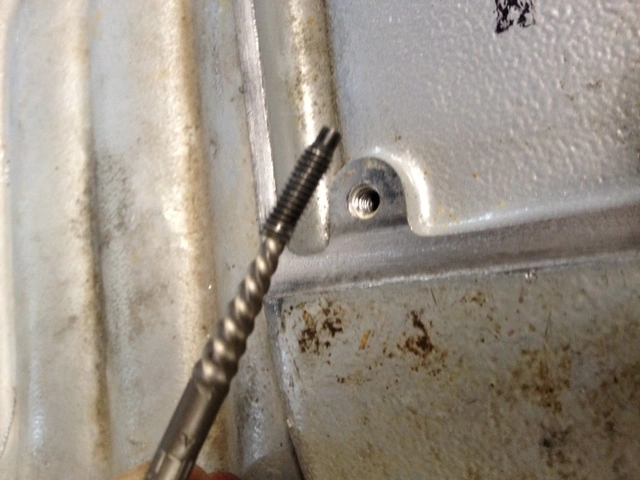

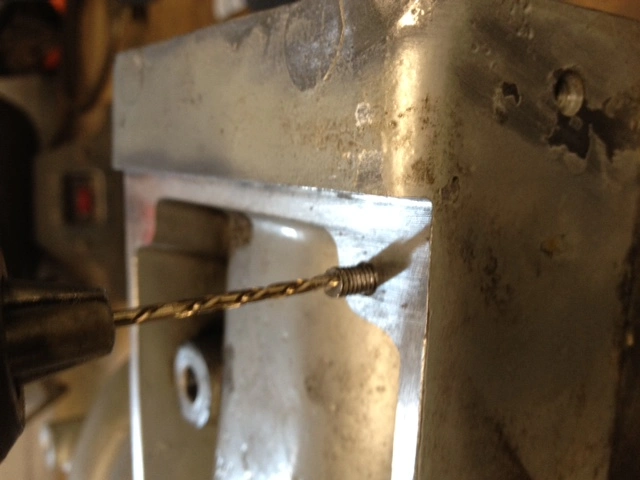

Found out the previous owner had removed the top plate with a drill. :shrug: So I had to use my handy left handed drill bit on one and my EZ out on the other.
Intake 12.JPG

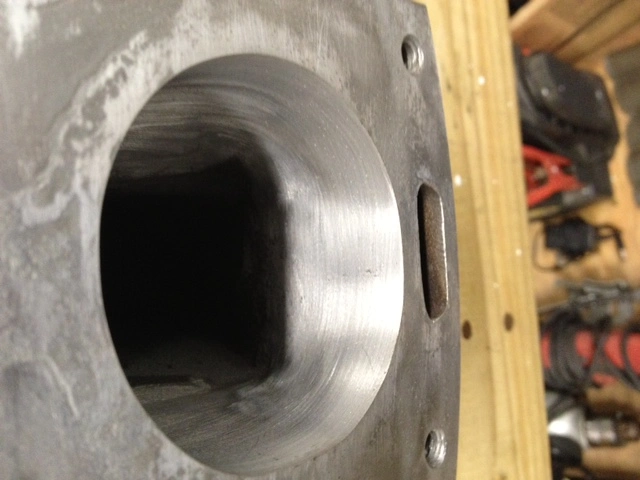

Another shot of the throttle body opening. Yes I measured it. 68.86 or something. And I made it BIGger. My throttle body is 70 mm. Would it matter? Probably not a bit. But I can sleep better.
Intake 14.JPG

Intake 15.JPG

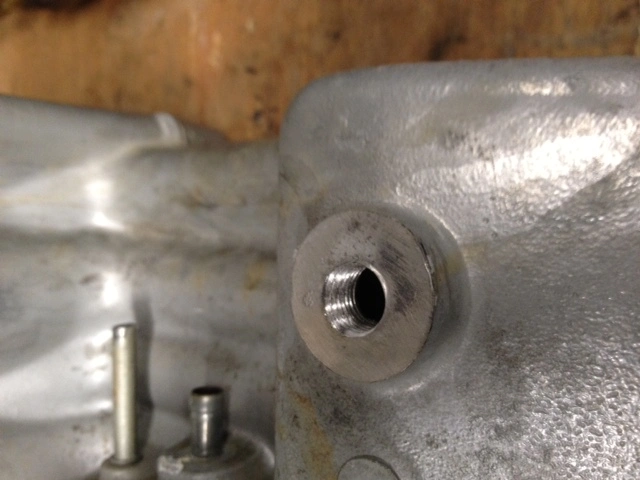

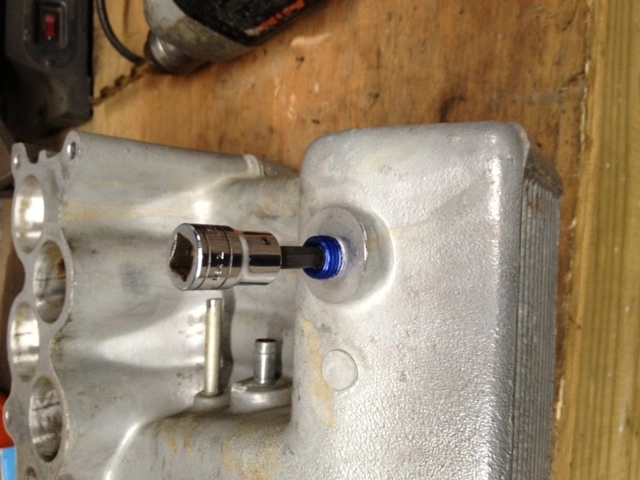

I chose to remove the pressed in tube at one end underneath and drill/tap it for a plug. I don't need this one.
Intake 16.JPG

You can also see in the background that I cut the long one that comes out the front off with a cut off wheel. I won't need it right now for anything and it is long and ugly. I'll cap that one.


gearheadboy

15 Year Member
Jan 15, 2003
1,425
177
84
47
Greencastle Pa

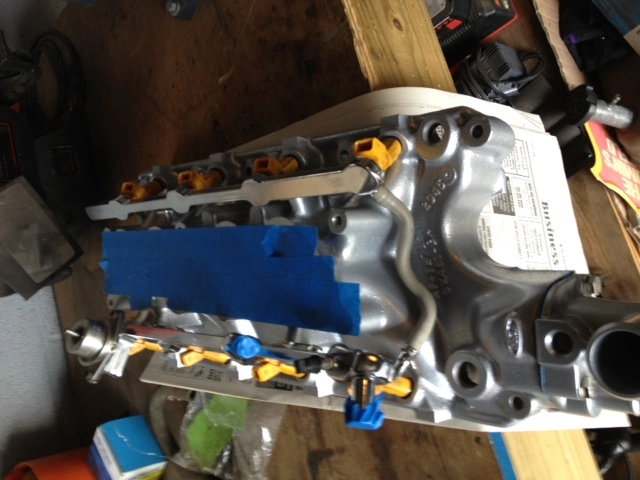

Had time to do some assembly. Cleaned injectors (Explorer 4 hole) and installed new service kits with filters, seals, etc. Note the SN 95 fuel rail.
Intake fuel.JPG

And I got a call from the machine shop....

  • Like
Reactions: elarm1

elarm1

5 Year Member
Dec 17, 2010
1,398
633
144
N.Va
Looks nice! Makes me not want to get rid of my GT40/Exploder intake. P.S. I think you should have sent the lower to TMOSS.


gearheadboy

15 Year Member
Jan 15, 2003
1,425
177
84
47
Greencastle Pa
Looks nice! Makes me not want to get rid of my GT40/Exploder intake. P.S. I think you should have sent the lower to TMOSS.
I talked to Tom via email and he told me I didn't need to port it with my combo. I would have liked to have it ported prior to powder coat but he is right. It will flow fine for this combo. I think this combo will be here a while.

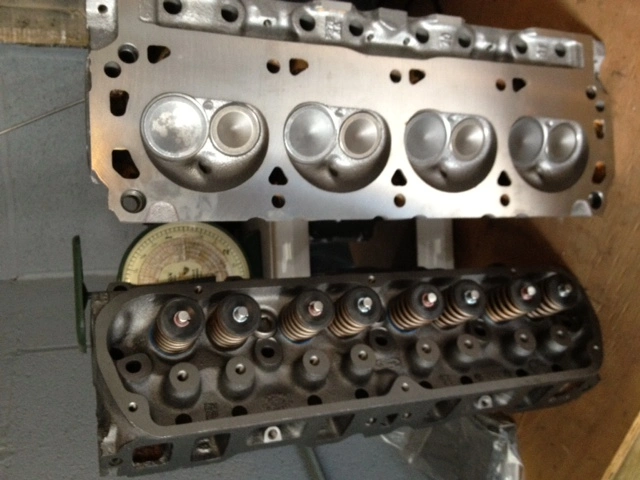

Painted heads.JPG

  • Like
Reactions: elarm1 and smkshw
